Model Image
Manufacturer

Electrolux

Model Number

CRT216HLW6

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241665504 241665504 BASECOMPRESSOR
240527101 240527101 BEARING-HINGE
240338201 240338201 BIN-DOOR
241639501 241639501 BLADE

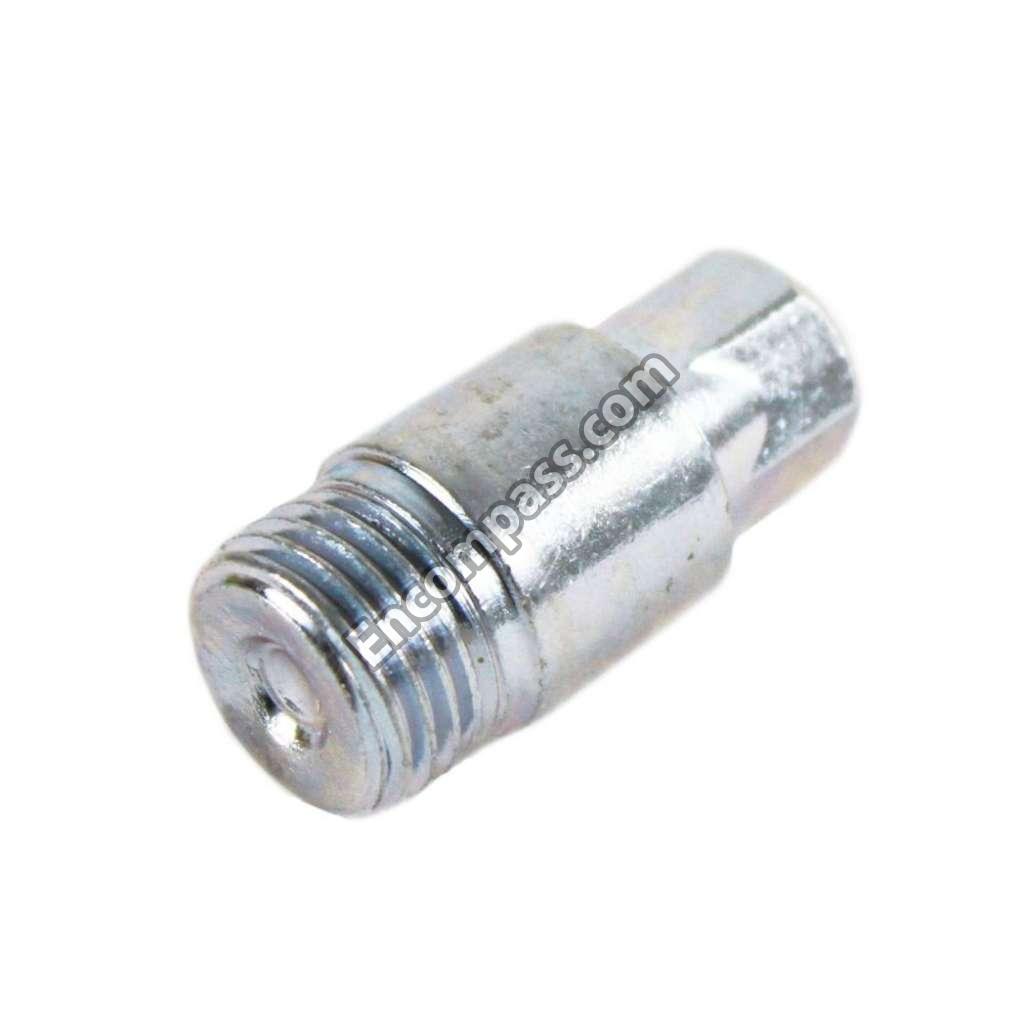

240335502 240335502 BOLT-ROLLER ADJ

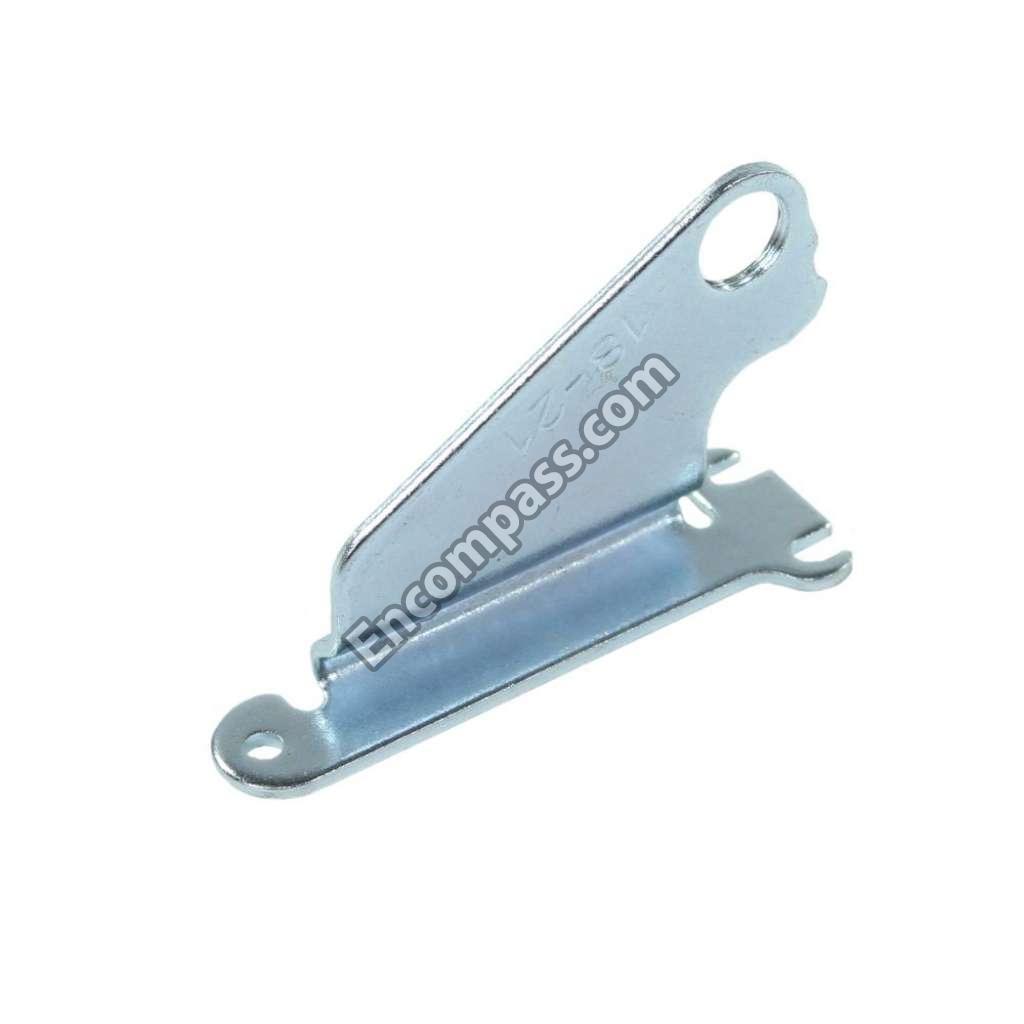

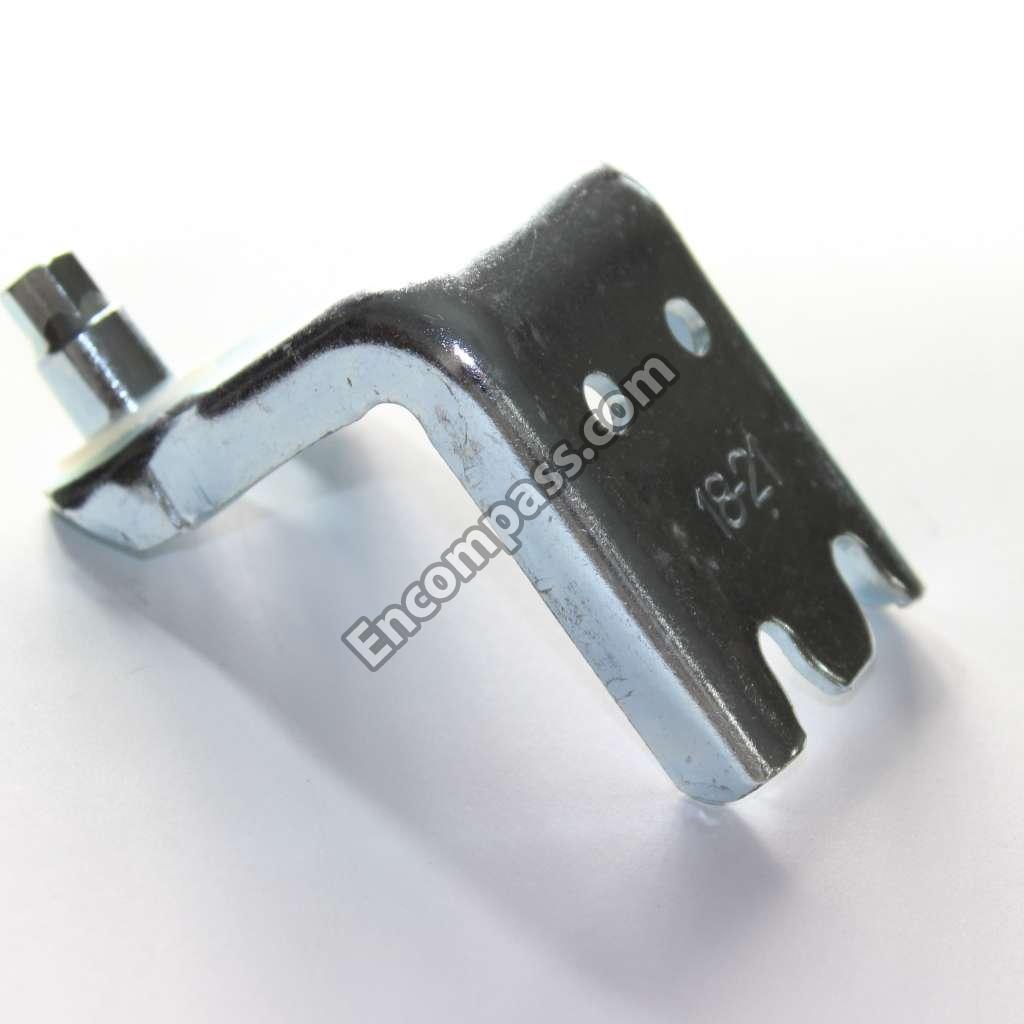

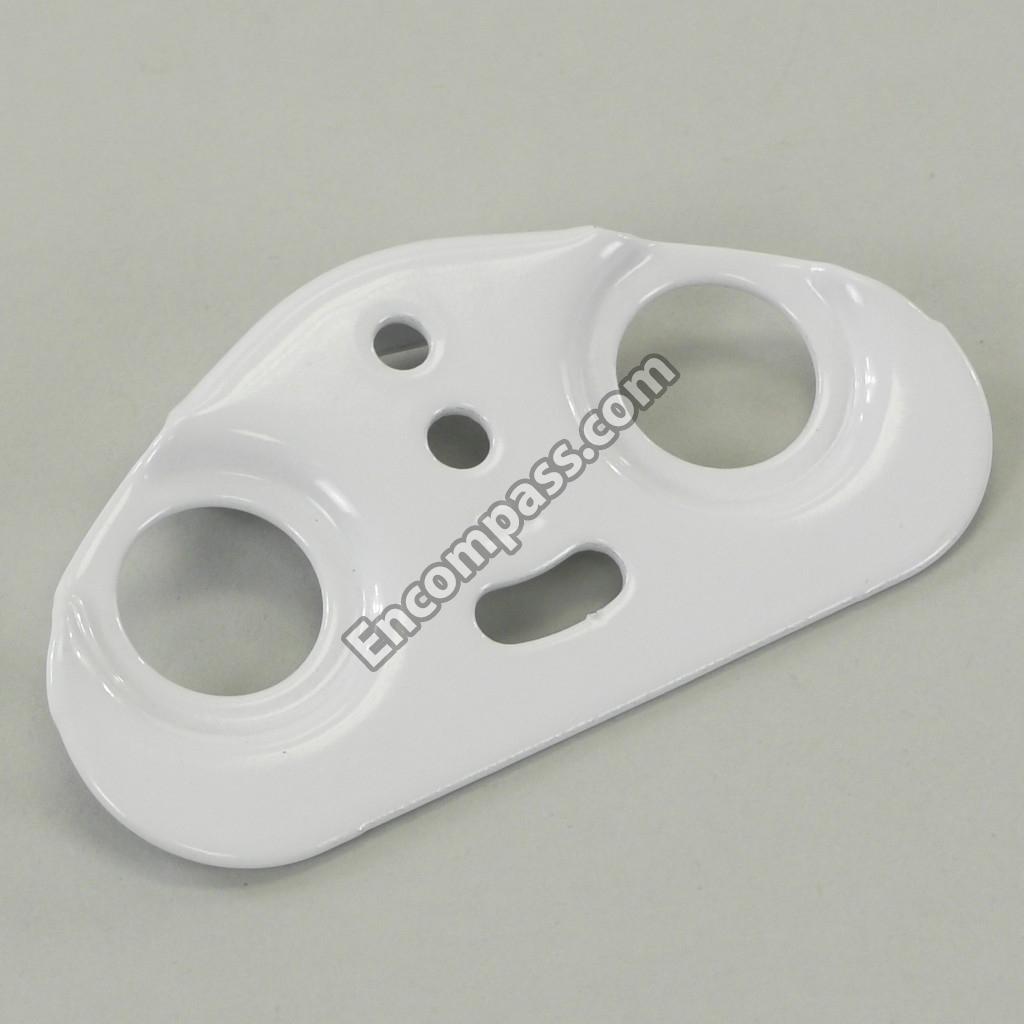

240313806 240313806 BRACKET-CTR HINGE
240314011 240314011 BRACKET-LOWER HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
241555401 241555401 BULB-LAMP

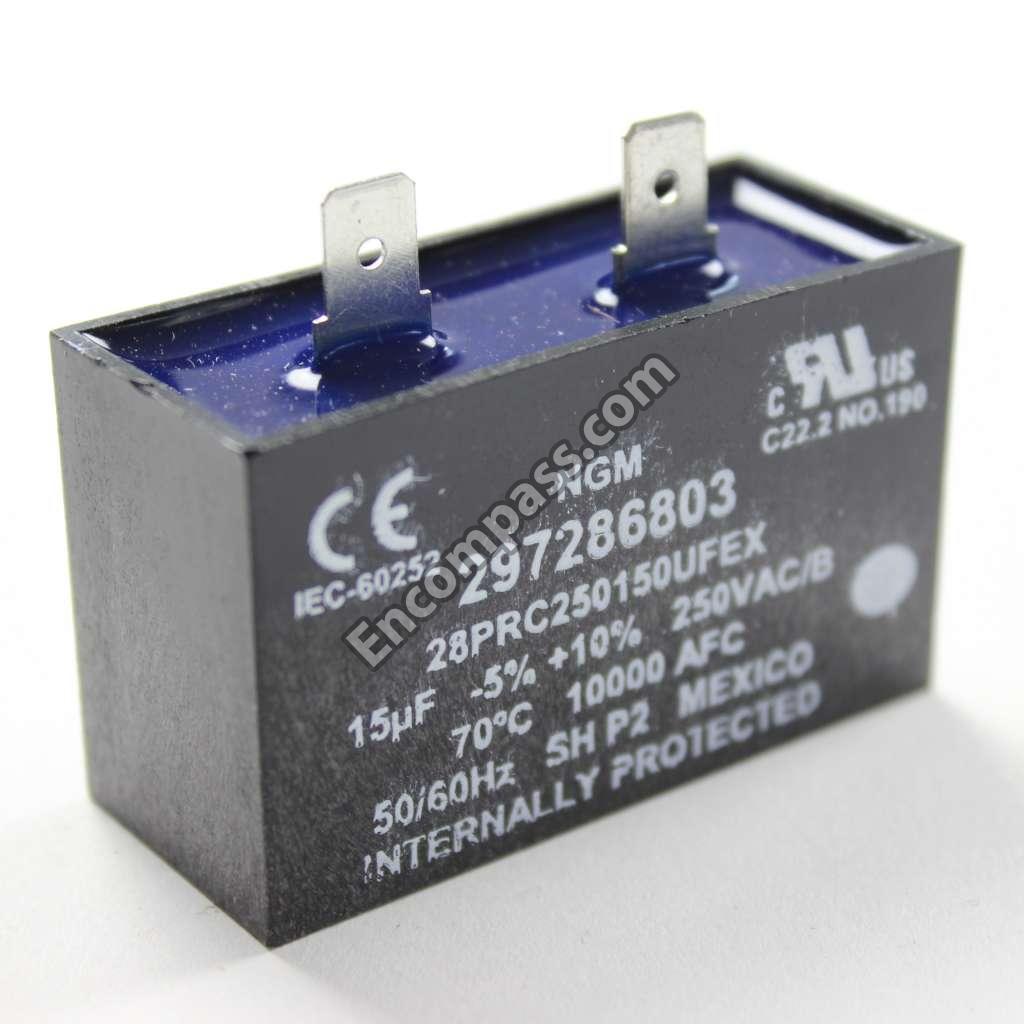

297286803 297286803 CAPACITORRUN
240396801 240396801 CLAMP-TUBE
297030500 297030500 CLIP
240542601 240542601 CLIP-WIRING HARNESS
242037701 242037701 CLIPCOMPRESSOR MTG

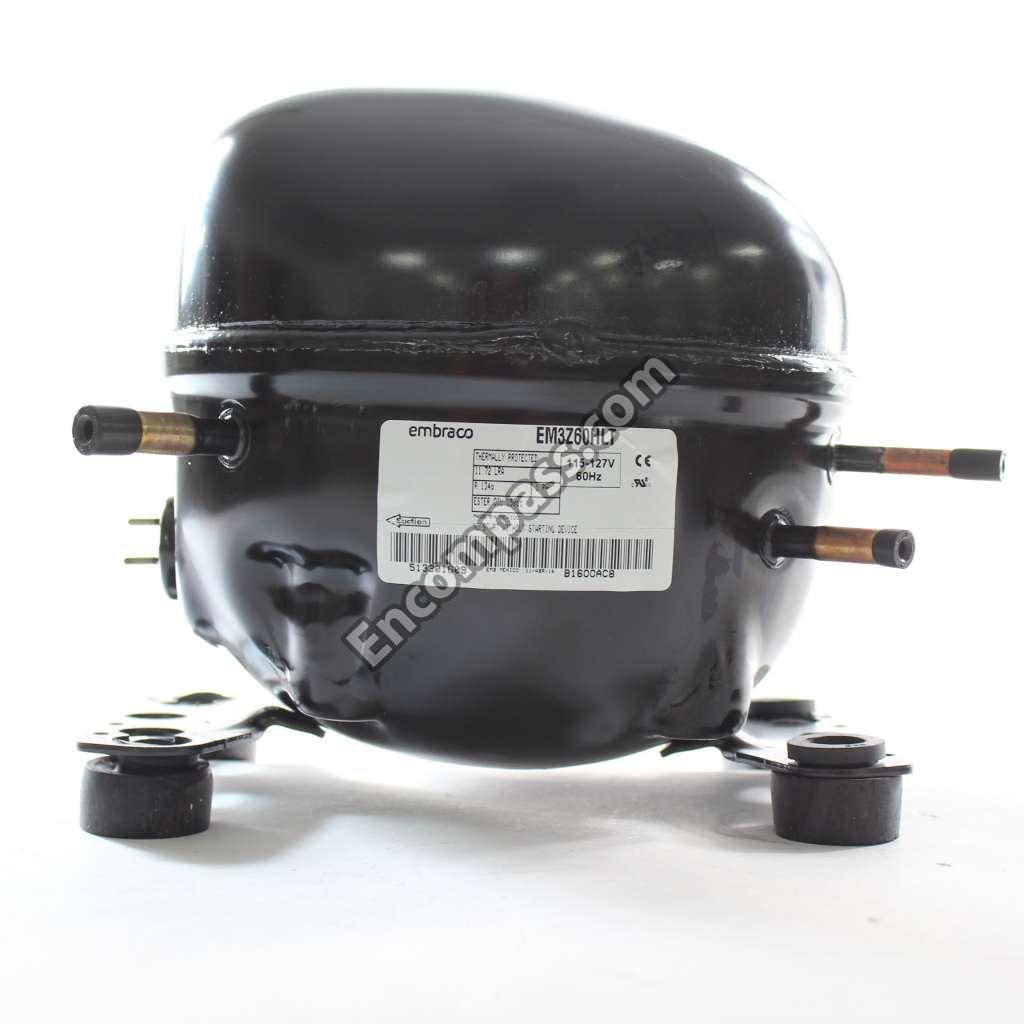

240550937 240550937 COMPRESSOR
241613501 241613501 CONTROL-HUMIDITY
241613502 241613502 CONTROL-HUMIDITY

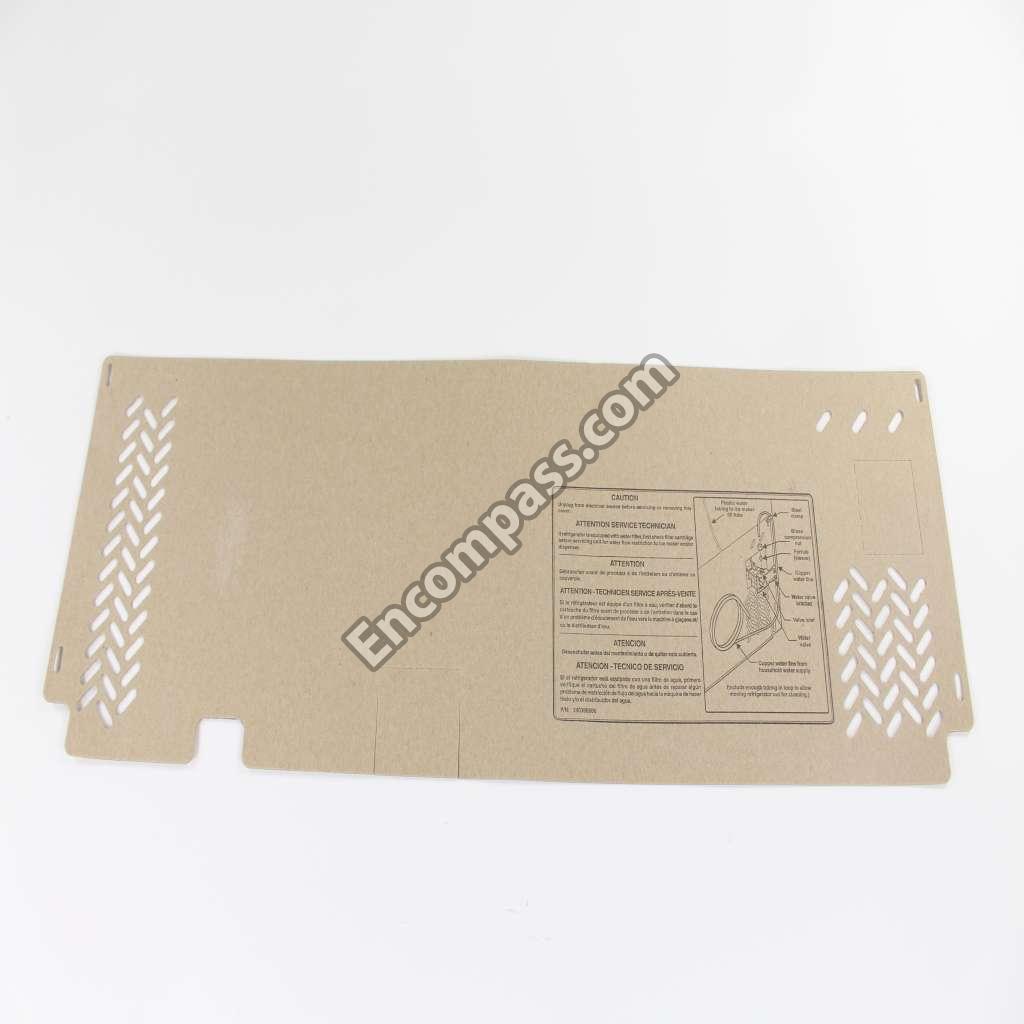

241733907 241733907 COVER
240354401 240354401 COVER-UPPER HINGE

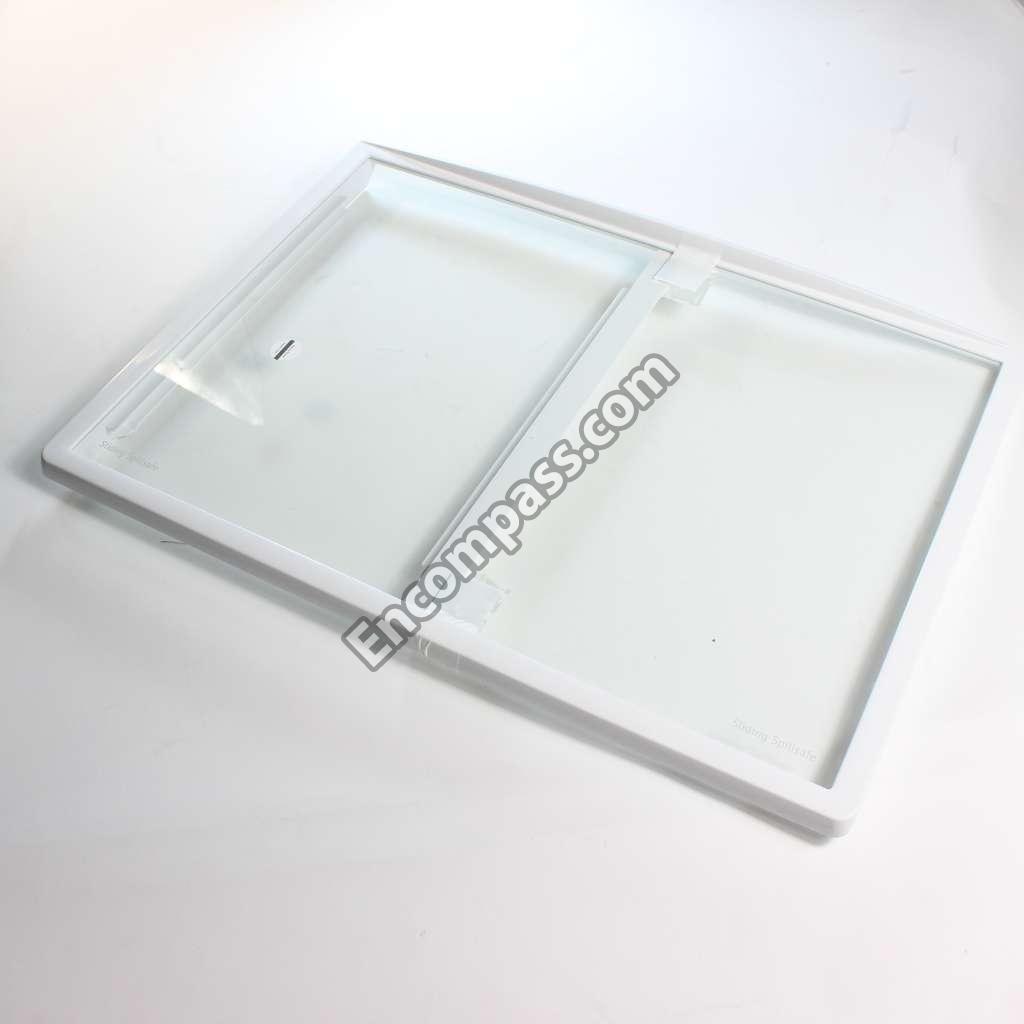

240364790 240364790 COVERCRISPER PAN
240355407 240355407 COVERFAN
241523701 241523701 DAMPER-FAN COVER
242213901 242213901 DEFLECTOR

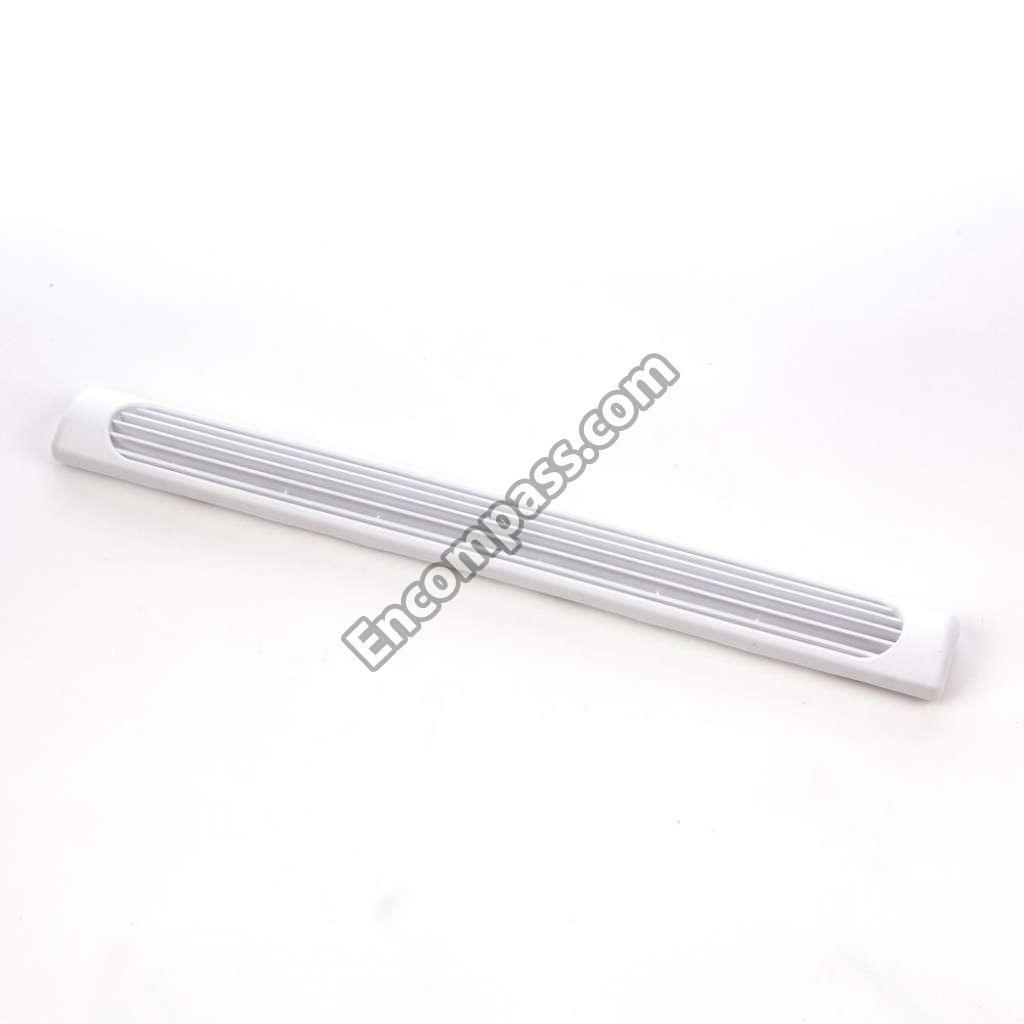

240362601 240362601 DIFFUSER
240545901 240545901 DIFFUSER-AIR

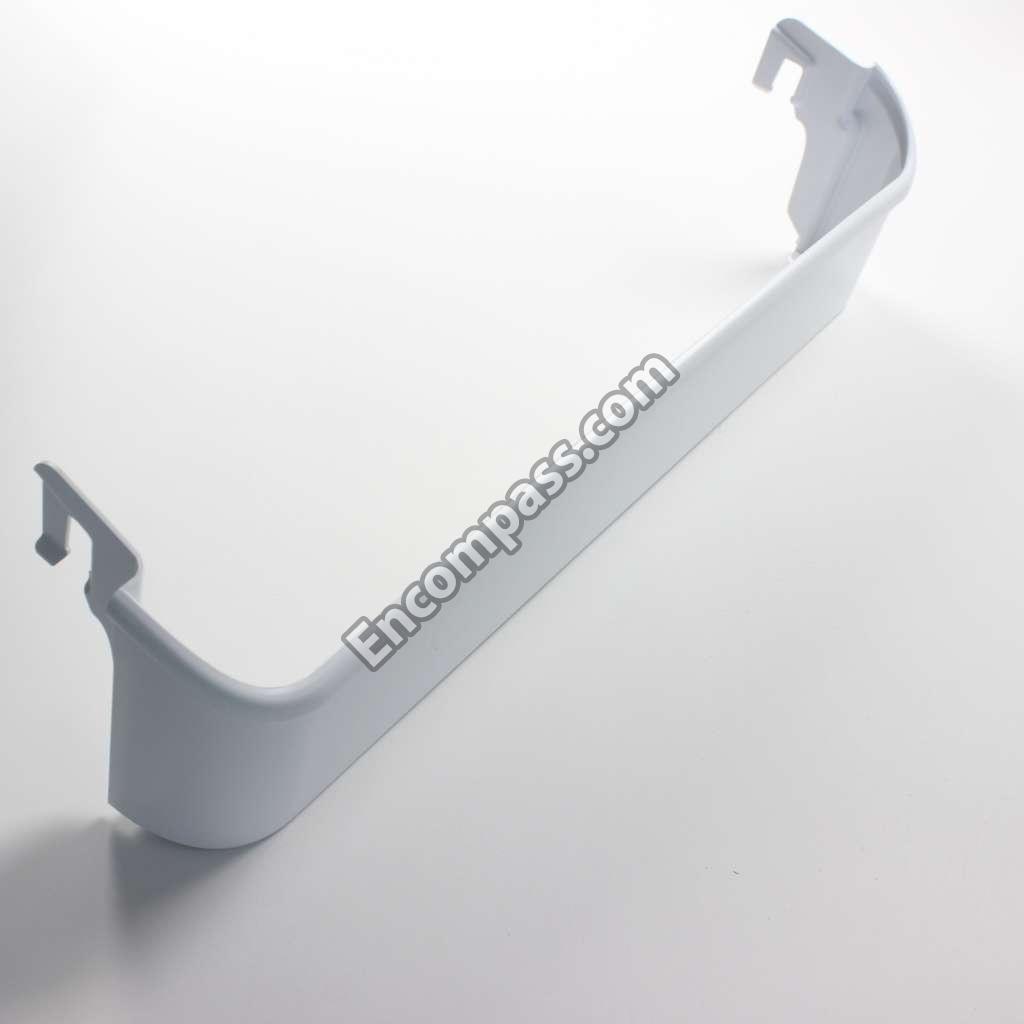

240338101 240338101 DOOR BIN SHELF
240312403 240312403 DOOR STOP
240312414 240312414 DOOR STOP
241798402 241798402 DSP DOORFRZR

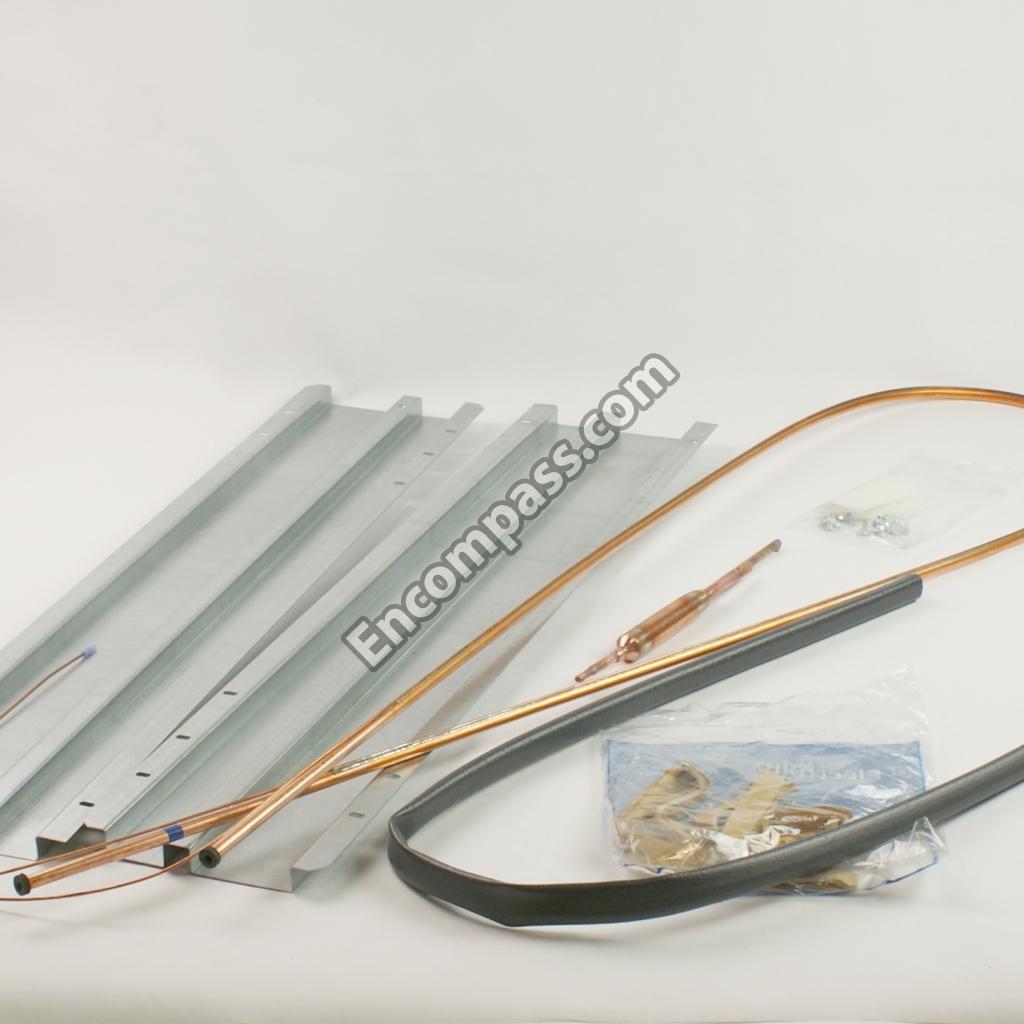

5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE

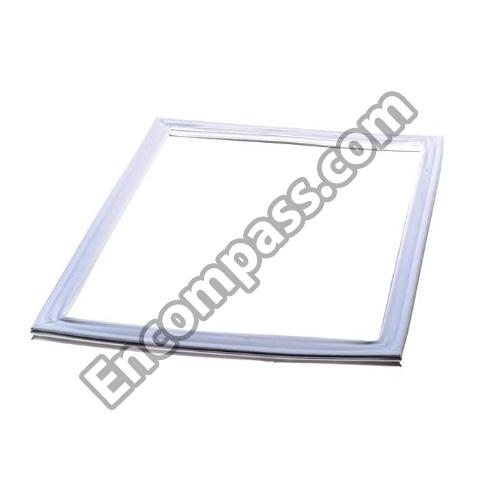

241872505 241872505 GASKET-FRZR-DOOR
241839405 241839405 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
218513300 218513300 GROMMET-COMPR MTG
240339201 240339201 HANDLE-DOOR
242019701 242019701 HARNESSWIRING
5303918330 5303918330 HEAT EXCHANGER KIT

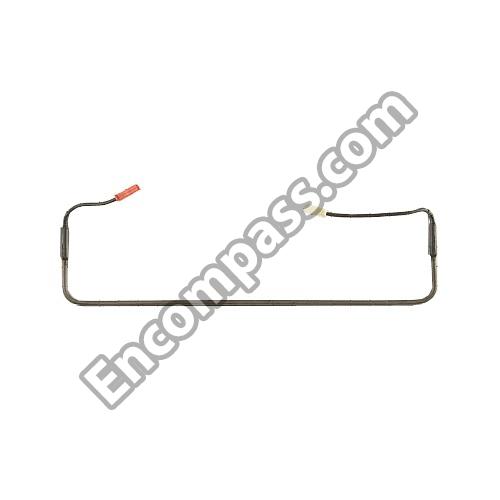

242044021 242044021 HEATERDEFROST
5304421289 5304421289 HOT TUBE REPAIR KIT
240350609 240350609 INSERT-PAN COVER

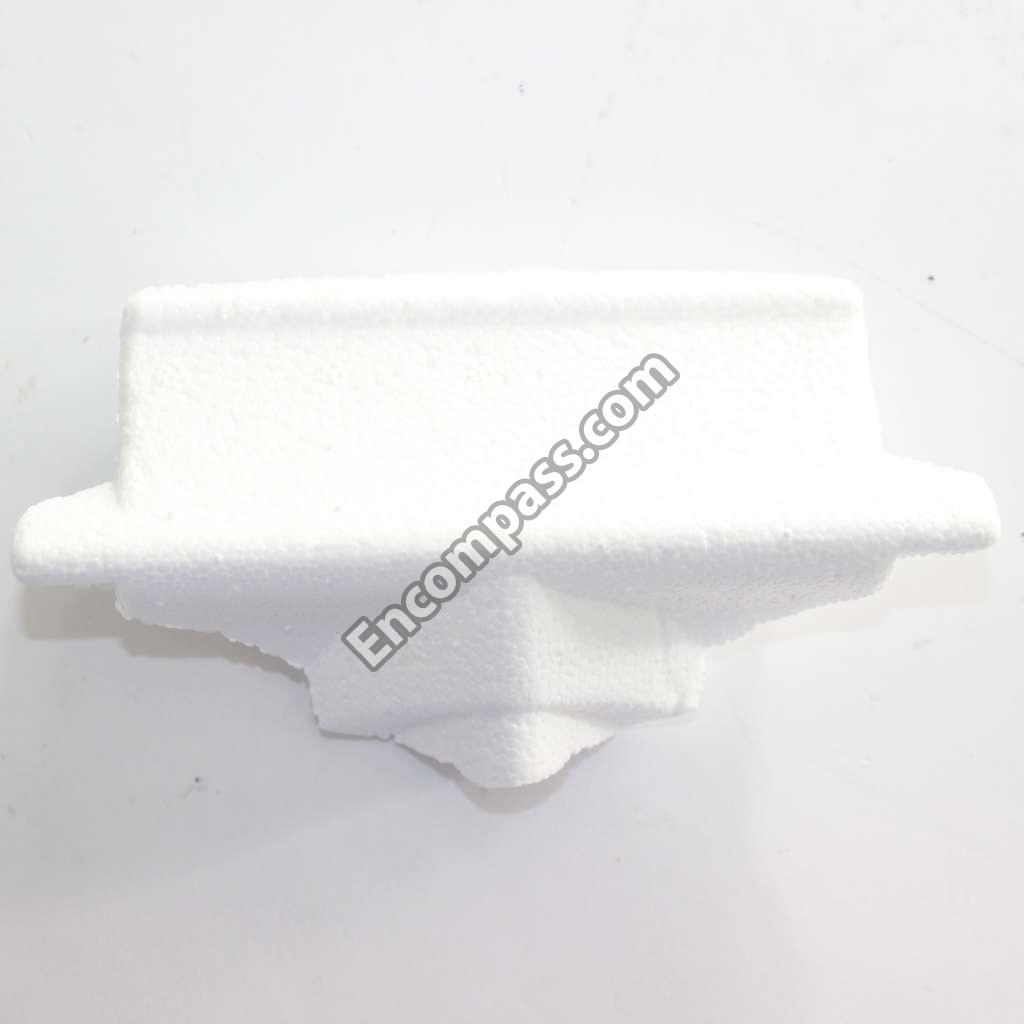

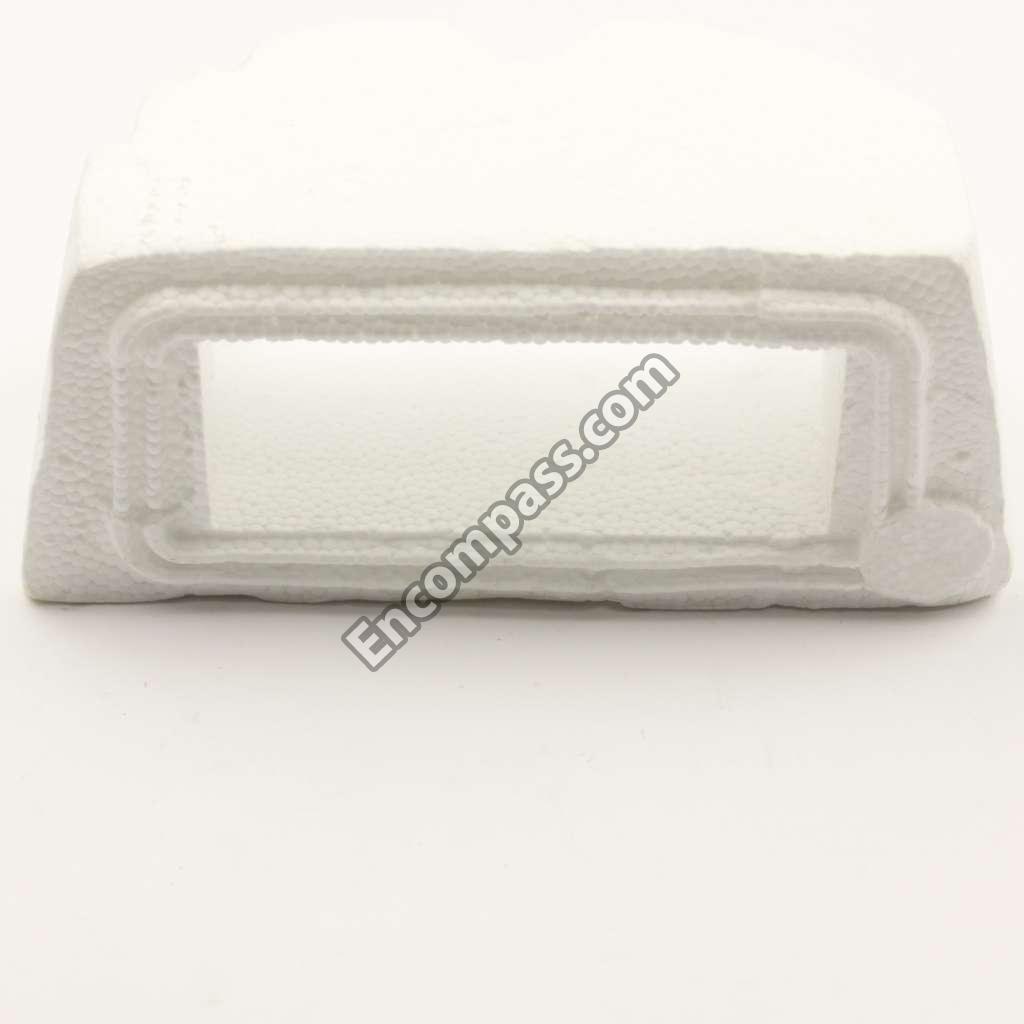

241551902 241551902 INSULATION BLOCK

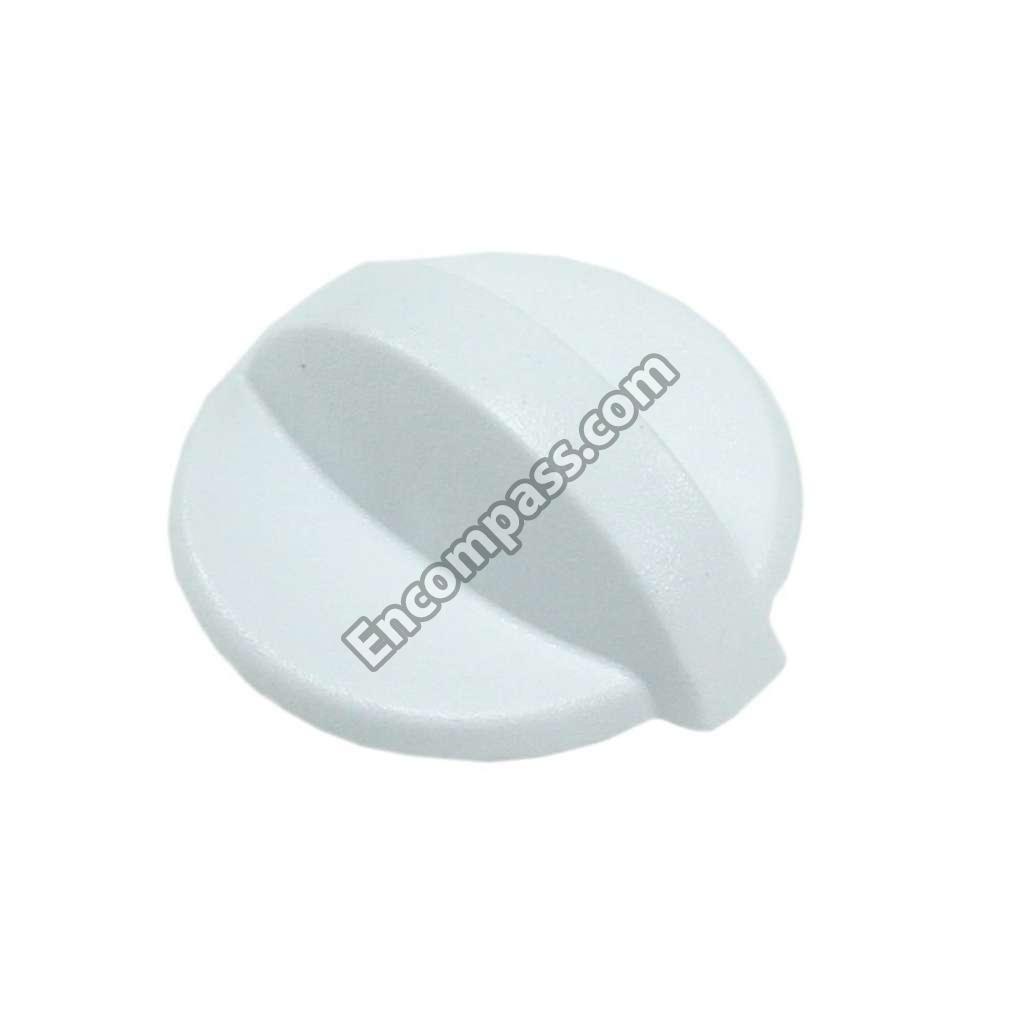

240360801 240360801 KNOB

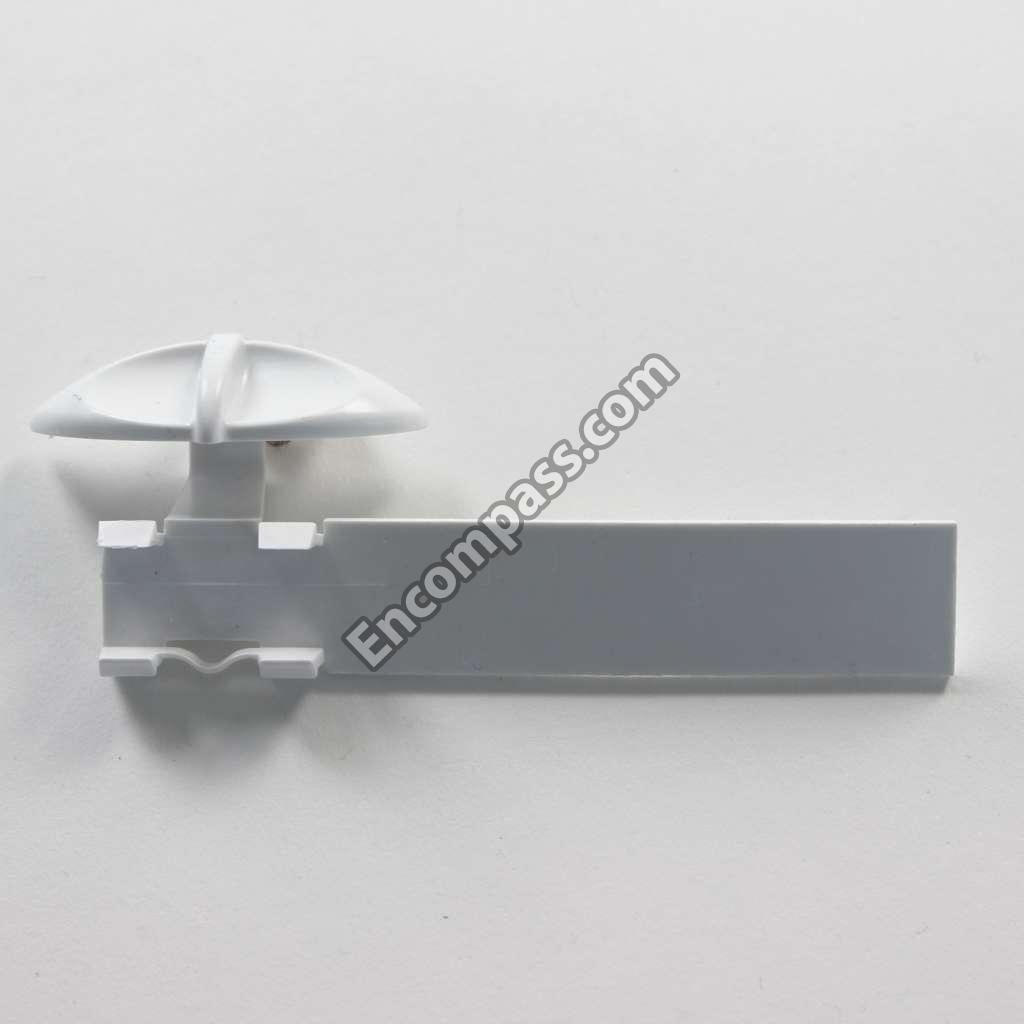

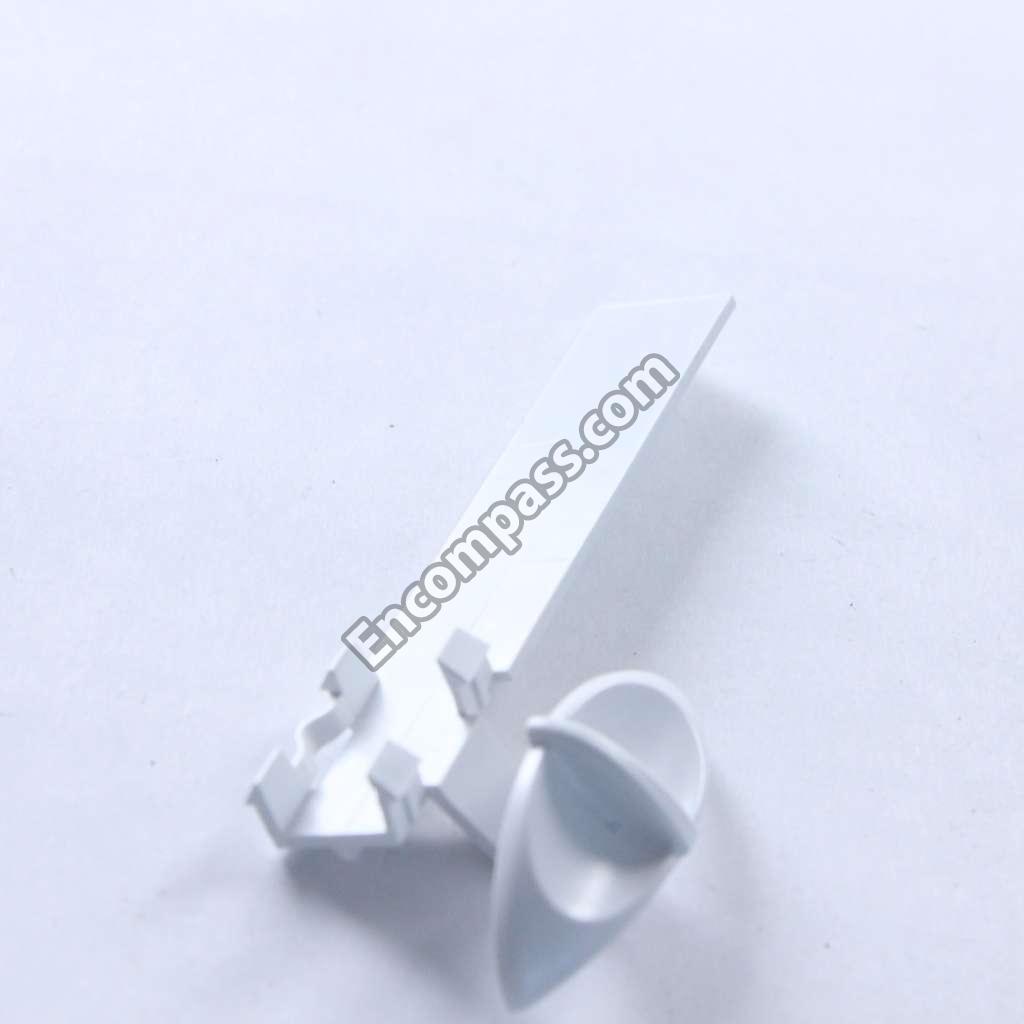

240367001 240367001 KNOB-DAMPER CONTROL
242115801 242115801 LABEL

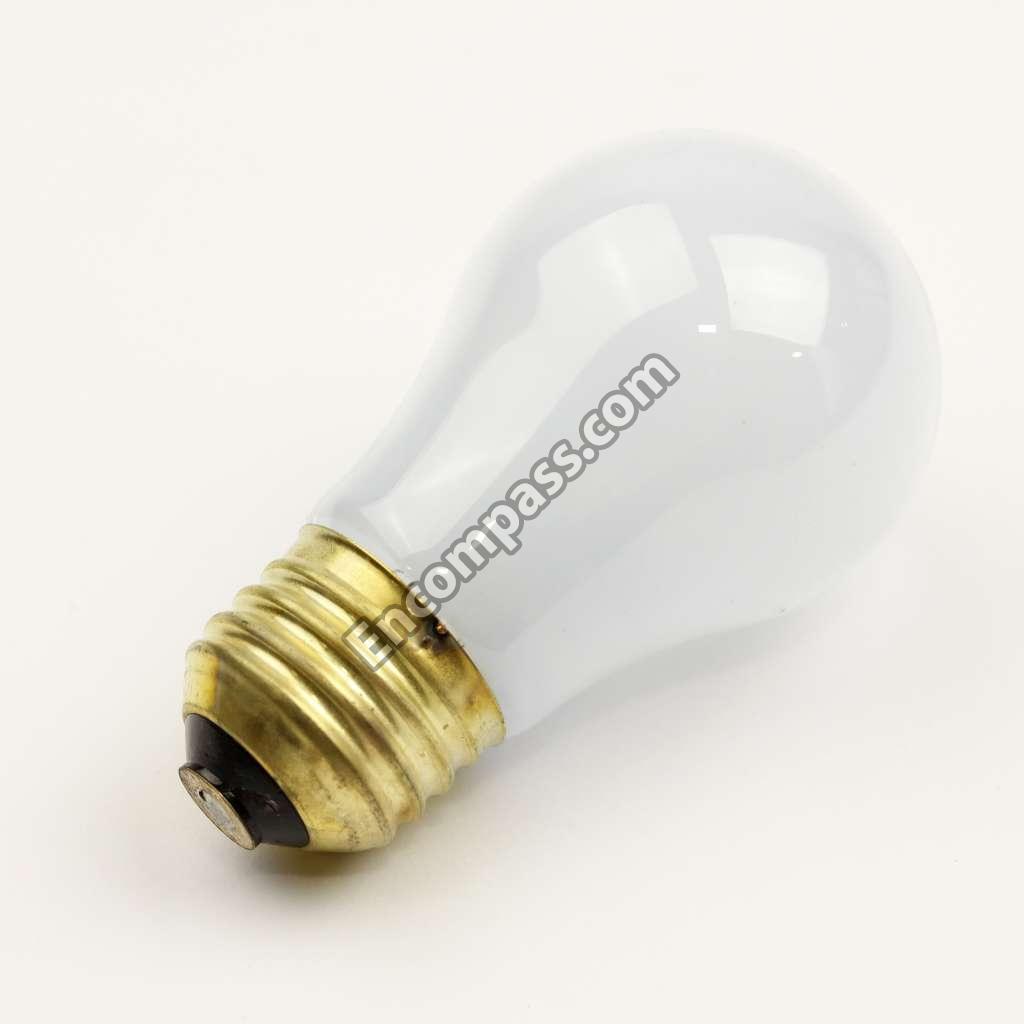

241560701 241560701 LIGHT BULB
242018301 242018301 MOTORCONDENSER FAN

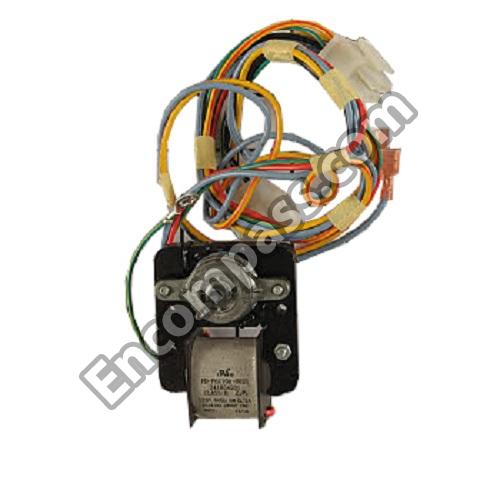

241854501 241854501 MOTOREVAP FAN

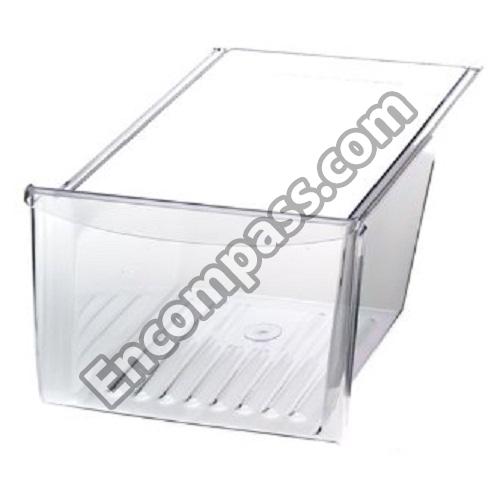

240343803 240343803 PAN
241697602 241697602 PANDEFROST
240516502 240516502 PIN-LOWER HINGE

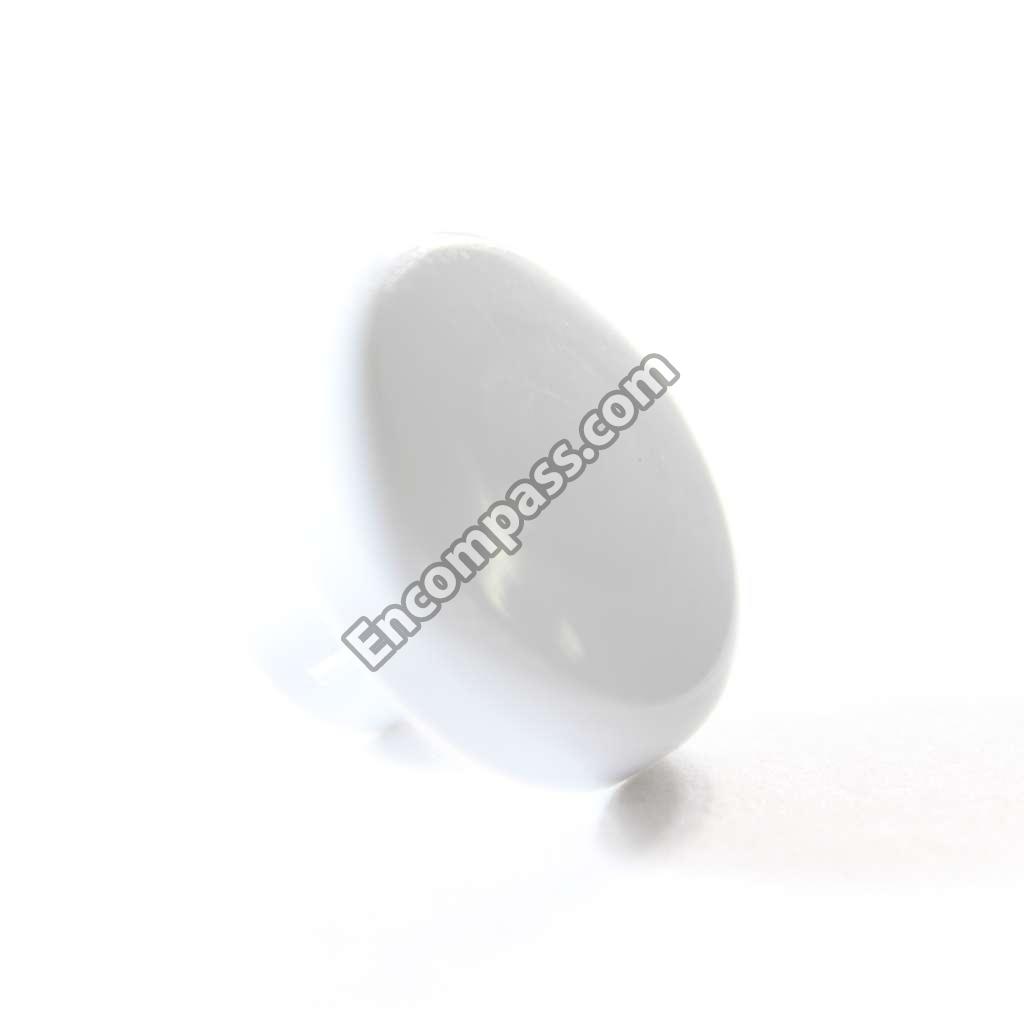

240494001 240494001 PLUG-BUTTON
240381301 240381301 PLUG-BUTTON
240383601 240383601 PLUG-BUTTON
215774901 215774901 PLUG-BUTTON
241586701 241586701 PLUG-FOAM-WTR-INLET
5303208309 5303208309 PLUG-HOLE
240374401 240374401 PLUG-WTR INLET TUBE
242193602 242193602 PLUGHOLE

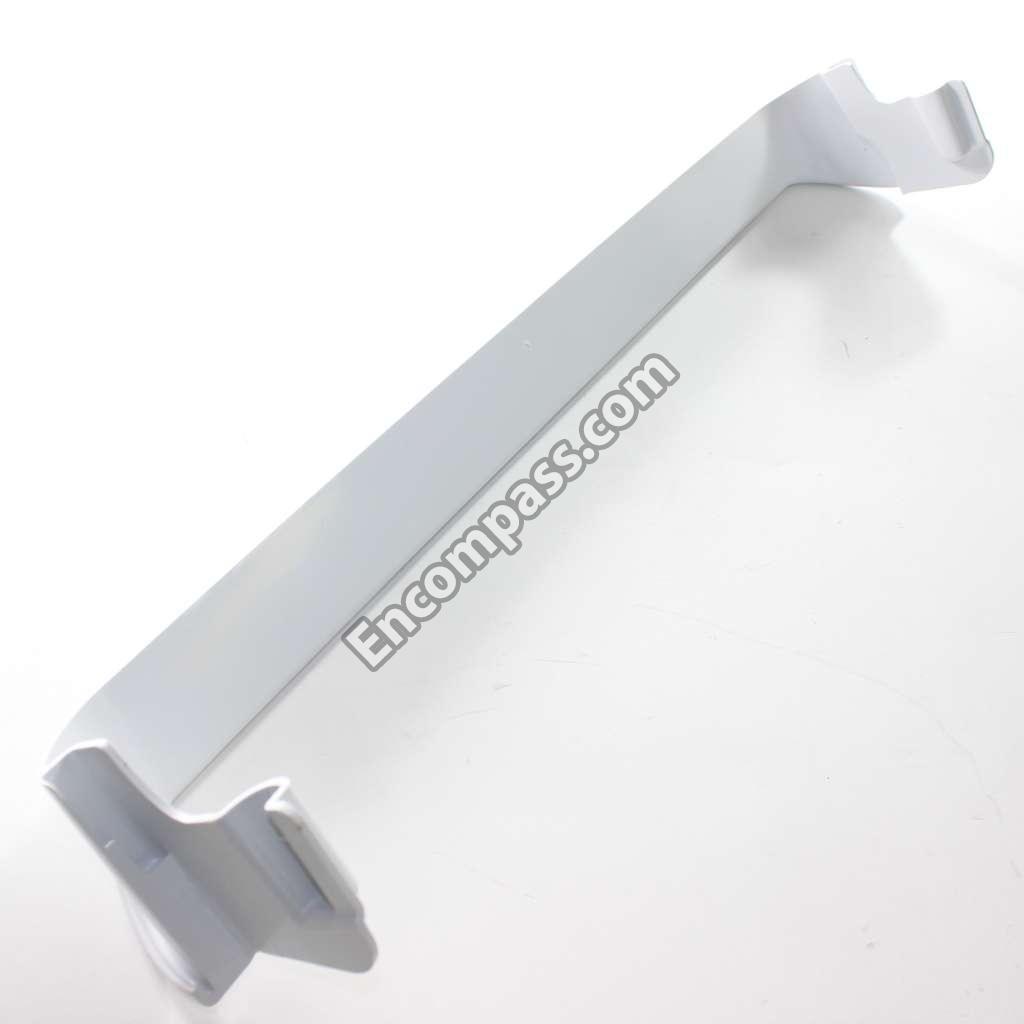

240534801 240534801 RACK-DOOR
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
240383406 240383406 SCREW
218252201 218252201 SCREW
240433204 240433204 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218709101 218709101 SCREWHDL MTG
240568606 240568606 SEAL-COIL COVER

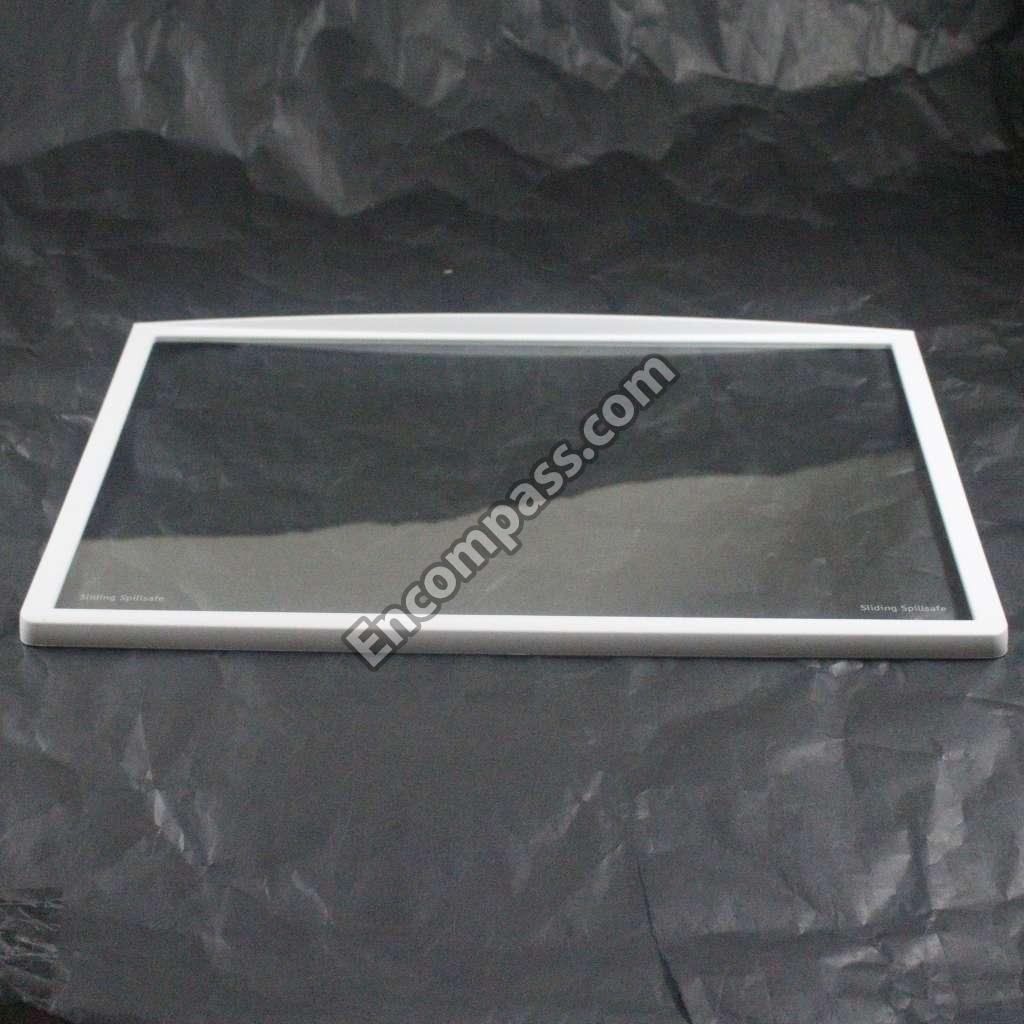

240358928 240358928 SHELFSPILLSAFE
240358927 240358927 SHELFSPILLSAFE
240354302 240354302 SHIELDLIGHT
241946106 241946106 SHROUDCOND FAN

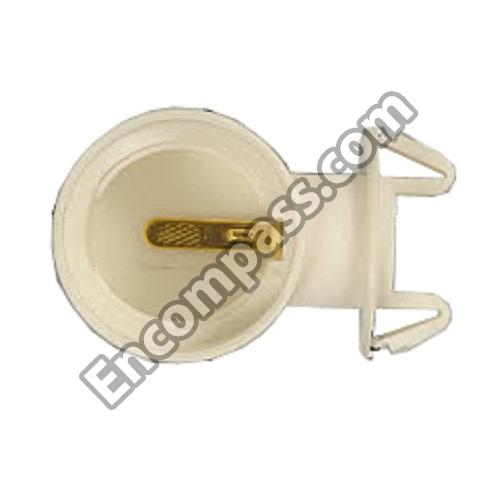

241559801 241559801 SOCKET-LIGHT
240409302 240409302 SPACER-COND TUBE

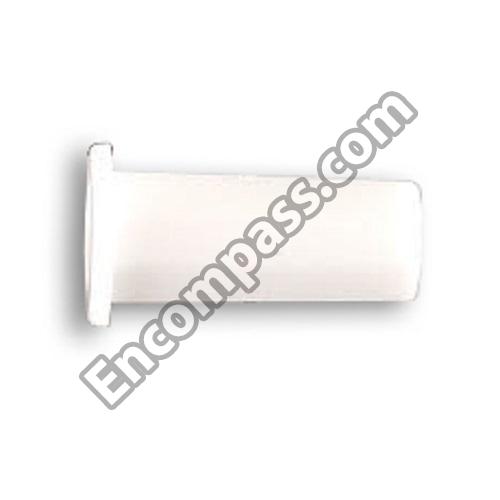

240336802 240336802 SPACER-HINGE

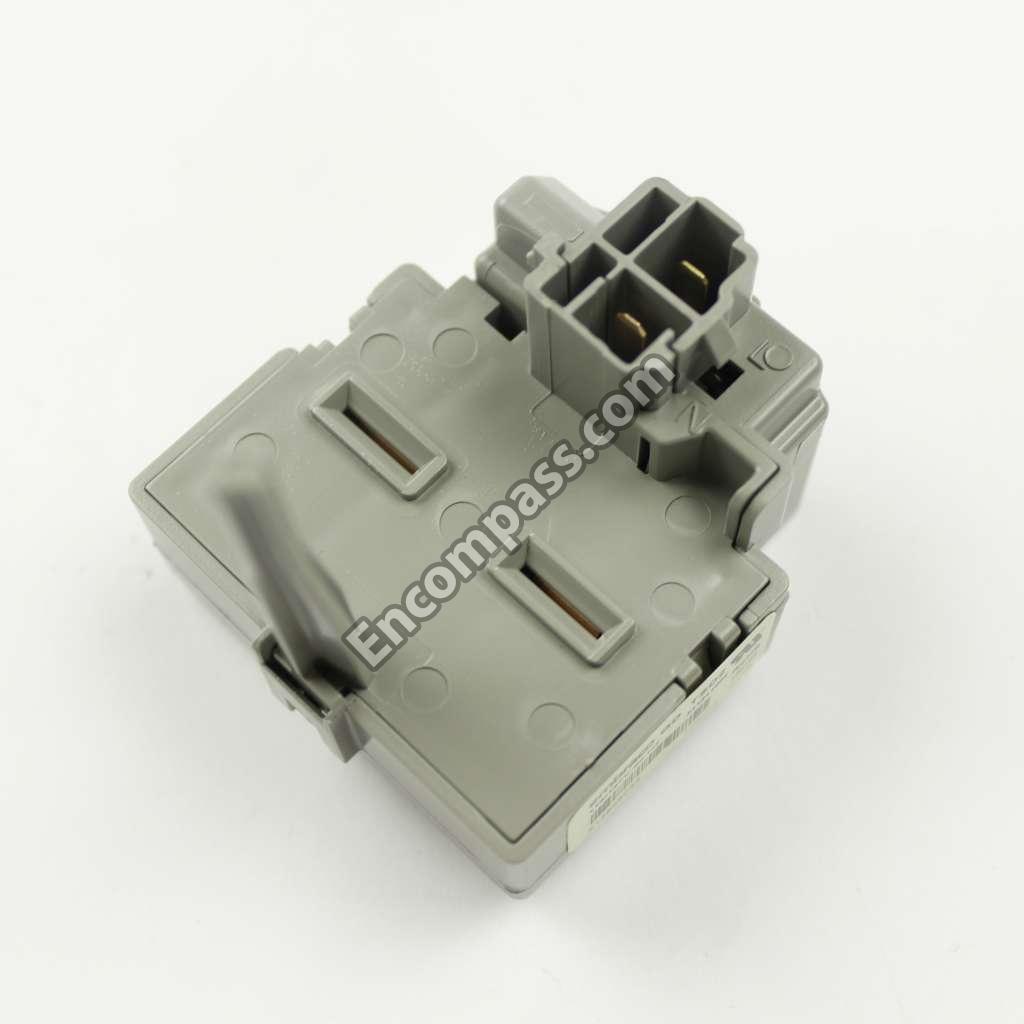

241941005 241941005 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
240505801 240505801 SWITCH

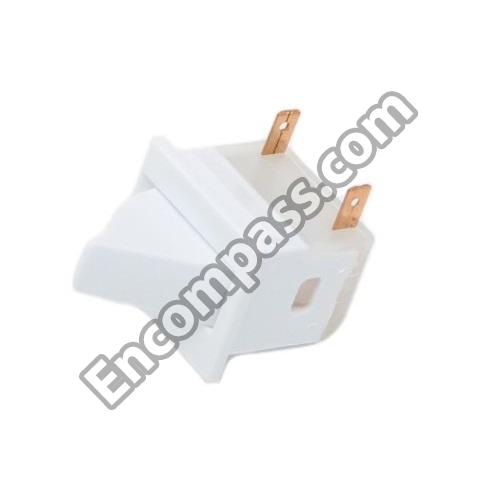

241554901 241554901 SWITCH-LIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
242161201 242161201 TRIMCABINET CORNER
241801301 241801301 TROUGH-DRAIN

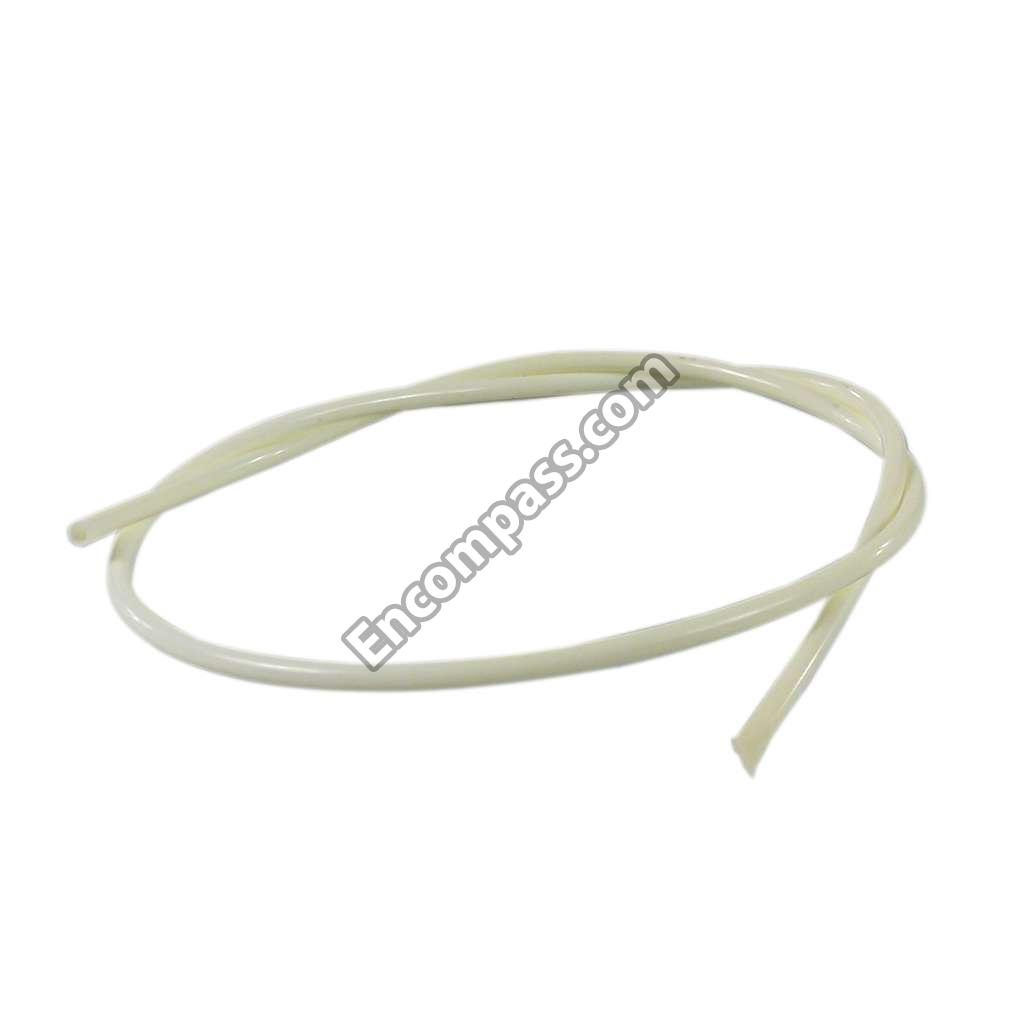

240468202 240468202 TUBE
241871501 241871501 TUBECONNECTOR
240311303 240311303 WASHER
215474201 215474201 WASHER
241812301 241812301 WASHERCOMPR MTG
5303321319 5303321319 WHITE TOUCHUP PAINT

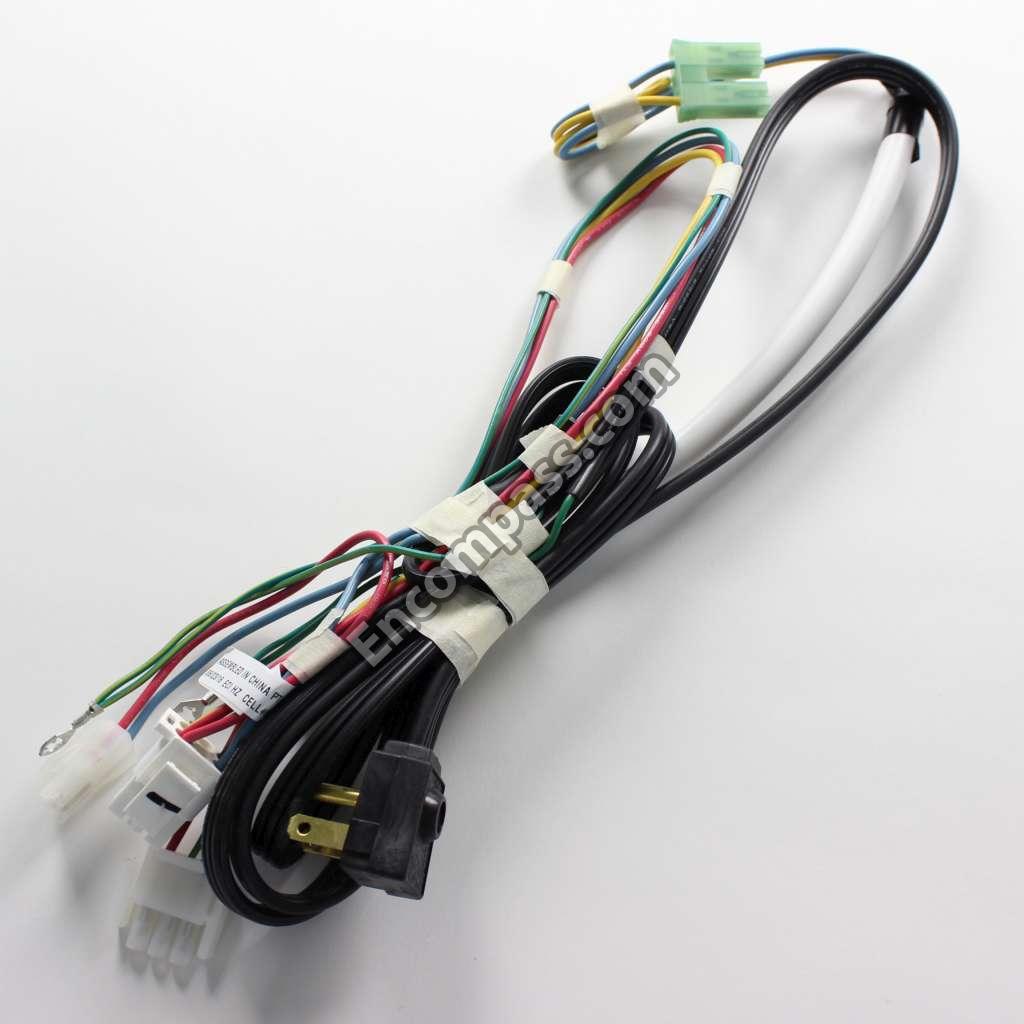

241619802 241619802 WIRING HARNESS
240388701 240388701 WIRING HARNESS
