Model Image
Manufacturer

Electrolux

Model Number

CRTE187EB7

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
240527102 240527102 BEARING-HINGE
240338201 240338201 BIN-DOOR
240495804 240495804 BIN-DOOR
5303321321 5303321321 BLACK TOUCHUP PAINT
218396700 218396700 BLOCK
240313803 240313803 BRACKET-CTR HINGE
5303292397 5303292397 BRACKET-MOTOR MTG
5303292396 5303292396 BRACKET-MOTOR MTG
241555401 241555401 BULB-LAMP
218233300 218233300 CHANNEL
5303292395 5303292395 CHANNEL-SHELF MTG
241544101 241544101 CLAMP
218931001 218931001 CLAMP-MOTOR WIRING
240396801 240396801 CLAMP-TUBE
5304456288 5304456288 CLAMP-WIRING HARNES
240542601 240542601 CLIP-WIRING HARNESS
5304472169 5304472169 CONDENSER
240385201 240385201 CONTAINER
241613501 241613501 CONTROL-HUMIDITY
241613502 241613502 CONTROL-HUMIDITY
241733907 241733907 COVER
241652301 241652301 COVER

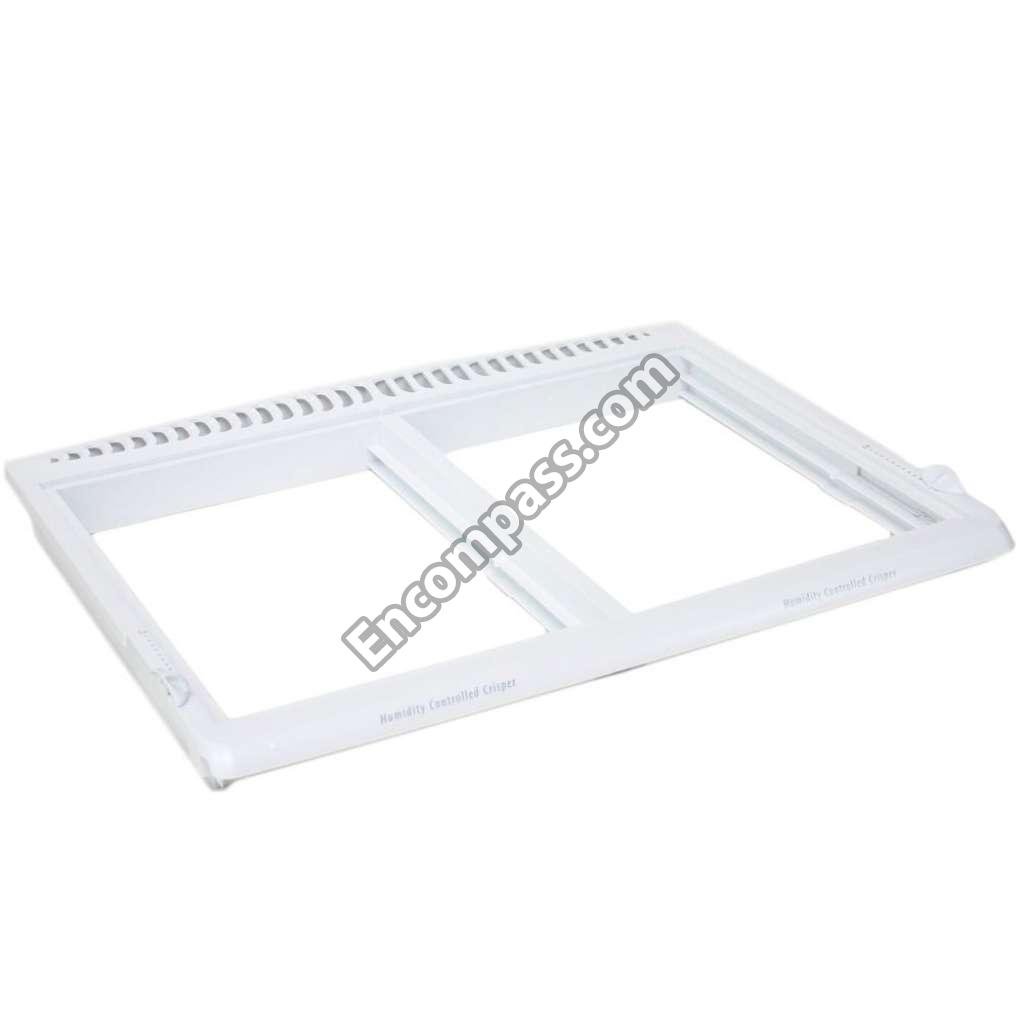

240364714 240364714 COVER-CRISPER PAN
241652213 241652213 COVER-EVAP COIL
240354404 240354404 COVER-UPPER HINGE
240367401 240367401 DAMPER-FAN COVER
241542001 241542001 DEFLECTOR
240362601 240362601 DIFFUSER
240338313 240338313 DOOR
240338101 240338101 DOOR BIN SHELF
218428121 218428121 DOOR HANDLE
240312405 240312405 DOOR STOP
240312406 240312406 DOOR STOP
240410203 240410203 DOOR-FRZR
241649208 241649208 ENERGY GUIDE LABEL
5303918274 5303918274 EVAPORATOR KIT
5308000010 5308000010 FAN BLADE
240405201 240405201 GROMMET
5304500407 5304500407 GROMMET
218513300 218513300 GROMMET-COMPR MTG
5303918263 5303918263 HEAT EXCHANGER KIT
5303918222 5303918222 HOT TUBE REPAIR KIT
240360801 240360801 KNOB
240367001 240367001 KNOB-DAMPER CONTROL
241560701 241560701 LIGHT BULB
240337103 240337103 PAN-CRISPER
240530811 240530811 PAN-MEAT
240516502 240516502 PIN-LOWER HINGE
240494001 240494001 PLUG
240494003 240494003 PLUG-BUTTON
240381303 240381303 PLUG-BUTTON
241586701 241586701 PLUG-FOAM-WTR-INLET
5303208309 5303208309 PLUG-HOLE
240374401 240374401 PLUG-WTR INLET TUBE
215774918 215774918 PLUGBUTTON
5304455655 5304455655 RIVET
5304418225 5304418225 ROLLER
240335006 240335006 ROLLER ASSEMBLY
241665606 241665606 S/APUR COMPR BASE
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
215503203 215503203 SCREW
240521303 240521303 SCREW
240383406 240383406 SCREW
218252201 218252201 SCREW
218362501 218362501 SCREW
240433204 240433204 SCREW
241500304 241500304 SCREW
241710601 241710601 SCREW
215005101 215005101 SCREW
218897004 218897004 SCREW
5304456287 5304456287 SCREW,HEX WASHER HEAD,8-15A X
240442707 240442707 SCREW-#10-32 X 3/4
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
241616602 241616602 SHELF
240354302 240354302 SHIELD-LIGHT
240364202 240364202 SOCKET-LIGHT/LAMP
240336803 240336803 SPACER-HINGE

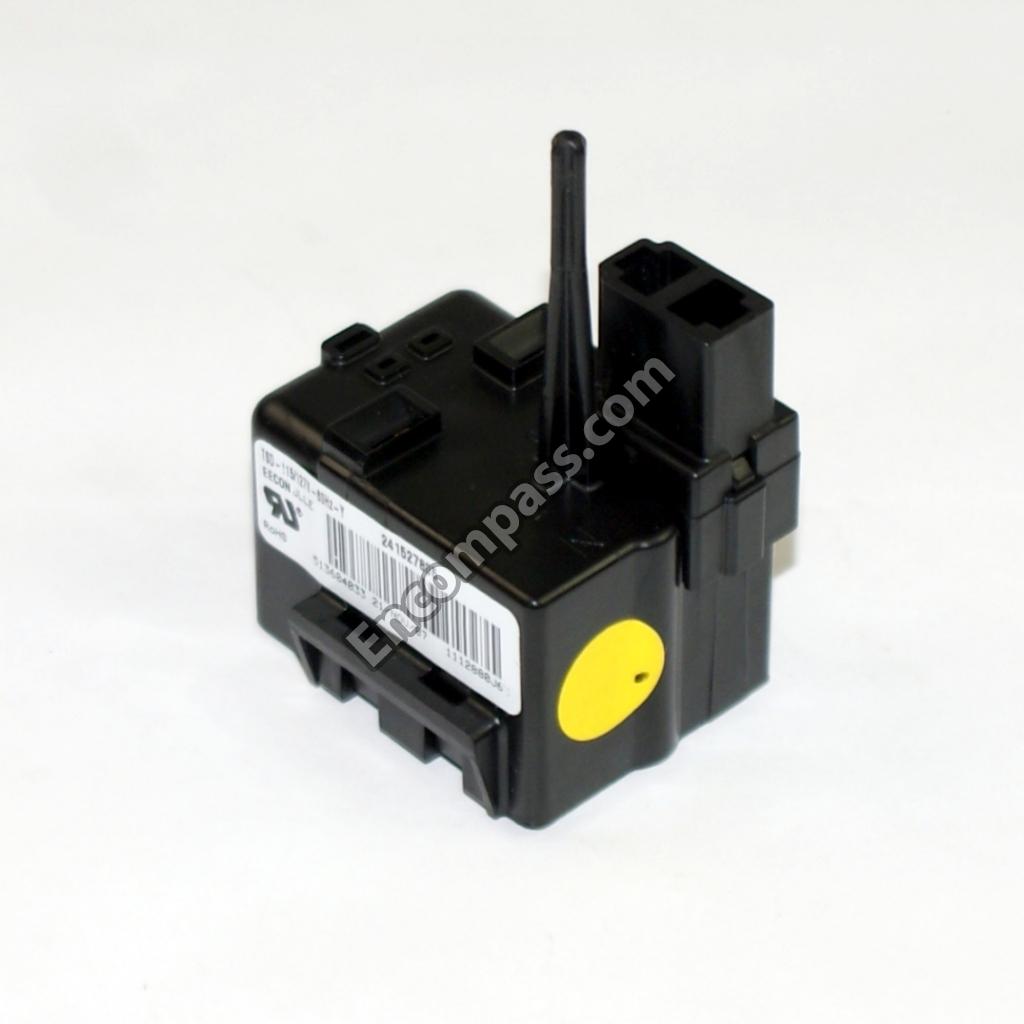

241527805 241527805 STARTER
5308000110 5308000110 STRAP-EVAP/HEATER
241554901 241554901 SWITCH-LIGHT/LAMP
240346701 240346701 TAPE-FOAM SEAL
240356501 240356501 TRACK
240365401 240365401 TRACK
241801301 241801301 TROUGH-DRAIN
240500801 240500801 TUBE-DRAIN
240311303 240311303 WASHER
215474201 215474201 WASHER
241812301 241812301 WASHERCOMPR MTG
241537701 241537701 WIRING HARNESS
240388701 240388701 WIRING HARNESS
240496101 240496101 WIRING HARNESS
