Manufacturer
Electrolux
Model Number
DG650KXD3
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BEARING, HINGE |
|
|
BELT (4) |
|
|
BLOWER WHEEL |
|
|
BRACKET-GROUNDING |
|
|
CAM-DRIVE |
|
|
CLAMP-MOTOR |
|
|
CLIP |
|
|
CLIP,(2) ,TUBE MTG. |
|
|
CLIP,BALL ,STEEL ,FLAT NUT |
|
|
CLIP,TOP-TO-FRONT |
|
|
CLIP-HARNESS |
|
|
CONTAINER-ICE,BUCKET ONLY |
|
|

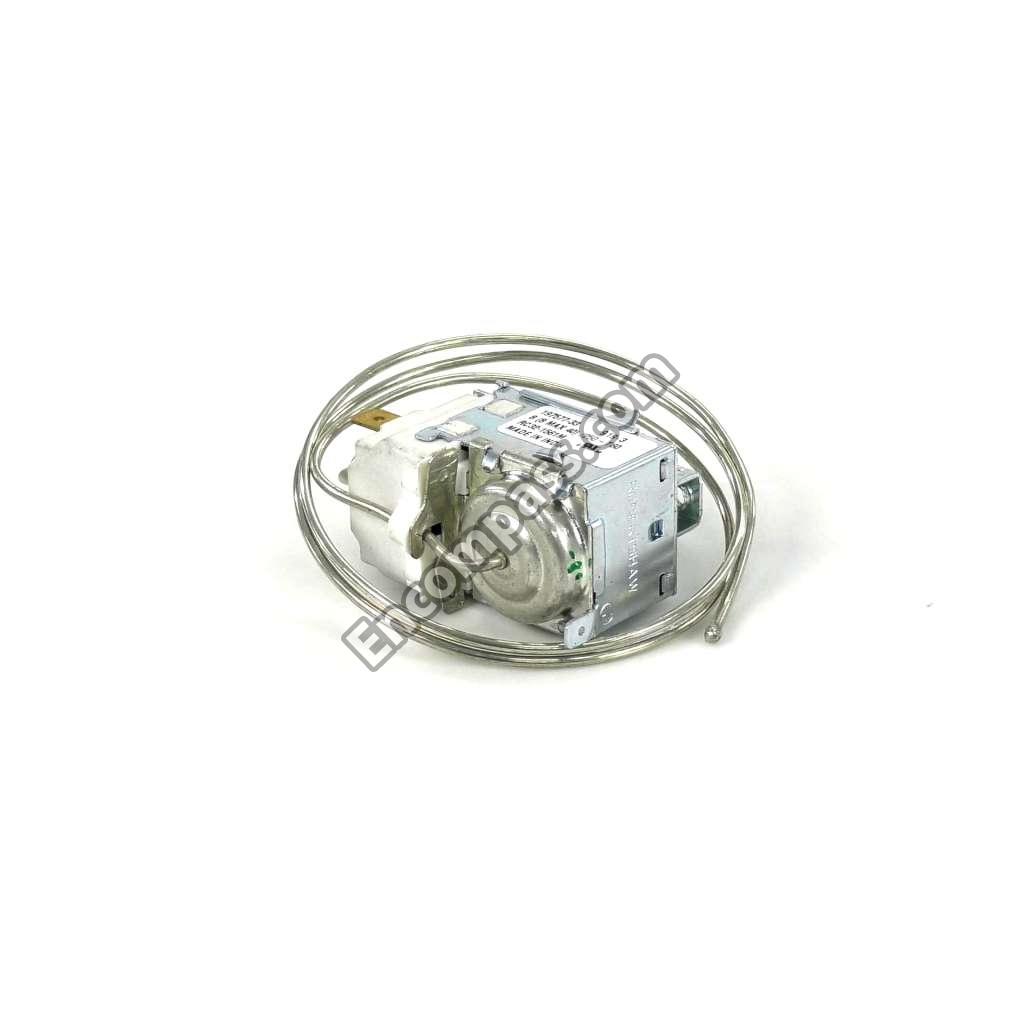

CONTROL, TEMPERATURE |
|
|
CONTROL-TEMPERATURE |
|
|
COVER-ICE MAKER,36,MID-SOUTH |
|
|
COVER-UPPER HINGE,WHITE |
|
|
DAMPER, MEAT KEEPER |
|
|
DOOR STOP, REFR DOOR |
|
|
DOOR-ACCESS |
|
|
DRIVE BLADE |
|
|
DRUM-ICE DISP |
|
|
DUCT-HEAT |
|
|
EJECTOR-ICE,18,MID-SOUTH ELEC |
|
|
FAN BLADE,RED ,EVAPORATOR FAN |
|
|
GEAR |
|
|
GROMMET |
|
|
GROMMET,SHELF MTG ,1.25`` ,LH ,(4) |
|
|
GROMMET-SHELF MOUNTING |
|
|
HANGER-BASKET, RH, (3) |
|
|
HARNESS-WIRING-INTERNAL IM-W/ PLUG |
|
|
HEAT MOTOR,115 V |
|
|
HEATER-DISP THROAT |
|
|
HINGE |
|
|
HOUSING-CRUSHER |
|
|
ICE STRIPPER,21,MID-SOUTH ELE |
|
|
IDLER ARM |
|
|
IDLER ASSEMLBY |
|
|
IDLER SPRING (2) |
|
|
INSULATION-DOOR |
|
|
KNOB |
|
|
KNOB-SELECTOR,WHITE |
|
|
KNOB-TEMP CONTROL |
|
|
LEVER ARM,24,MID-SOUTH ELEC |
|
|
LIGHT-INDICATOR ,250 V |
|
|
LOCK-HANDLE TRIM,STICK-ON |
|
|
MOLD-ICE MAKER,RADIUS CUBE ,WITH HEATER |
|
|
MOTOR & PULLEY ASSY. |
|
|
MOTOR ASSY |
|
|
NUT-AUGER |
|
|
PAN-STORAGE |
|
|
PAN-STORAGE,LOWER |
|
|
PANEL |
|
|
PLATE-FRONT |
|
|
PLUG-HOLE, FACTORRY TEST |
|
|
RNG-FAN ORIFICE |
|
|
ROLLER ASSY,FRONT ,(2) |
|
|
ROLLER ASSY,REAR ,(2) |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW, PAN HD, 10-32X0.625, HINGE/MULL, THRD FORM |
|
|
SCREW, PAN HEAD, NO.8-18 X 5/8 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.500 |
|
|
SCREW,HEX WASHER HEAD ,8-15A X 0.625 , |
|
|
SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT |
|
|
SCREW-DOOR STOP MTG,PHL TRUSS HD ,10116 X 3/4 |
|
|
SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875 |
|
|
SNAP, LOCK, HANDLE TRIM MTG |
|
|
SPACER |
|
|
SPACER-DOOR |
|
|
SPACER-IDLER ARM |
|
|
SPRING-FAN COVER |
|
|
STRAP - EVAPORATOR/HEATER |
|
|
STRIKE-DOOR |
|
|
SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
|
|
SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
|
|
SUPPORT-DOOR RACK, EXTENDS 1.81``, RH |
|
|
SUPPORT-DOOR RACK, ``2-LITER``, RH/LH |
|
|
SUPPORT-PAN COVER,LH |
|
|
SUPPORT-PAN COVER,RH |
|
|
SWITCH |
|
|
SWITCH-LIGHT/ LAMP |
|
|
SWITCH-LIGHT/LAMP |
|
|
TERMINAL |
|
|
THERMAL CUTOFF ASSEMBLY |
|
|
THERMOSTAT ASSY-ICE MAKER |
|
|
TRAY,ICE CUBE ,PLASTIC |
|
|
TUBE, PVC, WHITE @ AIR DEFLECTOR, INSULATOR |
|
|
TUBE-EXHAUST |
|
|
WASHER |
|
|
WATER SUPPLY ADAPTER KIT |
