Model Image
Manufacturer

Electrolux

Model Number

E23BC78IPSKA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241953202 241953202 Electrolux BAR
241807605 241807605 Electrolux BAR
241770702 241770702 Electrolux BAR
241829001 241829001 Electrolux BARDRIVE
240396002 240396002 Electrolux BASE-WATER FILTER
241602112 241602112 Electrolux BASECOMPRESSOR
242027002 242027002 Electrolux BASKETFRZR
241780823 241780823 Electrolux BASKETFRZR
241831304 241831304 Electrolux BASKETFRZR
241872201 241872201 Electrolux BEAMCRISPER COVER
241760401 241760401 Electrolux BEARING
241896004 241896004 Electrolux BIN
241896104 241896104 Electrolux BIN
241804007 241804007 Electrolux BIN
241906302 241906302 Electrolux BINDOOR
241804303 241804303 Electrolux BINDOOR
241639502 241639502 Electrolux BLADE
241838401 241838401 Electrolux BLOCKEVAP COIL
241838402 241838402 Electrolux BLOCKEVAP COIL
241891611 241891611 Electrolux BOARD-LED POWER
241955004 241955004 Electrolux BOARDMAIN POWER
240335006 240335006 Electrolux BOLT-ROLLER ADJ
241778701 241778701 Electrolux BRACKETANTI TIP
241972302 241972302 Electrolux BRACKETFREEZER DRA
241761301 241761301 Electrolux BRACKETUPPER HINGE
242068601 242068601 Electrolux BUMPER
241979601 241979601 Electrolux BUMPER
242075602 242075602 Electrolux BUSHING
242075601 242075601 Electrolux BUSHING
241518301 241518301 Electrolux BUSHING
241885901 241885901 Electrolux BUTTONFILTER RELEA
242075701 242075701 Electrolux CAM-LOWER HINGE
241969001 241969001 Electrolux CAP
241824101 241824101 Electrolux CAP
241815401 241815401 Electrolux CAP
241824102 241824102 Electrolux CAPDOOR RACK
241842301 241842301 Electrolux CAPTHERMISTOR
5303918695 5303918695 Electrolux CD LH SLIDE FOR WIRE BASKET
241865701 241865701 Electrolux CHANNELSHELF MTG
241774301 241774301 Electrolux CHANNELSHELF MTG
241773802 241773802 Electrolux CHANNELSHELF MTG
241774201 241774201 Electrolux CHANNELSHELF MTG
240396801 240396801 Electrolux CLAMP-TUBE
242130101 242130101 Electrolux CLIP
241852501 241852501 Electrolux CLIP
241949502 241949502 Electrolux CLIP
242135301 242135301 Electrolux CLIP
218515401 218515401 Electrolux CLIP
242036801 242036801 Electrolux CLIPPLASTIC
241862903 241862903 Electrolux CONDENSER
241958401 241958401 Electrolux CONTROLELECTRONIC
241516901 241516901 Electrolux CORD-SERVICE
242095002 242095002 Electrolux COVER
242157501 242157501 Electrolux COVER
242157601 242157601 Electrolux COVER
241733902 241733902 Electrolux COVER
808462601 808462601 Electrolux COVER,WIRING
242058504 242058504 Electrolux COVERAIR DUCT
242164401 242164401 Electrolux COVERDAMPER
241803901 241803901 Electrolux COVERDELI AIR CONT
241859801 241859801 Electrolux COVEREPS
241860402 241860402 Electrolux COVEREVAP COIL
241860601 241860601 Electrolux COVEREVAPORATOR
241859701 241859701 Electrolux COVERFAN
5303918443 5303918443 Electrolux COVERPAN
241518501 241518501 Electrolux DAMPER
241936201 241936201 Electrolux DAMPERRUBBER
241987301 241987301 Electrolux DEFLECTORAIR
5303918410 5303918410 Electrolux DEFROST HEATER KIT
242027102 242027102 Electrolux DIVIDER
241780908 241780908 Electrolux DIVIDER
241995401 241995401 Electrolux DIVIDERDAIRY COMPT
241868402 241868402 Electrolux DOOR STOP
241868401 241868401 Electrolux DOOR STOP
241804701 241804701 Electrolux DOORDAIRY
241987918 241987918 Electrolux DRAWER
241987001 241987001 Electrolux DRIP TRAY
241912301 241912301 Electrolux DRIP TRAY
241988068 241988068 Electrolux DSP DOOR
241988064 241988064 Electrolux DSP DOOR
241928101 241928101 Electrolux DUCTAIR
241963102 241963102 Electrolux DUCTAIR
242006902 242006902 Electrolux DUCTAIR
3205266 3205266 Electrolux EDGE PROTECTOR
242094603 242094603 Electrolux EVAPORATOR
5303918569 5303918569 Electrolux EVAPORATOR KIT
241509402 241509402 Electrolux EVAPORATOR MOTOR
241825704 241825704 Electrolux FAN ASSEMBLY
5308000010 5308000010 Electrolux FAN BLADE
242073901 242073901 Electrolux FOAMAIR SUPPLY
241872006 241872006 Electrolux FRAMECRISPER COVER
241802205 241802205 Electrolux FRAMECRISPER COVER
241803403 241803403 Electrolux FRAMEDELI COVER
5303918578 5303918578 Electrolux GASKET
5303918784 5303918784 Electrolux GASKET
242095406 242095406 Electrolux GASKET
241860101 241860101 Electrolux GASKET
241778301 241778301 Electrolux GASKET DOOR
241928201 241928201 Electrolux GASKETAIR DUCT
241860105 241860105 Electrolux GASKETCOIL COVER
241860104 241860104 Electrolux GASKETCOIL COVER
241860103 241860103 Electrolux GASKETEVAP
241860102 241860102 Electrolux GASKETEVAP
242095409 242095409 Electrolux GASKETEVAP HOUSING
5303918737 5303918737 Electrolux GASKETEVAP HOUSING
241967401 241967401 Electrolux GLASS
241768802 241768802 Electrolux GLASSCRISPER FRAME
241929902 241929902 Electrolux GROMMET
241929901 241929901 Electrolux GROMMET
218513300 218513300 Electrolux GROMMET-COMPR MTG
808274201 808274201 Electrolux GUIDE
242052503 242052503 Electrolux HANDLE ASSEMBLY
241637927 241637927 Electrolux HANDLE ASSEMBLY
807999001 807999001 Electrolux HARNESS,WIRING,FREEZER,LED MAI
241510904 241510904 Electrolux HARNESSDISPENSER
242040801 242040801 Electrolux HARNESSELECTRICAL
242015901 242015901 Electrolux HARNESSHINGE JUMPE
5304521780 5304521780 Electrolux HARNESSPOWER PTD
241862501 241862501 Electrolux HARNESSWIRING
241862601 241862601 Electrolux HARNESSWIRING
242045503 242045503 Electrolux HARNESSWIRING
241926002 241926002 Electrolux HARNESSWIRING
241788402 241788402 Electrolux HARNESSWIRING
241835402 241835402 Electrolux HARNESSWIRING
5303918446 5303918446 Electrolux HEAT EXCHANGER
5303918445 5303918445 Electrolux HEAT EXCHANGER
242094802 242094802 Electrolux HEATERDEFROST
241782001 241782001 Electrolux HEATERPTD
241779401 241779401 Electrolux HINGE
241767211 241767211 Electrolux HINGELOWER
241767212 241767212 Electrolux HINGELOWER
241779801 241779801 Electrolux HINGEMULLION
5303918428 5303918428 Electrolux HOT TUBE REPAIR KIT
242291001 242291001 Electrolux HOUSING
242095702 242095702 Electrolux HOUSINGAIR HANDLER
241803803 241803803 Electrolux HOUSINGDELI AIR CO
241934901 241934901 Electrolux HOUSINGFILTER
243297609 243297609 Electrolux ICE MAKER ASSEMBLY
242096001 242096001 Electrolux INSULATION
242004802 242004802 Electrolux INSULATIONAIR DUCT
5304512686 5304512686 Electrolux INVERTOR
241836301 241836301 Electrolux KNOBDAIRY DOOR
241603101 241603101 Electrolux LABEL-NAMEPLATE
241836401 241836401 Electrolux LATCHDOOR
241912201 241912201 Electrolux LINERSUMP
241812202 241812202 Electrolux MAGNET
241779101 241779101 Electrolux MAGNET

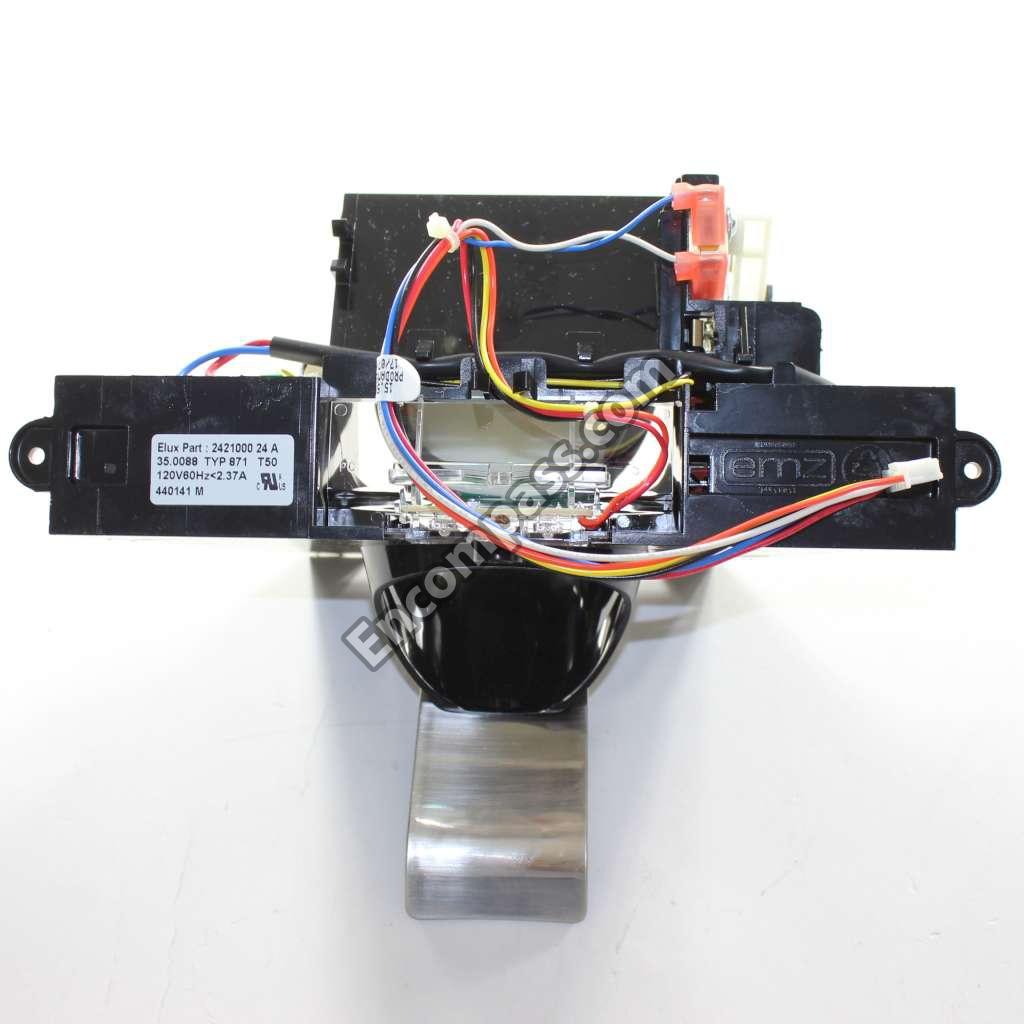

242100024 242100024 Electrolux MODULE-DISPENSER,BLACK
241816602 241816602 Electrolux MOTOR AUGER THREADS ARE LEFT H
242018304 242018304 Electrolux MOTORCONDENSER FAN
241775301 241775301 Electrolux MOTORDAMPER
242190501 242190501 Electrolux MULLION
241778808 241778808 Electrolux MULLION HEATER
242025902 242025902 Electrolux OVERLAY
241920604 241920604 Electrolux PAN
241772808 241772808 Electrolux PANCRISPER
241827206 241827206 Electrolux PANDELI
242095501 242095501 Electrolux PINANTI TWIST BUCK
242011101 242011101 Electrolux PINLOCK
5304497384 5304497384 Electrolux PLATE,TAPPING
240494001 240494001 Electrolux PLUG-BUTTON
241824009 241824009 Electrolux RACKDOOR
241748901 241748901 Electrolux RACKWINE
241752702 241752702 Electrolux RETAINER
242216301 242216301 Electrolux RETAINERBASKET
5304455655 5304455655 Electrolux RIVET
240397501 240397501 Electrolux ROD
240335202 240335202 Electrolux ROLLER
241953907 241953907 Electrolux SCREW
241858401 241858401 Electrolux SCREW
5304455650 5304455650 Electrolux SCREW
241953904 241953904 Electrolux SCREW
241853202 241853202 Electrolux SCREW
242025601 242025601 Electrolux SCREW
134549700 134549700 Electrolux SCREW
242017501 242017501 Electrolux SCREW
241953901 241953901 Electrolux SCREW
242015001 242015001 Electrolux SCREW
241899703 241899703 Electrolux SCREW
242039701 242039701 Electrolux SCREW
242146401 242146401 Electrolux SCREW
241690602 241690602 Electrolux SCREW
240383412 240383412 Electrolux SCREW
240451503 240451503 Electrolux SCREW
241641501 241641501 Electrolux SCREW
241695904 241695904 Electrolux SCREW
241500303 241500303 Electrolux SCREW
241710601 241710601 Electrolux SCREW
218362501 218362501 Electrolux SCREW
241732101 241732101 Electrolux SCREW
218252201 218252201 Electrolux SCREW
241641502 241641502 Electrolux SCREW
241695906 241695906 Electrolux SCREW
241941202 241941202 Electrolux SCREW#818 X 3/8 F
240555004 240555004 Electrolux SCREW#832 X 3/8 B
240442706 240442706 Electrolux SCREW-#10-32 X 3/4
240555002 240555002 Electrolux SCREW-#8-32 X 3/8
240359403 240359403 Electrolux SCREW-FAN SHROUD
240578902 240578902 Electrolux SCREW-HINGE MTG
216396900 216396900 Electrolux SCREW-LEG
218755504 218755504 Electrolux SCREW-SHOULDER
218709101 218709101 Electrolux SCREWHDL MTG
240363602 240363602 Electrolux SCREWSHOULDER
241518601 241518601 Electrolux SEAL-DAMPER
241530501 241530501 Electrolux SENSOR
240597203 240597203 Electrolux SENSOR
241839904 241839904 Electrolux SHELFGLASS
241839902 241839902 Electrolux SHELFGLASS
241946106 241946106 Electrolux SHROUDCOND FAN
241769002 241769002 Electrolux SLIDECRISPER COVER
241816101 241816101 Electrolux SLIDEDELI
241947701 241947701 Electrolux SPACER
241868202 241868202 Electrolux SPACER
241868201 241868201 Electrolux SPACER
240409302 240409302 Electrolux SPACER-COND TUBE
240398401 240398401 Electrolux SPRING-FILTER RELEA
5308000110 5308000110 Electrolux STRAP-EVAP/HEATER
242058709 242058709 Electrolux SUPPORT
807854301 807854301 Electrolux SUPPORT,HOUSING,MAIN BOARD
241768601 241768601 Electrolux SUPPORTCRSPR COVER
241871901 241871901 Electrolux SUPPORTEPS DAMPER
242060202 242060202 Electrolux SWITCHLIGHT/LAMP
240346701 240346701 Electrolux TAPE-FOAM SEAL
5303918416 5303918416 Electrolux THERMISTOR KIT
808137001 808137001 Electrolux THERMISTOR,DEFROST TEMP
5304521781 5304521781 Electrolux THERMOSTAT,DEFROST SAFETY
241770811 241770811 Electrolux TRAYSPILL GUARD
241912101 241912101 Electrolux TRIM
242161207 242161207 Electrolux TRIM-CORNER
241879902 241879902 Electrolux TRIMCRISPER COVER
241791201 241791201 Electrolux TROUGHDRAIN
242220112 242220112 Electrolux TUBE-WATER,.315 - 51,BROWN/TA
242220113 242220113 Electrolux TUBE-WATER,.315 - 51,NATURAL
241871501 241871501 Electrolux TUBECONNECTOR
215346900 215346900 Electrolux TUBEPROCESS
241965907 241965907 Electrolux TUBEWATER
241964707 241964707 Electrolux TUBEWATER
218976435 218976435 Electrolux TUBEWATER INLET
242252702 242252702 Electrolux VALVE
241868301 241868301 Electrolux WASHER
215474201 215474201 Electrolux WASHER
241812301 241812301 Electrolux WASHERCOMPR MTG
EWF01 EWF01 Electrolux WATER FILTER
