Model Image
Manufacturer

Electrolux

Model Number

E24RD75HSS0

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241888101 241888101 BASECOMPRESSOR
241997401 241997401 BASKETSLIDING
241639501 241639501 BLADE

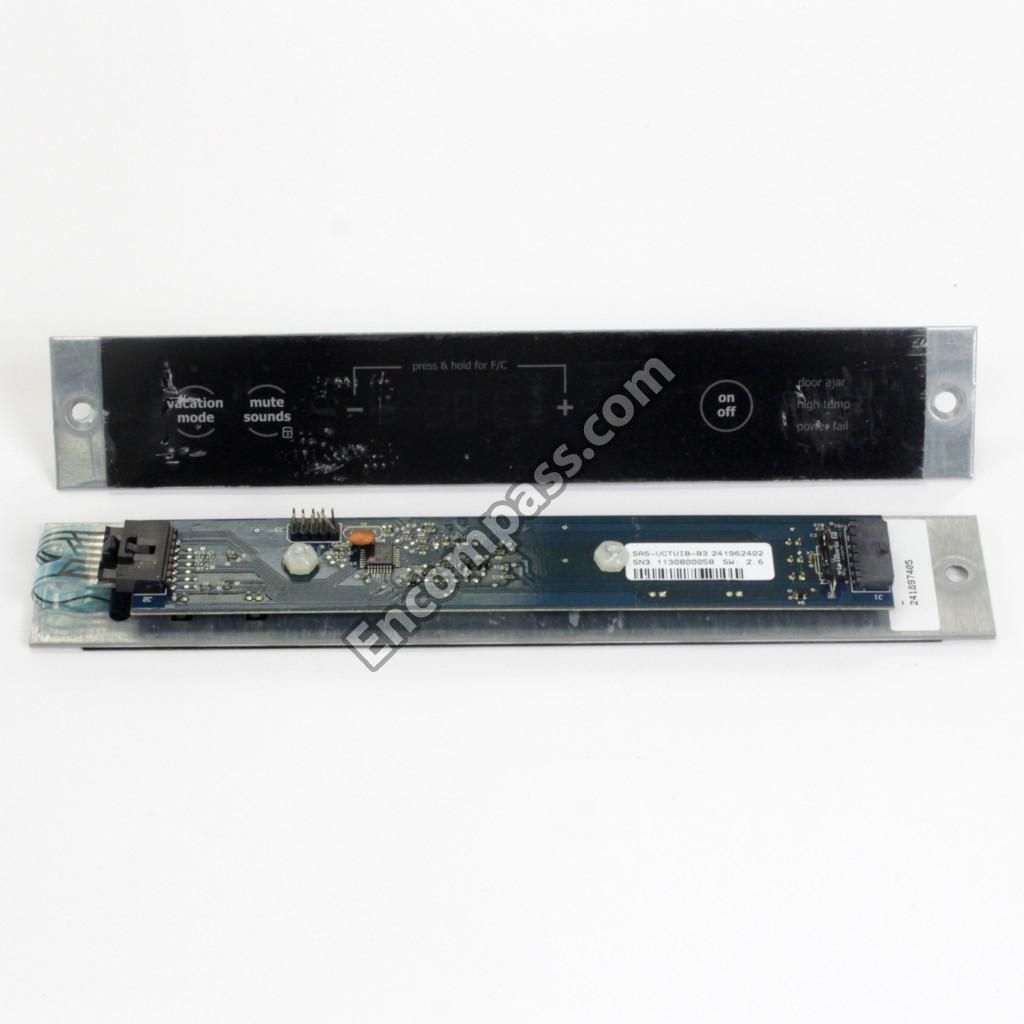

241897405 241897405 BOARDCONTROL
241900001 241900001 BOARDLED POWER

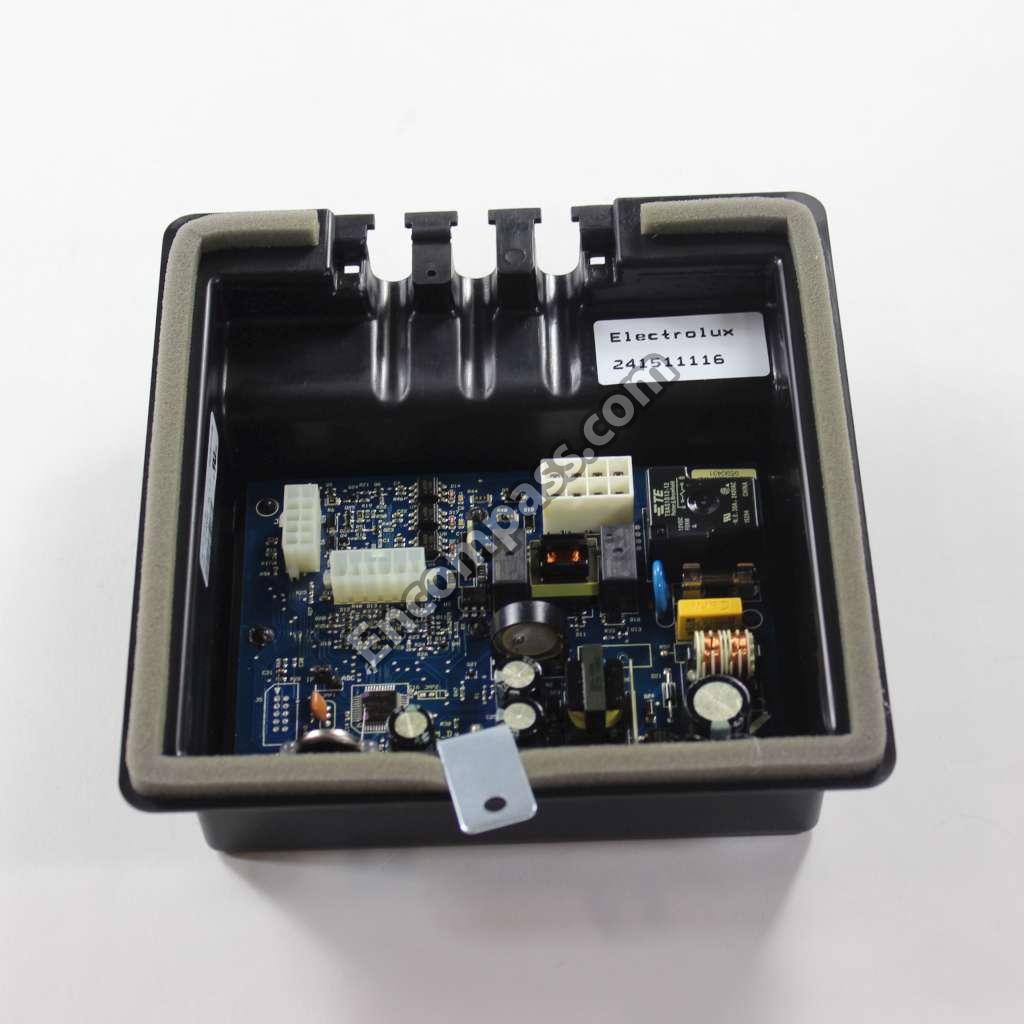

241511116 241511116 BOARDMAIN POWER
241903801 241903801 BRACKETANTI TIP
241889601 241889601 BRACKETCOND MOTOR
241932601 241932601 BUSHING
241532401 241532401 CHANNEL
241919901 241919901 CLAMP
240396801 240396801 CLAMP-TUBE
5304456288 5304456288 CLAMP-WIRING HARNES
241519401 241519401 CLIP
218515401 218515401 CLIP
216649200 216649200 CLIP GE CONTROLLER
240542601 240542601 CLIP-WIRING HARNESS
241931201 241931201 CONDENSERAIR COOL
241516901 241516901 CORD-SERVICE
241898002 241898002 COVERACCESS
241998004 241998004 COVERBOTTOM DRAWER
241960101 241960101 COVEREVAP COIL
241960301 241960301 COVERFAN
241512902 241512902 COVERSENSOR
241997902 241997902 COVERTOP DRAWER
241966802 241966802 DRAWERBOTTOM
241965802 241965802 DRAWERTOP
241891801 241891801 EVAPORATOR
241981201 241981201 FRONTDRAWER
241981202 241981202 FRONTDRAWER
241958901 241958901 GASKETDRAWER
241908403 241908403 GRILLE/KICKPLATE
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
242073801 242073801 HANDLEDOOR
241961801 241961801 HARNESSEVAP LIGHT

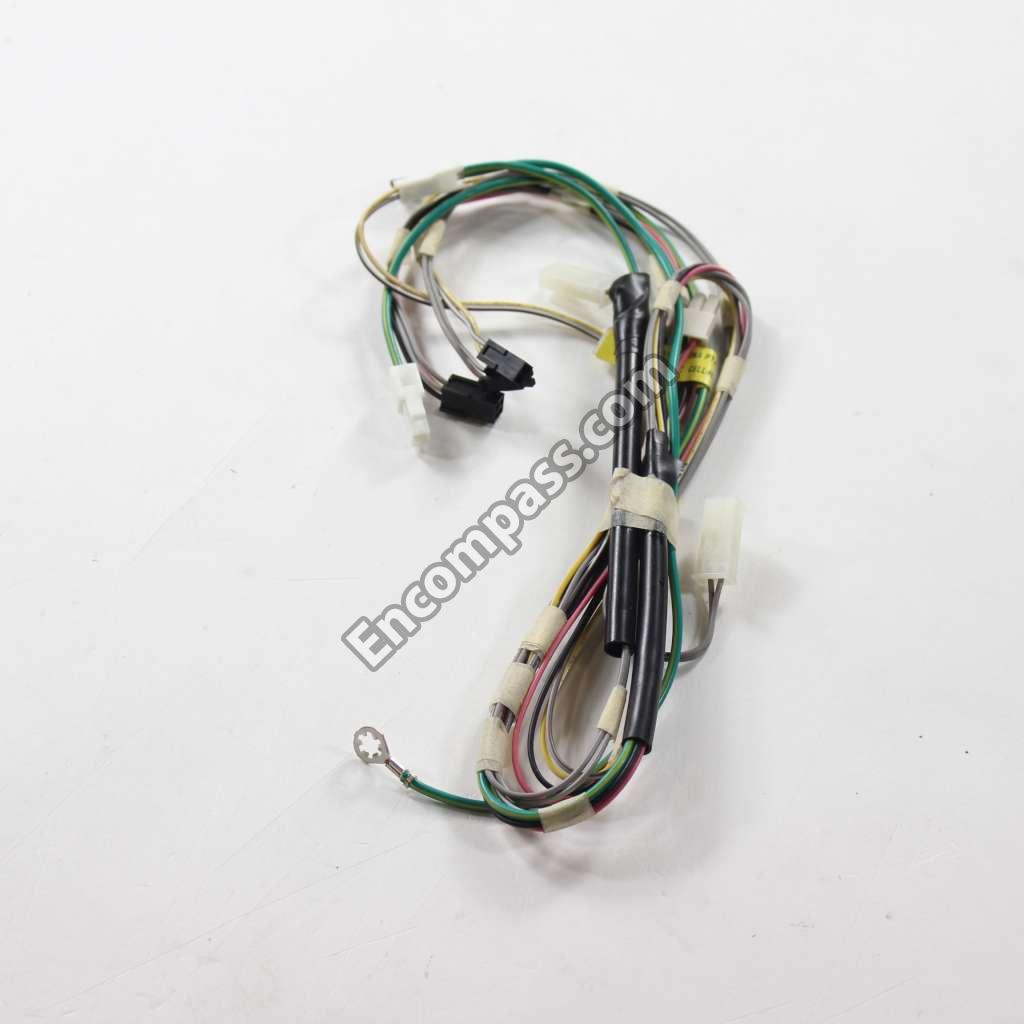

241900201 241900201 HARNESSEVAPORATOR

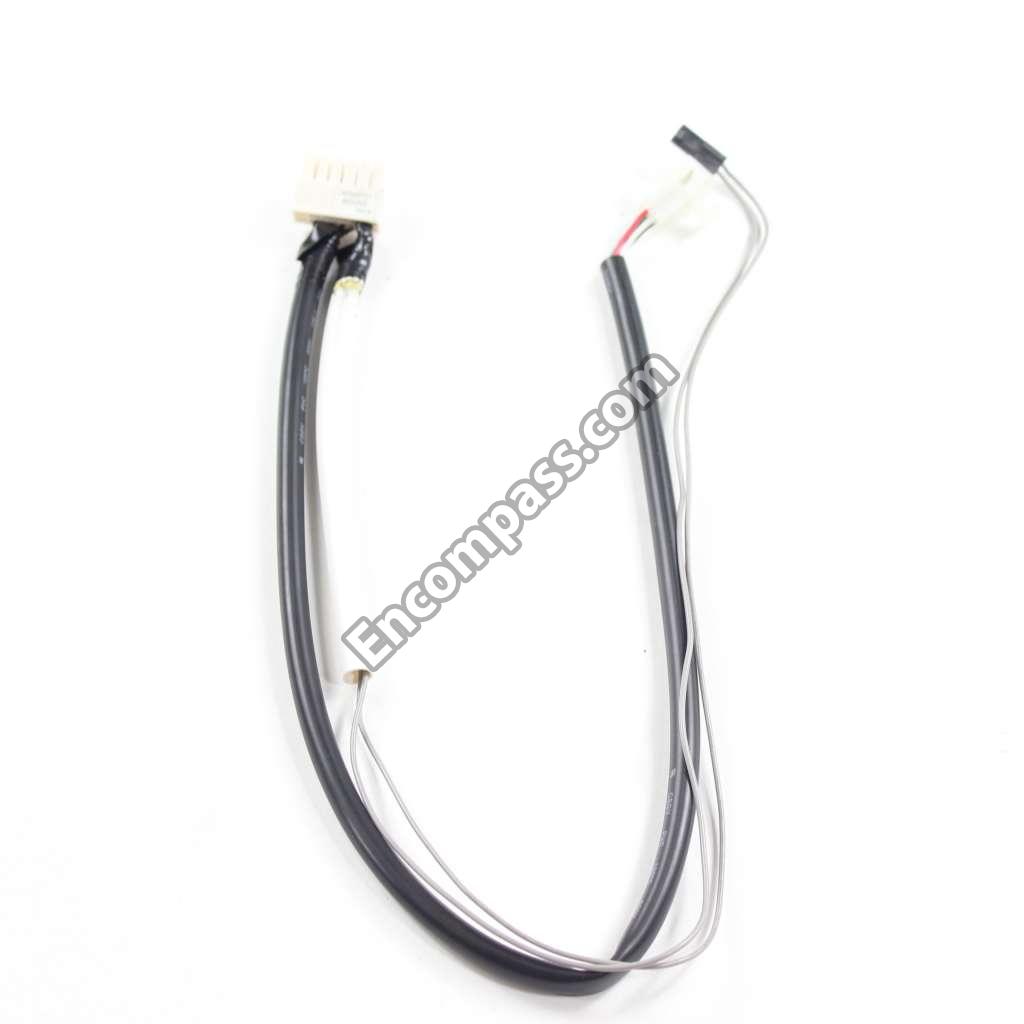

241900701 241900701 HARNESSINTERMEDIAT
241900401 241900401 HARNESSLED DRIVER

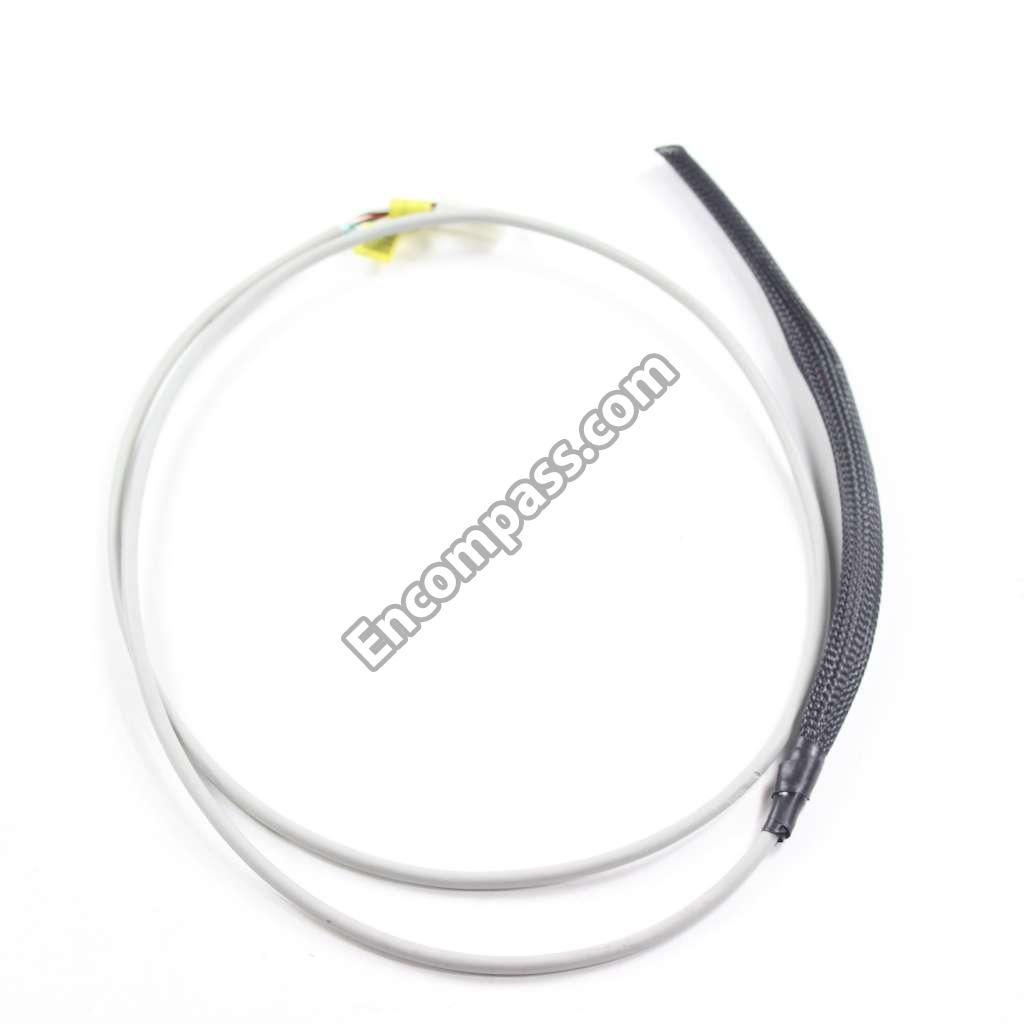

241960701 241960701 HARNESSWIRING
241961201 241961201 HARNESSWIRING
241961701 241961701 HARNESSWIRING
241904001 241904001 HOUSINGFILTER
241911501 241911501 LEVELING LEG
241965701 241965701 LID
241904201 241904201 LIGHT ASSEMBLY

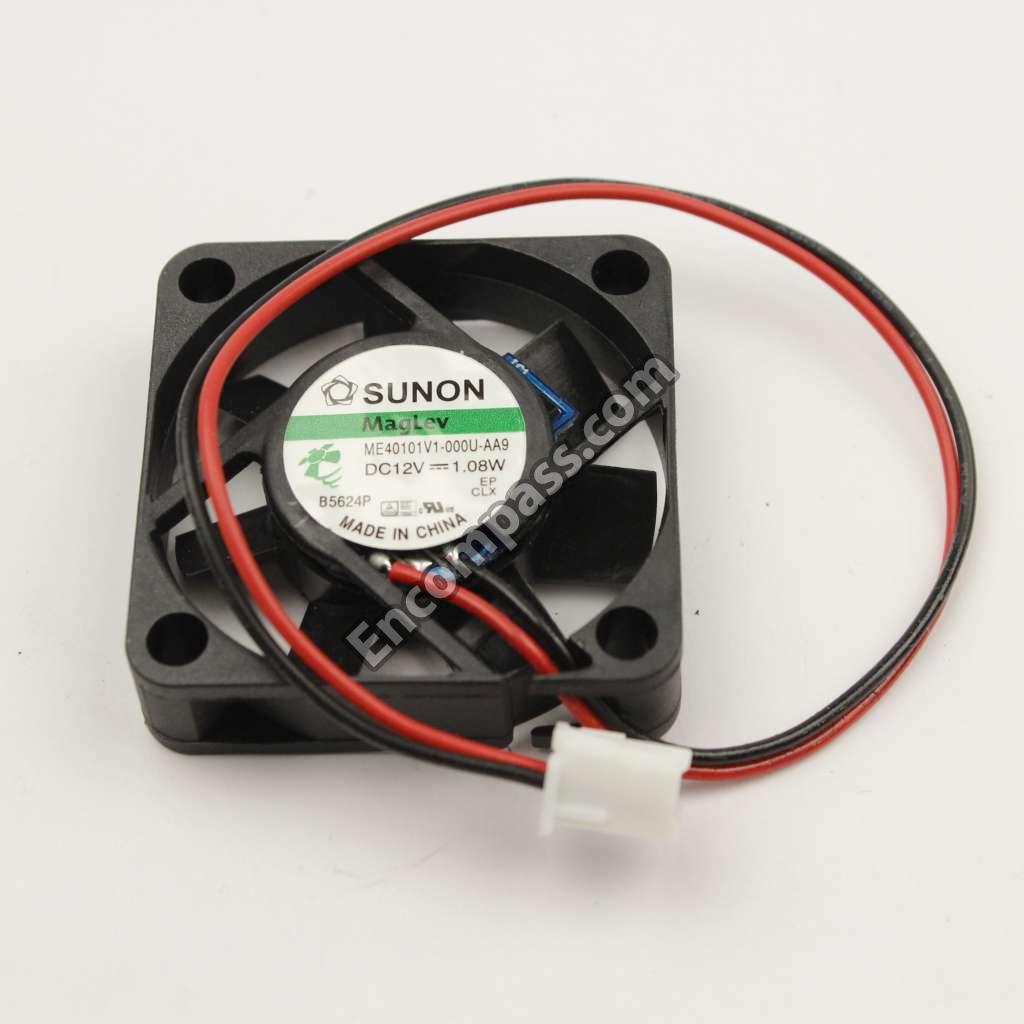

241981801 241981801 MOTOREVAP FAN
241960401 241960401 MULLION
241889901 241889901 PANDEFROST DRAIN
241964401 241964401 PLATECONDIMENT TRA
241967001 241967001 PLUGBUTTON
241959501 241959501 RAILSHELF
241959502 241959502 RAILSHELF
241932701 241932701 RETAINER
240433204 240433204 SCREW
240433203 240433203 SCREW
218252201 218252201 SCREW
218362501 218362501 SCREW
241918201 241918201 SCREW
5304455650 5304455650 SCREW
241904301 241904301 SCREW
241853201 241853201 SCREW
241906101 241906101 SCREW#10 X 3/4 TEK
240555004 240555004 SCREW#832 X 3/8 B
240359403 240359403 SCREW-FAN SHROUD
241998201 241998201 SCREWHANDLE MTG
241962901 241962901 SEAL
241984501 241984501 SEALCOIL COVER
240597203 240597203 SENSOR
241889701 241889701 SHROUD
241890001 241890001 SPACEREVAP
241890002 241890002 SPACEREVAP
241707717 241707717 STARTER
241896401 241896401 SUPPORT
241911704 241911704 SWITCH
241965502 241965502 TRAYCONDIMENT
241889801 241889801 TROUGHDRAIN
241931401 241931401 TUBEDRAIN
241898101 241898101 TUBEHOT LOOP
241931901 241931901 WASHER
241812301 241812301 WASHERCOMPR MTG
