Model Image
Manufacturer

Electrolux

Model Number

E30GF74HPS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318335701 318335701 ANTI-TIP & ACCESSOR

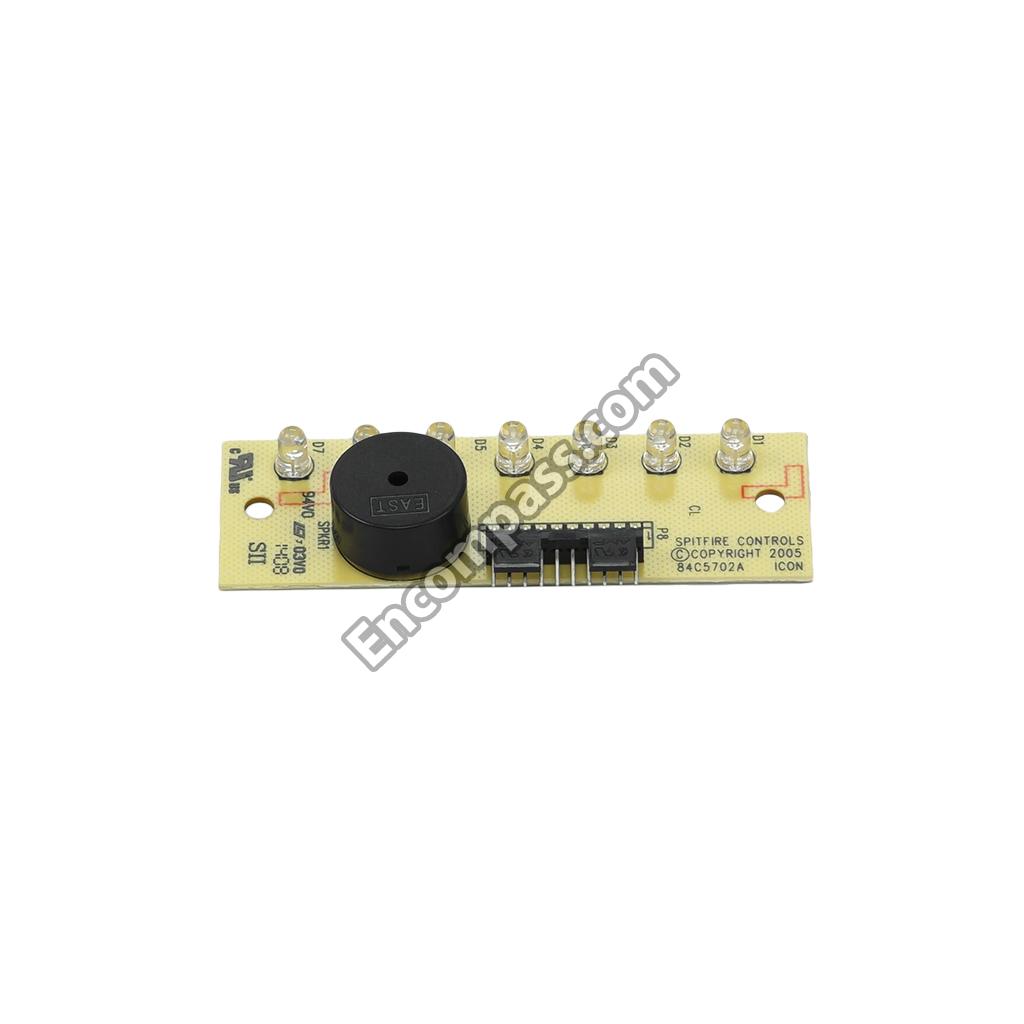

5304452799 5304452799 BOARD

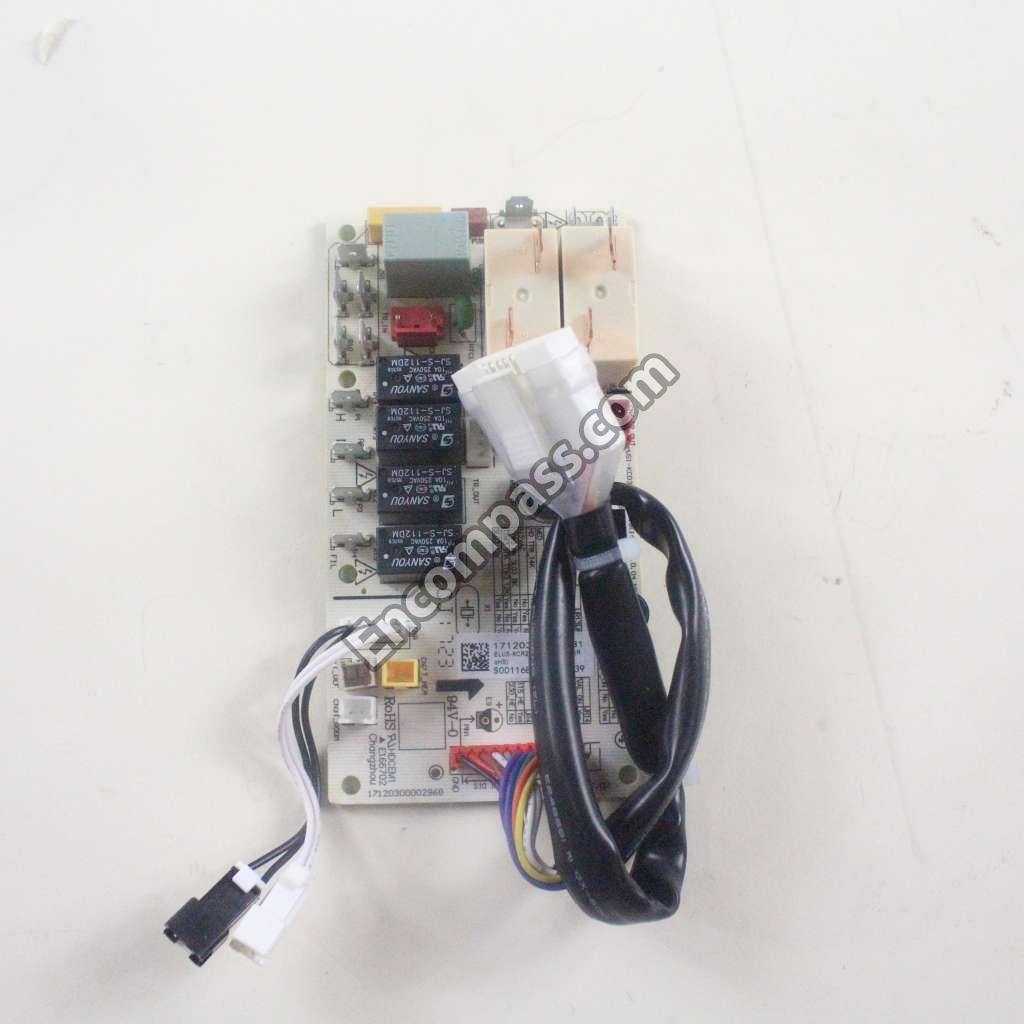

316455710 316455710 BOARD
318368402 318368402 BRACKET
318376120 318376120 BRACKET
318603913 318603913 BRACKET
318352501 318352501 BRACKET
318368800 318368800 BRACKET
318251300 318251300 BRACKET
316510800 316510800 BURNER
318163602 318163602 CLEANER-COOKTOP
5304452797 5304452797 CONTROL
5304452798 5304452798 CONTROL
318352409 318352409 COVER
318906601 318906601 COVER
316515200 316515200 GASKET
316515201 316515201 GASKET
316515202 316515202 GASKET
316515203 316515203 GASKET
318240016 318240016 GLIDE & SUPPORT ASS
318240017 318240017 GLIDE & SUPPORT ASS
318244300 318244300 HINGE ASSEMBLY
318177710 318177710 IGNITOR
316525000 316525000 IGNITOR
316524800 316524800 IGNITOR
316524900 316524900 IGNITOR
318362131 318362131 INSULATION
318186919 318186919 KIT

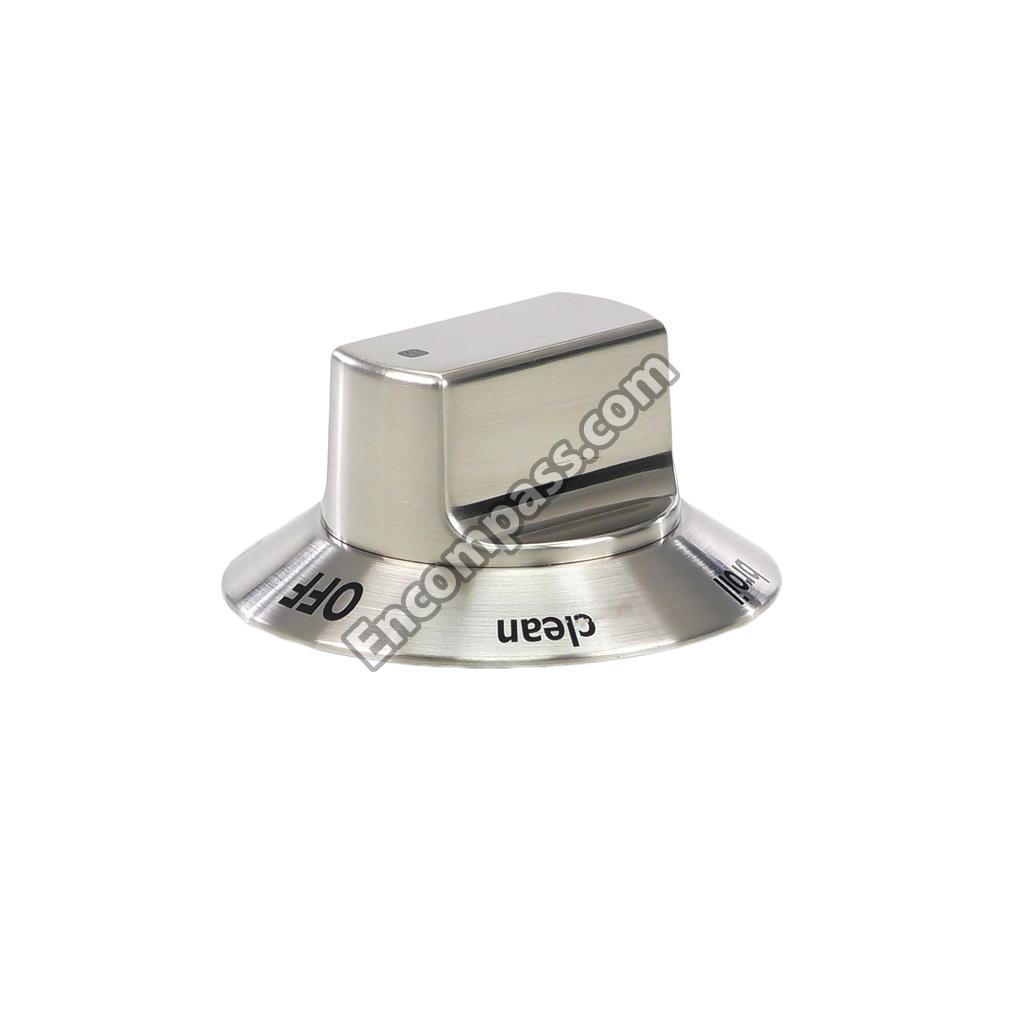

318242230 318242230 KNOB
318242231 318242231 KNOB
316433603 316433603 LABEL
318228310 318228310 LENS
318185224 318185224 MAIN TOP ASSEMBLY
318357801 318357801 MANIFOLD
5304463302 5304463302 MOTOR
318261229 318261229 MOTOR
316136600 316136600 NUT
316523500 316523500 ORIFICE
316523504 316523504 ORIFICE
316081901 316081901 PAN
316082001 316082001 PAN
318352703 318352703 PANEL
318003004 318003004 PLATE
318365800 318365800 RACK
318389500 318389500 RETAINER
5304454881 5304454881 SCREW
316540900 316540900 SCREW
5303211311 5303211311 SCREW
318175506 318175506 SCREW
5304461333 5304461333 SCREW
5304415832 5304415832 SCREW
3051009 3051009 SCREW
5304437044 5304437044 SCREW
318291300 318291300 SEAL
318345405 318345405 SHELF
318345400 318345400 SHELF
318254200 318254200 SIMMER PLATE
318531700 318531700 SPACER
316114100 316114100 SPACER
318147430 318147430 SPACER
316247900 316247900 SPACER
318264724 318264724 SPACER
318192400 318192400 SPRING
318377001 318377001 SUPPORT
318254300 318254300 SUPPORT

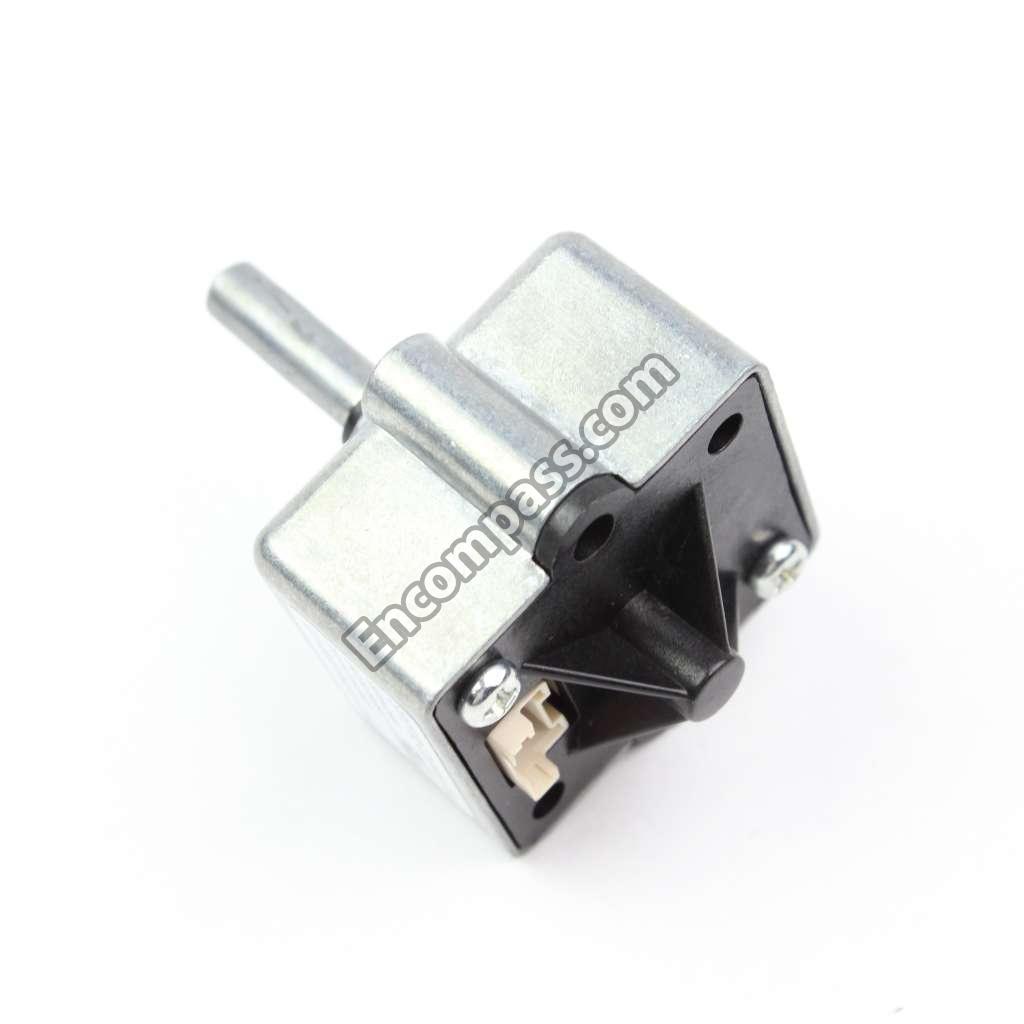

5308015487 5308015487 SWITCH

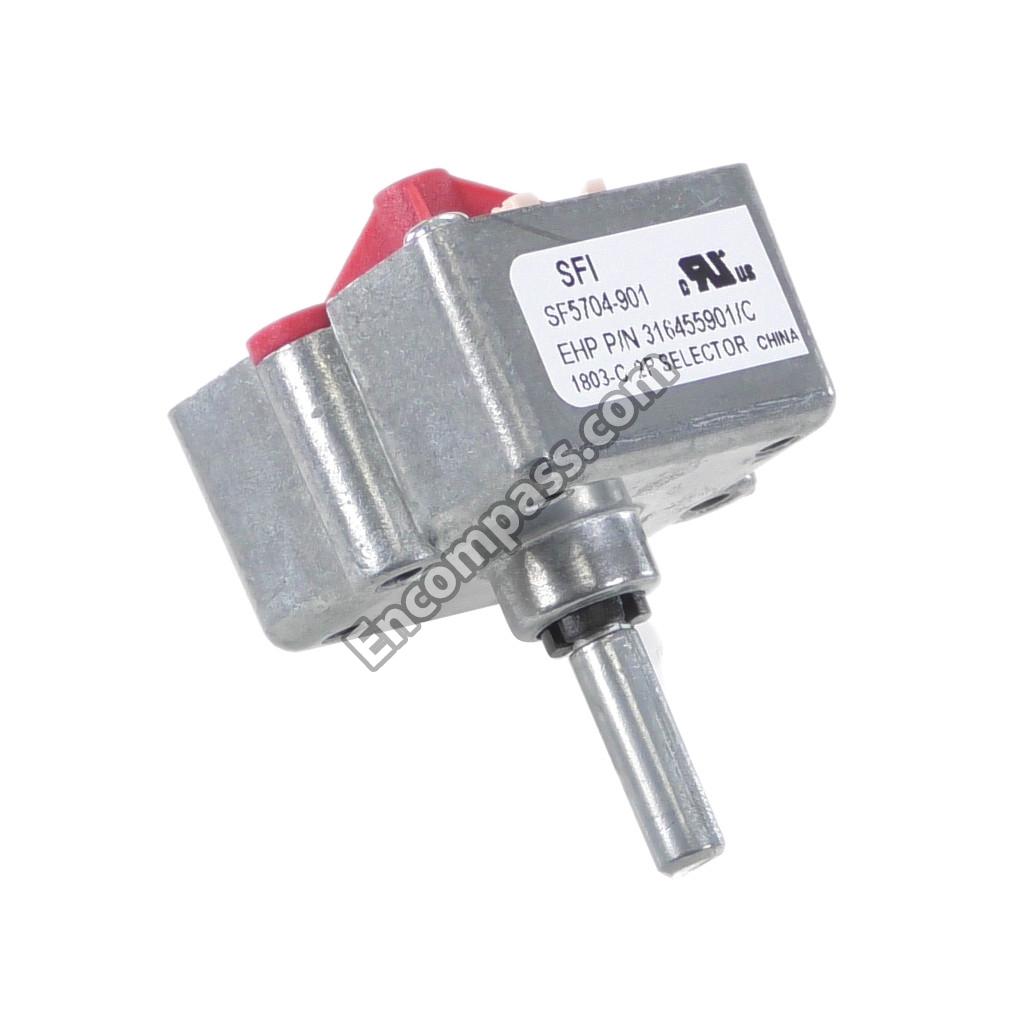

318903403 318903403 SWITCH

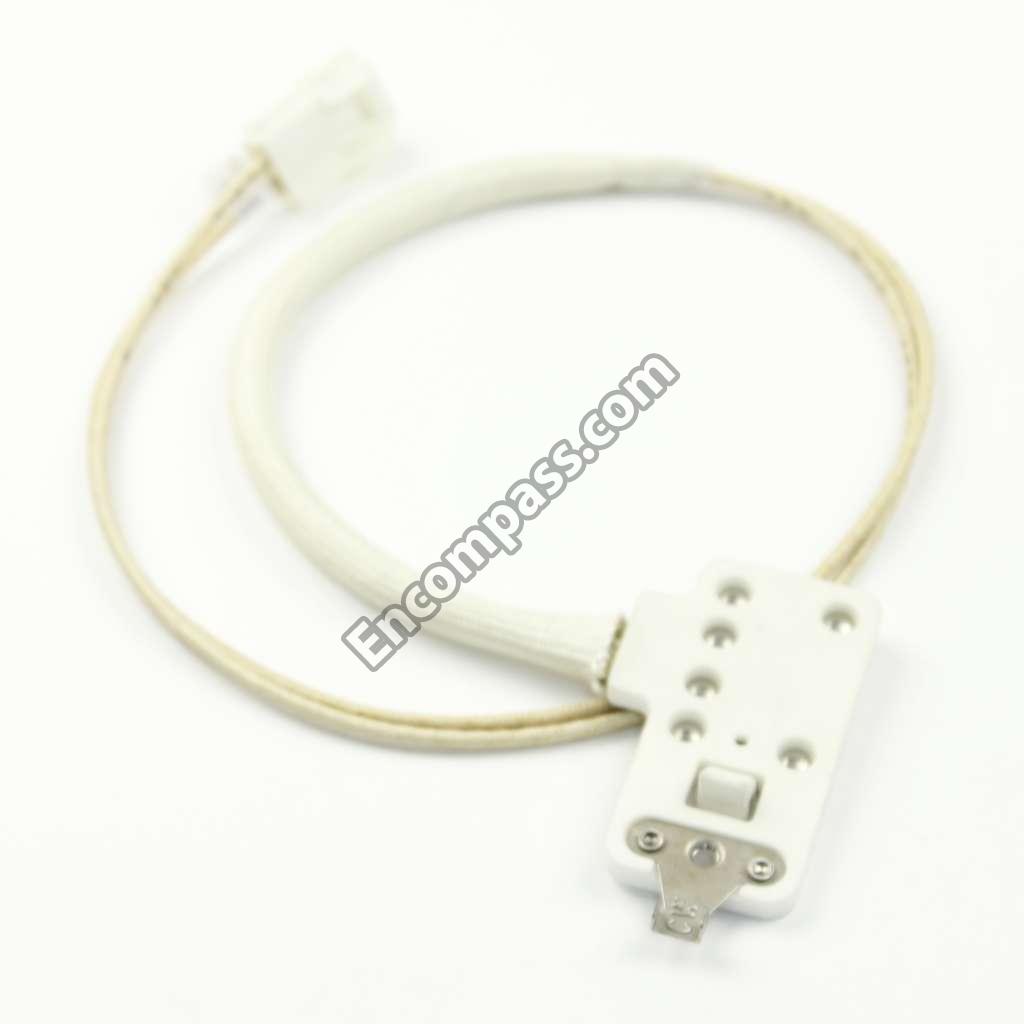

318003633 318003633 THERMOSTAT
318257723 318257723 TRIM
318355001 318355001 TRIM
316520700 316520700 VALVE
316520701 316520701 VALVE
316520703 316520703 VALVE
318232634 318232634 WIRING HARNESS
