Model Image
Manufacturer

Electrolux

Model Number

E30MO75HPSB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304451459 5304451459 ANGLE
5304461109 5304461109 ASSEMBLY
5304470734 5304470734 BASE
5304461146 5304461146 BEARING ASSEMBLY
5304461177 5304461177 BELT
5304461173 5304461173 BLADE,FAN
5304470558 5304470558 BRACKET
5304461178 5304461178 BRACKET,NOISE FILTER,ANGLE
5304480641 5304480641 CAM
5304480640 5304480640 CAM
5304470539 5304470539 CAPACITOR
5304451562 5304451562 CLIP
5304480644 5304480644 COUPLING
5304461183 5304461183 COVER
5304461165 5304461165 COVER
5304461157 5304461157 CUSHION
5304461156 5304461156 CUSHION
5304461163 5304461163 CUSHION
5304461179 5304461179 CUSHION
5304461166 5304461166 CUSHION,PAD

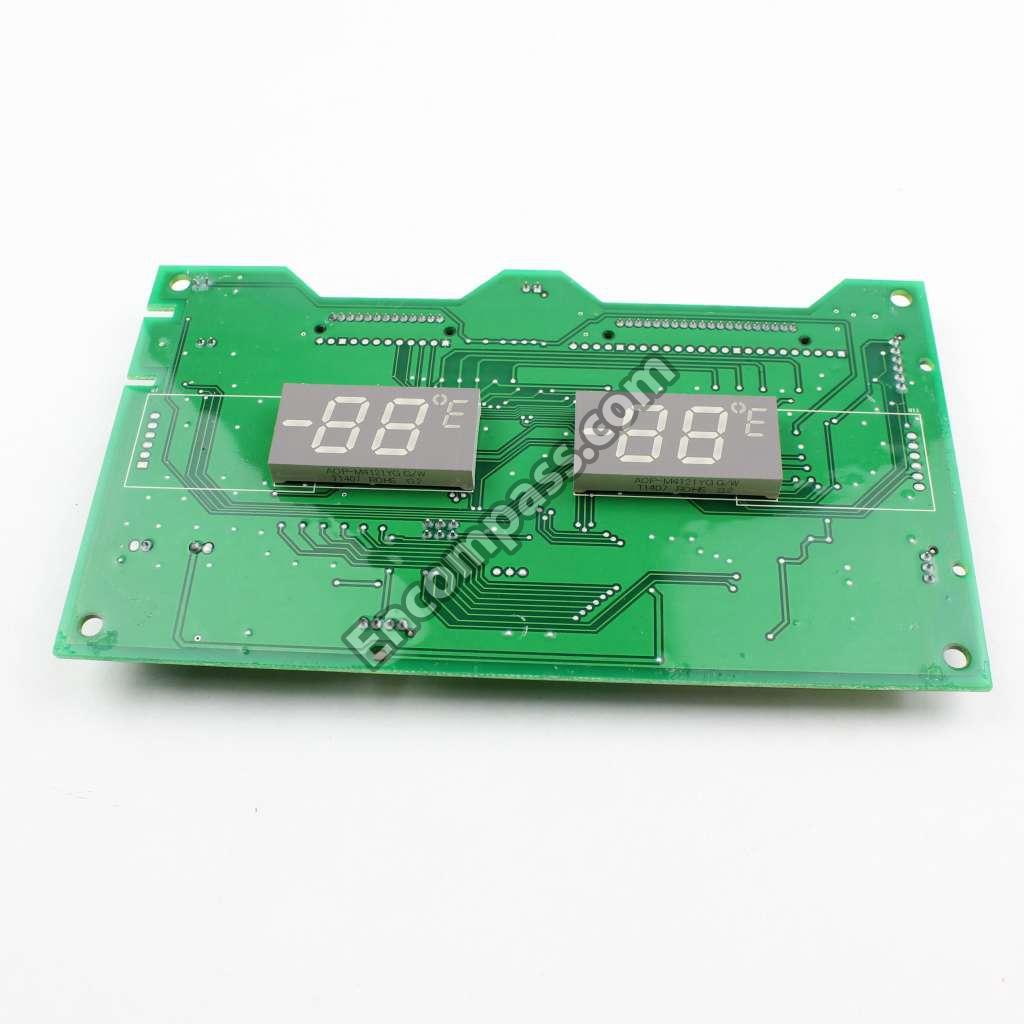

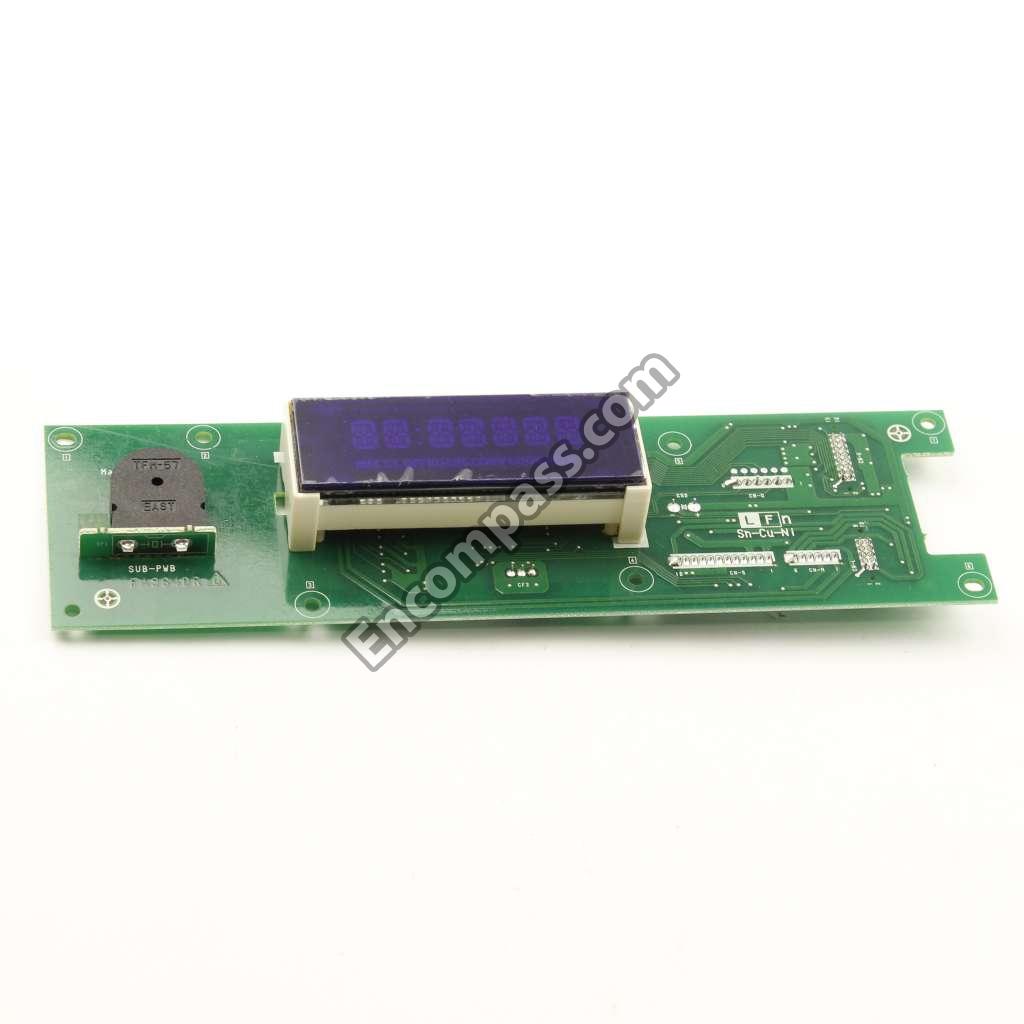

5304470557 5304470557 DISPLAY BOARD
5304471511 5304471511 DOOR
5304461161 5304461161 DOOR ASSEMBLY
5304461162 5304461162 DUCT
5304470553 5304470553 DUCT
5304470554 5304470554 DUCT
5304461158 5304461158 DUCT ASSEMBLY,STEAM RELEASE
5304461174 5304461174 DUCT,COOLING FAN
5304474695 5304474695 ELEMENT
5304498734 5304498734 FILTER,NOISE,W/FUSE MOUNT
5304461127 5304461127 FOOT
5304470579 5304470579 FRAME
5304461155 5304461155 FRAME,LIGHT LENS
5304461181 5304461181 GUIDE,AIR,MAGNETRON
5304461171 5304461171 GUIDE,AIR,RIGHT SIDE
5304480652 5304480652 HARNESS
5304480638 5304480638 HINGE
5304480639 5304480639 HINGE
5304470735 5304470735 HOLDER
5304440334 5304440334 LABEL
5304440333 5304440333 LABEL
5304465314 5304465314 LABEL,NHW CAUTION
5304464198 5304464198 LAMP
5304463785 5304463785 LAMPHOLDER
5304490142 5304490142 LATCH HEAD
5304470547 5304470547 LATCH HOOK
5304470548 5304470548 LATCH HOOK
5304461167 5304461167 LENS
5304470591 5304470591 LEVER
5304470592 5304470592 LEVER
5304475717 5304475717 LOUVRES
5304461119 5304461119 MOTOR
5304485889 5304485889 MOTOR
5304471782 5304471782 MOTOR
5304498736 5304498736 MOTOR,TURNTABLE
5304470590 5304470590 NUT
5304451470 5304451470 PACKING
5304471512 5304471512 PANEL
5304491054 5304491054 PART
5304480616 5304480616 POWER BOARD
5304470537 5304470537 POWER CORD
5304461152 5304461152 PULLEY
5304471508 5304471508 PULLEY,CONVECTION FAN
5304461261 5304461261 RACK
5304480635 5304480635 RECTIFIER ASSEMBLY
5304438005 5304438005 SCREW
5304461210 5304461210 SCREW
5304461221 5304461221 SCREW
5304461203 5304461203 SCREW
5304461208 5304461208 SCREW
5304451550 5304451550 SCREW
5304450253 5304450253 SCREW
5304451552 5304451552 SCREW
5304451553 5304451553 SCREW
5303211311 5303211311 SCREW
5303319636 5303319636 SCREW
5303319641 5303319641 SCREW
5304461216 5304461216 SCREW
5304456930 5304456930 SCREW
5304451517 5304451517 SCREW
5304451561 5304451561 SCREW
5304471515 5304471515 SCREW
5304470583 5304470583 SCREW
5304461209 5304461209 SCREW,4MM X 25MM
5304461215 5304461215 SCREW,4MM X 8MM,(6)
5304461125 5304461125 SENSOR ASSEMBLY
5304461182 5304461182 SHEET,THERMAL,PROTECTION
5304480645 5304480645 SPRING
5304480646 5304480646 SPRING
5304461175 5304461175 SUPPORT,CHASSIS
5304493153 5304493153 SWITCH,INTERLOCK,DOOR SENSOR
5304461114 5304461114 THERMAL CUTOUT
5304451403 5304451403 THERMAL CUTOUT
5304483929 5304483929 THERMISTOR
318246702 318246702 TOOL
318246703 318246703 TOOL
5304471507 5304471507 TOUCH CONTROL
5304470538 5304470538 TRANSFORMER
5304470541 5304470541 TRANSFORMER
5304498731 5304498731 TRAY,TURNTABLE,CERAMIC
5304470594 5304470594 TRIM
5304461214 5304461214 WASHER
5304440331 5304440331 WIRE
5304461199 5304461199 WIRE,GROUND,COOLING FAN
5304470561 5304470561 WIRING HARNESS
5304461196 5304461196 WIRING HARNESS,THERMISTOR
