Model Image
Manufacturer

Electrolux

Model Number

E32AF75FPS2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
297114101 297114101 ADAPTER-WATER SUPPL
297133000 297133000 BAFFLEPLATE
216974500 216974500 BEARING
5304456671 5304456671 BEARING & INLET
216514300 216514300 BIN-DOOR
241639501 241639501 BLADE
297177200 297177200 BOLT
297110300 297110300 BOX-CONTROL
297092701 297092701 BRACKET
297092700 297092700 BRACKET
216394050 216394050 BRACKET
297200600 297200600 BREAKER KIT W/CORNE
297200100 297200100 BREAKER KIT W/CORNE
297108500 297108500 CAP-AIR FILTER
218909912 218909912 CAPACITOR
297091600 297091600 CASECRISPER
241544101 241544101 CLAMP
297048400 297048400 CLIP
5303313703 5303313703 CLIP
5304406520 5304406520 CLIP
5303212828 5303212828 CLIP
216273000 216273000 CLIP

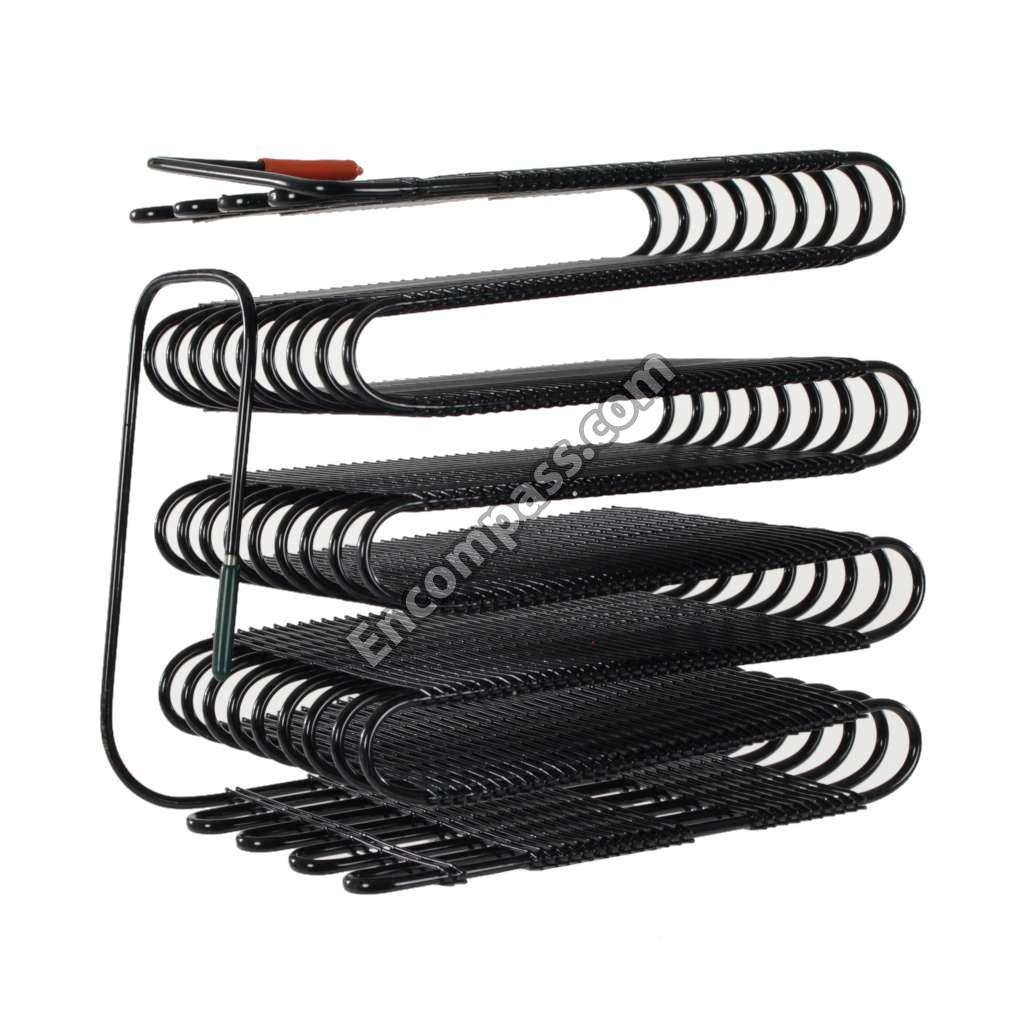

297152201 297152201 CONDENSER
241806601 241806601 CONNECTOR-WATER
240385201 240385201 CONTAINER
216954212 216954212 CONTROLLER
297169900 297169900 CORDPOWER
297099254 297099254 COVER-EVAPORATOR
297164402 297164402 COVERHINGE
297194700 297194700 DIVIDER
297164200 297164200 DIVIDER
297099400 297099400 DIVIDERCRISPER
216974400 216974400 DOOR STOP
5308005500 5308005500 DRAIN
297116000 297116000 ELECTRONICS
216513900 216513900 END CAP
216514000 216514000 END CAP
216910405 216910405 ENERGY GUIDE
297092501 297092501 FRAME-CRISPER COVER
297092500 297092500 FRAME-CRISPER COVER

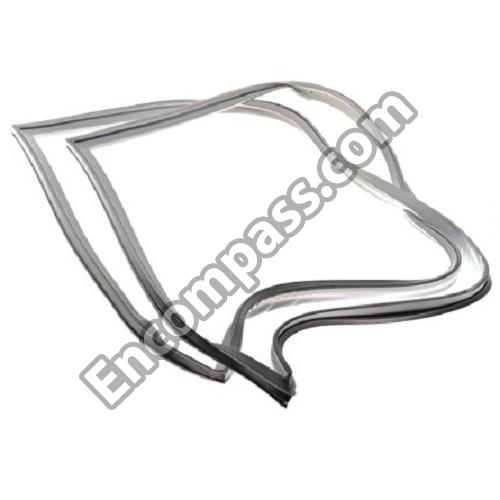

216522309 216522309 GASKET-DOOR
216204902 216204902 GASKETEVAP COVER
297036900 297036900 GRILLE/KICKPLATE
240405201 240405201 GROMMET
5304456664 5304456664 HARNESS-WIRING
297217900 297217900 HEAT EXCHANGER
216730700 216730700 HEATER-DEFROST
5304456672 5304456672 ICE STRIPPER
297102700 297102700 INSERT-PAN COVER
297114600 297114600 INSTRUCTIONS
297001704 297001704 INSULATION
5304469406 5304469406 INSULATOR
297078800 297078800 INSULATOR-EVAP
297078700 297078700 INSULATOR-EVAP
297108000 297108000 JUMPER-WIRE
5304456690 5304456690 LABEL
241603101 241603101 LABEL-NAMEPLATE
297053200 297053200 LENS
5304456675 5304456675 LEVER ARM

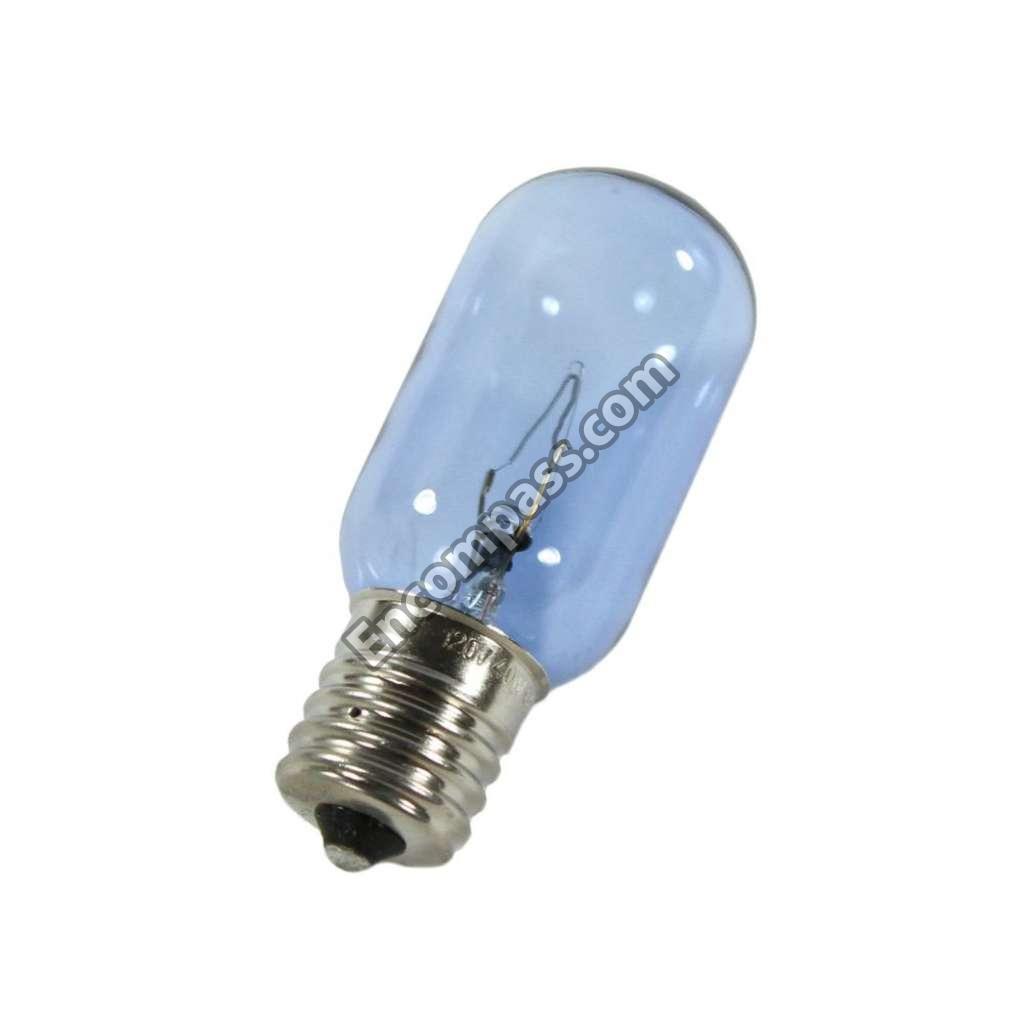

297114000 297114000 LIGHT BULB
297048600 297048600 LIGHT BULB/LAMP
5304456657 5304456657 NAMEPLATE
5304456693 5304456693 NUT
297110801 297110801 OVERLAYCONTROL BOX
297165800 297165800 PANDRAIN
297091801 297091801 PANEL
297091704 297091704 PANEL
216527902 216527902 PANELINNER DOOR
5304456659 5304456659 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
297014702 297014702 PLUG-SUCTION LINE
216403700 216403700 PLUGBUTTON
216503100 216503100 SCREENDRAIN
5304456666 5304456666 SCREW
5304456678 5304456678 SCREW
5304456674 5304456674 SCREW
5304456691 5304456691 SCREW
5304456660 5304456660 SCREW
5304456684 5304456684 SCREW
5304456677 5304456677 SCREW
5304456676 5304456676 SCREW
5304455680 5304455680 SCREW
08016582 08016582 SCREW
297142600 297142600 SCREW
08005520 08005520 SCREW
216629601 216629601 SCREW
216912401 216912401 SCREW
216337701 216337701 SCREW
216036601 216036601 SCREW
218362501 218362501 SCREW
5304455677 5304455677 SCREW,8-32 X 3/8
240578902 240578902 SCREW-HINGE MTG
5304456687 5304456687 SCREW-IM BRKT MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
5304456679 5304456679 SCREW-TIMING ADJ
216514100 216514100 SHELF
297108901 297108901 SHELFSLIDING
297165400 297165400 SHIELD
297053102 297053102 SHIELD-LIGHT
297164000 297164000 SHROUDFAN ORFICE
216502500 216502500 SLEEVE
297291211 297291211 SLIDE
297291210 297291210 SLIDE
241507803 241507803 SOCKET-LIGHT
5304456661 5304456661 SPACER-HOLD SWITCH
297102800 297102800 SPACER-TUBE
5304456682 5304456682 SPRING
5304445223 5304445223 SPRING BEAM
297111000 297111000 STANDOFF
5308000110 5308000110 STRAP-EVAP/HEATER
5304456668 5304456668 SUPPORT
297099500 297099500 SUPPORT-CRISPER
5304456667 5304456667 SWITCH-MICRO
5304456688 5304456688 TERMINAL
297110400 297110400 THERMISTER
5304456665 5304456665 THERMOSTAT
216887500 216887500 TUBE
297044900 297044900 TUBE-WATER INLET
297283800 297283800 USE 297283800
5309950074 5309950074 VALVE
5304456692 5304456692 WASHER
5304456689 5304456689 WASHER
5304456737 5304456737 WASHER
297053000 297053000 WIRE
5304467131 5304467131 WRENCH
