Model Image
Manufacturer

Electrolux

Model Number

EI23BC51IB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241926402 241926402 ACTUATOR
241926401 241926401 ACTUATOR
242051301 242051301 ARMBAIL
241953202 241953202 BAR
241770702 241770702 BAR
241602112 241602112 BASECOMPRESSOR
242058801 242058801 BASEWATER FILTER
242027002 242027002 BASKETFRZR
241780806 241780806 BASKETFRZR
241872201 241872201 BEAMCRISPER COVER
241760401 241760401 BEARING
241896103 241896103 BINDOOR
241804303 241804303 BINDOOR
241804002 241804002 BINDOOR
5303321321 5303321321 BLACK TOUCHUP PAINT
241639502 241639502 BLADE
241838401 241838401 BLOCKEVAP COIL

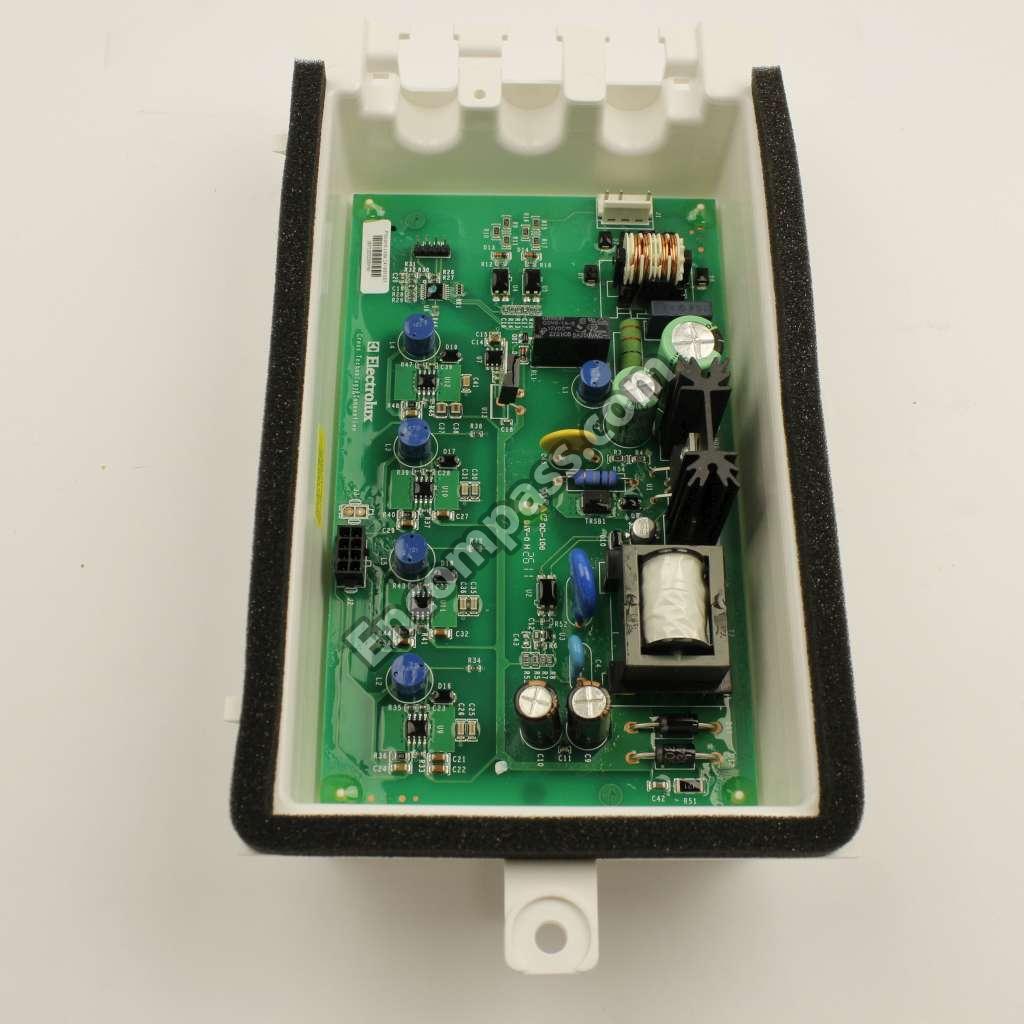

241955004 241955004 BOARDMAIN POWER
240335006 240335006 BOLT-ROLLER ADJ
242053001 242053001 BRACKET
240346501 240346501 BRACKET-SUPPORT
241778701 241778701 BRACKETANTI TIP
241761301 241761301 BRACKETUPPER HINGE
241979601 241979601 BUMPER
242075602 242075602 BUSHING
242075601 242075601 BUSHING
241518301 241518301 BUSHING
241885901 241885901 BUTTONFILTER RELEA
5304469402 5304469402 CAM
242075701 242075701 CAM-LOWER HINGE
241969001 241969001 CAP
241824101 241824101 CAP
241815401 241815401 CAP
241824102 241824102 CAPDOOR RACK
241842301 241842301 CAPTHERMISTOR
241532401 241532401 CHANNEL
241773802 241773802 CHANNELSHELF MTG
241774201 241774201 CHANNELSHELF MTG
241774301 241774301 CHANNELSHELF MTG
5304469383 5304469383 CLAMP
240396801 240396801 CLAMP-TUBE
241949501 241949501 CLIP
241852501 241852501 CLIP
218515403 218515403 CLIPGRILLE
242036801 242036801 CLIPPLASTIC
5304458401 5304458401 CLIPRETAINER
5303918437 5303918437 COMPRESSOR KIT
241862903 241862903 CONDENSER
242053101 242053101 CONTAINER

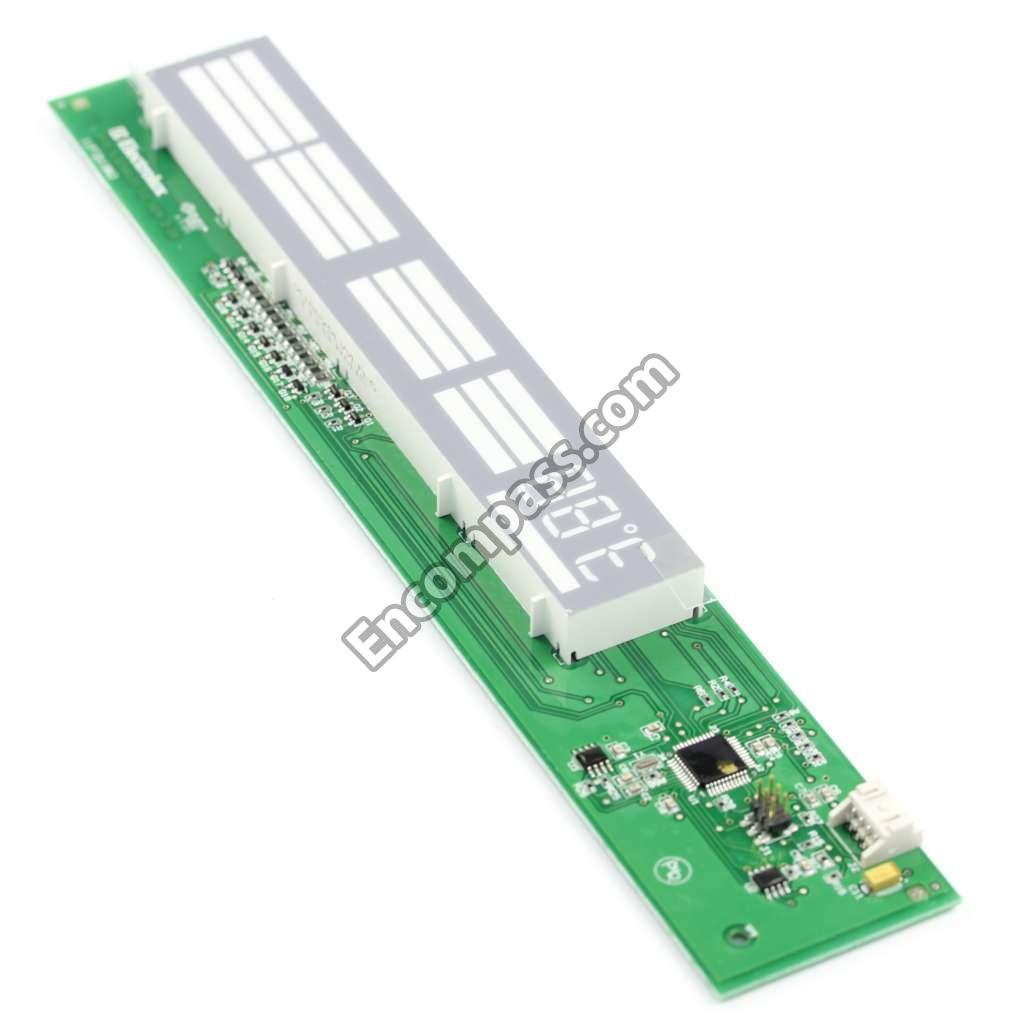

241958401 241958401 CONTROLELECTRONIC
241516901 241516901 CORD-SERVICE
241973501 241973501 COVER PINION WHITE
241922901 241922901 COVERAIR DUCT
241803901 241803901 COVERDELI AIR CONT
241859801 241859801 COVEREPS
241860402 241860402 COVEREVAP COIL
241860601 241860601 COVEREVAPORATOR
241859701 241859701 COVERFAN
5304469385 5304469385 COVERICE MAKER
5303918438 5303918438 COVERPAN
241761509 241761509 COVERUPPER HINGE
241761510 241761510 COVERUPPER HINGE
242051201 242051201 CUPWATER INLET
241518501 241518501 DAMPER
241936201 241936201 DAMPERRUBBER
241987301 241987301 DEFLECTORAIR
5303918410 5303918410 DEFROST HEATER KIT
242027101 242027101 DIVIDER
241780902 241780902 DIVIDER
241995401 241995401 DIVIDERDAIRY COMPT
241868402 241868402 DOOR STOP
241868401 241868401 DOOR STOP
242048001 242048001 DOORAIR FILTER
241987902 241987902 DOORCOMPLETE
241804701 241804701 DOORDAIRY
241988021 241988021 DOORREFR
241988020 241988020 DOORREFR
241928101 241928101 DUCTAIR
242052101 242052101 DUCTAIR
241963102 241963102 DUCTAIR
3205266 3205266 EDGE PROTECTOR
5304469384 5304469384 EJECTORICE
242028526 242028526 ENERGY GUIDE
242044501 242044501 EVAPORATOR
241509402 241509402 EVAPORATOR MOTOR

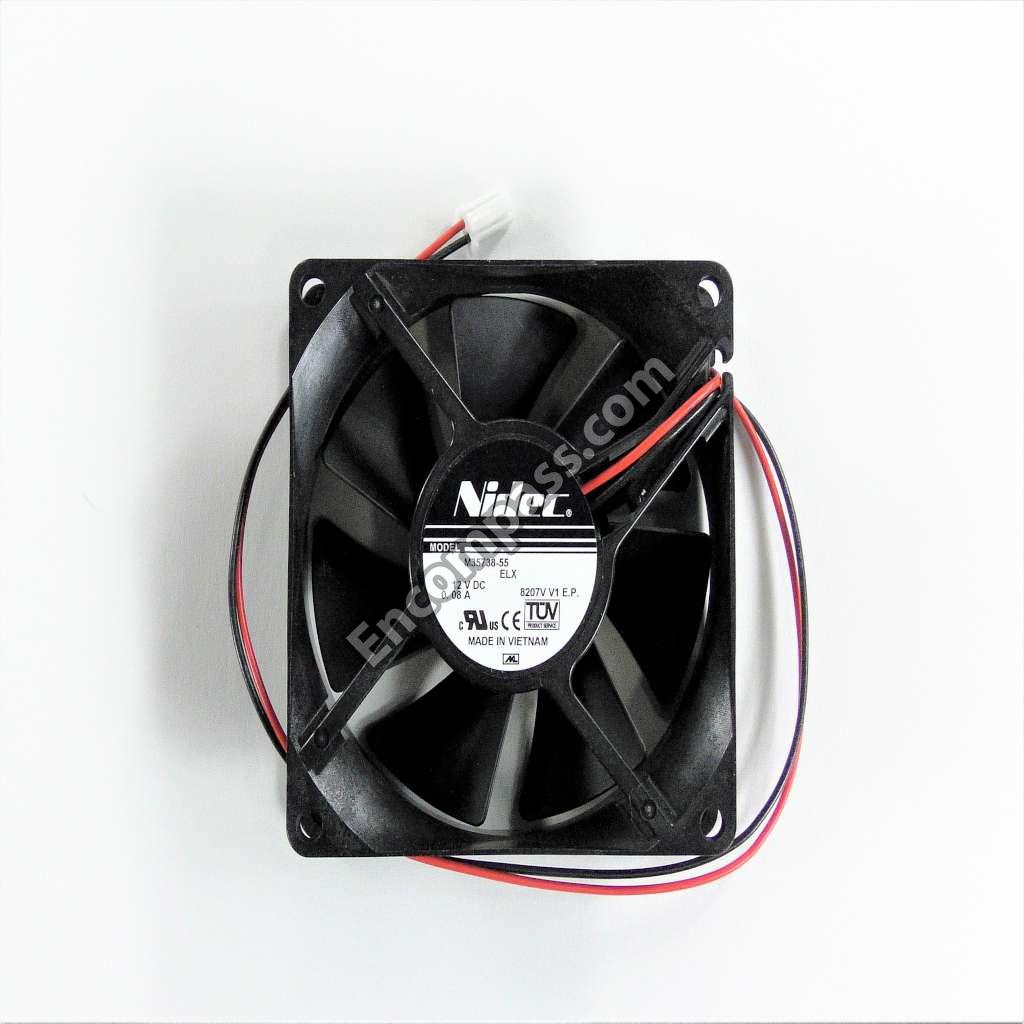

241825704 241825704 FAN ASSEMBLY
5308000010 5308000010 FAN BLADE
242073901 242073901 FOAMAIR SUPPLY
241872006 241872006 FRAMECRISPER COVER
241802201 241802201 FRAMECRISPER COVER
241803401 241803401 FRAMEDELI COVER
241860101 241860101 GASKET
241928201 241928201 GASKETAIR DUCT
241860105 241860105 GASKETCOIL COVER
241860104 241860104 GASKETCOIL COVER
241860103 241860103 GASKETEVAP
241860102 241860102 GASKETEVAP
241778303 241778303 GASKETREFR DOOR
5304469403 5304469403 GEAR
241967401 241967401 GLASS
241768802 241768802 GLASSCRISPER FRAME
241930302 241930302 GRILLE/KICKPLATE
241929902 241929902 GROMMET
241929901 241929901 GROMMET
240346601 240346601 GROMMET-BRACKET
241881323 241881323 HANDLEFRZR DRAWER
241881321 241881321 HANDLEREFR DOOR
241510904 241510904 HARNESSDISPENSER
5304521780 5304521780 HARNESSPOWER PTD
242045301 242045301 HARNESSWIRING
241862501 241862501 HARNESSWIRING
241862601 241862601 HARNESSWIRING
242104901 242104901 HARNESSWIRING
242045501 242045501 HARNESSWIRING
242045401 242045401 HARNESSWIRING
241788402 241788402 HARNESSWIRING
241835402 241835402 HARNESSWIRING
5304469390 5304469390 HARNESSWIRING
5303918445 5303918445 HEAT EXCHANGER

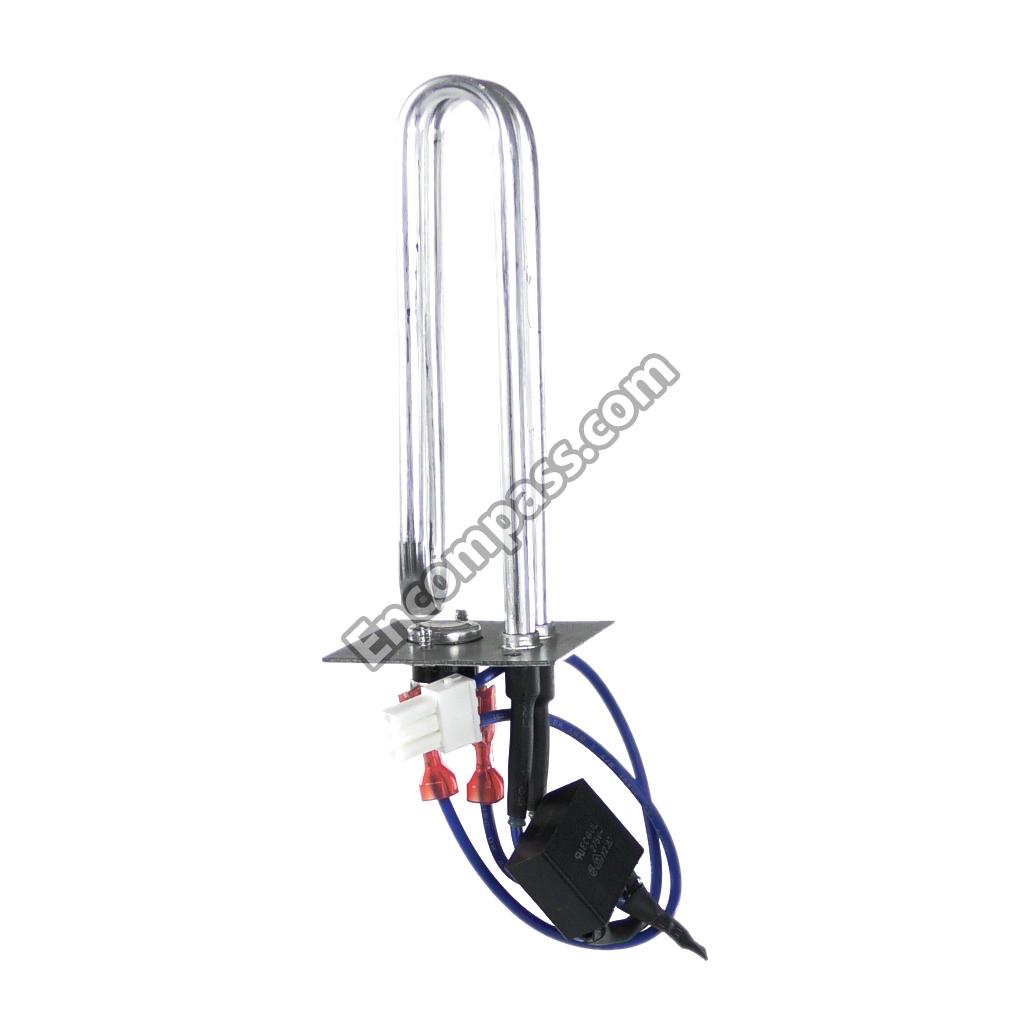

241782001 241782001 HEATERPTD
241779401 241779401 HINGE
241779801 241779801 HINGEMULLION
5303918428 5303918428 HOT TUBE REPAIR KIT
242041401 242041401 HOUSING
5304469379 5304469379 HOUSING
242047901 242047901 HOUSINGAIR FILTER
241895805 241895805 HOUSINGDAIRY COMPT
241803803 241803803 HOUSINGDELI AIR CO
242021002 242021002 HOUSINGMAGNET
5304469378 5304469378 ICE STRIPPER
5304469406 5304469406 INSULATOR
241577505 241577505 INVERTOR
241836301 241836301 KNOBDAIRY DOOR
241836401 241836401 LATCHDOOR
5304469382 5304469382 LEVER ARM

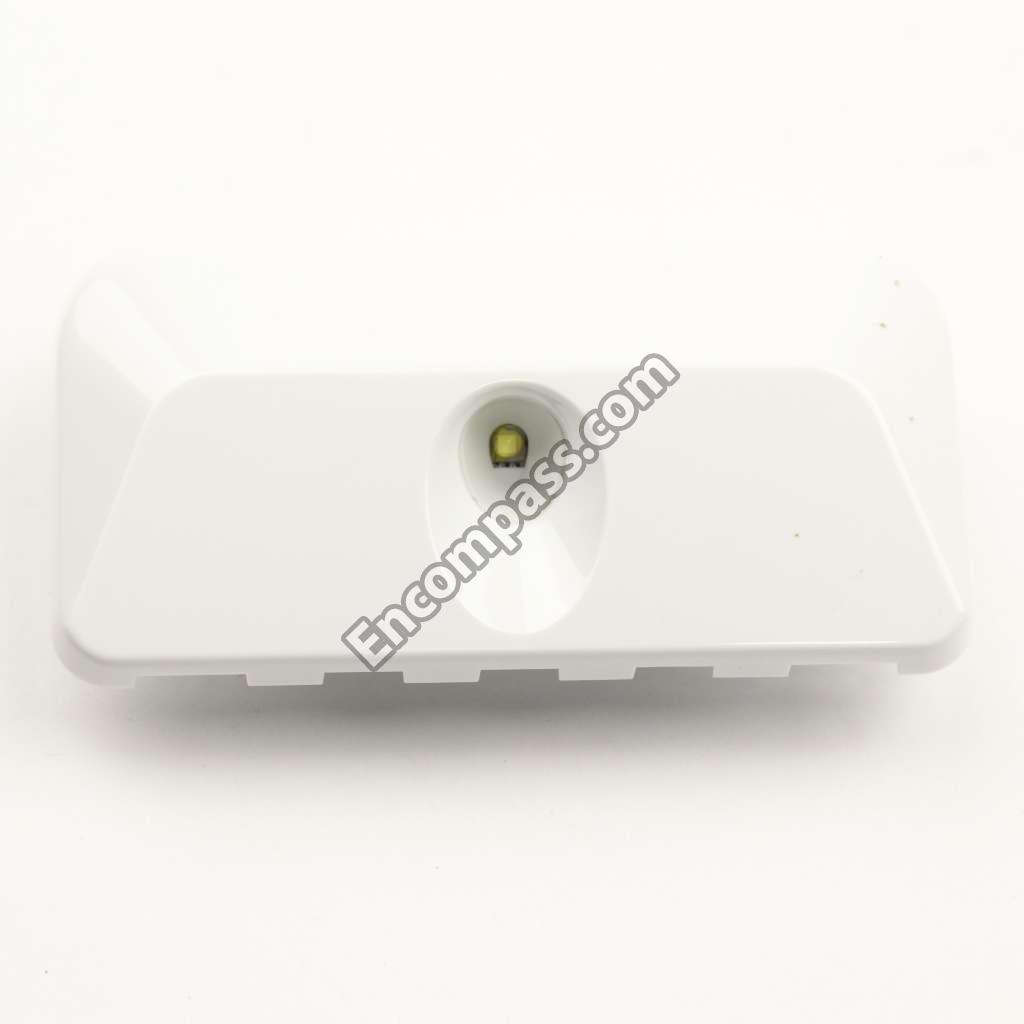

241891103 241891103 LIGHTLED
241812202 241812202 MAGNET
241779101 241779101 MAGNET
241812201 241812201 MAGNET
5304469413 5304469413 MOLDICE MAKER

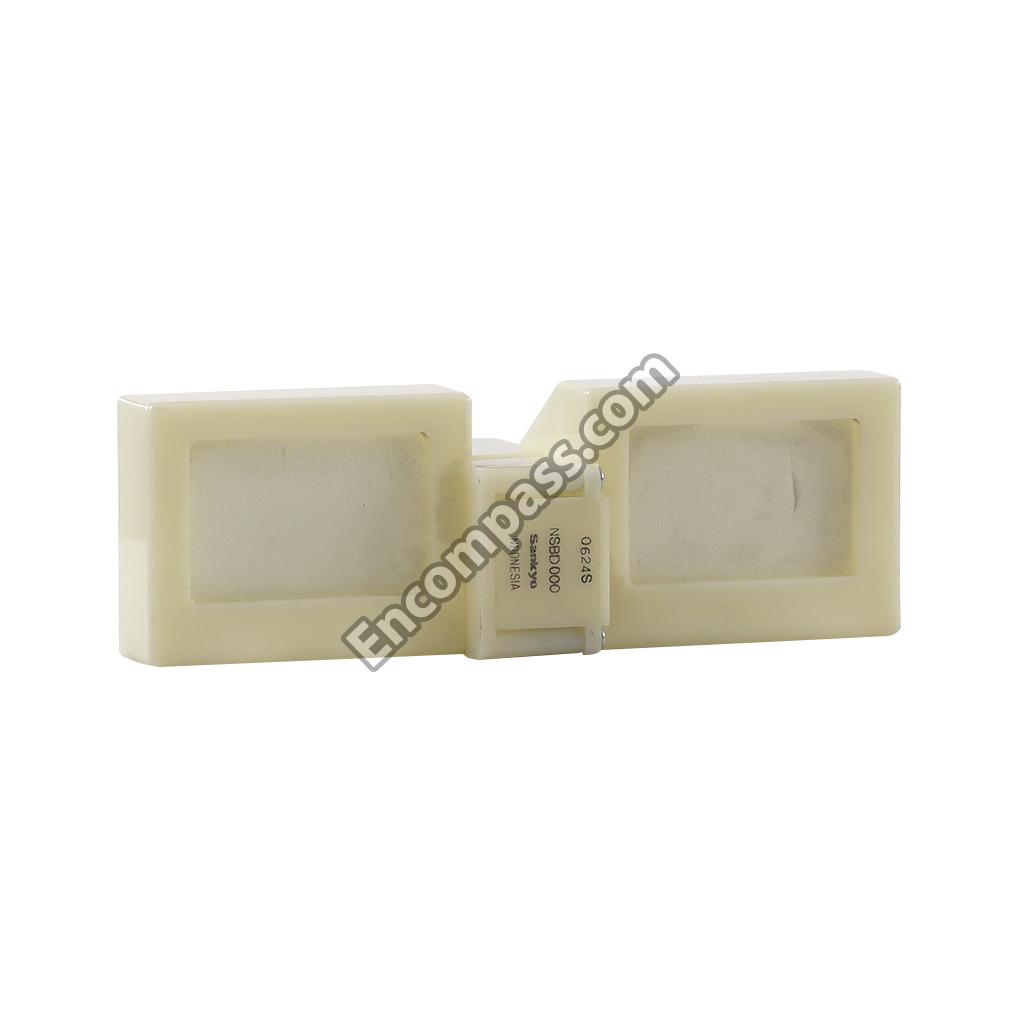

241775301 241775301 MOTORDAMPER
5304469407 5304469407 MOTORICE MAKER SVO
5304469398 5304469398 MOUNTING PLATE
5304469399 5304469399 MOUNTING PLATE
241873302 241873302 NAMEPLATE
241518001 241518001 NUT
242025901 242025901 OVERLAY
241920604 241920604 PAN
241772808 241772808 PANCRISPER
241827206 241827206 PANDELI
241770201 241770201 PINION
241770301 241770301 PINIONIDLER
242011101 242011101 PINLOCK
241609201 241609201 PIPE
5304469400 5304469400 PLATEVALVE SWITCH
240494001 240494001 PLUG
5303208309 5303208309 PLUG-HOLE

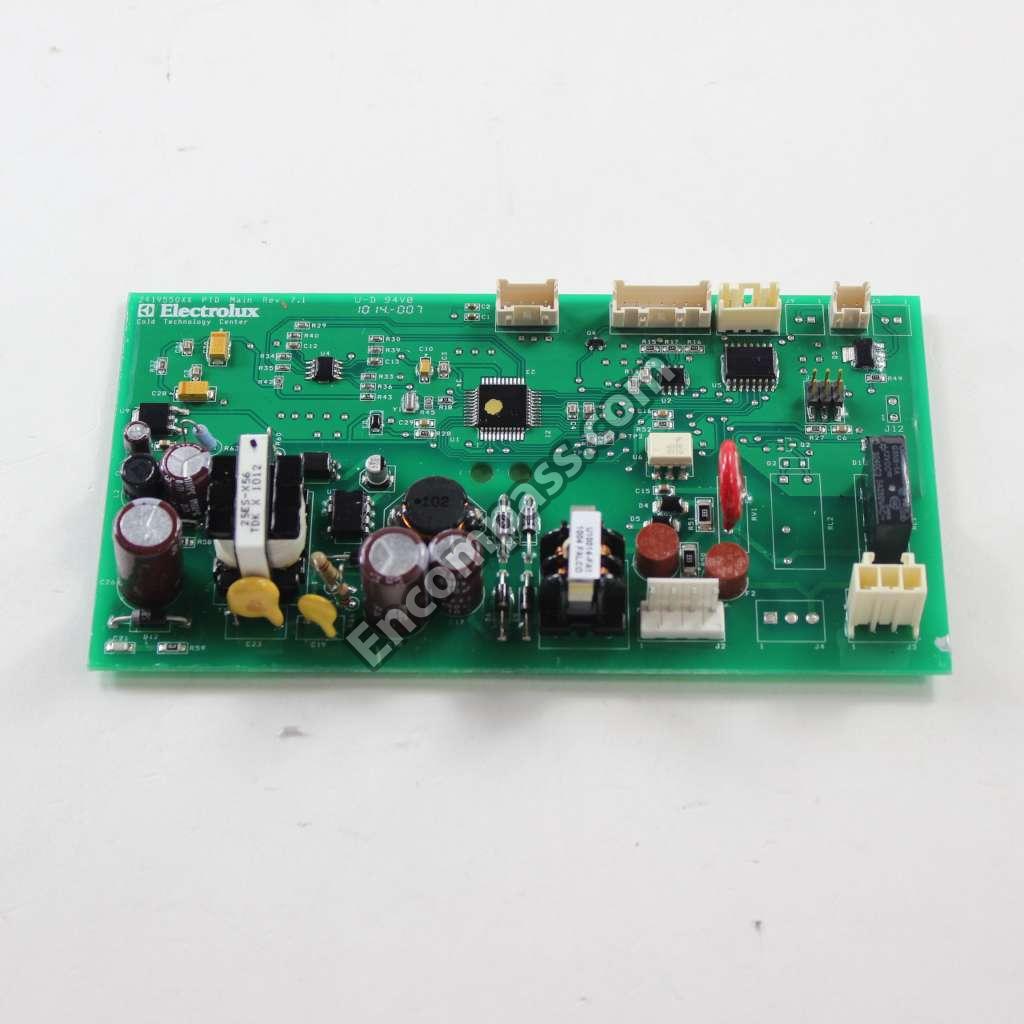

241891601 241891601 POWER BOARD
241762802 241762802 RACK
241748901 241748901 RACKWINE
241824201 241824201 RETAINERBASKET
5304455655 5304455655 RIVET
240397501 240397501 ROD
5304418225 5304418225 ROLLER
5304455650 5304455650 SCREW
241858401 241858401 SCREW
241953904 241953904 SCREW
241953905 241953905 SCREW
242017501 242017501 SCREW
241953901 241953901 SCREW
242039701 242039701 SCREW
5304515677 5304515677 SCREW
241641501 241641501 SCREW
241548003 241548003 SCREW
218781101 218781101 SCREW
241500303 241500303 SCREW
241710601 241710601 SCREW
218362501 218362501 SCREW
218252201 218252201 SCREW
240451503 240451503 SCREW
240433203 240433203 SCREW
241690701 241690701 SCREW
5304469410 5304469410 SCREW
5304469391 5304469391 SCREW
5304469392 5304469392 SCREW
5304469393 5304469393 SCREW
241941202 241941202 SCREW#818 X 3/8 F
240442707 240442707 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
5304455670 5304455670 SCREW-GROUND WIRE
240578902 240578902 SCREW-HINGE MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
5304469408 5304469408 SCREWTIMING ADJ
241518601 241518601 SEAL-DAMPER
5304469950 5304469950 SEALANT
240597203 240597203 SENSOR
241839902 241839902 SHELFGLASS
241769002 241769002 SLIDECRISPER COVER
241816101 241816101 SLIDEDELI
241947701 241947701 SPACER
241868202 241868202 SPACER
241868201 241868201 SPACER
240409302 240409302 SPACER-COND TUBE
5304469404 5304469404 SPACERHOLD SWITCH
5304469401 5304469401 SPRING,TIMING ADJUST
240398401 240398401 SPRING-FILTER RELEA
5304469396 5304469396 SPRINGSHUTOFF ARM
5308000110 5308000110 STRAP-EVAP/HEATER
242058709 242058709 SUPPORT
242060701 242060701 SUPPORT BAIL ARM
241768601 241768601 SUPPORTCRSPR COVER
241871901 241871901 SUPPORTEPS DAMPER
240505801 240505801 SWITCH

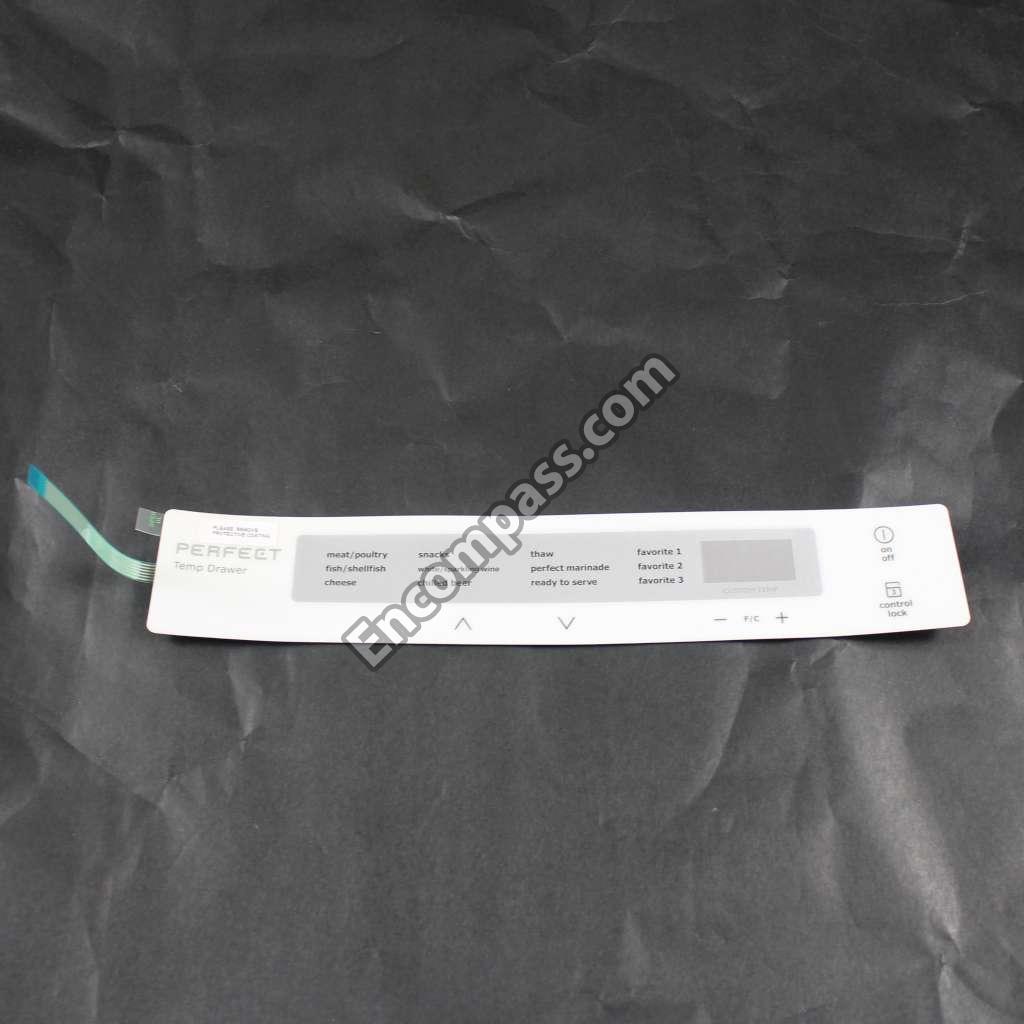

242041201 242041201 SWITCHMEMBRANE
5304469388 5304469388 SWITCHMICRO
5304469405 5304469405 SWITCHMICRO
240346701 240346701 TAPE-FOAM SEAL
5304469387 5304469387 THERMOSTAT ASSEMBLY
242046001 242046001 THERMOSTATDEFROST
241770809 241770809 TRAY
240337610 240337610 TRIMCABINET CORNER
241879901 241879901 TRIMCRISPER COVER
241791201 241791201 TROUGHDRAIN
241920103 241920103 TUBE
242036701 242036701 TUBEJUMPER
215346900 215346900 TUBEPROCESS
241871501 241871501 TUBESUCTION
218976804 218976804 TUBEWATER INLET
241767203 241767203 USE 241767203
5304467131 5304467131 USE 5304467131
241868301 241868301 WASHER
215474201 215474201 WASHER
5304469381 5304469381 WASHER
EWF01 EWF01 WATER FILTER
