Electrolux

Model Number

EI23CS35KS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241676101 241676101 ACTUATORSOLENOID
241726501 241726501 BAR-DRIVE
240396002 240396002 BASE-WATER FILTER
240330012 240330012 BASECOMPRESSOR
241744201 241744201 BASKETSLIDING
241744001 241744001 BASKETSLIDING
241742201 241742201 BASKETSLIDING
241760403 241760403 BEARING
241760401 241760401 BEARING
241990301 241990301 BEARING-HINGE
241990302 241990302 BEARINGHINGE(FRZ)
241752302 241752302 BIN
241750202 241750202 BINDOOR
241752301 241752301 BINDOOR
242142701 242142701 BINDOOR
5303321321 5303321321 BLACK TOUCHUP PAINT
241684107 241684107 BLADE
241684103 241684103 BLADE
241684102 241684102 BLADE
241639502 241639502 BLADE
218679614 218679614 BLOCKEVAP COIL

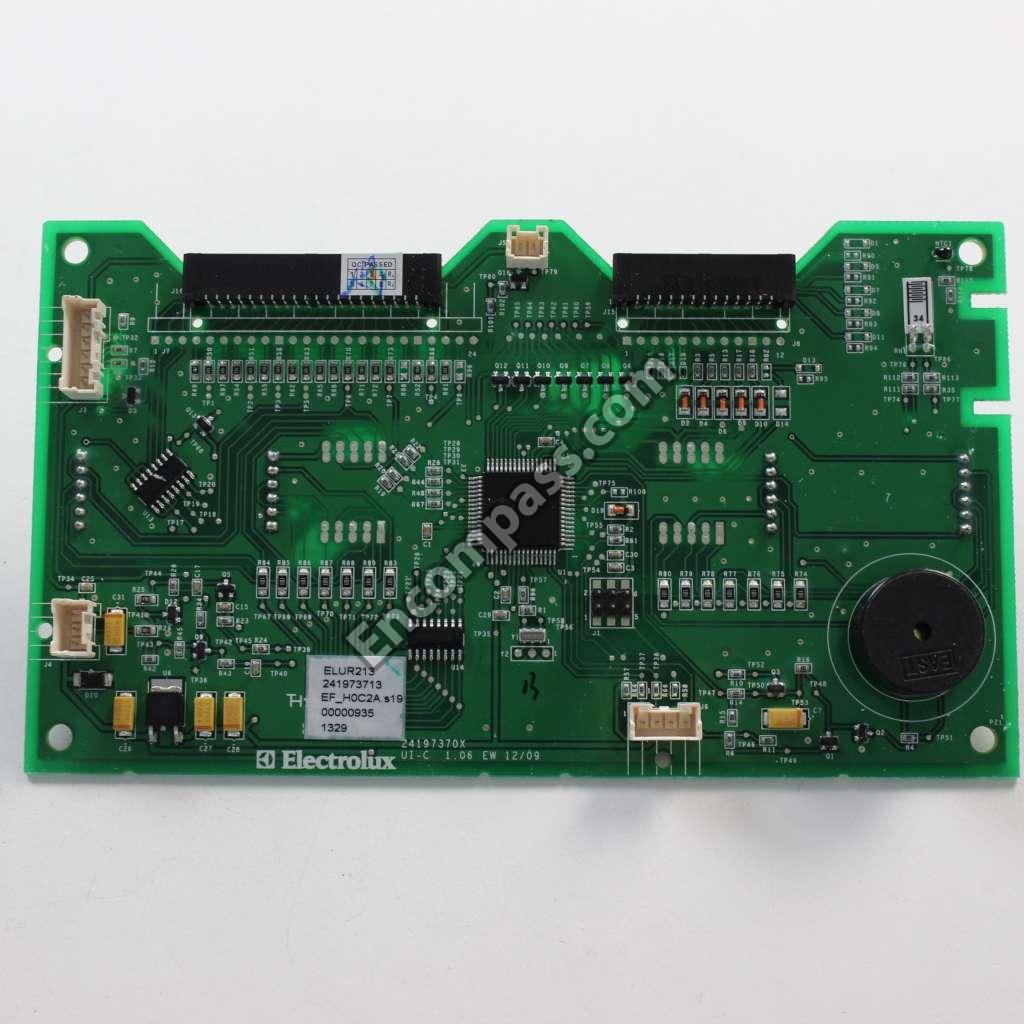

241973713 241973713 BOARDCONTROL
240335006 240335006 BOLT-ROLLER ADJ
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
5304458374 5304458374 BRACKETICE MAKER
241761301 241761301 BRACKETUPPER HINGE
241518301 241518301 BUSHING
241754602 241754602 BUTTONFILTER RELEA
241685201 241685201 CAM-DRIVE
240542901 240542901 CAP-WATER VALVE
241812502 241812502 CHANNEL
241674402 241674402 CHANNEL
241674401 241674401 CHANNEL
241532401 241532401 CHANNEL
241513002 241513002 CHANNELSHELF MTG
5304455846 5304455846 CLAMP
241519401 241519401 CLIP
241716801 241716801 CLIP
241852502 241852502 CLIP
242036802 242036802 CLIP
241852501 241852501 CLIP
242135301 242135301 CLIP
5304458398 5304458398 CLIP
218515403 218515403 CLIPGRILLE
242036801 242036801 CLIPPLASTIC
5304458401 5304458401 CLIPRETAINER
241563901 241563901 CLIPSLIDE
297049500 297049500 CLIPSLIDE
242106605 242106605 CONDENSER
5304458399 5304458399 CONDUCTOR-HEAT
241515202 241515202 CONTAINER-ICE
241684402 241684402 CONTROL ROD
241516901 241516901 CORD-SERVICE
240326304 240326304 COVER
241509804 241509804 COVERAIR DUCT
241745502 241745502 COVERCRISPER PAN
241747102 241747102 COVERCRISPER PAN
241719711 241719711 COVEREVAP COIL
241946709 241946709 COVERHINGE
5304458376 5304458376 COVERICE MAKER
241861501 241861501 COVERMEAT PAN
241675507 241675507 COVERMOTOR
242168904 242168904 COVERUPPER HINGE
5304458378 5304458378 CUPWATER INLET
241853801 241853801 DAMPER ASSEMBLY
241583301 241583301 DEFLECTOR-AIR
242153901 242153901 DIFFUSERAIR
241746001 241746001 DIVIDERCRISPER PAN
241990202 241990202 DOOR STOP
241990201 241990201 DOOR STOP
242026498 242026498 DOORFRZR
242038897 242038897 DOORREFR
241684501 241684501 DRIVE BLADE
241754302 241754302 DUCTAIR FILTER
241690201 241690201 E-RING
5304458377 5304458377 EJECTORICE
5303918284 5303918284 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
241720601 241720601 EXTENSION
5308000010 5308000010 FAN BLADE
241684301 241684301 FIXED BLADE
241684203 241684203 FIXED BLADE
241742101 241742101 FRONT
241740402 241740402 FRONTICE CONTAINER
241510206 241510206 GASKETFRZR DOOR
241510205 241510205 GASKETREFR DOOR
5304458380 5304458380 GEAR
241758708 241758708 GRILL
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
241550801 241550801 GROMMET-SHELF MTG
241550701 241550701 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
241745301 241745301 HANDLECRISPER PAN
241950801 241950801 HANDLECRISPER PAN
241881304 241881304 HANDLEREFR DOOR
240579821 240579821 HANGER-RH
241514701 241514701 HANGER-SHELF GLASS
241514801 241514801 HANGER-SHELF GLASS
241809102 241809102 HANGERBASKET
241809101 241809101 HANGERBASKET
241799901 241799901 HANGERSHELF GLASS
241799801 241799801 HANGERSHELF GLASS
241519902 241519902 HARNESSELECTRICAL
241835801 241835801 HARNESSWIRING
242150401 242150401 HARNESSWIRING
242150001 242150001 HARNESSWIRING
241891901 241891901 HARNESSWIRING
242199702 242199702 HARNESSWIRING
5304521771 5304521771 HARNESSWIRING
5304458379 5304458379 HARNESSWIRING
5303918327 5303918327 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
5304458395 5304458395 HOUSING
242154001 242154001 HOUSINGAIR FILTER
242091102 242091102 HOUSINGCONTROL
241861301 241861301 HOUSINGDAMPER
241845401 241845401 HOUSINGSENSOR
241755203 241755203 HOUSINGWATER FILTR
241914701 241914701 ICE CONTAINER ASSEMBLY
5304458390 5304458390 ICE STRIPPER
240350649 240350649 INSERT-GLASS
240350603 240350603 INSERT-PAN COVER
240443380 240443380 INSERTPAN COVER
242156301 242156301 INSULATIONAIR DUCT
242125501 242125501 INSULATOR
5304458381 5304458381 INSULATOR
241577501 241577501 INVERTOR
242146203 242146203 LABELENERGYGUIDE
5304458391 5304458391 LEVER ARM
241753301 241753301 LINERSUMP
241890604 241890604 LOUVER
242018304 242018304 MOTORCONDENSER FAN
5304458382 5304458382 MOTORICE MAKER SVO
241873301 241873301 NAMEPLATE
241685001 241685001 NUT-AUGER
241745604 241745604 PANCRISPER
241950502 241950502 PANCRISPER
241920607 241920607 PANDEFROST
241783502 241783502 PANMEAT
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
241504601 241504601 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
241917801 241917801 PLATEDOOR CLOSER
5304458383 5304458383 PLATEMOUNTING
5303208309 5303208309 PLUG-HOLE
241516102 241516102 RACK-CAN
242134102 242134102 RACKCAN
241676501 241676501 RAIL ASSEMBLY
241504702 241504702 RAIL-ICE CREAM SHEL
241504701 241504701 RAIL-ICE CREAM SHEL
5304458403 5304458403 RETAINER-THERMOSTAT
5304455655 5304455655 RIVET
240397501 240397501 ROD
5304418225 5304418225 ROLLER
241676301 241676301 ROTATION STOP
242125401 242125401 SCOOP CRISPER AIR S
215005101 215005101 SCREW
241551602 241551602 SCREW
241690701 241690701 SCREW
241690501 241690501 SCREW
215503203 215503203 SCREW
240363402 240363402 SCREW
218493101 218493101 SCREW
218362501 218362501 SCREW
241500303 241500303 SCREW
218252201 218252201 SCREW
218781101 218781101 SCREW
241710601 241710601 SCREW
241548003 241548003 SCREW
240451503 240451503 SCREW
5304455650 5304455650 SCREW
5304455649 5304455649 SCREW
218359202 218359202 SCREW
5304458384 5304458384 SCREW
5304458385 5304458385 SCREW
5304458387 5304458387 SCREW
5304458393 5304458393 SCREW
5304458394 5304458394 SCREW
5304456660 5304456660 SCREW
5304456676 5304456676 SCREW
5304456684 5304456684 SCREW
5304458386 5304458386 SCREW
5304458389 5304458389 SCREW
5304456678 5304456678 SCREW
241701902 241701902 SCREW DRIVER
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
218249808 218249808 SEALCOIL COVER
242183301 242183301 SEALRETURN AIR
240561702 240561702 SEALWATER INLET
240597203 240597203 SENSOR
241530501 241530501 SENSOR
240443358 240443358 SHELF-FREEZER
241711213 241711213 SHELF-FREEZER
241691701 241691701 SHELF-ICE CREAM
242204501 242204501 SHROUD-EVAP FAN MTG
241946106 241946106 SHROUDCOND FAN
5304458375 5304458375 SHUT-OFF ARM
241861201 241861201 SLIDEDAMPER
241684802 241684802 SPACER
241689801 241689801 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
5304458388 5304458388 SPACER-HOLD SWITCH
5304456682 5304456682 SPRING
5304459922 5304459922 SPRING,SHUT-OFF ARM
240398401 240398401 SPRING-FILTER RELEA
241731801 241731801 SPRINGCONTROL ROD
241675902 241675902 SPRINGVALVE
5308000110 5308000110 STRAP-EVAP/HEATER
241754801 241754801 SUPPORT
242177301 242177301 SUPPORTCRISPER CVR
242177401 242177401 SUPPORTCRISPER CVR
241547901 241547901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
241911705 241911705 SWITCHLIGHT

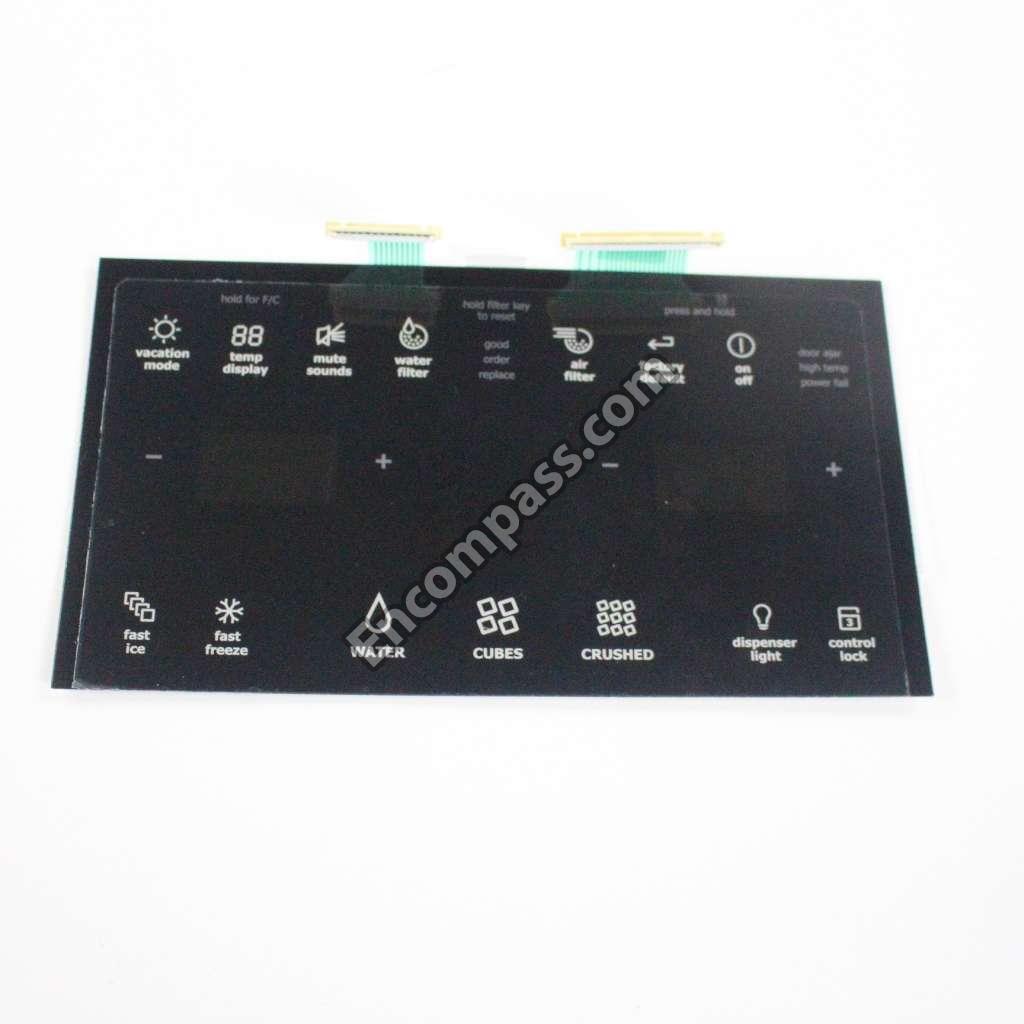

242091203 242091203 SWITCHMEMBRANE
240346701 240346701 TAPE-FOAM SEAL
240346703 240346703 TAPEFOAM
5304458400 5304458400 THERMAL CUTOFF
5304456665 5304456665 THERMOSTAT
241571201 241571201 TRIM-SHELF
240367603 240367603 TRIM-SHELF
241741601 241741601 TRIMBASKET
241741301 241741301 TRIMBASKET
241742102 241742102 TRIMBASKET
240337616 240337616 TRIMCABINET CORNER
5303918369 5303918369 TRIMCRISPER
5303918370 5303918370 TRIMCRISPER
241748601 241748601 TRIMMEAT PAN
218976420 218976420 TUBE
218976409 218976409 TUBE
241856903 241856903 TUBECONNECTOR
218976421 218976421 TUBEWATER INLET
5304467131 5304467131 USE 5304467131
241690306 241690306 WASHER
215474201 215474201 WASHER
5304456689 5304456689 WASHER
EWF01 EWF01 WATER FILTER
241532006 241532006 WATER TANK
