Model Image
Manufacturer

Electrolux

Model Number

EI30EW35PSB

Description

Electric Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
139009100 139009100 BLADE
316535201 316535201 BOARD
316519205 316519205 BOARD
316443941 316443941 BOARD
318577800 318577800 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
139021100 139021100 BRACKET
139020100 139020100 BRACKET
139028000 139028000 BRACKET
318579001 318579001 BRACKET
318256201 318256201 BRACKET
318946500 318946500 BULB
139010800 139010800 CAP,SCREW HOLE,TRIM,(2)
318163602 318163602 CLEANER-COOKTOP
316576654 316576654 CONTROLLER,ELECTRONIC,ES630B1
139027900 139027900 COVER
139017901 139017901 COVER
139013902 139013902 COVER,CONVECTION FAN
139027700 139027700 DUCT
139027600 139027600 DUCT
139000900 139000900 ELEMENT
139006500 139006500 ELEMENT
808650402 808650402 ELEMENT
139010500 139010500 GLASS,THERMAL,INNER,#1

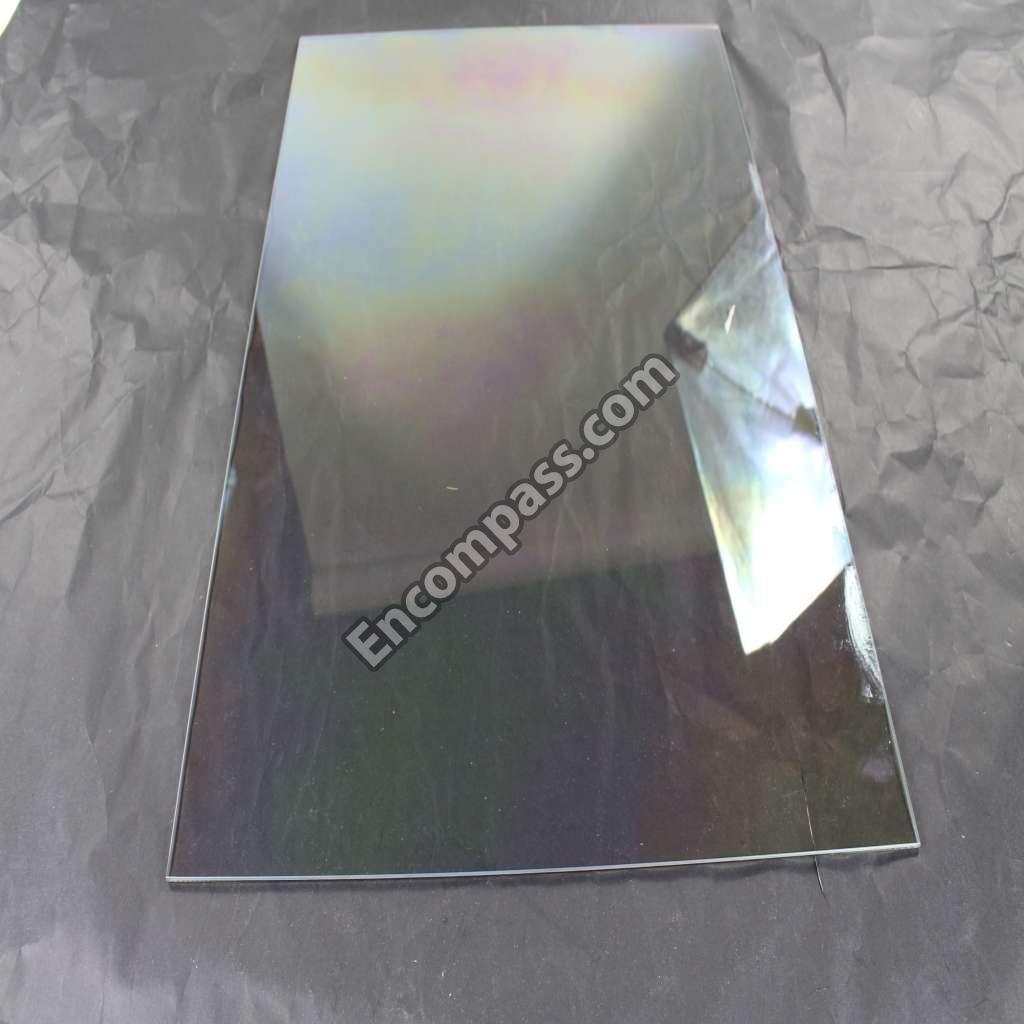

139010501 139010501 GLASS,THERMAL,INNER,#2
316380802 316380802 HANDLE
316303501 316303501 HARNESS ASSEMBLY
5304496650 5304496650 HARNESS,WIRING,COMMUNICATION
139010302 139010302 HINGE,DOOR,YELLOW,DUAL SPRING
316082001 316082001 INSERT
139001700 139001700 INSULATION
807989001 807989001 INSULATION
139009000 139009000 LAMP ASSEMBLY
139021302 139021302 MOTOR
139008503 139008503 MOTOR,CONVECTION FAN,2400 RPM
316205500 316205500 NUT
316136600 316136600 NUT
316081901 316081901 PAN
139017304 139017304 PANEL
807988901 807988901 PANEL
318601306 318601306 PROBE,MEAT TEMP,BLACK
139011600 139011600 RACK
139013308 139013308 RACK ASSEMBLY,GLIDING,W/HANDLE
139017200 139017200 RECEPTACLE ASSEMBLY
5304401490 5304401490 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316524400 316524400 SCREW
5303323130 5303323130 SCREW
316021109 316021109 SCREW
316418900 316418900 SCREW
316001003 316001003 SCREW
5303289910 5303289910 SCREW
316439507 316439507 SCREW
5304470882 5304470882 SCREW
807597603 807597603 SCREW
807286001 807286001 SCREW,HINGE,10-32 X 1/4,(4)
807545504 807545504 SEAL,OVEN DOOR,GRAY
318562500 318562500 SENSOR
139020000 139020000 SHIELD
139000600 139000600 SHIELD
139018000 139018000 SHIELD
807890403 807890403 SHIELD
807285601 807285601 SHIELD
316114100 316114100 SPACER
318165800 318165800 SPACER
316247900 316247900 SPACER
318531800 318531800 SPACER
808983501 808983501 SPACER,DOOR GLASS,SILICONE,(2)
5304491779 5304491779 SPACER,DOOR GLASS,TOP
318172904 318172904 SUPPORT
318578506 318578506 THERMOSTAT
139017601 139017601 TRIM
318903728 318903728 TRIM
318903729 318903729 TRIM
5304494448 5304494448 TRIM ASSEMBLY,DOOR,TOP
318903536 318903536 TRIM,OVEN BOTTOM,STAINLESS
139021700 139021700 TUBE
318231870 318231870 WIRING HARNESS
