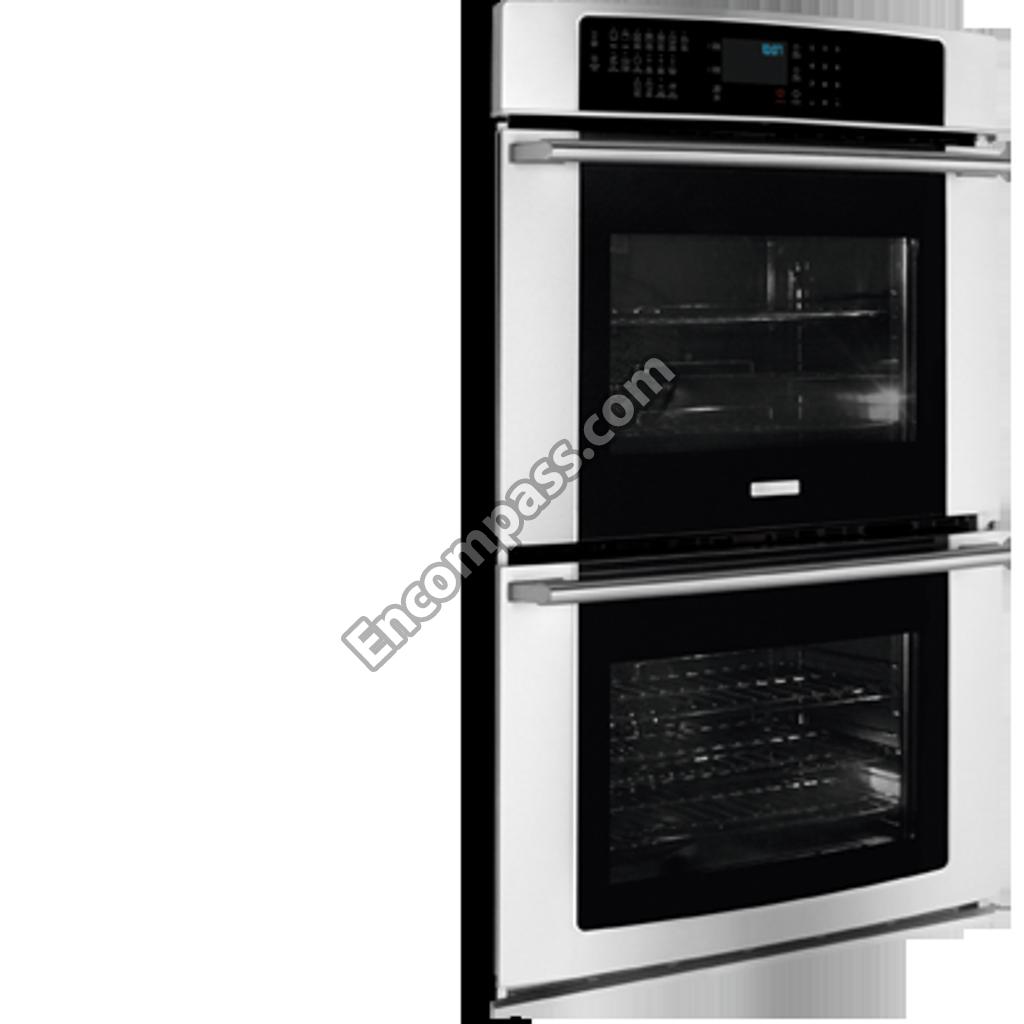

Model Image
Manufacturer

Electrolux

Model Number

EI30EW45JS4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317105 318317105 ADAPTER ASSEMBLY
318259220 318259220 BACK
316519205 316519205 BOARD
316443950 316443950 BOARD
316535201 316535201 BOARD
318574801 318574801 BOTTOM
318394443 318394443 BOX & WIRES ASSEMBLY
318382301 318382301 BRACKET
318256203 318256203 BRACKET
318260622 318260622 BRACKET
318603913 318603913 BRACKET
318361801 318361801 BRACKET
318562300 318562300 BRACKET
318579001 318579001 BRACKET
318946400 318946400 BULB
318163602 318163602 CLEANER-COOKTOP
316095800 316095800 CLIP

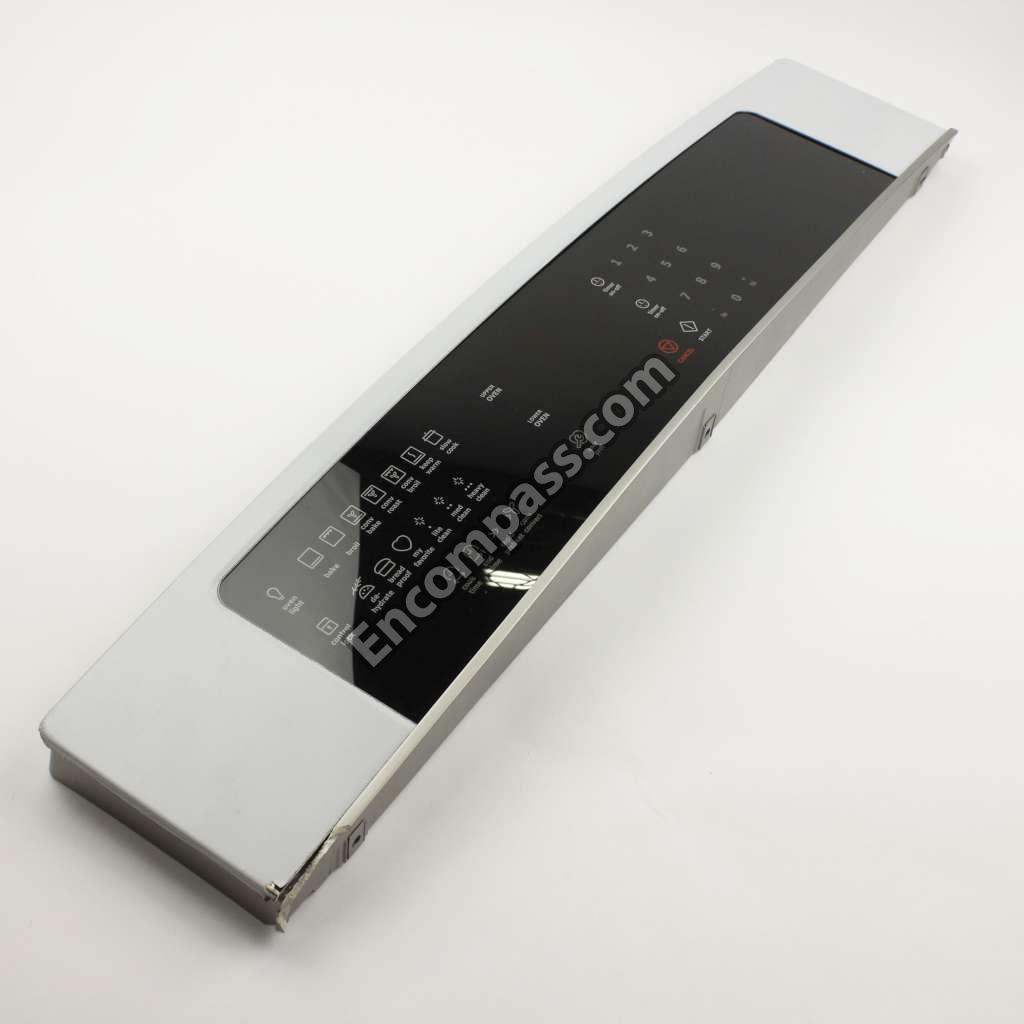

318280445 318280445 CONTROL PANEL ASSEMBLY
316576655 316576655 CONTROLLER
318906601 318906601 COVER
318260104 318260104 COVER
318904202 318904202 DEFLECTOR
318123910 318123910 DEFLECTOR
318255511 318255511 ELEMENT
318255815 318255815 ELEMENT
318601604 318601604 ELEMENT
318398302 318398302 FAN BLADE
318056298 318056298 FRONT
318053131 318053131 GASKET
316117502 316117502 GLASS
318261395 318261395 GLASS ASSEMBLY
318261392 318261392 GLASS ASSEMBLY
241881302 241881302 HANDLE
318572779 318572779 HARNESS
318572780 318572780 HARNESS

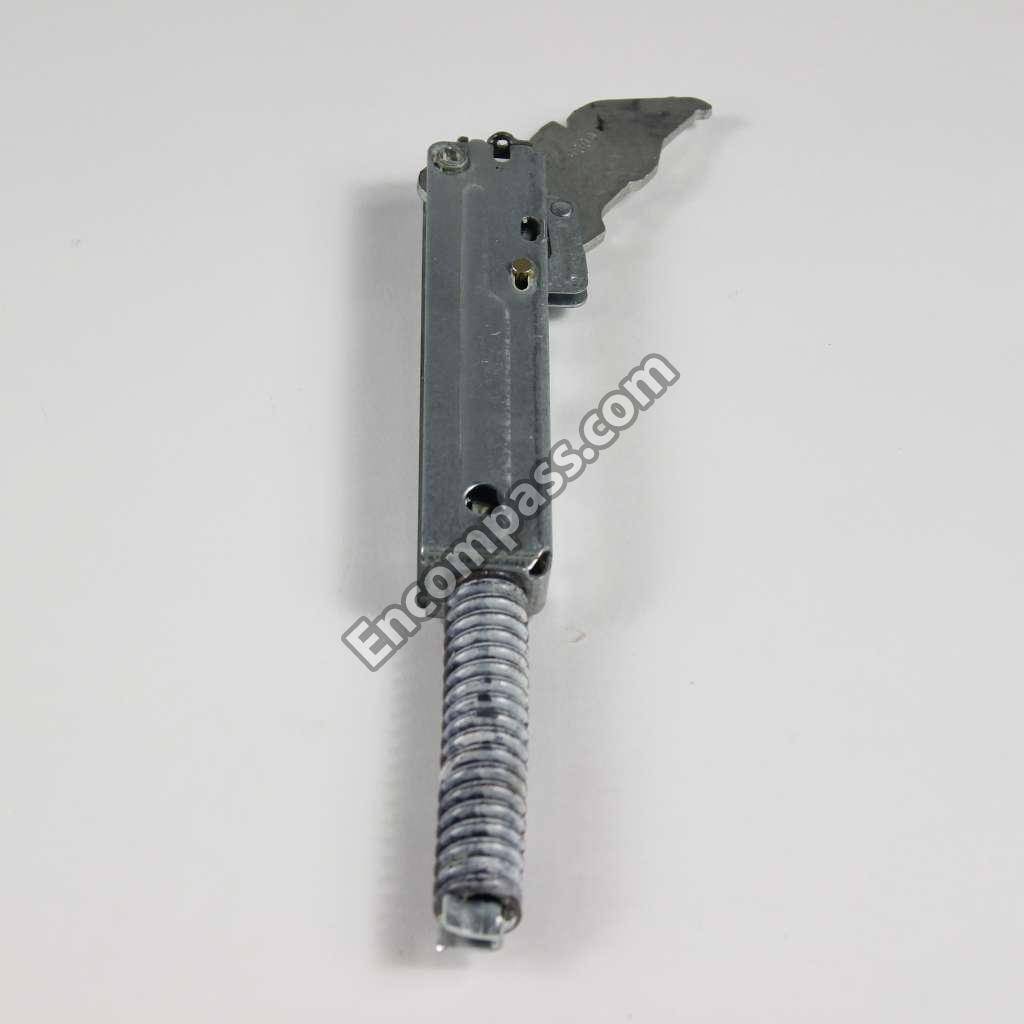

318586005 318586005 HINGE
318126401 318126401 INSERT
318594324 318594324 INSUALTION
318594302 318594302 INSUALTION
318330501 318330501 INSULATION
318372006 318372006 INSULATION
318268004 318268004 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
318241006 318241006 LAMP
318904019 318904019 LINER
318398203 318398203 MOTOR
318261226 318261226 MOTOR
318575604 318575604 MOTOR
5303323144 5303323144 NUT
316136600 316136600 NUT
5304469602 5304469602 OVEN RACK LUBRICANT
318138801 318138801 PAN
318361610 318361610 PANEL
318577700 318577700 PANEL
318570500 318570500 PANEL
318260007 318260007 PANEL
318368300 318368300 PIN
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318402800 318402800 PLATE
5304435874 5304435874 PLATE
318903300 318903300 RACK
318365800 318365800 RACK
318241408 318241408 RECEPTACLE
5304400192 5304400192 RETAINER WIRE
5304456367 5304456367 RIVET
318376505 318376505 ROD
5304415832 5304415832 SCREW
5304417153 5304417153 SCREW
5304436875 5304436875 SCREW
5303211311 5303211311 SCREW
5303323139 5303323139 SCREW
5303323130 5303323130 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303324184 5303324184 SCREW
316524400 316524400 SCREW
5304401490 5304401490 SCREW
5304454881 5304454881 SCREW
5303323134 5303323134 SCREW
5304481623 5304481623 SCREW
5304476599 5304476599 SCREW
5304477736 5304477736 SCREW
318389000 318389000 SEAL
318562500 318562500 SENSOR
318562200 318562200 SENSOR ASSEMBLY
318903105 318903105 SHELF
318259114 318259114 SHIELD
318257305 318257305 SHIELD
318902902 318902902 SPACER
318264716 318264716 SPACER
5304455945 5304455945 SPACER
316517600 316517600 SPACER
318531703 318531703 SPACER
318531800 318531800 SPACER
318293702 318293702 SPACER
316114100 316114100 SPACER
318192400 318192400 SPRING
318172904 318172904 SUPPORT
318252804 318252804 SUPPORT
318944000 318944000 THERMAL CUTOFF
318904905 318904905 TRIM
318904703 318904703 TRIM
318903514 318903514 TRIM
318903617 318903617 TRIM
318903616 318903616 TRIM
318249409 318249409 TUBE
3201909 3201909 WASHER
318231870 318231870 WIRING HARNESS
318199787 318199787 WIRING HARNESS
