Model Image
Manufacturer

Electrolux

Model Number

EI30GF35JSA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316112005 316112005 ANTI TIP KIT
316517500 316517500 BADGE
316401301 316401301 BAFFLE
316401401 316401401 BAFFLE
316525800 316525800 BRACE
316091600 316091600 BRACKET
316401201 316401201 BRACKET
316404700 316404700 BRACKET
316404100 316404100 BRACKET
316438200 316438200 BURNER
316438400 316438400 BURNER
316558300 316558300 BURNER
316404400 316404400 BURNER
316404304 316404304 BURNER
316438000 316438000 BURNERSEALED 12K B
316381001 316381001 CAP
316381004 316381004 CAP
316382102 316382102 CAP
316432800 316432800 CLIP
316408000 316408000 CLIP
316401500 316401500 COVER
316026702 316026702 COVER
316381701 316381701 DEFLECTOR
316409700 316409700 ELBOW
316211603 316211603 ELEMENT
318398302 318398302 FAN BLADE
316539900 316539900 FILTER
316507901 316507901 FLUE
316542100 316542100 GASKETFLUE
316117500 316117500 GLASS
316453037 316453037 GLASS ASSEMBLY
316456700 316456700 GLIDE
316415000 316415000 GLIDE
316415001 316415001 GLIDE
316537800 316537800 GRATE
316537900 316537900 GRATE
316538000 316538000 GRATE
316380802 316380802 HANDLE
316580512 316580512 HARNESS
316580345 316580345 HARNESS
316580602 316580602 HARNESSIGNITOR
316575902 316575902 HINGE
316543200 316543200 HOLDER
316489403 316489403 IGNITOR
316489404 316489404 IGNITOR
316540700 316540700 IGNITOR/ORIFICE ASS
316540702 316540702 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316082001 316082001 INSERT
316538601 316538601 INSUALTION
316528700 316528700 INSULATION
316528800 316528800 INSULATION
316403601 316403601 INSULATION
316403700 316403700 INSULATION
316403900 316403900 INSULATION

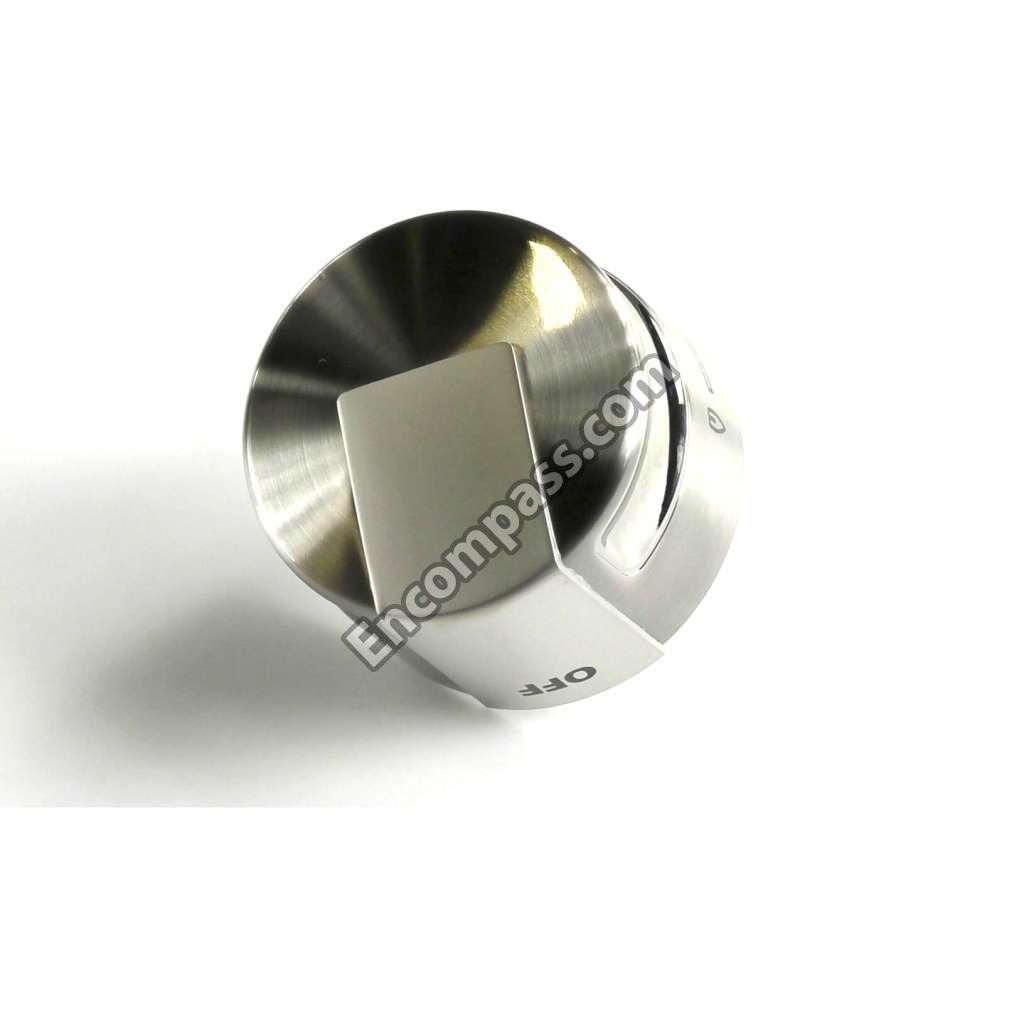

316535702 316535702 KNOB
316535711 316535711 KNOB
316405800 316405800 LATCH ASSEMBLY
318406100 318406100 LENS
316498900 316498900 LEVELLING LEG ASSEMBLY
316403203 316403203 LINER
316423812 316423812 LINER
316542416 316542416 LP CONVERSION KIT
316506859 316506859 MAINTOP
316505200 316505200 MANIFOLD
316380110 316380110 MEMBRANESWITCH
316464300 316464300 MOTOR-LATCH
316256900 316256900 MOTORFAN
5303013272 5303013272 NUT
316136600 316136600 NUT
316527502 316527502 ORIFICE
316527504 316527504 ORIFICE
316381602 316381602 OVERLAY
316081901 316081901 PAN
316512716 316512716 PANEL
316400604 316400604 PANEL
316382500 316382500 PANEL ASSEMBLY
316099500 316099500 PIN
316490000 316490000 PROBE
316496207 316496207 RACK
316571800 316571800 RACK ASSEMBLY
316116400 316116400 RECEPTACLE
316441300 316441300 RECEPTACLE
316091706 316091706 REGULATOR
316539800 316539800 RETAINER
316087500 316087500 RETAINER
316232700 316232700 ROD
316533900 316533900 SCREW
316021105 316021105 SCREW
316021108 316021108 SCREW
316021109 316021109 SCREW
316001003 316001003 SCREW
316021104 316021104 SCREW
316540900 316540900 SCREW
297174300 297174300 SCREW
316240600 316240600 SCREW
316089500 316089500 SCREW
316215600 316215600 SCREW
316279600 316279600 SCREW
316021132 316021132 SCREW
316418900 316418900 SCREW
316418901 316418901 SCREW
316272900 316272900 SCREW
316021110 316021110 SCREW
3131732 3131732 SCREW
316116000 316116000 SCREW
5303285179 5303285179 SCREW
316439503 316439503 SCREW
316513301 316513301 SCREW
316403101 316403101 SEAL
316380500 316380500 SHIELD
316434900 316434900 SHIELD
316498100 316498100 SHIELD
316409201 316409201 SHIELD
316400700 316400700 SHIELD
316401000 316401000 SHIELD
316404200 316404200 SHIELD
316409600 316409600 SHIELD
316404601 316404601 SHIELD
316402500 316402500 SHIELD
316400801 316400801 SHIELD
316402310 316402310 SHIELD
316409200 316409200 SHILED
316517600 316517600 SPACER
316402403 316402403 SPACER
316380400 316380400 SUPPORT
316445500 316445500 SWITCH
5303935324 5303935324 TRIM KITDOOR
316545700 316545700 TUBE
316526600 316526600 TUBE
316509200 316509200 TUBE
316509300 316509300 TUBE
316509400 316509400 TUBE
316537100 316537100 TUBEVALVE TO MIXER
316431000 316431000 TUBEVALVE TO RGLTR
316031501 316031501 VALVE
5303935233 5303935233 VALVE
5303935305 5303935305 VALVE
5303935306 5303935306 VALVE
5303935308 5303935308 VALVE
5303935309 5303935309 VALVETOP BURNER
316580627 316580627 WIRING HARNESS
316381401 316381401 WRAPPER
