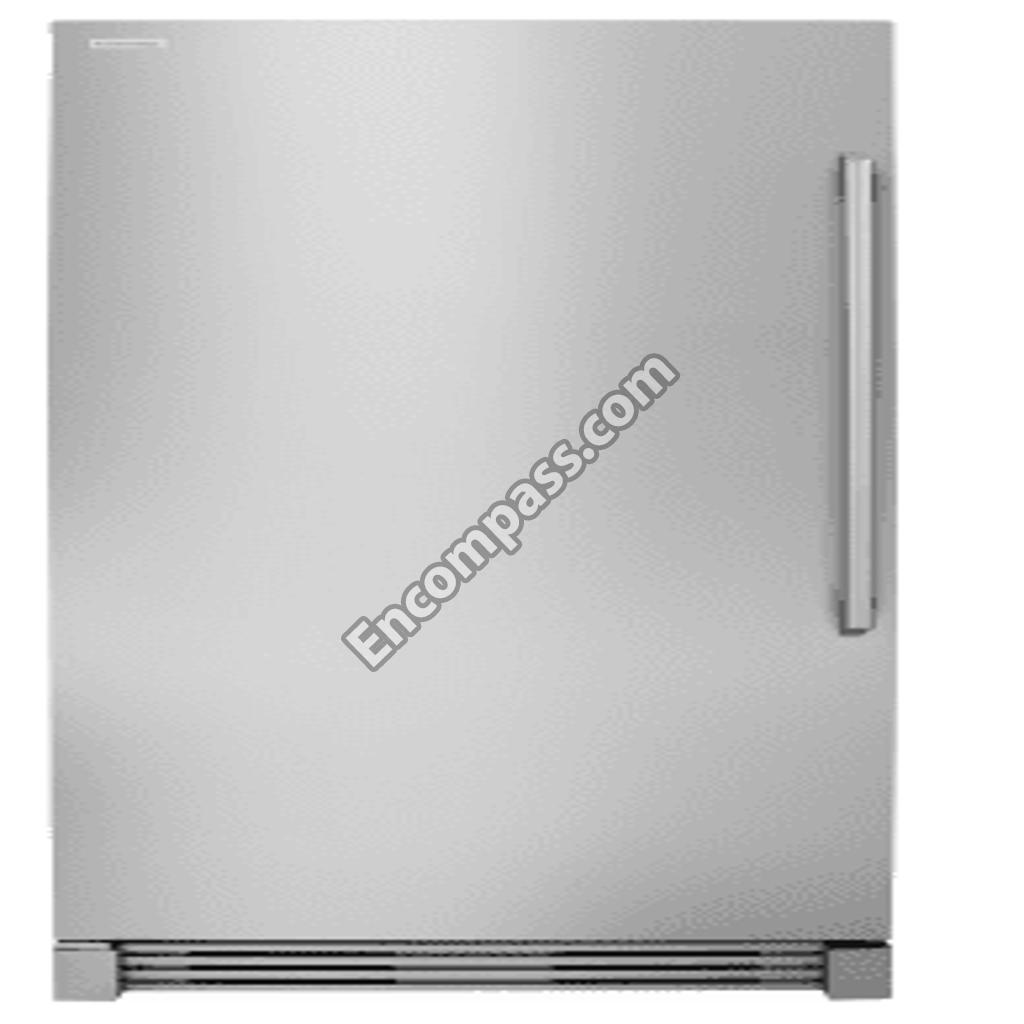

Model Image
Manufacturer

Electrolux

Model Number

EI32AF80QSC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
297297500 297297500 BASKET
297304400 297304400 BASKET
216970801 216970801 BEARING
297302900 297302900 BEARING
5304456671 5304456671 BEARING & INLET
297291700 297291700 BINDOOR
297320700 297320700 BINDOOR
241639501 241639501 BLADE
241891608 241891608 BOARDLED POWER
216394050 216394050 BRACKET
297092700 297092700 BRACKET
297092701 297092701 BRACKET
297164650 297164650 BRACKET
297164651 297164651 BRACKET
297200100 297200100 BREAKER KIT W/CORNE
297200900 297200900 BREAKER KIT W/CORNE
297286802 297286802 CAPACITORRUN
297327200 297327200 CHANNELSHELF MTG
5304455846 5304455846 CLAMP
241982601 241982601 CLAMP
216273000 216273000 CLIP
5303212828 5303212828 CLIP
5304406520 5304406520 CLIP
5303313703 5303313703 CLIP
297305500 297305500 CLIP
241852501 241852501 CLIP
297315800 297315800 CLIP
297368500 297368500 COMP BOLT UPRIGHTS

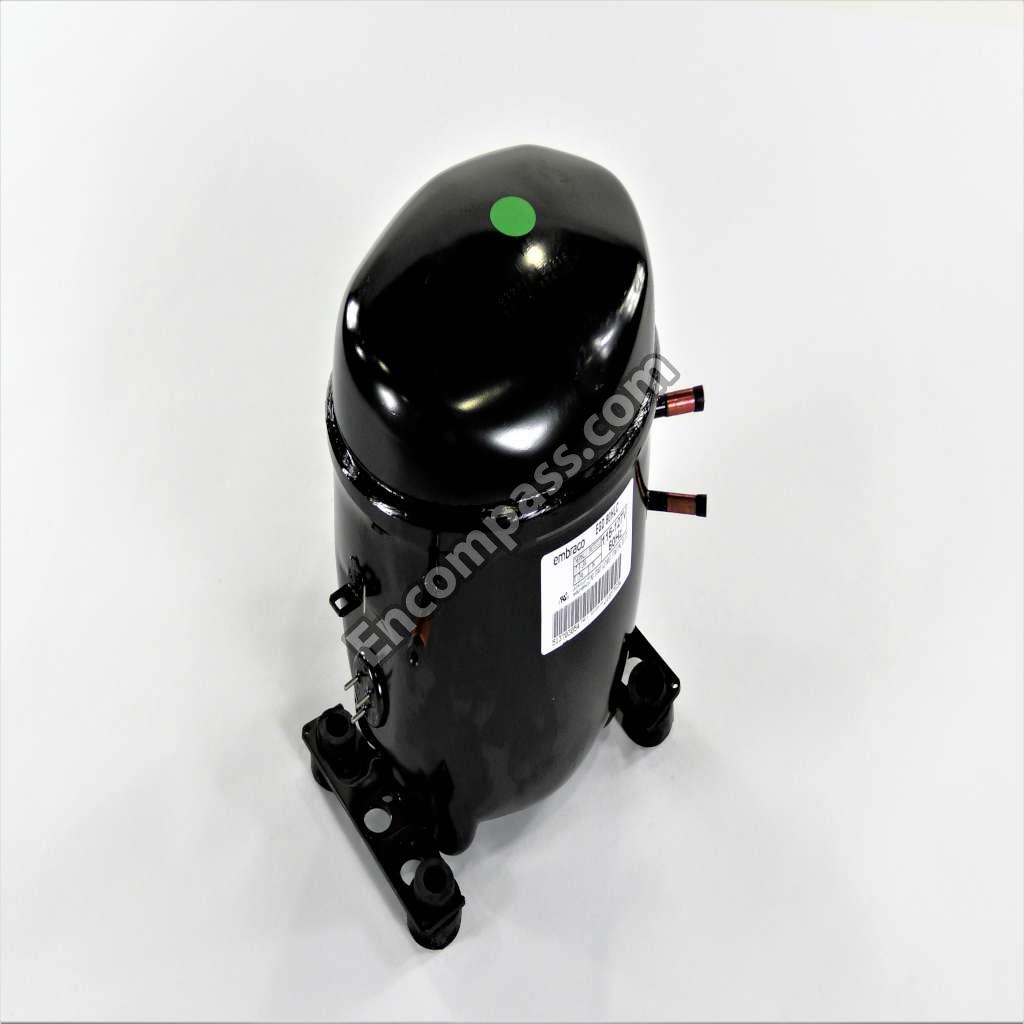

5304494536 5304494536 COMPRESSOR,EGD80HLC
5300083897 5300083897 CONDENSER
297318300 297318300 CONTAINER
297237702 297237702 CONTROLLER TSD

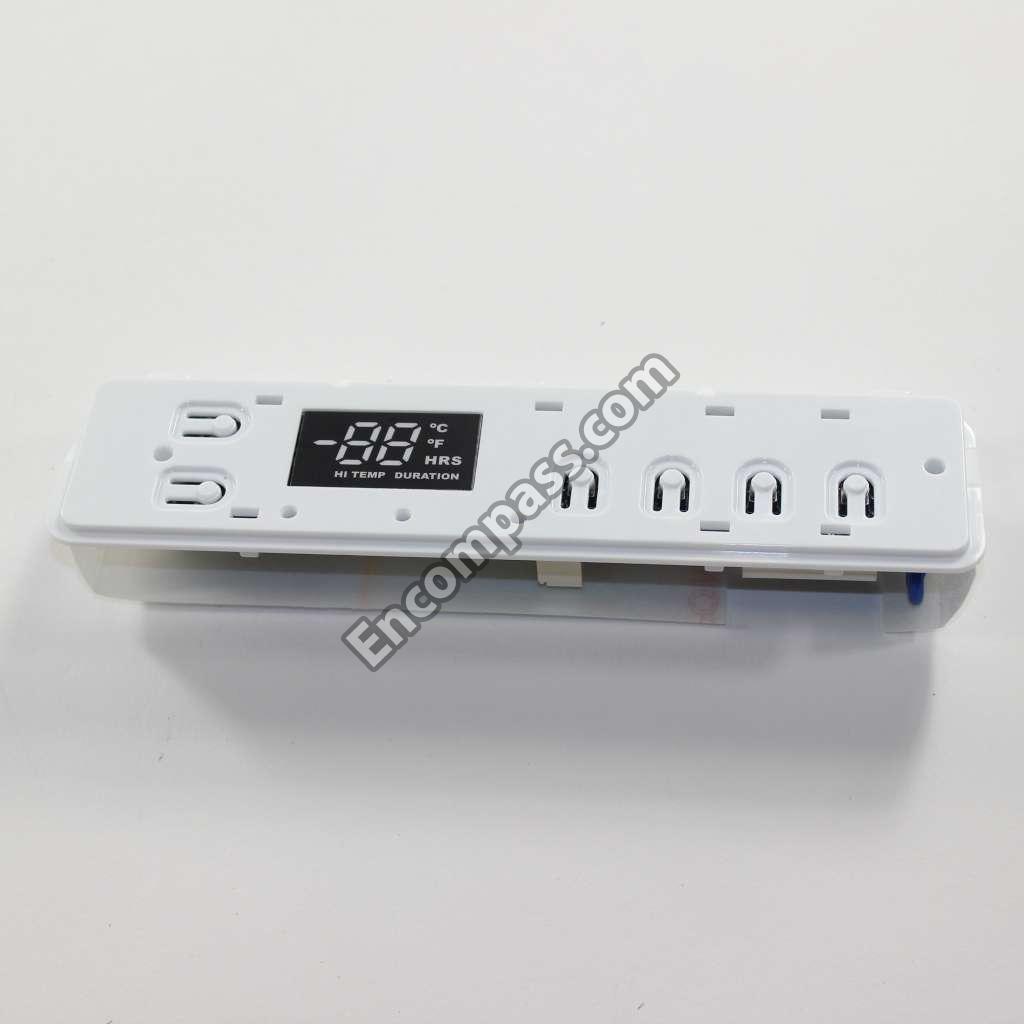

5304497789 5304497789 CONTROLLER,ELECTRONIC
297366800 297366800 CORD,POWER
297306700 297306700 COVER
297099255 297099255 COVEREVAPORATOR
297304001 297304001 COVERHINGE
297164200 297164200 DIVIDER
297194700 297194700 DIVIDER
297302801 297302801 DOOR STOP
5308005500 5308005500 DRAIN
297414900 297414900 EVAPORATOR
297288803 297288803 FRAME
297288802 297288802 FRAME
216524201 216524201 GASKET
297350900 297350900 GASKET
216204902 216204902 GASKETEVAP COVER
297291300 297291300 GLASS
297291301 297291301 GLASS
297332100 297332100 GRILLE/KICKPLATE
240405201 240405201 GROMMET
297293302 297293302 GROMMET
5304495183 5304495183 HARNESS-JUMPER
5304456875 5304456875 HARNESS-WIRING
297325500 297325500 HARNESSMAIN
297217900 297217900 HEAT EXCHANGER
216730700 216730700 HEATER-DEFROST
297303901 297303901 HINGEUPPER
297294301 297294301 HOLDER
297345200 297345200 ICE MAKER
5304456672 5304456672 ICE STRIPPER
297001704 297001704 INSULATION
5304469406 5304469406 INSULATOR
297078701 297078701 INSULATOREVAP
297078801 297078801 INSULATOREVAP
297355300 297355300 LABEL
5304456690 5304456690 LABEL
5304456675 5304456675 LEVER ARM
297279500 297279500 MOTOR
241873301 241873301 NAMEPLATE
5304456657 5304456657 NAMEPLATE
5304456693 5304456693 NUT
240537301 240537301 NUT-ANCHOR
297269402 297269402 OVERLAY
297165800 297165800 PANDRAIN
297329321 297329321 PANEL-OUTER DOOR
297280801 297280801 PANELINNER DOOR
5304456659 5304456659 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
216403701 216403701 PLUGBUTTON
297014702 297014702 PLUGSUCTION LINE
216503100 216503100 SCREENDRAIN
218362501 218362501 SCREW
216036601 216036601 SCREW
216905301 216905301 SCREW
216337701 216337701 SCREW
216912401 216912401 SCREW
216858001 216858001 SCREW
297048000 297048000 SCREW
297197500 297197500 SCREW
297410600 297410600 SCREW
297174300 297174300 SCREW
297146820 297146820 SCREW
297146821 297146821 SCREW
297236250 297236250 SCREW
297142600 297142600 SCREW
08016582 08016582 SCREW
5304456684 5304456684 SCREW
5304456660 5304456660 SCREW
5304456676 5304456676 SCREW
5304456677 5304456677 SCREW
5304456691 5304456691 SCREW
5304456674 5304456674 SCREW
5304456678 5304456678 SCREW
5304456666 5304456666 SCREW
5304455650 5304455650 SCREW
5304455680 5304455680 SCREW
5304455677 5304455677 SCREW,8-32 X 3/8
240555002 240555002 SCREW-#8-32 X 3/8
5304456687 5304456687 SCREW-IM BRKT MTG
216396900 216396900 SCREW-LEG
218755504 218755504 SCREW-SHOULDER
5304456679 5304456679 SCREW-TIMING ADJ
297296600 297296600 SHELFGLASS
297165400 297165400 SHIELD
297294501 297294501 SHIELDLIGHT
297164000 297164000 SHROUDFAN ORFICE
216502500 216502500 SLEEVE
297291201 297291201 SLIDEBASKET
297291200 297291200 SLIDEBASKET
5304456661 5304456661 SPACER-HOLD SWITCH
5304456682 5304456682 SPRING
5304445223 5304445223 SPRING BEAM
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
5304456668 5304456668 SUPPORT
297099500 297099500 SUPPORT-CRISPER
216822901 216822901 SWITCH
5304456667 5304456667 SWITCH-MICRO
5304456688 5304456688 TERMINAL
297110400 297110400 THERMISTER
297216600 297216600 THERMOSTAT
5304456665 5304456665 THERMOSTAT
TRIMKITSS1 TRIMKITSS1 TRIM KIT
297296300 297296300 TRIMSHELF
216887500 216887500 TUBE
297044904 297044904 TUBEWATER INLET
297280403 297280403 VALVE
242252603 242252603 VALVEWATER
5304456737 5304456737 WASHER
5304456689 5304456689 WASHER
5304456692 5304456692 WASHER
297175300 297175300 WRENCH
