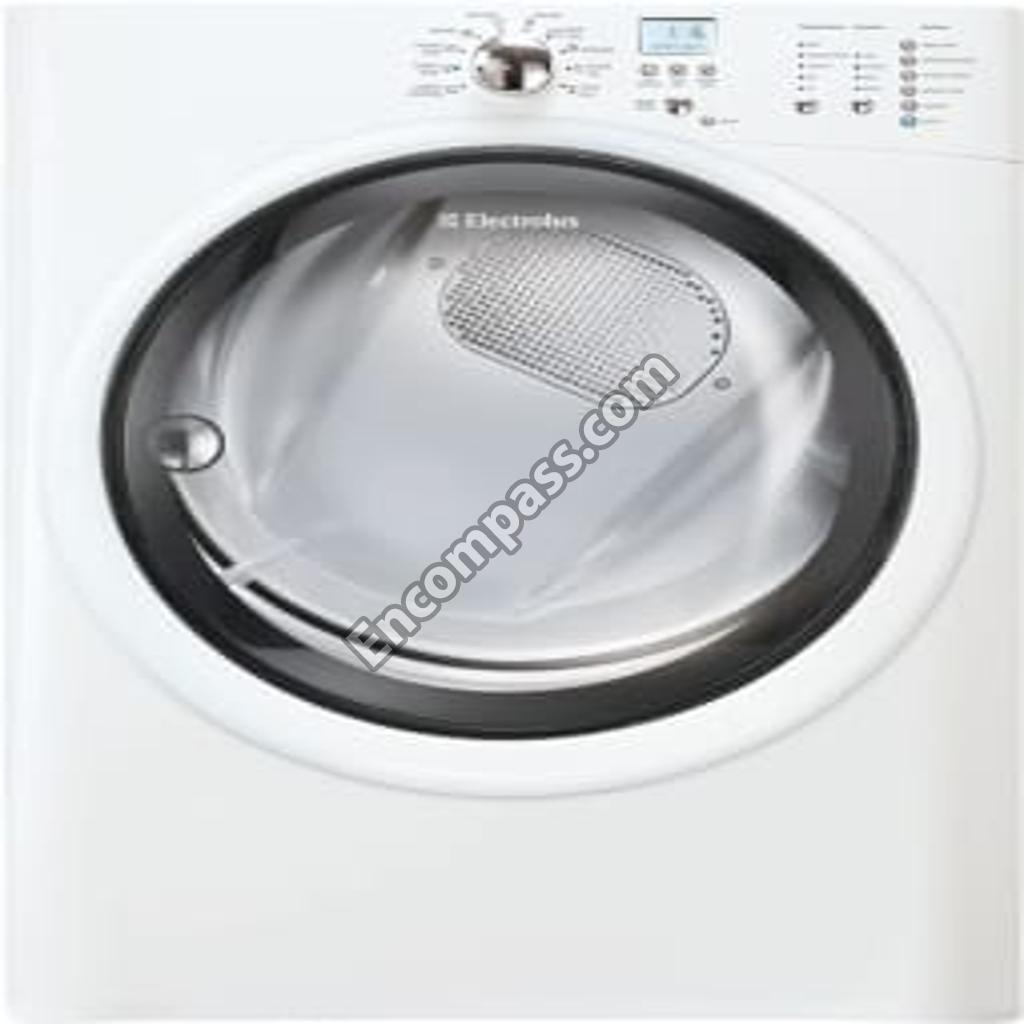

Model Image
Manufacturer

Electrolux

Model Number

EIED50LIW1

Description

Laundry, Residential, Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE
134690203 134690203 BASE
134719300 134719300 BELT H POLY V 5 RIB
137552300 137552300 BLOWER,HOUSING,COMPLET
134713900 134713900 BRACKET
134707400 134707400 BRACKET
134711000 134711000 BRACKET
134710900 134710900 BRACKET
137046800 137046800 BRACKET
137046700 137046700 BRACKET
137567000 137567000 BRACKET
137029800 137029800 BRACKET
134792100 134792100 BRACKET
134713100 134713100 BRACKET
137556615 137556615 BULKHEAD
137032200 137032200 BUTTON
137031900 137031900 BUTTON
137015900 137015900 BUTTON
137032300 137032300 BUTTON
137032000 137032000 BUTTON
134242400 134242400 CLAMP
137034500 137034500 CLIP
134618910 134618910 COVER
137578600 137578600 COVER
137560800 137560800 COVER,LINT HOUSING
137031800 137031800 CUSHION
134926600 134926600 DAMPER
137610700 137610700 DRUM
134792700 134792700 DRYER HEATER ELEMENT
134694030 134694030 DUCT
137611800 137611800 DUCTAIR
137623900 137623900 FILTER,LINT, COMPLETE
134696902 134696902 FRAME
137553000 137553000 GASKET,FRONT PANEL
137576000 137576000 GLASS
134790700 134790700 HARNESS
134793200 134793200 HARNESS
134930800 134930800 HARNESS
137557200 137557200 HARNESS,BASELINE WIRE
134704600 134704600 HINGE
134793500 134793500 IDLER ARM ASSEMBLY
134792900 134792900 INSULATOR
134766500 134766500 KNOB
137526000 137526000 LAMP
137538802 137538802 LATCH
134767700 134767700 LENS
137032600 137032600 LIMITER
134711401 134711401 LIMITER
134707900 134707900 LOCK
137577320 137577320 LOCK,DOOR ASSEMBLY
134716800 134716800 NUT
134638510 134638510 PANEL
137604200 137604200 PANEL
134712710 134712710 PANEL
134712610 134712610 PANEL
137560400 137560400 PANEL, BACKSHEET,REAR VENTED
137553710 137553710 PANEL,FRONT,WHITE
134907400 134907400 PIPE
134902210 134902210 PIPE
134742000 134742000 PLUG
134651210 134651210 RETAINER
134716200 134716200 RETAINER
134872100 134872100 RING
134894200 134894200 RING
134715900 134715900 ROLLER
134935200 134935200 SCREW
131017900 131017900 SCREW
134402900 134402900 SCREW
134788000 134788000 SCREW
134430300 134430300 SCREW
134790600 134790600 SCREW
134790400 134790400 SCREW
131168200 131168200 SCREW
131205100 131205100 SCREW
137380600 137380600 SCREW M5 X 08 X
134784700 134784700 SEAL
137565300 137565300 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
134786110 134786110 SENSOR
134692700 134692700 SHIELD
131749800 131749800 SPACER
131601000 131601000 SPRING
137459300 137459300 STRIKER
137555201 137555201 STRIKER,FRONT PANEL
134813600 134813600 SWITCH
137150200 137150200 TERMINAL
134711300 134711300 THERMISTER
3204267 3204267 THERMOSTAT
134618810 134618810 TRIM
134693900 134693900 TUBE
137610510 137610510 VANE
137610610 137610610 VANE
134716700 134716700 WASHER
