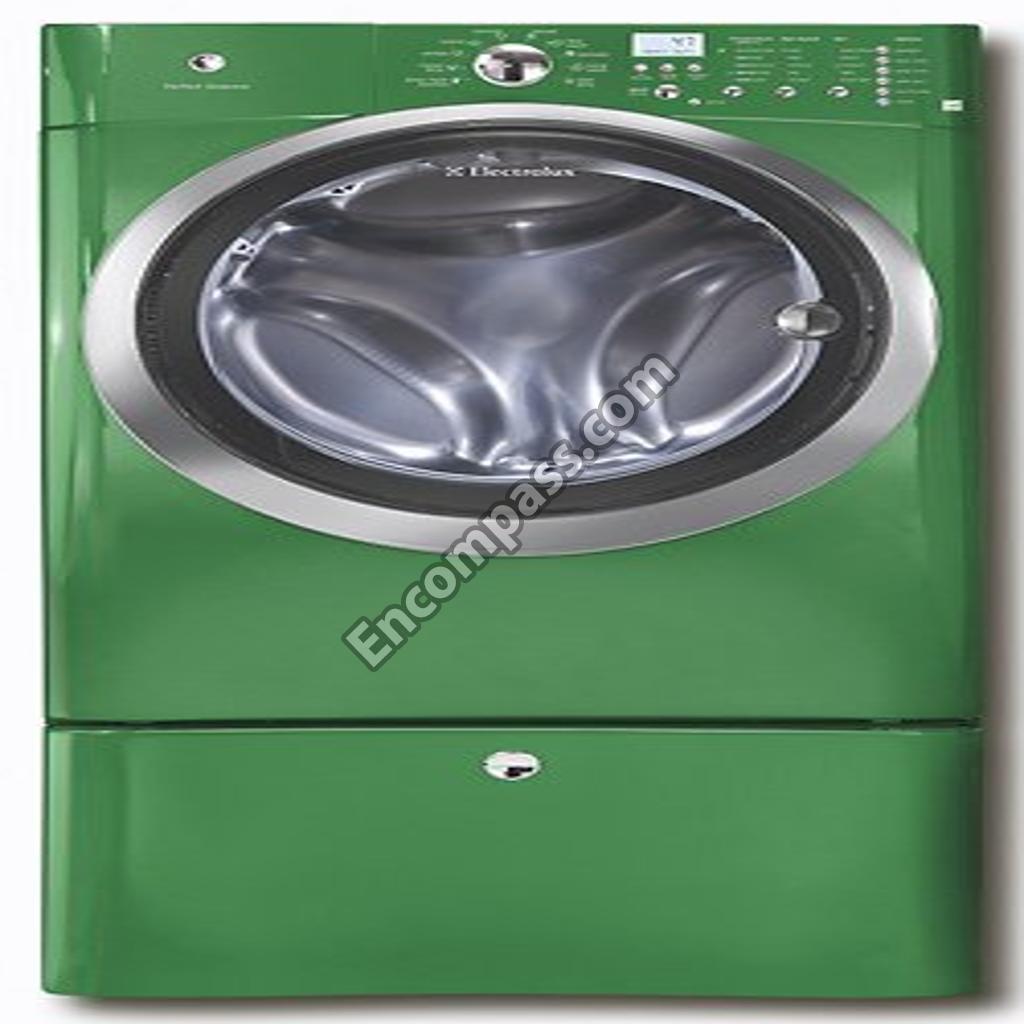

Model Image
Manufacturer

Electrolux

Model Number

EIFLW55IKG0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
137471903 137471903 ASMYHOSE INLET (HO
134646200 134646200 BACK PANEL SERVICE
134646000 134646000 BASE
134887400 134887400 BRACKET
134858010 134858010 BRACKET
134858000 134858000 BRACKET
134645600 134645600 BRACKET
134713100 134713100 BRACKET
137046700 137046700 BRACKET
137046800 137046800 BRACKET
134440700 134440700 BRACKET
134363200 134363200 BRACKET
134641100 134641100 BRACKET
134648500 134648500 BRACKETSPRING
137015900 137015900 BUTTON
137032300 137032300 BUTTON
137032200 137032200 BUTTON
137032100 137032100 BUTTON
137032000 137032000 BUTTON
137031900 137031900 BUTTON
5304464772 5304464772 CABLE TIE
137003500 137003500 CABLE TIE
137087504 137087504 CLAMP
134372400 134372400 CLAMP
131306202 131306202 CLAMP
134737300 134737300 CLAMP
131306234 131306234 CLAMP
134638700 134638700 CLIP
134931500 134931500 COVER
134649700 134649700 COVER
134994500 134994500 COVER
134640300 134640300 COVER
137110800 137110800 CUSHION
131931202 131931202 DAMPENER
134652000 134652000 DAMPER
137440415 137440415 DRAWER ASSEMBLY
137488301 137488301 ELEMENTHEATING
137022800 137022800 ENERGY GUIDE
134649400 134649400 FASTENER
134640200 134640200 FILTER
134371300 134371300 GASKET
134372000 134372000 GROMMET
137105200 137105200 GUIDE
134922900 134922900 HARNESS
134618500 134618500 HARNESS

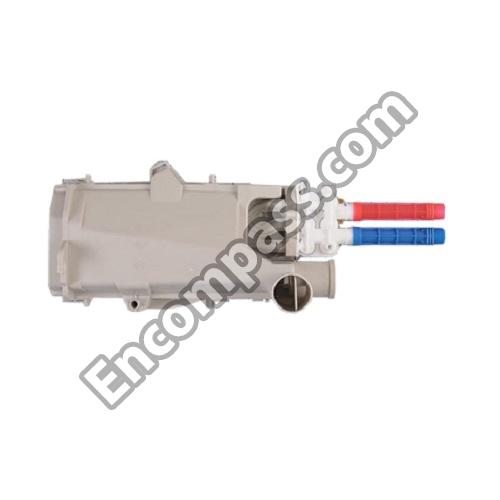

137108710 137108710 HOUSING DISPENSER VALVE COVER
134766500 134766500 KNOB RETRACTING COMPLETE ASMY
137525000 137525000 LAMP ASSEMBLY
134767700 134767700 LENS
134639100 134639100 LEVELING LEGS SREW
137086500 137086500 NUT
134618100 134618100 PAD
134995375 134995375 PANEL
134645975 134645975 PANEL
134618775 134618775 PANEL
134638575 134638575 PANELTOP
134907400 134907400 PIPE
134902200 134902200 PIPE
134895900 134895900 PIPE
134430600 134430600 PLATE
134879800 134879800 PROTECTOR
134655800 134655800 PROTECTOR
134651200 134651200 RETAINER
134872100 134872100 RING

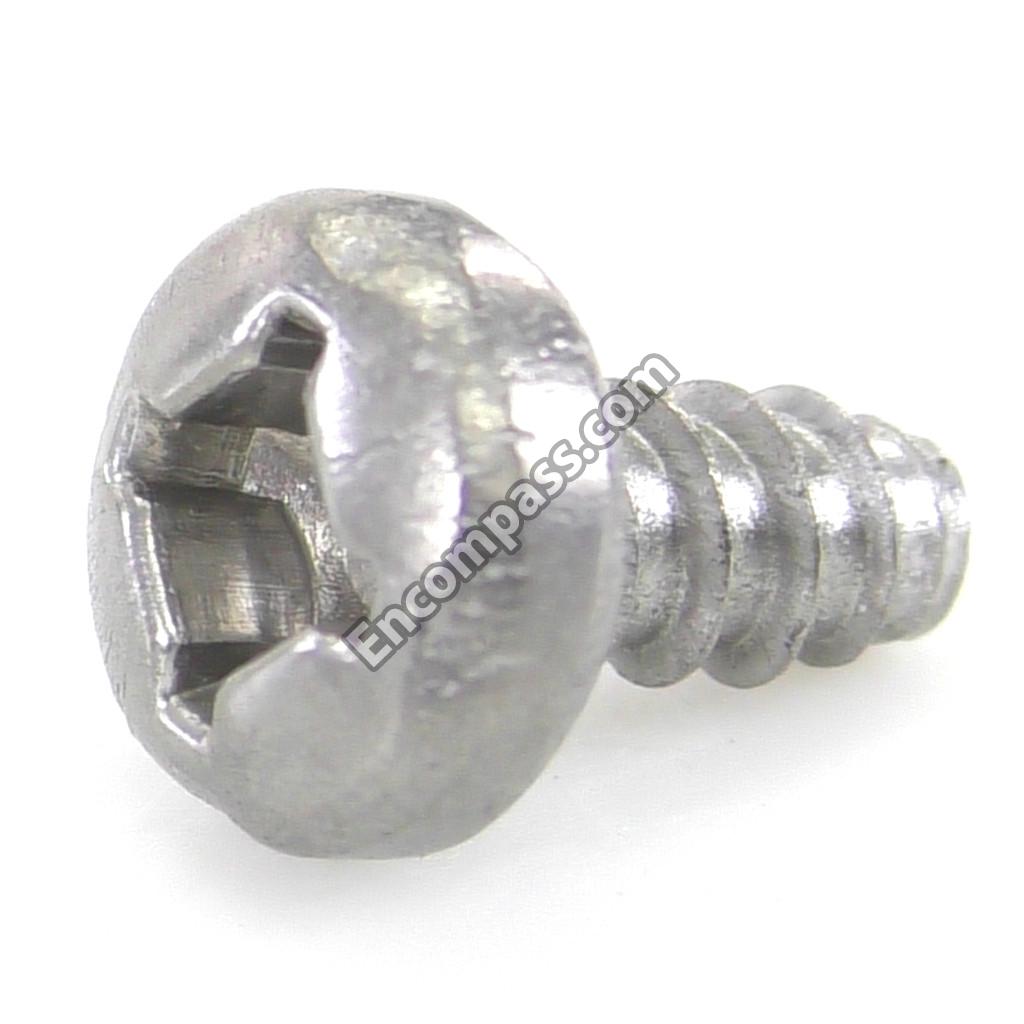

134402900 134402900 SCREW
5303007620 5303007620 SCREW
134178901 134178901 SCREW
134629400 134629400 SCREW
131202300 131202300 SCREW
137380600 137380600 SCREW
134788000 134788000 SCREW
134790600 134790600 SCREW
134638100 134638100 SCREW
134637200 134637200 SCREW
131303500 131303500 SCREW
131303900 131303900 SCREW
134642300 134642300 SUPPORT
134644600 134644600 SUPPORT
134618800 134618800 TRIMFRONT PANEL
134372100 134372100 TUBE
131276900 131276900 WASHER
