Manufacturer
Electrolux
Model Number
ELFW7437AT0
Description
Laundry, Residential, Washer, Front-load
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AIR CHAMBER |
|
|
BASE, WASHED |
|
|
BELT, DRIVE, POLY-V |
|
|
BOLT, W/WASHER, M10 X 1.5 |
|
|
BRACKET, CONTROL PANEL |
|
|
BRACKET, DRAIN HOSE MTG, REAR |
|
|
BRACKET, HINGE |
|
|
BRACKET, SHOCK MTG. |
|
|
BRACKET, SPRING, (2) |
|
|
BRACKET, TUB SUSPENSION |
|
|
BUTTON |
|
|
CABLE TIE, PUSH MOUNT |
|
|
CABLE, GROUNDING, TO CABINET, MAIN BOARD |
|
|
CAP, DOOR VENT |
|
|
CLAMP HOSE |
|
|
CLAMP, BELLOWS, SPRING HELD |
|
|
CLAMP, HOSE |
|
|
CLAMP, HOSE |
|
|
CLAMP, HOSE |
|
|
CLAMP, TUB HOSE |
|
|
CLIP, DRAIN HOSE, PUSH-MOUNT |
|
|
CLIP, FRONT PANEL, (4) |
|
|
CLIP,SHIPPING CLAMP,REAR-PANEL |
|
|
COUNTERWEIGHT, BOTTOM |
|
|
COUNTERWEIGHT, TOP |
|
|
COVER, DOOR LOCK, FRONT FLANGE |
|
|
COVER, HEATER SUPPORT |
|
|
COVER, HINGE HOLES |
|
|
COVER, MOTOR CONTROL |
|
|
CUP ASSEMBLY, DISPENSER, LIQUID, W/COVER |
|
|
CUSHION, SHOCK BRACKET, LEFT REAR |
|
|
DAMPENER, VIBRATION |
|
|
DAMPENER, VIBRATION, FOAM |
|
|
DAMPENER, VIBRATION, FOAM |
|
|
DAMPER, MASS VIBRATION |
|
|
DEFLECTOR, WATER |
|
|
DIAPHRAGM, VALVE ASSY |
|
|
DOOR BOWL, PLASTIC, DOOR WINDOW |
|
|
DOOR LOCK, ASSEMBLY, W/SWITCH |
|
|
DRAIN HOSE, ASSEMBLY, ONE PIECE, W/CABLE TIES |
|
|

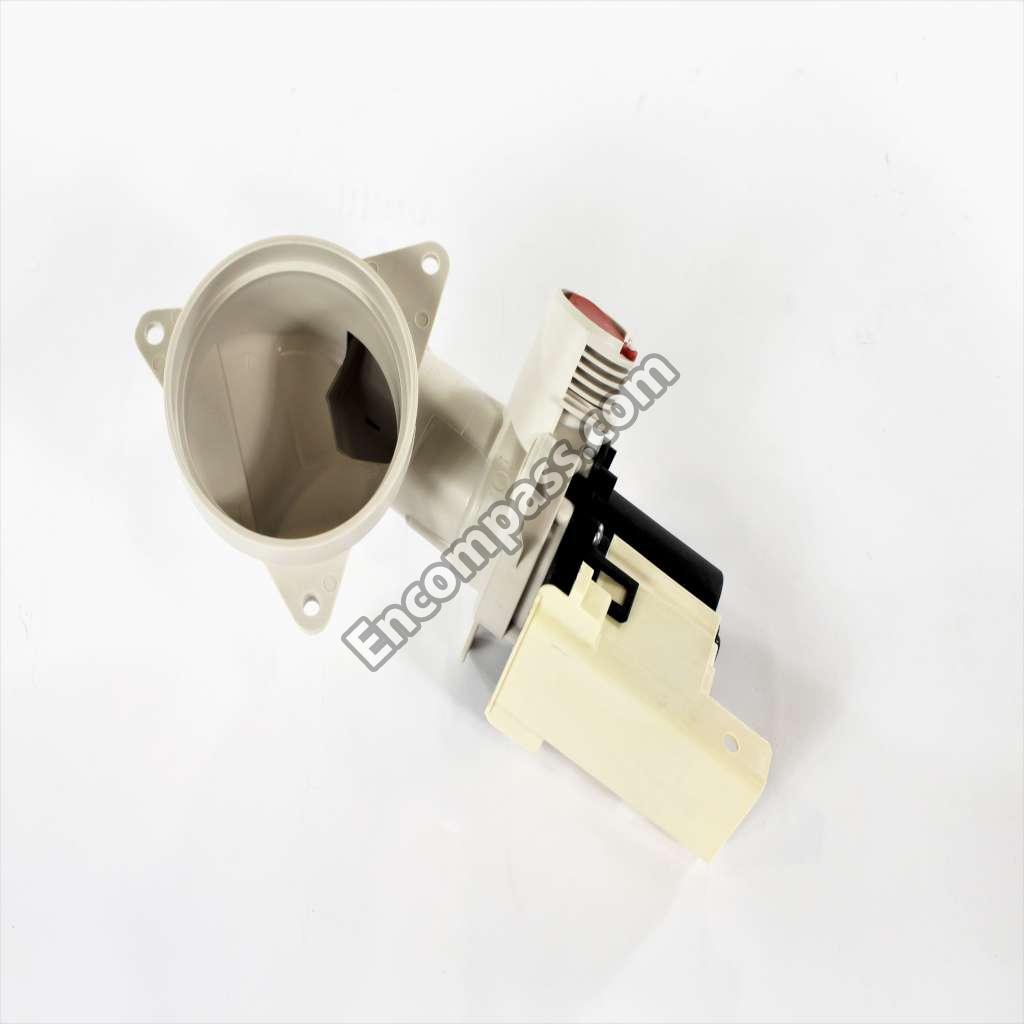

DRAIN PUMP, ASSEMBLY, IDB, W/FILTER |
|
|
DRAWER ASSEMBLY, DISPENSER |
|
|
DRUM, ASSEMBLY, 1200 |
|
|
ELEMENT, HEATING, 1000W, W/NTC |
|
|
FRAME, DOOR, INNER |
|
|
GASKET, CONSOLE |
|
|
GASKET, DISP-TO-VALVE |
|
|
GASKET, WORK TOP |
|
|
GROMMET, DISPENSER, BACK PANEL |
|
|
HARNESS, WIRING, DOOR LOCK DBL |
|
|
HARNESS, WIRING, MAIN |
|
|
HOSE, DISP-TO-BELLOWS |
|
|
HOUSING, ASSEMBLY, CONVEYOR |
|
|
HOUSING, CONTROL BOARD, MAIN |
|
|
HOUSING, DISPENSER, LOWER |
|
|
LATCH, DOOR |
|
|
LEVELING LEG, SCREW, PLASTIC |
|
|
MAGNET, DOOR VENT |
|
|
MOTOR CONTROL, ASSEMBLY |
|
|
MOTOR, CIM 55 STACK |
|
|
PANEL, BACK |
|
|
PANEL, SIDE, TITANIUM, (2) |
|
|
PANEL, WASHER FRONT, TITANIUM |
|
|
PIN, HINGE |
|
|
PIN, SHOCK MTG. |
|
|
PLATE, COUNTERWEIGHT, (7), W/NUT INSERT |
|
|
PLUG, HOLE, (7), REAR CABINET |
|
|
POWER CORD, ELECTRIC SVCE |
|
|
PROTECTION, DOOR LOCK |
|
|
PROTECTOR, TUB BRACKET, SPRING HOOK, (2) |
|
|

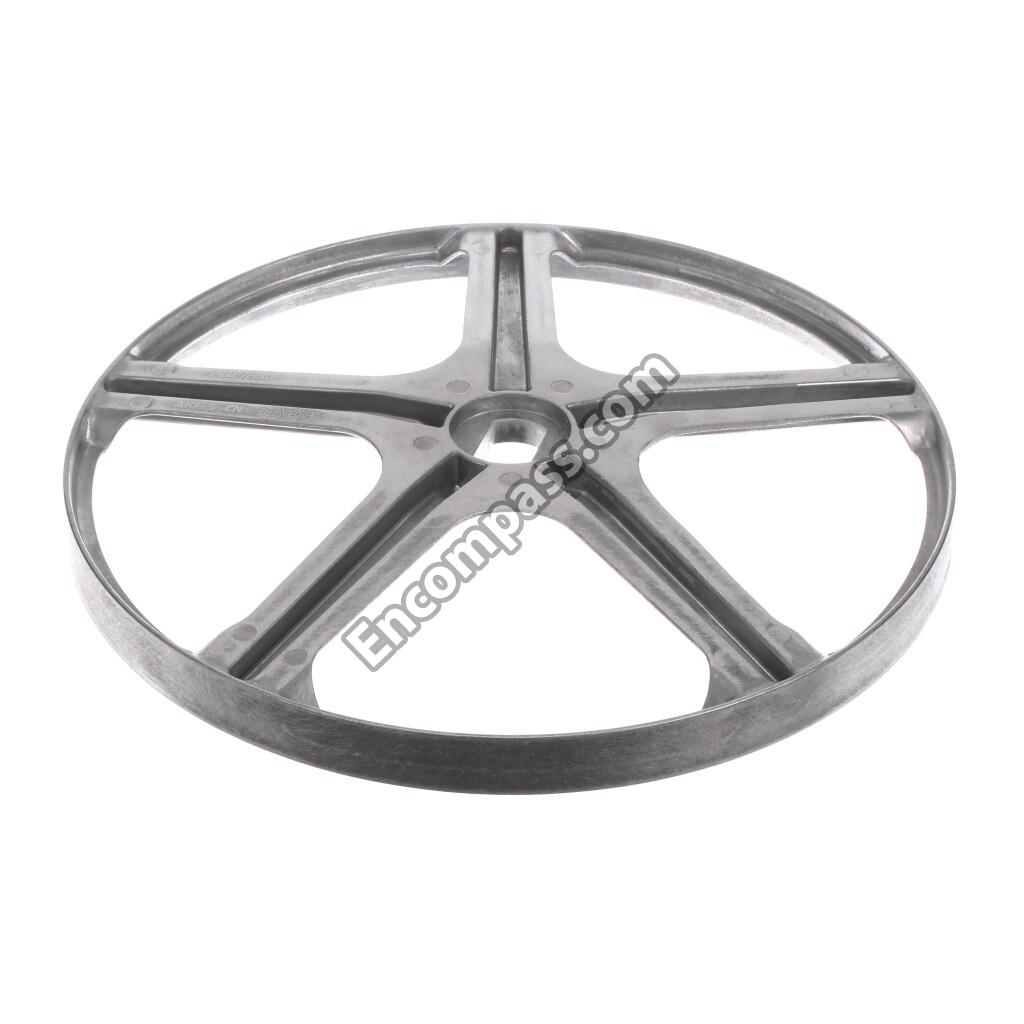

PULLEY, DRUM DRIVE, REAR |
|
|
RING, ANTI-SYPHON |
|
|
SCREW, #10-16 X .375, W/SEALING WSHR |
|
|
SCREW, #8 PAN HEAD, 10-10B X 0.500, CR/SQ DRIVE |
|
|
SCREW, 10-16AB X 0.625 |
|
|
SCREW, 12-14AB X 1.50, MOTOR MTG. |
|
|
SCREW, 8-18AB X 0.455 |
|
|
SCREW, COMB PNHD B, #10-16X.75, (9) |
|
|
SCREW, HEX WASHER HEAD, 1/4-10A X 2.165 |
|
|
SCREW, MC5X8.5 TORX, CABINET MTG |
|
|
SCREW, PAN HEAD QUAD, 10-14 X 1.00 |
|
|
SCREW, PAN HEAD, 8-18B X 0.31 |
|
|
SCREW, QUAD PH TYPE A, M5 X 0.8 X 14.5, (4) |
|
|
SCREW, QUAD PH, 10-16 X 0.375 |
|
|
SCREW, QUAD, #8-18 X .625 |
|
|
SCREW, QUADREX PH, 10-16AB X 0.5 |
|
|
SCREW`6-20 X 0.312 |
|
|
SEAL, DISPLAY AREA |
|
|
SEAL, TUB SHELL |
|
|
SENSOR SWITCH, PRESSURE |
|
|
SHELL, OUTER TUB, REAR, W/BEARING, SEAL |
|
|
SHELL, TUB, FRONT |
|
|

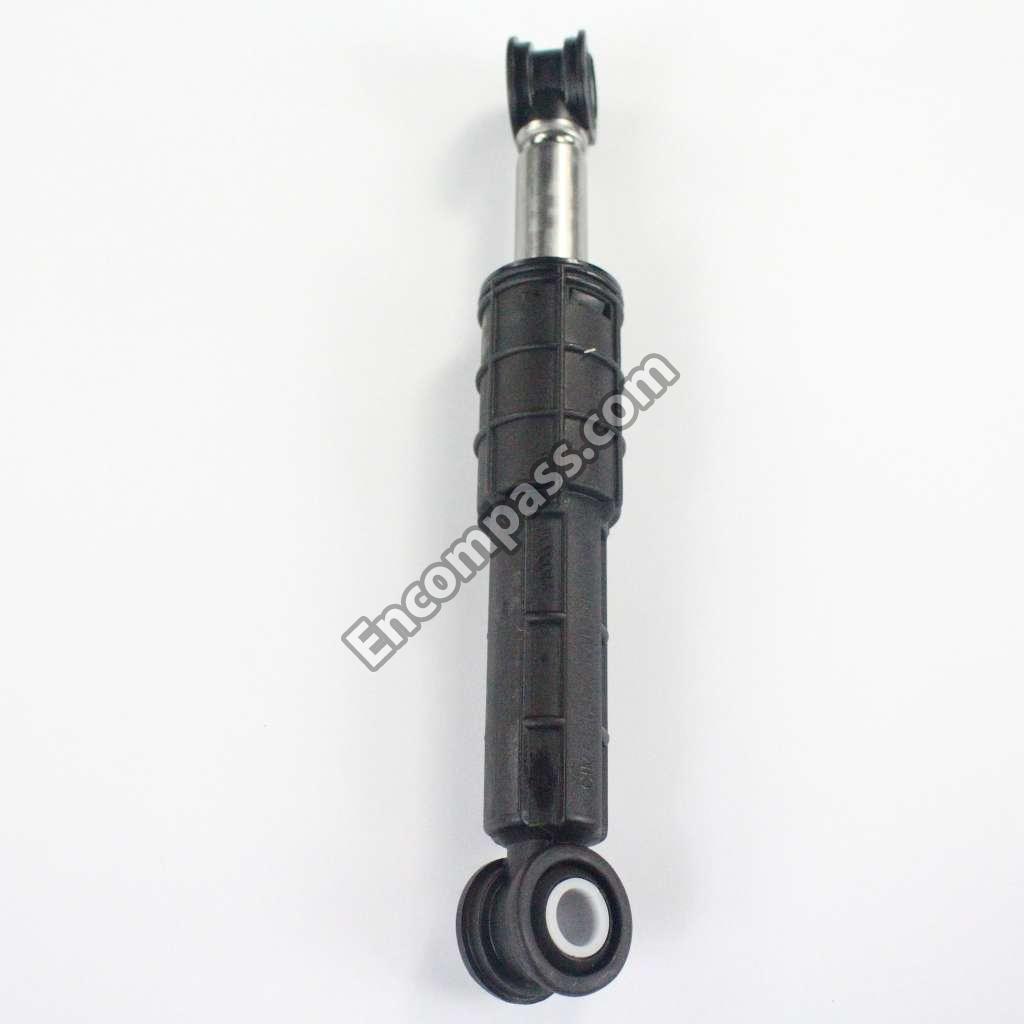

SHOCK ABSORBER, DUAL STAGE |
|
|
SHOCK ABSORBER, SINGLE STAGE |
|
|
SLIDER, DRAWER, DISPENSER |
|
|
SPRING, BOOT RETAINER |
|
|
SPRING, DOOR VENT |
|
|
SPRING, TUB SUPSENSION, (2) |
|
|
SUPPORT, CONNECTOR |
|
|
SUPPORT, HEATING ELEMENT |
|
|
TOP PANEL, TITANIUM |
|
|
VALVE ASSEMBLY, VORTEX, W/FLOW METER |
|
|
VANE |
