Model Image
Manufacturer

Electrolux

Model Number

EW23CS85KS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241676101 241676101 ACTUATORSOLENOID
241968201 241968201 AIR DUCT ASSEMBLY
241726501 241726501 BAR-DRIVE
240396002 240396002 BASE-WATER FILTER
240330012 240330012 BASECOMPRESSOR
241742201 241742201 BASKETSLIDING
241744001 241744001 BASKETSLIDING
241744201 241744201 BASKETSLIDING
241760401 241760401 BEARING
241760403 241760403 BEARING
241990301 241990301 BEARING-HINGE
241990302 241990302 BEARINGHINGE(FRZ)
241752302 241752302 BIN
242142701 242142701 BINDOOR
242143902 242143902 BINSOFT FREEZE
241639502 241639502 BLADE
241684107 241684107 BLADE
241684102 241684102 BLADE
241684103 241684103 BLADE
218679614 218679614 BLOCKEVAP COIL
242041101 242041101 BOARDCONTROL
241955001 241955001 BOARDMAIN POWER
242115202 242115202 BOARDMAIN POWER
240335006 240335006 BOLT-ROLLER ADJ
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
5304458374 5304458374 BRACKETICE MAKER
241761301 241761301 BRACKETUPPER HINGE
241518301 241518301 BUSHING
241754602 241754602 BUTTONFILTER RELEA
241685201 241685201 CAM-DRIVE
241815401 241815401 CAP
240542901 240542901 CAP-WATER VALVE
241532401 241532401 CHANNEL
241674401 241674401 CHANNEL
241674402 241674402 CHANNEL
241812502 241812502 CHANNEL
241513002 241513002 CHANNELSHELF MTG
5304455846 5304455846 CLAMP
5304458398 5304458398 CLIP
241852501 241852501 CLIP
241519401 241519401 CLIP
241716801 241716801 CLIP
218515403 218515403 CLIPGRILLE
5304458401 5304458401 CLIPRETAINER
242192801 242192801 CLIPSHELF
297049500 297049500 CLIPSLIDE
242106605 242106605 CONDENSER
5304458399 5304458399 CONDUCTOR-HEAT
241515202 241515202 CONTAINER-ICE
241684402 241684402 CONTROL ROD
241958401 241958401 CONTROLELECTRONIC
241516901 241516901 CORD-SERVICE
240326304 240326304 COVER
241509804 241509804 COVERAIR DUCT
241951302 241951302 COVERCONTROL HOUSI
241745502 241745502 COVERCRISPER PAN
241747102 241747102 COVERCRISPER PAN
241719711 241719711 COVEREVAP COIL
241946709 241946709 COVERHINGE
5304458376 5304458376 COVERICE MAKER
241675507 241675507 COVERMOTOR
5303918417 5303918417 COVERPAN
242168904 242168904 COVERUPPER HINGE
241955501 241955501 COVERWIRE
5304458378 5304458378 CUPWATER INLET

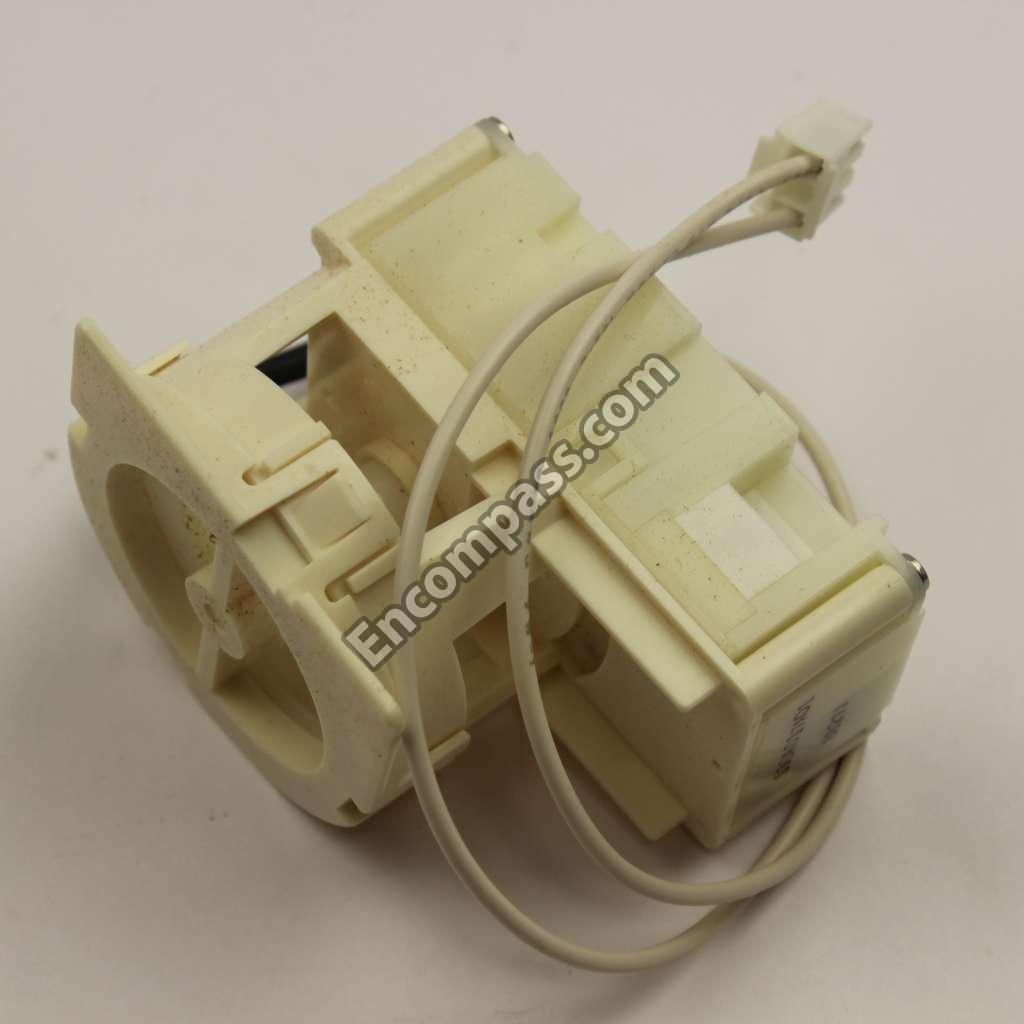

241853801 241853801 DAMPER ASSEMBLY
241583301 241583301 DEFLECTOR-AIR
241890601 241890601 DEFLECTORAIR
242153901 242153901 DIFFUSERAIR
241746001 241746001 DIVIDERCRISPER PAN
241990201 241990201 DOOR STOP
241990202 241990202 DOOR STOP
242026498 242026498 DOORFRZR

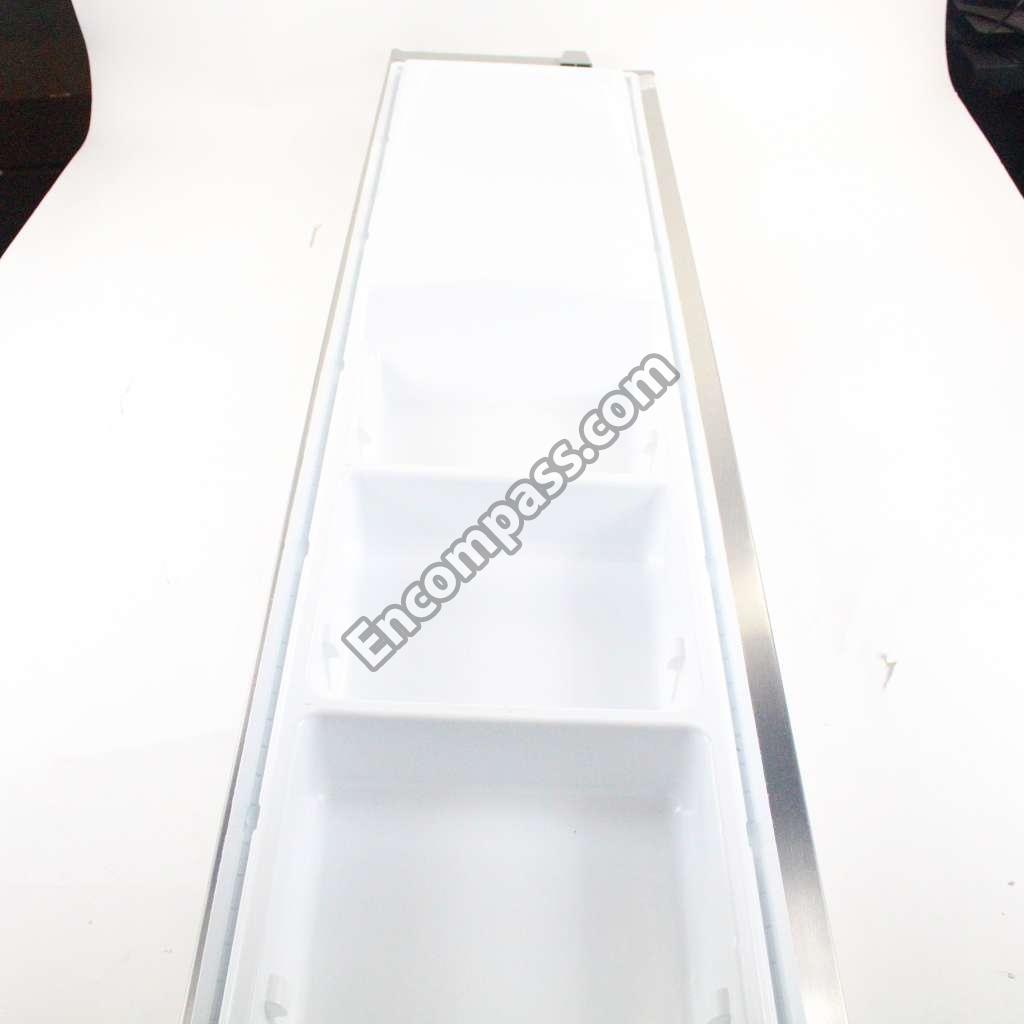

242038898 242038898 DOORREFR
241684501 241684501 DRIVE BLADE
241754302 241754302 DUCTAIR FILTER
241690201 241690201 E-RING
5304458377 5304458377 EJECTORICE
5303918284 5303918284 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
241720601 241720601 EXTENSION

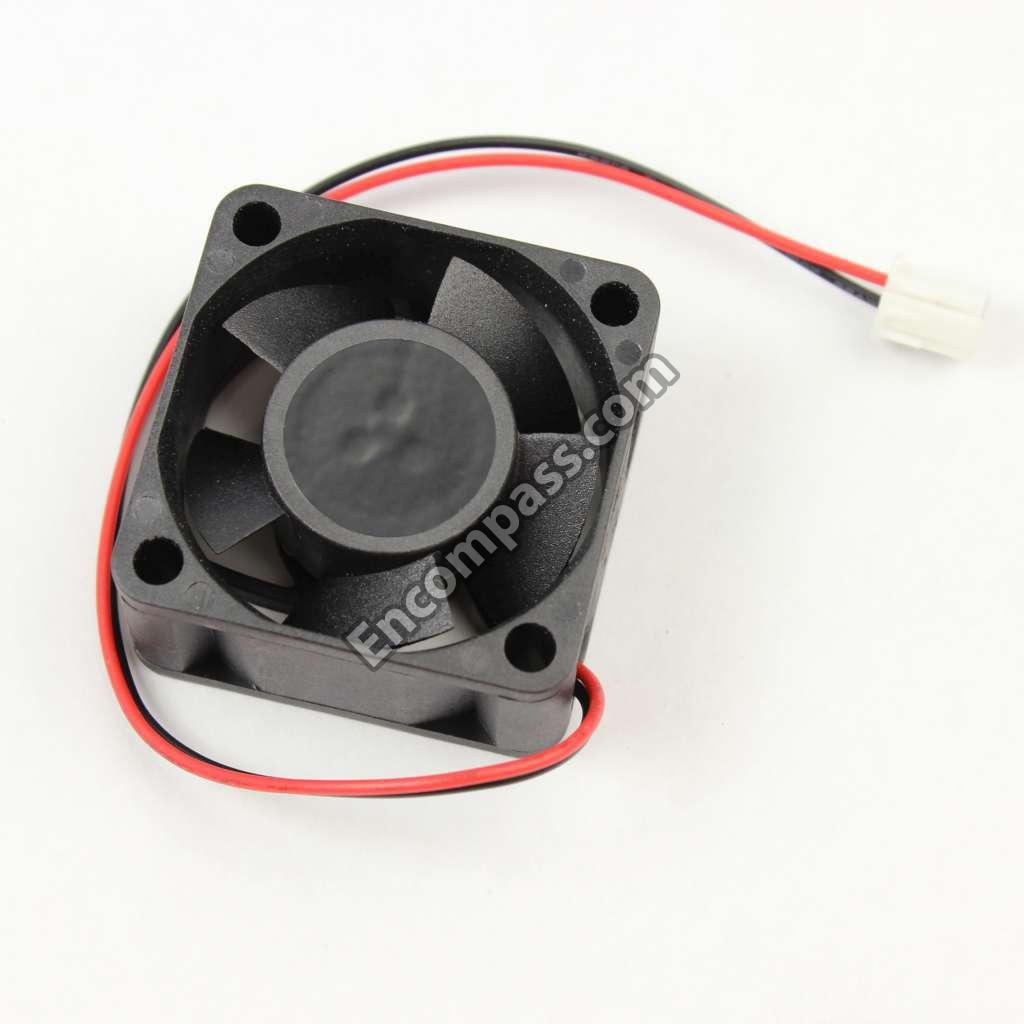

241977001 241977001 FAN
5308000010 5308000010 FAN BLADE
241684203 241684203 FIXED BLADE
241684301 241684301 FIXED BLADE
241955201 241955201 FRAMECRISPER COVER
241742101 241742101 FRONT
241740402 241740402 FRONTICE CONTAINER

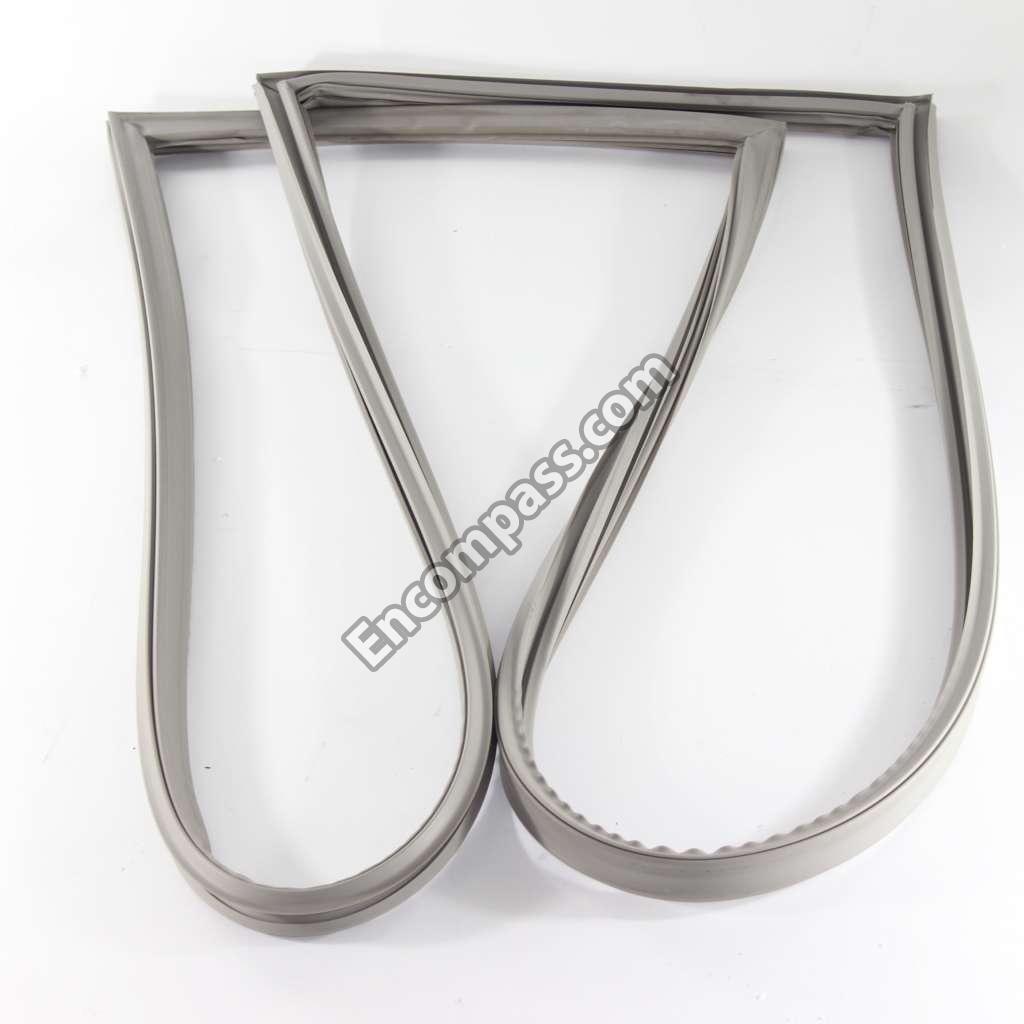

241510206 241510206 GASKETFRZR DOOR

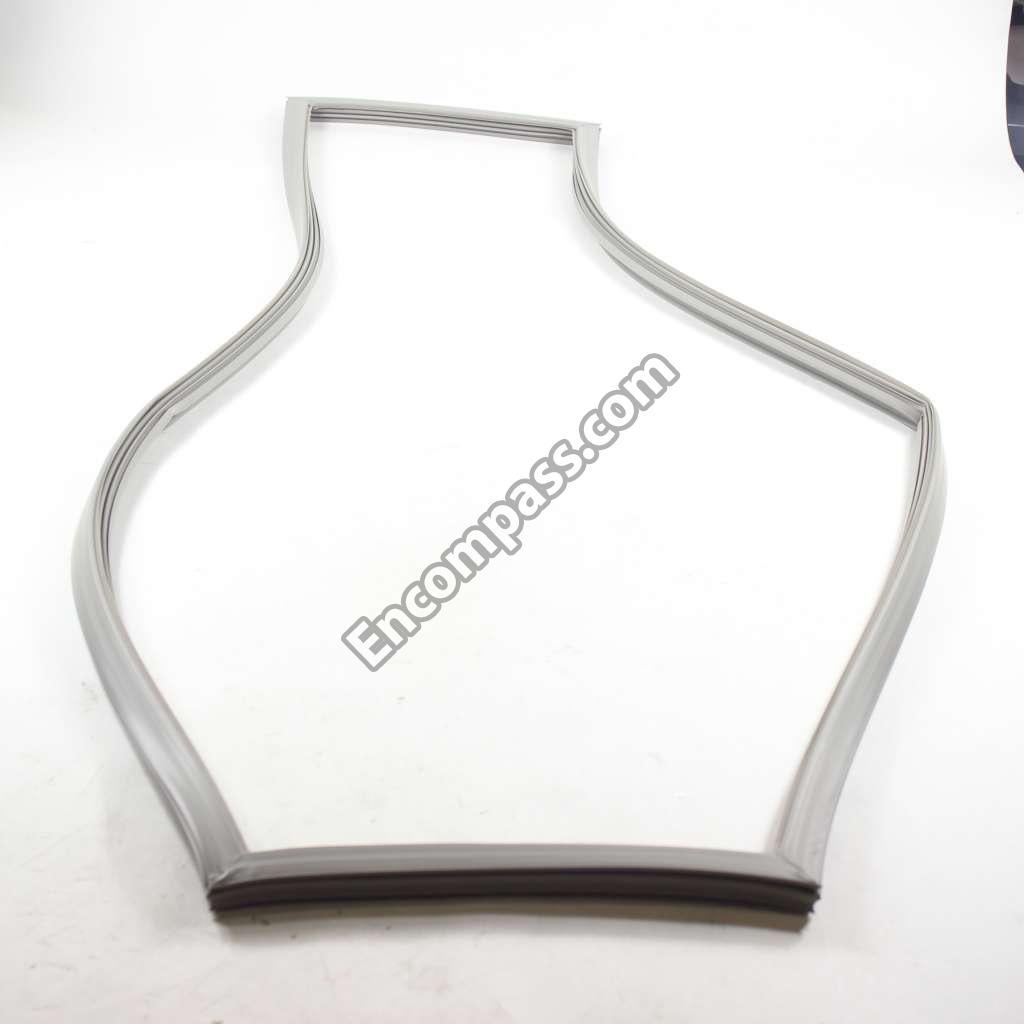

241510205 241510205 GASKETREFR DOOR
5304458380 5304458380 GEAR
241955601 241955601 GLASSINSULATED
241758708 241758708 GRILL
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
241550701 241550701 GROMMET-SHELF MTG
241550801 241550801 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
241950801 241950801 HANDLECRISPER PAN
241745301 241745301 HANDLECRISPER PAN
241881304 241881304 HANDLEREFR DOOR
241514801 241514801 HANGER-SHELF GLASS
241514701 241514701 HANGER-SHELF GLASS
240579812 240579812 HANGERBASKET
240579813 240579813 HANGERBASKET
240579817 240579817 HANGERBASKET
240579818 240579818 HANGERBASKET
240579811 240579811 HANGERBASKET
241809101 241809101 HANGERBASKET
241809102 241809102 HANGERBASKET
241799801 241799801 HANGERSHELF GLASS
241799901 241799901 HANGERSHELF GLASS
241952601 241952601 HARNESS
241519902 241519902 HARNESSELECTRICAL
241952401 241952401 HARNESSPOWER PTD
5304458379 5304458379 HARNESSWIRING
5304521771 5304521771 HARNESSWIRING
241891901 241891901 HARNESSWIRING
242150001 242150001 HARNESSWIRING
242150401 242150401 HARNESSWIRING
241835801 241835801 HARNESSWIRING
241783301 241783301 HARNESSWIRING
5303918327 5303918327 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
241782001 241782001 HEATERPTD
5303918222 5303918222 HOT TUBE REPAIR KIT

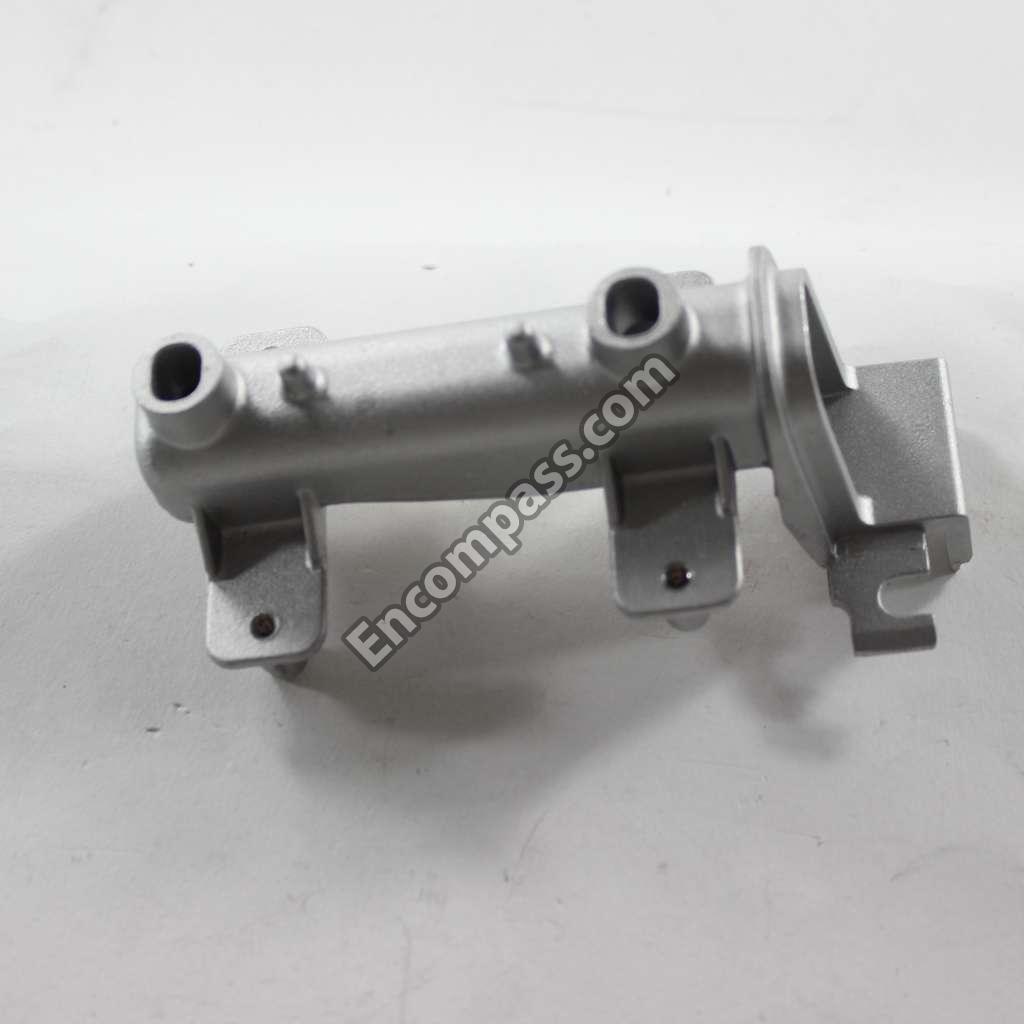

5304458395 5304458395 HOUSING
242154001 242154001 HOUSINGAIR FILTER
241951502 241951502 HOUSINGCONTROL UNI
241845401 241845401 HOUSINGSENSOR
241755203 241755203 HOUSINGWATER FILTR
241914701 241914701 ICE CONTAINER ASSEMBLY
5304458390 5304458390 ICE STRIPPER
240350649 240350649 INSERT-GLASS
240350603 240350603 INSERT-PAN COVER
241962702 241962702 INSULATION
241962701 241962701 INSULATION
242156301 242156301 INSULATIONAIR DUCT
5304458381 5304458381 INSULATOR
241577501 241577501 INVERTOR
242146206 242146206 LABELENERGY GUIDE
5304458391 5304458391 LEVER ARM
241891103 241891103 LIGHTLED
241753301 241753301 LINERSUMP
242131001 242131001 MATWINE
5304458382 5304458382 MOTORICE MAKER SVO
241873301 241873301 NAMEPLATE
241685001 241685001 NUT-AUGER
242174901 242174901 NUTSOFT CLOSE SPAC
242025901 242025901 OVERLAY
241953002 241953002 PAD
241950502 241950502 PANCRISPER
241745603 241745603 PANCRISPER
241920607 241920607 PANDEFROST
241783501 241783501 PANMEAT
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
241504601 241504601 PLATE-MOUNTING
5304456681 5304456681 PLATE-VALVE SWITCH
241917801 241917801 PLATEDOOR CLOSER
5304458383 5304458383 PLATEMOUNTING
5303208309 5303208309 PLUG-HOLE
241891601 241891601 POWER BOARD
241516102 241516102 RACK-CAN
242134102 242134102 RACKCAN
241676501 241676501 RAIL ASSEMBLY
242148802 242148802 RAILICE CREAM SHEL
242148801 242148801 RAILICE CREAM SHEL
241951601 241951601 RETAINER
5304458403 5304458403 RETAINER-THERMOSTAT
5304455655 5304455655 RIVET
240397501 240397501 ROD
5304418225 5304418225 ROLLER
241676301 241676301 ROTATION STOP
5304458386 5304458386 SCREW
5304458389 5304458389 SCREW
5304458385 5304458385 SCREW
5304458384 5304458384 SCREW
5304456684 5304456684 SCREW
5304456676 5304456676 SCREW
5304456660 5304456660 SCREW
5304458394 5304458394 SCREW
5304458393 5304458393 SCREW
5304458387 5304458387 SCREW
5304456678 5304456678 SCREW
5304455649 5304455649 SCREW
5304455650 5304455650 SCREW
240451503 240451503 SCREW
241548003 241548003 SCREW
241710601 241710601 SCREW
218781101 218781101 SCREW
218252201 218252201 SCREW
241500303 241500303 SCREW
218493101 218493101 SCREW
218362501 218362501 SCREW
240363402 240363402 SCREW
241690701 241690701 SCREW
241551602 241551602 SCREW
241690501 241690501 SCREW
218359202 218359202 SCREW
215005101 215005101 SCREW
215503203 215503203 SCREW
241701902 241701902 SCREW DRIVER
240442706 240442706 SCREW-#10-32 X 3/4
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
241512803 241512803 SEAL
5304469950 5304469950 SEALANT
218249808 218249808 SEALCOIL COVER
242183301 242183301 SEALRETURN AIR
240561702 240561702 SEALWATER INLET
241530501 241530501 SENSOR
240597203 240597203 SENSOR
241711213 241711213 SHELF-FREEZER
240443358 240443358 SHELF-FREEZER
242148901 242148901 SHELFICE CREAM
242128406 242128406 SHELFSPILLSAFE
242204501 242204501 SHROUD-EVAP FAN MTG
241946106 241946106 SHROUDCOND FAN
5304458375 5304458375 SHUT-OFF ARM
240349801 240349801 SLIDE CLIP
241689801 241689801 SPACER
241684802 241684802 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
5304458388 5304458388 SPACER-HOLD SWITCH
242169902 242169902 SPACERSOFT CLOSE
242169901 242169901 SPACERSOFT CLOSE
242169702 242169702 SPACERSOFT CLOSE
242169701 242169701 SPACERSOFT CLOSE
242169602 242169602 SPACERSOFT CLOSE
242169601 242169601 SPACERSOFT CLOSE
5304456682 5304456682 SPRING
5304459922 5304459922 SPRING,SHUT-OFF ARM
240398401 240398401 SPRING-FILTER RELEA
241731801 241731801 SPRINGCONTROL ROD
5308000110 5308000110 STRAP-EVAP/HEATER
241754801 241754801 SUPPORT
242177401 242177401 SUPPORTCRISPER CVR
242177301 242177301 SUPPORTCRISPER CVR

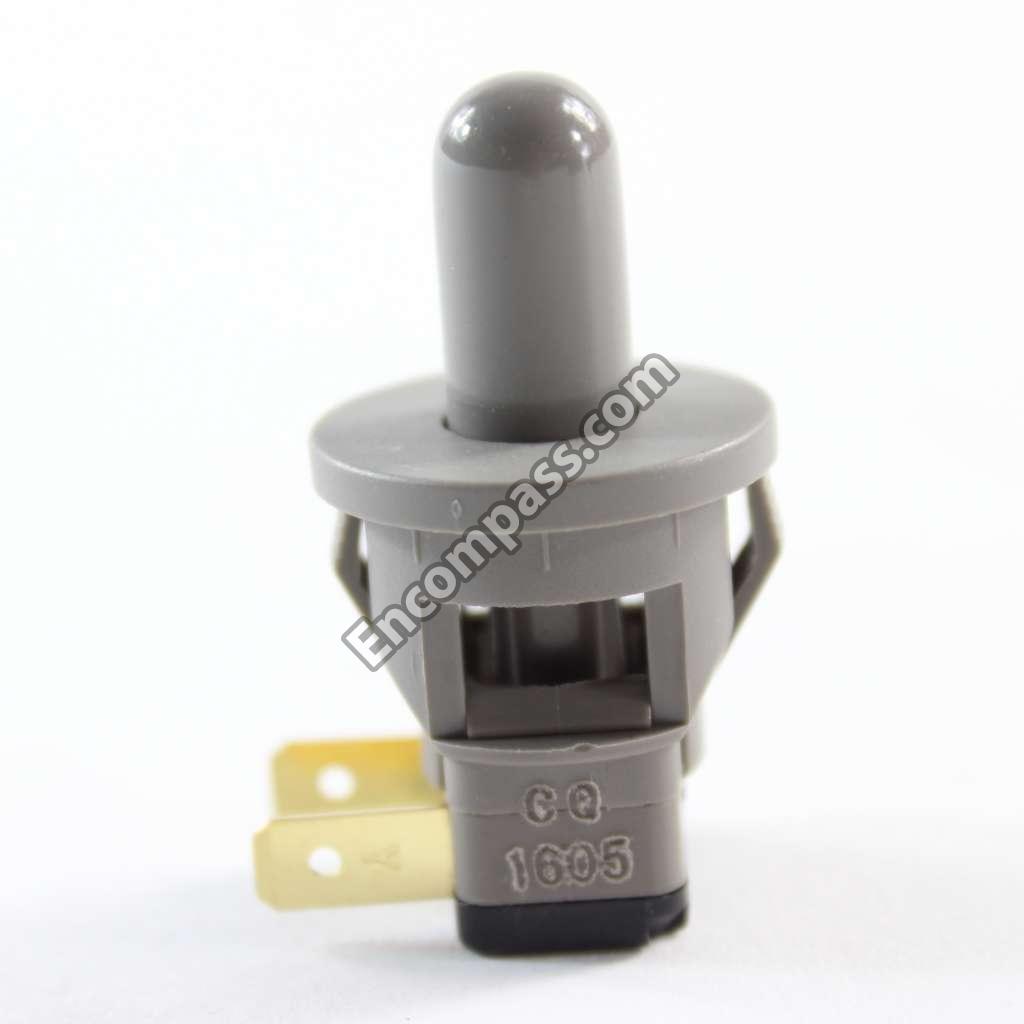

241547901 241547901 SWITCH-LIGHT/LAMP
5304456667 5304456667 SWITCH-MICRO
241911705 241911705 SWITCHLIGHT
240346701 240346701 TAPE-FOAM SEAL
5304458400 5304458400 THERMAL CUTOFF
5304456665 5304456665 THERMOSTAT
241571201 241571201 TRIM-SHELF
240367603 240367603 TRIM-SHELF
241743901 241743901 TRIMBASKET
241741601 241741601 TRIMBASKET
241743201 241743201 TRIMBASKET
241741301 241741301 TRIMBASKET
240337616 240337616 TRIMCABINET CORNER
241745801 241745801 TRIMCRISPER PAN
241745901 241745901 TRIMCRISPER PAN
241748601 241748601 TRIMMEAT PAN
218976409 218976409 TUBE
218976420 218976420 TUBE
241856903 241856903 TUBECONNECTOR
218976421 218976421 TUBEWATER INLET
5304467131 5304467131 USE 5304467131
241781701 241781701 VALVE
5304456689 5304456689 WASHER
215474201 215474201 WASHER
241690306 241690306 WASHER
EWF01 EWF01 WATER FILTER
241532006 241532006 WATER TANK
