Model Image
Manufacturer

Electrolux

Model Number

EW26SS75QS0

Description

Refrigerator, Side-by-side

Interactive Exploded View
Exploded View

Parts List

Part Number Description
241676101 241676101 ACTUATORSOLENOID
241716101 241716101 AUGER-ICE
241855801 241855801 BAFFLEAIR
241726501 241726501 BAR-DRIVE
240396002 240396002 BASE-WATER FILTER
240330012 240330012 BASECOMPRESSOR
241743601 241743601 BASKETSLIDING
241743401 241743401 BASKETSLIDING
241741801 241741801 BASKETSLIDING
241760403 241760403 BEARING
241760401 241760401 BEARING
241990301 241990301 BEARING-HINGE
241990302 241990302 BEARINGHINGE(FRZ)
241749902 241749902 BINDOOR
241751101 241751101 BINDOOR
242193501 242193501 BINDOOR
242142702 242142702 BINDOOR
242143901 242143901 BINSOFT FREEZE
241684102 241684102 BLADE
241684101 241684101 BLADE
241684103 241684103 BLADE
241639501 241639501 BLADE
218679614 218679614 BLOCKEVAP COIL
241891611 241891611 BOARD-LED POWER
242041101 242041101 BOARDCONTROL
240335502 240335502 BOLT-ROLLER ADJ
241684602 241684602 BRACKET-CONTROL ROD
218990801 218990801 BRACKET-EVAP/CVR MT
241761301 241761301 BRACKETUPPER HINGE
241563601 241563601 BUSHING-MOTOR MTG
241845301 241845301 BUSHINGMOTOR MTG
241754602 241754602 BUTTONFILTER RELEA
241685201 241685201 CAM-DRIVE
297286803 297286803 CAPACITORRUN
241674402 241674402 CHANNEL
241674401 241674401 CHANNEL
241812502 241812502 CHANNEL
241532401 241532401 CHANNEL
241513002 241513002 CHANNELSHELF MTG
5303001199 5303001199 CLAMP-WIRING HARNES
241716801 241716801 CLIP
241519401 241519401 CLIP
216954300 216954300 CLIP
241852502 241852502 CLIP
242036802 242036802 CLIP
241852501 241852501 CLIP
242135301 242135301 CLIP
218515403 218515403 CLIPGRILLE
242036801 242036801 CLIPPLASTIC
297049500 297049500 CLIPSLIDE
241650212 241650212 COMPRESSOR & GROMMETS,W/O ELEC
242106605 242106605 CONDENSER
241561302 241561302 CONTAINER
241716002 241716002 CONTROL ROD

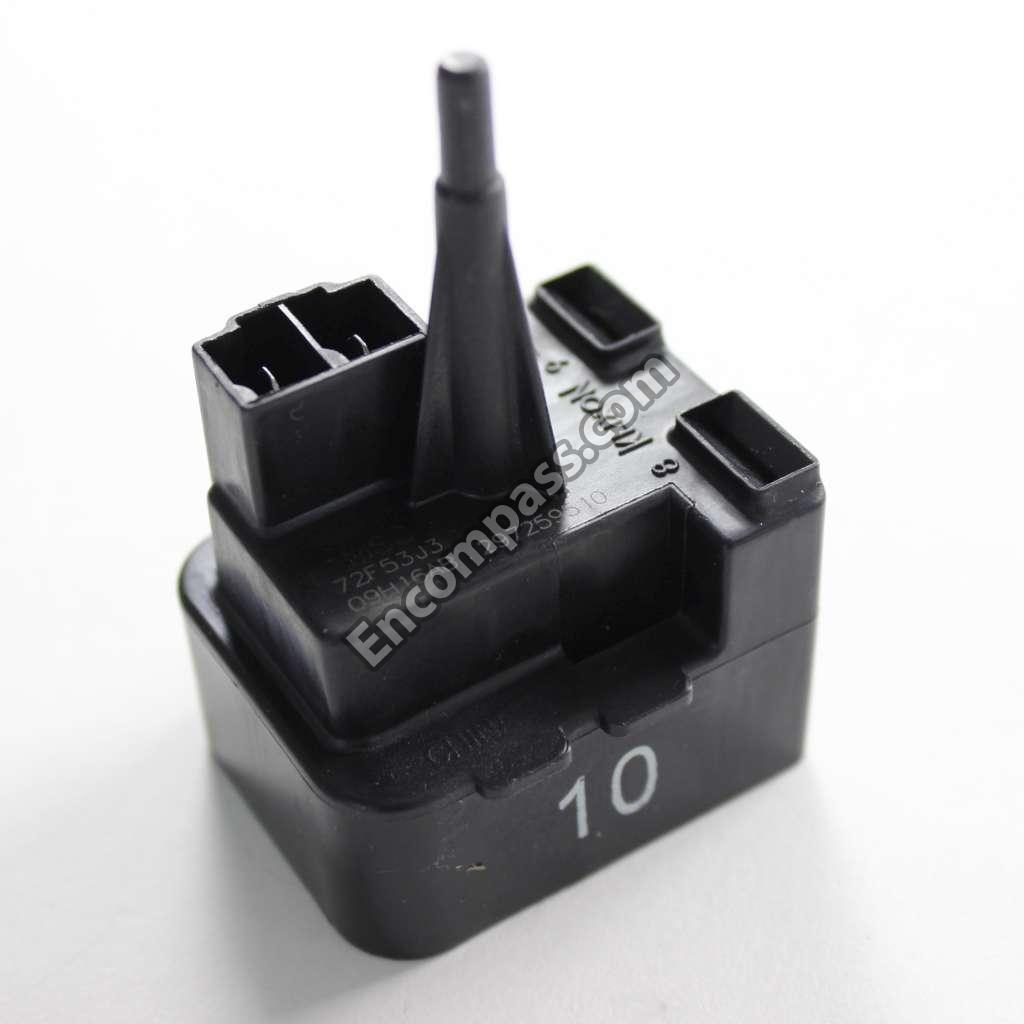

297259510 297259510 CONTROLLER
241516901 241516901 CORD-SERVICE
240326304 240326304 COVER
240435914 240435914 COVER
241733902 241733902 COVER
241747102 241747102 COVERCRISPER PAN
241745502 241745502 COVERCRISPER PAN
241719711 241719711 COVEREVAP COIL
241946709 241946709 COVERHINGE
241675507 241675507 COVERMOTOR
5303918419 5303918419 COVERPAN
242168904 242168904 COVERUPPER HINGE
241853801 241853801 DAMPER ASSEMBLY
241756801 241756801 DAMPERMEAT KEEPER
241583301 241583301 DEFLECTOR-AIR
241587402 241587402 DEFLECTOR-ICE
241890601 241890601 DEFLECTORAIR
242153801 242153801 DIFFUSERAIR
241746001 241746001 DIVIDERCRISPER PAN
241990202 241990202 DOOR STOP
241990201 241990201 DOOR STOP
242026439 242026439 DOORFRZR
242038834 242038834 DOORREFR
241684501 241684501 DRIVE BLADE
241754302 241754302 DUCTAIR FILTER
241690201 241690201 E-RING
5303918284 5303918284 EVAPORATOR KIT
241509402 241509402 EVAPORATOR MOTOR
241720601 241720601 EXTENSION
5308000010 5308000010 FAN BLADE
241684301 241684301 FIXED BLADE
241684201 241684201 FIXED BLADE
242124001 242124001 FREEZER DOOR BIN
241740602 241740602 FRONTICE CONTAINER
241786010 241786010 GASKETFRZR DOOR
240350604 240350604 GLASS
241758708 241758708 GRILL
240405201 240405201 GROMMET
218513300 218513300 GROMMET-COMPR MTG
241550801 241550801 GROMMET-SHELF MTG
241550701 241550701 GROMMET-SHELF MTG
241675601 241675601 GUIDE-SOLENOID
241745301 241745301 HANDLECRISPER PAN
241950801 241950801 HANDLECRISPER PAN
241881304 241881304 HANDLEREFR DOOR
240395502 240395502 HANGER-BASKET
240395602 240395602 HANGER-BASKET
241799701 241799701 HANGERBASKET
241799601 241799601 HANGERBASKET
241809102 241809102 HANGERBASKET
241809101 241809101 HANGERBASKET
240579810 240579810 HANGERBASKET
240579809 240579809 HANGERBASKET
240579818 240579818 HANGERBASKET
240579817 240579817 HANGERBASKET
241519902 241519902 HARNESSELECTRICAL
241835801 241835801 HARNESSWIRING
242150401 242150401 HARNESSWIRING
241891901 241891901 HARNESSWIRING
242150001 242150001 HARNESSWIRING
242150301 242150301 HARNESSWIRING
5303918327 5303918327 HEAT EXCHANGER KIT
242044113 242044113 HEATER-DEFROST
5303918222 5303918222 HOT TUBE REPAIR KIT
242154001 242154001 HOUSINGAIR FILTER
241756901 241756901 HOUSINGDAMPER
241845401 241845401 HOUSINGSENSOR
241754503 241754503 HOUSINGWATER FILTR
241860806 241860806 ICE CONTAINER ASSEMBLY
240350649 240350649 INSERT-GLASS
240350603 240350603 INSERT-PAN COVER
240443381 240443381 INSERTPAN COVER
241945101 241945101 INSULATIONAIR DUCT
241753301 241753301 LINERSUMP
242131002 242131002 MATWINE

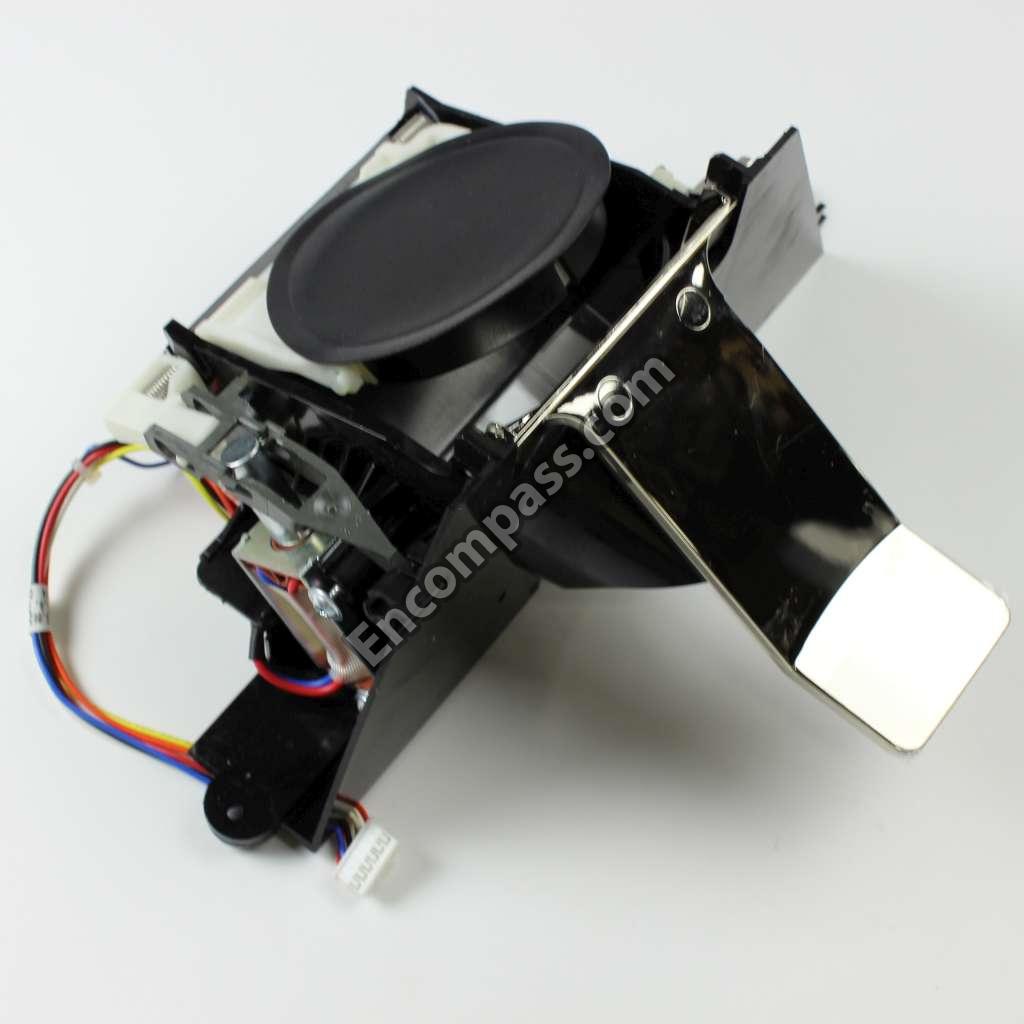

242100018 242100018 MODULE-DISPENSER
242018301 242018301 MOTORCONDENSER FAN
241873301 241873301 NAMEPLATE
241685001 241685001 NUT-AUGER
242174901 242174901 NUTSOFT CLOSE SPAC
241784101 241784101 PAN
241745604 241745604 PANCRISPER
241950502 241950502 PANCRISPER
241920606 241920606 PANDEFROST
241690402 241690402 PIN-SPIRAL
241684001 241684001 PLATE-FRONT
241917801 241917801 PLATEDOOR CLOSER
5303208309 5303208309 PLUG-HOLE
242156102 242156102 RACKCAN
241734501 241734501 RAIL
242149001 242149001 RAILICE CREAM SHEL
242159001 242159001 RAILICE CREAM SHEL
241786009 241786009 REF DOOR GASKET
5304455655 5304455655 RIVET
240397501 240397501 ROD
5304418225 5304418225 ROLLER
240335006 240335006 ROLLER ASSEMBLY
241676301 241676301 ROTATION STOP
215503205 215503205 SCREW
215005101 215005101 SCREW
218359202 218359202 SCREW
241551602 241551602 SCREW
241690701 241690701 SCREW
241690501 241690501 SCREW
240363403 240363403 SCREW
218493101 218493101 SCREW
218362501 218362501 SCREW
241548003 241548003 SCREW
218252201 218252201 SCREW
218781101 218781101 SCREW
241710601 241710601 SCREW
241500303 241500303 SCREW
240451503 240451503 SCREW
242039702 242039702 SCREW
5304455650 5304455650 SCREW
241701902 241701902 SCREW DRIVER
240442706 240442706 SCREW-#10-32 X 3/4
240363402 240363402 SCREW-#8-18 X 1/2
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240359403 240359403 SCREW-FAN SHROUD
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
218709101 218709101 SCREWHDL MTG
240363602 240363602 SCREWSHOULDER
241512807 241512807 SEAL
218249808 218249808 SEALCOIL COVER
241781601 241781601 SEALRETURN AIR
240561703 240561703 SEALWATER INLET
240597203 240597203 SENSOR
241530501 241530501 SENSOR
240350605 240350605 SHELF-FREEZER
240324101 240324101 SHELF-PIZZA
242149101 242149101 SHELFICE CREAM
242128405 242128405 SHELFSPILLSAFE
241946106 241946106 SHROUDCOND FAN
241675704 241675704 SOLENOID ASSEMBLY
241684801 241684801 SPACER
241689801 241689801 SPACER
240409302 240409302 SPACER-COND TUBE
241684901 241684901 SPACER-FIXED BLADES
242169902 242169902 SPACERSOFT CLOSE
242169701 242169701 SPACERSOFT CLOSE
242169702 242169702 SPACERSOFT CLOSE
242169901 242169901 SPACERSOFT CLOSE
240398401 240398401 SPRING-FILTER RELEA
241731801 241731801 SPRINGCONTROL ROD
242157901 242157901 STOPCAN
5308000110 5308000110 STRAP-EVAP/HEATER
241754801 241754801 SUPPORT
242177401 242177401 SUPPORTCRISPER CVR
242177301 242177301 SUPPORTCRISPER CVR
241547901 241547901 SWITCH-LIGHT/LAMP
241911705 241911705 SWITCHLIGHT
240346701 240346701 TAPE-FOAM SEAL
242161206 242161206 TRIM
240367602 240367602 TRIM-SHELF
241741601 241741601 TRIMBASKET
241741301 241741301 TRIMBASKET
241743301 241743301 TRIMBASKET
241743201 241743201 TRIMBASKET
241741701 241741701 TRIMBASKET
241745901 241745901 TRIMCRISPER PAN
241745801 241745801 TRIMCRISPER PAN
241748601 241748601 TRIMMEAT PAN
218976438 218976438 TUBE
218976420 218976420 TUBE
218976419 218976419 TUBE
241856903 241856903 TUBECONNECTOR
241796407 241796407 TUBEWATER FILL
5304467131 5304467131 USE 5304467131
242252702 242252702 VALVE
241690306 241690306 WASHER
215474201 215474201 WASHER
241532006 241532006 WATER TANK
