Model Image
Manufacturer

Electrolux

Model Number

EW27EW5CGS7

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317105 318317105 ADAPTER ASSEMBLY
318259213 318259213 BACK
316443918 316443918 BOARD
316519200 316519200 BOARD
316535201 316535201 BOARD
318577800 318577800 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
318382301 318382301 BRACKET
318902200 318902200 BRACKET
318370600 318370600 BRACKET
318242702 318242702 BRACKET
318603913 318603913 BRACKET
318256201 318256201 BRACKET
318562300 318562300 BRACKET
318579001 318579001 BRACKET
318260623 318260623 BRACKET
318946400 318946400 BULB
318163602 318163602 CLEANER-COOKTOP

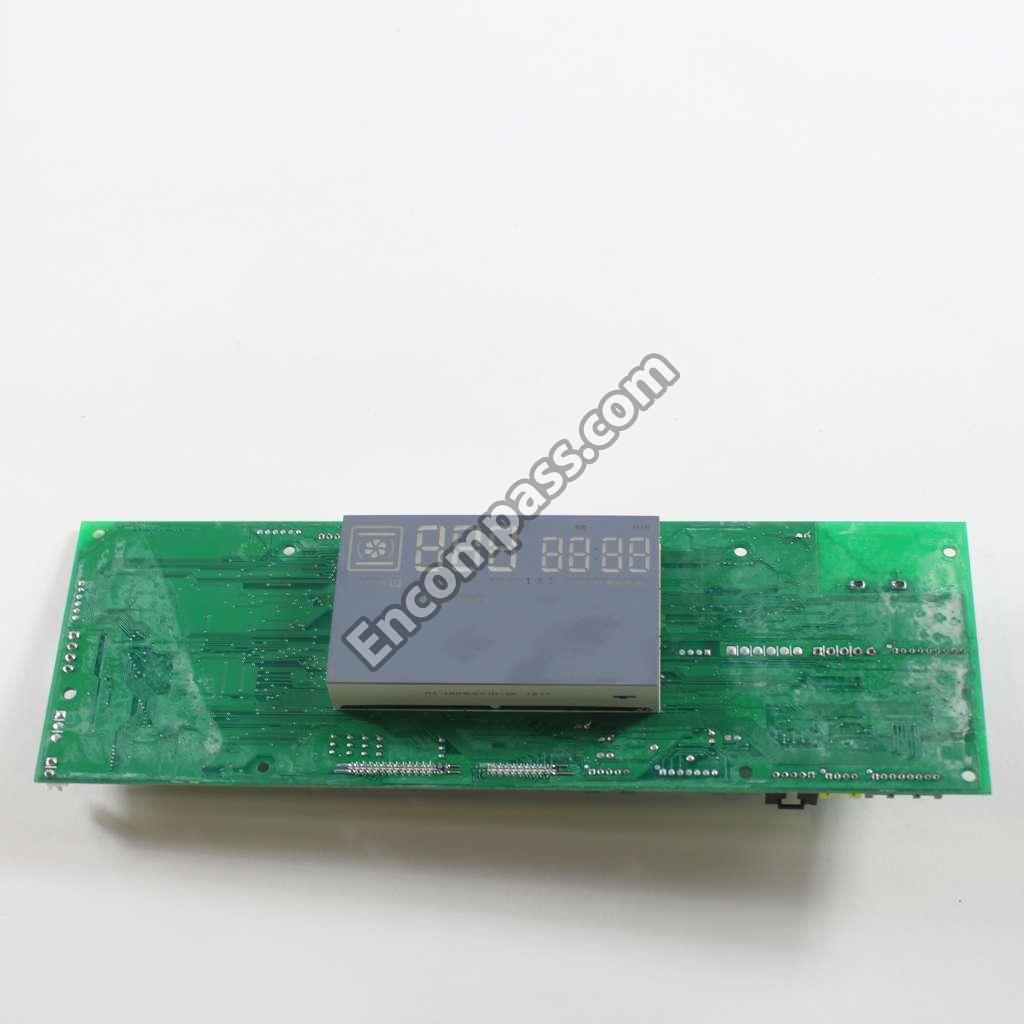

316576652 316576652 CONTROLLER
318906601 318906601 COVER
318260105 318260105 COVER
318123910 318123910 DEFLECTOR

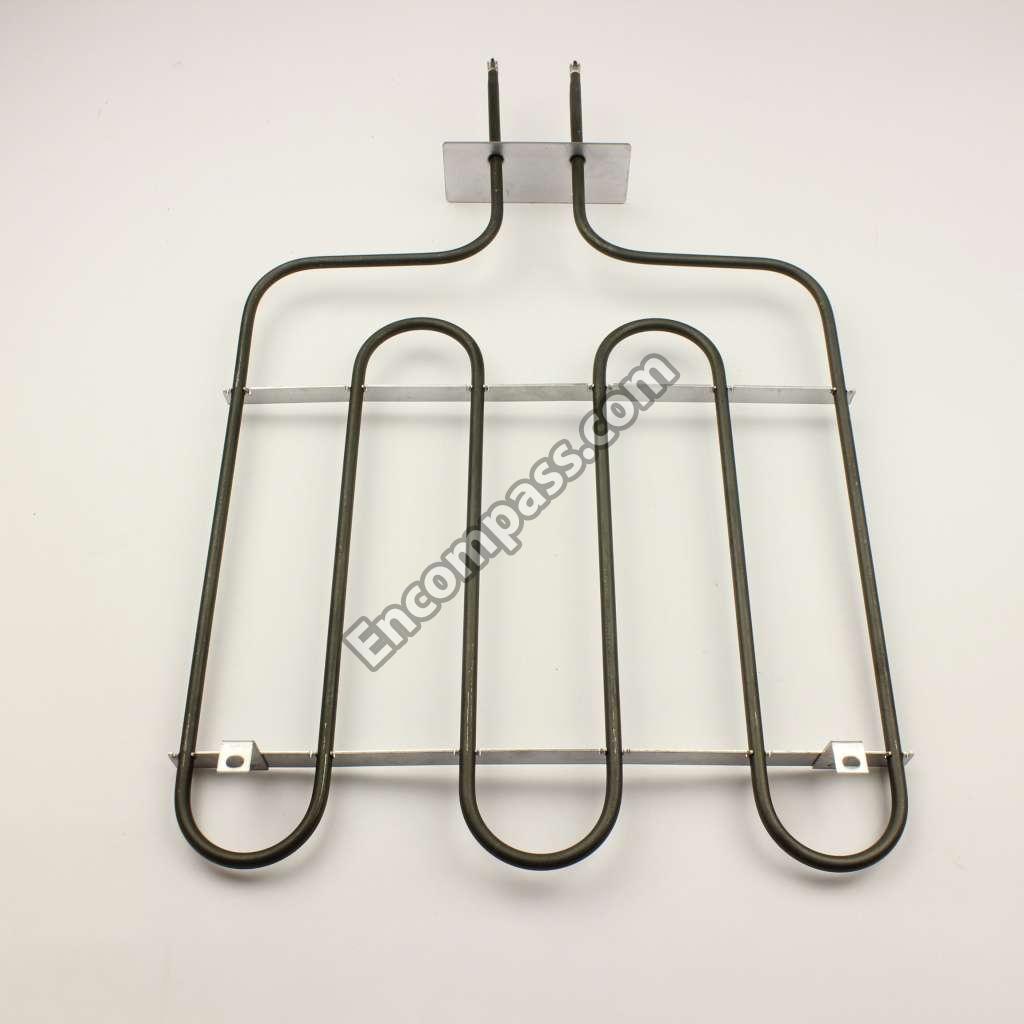

318902502 318902502 ELEMENT
318255604 318255604 ELEMENT
318255511 318255511 ELEMENT
318398302 318398302 FAN BLADE
318053136 318053136 GASKET
318212200 318212200 GLASS
318299502 318299502 GLASS ASSEMBLY
241881303 241881303 HANDLE
318572778 318572778 HARNESS
318586000 318586000 HINGE
318126401 318126401 INSERT
318372015 318372015 INSULATION
318372006 318372006 INSULATION
318330510 318330510 INSULATION
318330503 318330503 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
318241006 318241006 LAMP
318575603 318575603 MOTOR
316136600 316136600 NUT
316247700 316247700 NUT
5303323144 5303323144 NUT
318138801 318138801 PAN
318260001 318260001 PANEL
318577700 318577700 PANEL
318368300 318368300 PIN
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318402800 318402800 PLATE
5304435874 5304435874 PLATE
318601302 318601302 PROBE
318903300 318903300 RACK
318365800 318365800 RACK
318601206 318601206 RECEPTACLE
318241408 318241408 RECEPTACLE
5304456367 5304456367 RIVET
318376505 318376505 ROD
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303323139 5303323139 SCREW
5303323130 5303323130 SCREW
5303324184 5303324184 SCREW
316524400 316524400 SCREW
5303211311 5303211311 SCREW
5304401490 5304401490 SCREW
5304436875 5304436875 SCREW
5304476599 5304476599 SCREW
5304477736 5304477736 SCREW
318389000 318389000 SEAL
318562500 318562500 SENSOR
318562200 318562200 SENSOR ASSEMBLY
318903104 318903104 SHELF
318908002 318908002 SHELF
318259114 318259114 SHIELD
318257306 318257306 SHIELD
318902902 318902902 SPACER
318264701 318264701 SPACER
5304455945 5304455945 SPACER
316517600 316517600 SPACER
318531703 318531703 SPACER
318531800 318531800 SPACER
318293702 318293702 SPACER
316114100 316114100 SPACER
318192400 318192400 SPRING
316445501 316445501 SWITCH
318578506 318578506 THERMOSTAT
318901803 318901803 TRIM
318903504 318903504 TRIM
318903729 318903729 TRIM
318903728 318903728 TRIM
318249409 318249409 TUBE
3201909 3201909 WASHER
316247800 316247800 WASHER
318231870 318231870 WIRING HARNESS
