Model Image
Manufacturer

Electrolux

Model Number

EW30DS65GW5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318357001 318357001 ADAPTER
318335700 318335700 ANTI-TIP KIT
318905600 318905600 BACK
318259220 318259220 BACK

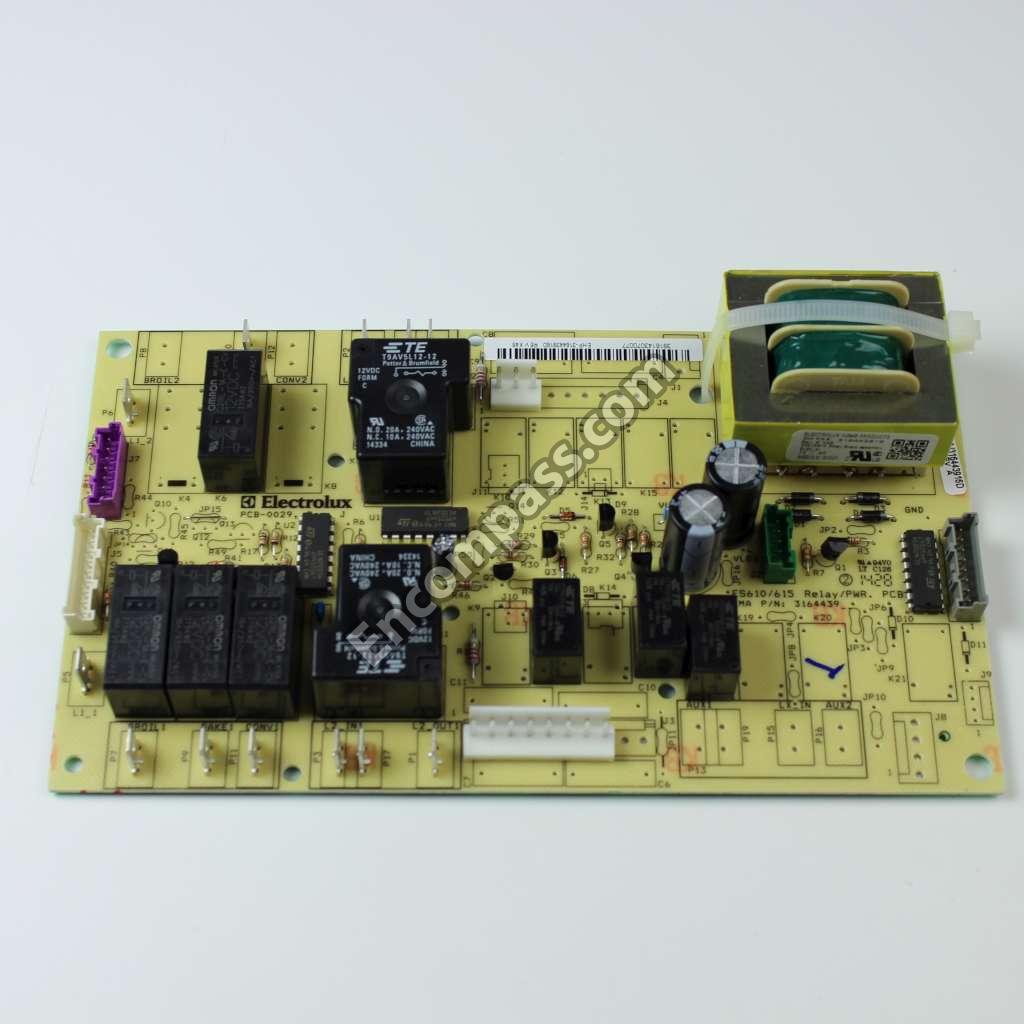

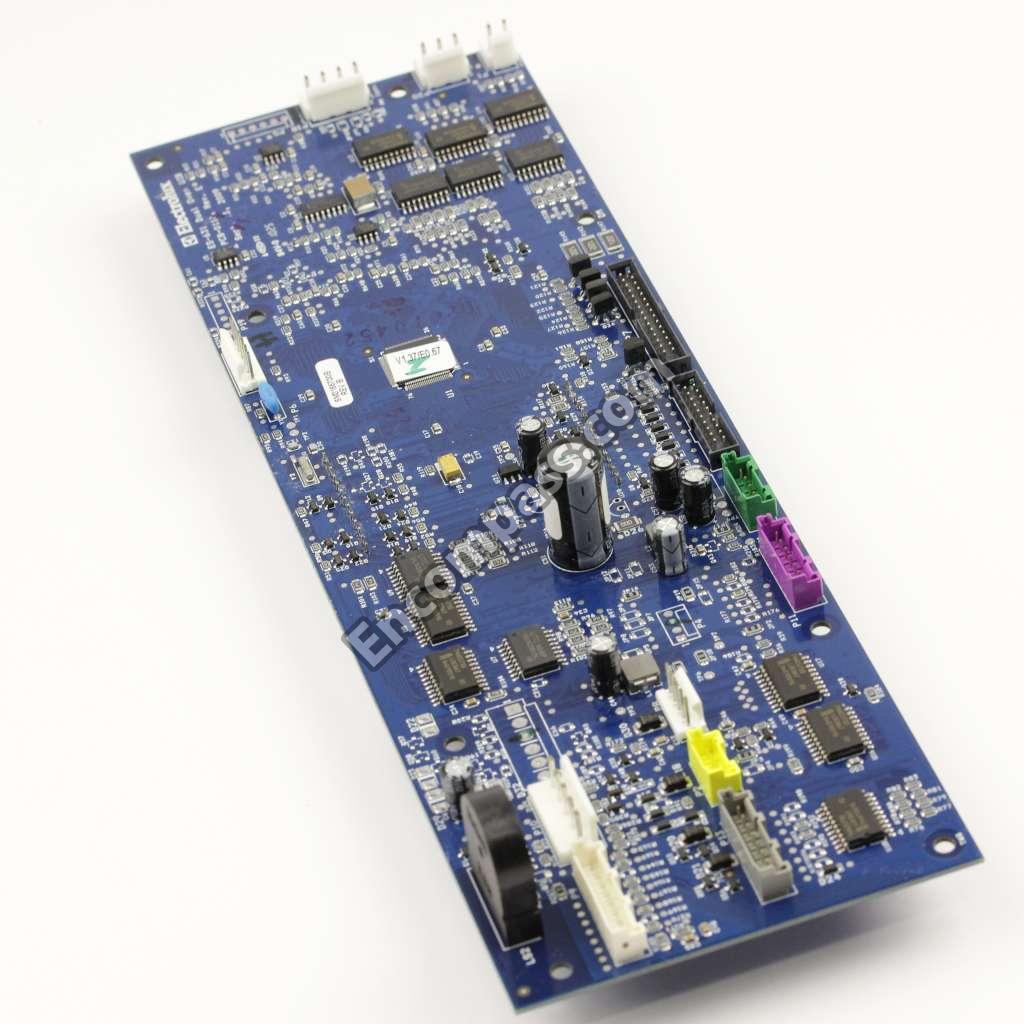

316535200 316535200 BOARD
316443916 316443916 BOARD
316519200 316519200 BOARD
318384703 318384703 BODY
318297303 318297303 BOX
318272901 318272901 BOX
318900111 318900111 BOX
318403100 318403100 BRACKET
318562300 318562300 BRACKET
318298400 318298400 BRACKET
318313601 318313601 BRACKET
318251300 318251300 BRACKET
318335200 318335200 BRACKET
318603913 318603913 BRACKET
318382301 318382301 BRACKET
318902200 318902200 BRACKET
5303013071 5303013071 BULB/LAMP
316525401 316525401 BURNER
316438200 316438200 BURNER
316438600 316438600 BURNER
316558300 316558300 BURNER
316511502 316511502 CAP
316548700 316548700 CAPBURNER
316548800 316548800 CAPBURNER
316548600 316548600 CAPBURNER
318347800 318347800 CHIMNEY
5303205904 5303205904 CLIP
316095800 316095800 CLIP

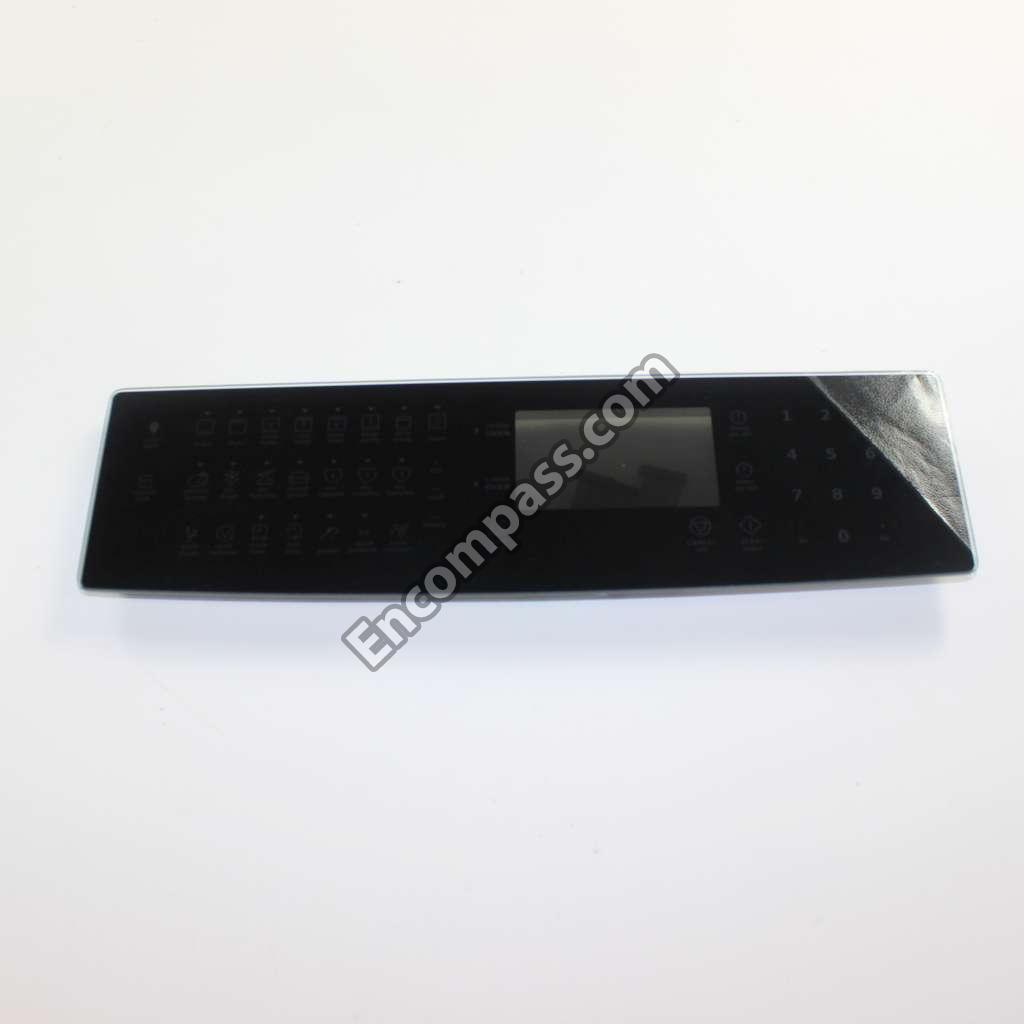

318387130 318387130 CONTROL ASSEMBLY
316576700 316576700 CONTROLELECTRICAL
318906601 318906601 COVER
318385401 318385401 COVER
318123910 318123910 DEFLECTOR
318391901 318391901 DEFLECTOR
318904200 318904200 DEFLECTOR
318072577 318072577 DUCT
318255511 318255511 ELEMENT
318255806 318255806 ELEMENT
318255302 318255302 ELEMENT
318398302 318398302 FAN BLADE
318298226 318298226 FRAME
318298230 318298230 FRAME
318385701 318385701 FRAME
318056236 318056236 FRONT
318534403 318534403 GASKET
318053131 318053131 GASKET
318384800 318384800 GLASS
318904407 318904407 GLASS
316117500 316117500 GLASS
318261398 318261398 GLASS ASSEMBLY
318385600 318385600 GLIDE
318909206 318909206 GRATE
318909207 318909207 GRATE
318909403 318909403 GRATE
318532147 318532147 GROUND WIRE
241881314 241881314 HANDLE
318384451 318384451 HARNESS
318402344 318402344 HARNESS
318341201 318341201 HARNESSELECTRICAL
318900600 318900600 HINGE

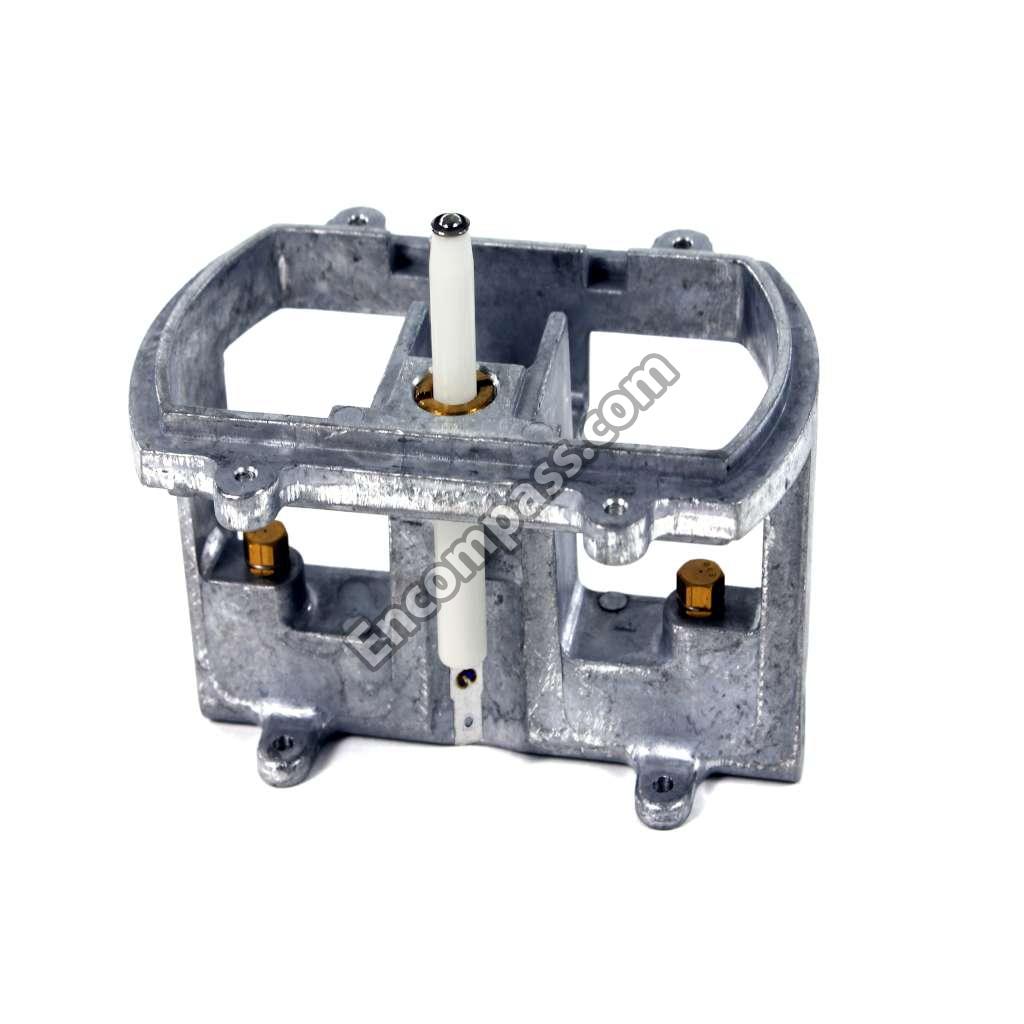

316525103 316525103 IGNITOR/ORIFICE ASS
316540800 316540800 IGNITOR/ORIFICE ASS
316543204 316543204 IGNITOR/ORIFICE ASS
316540700 316540700 IGNITOR/ORIFICE ASS
318126401 318126401 INSERT
318285079 318285079 INSULATION
318372015 318372015 INSULATION
318362129 318362129 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
318294912 318294912 INSULLATION
318905200 318905200 KNOB
318905203 318905203 KNOB
316221001 316221001 LABEL
318241006 318241006 LAMP
318406100 318406100 LENS
318384903 318384903 LINER
318127445 318127445 LP CONVERSION KIT
318907200 318907200 MANIFOLD
318907000 318907000 MANIFOLD
316135702 316135702 MODULE
318073028 318073028 MOTOR
5304463302 5304463302 MOTORCONVECTION
5303323144 5303323144 NUT
316247700 316247700 NUT
316136600 316136600 NUT
316523509 316523509 ORIFICE
316527504 316527504 ORIFICE
316527511 316527511 ORIFICE
318138801 318138801 PAN
318905003 318905003 PANEL
318590003 318590003 PANEL
318260007 318260007 PANEL
318905802 318905802 PANEL
318905803 318905803 PANEL
318905700 318905700 PANEL
318905701 318905701 PANEL
318359500 318359500 PANEL
318385302 318385302 PANEL
318385201 318385201 PANEL
318295611 318295611 PANEL
318300003 318300003 PANEL
318386400 318386400 PANEL
5304435874 5304435874 PLATE
318402800 318402800 PLATE
318003000 318003000 PLATE
318111806 318111806 PLATE
5303320846 5303320846 PLATE
318389400 318389400 PLATE
318264200 318264200 PLATE
318394300 318394300 PLATE
318406901 318406901 PLATE
316217002 316217002 PROBE
318601302 318601302 PROBE
316217005 316217005 PROBE
318365800 318365800 RACK
318903300 318903300 RACK
318908100 318908100 RACK
318601206 318601206 RECEPTACLE

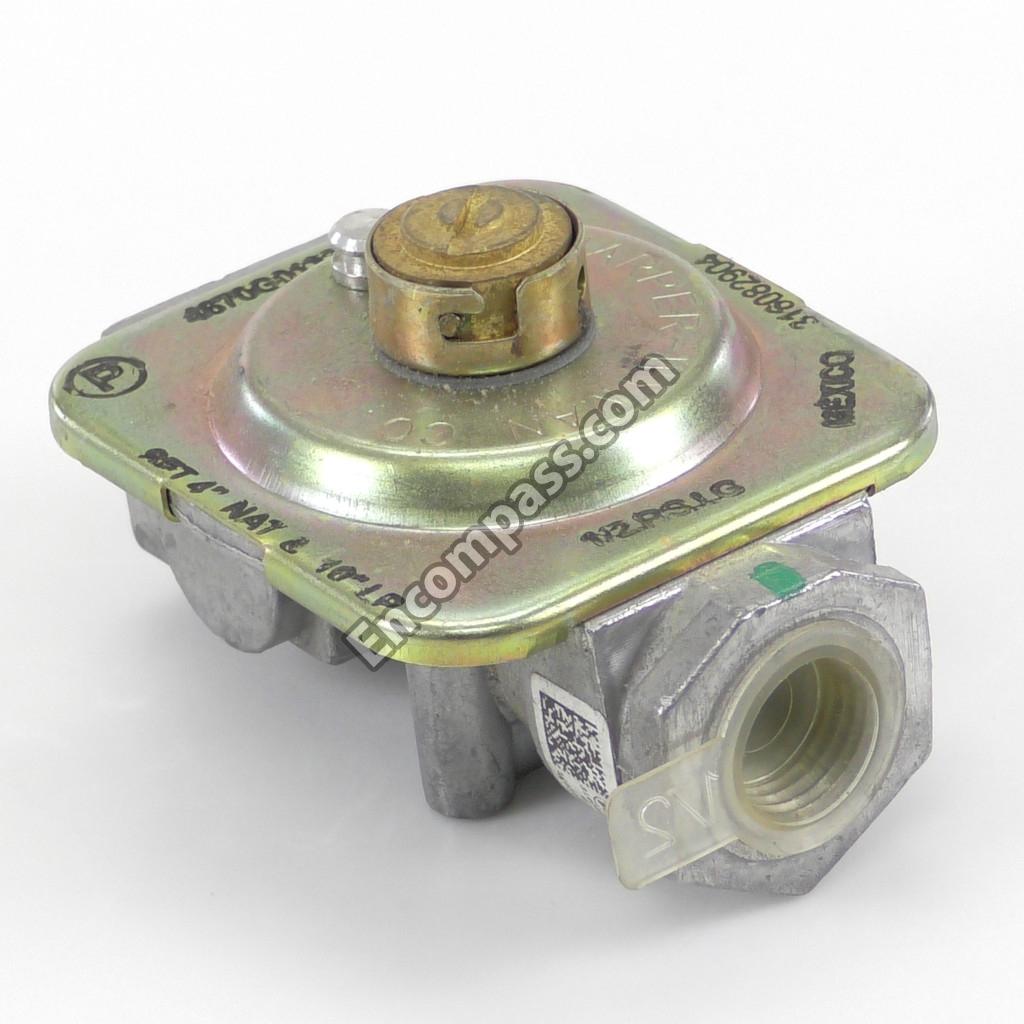

316082904 316082904 REGULATORPRESSURE
5304456367 5304456367 RIVET
318376505 318376505 ROD
5304471183 5304471183 SCREW
5303307980 5303307980 SCREW
5304417153 5304417153 SCREW
3051009 3051009 SCREW
316524400 316524400 SCREW
5303211311 5303211311 SCREW
316215600 316215600 SCREW
5303323129 5303323129 SCREW
5303323139 5303323139 SCREW
5303300265 5303300265 SCREW
318147811 318147811 SCREW
3051050 3051050 SCREW
5304461333 5304461333 SCREW
5304415832 5304415832 SCREW
5304436875 5304436875 SCREW
5303324184 5303324184 SCREW
5304462581 5304462581 SCREW
316240600 316240600 SCREW,HEX WASH,6-32 X .485
318389000 318389000 SEAL
318053326 318053326 SEAL
318562200 318562200 SENSOR ASSEMBLY
318903105 318903105 SHELF
318259114 318259114 SHIELD
316517600 316517600 SPACER
318293702 318293702 SPACER
318165800 318165800 SPACER
316114100 316114100 SPACER
318902900 318902900 SPACER
5304455945 5304455945 SPACER
318385000 318385000 SPACER,GLASS,(2)
318192400 318192400 SPRING
318900300 318900300 SUBFRAME
318904501 318904501 SUBFRAME
318906900 318906900 SUPPORT,DEFLECTOR BOX
318004902 318004902 SWITCH
316445501 316445501 SWITCH
318904903 318904903 TRIM
318904701 318904701 TRIM
318906301 318906301 TRIM,VENT
318249409 318249409 TUBE
318902300 318902300 TUBING
318901300 318901300 TUBING
318902100 318902100 TUBING
318901100 318901100 TUBING
318901700 318901700 TUBING
318901900 318901900 TUBING
318387400 318387400 VALVE
318387401 318387401 VALVE
318387402 318387402 VALVE
316574901 316574901 VALVE
316247800 316247800 WASHER
3201909 3201909 WASHER
318302400 318302400 WHEEL & BRACKET ASS
318232649 318232649 WIRING HARNESS
318199781 318199781 WIRING HARNESS
