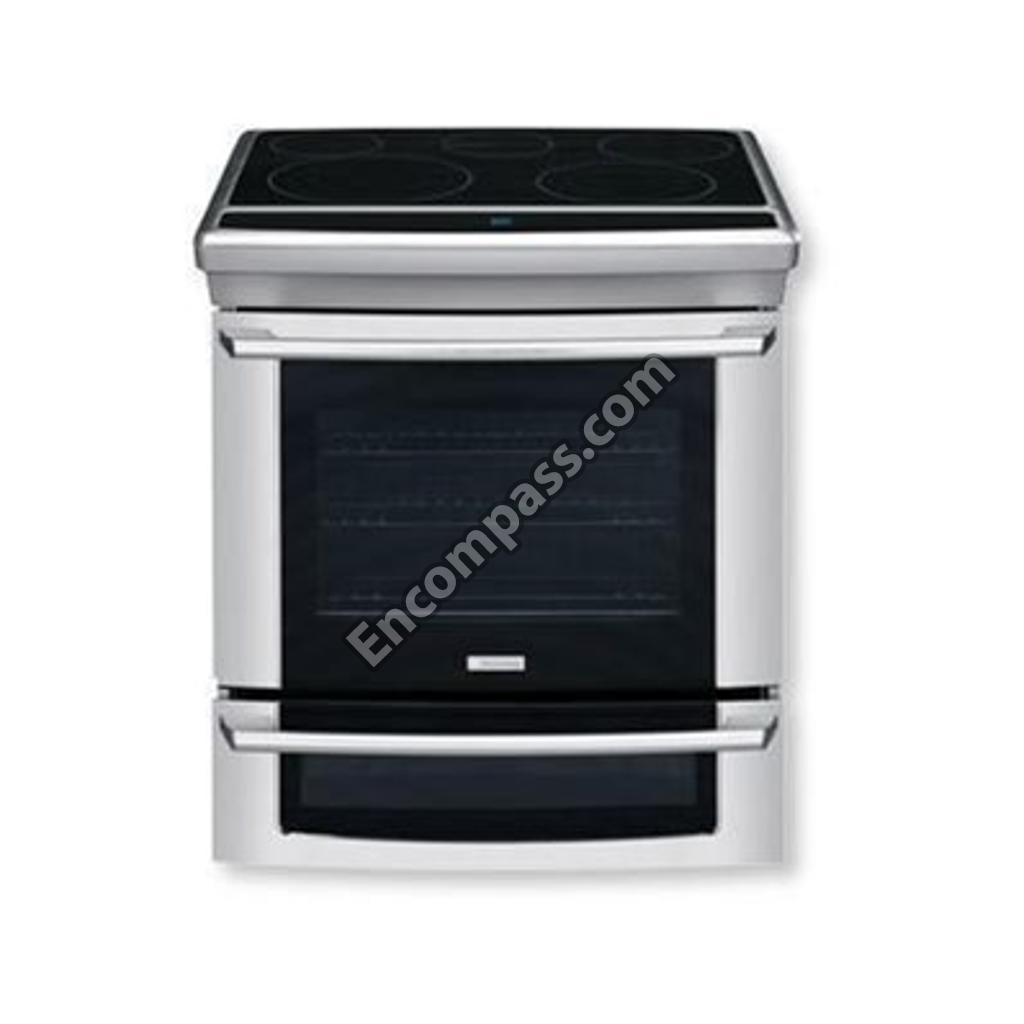

Model Image
Manufacturer

Electrolux

Model Number

EW30ES6CGS5

Description

Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317105 318317105 ADAPTER ASSEMBLY
318335700 318335700 ANTI-TIP KIT
318259220 318259220 BACK
318905600 318905600 BACK
316443916 316443916 BOARD
316519200 316519200 BOARD
316535201 316535201 BOARD
316576432 316576432 BOARD
318568201 318568201 BOX
318568200 318568200 BOX
318297303 318297303 BOX
318370600 318370600 BRACKET
318902200 318902200 BRACKET
318382301 318382301 BRACKET
318242702 318242702 BRACKET
318403100 318403100 BRACKET
318313601 318313601 BRACKET
318603913 318603913 BRACKET
318335200 318335200 BRACKET
318298400 318298400 BRACKET
318260632 318260632 BRACKET
318579001 318579001 BRACKET
318562300 318562300 BRACKET
5303013071 5303013071 BULB/LAMP
318163601 318163601 CLEANER,COOKTOP
318163602 318163602 CLEANER-COOKTOP
5303205904 5303205904 CLIP
316095800 316095800 CLIP
316576612 316576612 CONTROLLER
318113111 318113111 CORD
318385401 318385401 COVER
318906601 318906601 COVER
318904200 318904200 DEFLECTOR
318391901 318391901 DEFLECTOR
318123910 318123910 DEFLECTOR
5304477697 5304477697 DOOR ASSEMBLY
316216703 316216703 ELEMENT
318255302 318255302 ELEMENT
318255806 318255806 ELEMENT
318255511 318255511 ELEMENT
318398302 318398302 FAN BLADE
318385701 318385701 FRAME
318298230 318298230 FRAME
318298226 318298226 FRAME
318056236 318056236 FRONT
318053131 318053131 GASKET
318534402 318534402 GASKET
318212210 318212210 GLASS
316117500 316117500 GLASS
903144-9010 903144-9010 GLASS
318384800 318384800 GLASS
318385600 318385600 GLIDE
241881302 241881302 HANDLE
318582609 318582609 HARNESS
318578306 318578306 HARNESS
318578321 318578321 HARNESS
318126401 318126401 INSERT
318362129 318362129 INSULATION
318372015 318372015 INSULATION
318285079 318285079 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X
318294912 318294912 INSULLATION
318241006 318241006 LAMP
318406100 318406100 LENS
903171-9020 903171-9020 LINER
318384903 318384903 LINER
318389302 318389302 MAINTOP ASSEMBLY
318261223 318261223 MOTOR
318575600 318575600 MOTOR
5304463302 5304463302 MOTORCONVECTION
316136600 316136600 NUT
316247700 316247700 NUT
316459400 316459400 PAD
318138801 318138801 PAN
318386400 318386400 PANEL
318385201 318385201 PANEL
318300002 318300002 PANEL
318385302 318385302 PANEL
318359500 318359500 PANEL
318905806 318905806 PANEL
318905701 318905701 PANEL
318905700 318905700 PANEL
318570500 318570500 PANEL
318260007 318260007 PANEL
318905005 318905005 PANEL
318389400 318389400 PLATE
5303320846 5303320846 PLATE
318402800 318402800 PLATE
5304435874 5304435874 PLATE
316217005 316217005 PROBE
318601302 318601302 PROBE
318908100 318908100 RACK
318903300 318903300 RACK
318365800 318365800 RACK
318601206 318601206 RECEPTACLE
5304400192 5304400192 RETAINER WIRE
5304456367 5304456367 RIVET
318376505 318376505 ROD
5303323134 5303323134 SCREW
5303300265 5303300265 SCREW
5304454881 5304454881 SCREW
5304416408 5304416408 SCREW
5304436875 5304436875 SCREW
5304415832 5304415832 SCREW
5304461333 5304461333 SCREW
3051050 3051050 SCREW
318147811 318147811 SCREW
5303297477 5303297477 SCREW
5303323139 5303323139 SCREW
5303323129 5303323129 SCREW
5303323277 5303323277 SCREW
5303324184 5303324184 SCREW
316524400 316524400 SCREW
3051009 3051009 SCREW
5303211311 5303211311 SCREW
5304417153 5304417153 SCREW
5303307980 5303307980 SCREW
5304471183 5304471183 SCREW
5304477736 5304477736 SCREW
318053326 318053326 SEAL
318389000 318389000 SEAL
318562500 318562500 SENSOR
318562200 318562200 SENSOR ASSEMBLY
318903105 318903105 SHELF
318259114 318259114 SHIELD
5304455945 5304455945 SPACER
318902902 318902902 SPACER
316114100 316114100 SPACER
318293702 318293702 SPACER
316517600 316517600 SPACER
318531701 318531701 SPACER
318385000 318385000 SPACER,GLASS,(2)
318122011 318122011 SPRING
318122010 318122010 SPRING
318122008 318122008 SPRING
318122006 318122006 SPRING
318192400 318192400 SPRING
318900301 318900301 SUBFRAME
316445501 316445501 SWITCH
318004902 318004902 SWITCH
318578506 318578506 THERMOSTAT
318904905 318904905 TRIM
318904903 318904903 TRIM
318904703 318904703 TRIM
318913116 318913116 TRIM VENT BLACK UPPER
318249409 318249409 TUBE
3201909 3201909 WASHER
316247800 316247800 WASHER
318302400 318302400 WHEEL & BRACKET ASS
