Model Image
Manufacturer

Electrolux

Model Number

EW30EW55GB6

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
318317105 318317105 ADAPTER ASSEMBLY
318259220 318259220 BACK

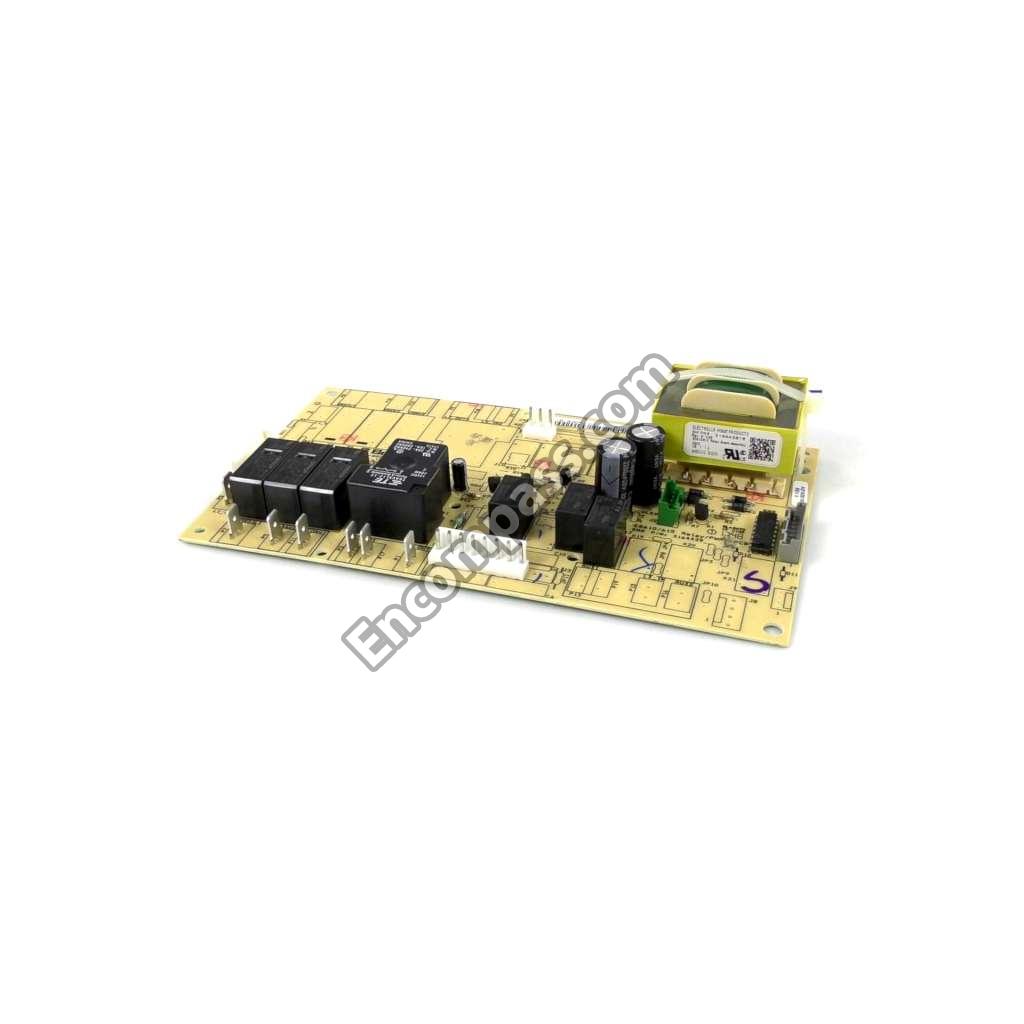

316535201 316535201 BOARD
316519200 316519200 BOARD
316443918 316443918 BOARD
318577800 318577800 BOX
318394441 318394441 BOX & WIRES ASSEMBLY
318260622 318260622 BRACKET
318579001 318579001 BRACKET
318562300 318562300 BRACKET
318256201 318256201 BRACKET
318603913 318603913 BRACKET
318382301 318382301 BRACKET
318902200 318902200 BRACKET
318946400 318946400 BULB
318280426 318280426 CONTROL PANEL ASSEMBLY

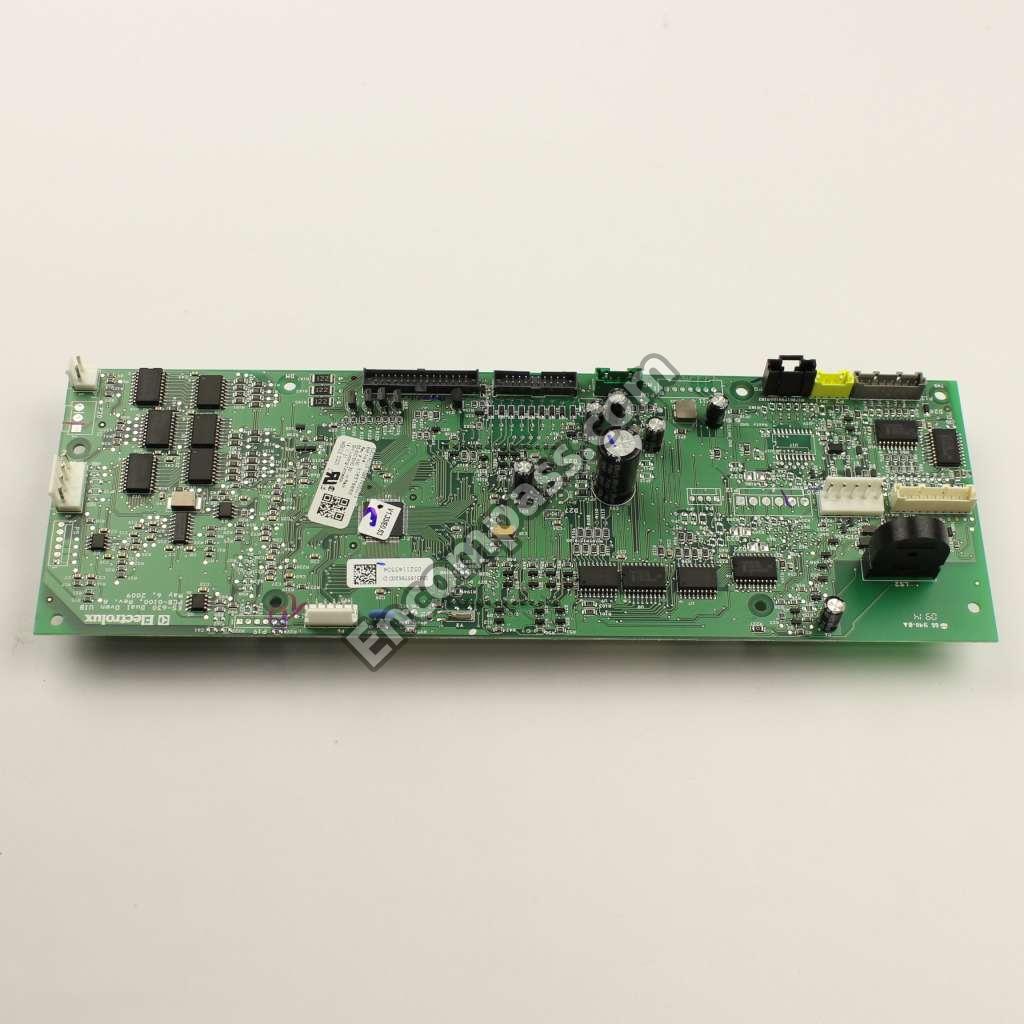

316576650 316576650 CONTROLLER
318260104 318260104 COVER
318906601 318906601 COVER
318123910 318123910 DEFLECTOR
318904201 318904201 DEFLECTOR

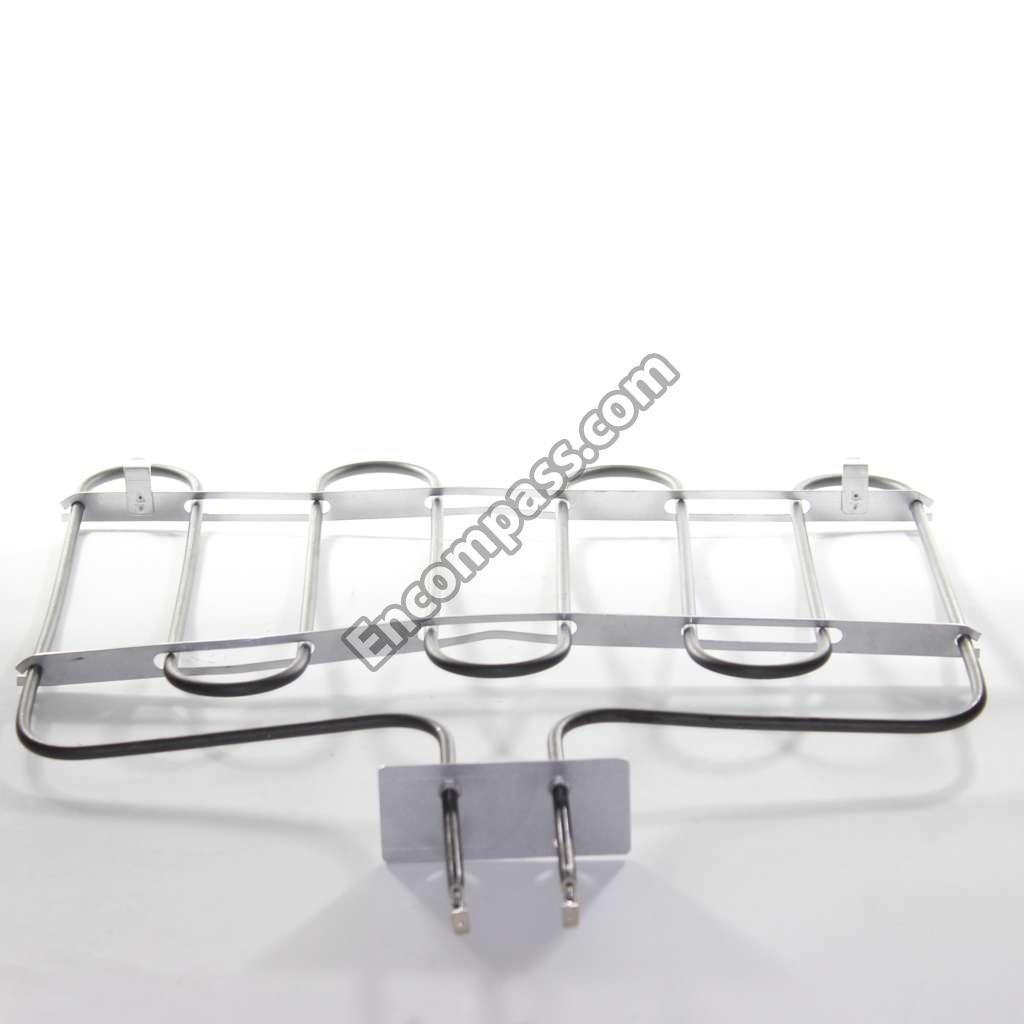

318255511 318255511 ELEMENT

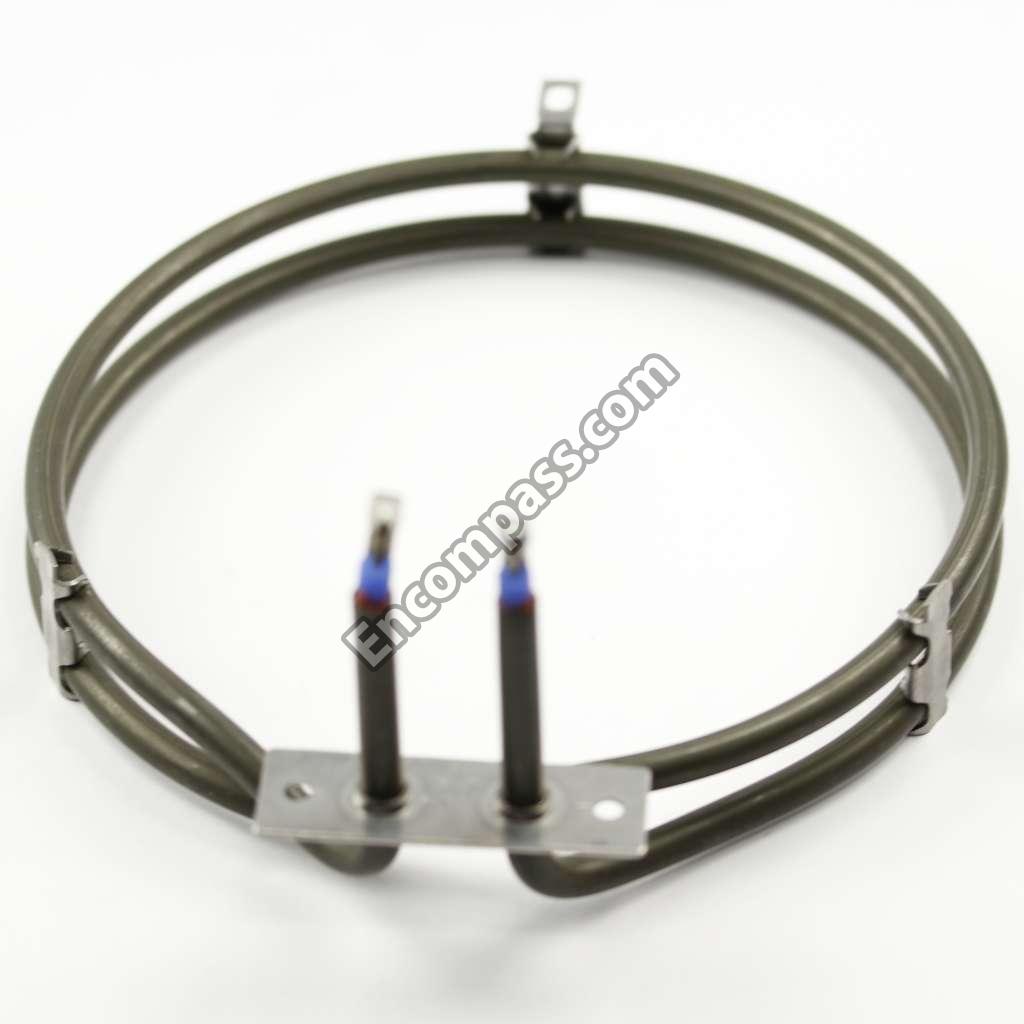

318255806 318255806 ELEMENT
318398302 318398302 FAN BLADE
318056298 318056298 FRONT
318053131 318053131 GASKET
316117500 316117500 GLASS
241881313 241881313 HANDLE
318572778 318572778 HARNESS

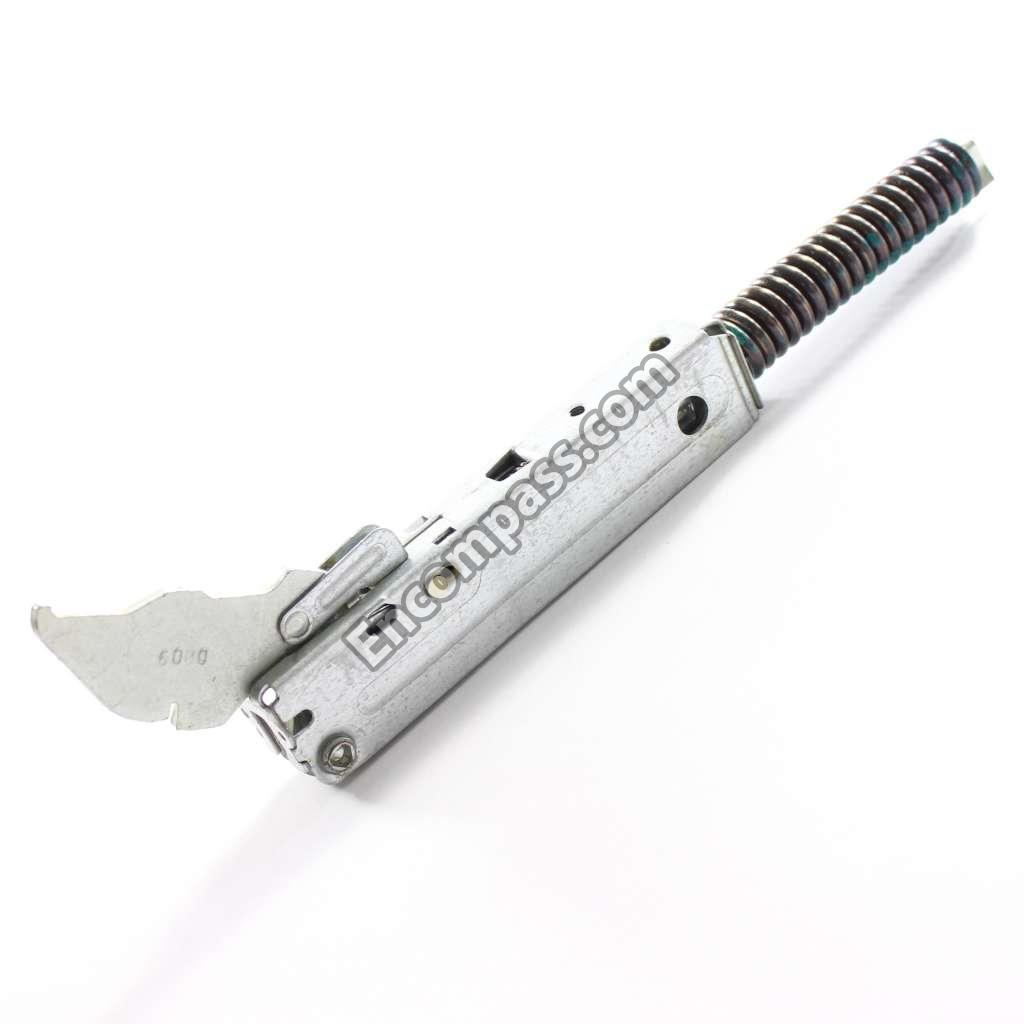

318586000 318586000 HINGE
318126401 318126401 INSERT
318372006 318372006 INSULATION
318330501 318330501 INSULATION
318346060 318346060 INSULATION,.125 THICK,3.125 X

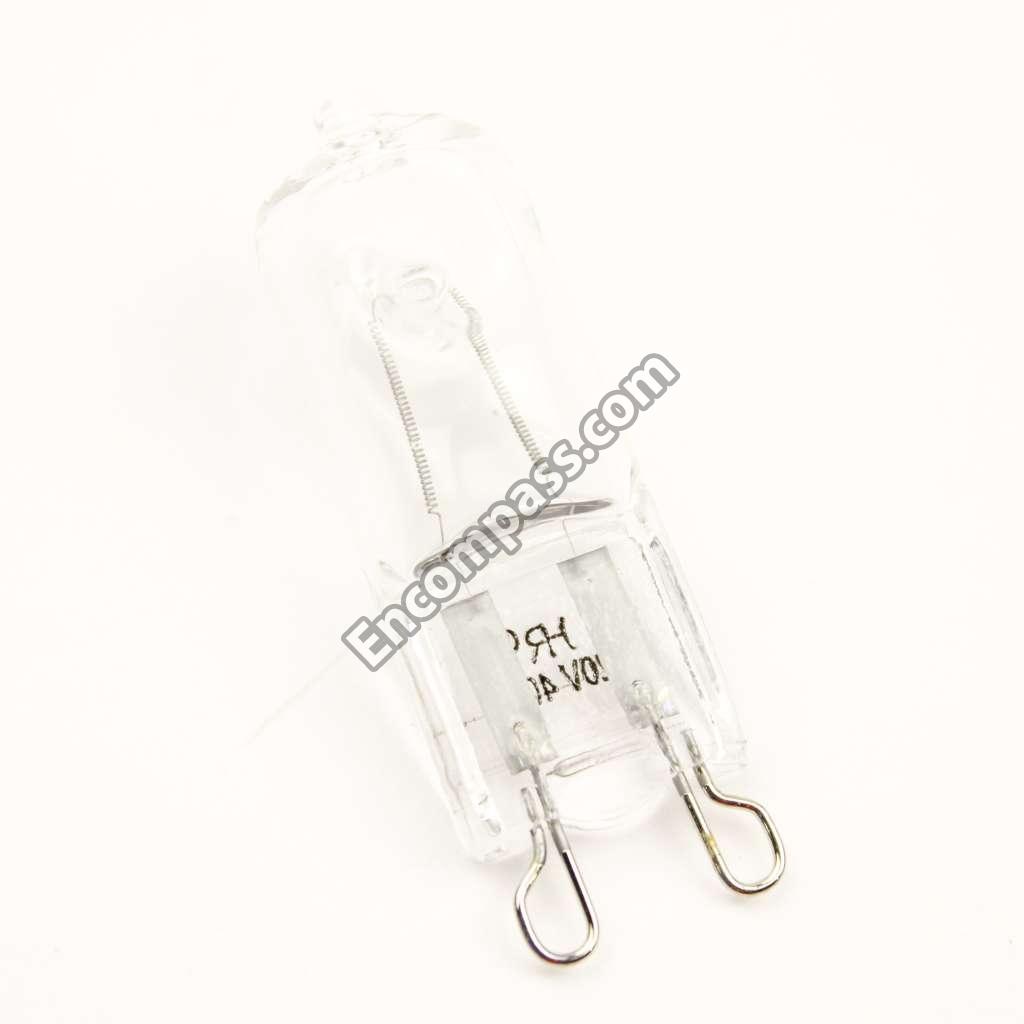

318241006 318241006 LAMP
903171-9020 903171-9020 LINER
318575603 318575603 MOTOR
5303323144 5303323144 NUT
316247700 316247700 NUT
316136600 316136600 NUT
5304469602 5304469602 OVEN RACK LUBRICANT
318138801 318138801 PAN
318260007 318260007 PANEL
318577700 318577700 PANEL
318570500 318570500 PANEL
318361610 318361610 PANEL
318368300 318368300 PIN
5304435874 5304435874 PLATE
318402800 318402800 PLATE
5303320846 5303320846 PLATE
318389400 318389400 PLATE
318601302 318601302 PROBE
318365800 318365800 RACK
318903300 318903300 RACK
318241408 318241408 RECEPTACLE
318601206 318601206 RECEPTACLE
5304400192 5304400192 RETAINER WIRE
5304456367 5304456367 RIVET
318376505 318376505 ROD
5304477736 5304477736 SCREW
5304454881 5304454881 SCREW
5304436875 5304436875 SCREW
5303297477 5303297477 SCREW
316524400 316524400 SCREW
5303324184 5303324184 SCREW
5303323277 5303323277 SCREW
5303323129 5303323129 SCREW
5303323130 5303323130 SCREW
5303323139 5303323139 SCREW
5303211311 5303211311 SCREW
5304461333 5304461333 SCREW
5304417153 5304417153 SCREW
5304415832 5304415832 SCREW
5304462581 5304462581 SCREW
318389000 318389000 SEAL

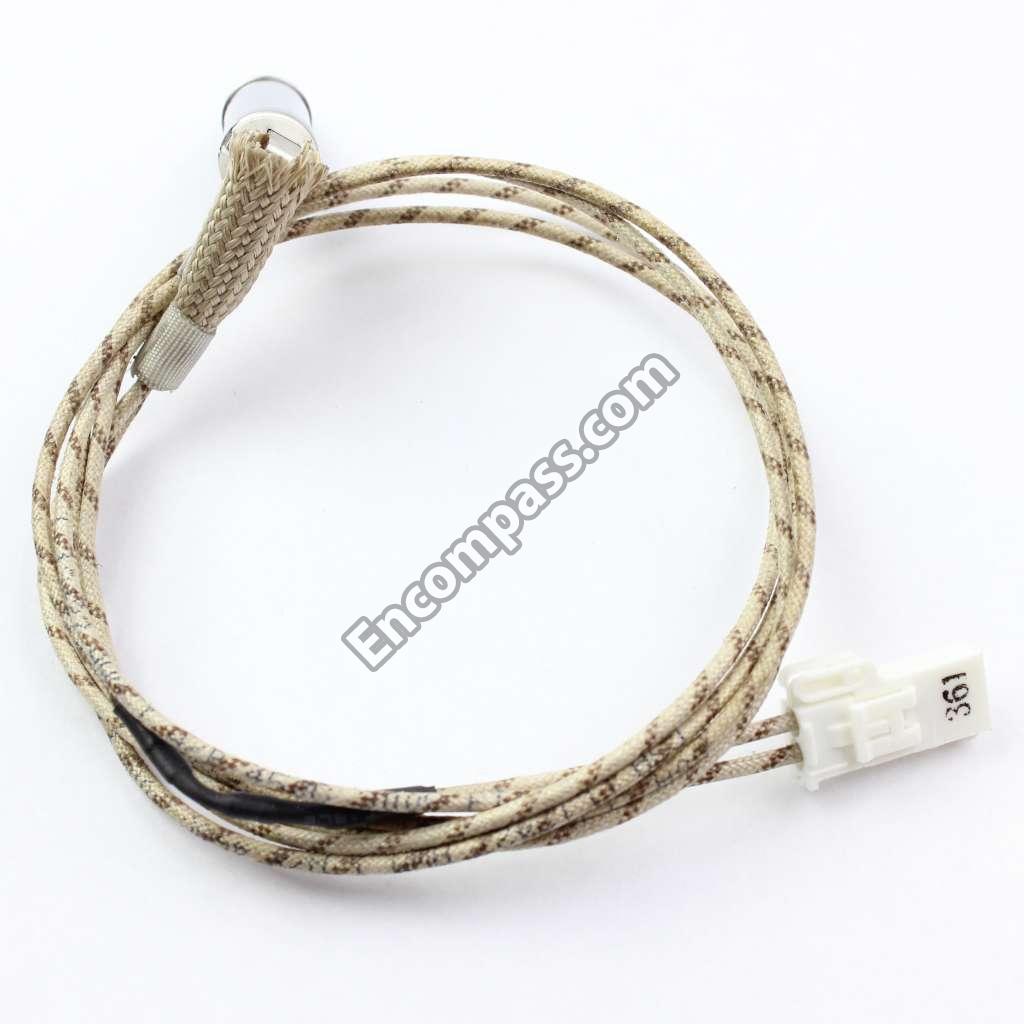

318562500 318562500 SENSOR
318562200 318562200 SENSOR ASSEMBLY
318903105 318903105 SHELF
318257305 318257305 SHIELD
318259114 318259114 SHIELD
316114100 316114100 SPACER
318293702 318293702 SPACER
318531800 318531800 SPACER
318531703 318531703 SPACER
316517600 316517600 SPACER
5304455945 5304455945 SPACER
318902901 318902901 SPACER
318192400 318192400 SPRING
316445501 316445501 SWITCH
318578506 318578506 THERMOSTAT
318903748 318903748 TRIM
318903512 318903512 TRIM
318904905 318904905 TRIM
318904701 318904701 TRIM
318249409 318249409 TUBE
318903747 318903747 USE 318903704
316247800 316247800 WASHER
3201909 3201909 WASHER
318231870 318231870 WIRING HARNESS
