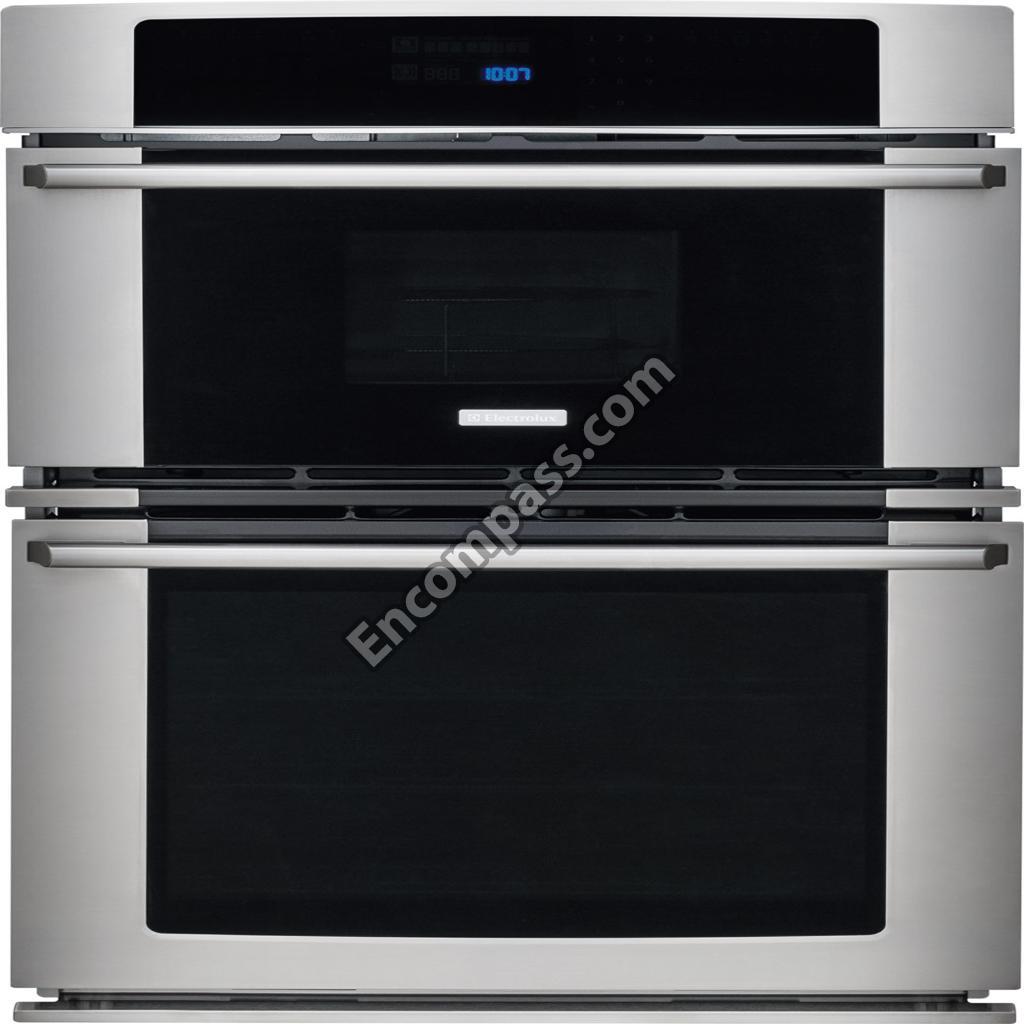

Model Image
Manufacturer

Electrolux

Model Number

EW30MC65PSB

Description

Microwave

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304451459 5304451459 ANGLE
5304470734 5304470734 BASE
5304461177 5304461177 BELT
139009100 139009100 BLADE
5304461173 5304461173 BLADE,FAN
5304480656 5304480656 BOARD
318394443 318394443 BOX & WIRES ASSEMBLY
139020100 139020100 BRACKET
139021100 139021100 BRACKET
139023900 139023900 BRACKET
318579001 318579001 BRACKET
318933901 318933901 BRACKET
318256201 318256201 BRACKET
5304461178 5304461178 BRACKET,NOISE FILTER,ANGLE
318946400 318946400 BULB
318946500 318946500 BULB
5304480640 5304480640 CAM
5304480641 5304480641 CAM
139010800 139010800 CAP,SCREW HOLE,TRIM,(2)
5304470539 5304470539 CAPACITOR
318163602 318163602 CLEANER-COOKTOP
5304480644 5304480644 COUPLING
5304461183 5304461183 COVER
5304461165 5304461165 COVER
139001502 139001502 COVER,DUAL FAN,COBALT,CONVECTI
5304461157 5304461157 CUSHION
5304461156 5304461156 CUSHION
5304461179 5304461179 CUSHION
5304461180 5304461180 CUSHION
5304461163 5304461163 CUSHION
5304482055 5304482055 CUSHION
5304461161 5304461161 DOOR ASSEMBLY
139015700 139015700 DUCT
5304461162 5304461162 DUCT
5304461158 5304461158 DUCT ASSEMBLY,STEAM RELEASE
5304461174 5304461174 DUCT,COOLING FAN
139000900 139000900 ELEMENT
139006600 139006600 ELEMENT
808650402 808650402 ELEMENT
5304498734 5304498734 FILTER,NOISE,W/FUSE MOUNT
5304461127 5304461127 FOOT
5304470579 5304470579 FRAME
5304461155 5304461155 FRAME,LIGHT LENS
5304480634 5304480634 FUSE
808713906 808713906 GLADE RACK,ASSEMBLY,COBALT,W/H
139010504 139010504 GLASS,THERMAL,INNER,HB11 #1
139010505 139010505 GLASS,THERMAL,INNER,HB11 #2
5304461181 5304461181 GUIDE,AIR,MAGNETRON
316380802 316380802 HANDLE
5304480652 5304480652 HARNESS
5304480653 5304480653 HARNESS
5304480638 5304480638 HINGE
5304480639 5304480639 HINGE
139010302 139010302 HINGE,DOOR,YELLOW,DUAL SPRING
318647300 318647300 HOLDER
5304470735 5304470735 HOLDER
316082001 316082001 INSERT
139001700 139001700 INSULATION
807989001 807989001 INSULATION
5304440333 5304440333 LABEL
5304465314 5304465314 LABEL,NHW CAUTION
808713902 808713902 LADDER ASSEMBLY,KIT,COBALT,W/2
5304464198 5304464198 LAMP
139009000 139009000 LAMP ASSEMBLY
139001800 139001800 LAMP ASSEMBLY,HALOGEN,26 HARN
5304463785 5304463785 LAMPHOLDER
5304490142 5304490142 LATCH HEAD
5304470547 5304470547 LATCH HOOK
5304470548 5304470548 LATCH HOOK
5304461167 5304461167 LENS
5304470592 5304470592 LEVER
5304470591 5304470591 LEVER
139008502 139008502 MOTOR
139021302 139021302 MOTOR
5304461119 5304461119 MOTOR
318073038 318073038 MOTOR
5304485889 5304485889 MOTOR
5304498736 5304498736 MOTOR,TURNTABLE
316136600 316136600 NUT
316205500 316205500 NUT
5304470590 5304470590 NUT
318146843 318146843 OUTLET
5304451470 5304451470 PACKING
316081901 316081901 PAN
807988901 807988901 PANEL
5304471512 5304471512 PANEL
5304491054 5304491054 PART
5304470537 5304470537 POWER CORD
808713914 808713914 RACK ASSEMBLY,LADDER,COBALT
5304480635 5304480635 RECTIFIER ASSEMBLY
5303289910 5303289910 SCREW
316021105 316021105 SCREW
316021110 316021110 SCREW
316524400 316524400 SCREW
5304461210 5304461210 SCREW
5304461221 5304461221 SCREW
5304461203 5304461203 SCREW
5304461208 5304461208 SCREW
5304451550 5304451550 SCREW
5303319636 5303319636 SCREW
5303319641 5303319641 SCREW
5304450253 5304450253 SCREW
5304451552 5304451552 SCREW
5304451553 5304451553 SCREW
5304461216 5304461216 SCREW
5303311333 5303311333 SCREW
316021119 316021119 SCREW
316418900 316418900 SCREW
316001003 316001003 SCREW
5303323130 5303323130 SCREW
316021109 316021109 SCREW
5304451561 5304451561 SCREW
316439507 316439507 SCREW
5304483938 5304483938 SCREW
5304470882 5304470882 SCREW
807597603 807597603 SCREW
5304470583 5304470583 SCREW
5304461209 5304461209 SCREW,4MM X 25MM
5304461215 5304461215 SCREW,4MM X 8MM,(6)
807286001 807286001 SCREW,HINGE,10-32 X 1/4,(4)
807545504 807545504 SEAL,OVEN DOOR,GRAY
318562500 318562500 SENSOR
5304461125 5304461125 SENSOR ASSEMBLY
5304461182 5304461182 SHEET,THERMAL,PROTECTION
139018000 139018000 SHIELD
139015900 139015900 SHIELD
139000600 139000600 SHIELD
139020000 139020000 SHIELD
807285601 807285601 SHIELD
316114100 316114100 SPACER
316247900 316247900 SPACER
318531800 318531800 SPACER
318165800 318165800 SPACER
808983501 808983501 SPACER,DOOR GLASS,SILICONE,(2)
5304491779 5304491779 SPACER,DOOR GLASS,TOP
318172904 318172904 SUPPORT
5304461175 5304461175 SUPPORT,CHASSIS
5304493153 5304493153 SWITCH,INTERLOCK,DOOR SENSOR
5304494446 5304494446 SWITCH,THERMAL CUTOFF,145C
5304461114 5304461114 THERMAL CUTOUT
5304483929 5304483929 THERMISTOR
5304470538 5304470538 TRANSFORMER
5304470541 5304470541 TRANSFORMER
5304498731 5304498731 TRAY,TURNTABLE,CERAMIC
318903514 318903514 TRIM
5304494448 5304494448 TRIM ASSEMBLY,DOOR,TOP
139021700 139021700 TUBE
5304440331 5304440331 WIRE
5304461199 5304461199 WIRE,GROUND,COOLING FAN
318231870 318231870 WIRING HARNESS
5304461196 5304461196 WIRING HARNESS,THERMISTOR
