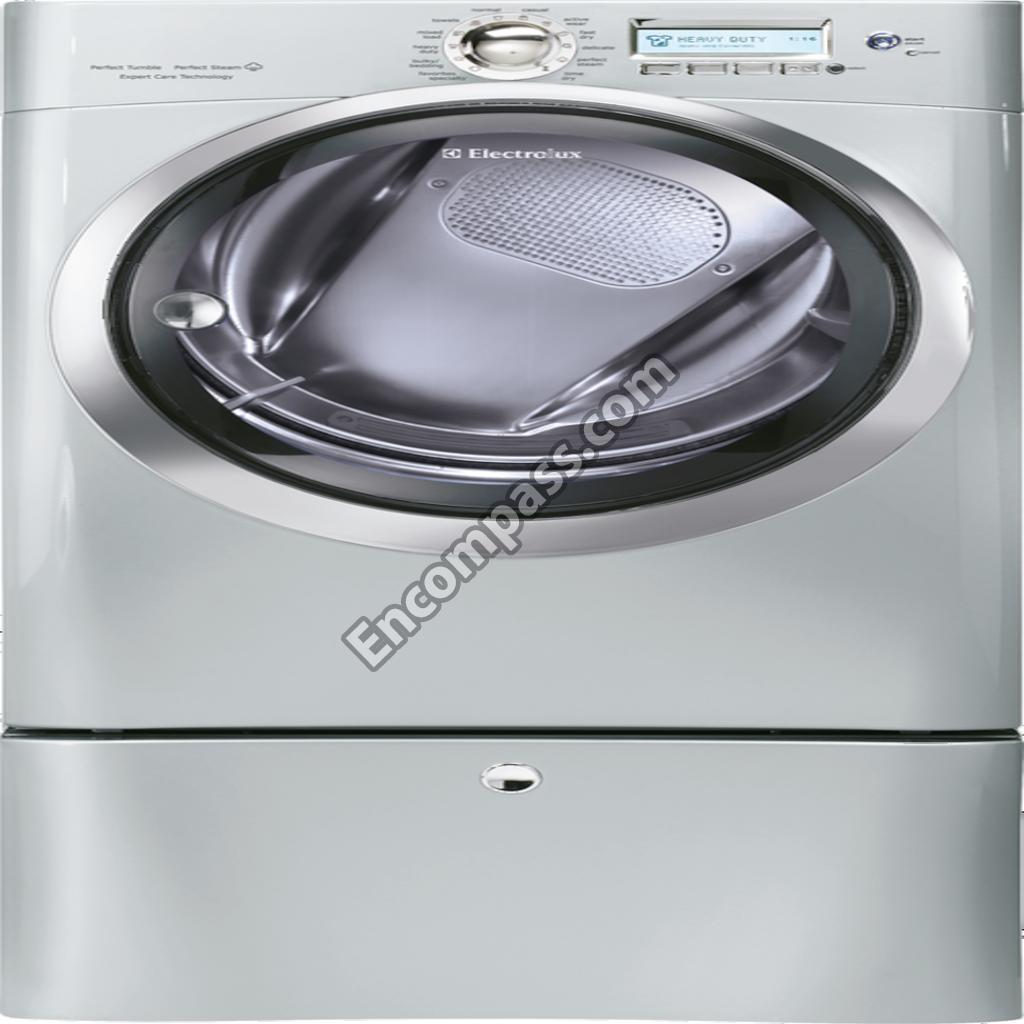

Model Image
Manufacturer

Electrolux

Model Number

EWMED70JSS4

Description

Laundry, Residential, Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
137030100 137030100 ADAPTER
5308027429 5308027429 ADHESIVE
134690203 134690203 BASE
134719300 134719300 BELT H POLY V 5 RIB
134690800 134690800 BLOWER
134713900 134713900 BRACKET
134707400 134707400 BRACKET
134711000 134711000 BRACKET
134710900 134710900 BRACKET
137046800 137046800 BRACKET
137046700 137046700 BRACKET
137567000 137567000 BRACKET
137029800 137029800 BRACKET
134792100 134792100 BRACKET
134713100 134713100 BRACKET
137556623 137556623 BULKHEAD
137556105 137556105 BULKHEAD,PANEL, FRONT
137043100 137043100 BUTTON
137021200 137021200 BUTTON
137008100 137008100 BUTTON
137010900 137010900 BUTTON
137009900 137009900 BUTTON
137007900 137007900 CAP
134242400 134242400 CLAMP
137034500 137034500 CLIP
137017400 137017400 CLIP
134618900 134618900 COVER
137578600 137578600 COVER
137560800 137560800 COVER,LINT HOUSING
137031800 137031800 CUSHION
134926600 134926600 DAMPER
137610710 137610710 DRUM
137063600 137063600 DRYER KNOB RING
134694030 134694030 DUCT
137611800 137611800 DUCTAIR
137623900 137623900 FILTER,LINT, COMPLETE
137016711 137016711 FITTING, Y,HOSE, ADAPTER
134696901 134696901 FRAME
134696902 134696902 FRAME
137553000 137553000 GASKET,FRONT PANEL
137605700 137605700 GASKET,FRONT PANEL
137576000 137576000 GLASS
137017200 137017200 GROMMET
134790700 134790700 HARNESS
134793200 134793200 HARNESS
134930800 134930800 HARNESS
137114000 137114000 HEATER
134704600 134704600 HINGE
137471700 137471700 HOSE
134784400 134784400 IDLER ARM ASSEMBLY
134792900 134792900 INSULATOR
134766500 134766500 KNOB
137526000 137526000 LAMP
137538802 137538802 LATCH
134767600 134767600 LENS
137032600 137032600 LIMITER
134711401 134711401 LIMITER
134707900 134707900 LOCK
137577320 137577320 LOCK,DOOR ASSEMBLY
137116000 137116000 MOTOR
137030800 137030800 NUT
134716800 134716800 NUT
137017300 137017300 NUT
134638525 134638525 PANEL
137604200 137604200 PANEL
137560413 137560413 PANEL
134712725 134712725 PANEL
134712625 134712625 PANEL
137553725 137553725 PANEL,FRONT,SILVER SAND
134767800 134767800 PIPE
134871900 134871900 PIPE
134768400 134768400 PIPE
134742002 134742002 PLUG
134693800 134693800 PULLEY
134716200 134716200 RETAINER
134715900 134715900 ROLLER
134935200 134935200 SCREW
131017900 131017900 SCREW
134402900 134402900 SCREW
134430300 134430300 SCREW
134788000 134788000 SCREW
134790600 134790600 SCREW
134790400 134790400 SCREW
131205100 131205100 SCREW
131168200 131168200 SCREW
131202300 131202300 SCREW
134784700 134784700 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
134786100 134786100 SENSORMOISTURE
134692700 134692700 SHIELD
137603500 137603500 SHIELD
131089700 131089700 SPRING-IDLER
137555200 137555200 STRIKE
137459300 137459300 STRIKER
137555201 137555201 STRIKER,FRONT PANEL
134813660 134813660 SWITCH
137150200 137150200 TERMINAL
134711300 134711300 THERMISTER
134711200 134711200 THERMISTOR
3204267 3204267 THERMOSTAT
137007800 137007800 TRIM
134693900 134693900 TUBE
137402400 137402400 TUBE
137544800 137544800 VALVE
137611100 137611100 VANE, DRUM,MIXING W/BUMPS
137610900 137610900 VANE,DRUM W/BUMPS
134716700 134716700 WASHER
5303161296 5303161296 WASHER
