Manufacturer
Electrolux
Model Number
FAM157S1AA
Description
Frigidaire15100 Btu Window Room Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
5304472531 |
BASE,UNIT CHASSIS |
|
5304472532 |
BLOWER WHEEL,CENTRIFUGAL FAN |
|
5304472358 |
BRACKET,MOUNTING ,LEFT ,WINDOW |
|
5304472359 |
BRACKET,MOUNTING ,RIGHT ,WINDOW |
|
5304472360 |
BRACKET,SILL ANGLE,SILL ANGLE |
|
5304472536 |
BULKHEAD,PARTITION ,FRONT LEFT |
|
5304472538 |
BULKHEAD,PARTITION ,FRONT RIGHT |
|
5304472544 |
CABINET,WRAPPER/SLEEVE |
|
5304472558 |
CAPACITOR |
|
5304470990 |
CAPACITOR,FAN MOTOR |
|
5304472553 |
COMPRESSOR |
|
5304472554 |
CONDENSER |
|
5304472560 |
CONTROL BOX |
|
5304472529 |
COVER,BLOWER SCROLL ,FRONT |
|
5304472540 |
COVER,CONDENSER/FAN ,TOP |
|
5304472535 |
DOOR,VENT CONTROL,W/LEVER,VENT CONTROL ,WITH LEVER |
|
5304472549 |
EVAPORATOR |
|

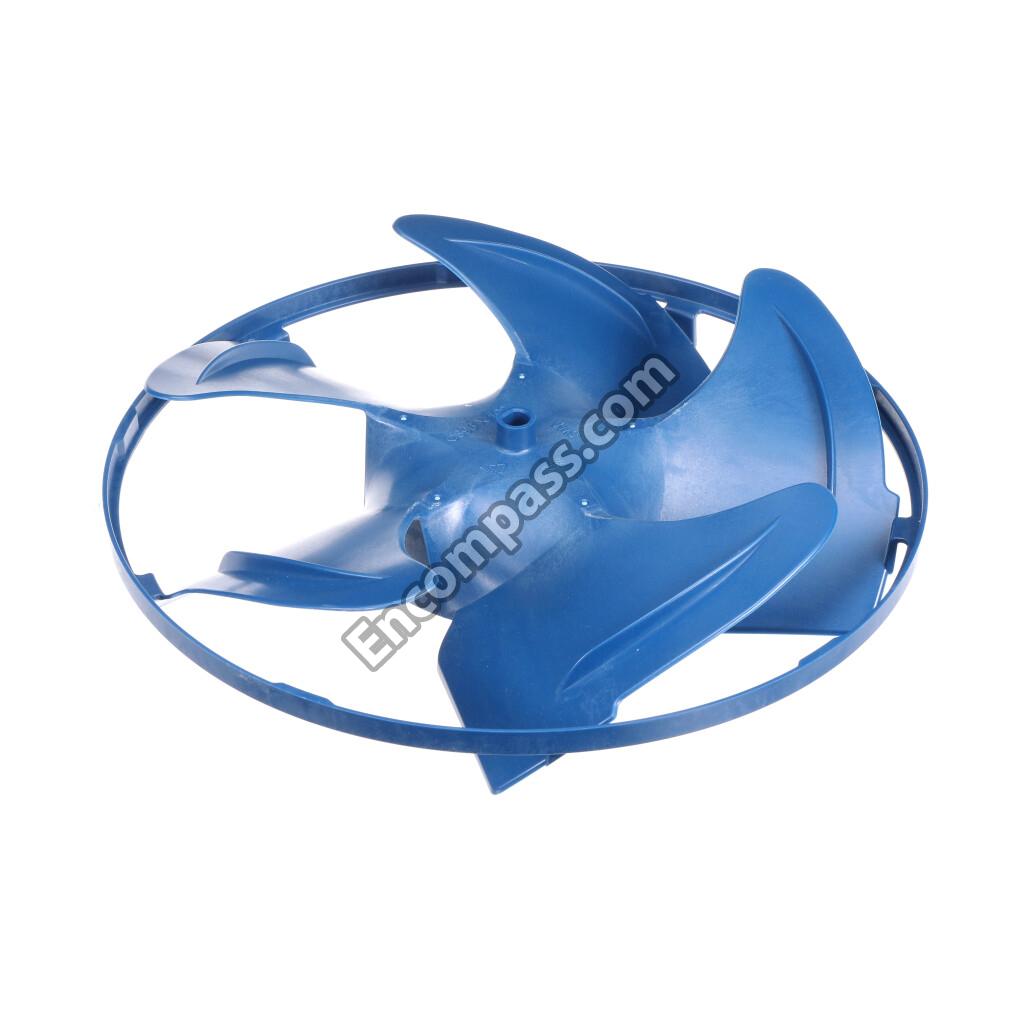

5304472356 |
FAN BLADE,AXIAL FLOW |
|
5304472565 |
FILTER,AIR |
|
5304472563 |
FRONT ASSEMBLY,COMPLETE PANEL ,INCLUDES |
|
5304472533 |
HANDLE,VENT CONTROL |
|

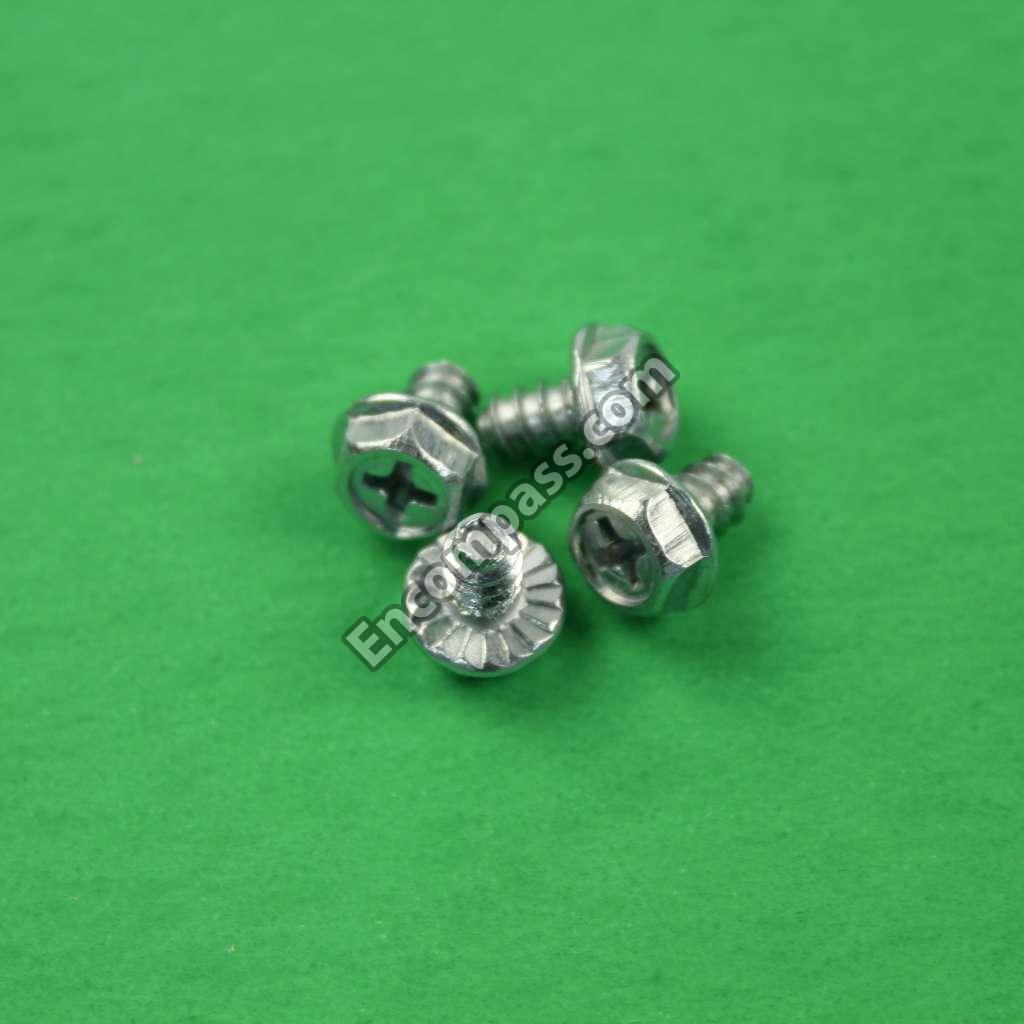

5304472547 |
HARDWARE,MOUNTING ,SCREWS/LOCKS |
|
5304472534 |
LINK,LEVER/VENT DOOR ,DETENT |
|
5304472567 |
LOUVER,HORTIZONTAL |
|
5304472568 |
LOUVER,VERTICAL |
|
5304472539 |
MOTOR,FAN |
|
5304472566 |
PANEL,FRAME ,FRONT |
|
5304472564 |
PANEL,FRONT GRILL ,TILT-OUT |
|

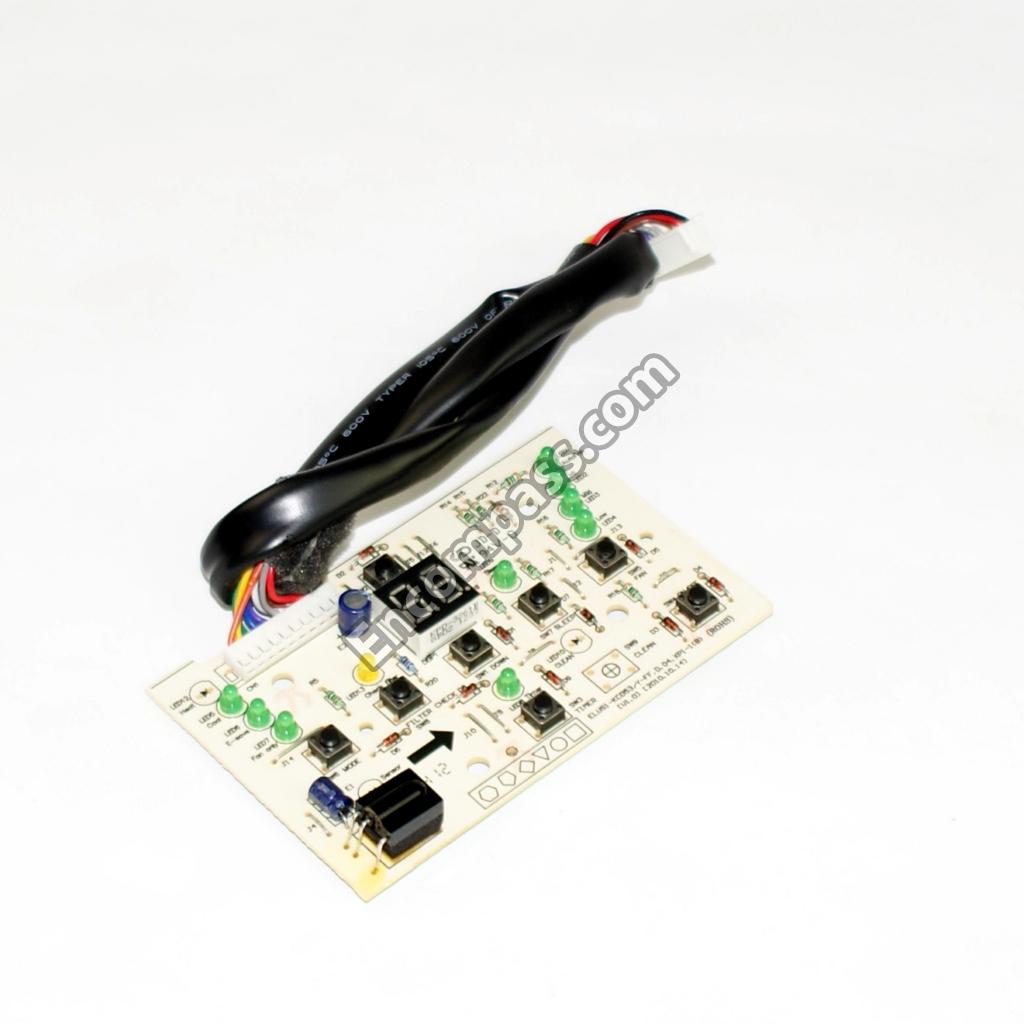

5304472570 |
PC BOARD,DISPLAY/INPUT |
|

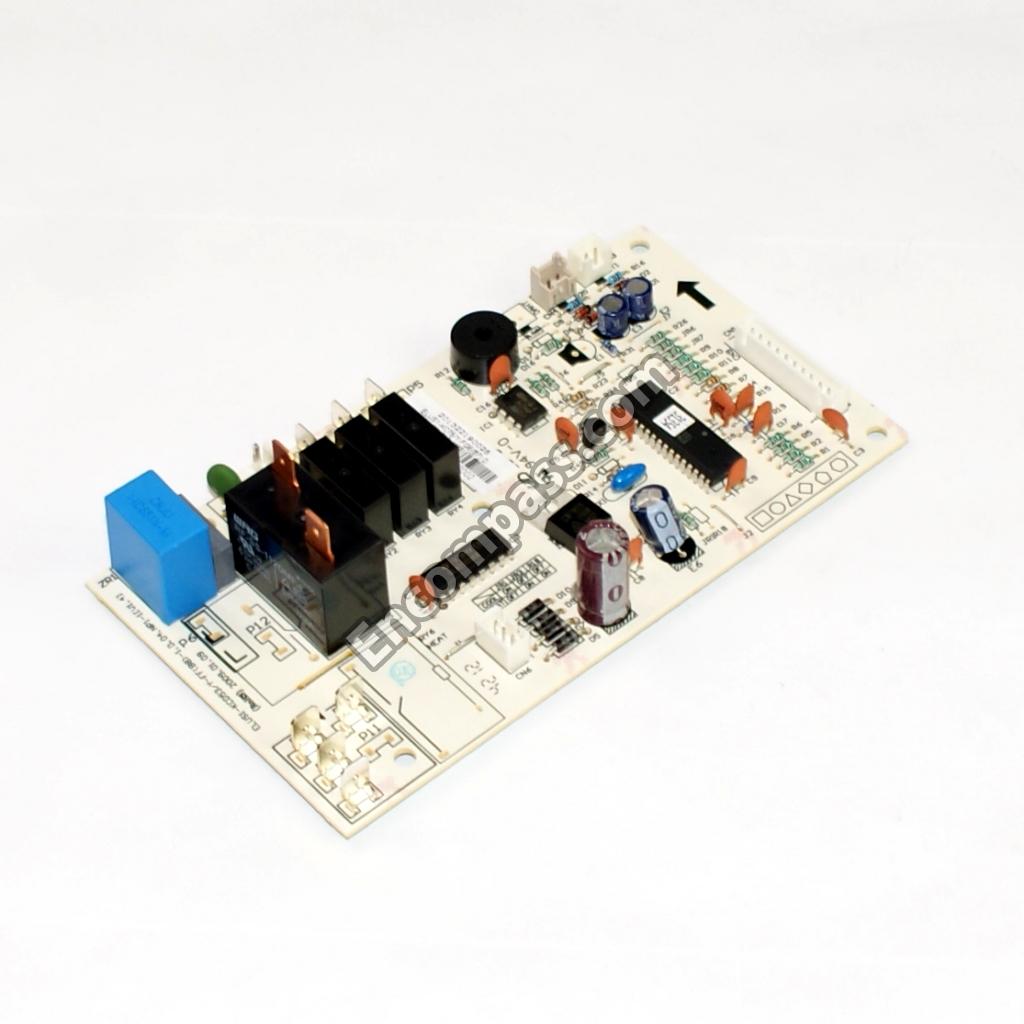

5304472571 |
PC BOARD,MAIN CONTROL |
|
5304472545 |
RAIL,TOP |
|

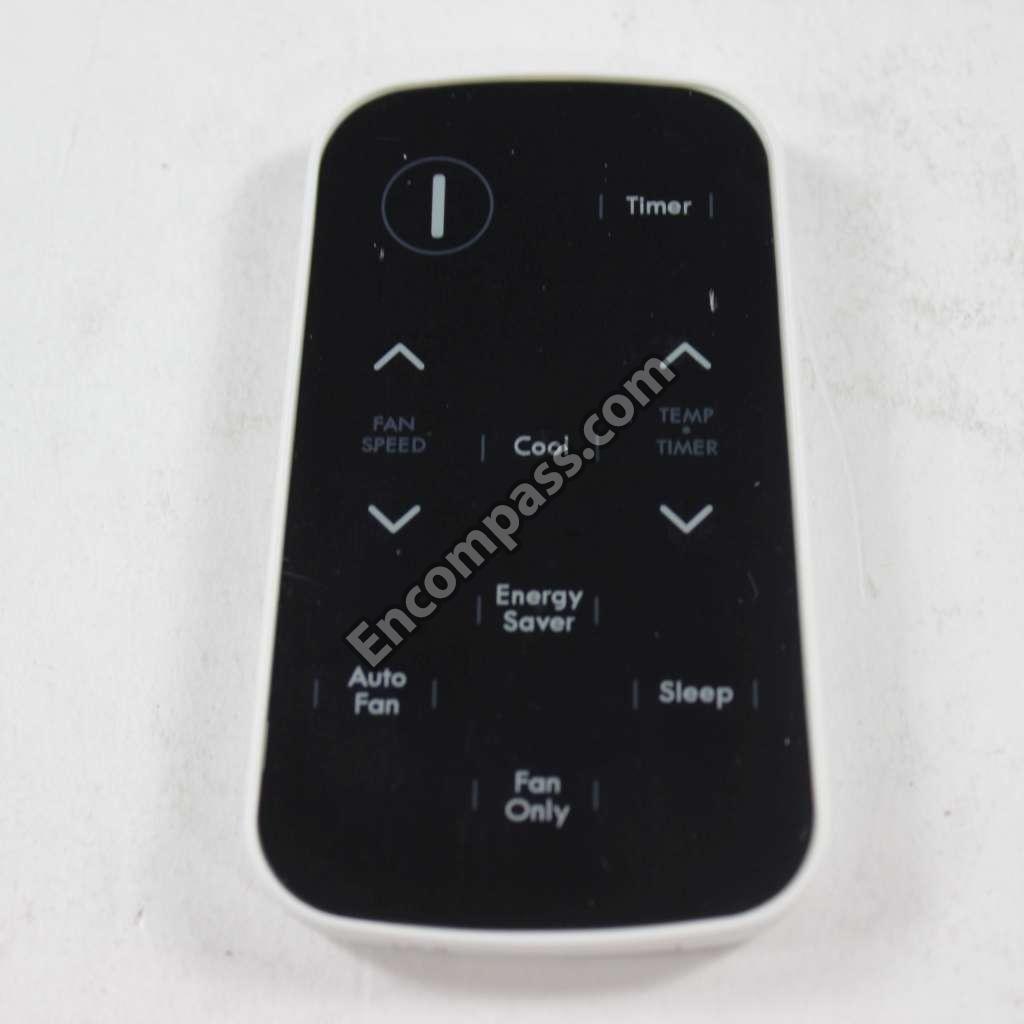

5304472214 |
REMOTE CONTROL,TRANSMITTER |
|

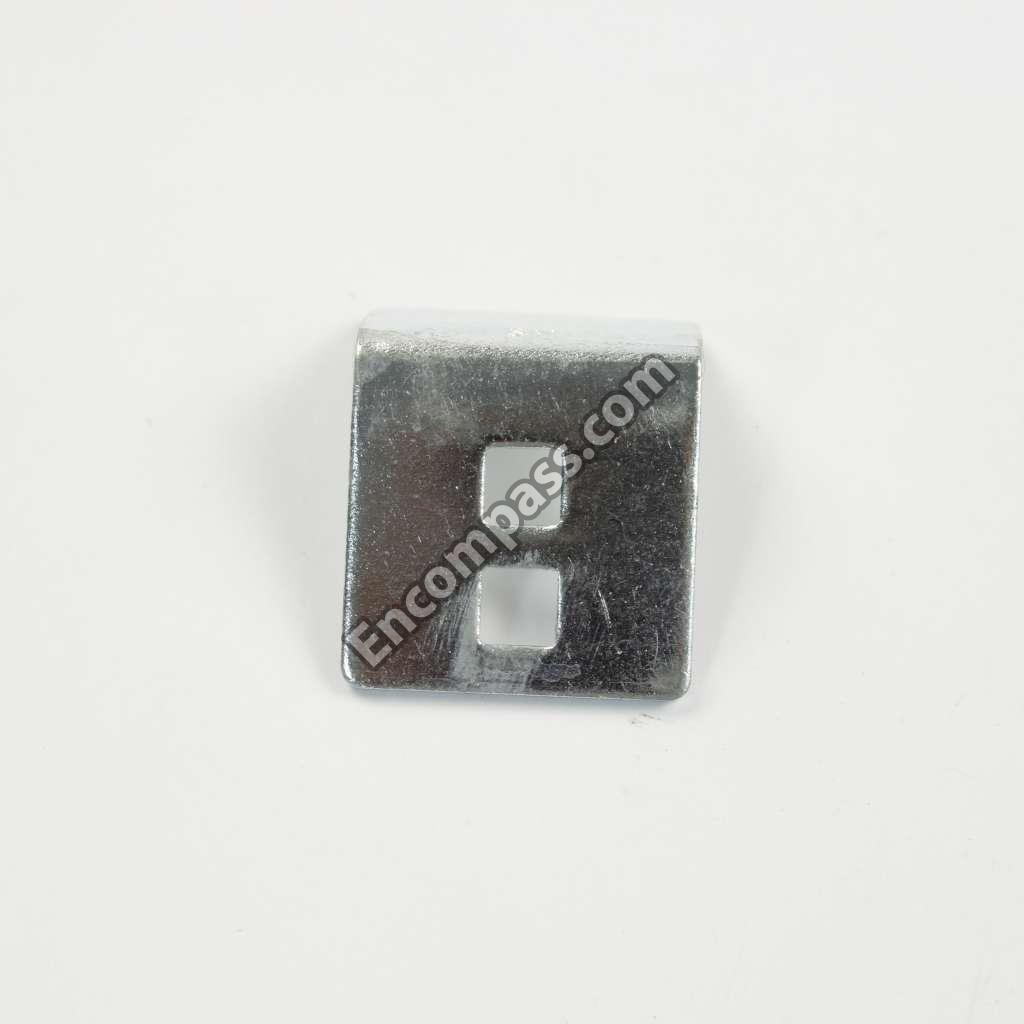

5304472543 |
RETAINER,SHUTTER MOUNT ,CABINET SIDE |
|
5304472546 |
SCREW KIT,TOP RAIL MOUNT |
|
5304472528 |
SCROLL,BLOWER HOUSING ,FRONT |
|
5304472537 |
SCROLL,BLOWER HOUSING ,REAR |
|
5304472548 |
SEAL KIT,FOAM ,TOP,BOTTOM,SASH |
|
5304472541 |
SHROUD,CONDENSER FAN |
|
5304472557 |
STRAP,CAPACITOR MTG. |
|

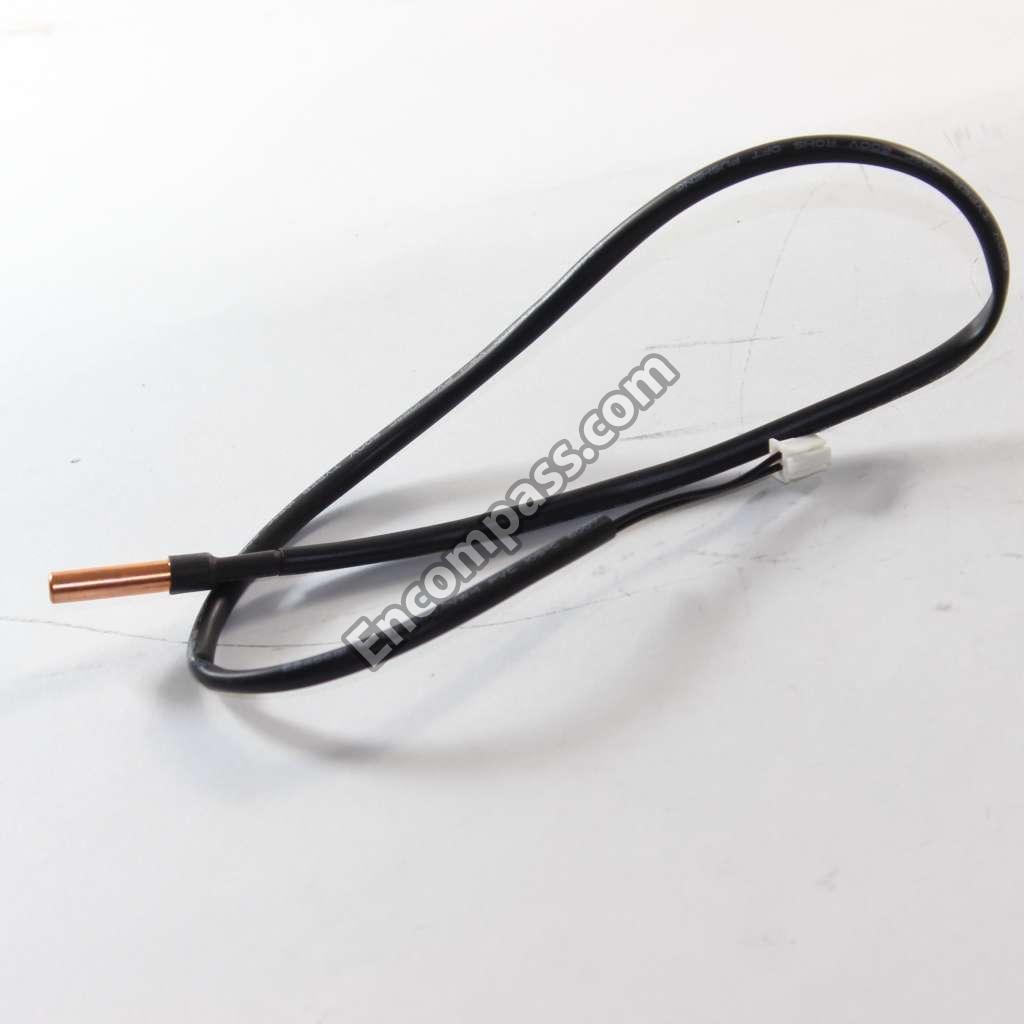

5304471383 |
THERMISTOR,EVAPORATOR ,SENSOR |
|

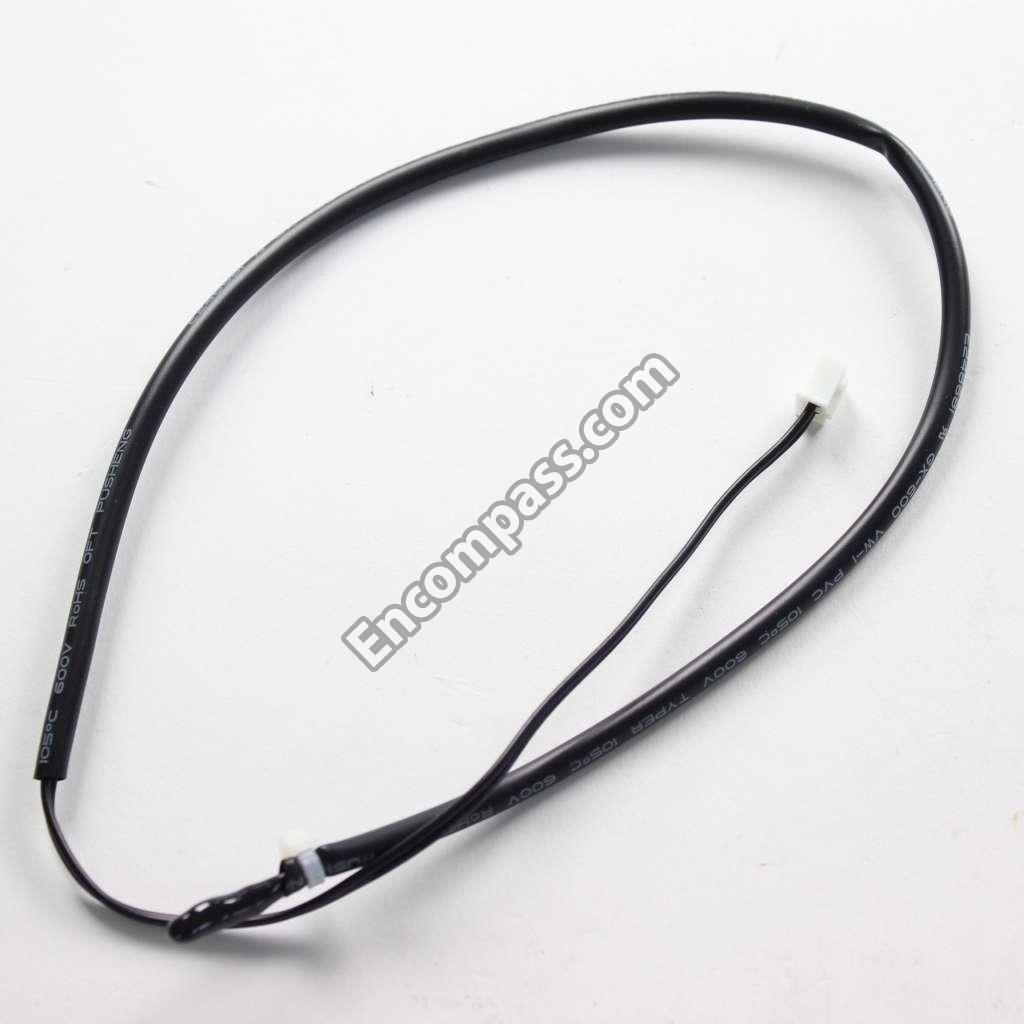

5304471276 |
THERMISTOR,TEMP SENSOR ,INDOOR |
|

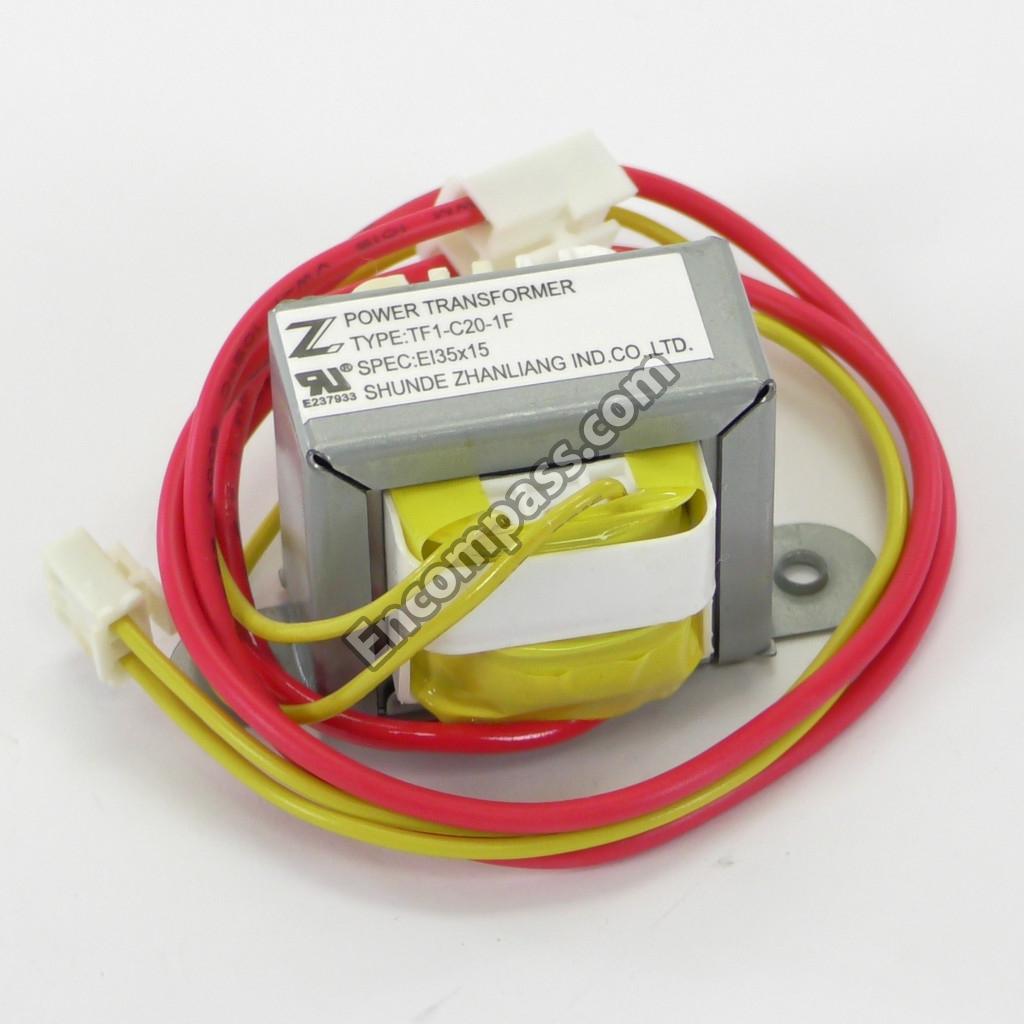

5304470989 |
TRANSFORMER |
|
5304472530 |
TRAY,DRIP PAN |
|
5304472550 |
TUBE,CAPILLARY |
|
5304472552 |
TUBE,DISCHARGE |
|
5304472551 |
TUBE,SUCTION |
|
5304472542 |
WINDOW FILLER KIT,SLIDER PANELS |
