Model Image
Manufacturer

Electrolux

Model Number

FAM18ER2A1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304459476 5304459476 BASE
5304459187 5304459187 BLOWER WHEEL
5304459537 5304459537 BRACKET
5304459538 5304459538 BRACKET
5304459184 5304459184 BULKHEAD
5304459238 5304459238 BULKHEAD
5304459165 5304459165 CABINET
5304459181 5304459181 CAPACITOR
5304459237 5304459237 CLAMP
5304460030 5304460030 CLIP
5304459451 5304459451 COMPRESSOR
5304459649 5304459649 CONDENSER
5304459235 5304459235 CONTROL BOX
5304459446 5304459446 CONTROL PANEL
5304459472 5304459472 CONTROL PANEL ASSEM
5304459178 5304459178 COVER
5304459174 5304459174 COVER
5304459232 5304459232 COVER
5304459245 5304459245 COVER
5304459186 5304459186 DOOR
5304459193 5304459193 EVAPORATOR
5304459172 5304459172 FAN BLADE
5304459275 5304459275 FILTER
5304459482 5304459482 FRONT ASSEMBLY
5304459272 5304459272 GASKET
5304459475 5304459475 GROMMET
5304459244 5304459244 HANDLE
5304459562 5304459562 HARDWARE KIT
5304459582 5304459582 HEATER ASSEMBLY
5304459772 5304459772 KIT
5304459274 5304459274 KNOB
5304459192 5304459192 LINK
5304459273 5304459273 LOUVER
5304459452 5304459452 LOUVER
5304459456 5304459456 MOTOR
5304459175 5304459175 NUT
5304459190 5304459190 NUT
5304459256 5304459256 NUT
5304459169 5304459169 NUT
5304459474 5304459474 OVERLAY
5304459450 5304459450 OVERLOAD PROTECTOR
5304459453 5304459453 PANEL
5304459532 5304459532 PANEL

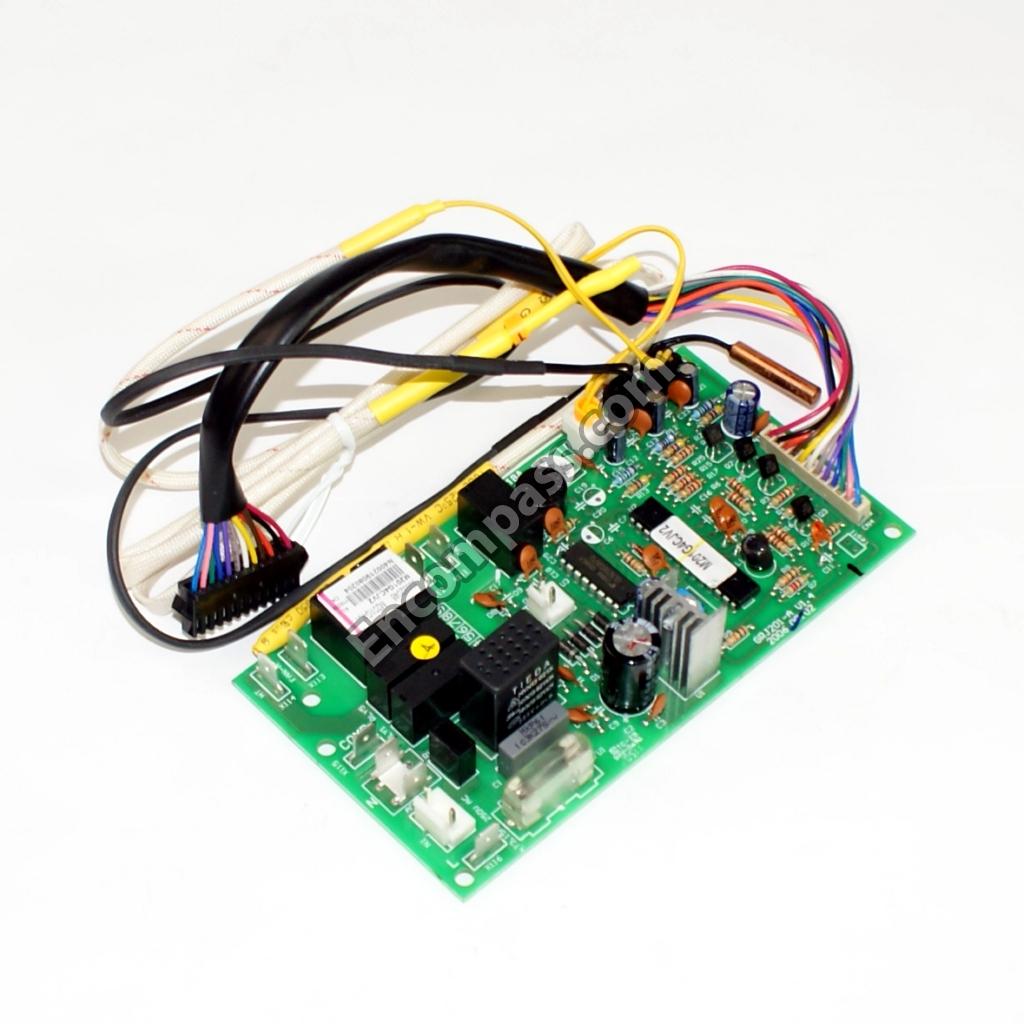

5304459460 5304459460 PC BOARD

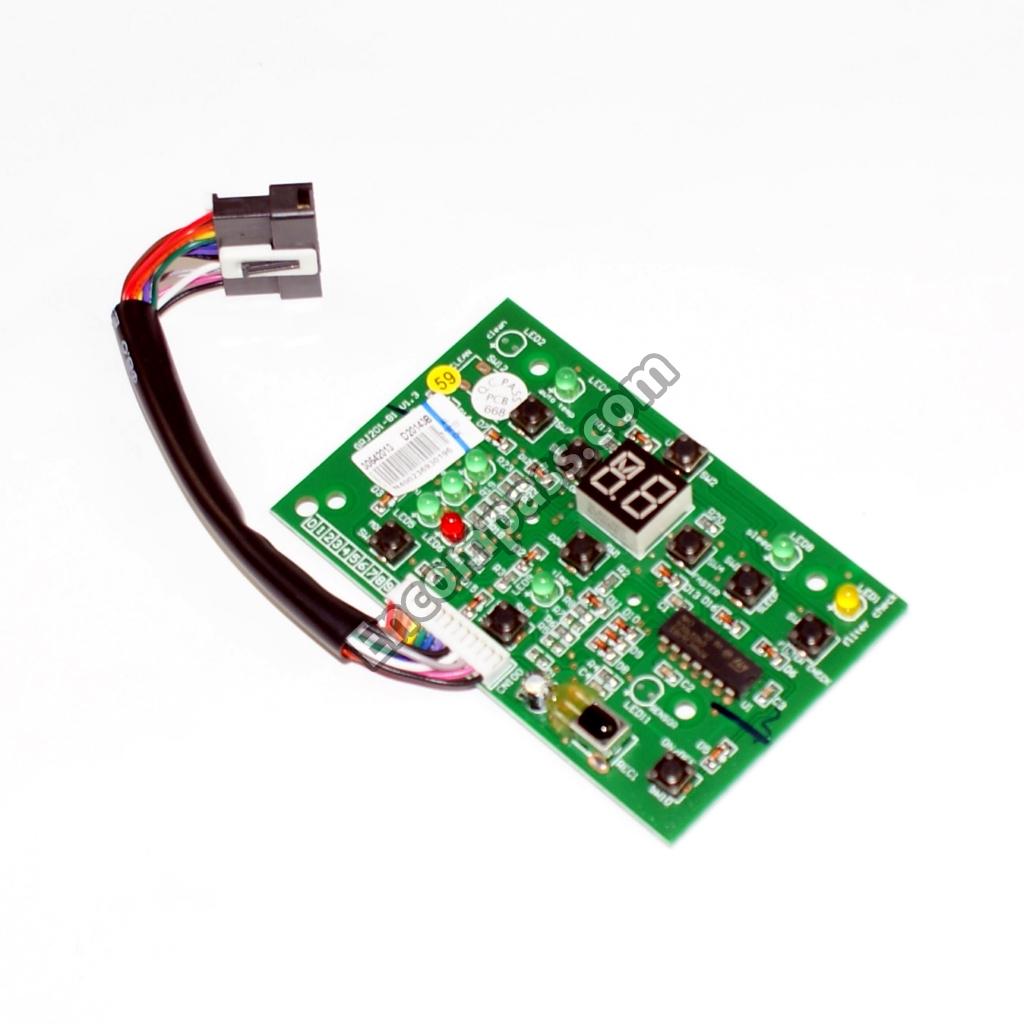

5304459473 5304459473 PC BOARD
5304459471 5304459471 POWER CORD
5304459539 5304459539 RAIL
5304459234 5304459234 RELAY

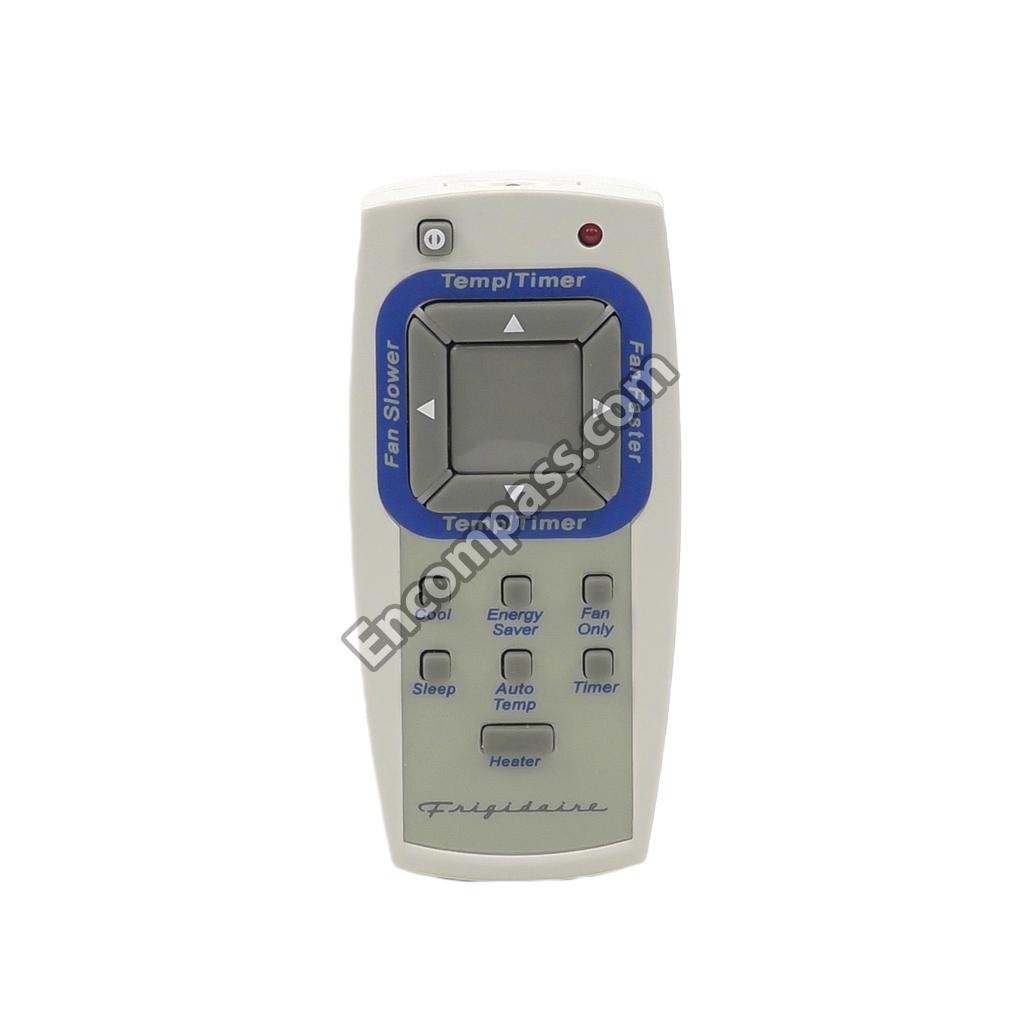

5304459455 5304459455 REMOTE CONTROL
5304459536 5304459536 RETAINER
5304459457 5304459457 SCROLL
5304461820 5304461820 SCROLL
5304459561 5304459561 SEAL
5304459560 5304459560 SEAL
5304459559 5304459559 SEAL
5304459771 5304459771 SHIELD
5304459173 5304459173 SHROUD
5304459182 5304459182 STRAP
5304459875 5304459875 THERMISTOR
5304459792 5304459792 THERMISTOR
5304459876 5304459876 THERMISTOR
5304459196 5304459196 TRANSFORMER
5304459259 5304459259 TRAY
5304459478 5304459478 TUBE
5304459480 5304459480 TUBE
5304459479 5304459479 TUBE
5304459167 5304459167 TUBE
5304459650 5304459650 TUBE,OUTLET ,CONDENSER
5304459477 5304459477 VALVE
5304459171 5304459171 WASHER
5304459170 5304459170 WASHER
5304459188 5304459188 WASHER,NO.10
5304459189 5304459189 WASHER,NO.10
5304459176 5304459176 WASHER,NO.6
5304461706 5304461706 WINDOW FILLER KIT
