Manufacturer
Electrolux
Model Number
FAM18HS2A15
Description
Frigidairewindow Room Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
5304465444 |
BASE,UNIT CHASSIS |
|
5304465437 |
BLOWER WHEEL,CENTRIFUGAL FAN |
|
5304459537 |
BRACKET,SUPPORT ,LEFT ,ANGLE |
|
5304459538 |
BRACKET,SUPPORT ,RIGHT ,ANGLE |
|
5304459184 |
BULKHEAD,AIR SYSTEM |
|
5304459238 |
BULKHEAD,CONTROL SYSTEM |
|
5304459165 |
CABINET,WRAPPER/SLEEVE |
|
5304459181 |

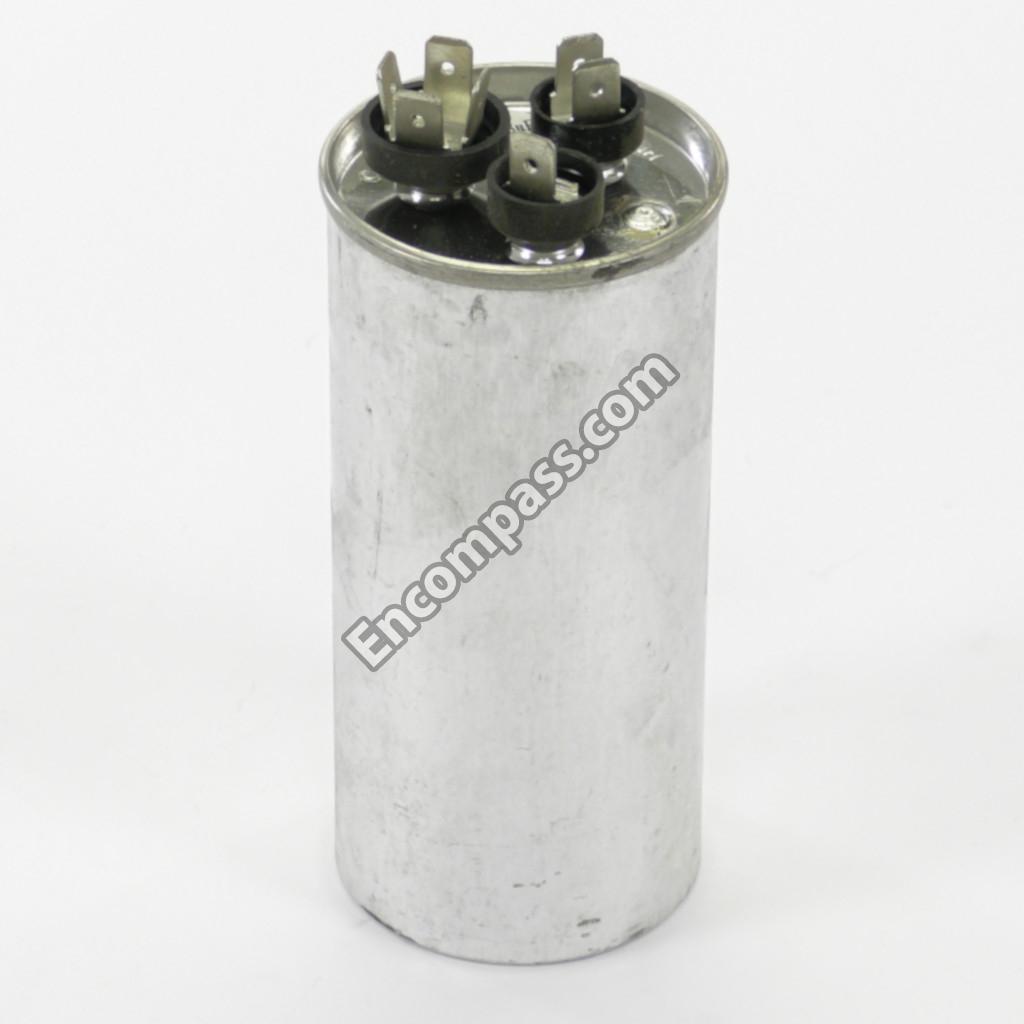

CAPACITOR |
|
5304459237 |
CLAMP,WIRING |
|
5304460030 |
CLIP,SENSOR SUPPORT |
|
5304459252 |
COMPRESSOR |
|
5304465434 |
CONDENSER |
|
5304459235 |
CONTROL BOX |
|
5304465438 |
CONTROL PANEL ASSEMBLY,CONSOLE |
|
5304465439 |
CONTROL PANEL,DISPLAY CONSOLE |
|
5304459178 |
COVER,CAPACITOR BOX |
|
5304459174 |
COVER,CONDENSER/FAN ,TOP |
|
5304459232 |
COVER,CONTROL BOX ,SIDE PLATE |
|
5304459245 |
COVER,PLATE ,TOP/FRONT |
|
5304459186 |
DOOR,FRESH AIR VENT ,WITH LEVER |
|
5304459193 |
EVAPORATOR |
|
5304459172 |
FAN BLADE,PROPELLER |
|

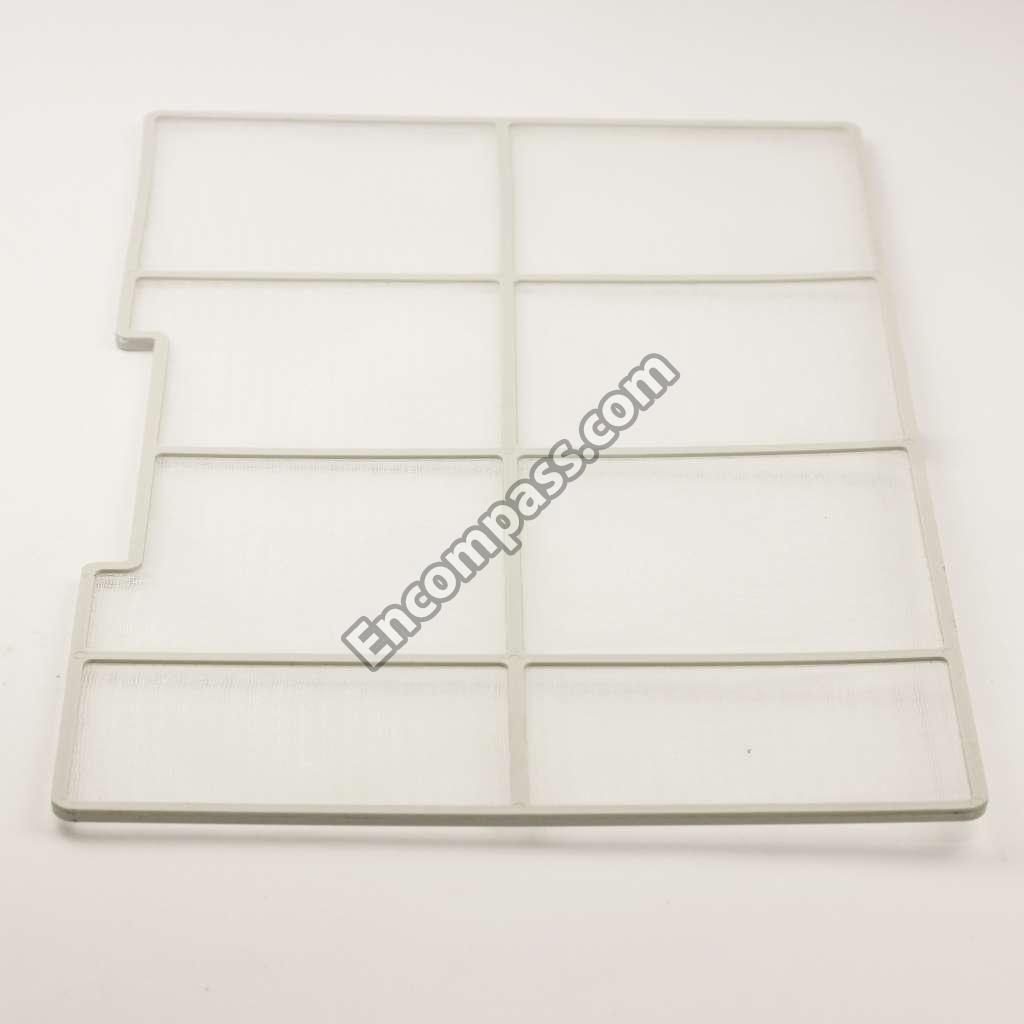

5304459275 |
FILTER,AIR |
|
5304459482 |
FRONT ASSEMBLY,COMPLETE PANEL |
|
5304459272 |
GASKET,VERTICAL LOUVER ,RUBBER |
|
5304459255 |
GROMMET,COMPRESSOR |
|
5304459244 |
HANDLE,VENT CONTROL |
|
5304459562 |
HARDWARE KIT,INSTALLATION |
|
5304459582 |

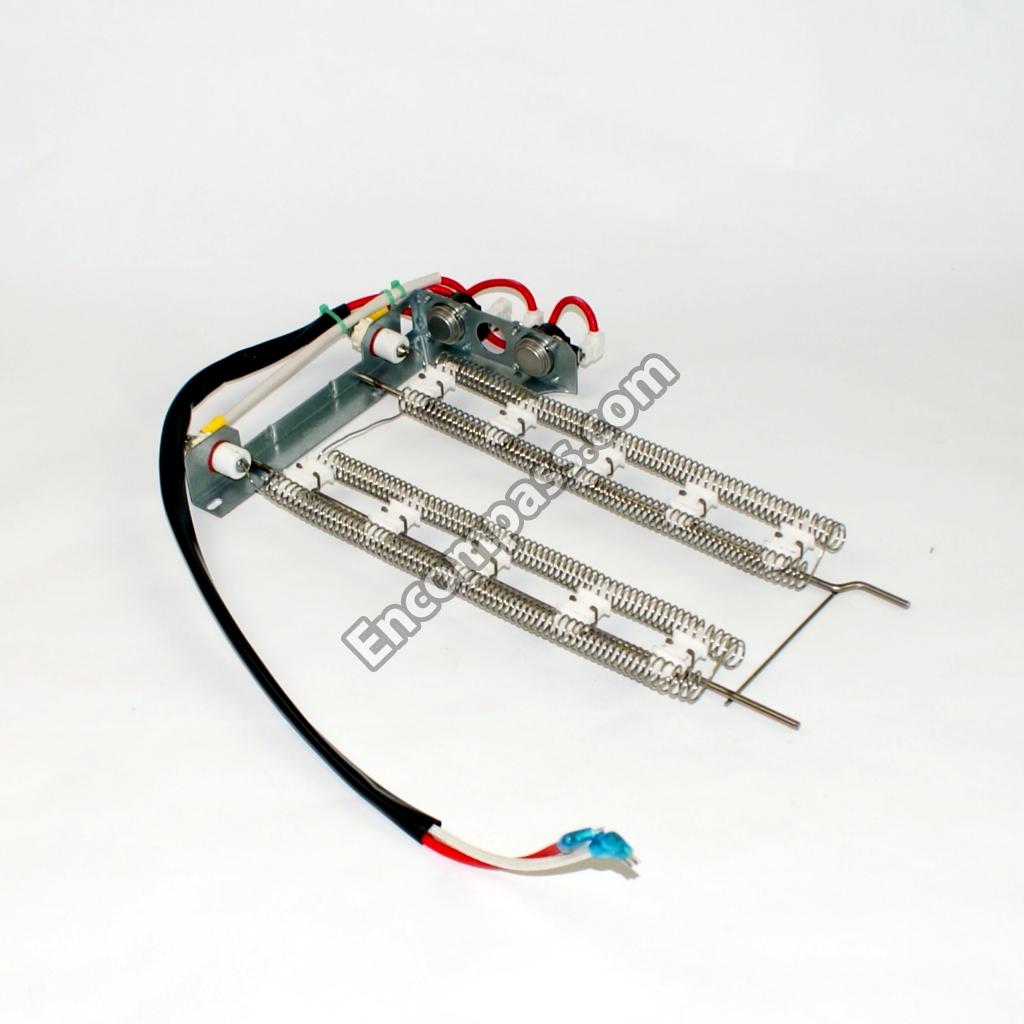

HEATER ASSEMBLY,ELECTRIC |
|
5304459772 |
KIT,SHUTTER LOCK ,SCREW/WASHERS |
|
5304459274 |
KNOB,AUGER WHEEL ,LOUVER |
|
5304459192 |
LINK,LEVER/VENT DOOR |
|
5304459452 |
LOUVER,HORIZONTAL |
|
5304459273 |
LOUVER,VERTICAL |
|
5304465390 |
MOTOR,FAN |
|
5304459256 |
NUT,COMPRESSOR ,M8 ,W/WASHER |
|
5304459190 |
NUT,M10 |
|
5304459175 |
NUT,M6 |
|
5304459169 |
NUT,M8 |
|
5304465442 |
OVERLOAD PROTECTOR,COMPRESSOR |
|
5304459532 |
PANEL,FRAME ,FRONT |
|
5304459453 |
PANEL,FRONT GRILLE ,TILT-OUT |
|

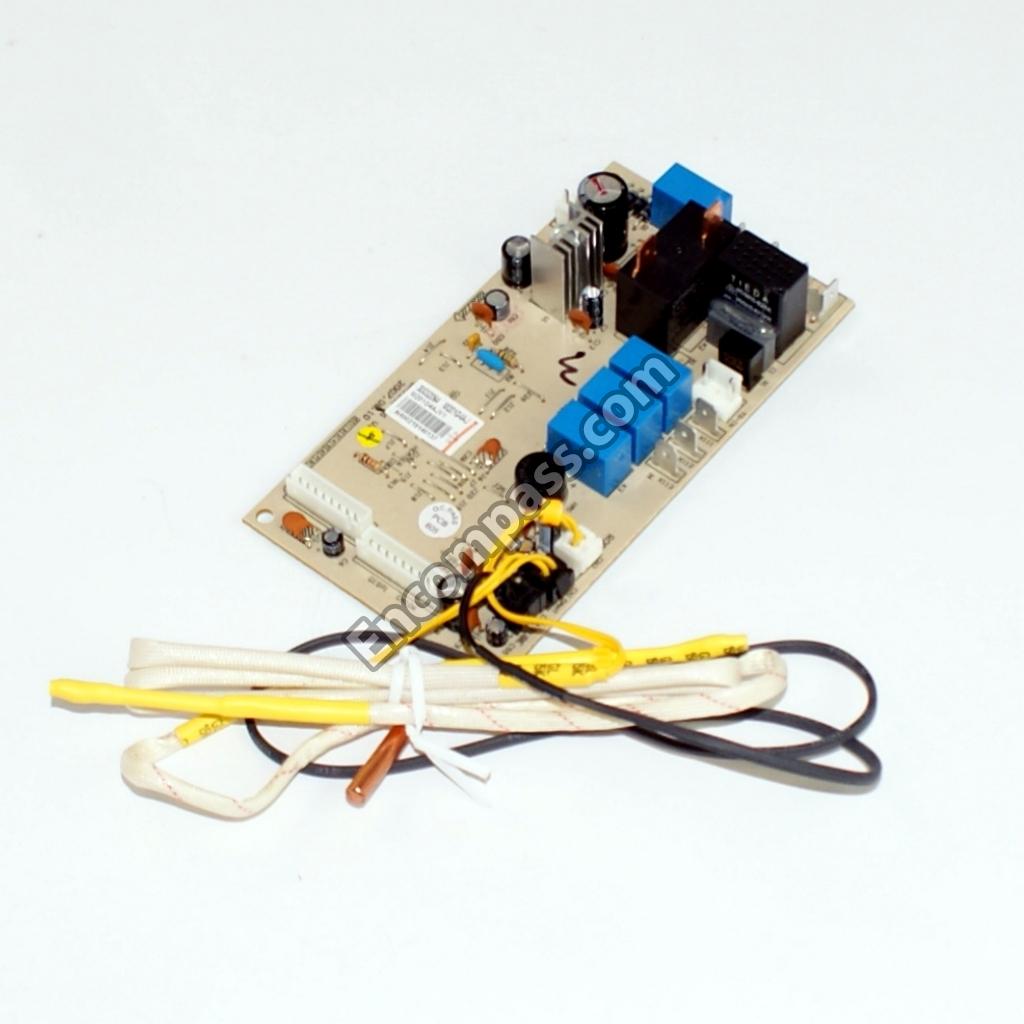

5304466224 |
PC BOARD,CONTROL ,MAIN |
|

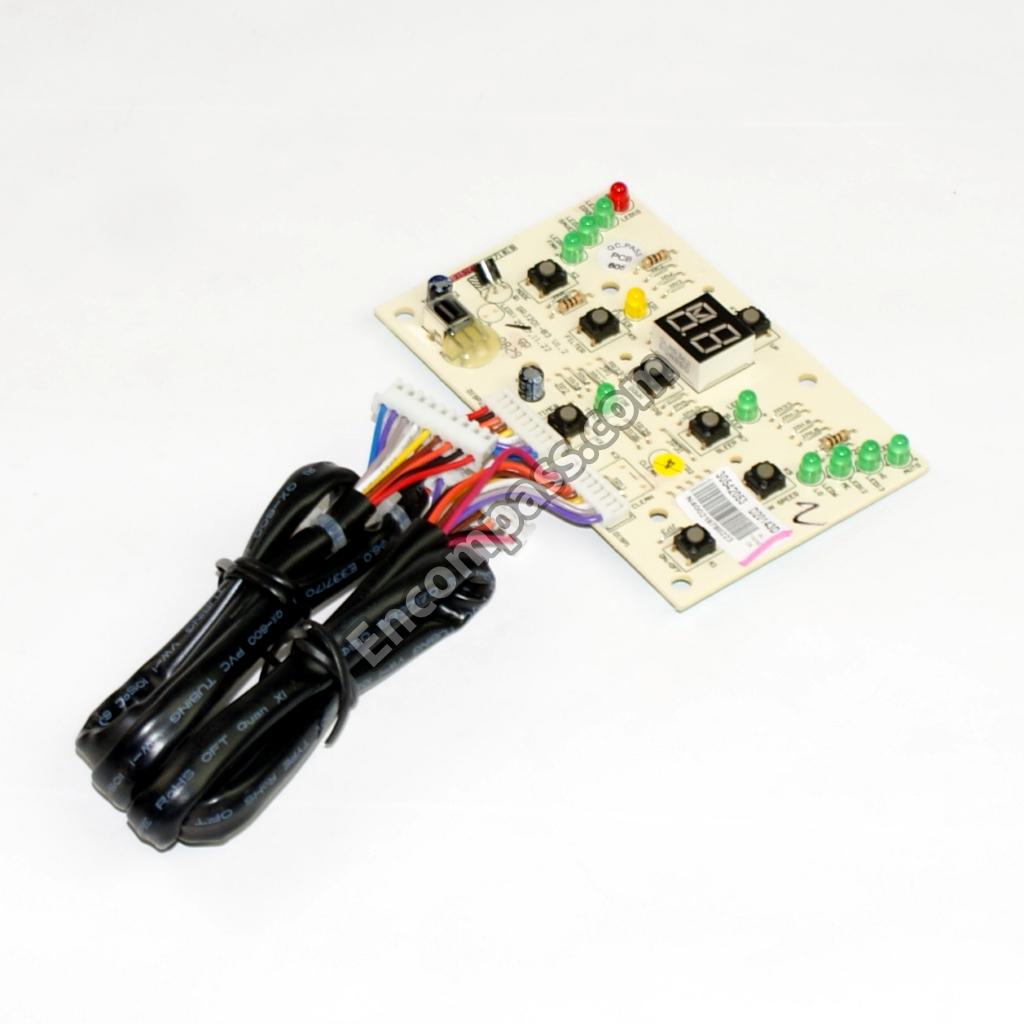

5304465364 |
PC BOARD,DISPLAY/INPUT |
|
5304459471 |
POWER CORD,ELECTRIC ,LCDI |
|
5304459539 |
RAIL,SHUTTER TRACK ,TOP |
|

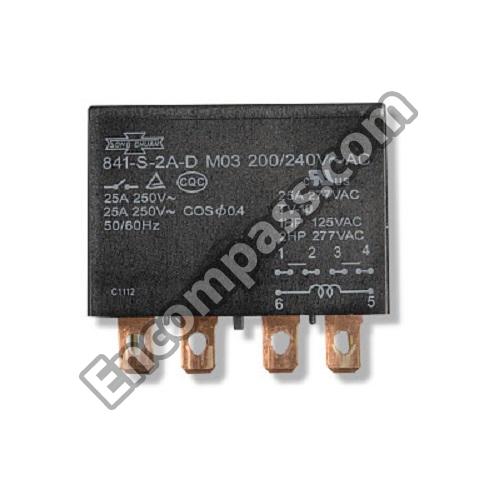

5304459461 |
RELAY |
|

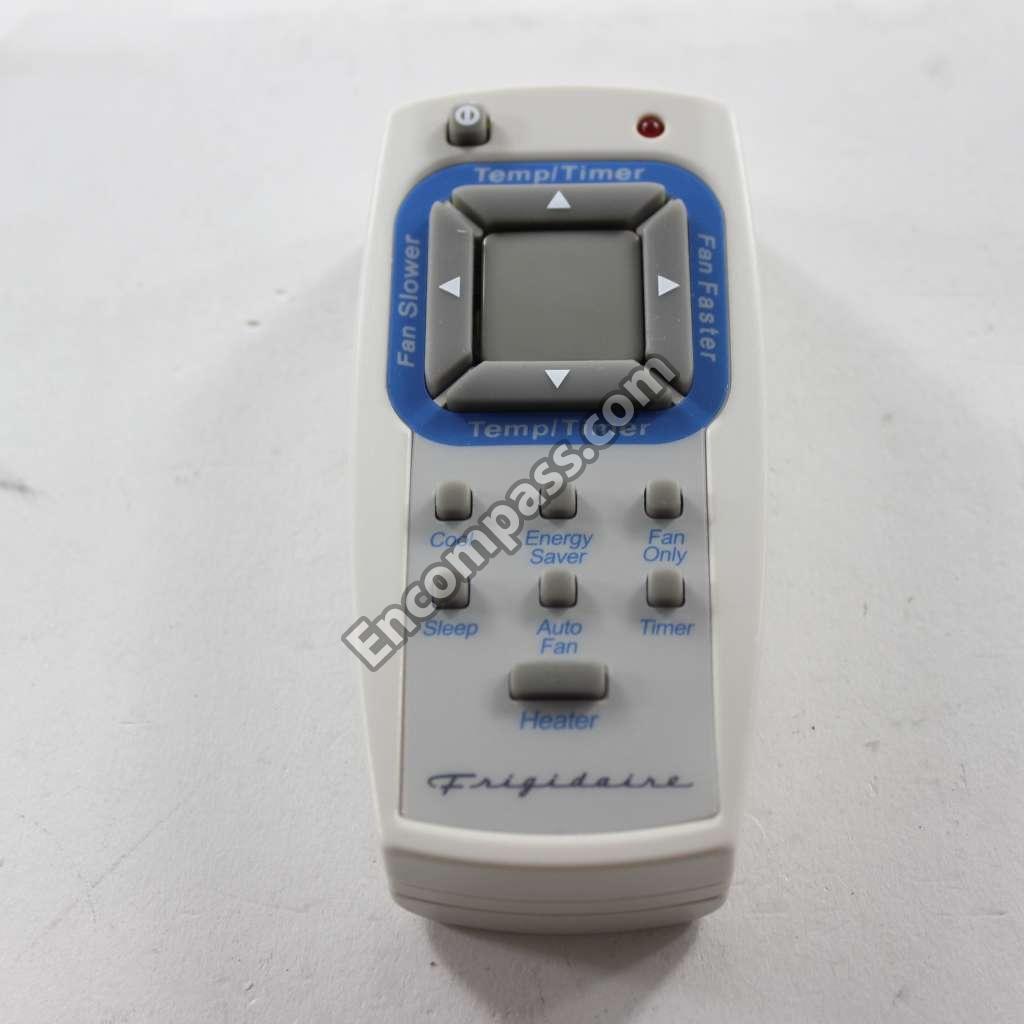

5304465361 |
REMOTE CONTROL,TRANSMITTER |
|
5304459536 |
RETAINER,SHUTTER ,CABINET SIDES |
|
5304461820 |
SCROLL,BLOWER HOUSING ,FRONT |
|
5304459457 |
SCROLL,BLOWER HOUSING ,REAR |
|
5304459560 |
SEAL,BOTTOM RAIL ,CAB/CHASSIS |
|
5304459559 |
SEAL,SASH ,WINDOW STUFFER |
|
5304459561 |
SEAL,TOP RAIL ,CABINET |
|
5304459771 |
SHIELD,HEATER HOUSING ,STEEL |
|
5304459173 |
SHROUD,CONDENSER FAN |
|
5304459182 |
STRAP,CAPACITOR CLAMP |
|

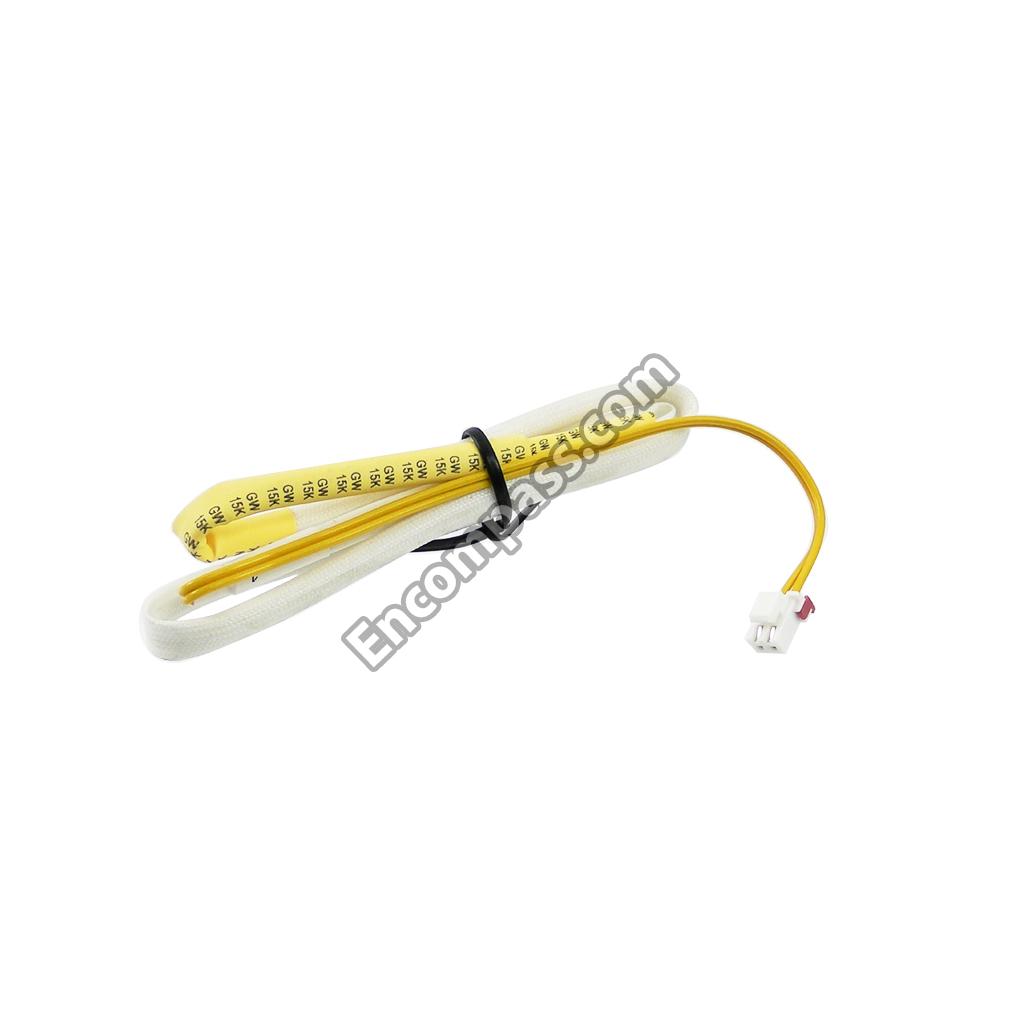

5304459875 |
THERMISTOR,EVAP SENSOR ,DEFROST |
|

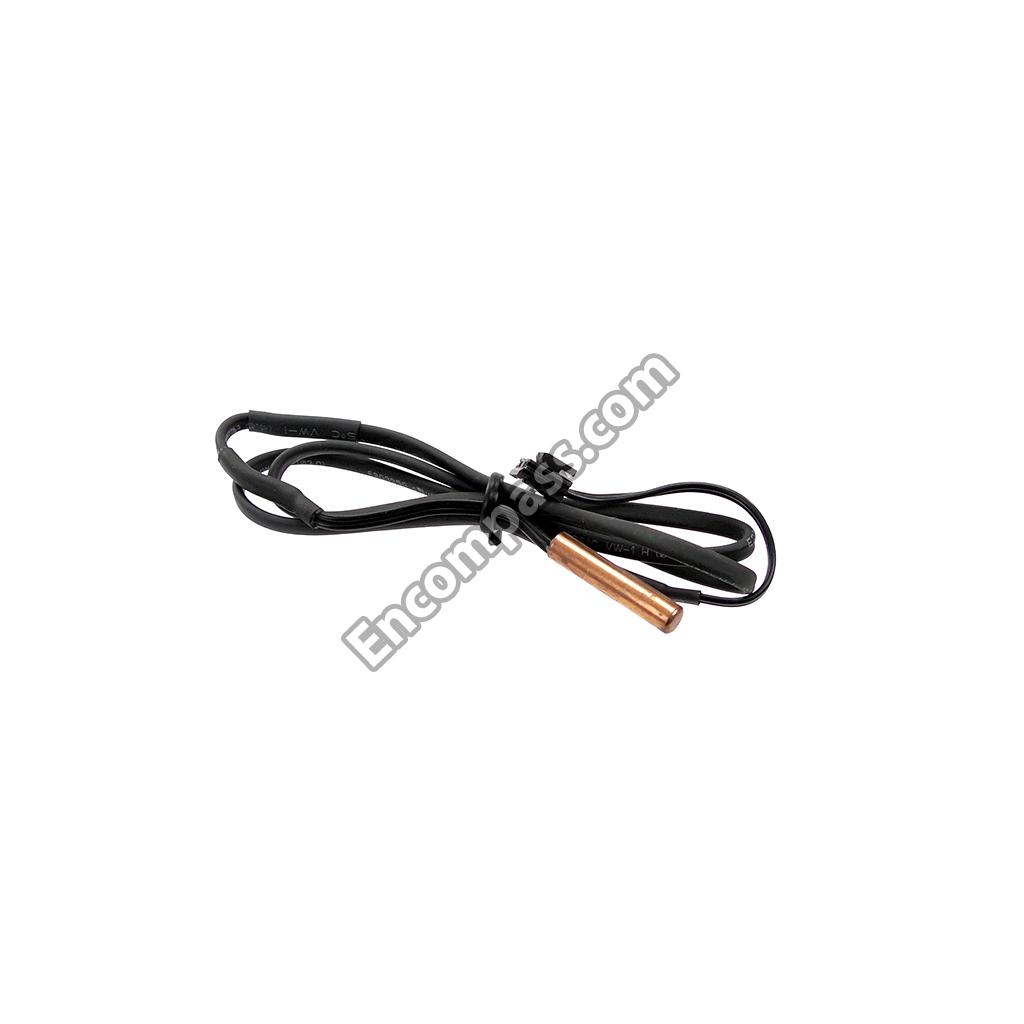

5304459876 |
THERMISTOR,TEMP SENSOR ,AMBIENT |
|

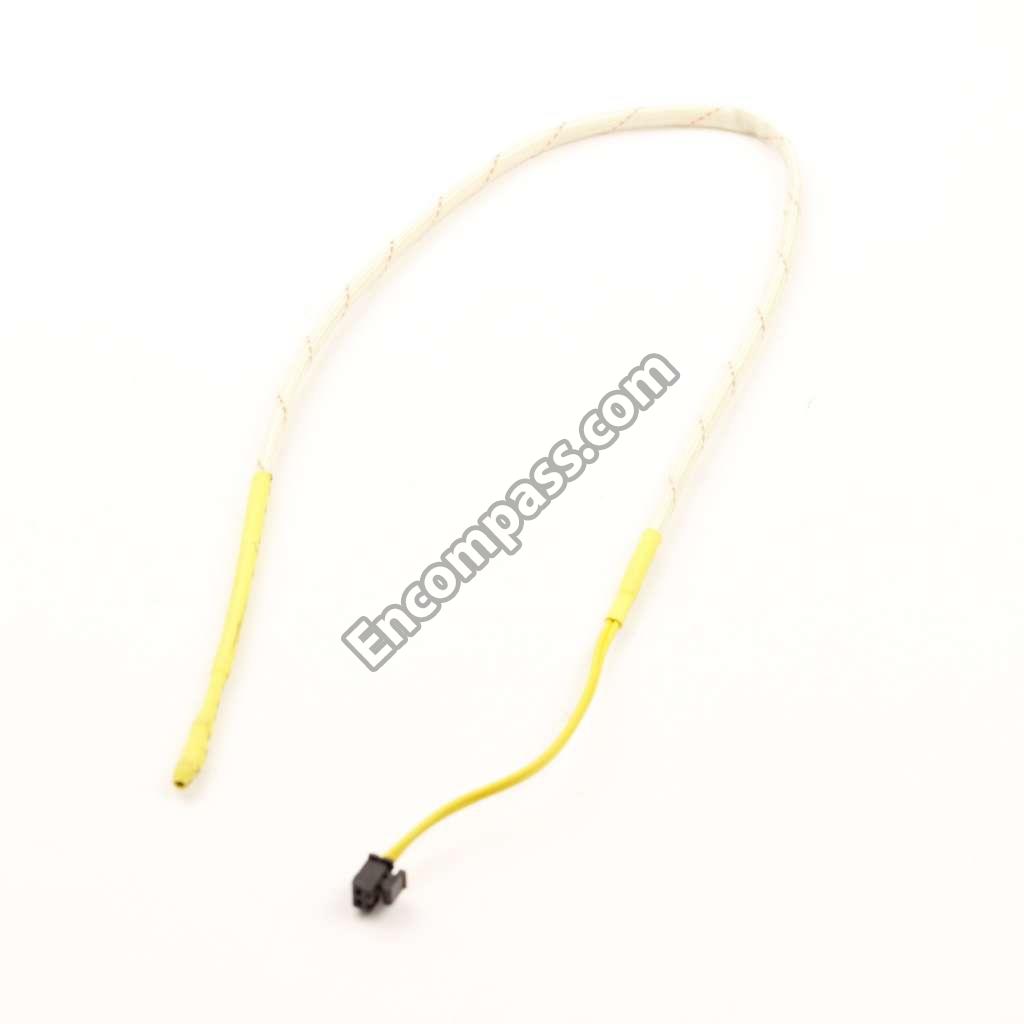

5304459792 |
THERMISTOR,TEMP SENSOR ,AMBIENT |
|
5304459196 |

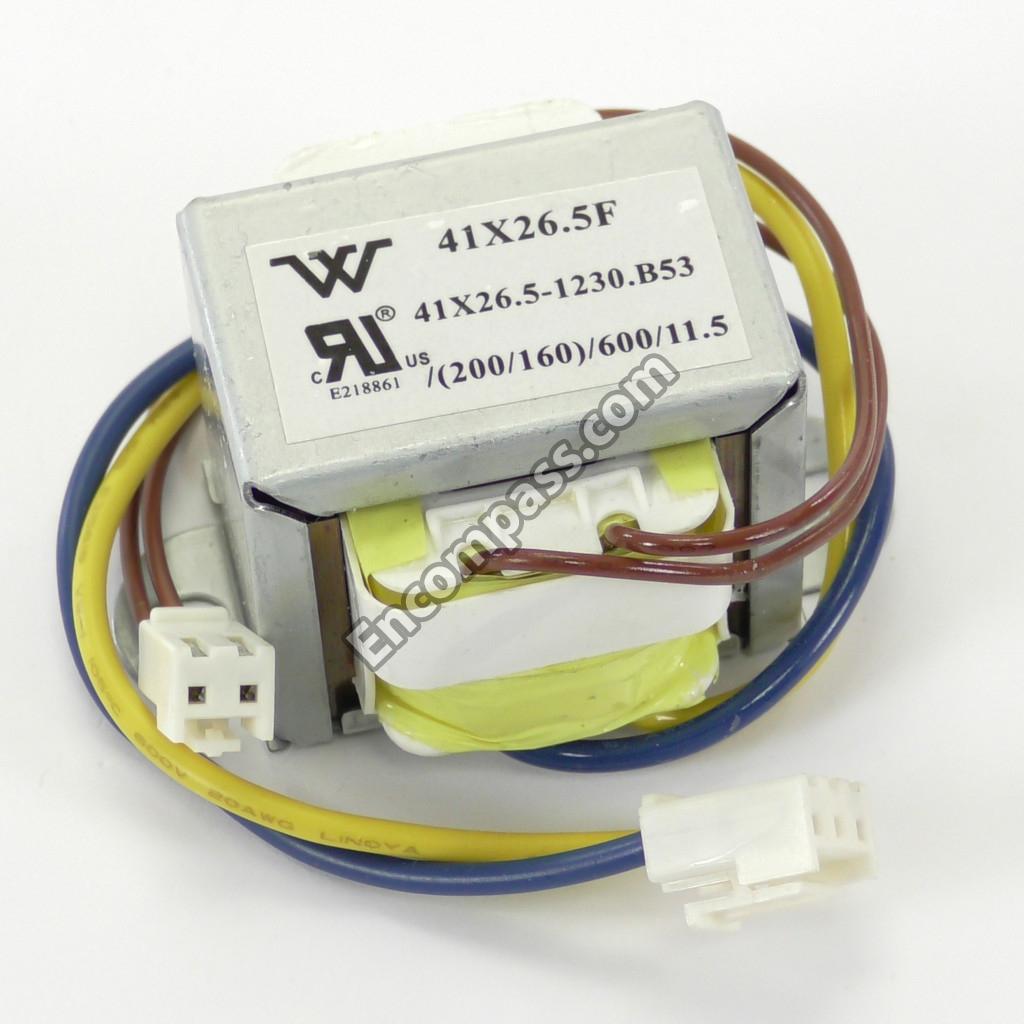

TRANSFORMER |
|
5304459259 |
TRAY,DRIP PAN ,FOAM |
|
5304465440 |
TUBE,CAPILLARY |
|
5304465445 |
TUBE,DISCHARGE |
|
5304465384 |
TUBE,INLET ,CONDENSER |
|
5304465435 |
TUBE,OUTLET ,CONDENSER |
|
5304459267 |
TUBE,SUCTION |
|
5304459477 |
VALVE,DRAIN |
|
5304459189 |
WASHER,NO.10 |
|
5304459188 |
WASHER,NO.10 |
|
5304459176 |
WASHER,NO.6 |
|
5304459171 |
WASHER,NO.8 |
|
5304459170 |
WASHER,NO.8 |
|
5304461706 |
WINDOW FILLER KIT,SLIDER PANELS |
