Model Image
Manufacturer

Electrolux

Model Number

FAQE7021LB0

Description

Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE
137068200 137068200 AIR DUCT SEAL 36
134719300 134719300 BELT H POLY V 5 RIB
131775600 131775600 BLOWER ASSEMBLY
137240400 137240400 BRACESIDE PANEL 36
137029900 137029900 BRACKET
137066800 137066800 BRACKET
134959000 134959000 BRACKET
134912100 134912100 BRACKET
134792200 134792200 BRACKET
134559300 134559300 BRACKET
134710900 134710900 BRACKET
134711000 134711000 BRACKET
134693500 134693500 BRACKET
134785000 134785000 BRACKET
134712815 134712815 BULKHEAD
131658820 131658820 CATCH
134242400 134242400 CLAMP
137034500 137034500 CLIP

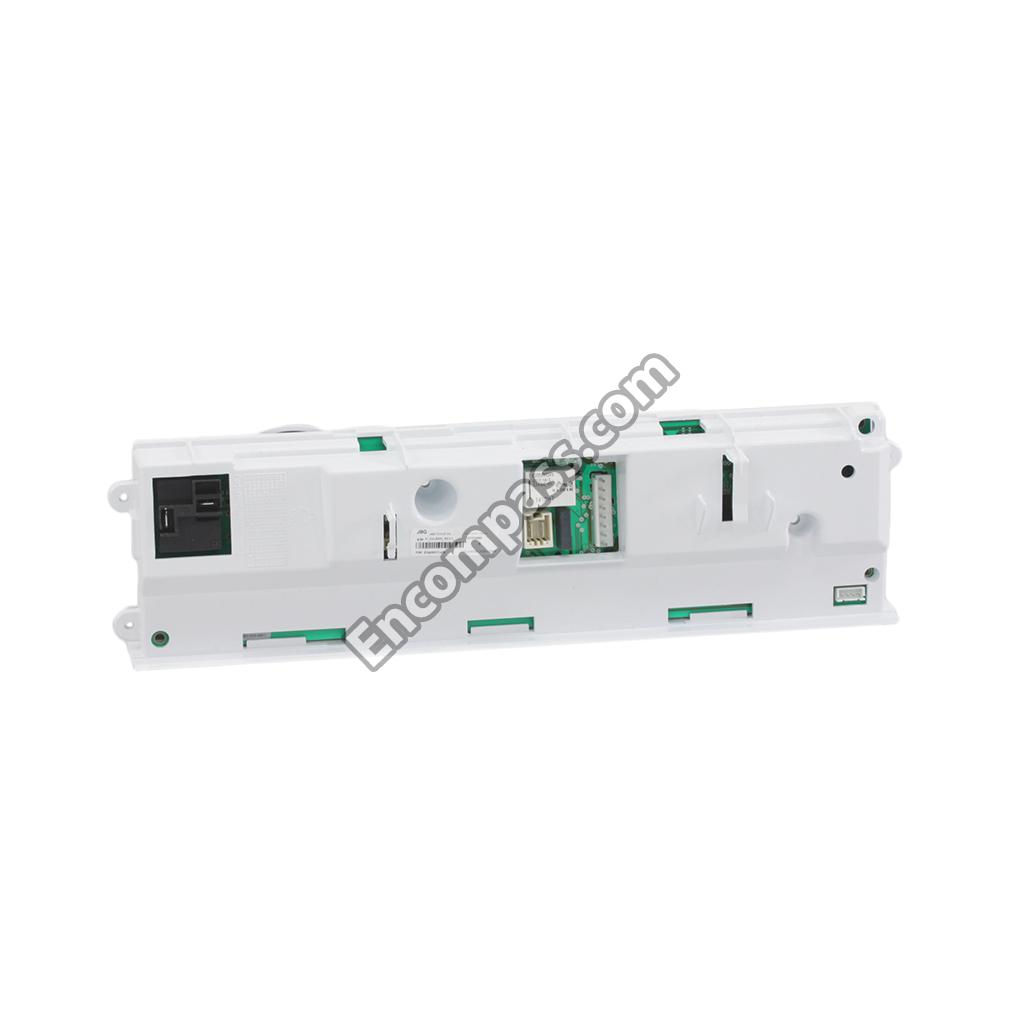

137070880 137070880 CONTROL BOARD
134694400 134694400 COVER
134701310 134701310 COVER
137031800 137031800 CUSHION
134926600 134926600 DAMPER
134503300 134503300 DISPLAY
137621200 137621200 DRUM
134710705 134710705 DUCTAIR
137116600 137116600 GASKET
134580300 134580300 GASKET
137067110 137067110 GUIDE
134930800 134930800 HARNESS
134910200 134910200 HARNESS
134910300 134910300 HARNESSELECTRICAL
137033500 137033500 HARNESSELECTRICAL
137114000 137114000 HEATER
137105100 137105100 HINGE
134793500 134793500 IDLER ARM ASSEMBLY
134792900 134792900 INSULATOR
137314625 137314625 KNOB
131843500 131843500 LAMP ASSEMBLY
134552800 134552800 LIGHT PIPE
134557300 134557300 LIGHT PIPE
134557501 134557501 LIGHT PIPE
134600000 134600000 LIGHT PIPE
137032600 137032600 LIMITER
131435200 131435200 LOCK
137115900 137115900 MOTOR
134716800 134716800 NUT
134554500 134554500 PAD
134696110 134696110 PANEL
134638560 134638560 PANEL
134713200 134713200 PANELBACK
134696660 134696660 PANELFRONT
134690360 134690360 PANELSIDE
134690460 134690460 PANELSIDE
134347700 134347700 PIN
134417502 134417502 PLUG
134742002 134742002 PLUG
131633220 131633220 PLUG
134680820 134680820 PLUG
137314725 137314725 PUSH BUTTON
137314825 137314825 PUSH BUTTON
137320825 137320825 PUSH BUTTON
134716200 134716200 RETAINER
134715900 134715900 ROLLER
134529600 134529600 SCR 8-18X.375 IND P
131168200 131168200 SCREW
131205100 131205100 SCREW
134430300 134430300 SCREW
134402900 134402900 SCREW
131202300 131202300 SCREW
134935200 134935200 SCREW
131017900 131017900 SCREW
134705900 134705900 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
134786110 134786110 SENSOR
134692700 134692700 SHIELD
131749800 131749800 SPACER
137320500 137320500 SPRING
131601000 131601000 SPRING
134813661 134813661 SWITCHLIGHT
137150200 137150200 TERMINAL
134587700 134587700 THERMISTOR
3204267 3204267 THERMOSTAT
134693900 134693900 TUBE
137116800 137116800 VANE
134716700 134716700 WASHER
137320700 137320700 WINDOW
