Model Image
Manufacturer

Electrolux

Model Number

FAQG7001LW1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5308027429 5308027429 ADHESIVE
137068200 137068200 AIR DUCT SEAL 36

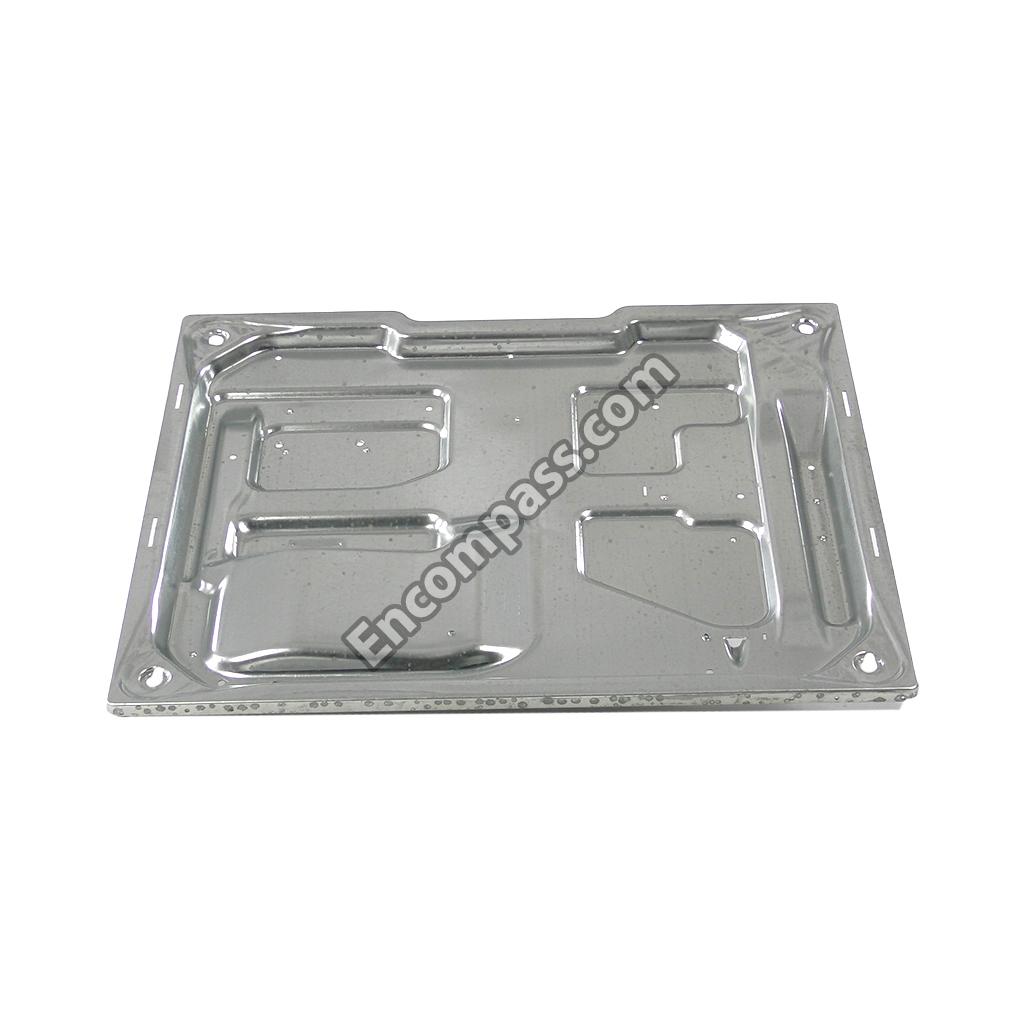

134690203 134690203 BASE
134719300 134719300 BELT H POLY V 5 RIB
131775610 131775610 BLOWER ASSEMBLY
137240400 137240400 BRACESIDE PANEL 36
134715800 134715800 BRACKET
134785000 134785000 BRACKET
134693500 134693500 BRACKET
134711000 134711000 BRACKET
134710900 134710900 BRACKET
134559300 134559300 BRACKET
137029900 137029900 BRACKET
134792200 134792200 BRACKET
134912100 134912100 BRACKET
134706200 134706200 BRACKET
137066800 137066800 BRACKET
137556615 137556615 BULKHEAD
134197700 134197700 BURNER
134242400 134242400 CLAMP
137034500 137034500 CLIP
134714400 134714400 COLLAR
134701310 134701310 COVER
134694400 134694400 COVER
137031800 137031800 CUSHION
134926600 134926600 DAMPER
134503300 134503300 DISPLAY
131658800 131658800 DOOR CATCH
137623100 137623100 DRUM
134710705 134710705 DUCTAIR

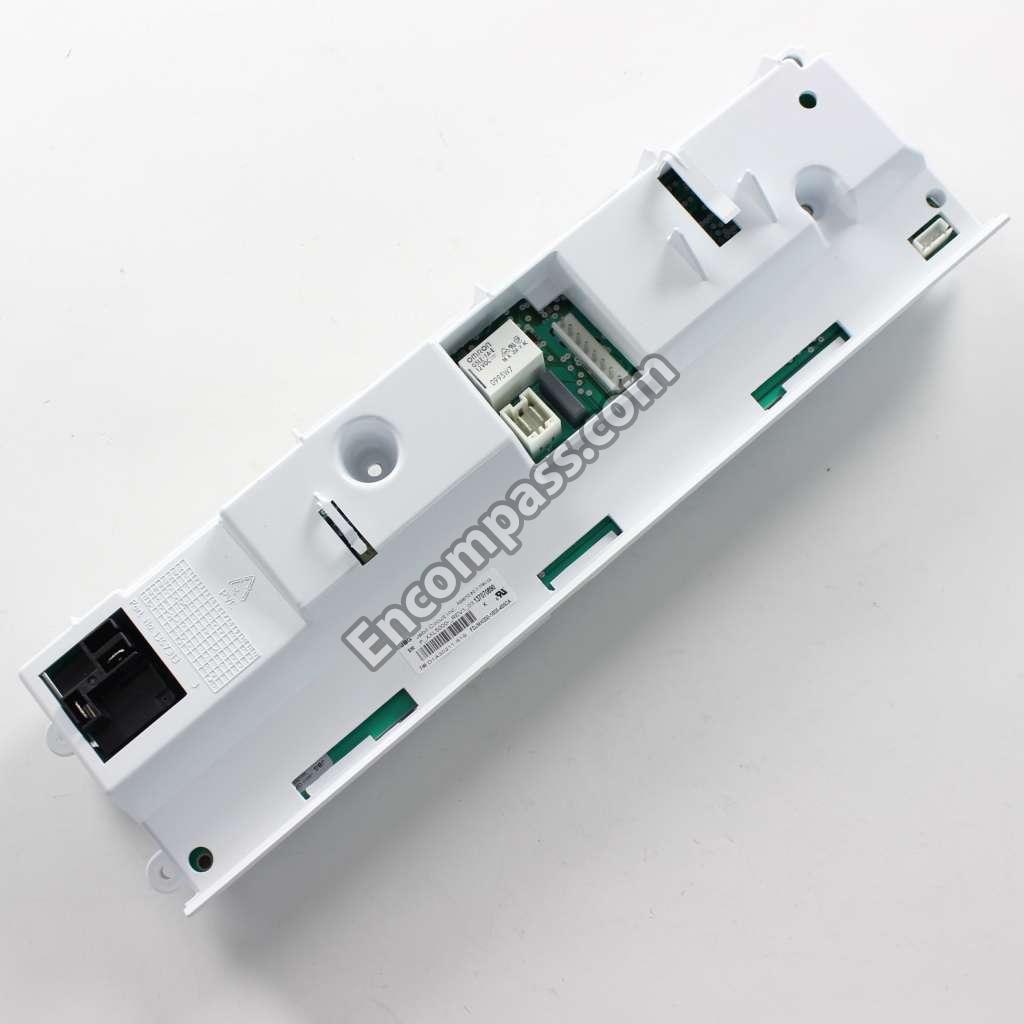

137070890 137070890 ELECTRONIC HOUSING
134580300 134580300 GASKET
137116600 137116600 GASKET

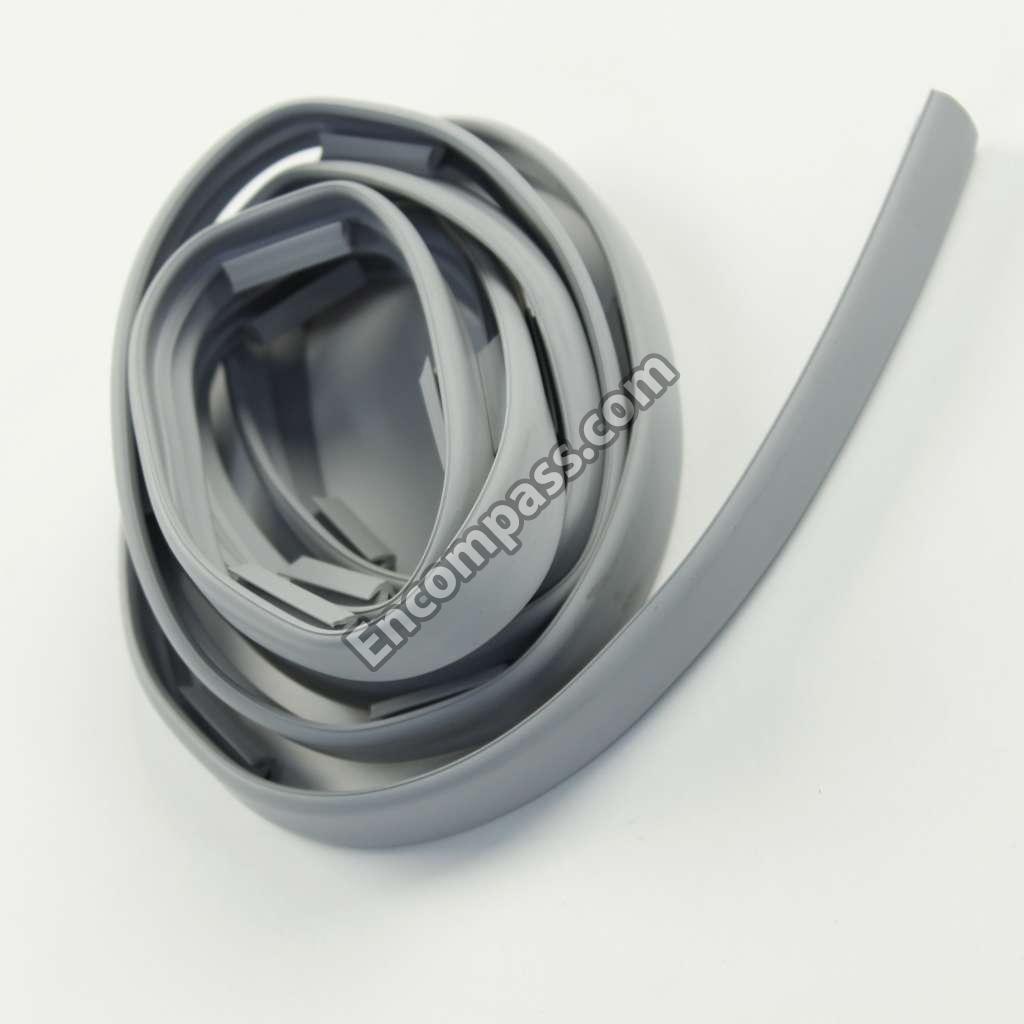

137553400 137553400 GASKET,DOOR SEAL
134259100 134259100 HARNESS
137029500 137029500 HARNESS
134910205 134910205 HARNESS
134930800 134930800 HARNESS
134710300 134710300 HARNESSELECTRICAL
134910300 134910300 HARNESSELECTRICAL
137199820 137199820 HEAT DUCT ASSEMBLY
137105100 137105100 HINGE
134793500 134793500 IDLER ARM ASSEMBLY
137524000 137524000 IGNITER

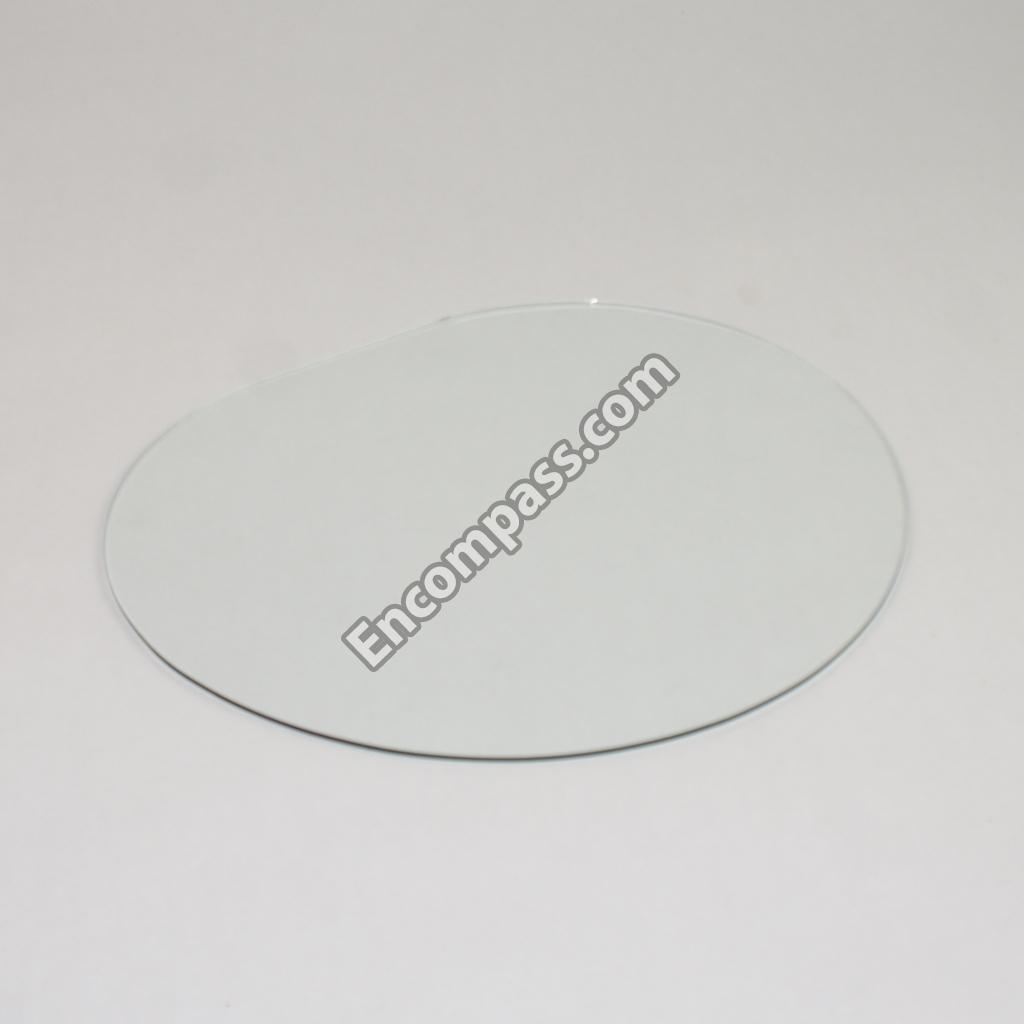

137575900 137575900 INNER DOOR GLASS
134792900 134792900 INSULATOR
137314610 137314610 KNOB
131843500 131843500 LAMP ASSEMBLY
137577700 137577700 LENS
134600000 134600000 LIGHT PIPE
134557501 134557501 LIGHT PIPE
134557300 134557300 LIGHT PIPE
134552800 134552800 LIGHT PIPE
137539200 137539200 LIMITER
134711401 134711401 LIMITER
131435200 131435200 LOCK
134716800 134716800 NUT
5303207410 5303207410 ORIFICE
137371700 137371700 PANEL
134696110 134696110 PANEL
137554621 137554621 PANEL,DOOR, INNER,WHITE
137554530 137554530 PANEL,FRONT,WHITE
137345410 137345410 PANELCONTROL
137577600 137577600 PANELOUTER DOORWHITE

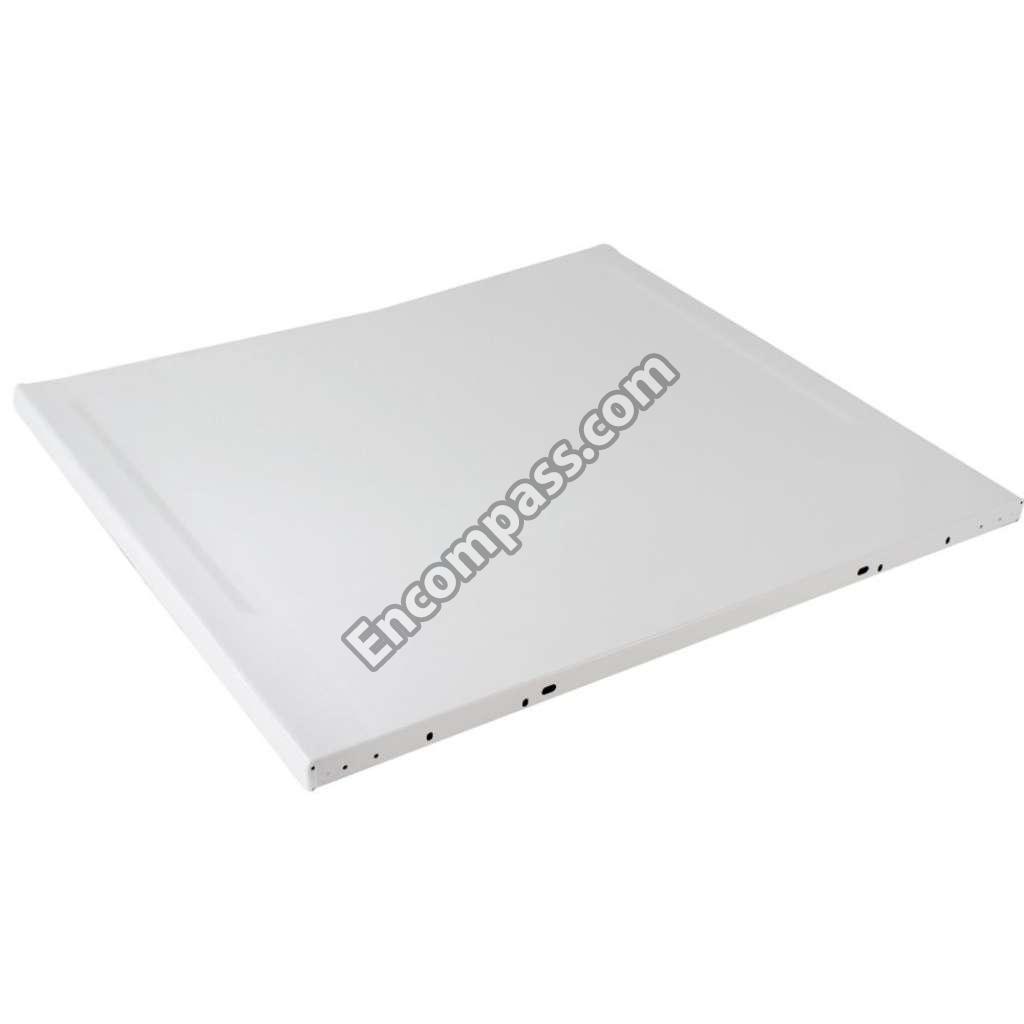

134690310 134690310 PANELSIDE
134690410 134690410 PANELSIDE
134347700 134347700 PIN
137019100 137019100 PIPE
131633200 131633200 PLUG
134742000 134742000 PLUG
134417500 134417500 PLUG
134501000 134501000 POWER CORD
137320810 137320810 PUSH BUTTON
137314810 137314810 PUSH BUTTON
137314710 137314710 PUSH BUTTON

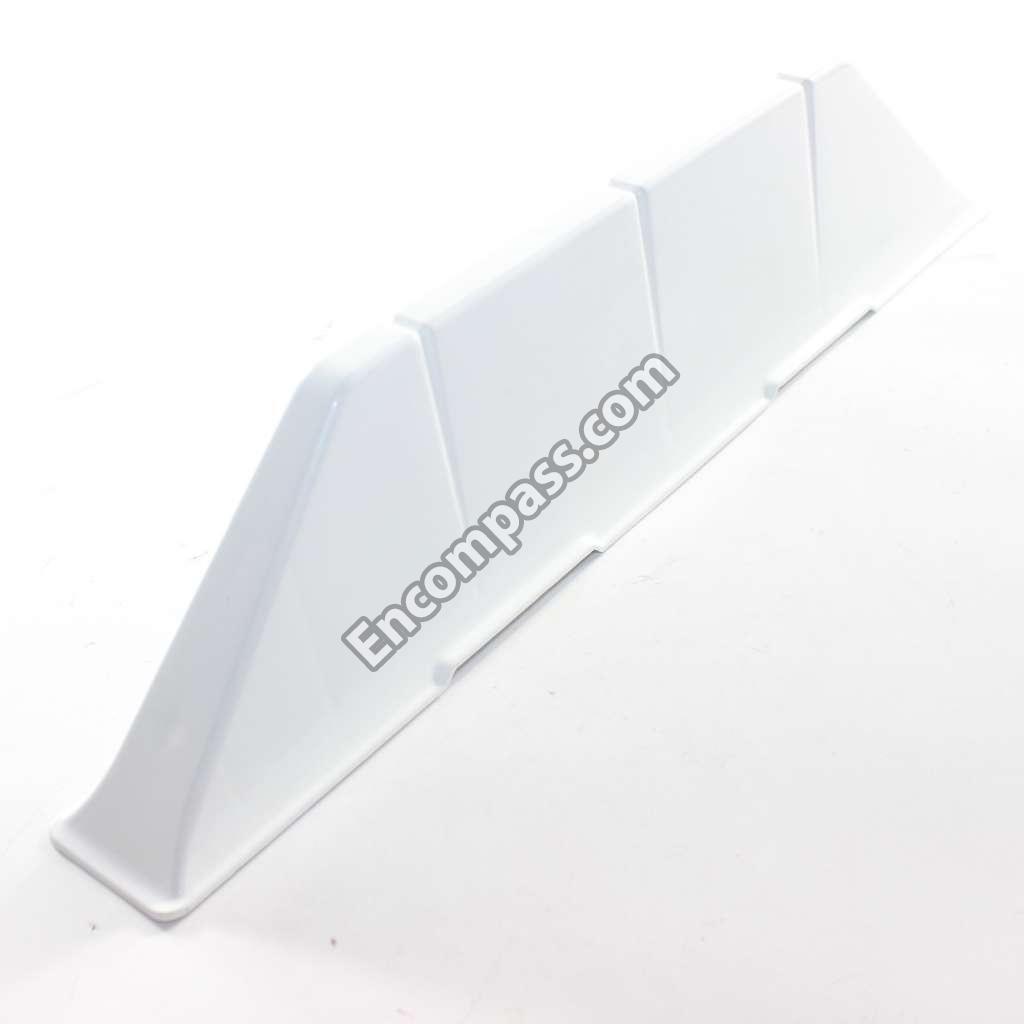

137067100 137067100 RAMP
134716200 134716200 RETAINER
137577800 137577800 RING,DOOR TRANSITION
134715900 134715900 ROLLER
134529600 134529600 SCR 8-18X.375 IND P
134935200 134935200 SCREW
131017900 131017900 SCREW
131202300 131202300 SCREW
134402900 134402900 SCREW
134430300 134430300 SCREW
131168200 131168200 SCREW
131205100 131205100 SCREW
137565300 137565300 SEAL
131633300 131633300 SEAL-EXHAUST TUBE
134786110 134786110 SENSOR
5303281135 5303281135 SENSOR
131749800 131749800 SPACER
131601000 131601000 SPRING
137320500 137320500 SPRING
134790900 134790900 STRAIN RELEIF
134813601 134813601 SWITCH
134587700 134587700 THERMISTOR

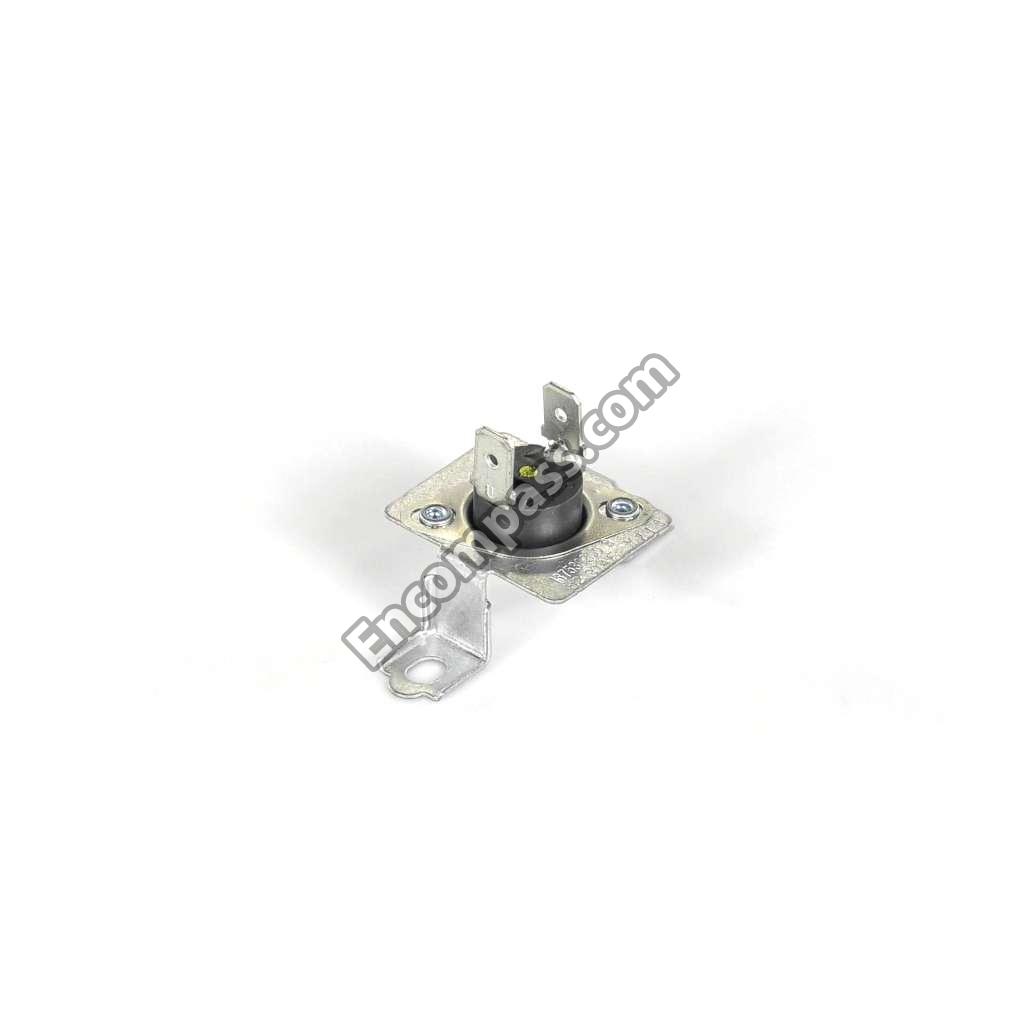

137116700 137116700 THERMOSTAT
137577200 137577200 TPLUG
134692500 134692500 TUBE
134693900 134693900 TUBE
5303207409 5303207409 VALVE
137623200 137623200 VANE
134716700 134716700 WASHER
137320700 137320700 WINDOW
