Manufacturer
Electrolux
Model Number
FAS257R2A1
Description
Frigidaire25000 Btu Window Room Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
5304459619 |
BASE,UNIT CHASSIS |
|
5304459618 |
BASE,UNIT CHASSIS |
|
5304459187 |
BLOWER WHEEL,CENTRIFUGAL FAN |
|
5304459537 |
BRACKET,SUPPORT ,LEFT ,ANGLE |
|
5304459538 |
BRACKET,SUPPORT ,RIGHT ,ANGLE |
|
5304459576 |
BULKHEAD,AIR SYSTEM |
|
5304459593 |
BULKHEAD,CONTROL SYSTEM |
|
5304459566 |
CABINET,WRAPPER/SLEEVE |
|
5304463525 |
CAPACITOR,MOTOR |
|
5304459575 |
CAPACITOR,MOTOR |
|
5304459268 |
CLAMP,SUMP TUBE |
|
5304459237 |
CLAMP,WIRING |
|
5304459194 |
CLIP,SENSOR SUPPORT |
|
5304459613 |
COMPRESSOR,WITH OVERLOAD |
|
5304459567 |
CONDENSER |
|
5304459586 |
CONTROL BOX |
|
5304459595 |
CONTROL PANEL ASSEMBLY,CONSOLE |
|
5304459604 |
CONTROL PANEL,DISPLAY CONSOLE |
|
5304459178 |
COVER,CAPACITOR BOX |
|
5304459571 |
COVER,CONDENSER/FAN ,TOP |
|
5304459581 |
COVER,TOP PLATE ,BLOWER SCROLL |
|
5304459578 |
DOOR,FRESH AIR VENT ,WITH LEVER |
|
5304459584 |
EVAPORATOR |
|
5304459172 |
FAN BLADE,PROPELLER |
|
5304459637 |
FILTER,AIR |
|
5304459632 |
FRONT ASSEMBLY,COMPLETE PANEL |
|
5304459272 |
GASKET,VERTICAL LOUVER ,RUBBER |
|
5304459616 |
GROMMET,COMPRESSOR |
|
5304459769 |
GROMMET,COMPRESSOR |
|
5304459244 |
HANDLE,VENT CONTROL |
|
5304459562 |
HARDWARE KIT,INSTALLATION |
|
5304459774 |
KIT,SHUTTER LOCK ,SCREW/WASHERS |
|

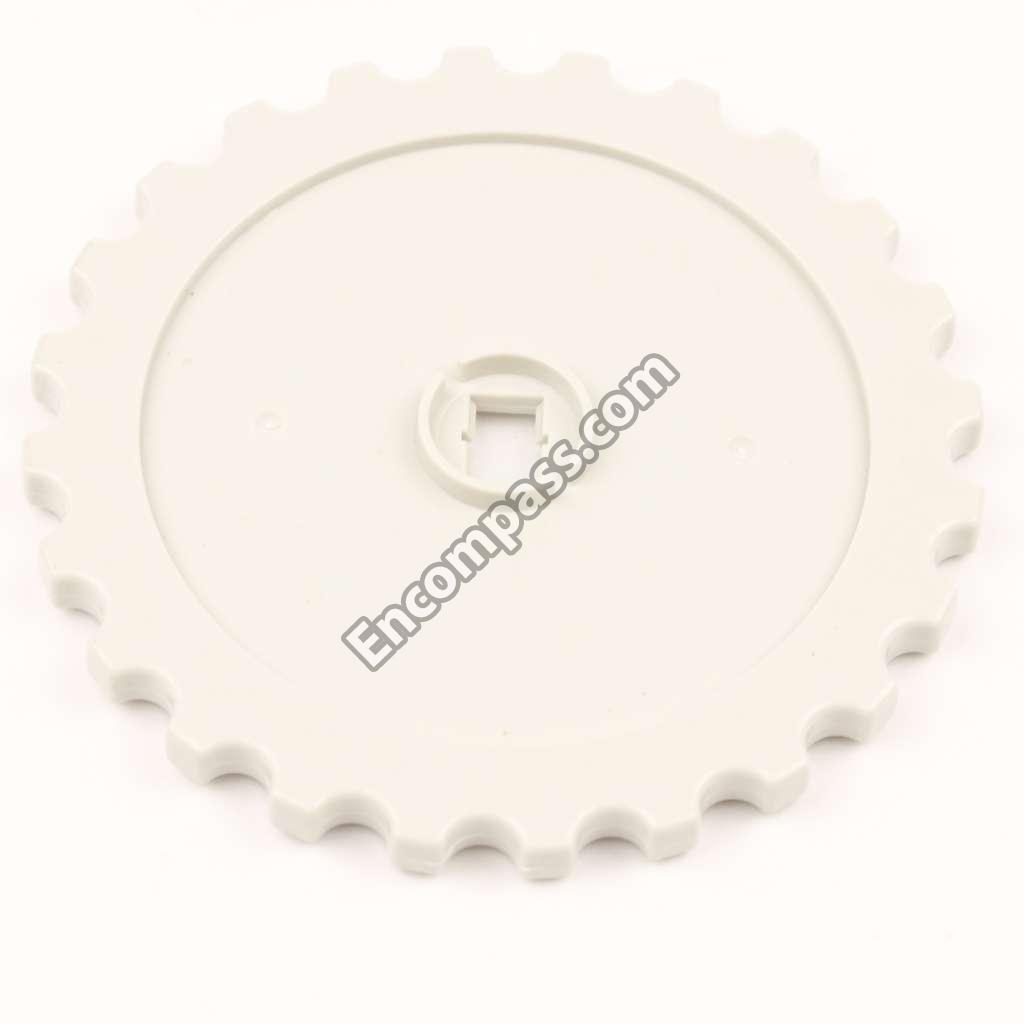

5304459636 |
KNOB,AUGER WHEEL ,LOUVER |
|
5304459192 |
LINK,LEVER/VENT DOOR |
|
5304459639 |
LOUVER,HORIZONTAL |
|
5304459635 |
LOUVER,VERTICAL |
|
5304459573 |
MOTOR,FAN |
|
5304459256 |
NUT,COMPRESSOR ,M8 ,W/WASHER |
|
5304459190 |
NUT,M10 |
|
5304459175 |
NUT,M6 |
|
5304459246 |
NUT,M6 ,WITH WASHER |
|
5304459169 |
NUT,M8 |
|
5304459606 |
OVERLAY,CONTROL DISPLAY |
|
5304459634 |
PANEL,FRAME ,FRONT |
|
5304459641 |
PANEL,FRONT GRILLE ,TILT-OUT |
|
5304459231 |
PC BOARD,CONTROL ,MAIN |
|
5304459600 |
PC BOARD,DISPLAY/INPUT |
|
5304459591 |
POWER CORD,ELECTRIC ,LCDI |
|
5304459646 |
RAIL,SHUTTER TRACK ,TOP |
|
5304459234 |
RELAY,AC |
|

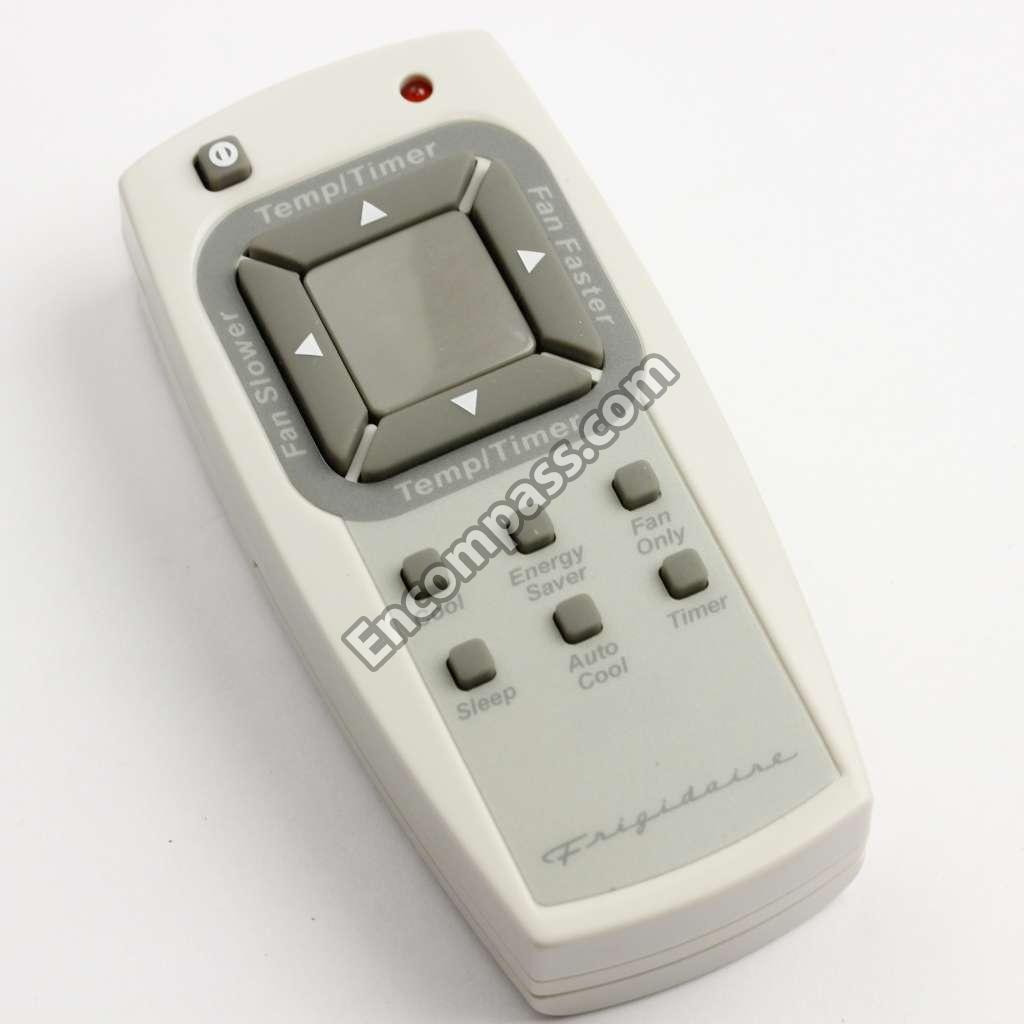

5304459360 |
REMOTE CONTROL,TRANSMITTER |
|
5304459645 |
RETAINER,SHUTTER ,CABINET SIDES |
|
5304459579 |
SCROLL,BLOWER HOUSING ,FRONT |
|
5304459577 |
SCROLL,BLOWER HOUSING ,REAR |
|
5304459560 |
SEAL,BOTTOM RAIL ,CAB/CHASSIS |
|
5304459559 |
SEAL,SASH ,WINDOW STUFFER |
|
5304459647 |
SEAL,TOP RAIL ,CABINET |
|
5304459572 |
SHROUD,CONDENSER FAN |
|
5304459182 |
STRAP,CAPACITOR CLAMP |
|
5304459183 |
STRAP,CAPACITOR CLAMP |
|
5304459875 |
THERMISTOR,EVAP SENSOR ,DEFROST |
|
5304459876 |
THERMISTOR,TEMP SENSOR ,AMBIENT |
|
5304459196 |
TRANSFORMER |
|
5304459621 |
TRAY,DRIP PAN ,FOAM |
|
5304459626 |
TUBE,CAPILLARY |
|
5304459625 |
TUBE,CAPILLARY |
|
5304459623 |
TUBE,DISCHARGE |
|
5304459568 |
TUBE,INLET ,CONDENSER |
|
5304459570 |
TUBE,OUTLET ,CONDENSER |
|
5304459630 |
TUBE,SUCTION |
|
5304459629 |
TUBE,SUCTION |
|
5304459610 |
TUBE,SUMP |
|
5304459188 |
WASHER,NO.10 |
|
5304459189 |
WASHER,NO.10 |
|
5304459176 |
WASHER,NO.6 |
|
5304459170 |
WASHER,NO.8 |
|
5304459171 |
WASHER,NO.8 |
|

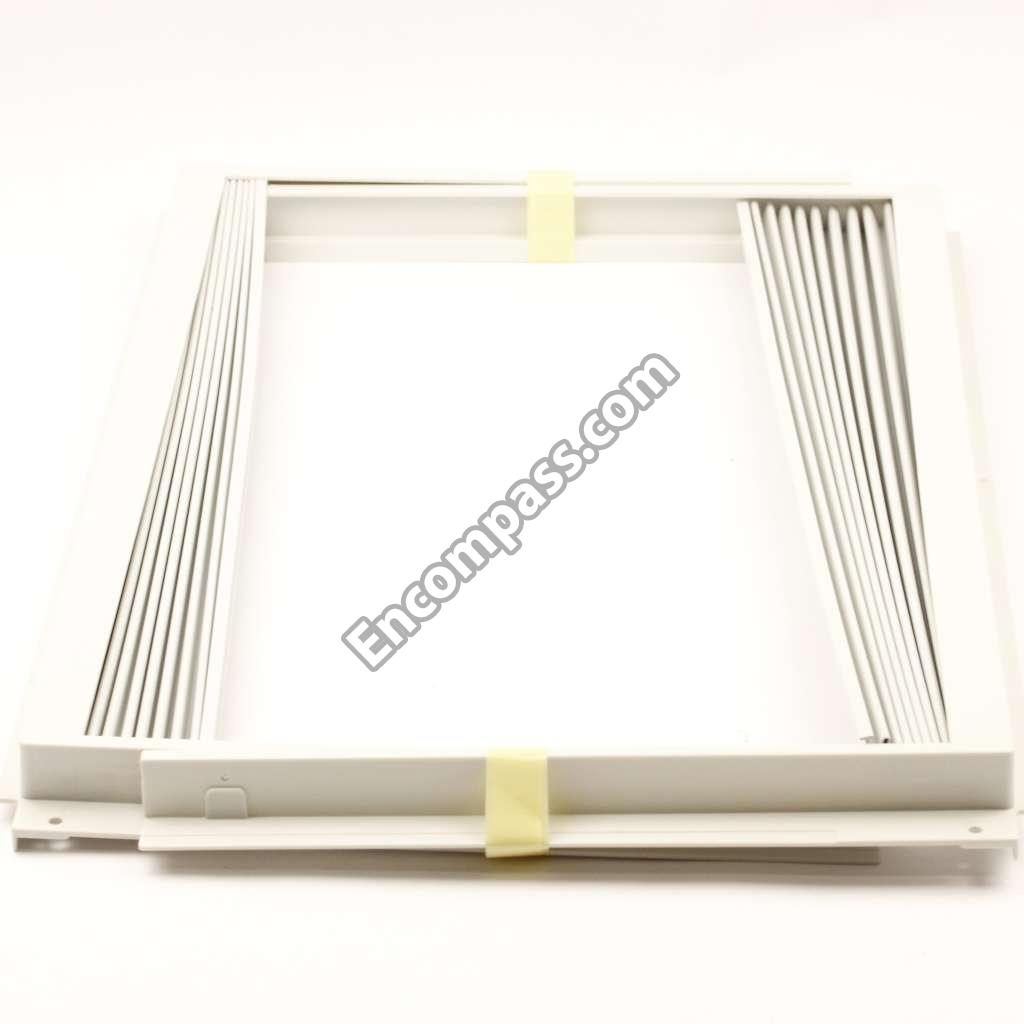

5304462391 |
WINDOW FILLER KIT,SLIDER PANELS |
