Model Image
Manufacturer

Electrolux

Model Number

FAS296R2A1

Description

Room Air Conditioner

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304459619 5304459619 BASE
5304459187 5304459187 BLOWER WHEEL
5304459538 5304459538 BRACKET
5304459537 5304459537 BRACKET
5304459576 5304459576 BULKHEAD
5304459593 5304459593 BULKHEAD
5304459566 5304459566 CABINET
5304463525 5304463525 CAPACITOR
5304459268 5304459268 CLAMP
5304459237 5304459237 CLAMP
5304459614 5304459614 COMPRESSOR
5304459567 5304459567 CONDENSER
5304459586 5304459586 CONTROL BOX
5304459604 5304459604 CONTROL PANEL
5304459597 5304459597 CONTROL PANEL ASSEM
5304459178 5304459178 COVER
5304459581 5304459581 COVER
5304459571 5304459571 COVER,CONDENSER/FAN ,TOP
5304459578 5304459578 DOOR
5304459584 5304459584 EVAPORATOR
5304459172 5304459172 FAN BLADE
5304459637 5304459637 FILTER
5304459631 5304459631 FRONT ASSEMBLY
5304459272 5304459272 GASKET
5304459616 5304459616 GROMMET
5304459244 5304459244 HANDLE
5304459439 5304459439 IONIZER
5304459774 5304459774 KIT
5304459636 5304459636 KNOB
5304459192 5304459192 LINK
5304459635 5304459635 LOUVER
5304459639 5304459639 LOUVER,HORIZONTAL
5304459573 5304459573 MOTOR
5304459169 5304459169 NUT
5304459190 5304459190 NUT
5304459175 5304459175 NUT
5304459256 5304459256 NUT
5304459246 5304459246 NUT
5304459608 5304459608 OVERLAY
5304459633 5304459633 PANEL
5304459641 5304459641 PANEL
5304459459 5304459459 PC BOARD

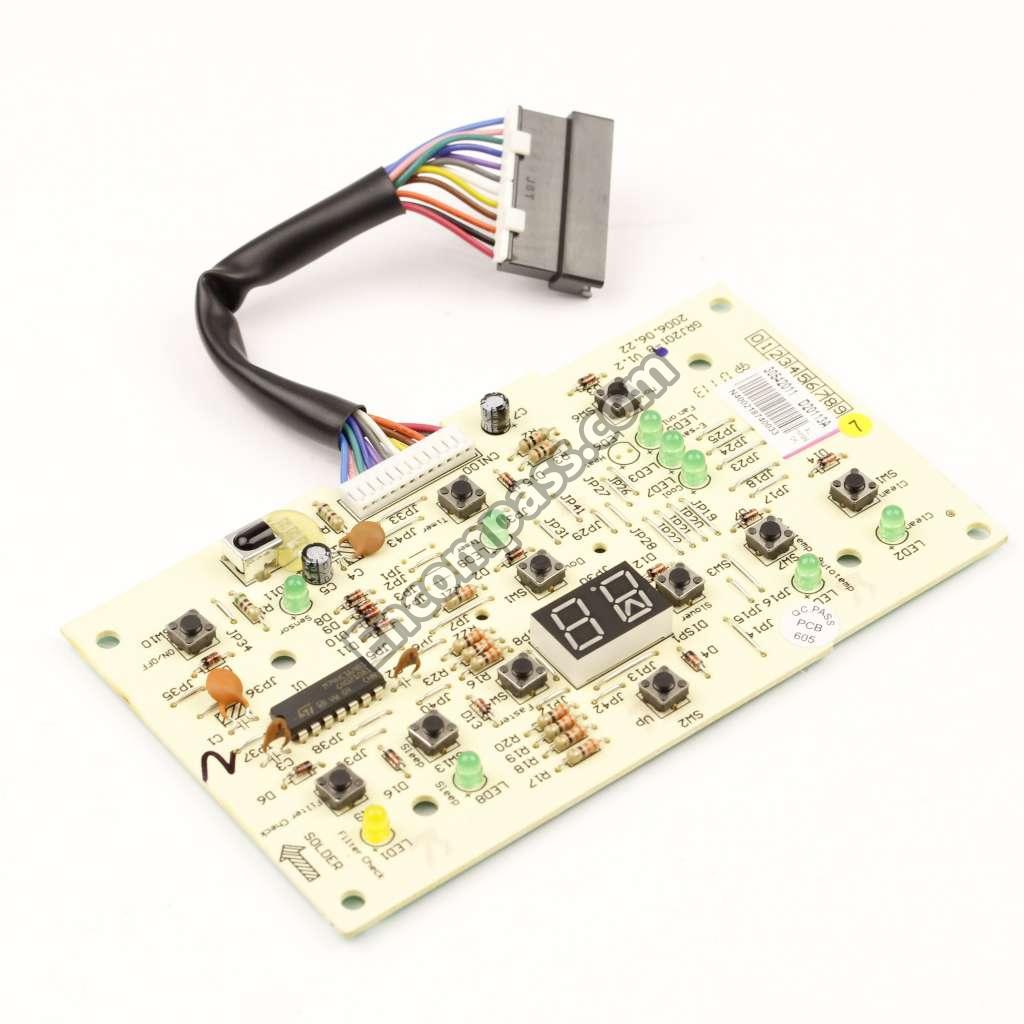

5304459599 5304459599 PC BOARD
5304459592 5304459592 POWER CORD
5304459646 5304459646 RAIL
5304459234 5304459234 RELAY
5304459106 5304459106 REMOTE CONTROL
5304459645 5304459645 RETAINER
5304459579 5304459579 SCROLL
5304459577 5304459577 SCROLL
5304459559 5304459559 SEAL
5304459560 5304459560 SEAL
5304459647 5304459647 SEAL
5304459572 5304459572 SHROUD
5304459182 5304459182 STRAP
5304459876 5304459876 THERMISTOR
5304459875 5304459875 THERMISTOR
5304459196 5304459196 TRANSFORMER
5304459621 5304459621 TRAY
5304459570 5304459570 TUBE
5304459568 5304459568 TUBE
5304459610 5304459610 TUBE
5304459627 5304459627 TUBE
5304459623 5304459623 TUBE
5304459630 5304459630 TUBE
5304459562 5304459562 USE 5304459562
5304459171 5304459171 WASHER
5304459170 5304459170 WASHER
5304459188 5304459188 WASHER,NO.10
5304459189 5304459189 WASHER,NO.10
5304459176 5304459176 WASHER,NO.6
5304462391 5304462391 WINDOW FILLER KIT
