Model Image
Manufacturer

Electrolux

Model Number

FAV157G1A1

Description

Room Air Conditioner

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303211056 5303211056 BRACKET
5303015306 5303015306 BRACKET
5303303545 5303303545 CABINET
5303012110 5303012110 CLAMP
5308011040 5308011040 CLAMP-FAN BLADE
5303211009 5303211009 CLIP-CONTROL BULB
5303323288 5303323288 CONDENSER
5303201838 5303201838 CONTROL-TEMPERATURE
5303301021 5303301021 CORD-ELECTRIC POWER
5300265301 5300265301 DRIER-FILTER,SERVICE KIT
5303323285 5303323285 EVAPORATOR
5303210207 5303210207 GRILLE
5303283877 5303283877 GROMMET
5303208233 5303208233 HINGE-DOOR
5303321485 5303321485 KNOB-SLIDE
5300517130 5300517130 LINK
5303202811 5303202811 LINK

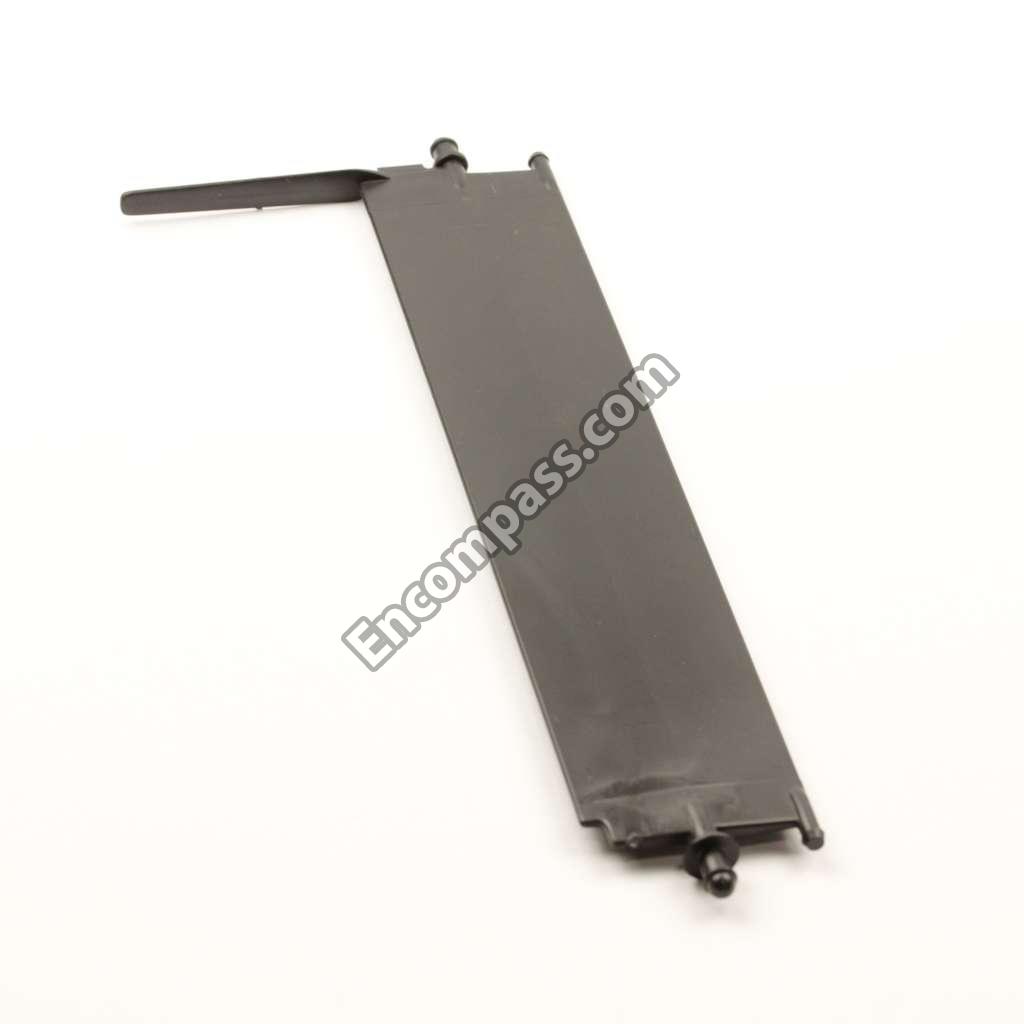

5303300230 5303300230 LOUVER
5303306429 5303306429 LOUVER-HORIZ.
3007759 3007759 NUT
5308006948 5308006948 NUT
5303016697 5303016697 OVERLOAD PROTECTOR
5303201847 5303201847 RETAINER
5303209200 5303209200 RETAINER
5303281649 5303281649 SCREW
3007756 3007756 SCREW
3002801 3002801 SCREW
5303007754 5303007754 SCREW
5303015427 5303015427 SCREW
5303293767 5303293767 SCREW
5304455650 5304455650 SCREW,HEX WASHER HEAD ,8-15A X 0.625 ,
3002803 3002803 SCREW-WOOD
3001980 3001980 SEAL
5303212504 5303212504 SEAL
5303015311 5303015311 SEAL
5303201854 5303201854 SEAL
5303001449 5303001449 SEAL-AIR DEFLECTOR, FOAM PLASTIC
5303002608 5303002608 SEAL-WINDOW
5303001775 5303001775 SPACER
5303201820 5303201820 STRAP
5303301254 5303301254 SUPPORT
309313204 309313204 SUPPORT
3001815 3001815 SUPPORT
5309918806 5309918806 SWITCH-LIGHT/ LAMP
5303201836 5303201836 SWITCH-SELECTOR
3203179 3203179 TUBE
5303208499 5303208499 VALVE,SAFETY ,DUAL
309112501 309112501 WASHER
5303017345 5303017345 WIRING HARNESS
