Model Image
Manufacturer

Electrolux

Model Number

FAZ12HS2A12

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304459960 5304459960 BASE,UNIT CHASSIS
5304459945 5304459945 BLOWER WHEEL
5304459992 5304459992 BRACKET,ANGLE ,WINDOW LOCK
5304459983 5304459983 BRACKET,INSTALLATION ,LOCKING
5304459968 5304459968 BULKHEAD,AIR SYSTEM
5304459986 5304459986 CABINET
5304459943 5304459943 CAPACITOR
5304459941 5304459941 CAPACITOR
5304459932 5304459932 CLIP,SENSOR SUPPORT
5304459959 5304459959 COMPRESSOR
5304465368 5304465368 CONDENSER
5304459998 5304459998 CONTROL BOX
5304465362 5304465362 CONTROL PANEL
5304459966 5304459966 COVER
5304459971 5304459971 COVER
5304459939 5304459939 COVER
5304459933 5304459933 EVAPORATOR
5304459974 5304459974 FAN BLADE
5304459927 5304459927 FILTER
5304459923 5304459923 FRONT ASSEMBLY
5304459254 5304459254 GROMMET
5304459934 5304459934 HEATER
5304459930 5304459930 KNOB
5304459928 5304459928 LOUVER
5304459929 5304459929 LOUVER,VERTICAL
5304465381 5304465381 MOTOR
5304459256 5304459256 NUT
5304459977 5304459977 NUT
5304459969 5304459969 NUT,M4
5304459958 5304459958 OVERLOAD PROTECTOR
5304459926 5304459926 PANEL
5304459924 5304459924 PANEL,FRAME ,FRONT

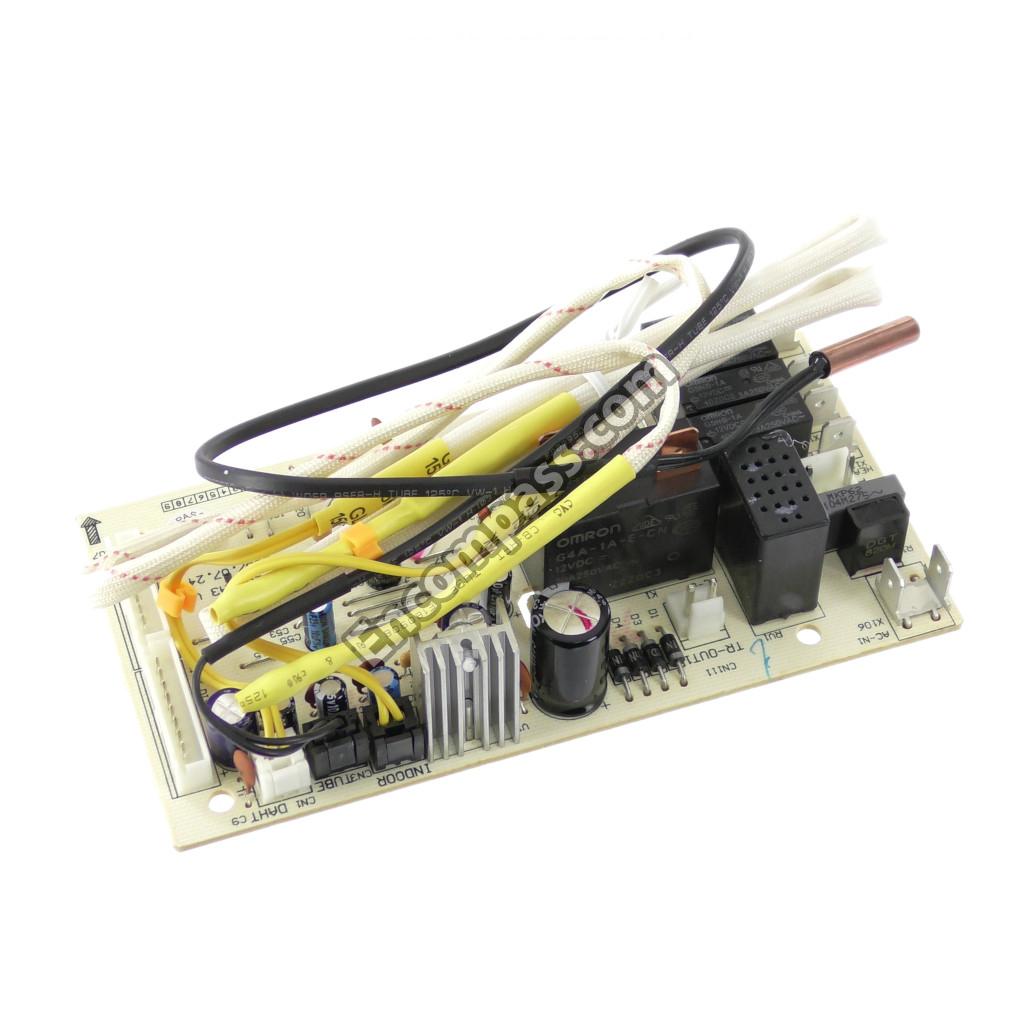

5304465364 5304465364 PC BOARD
5304465378 5304465378 PC BOARD
5304459942 5304459942 POWER CORD
5304459988 5304459988 RAIL
5304459461 5304459461 RELAY
5304465361 5304465361 REMOTE CONTROL
5304459925 5304459925 SCREW
5304459991 5304459991 SCREW,4 X 20
5304459972 5304459972 SCREW,4.2 X 9.5
5304459979 5304459979 SCREW,4.3 X 13TA
5304459981 5304459981 SCREW,M4 X 6
5304459985 5304459985 SCREW,SELF-TAPPING ,4.2 X 6.5
5304459984 5304459984 SCREW,SELF-TAPPING ,4.2 X 9.5
5304459961 5304459961 SCREW,SELF-TAPPING ,4.2 X 9.5
5304459953 5304459953 SCROLL,BLOWER HOUSING ,BOTTOM
5304459952 5304459952 SCROLL,BLOWER HOUSING ,TOP
5304459993 5304459993 SEAL,STRIP 1 ,UPPER
5304459994 5304459994 SEAL,STRIP 2 ,LOWER
5304459946 5304459946 SHIELD,HEAT ,DRIP TRAY
5304461587 5304461587 SHIELD,HEAT INSULATION ,FRONT
5304459973 5304459973 SHROUD
5304462509 5304462509 SHUTTER KIT
5304459944 5304459944 STRAP
5304459674 5304459674 TERMINAL BLOCK
5304460537 5304460537 THERMISTOR
5304459792 5304459792 THERMISTOR
5304459876 5304459876 THERMISTOR
5304459196 5304459196 TRANSFORMER
5304459947 5304459947 TRAY,DRIP PAN ,FOAM
5304459962 5304459962 TUBE
5304459963 5304459963 TUBE
5304459967 5304459967 TUBE
5304459956 5304459956 TUBE
5304465379 5304465379 TUBE
5304459964 5304459964 TUBE
5304459965 5304459965 TUBE
5304459954 5304459954 TUBE
5304459955 5304459955 TUBE
5304459477 5304459477 VALVE
5304459980 5304459980 WASHER,NO.4
5304459975 5304459975 WASHER,NO.6
5304459976 5304459976 WASHER,NO.6
5304459982 5304459982 WIRE,CONNECTOR ,GROUND
