Model Image
Manufacturer

Electrolux

Model Number

FBD2400KB9B

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154691201 154691201 ARM ASSEMBLY
154691101 154691101 ARM ASSEMBLY
5304489877 5304489877 BASKET
154686401 154686401 BEARING
154823701 154823701 BRACE
154246502 154246502 BRACKET
154595901 154595901 BRACKET
154465101 154465101 BRACKET

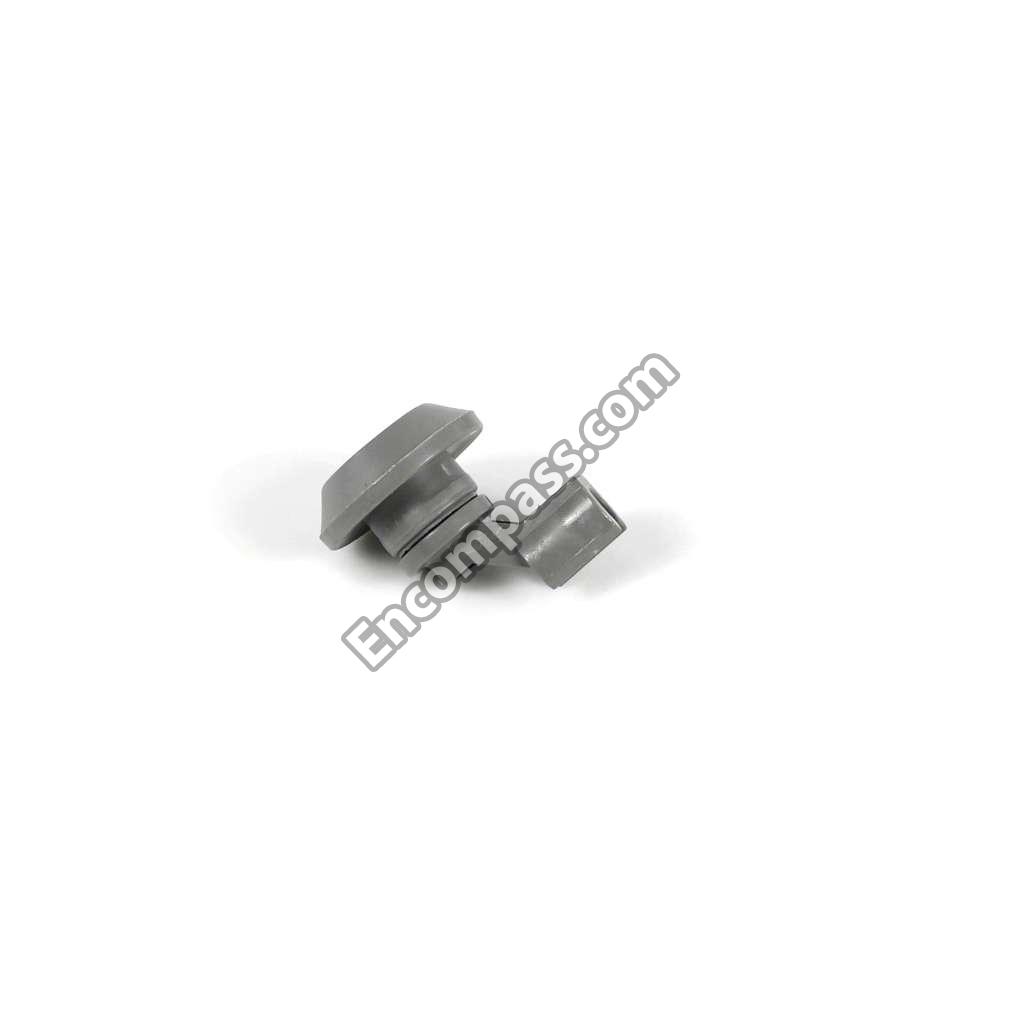

5304440996 5304440996 CAP
154380601 154380601 CLAMP
154320301 154320301 CLAMP

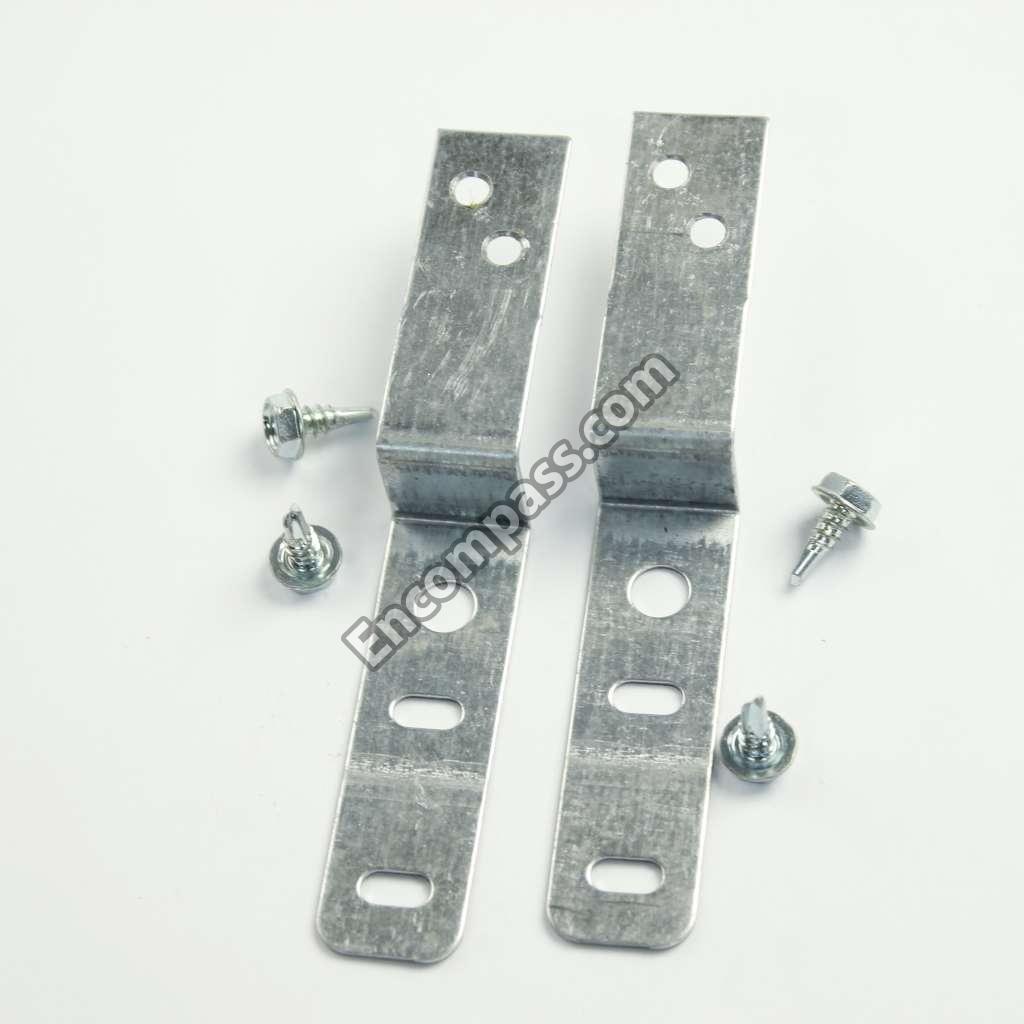

154406801 154406801 COUNTER BRACKET KIT
154758501 154758501 COVER
807114001 807114001 COVER

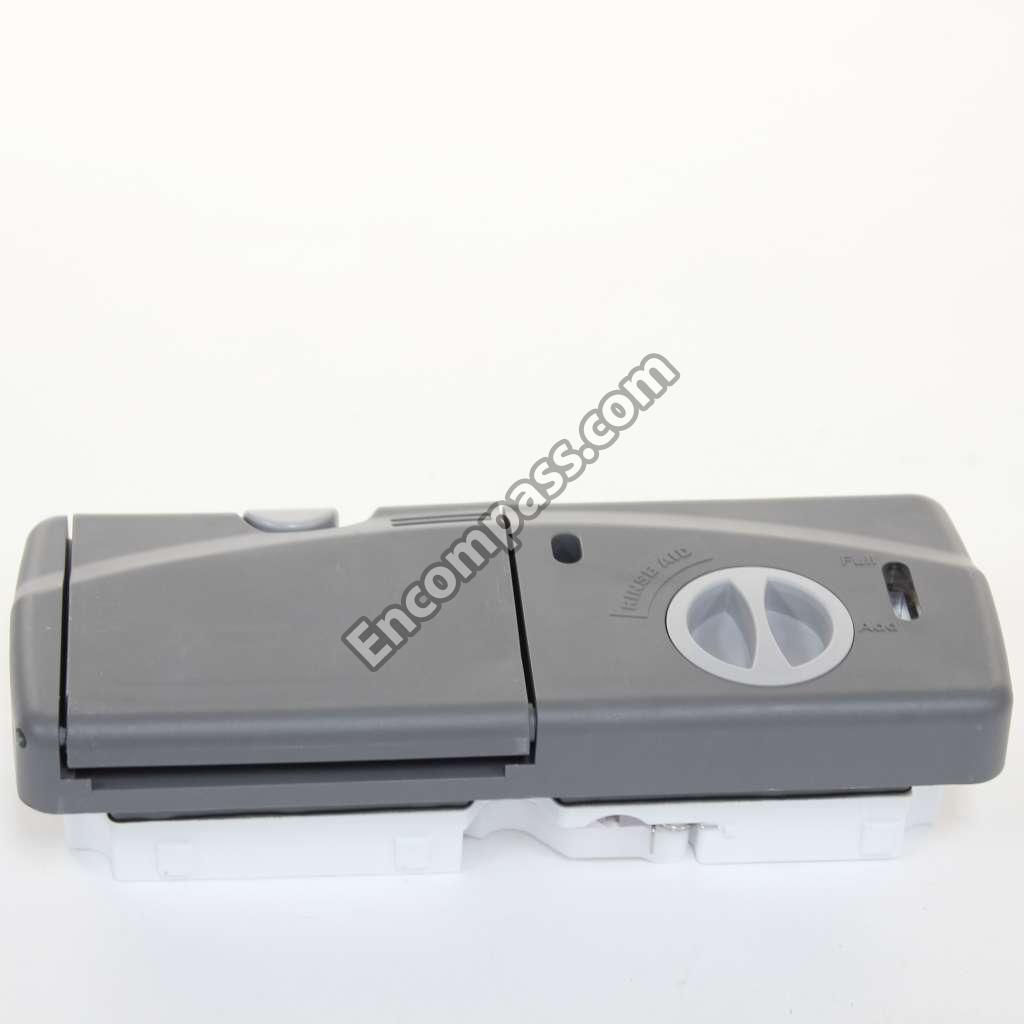

5304506521 5304506521 DISPENSER
154828803 154828803 DOOR
154252401 154252401 FILTER
154775401 154775401 FILTER
154767801 154767801 FLOAT
154246801 154246801 GASKET

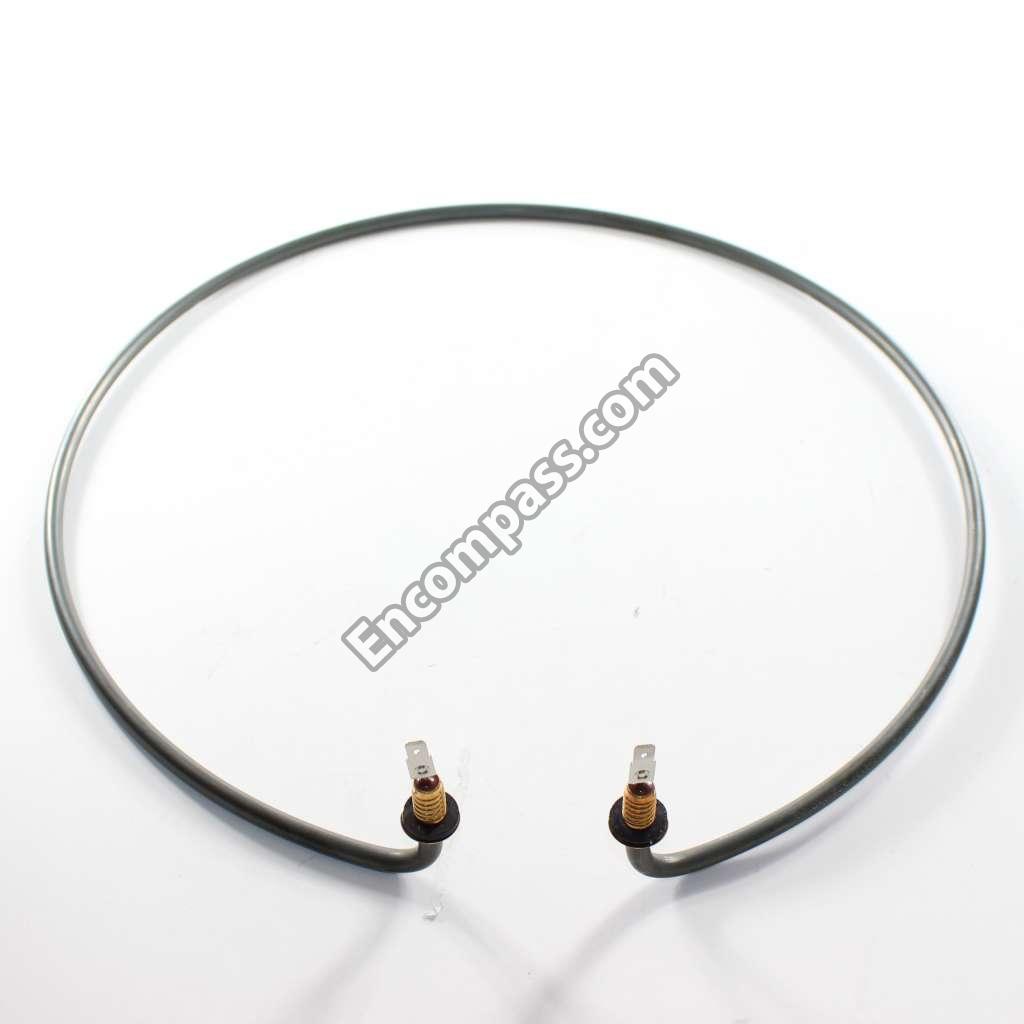

154825001 154825001 HEATER
154647101 154647101 HINGE PIN
807117001 807117001 HOSE,DRAIN
807185501 807185501 HOUSING
154338303 154338303 KNOB
154571101 154571101 LEG
154325201 154325201 LINKAGE

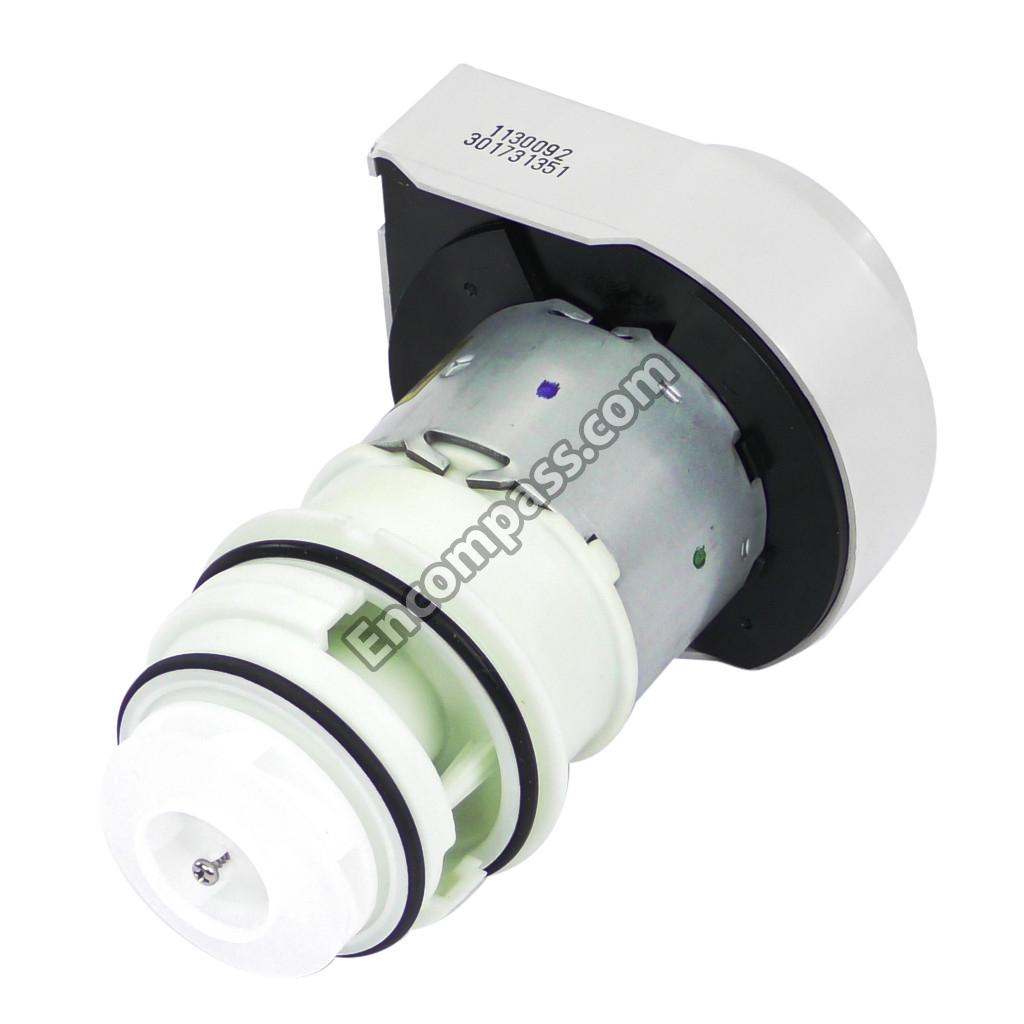

807473201 807473201 MOTOR PUMP ASSEMBLY
154335201 154335201 NUT
154106202 154106202 NUT
154247001 154247001 ORING
154246901 154246901 ORING
154667445 154667445 PANEL
807111601 807111601 PLATE
808602302 808602302 RACK ASSEMBLY
5304498202 5304498202 RACK ASSEMBLY,UPPER

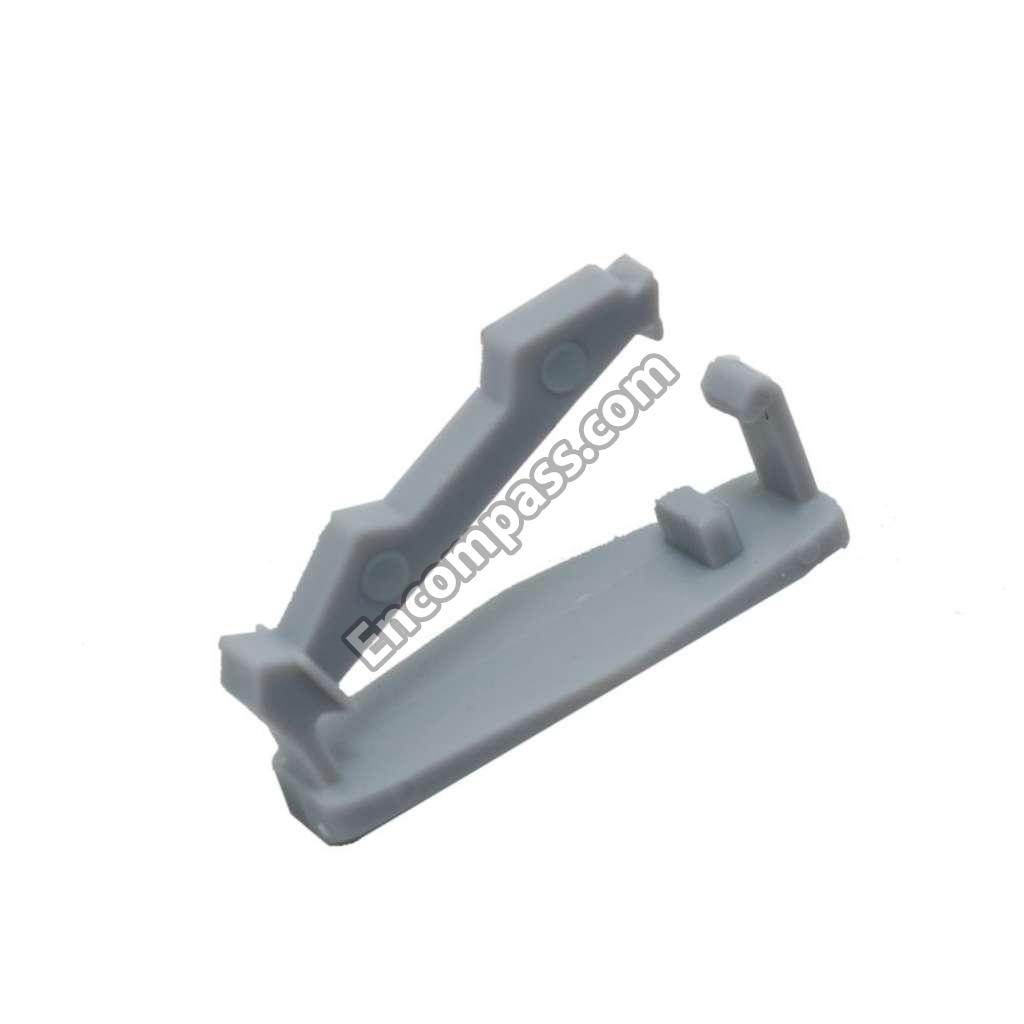

154241101 154241101 RETAINER
154767502 154767502 ROLLER ASSEMBLY

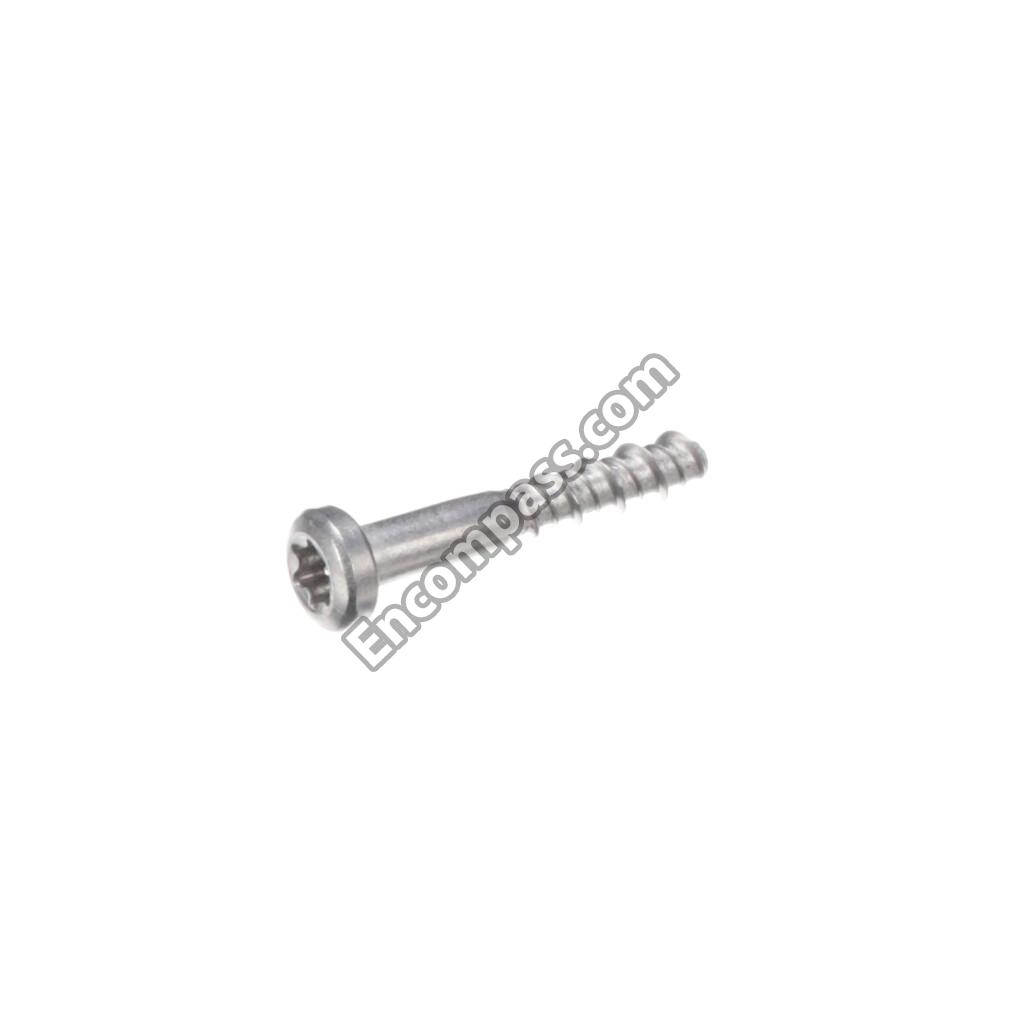

154200701 154200701 SCREW
154779601 154779601 SCREW
154754901 154754901 SCREW
154741501 154741501 SCREW
154041001 154041001 SCREW
154297701 154297701 SCREW
154103702 154103702 SCREW
154093301 154093301 SCREW
154754701 154754701 SCREW
154294701 154294701 SCREW
154825401 154825401 SCREW
154783101 154783101 SCREW
154793401 154793401 SCREW
154095701 154095701 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
154289801 154289801 SHIELD
154719301 154719301 SHIELD
154597801 154597801 SLIDE

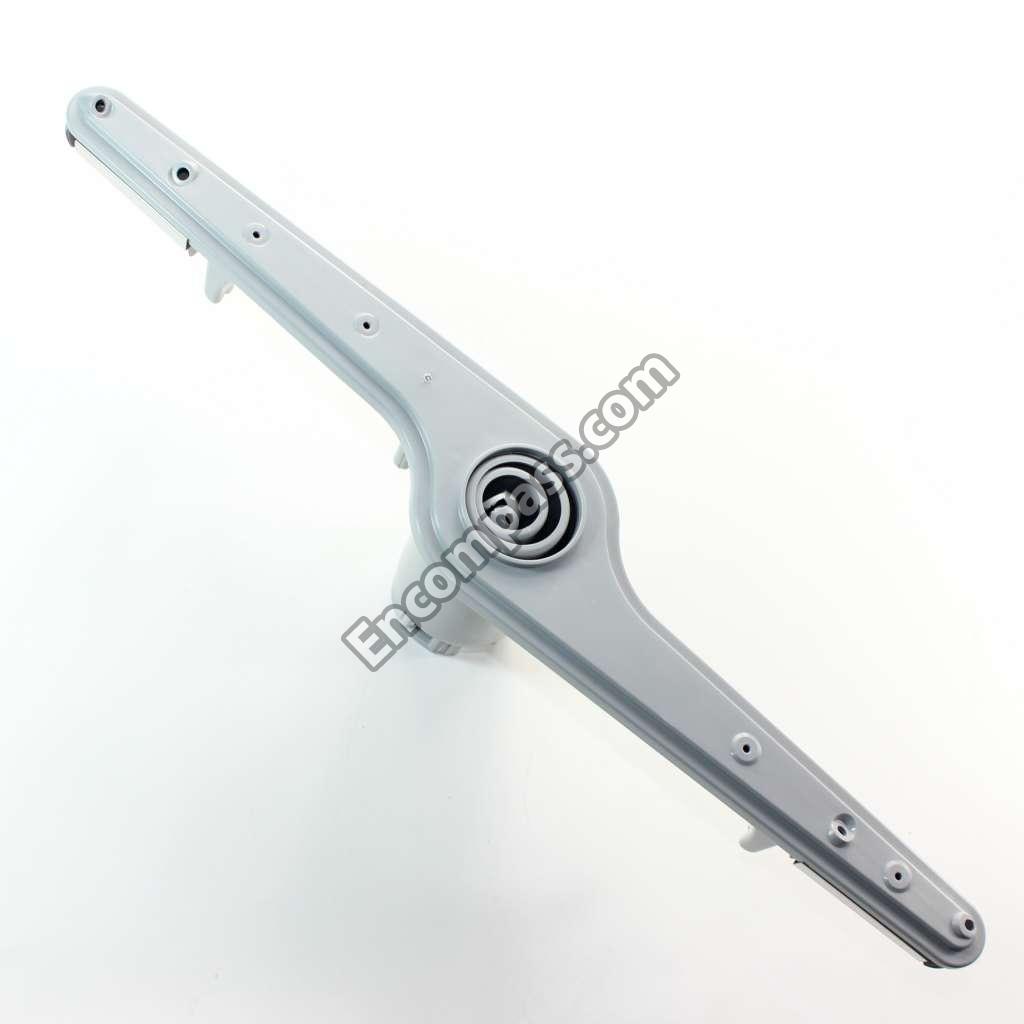

154567702 154567702 SPRAY ARM
154430501 154430501 SPRING
154662601 154662601 STRIKE

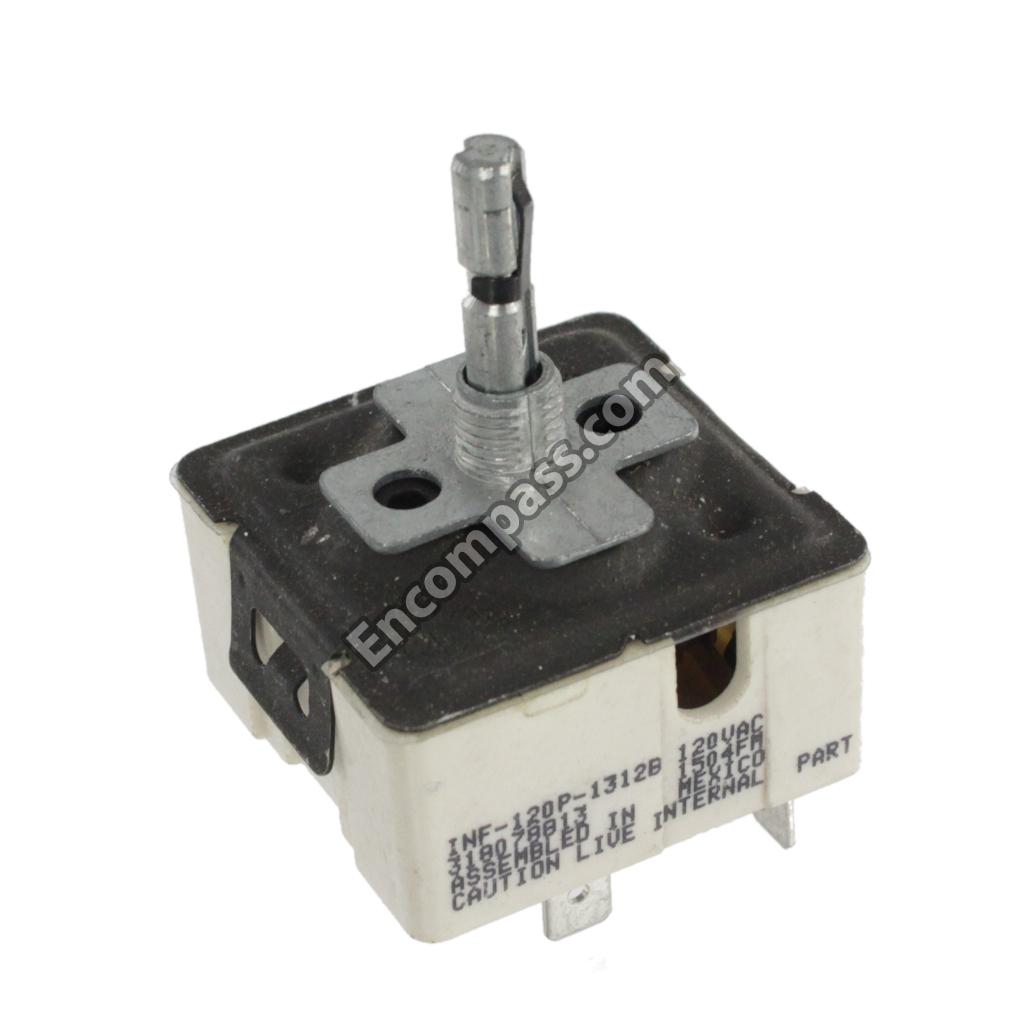

154240403 154240403 SWITCH
154773201 154773201 SWITCH ASSEMBLY FLOAT
154227811 154227811 THERMOSTAT
154642901 154642901 THERMOSTAT

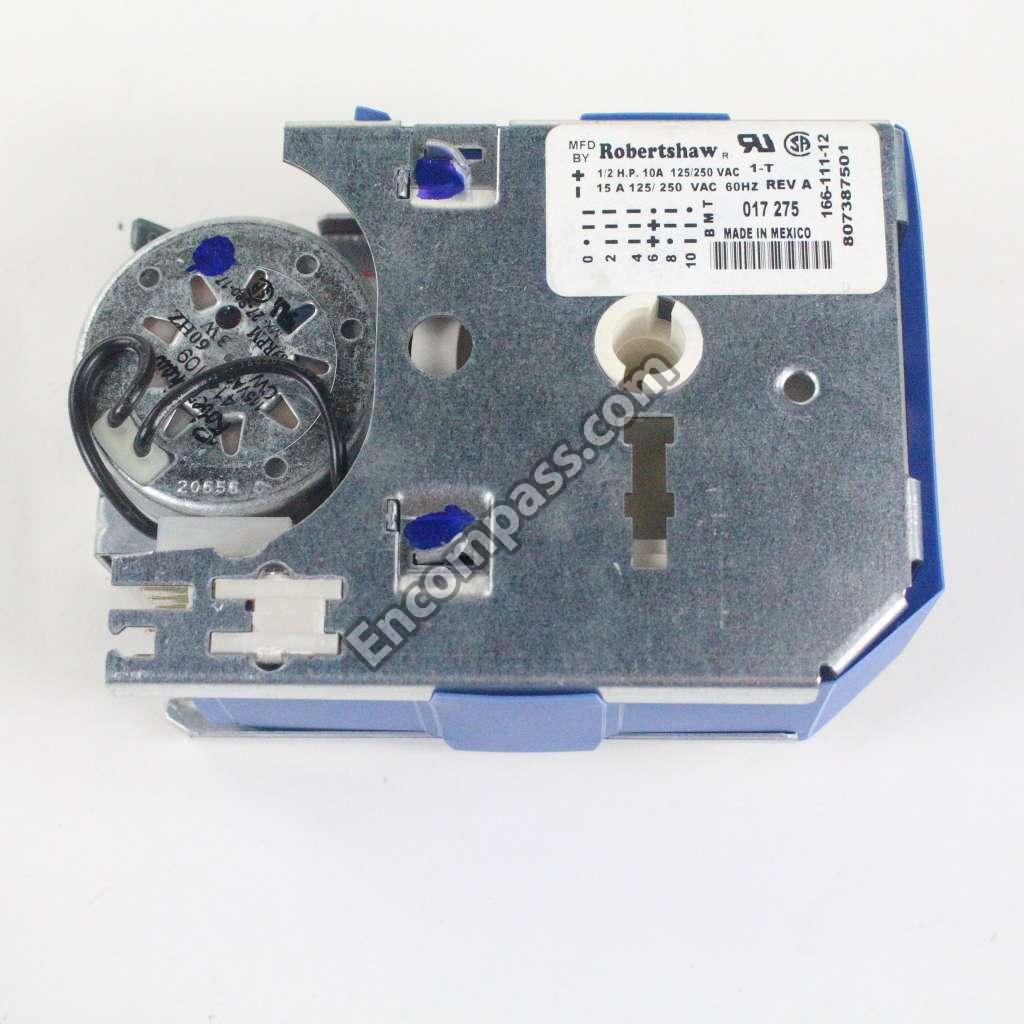

807387501 807387501 TIMER

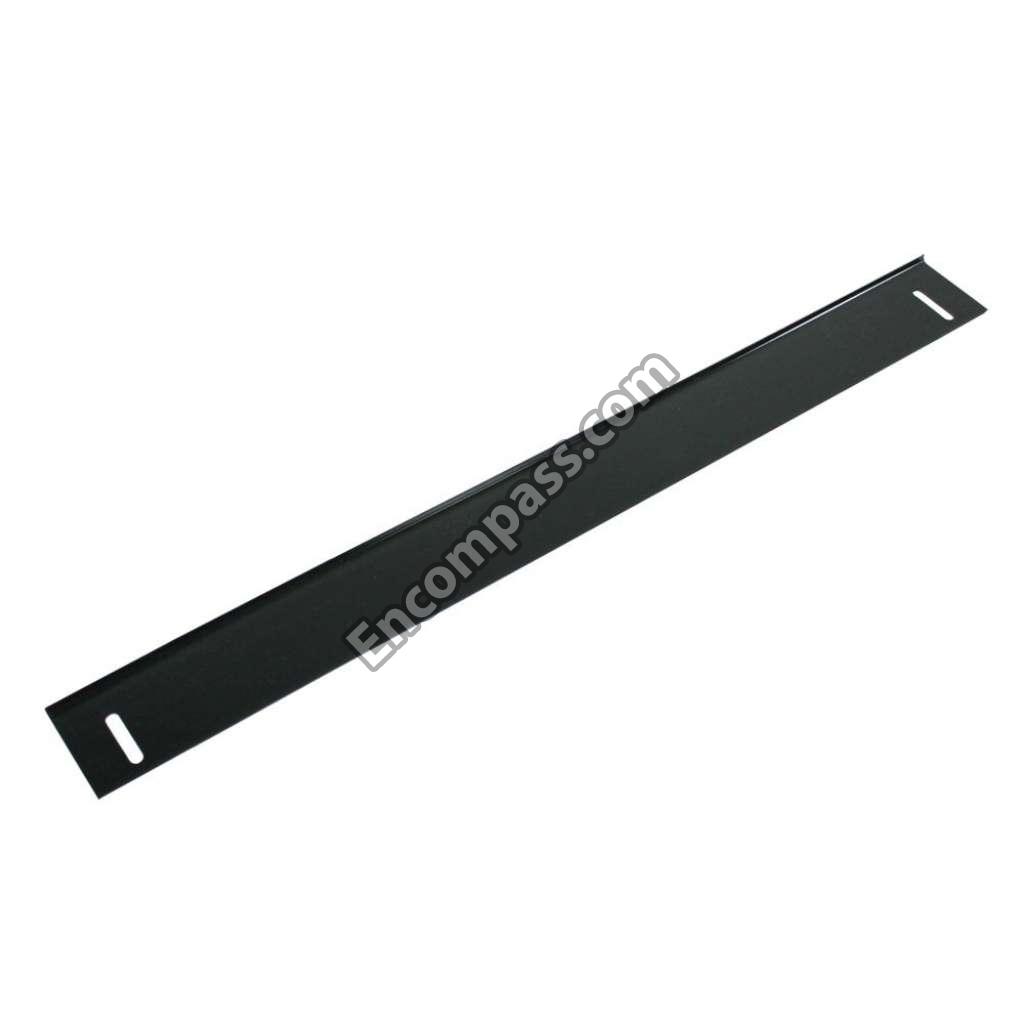

154745503 154745503 TOEPLATE
5304488410 5304488410 TUB ASSEMBLY

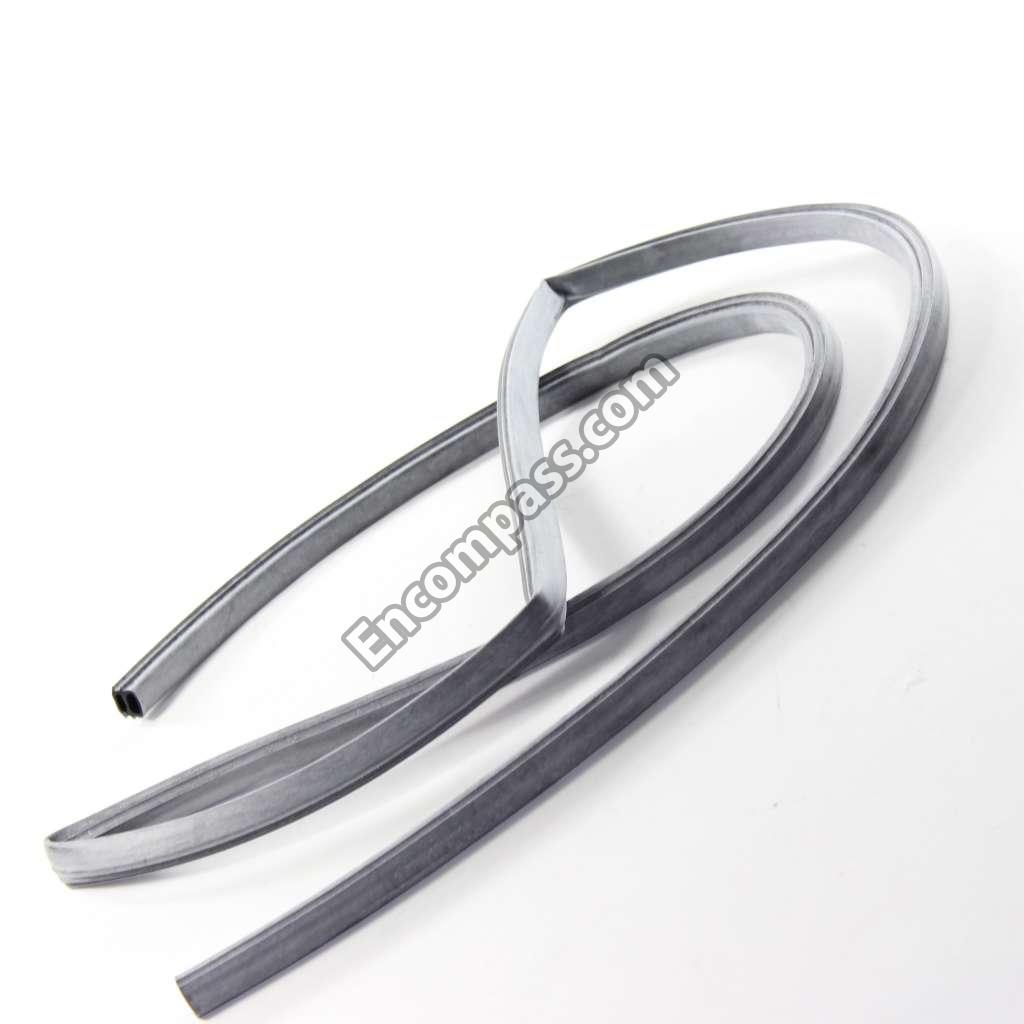

154827601 154827601 TUB GASKET

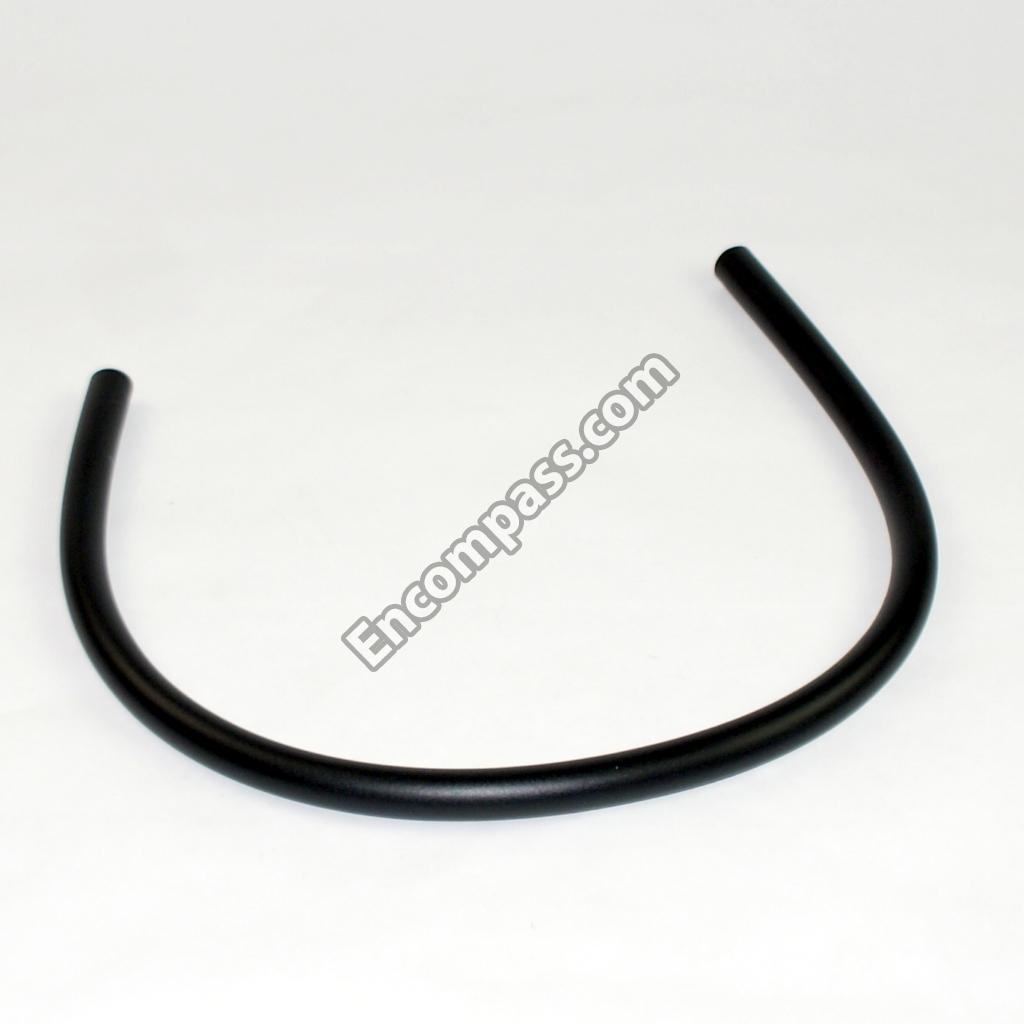

154446002 154446002 TUBING

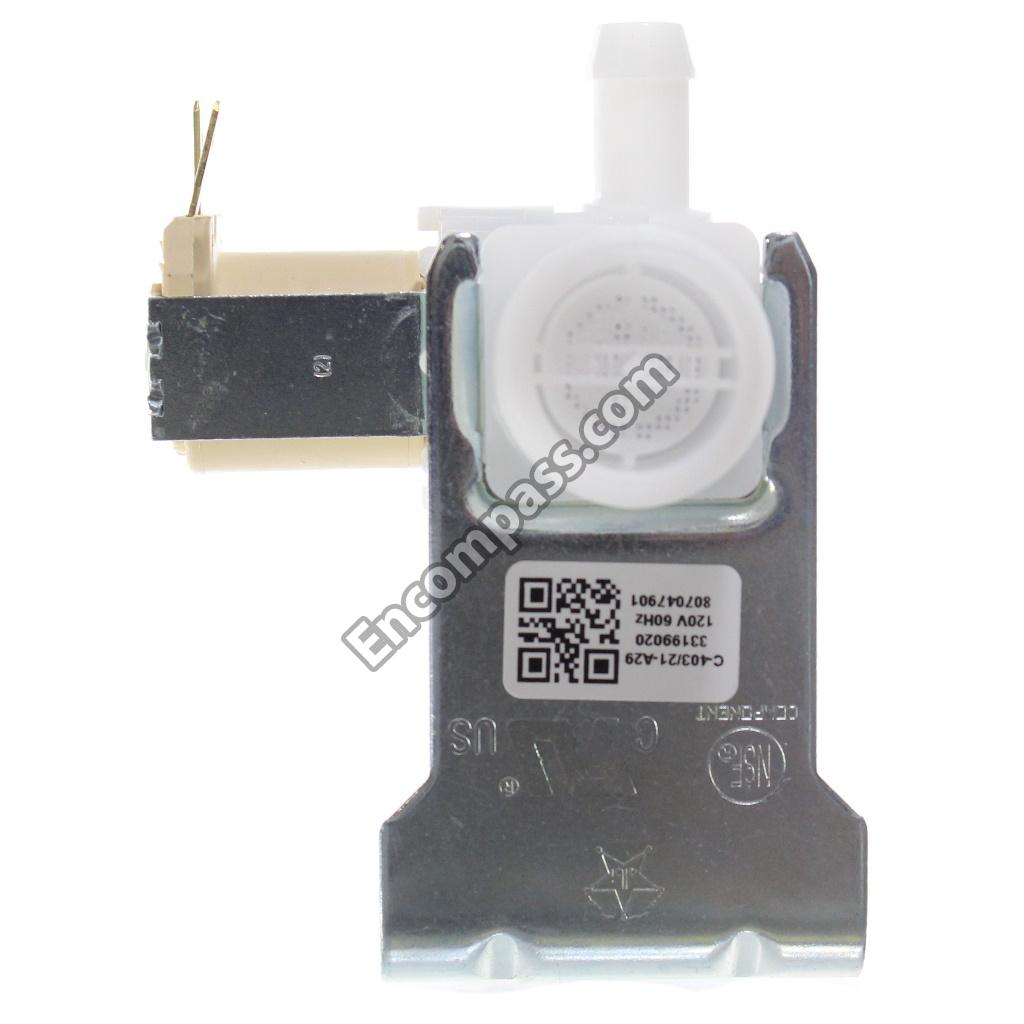

807047901 807047901 VALVE

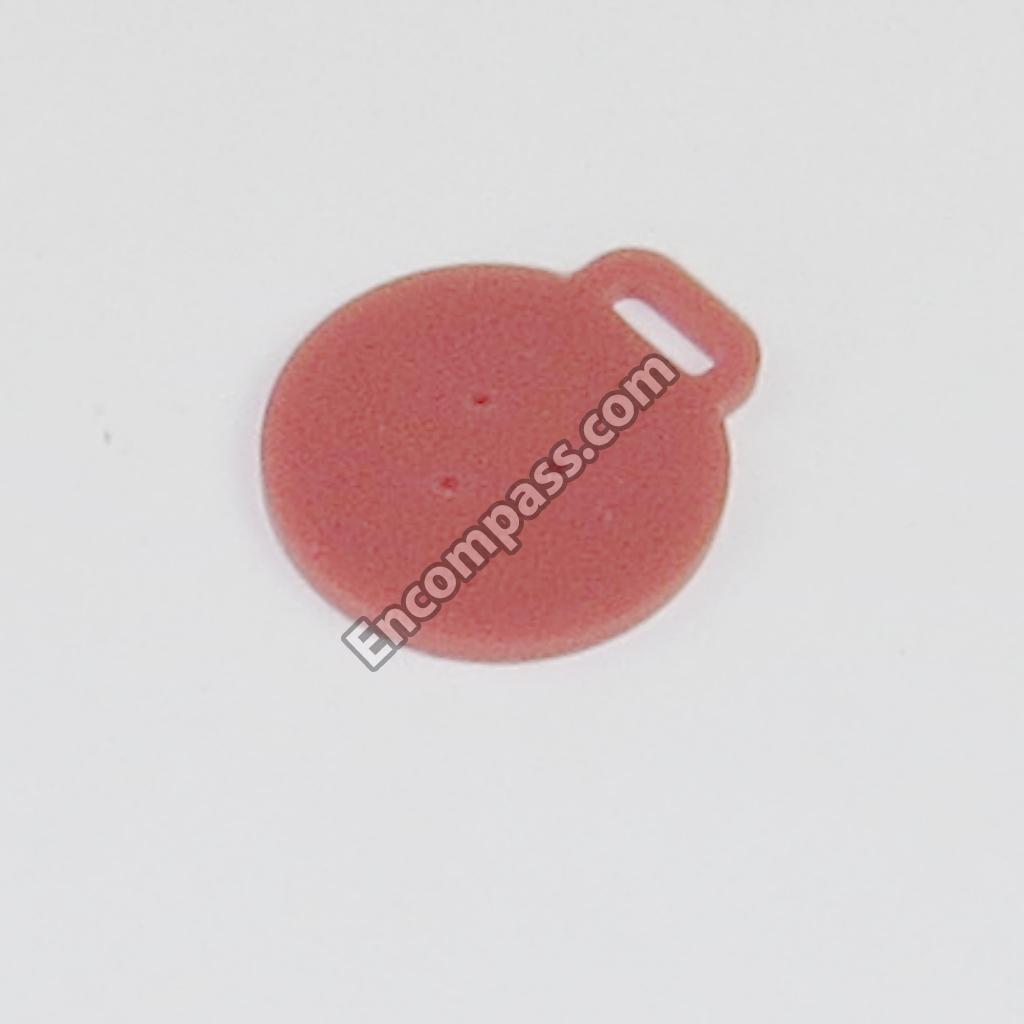

807048001 807048001 VALVEFLAPPER
154433001 154433001 VENT ASSEMBLY

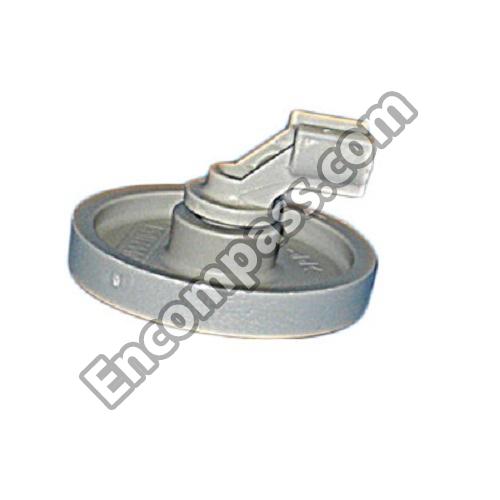

154174503 154174503 WHEEL & BRACKET ASS

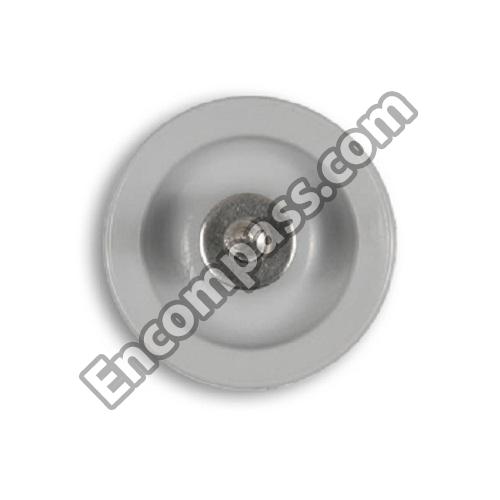

154522902 154522902 WHEEL & BUSHING ASS
