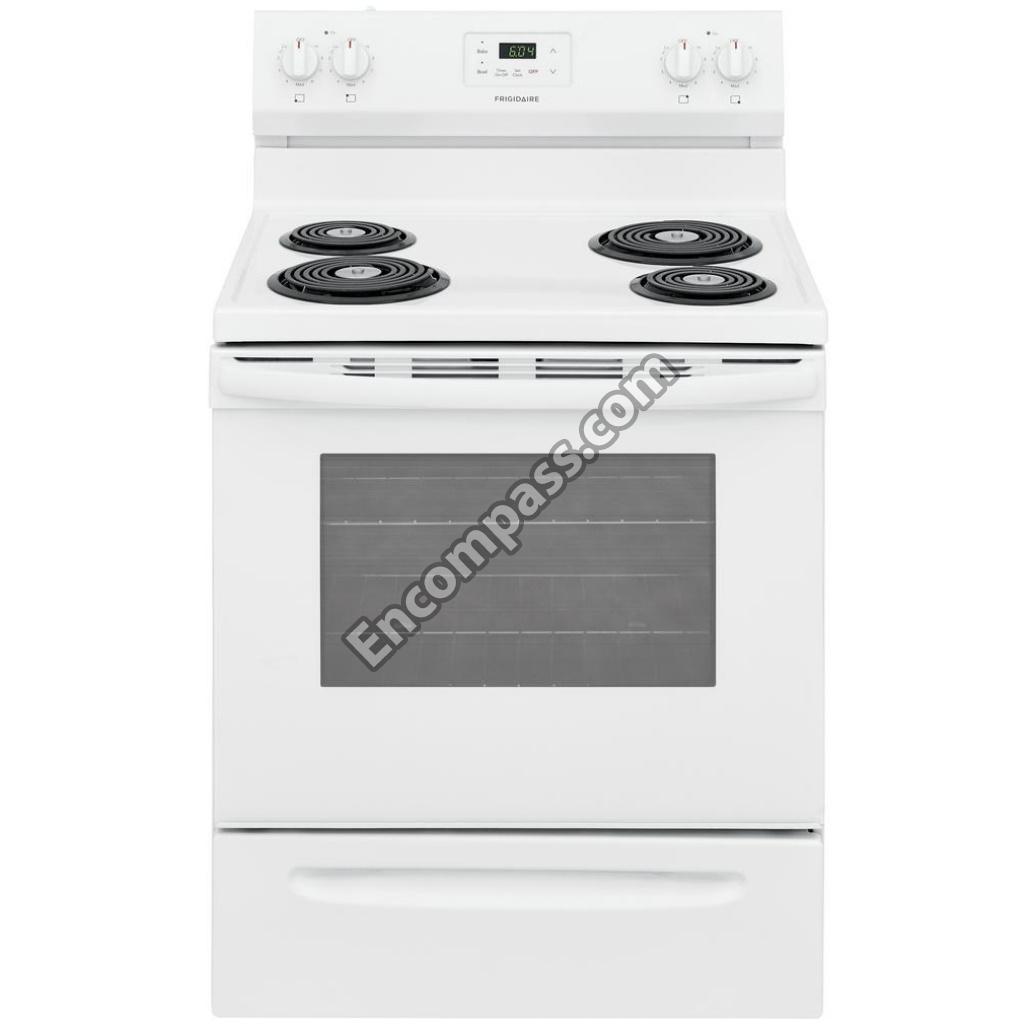

Manufacturer
Electrolux
Model Number
FCRC3012AWA
Description
Free Standing Electric Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BRACKET,REAR SUPPORT ,(2) |
|
|
CAP,END ,WHITE ,LH |
|
|
CAP,END ,WHITE ,RH |
|
|
COVER |
|
|
HARNESS,WIRING ,MAIN |
|
|
INSULATION,OVEN BACK |
|
|
KNOB,CONTROL ,WHITE |
|
|
PANEL,BACKGUARD ,WHITE |
|
|
PANEL,BODYSIDE ,WHITE ,LH |
|
|
PANEL,BODYSIDE ,WHITE ,RH |
|
|
RANGE ACCESS PANEL |
|
|
RANGE ANTI-TIP BRACKET KIT |
|
|
RANGE ANTI-TIP LABEL |
|
|
RANGE BAKE ELEMENT |
|
|
RANGE BODY SIDE PANEL CLIP |
|
|
RANGE BRACKET STIFFENER SCREW |
|
|
RANGE BROIL ELEMENT |
|
|
RANGE BROIL ELEMENT SUPPORT |
|
|
RANGE BROIL PAN AND INSERT |
|
|
RANGE CONCRETE COUNTERWEIGHT |
|
|
RANGE CONCRETE COUNTERWEIGHT BRACKET |
|
|
RANGE CONTROL PANEL BACK SHIELD |
|
|
RANGE DOOR BUMPER |
|
|
RANGE DRIP PAN |
|
|
RANGE DRIP PAN |
|
|
RANGE HEX FLANGE NUT, #10-32 X 3/8-IN |
|
|
RANGE HOLE PLUG |
|
|
RANGE INDICATOR LIGHT |
|
|
RANGE INDICATOR LIGHT LENS |
|
|
RANGE LEVELING LEG AND BRACKET ASSEMBLY, FRONT |
|
|
RANGE LEVELING LEG, REAR |
|
|
RANGE LIGHT SOCKET |
|
|
RANGE MAIN TOP (WHITE) |
|
|
RANGE MAIN TOP BURNER BOX |
|
|
RANGE MAIN TOP HINGE TAB |
|
|
RANGE MAIN TOP SUPPORT |
|
|
RANGE MAIN TOP WIRE HARNESS |
|
|
RANGE OVEN BOTTOM HEAT SHIELD |
|
|
RANGE OVEN BOTTOM PANEL |
|
|
RANGE OVEN BOTTOM PANEL BRACKET |
|
|

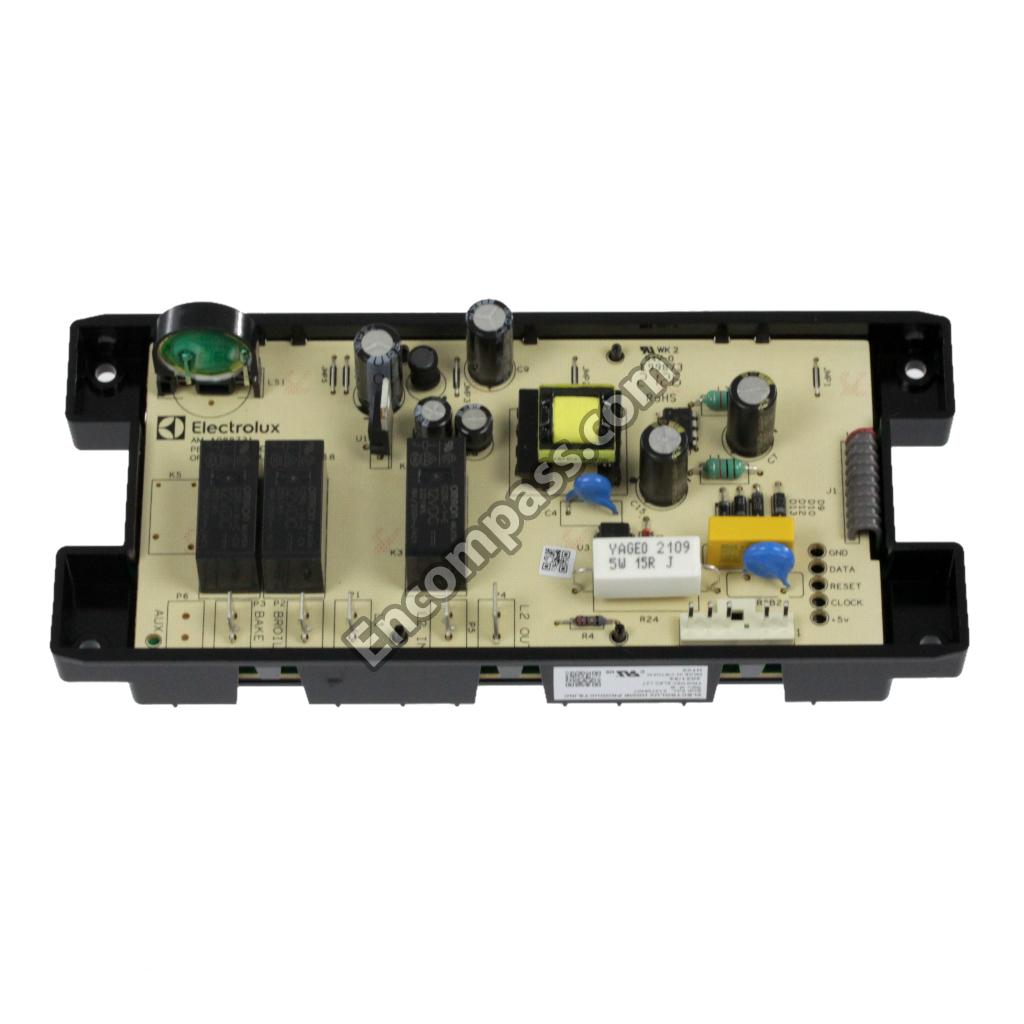

RANGE OVEN CONTROL BOARD |
|
|
RANGE OVEN CONTROL OVERLAY |
|
|
RANGE OVEN DOOR HANDLE (WHITE) |
|
|
RANGE OVEN DOOR HANDLE SCREW |
|
|
RANGE OVEN DOOR HEAT SHIELD |
|
|
RANGE OVEN DOOR HINGE |
|
|
RANGE OVEN DOOR HINGE RECEIVER |
|
|
RANGE OVEN DOOR INNER GLASS |
|
|
RANGE OVEN DOOR INSULATION |
|
|
RANGE OVEN DOOR LINER |
|
|
RANGE OVEN DOOR MIDDLE GLASS SPACER |
|
|
RANGE OVEN DOOR OUTER PANEL (WHITE) |
|
|
RANGE OVEN DOOR SEAL |
|
|
RANGE OVEN DOOR TRIM KIT |
|
|
RANGE OVEN DOOR VENT |
|
|
RANGE OVEN INSULATION |
|
|
RANGE OVEN INSULATION, LOWER |
|
|
RANGE OVEN LIGHT BULB |
|
|
RANGE OVEN LIGHT LENS |
|
|
RANGE OVEN LIGHT LENS RETAINER |
|
|
RANGE OVEN LIGHT ROCKER SWITCH (WHITE) |
|
|
RANGE OVEN RACK |
|
|
RANGE OVEN TEMPERATURE SENSOR |
|
|
RANGE OVEN VENT |
|
|
RANGE POWER CORD MOUNTING BRACKET |
|
|
RANGE REAR PANEL |
|
|
RANGE REAR PANEL COVER |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW |
|
|
RANGE SCREW, #10-32 X 5/16-IN |
|
|
RANGE SCREW, #8-18 X 1/2-IN |
|
|
RANGE SHOULDER SCREW, #8-18 X 1/2-IN |
|
|
RANGE SIDE PANEL SUPPORT BRACKET |
|
|
RANGE STORAGE DRAWER |
|
|
RANGE STORAGE DRAWER FRONT PANEL (WHITE) |
|
|
RANGE STORAGE DRAWER FRONT PANEL LINER |
|
|
RANGE STORAGE DRAWER INNER SLIDE RAIL, LEFT |
|
|
RANGE STORAGE DRAWER SLIDE RAIL, LEFT OUTER (BL... |
|
|
RANGE STORAGE DRAWER SLIDE RAIL, RIGHT INNER (B... |
|
|
RANGE STORAGE DRAWER SLIDE RAIL, RIGHT OUTER (B... |
|
|
RANGE SURFACE ELEMENT CONTROL SWITCH |
|
|
RANGE SURFACE ELEMENT CONTROL SWITCH |
|
|
RANGE SURFACE ELEMENT, 6-IN |
|
|
RANGE SURFACE ELEMENT, 8-IN |
|
|
RANGE TERMINAL BLOCK |
|
|
RANGE TERMINAL BLOCK GROUNDING STRAP PLATE |
|
|
RANGE TERMINAL BLOCK GROUNDING STRAP PLATE |
|
|
SCREW (BLACK) |
|
|
SHIELD,BACKGUARD ,WHITE ,INNER |
|
|
WIRE CLIP |
