Manufacturer
Electrolux
Model Number
FCRG3052ABC
Description
Frigidaire 30'' Gas Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|

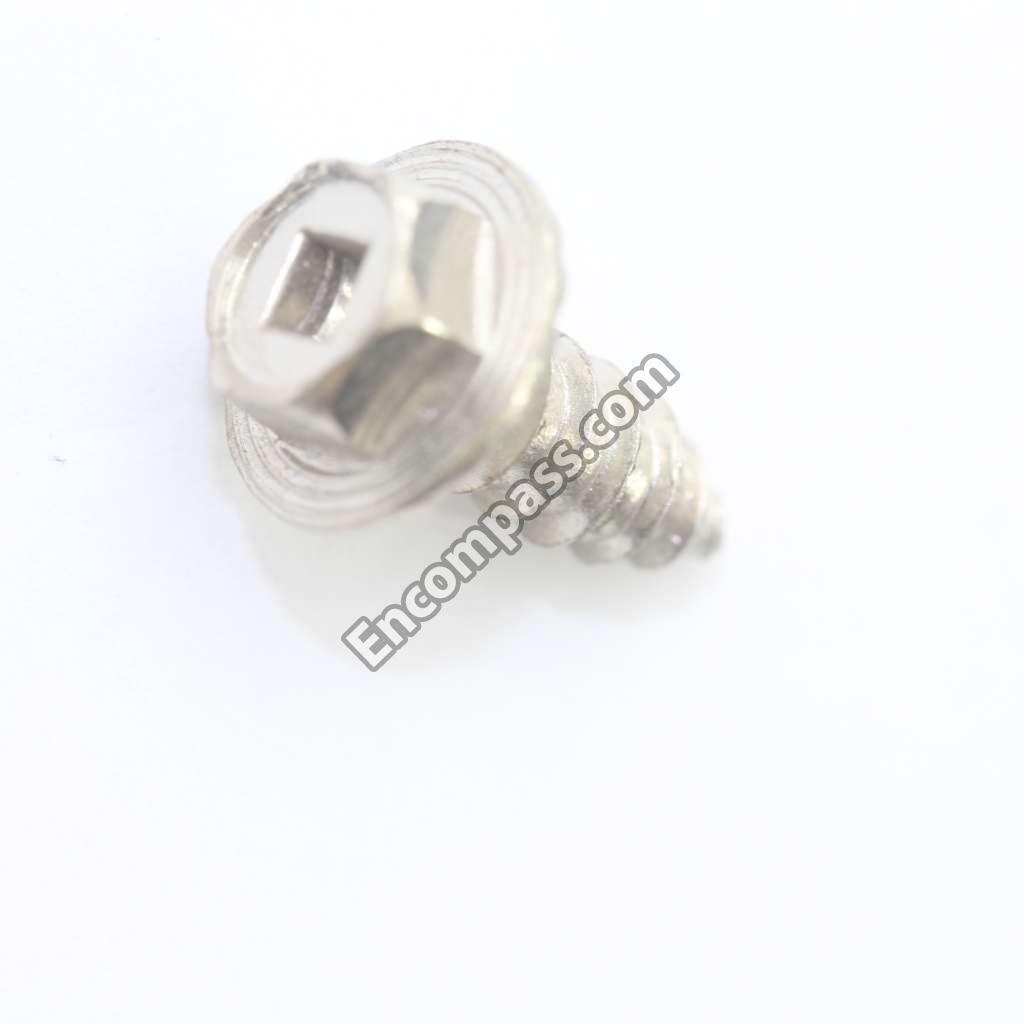

241853202 |
APPLIANCE SCREW, #8-18 X 0.63-IN |
|
316401608 |
BACK,MAIN |
|
316437100 |
BRACE |
|
316401202 |
BRACKET,HARNESS |
|
5304493646 |
CAP |
|
5304493644 |
CAP |
|
808754506 |
CAP,END ,WHITE ,LH |
|

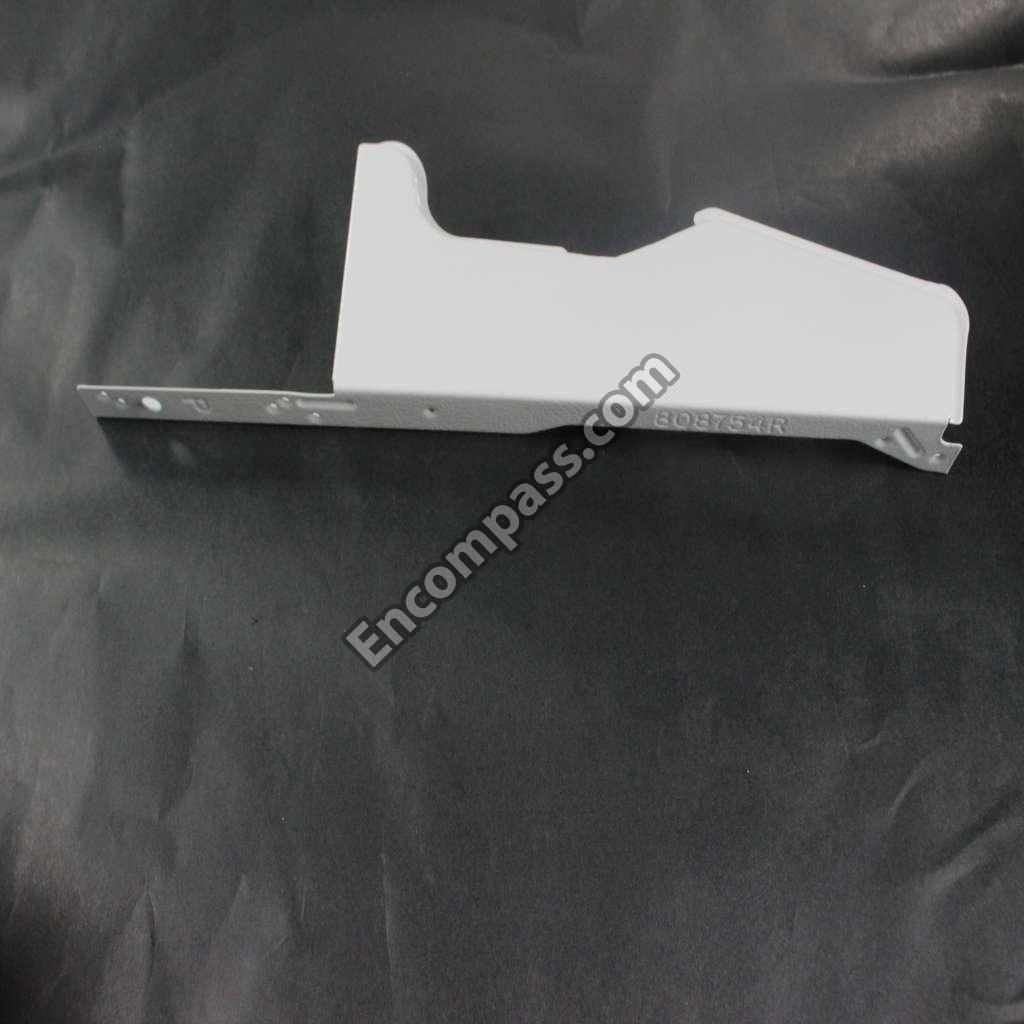

808754505 |
CAP,END ,WHITE ,RH |
|

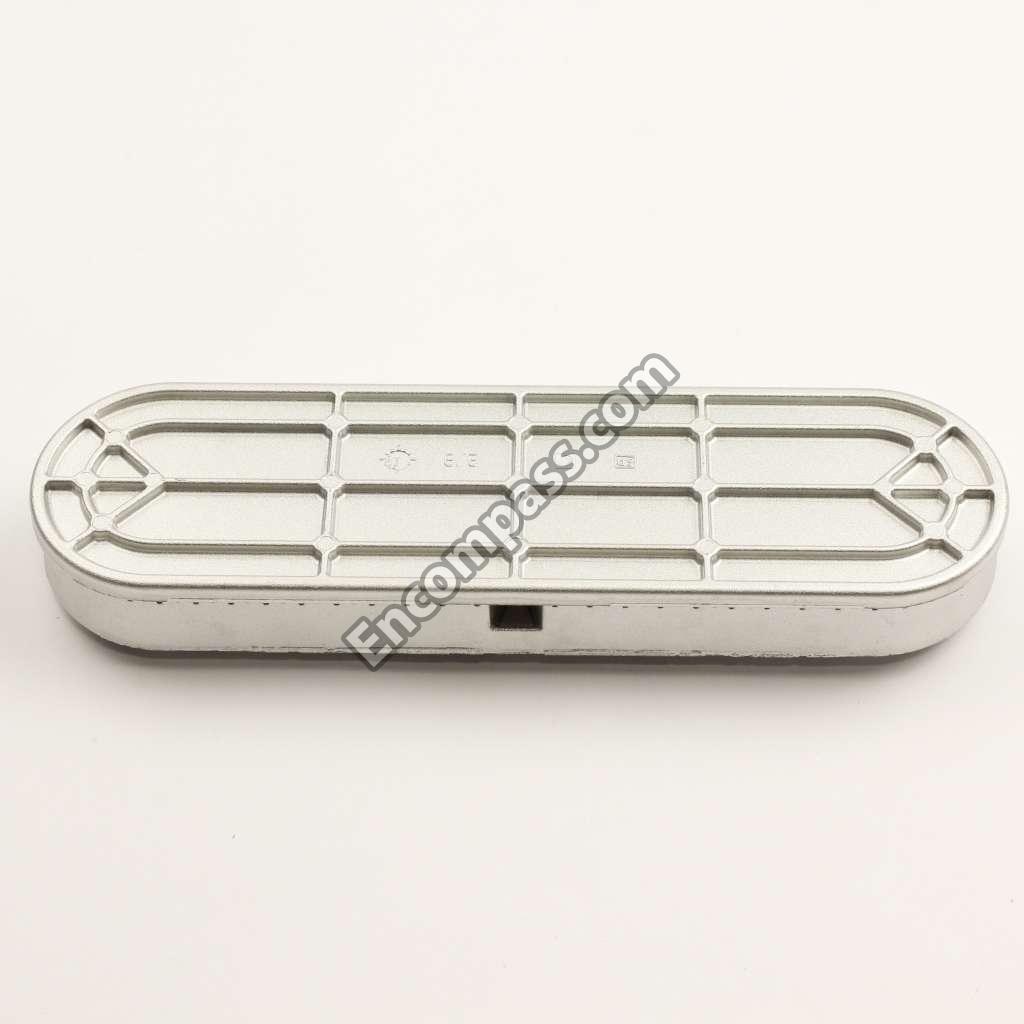

5304527843 |
CAP-BURNER |
|
5304527844 |
CAP-BURNER |
|
5304524590 |
CAP-BURNER |
|
5304527846 |
CAP-BURNER |
|
316432800 |
CLIP |
|

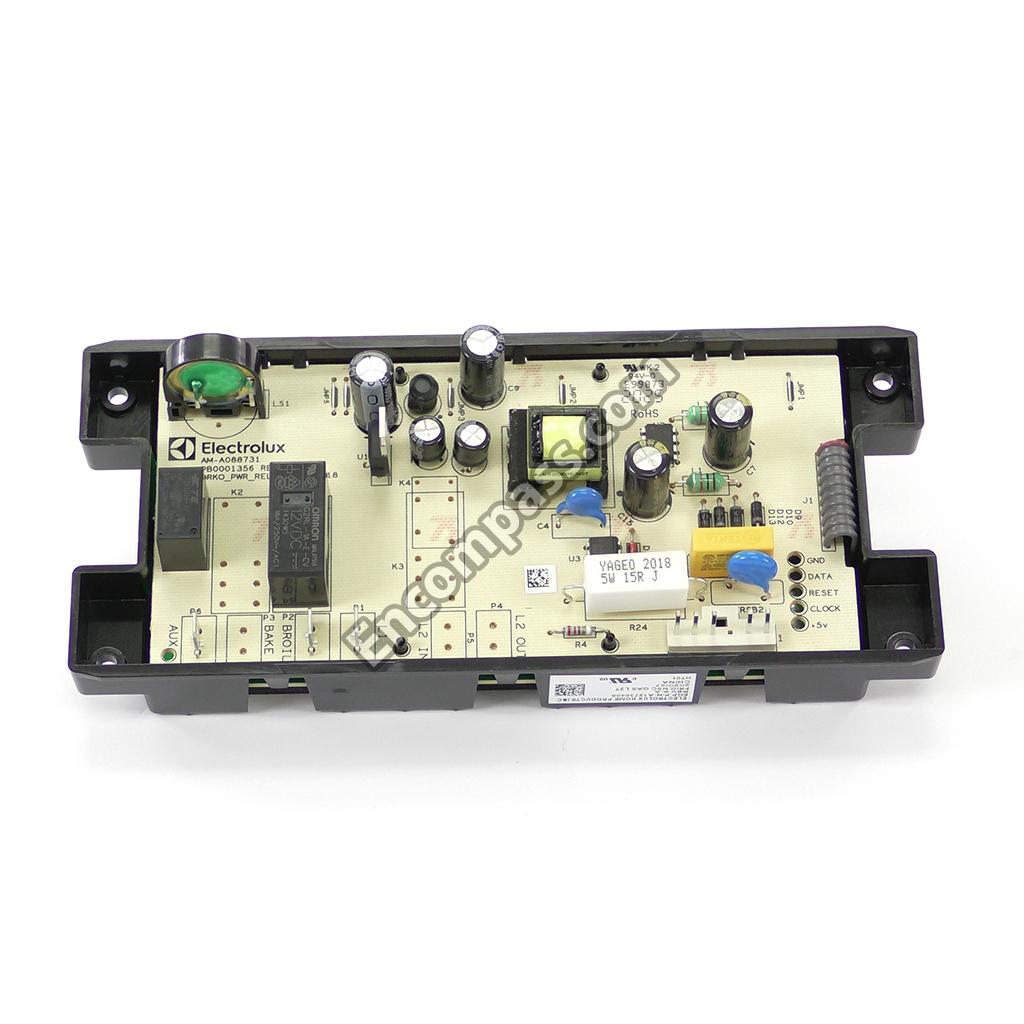

5304521341 |
CONTROL,ELECTRONIC ,ES100 |
|
5304520383 |
COVER |
|
808754601 |
DEFLECTOR |
|
808754602 |
DEFLECTOR,BACKGUARD ,LIGHT GREY |
|
5304521340 |
ELEMENT,BROIL |
|

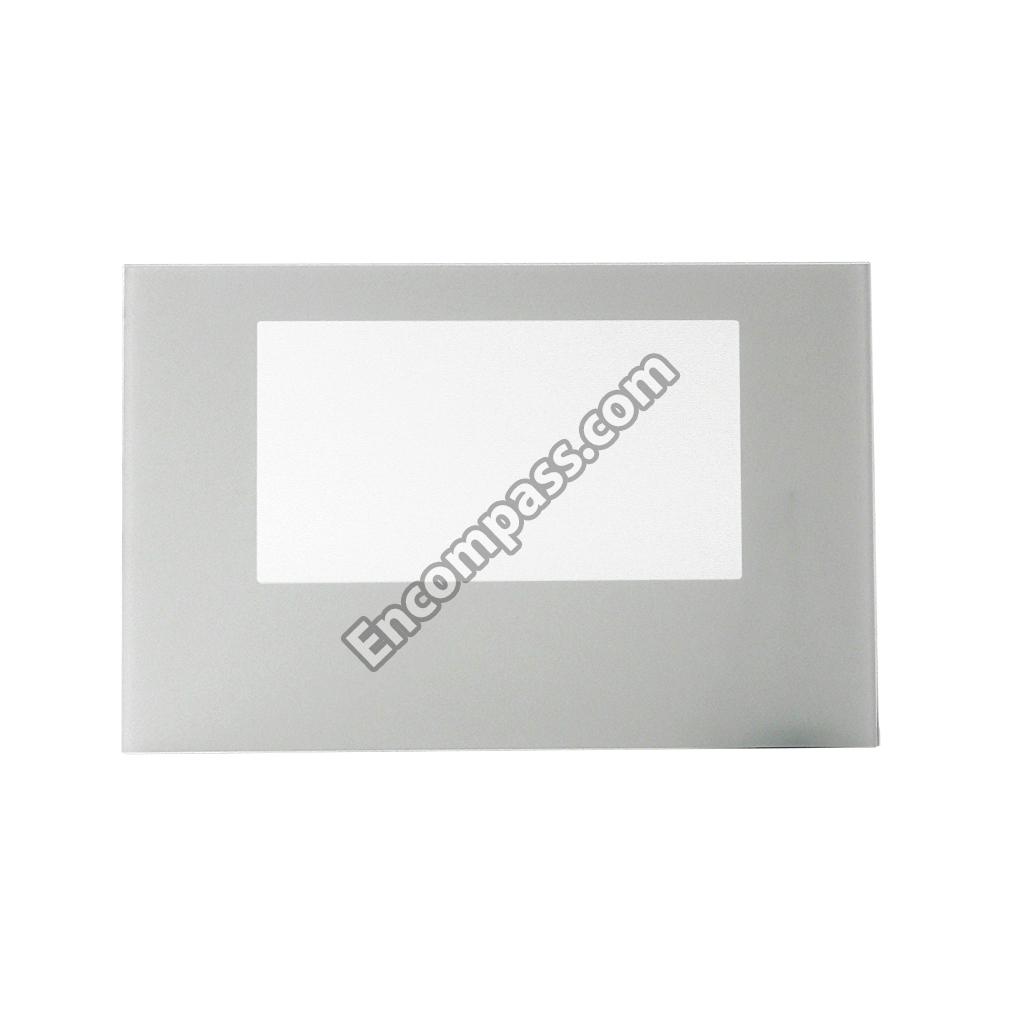

316558905 |
GLASS,OVEN DOOR ,WHITE ,OUTER |
|
5304524341 |
GLASS-OVEN DOOR |
|
5304527991 |
HARNESS |
|
5304520710 |
HARNESS,WIRING ,MAIN |
|
316403603 |
INSULATION,OVEN BACK |
|
316403702 |
INSULATION,OVEN WRAPPER |
|
5304527988 |
LINER |
|
316610005 |
MAIN |
|
316605401 |
MAIN BRACKET |
|
316605400 |
MAIN BRACKET |
|
316575901 |
OVEN HINGE |
|
316605325 |
PANEL |
|
5304519435 |

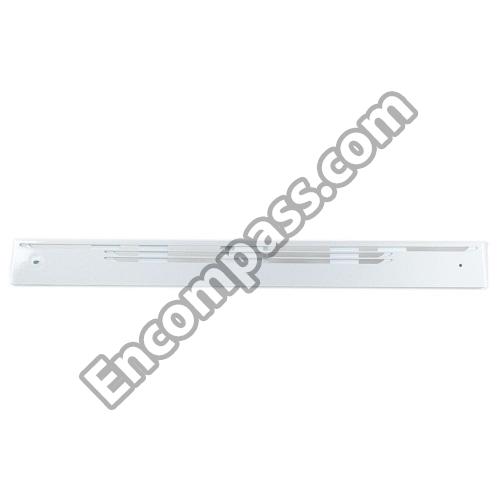

PANEL,BACKGUARD ,BLACK |
|
5304519434 |
PANEL,BACKGUARD ,WHITE |
|
316400143 |
PANEL,BODYSIDE ,WHITE ,LH |
|
316400142 |
PANEL,BODYSIDE ,WHITE ,RH |
|

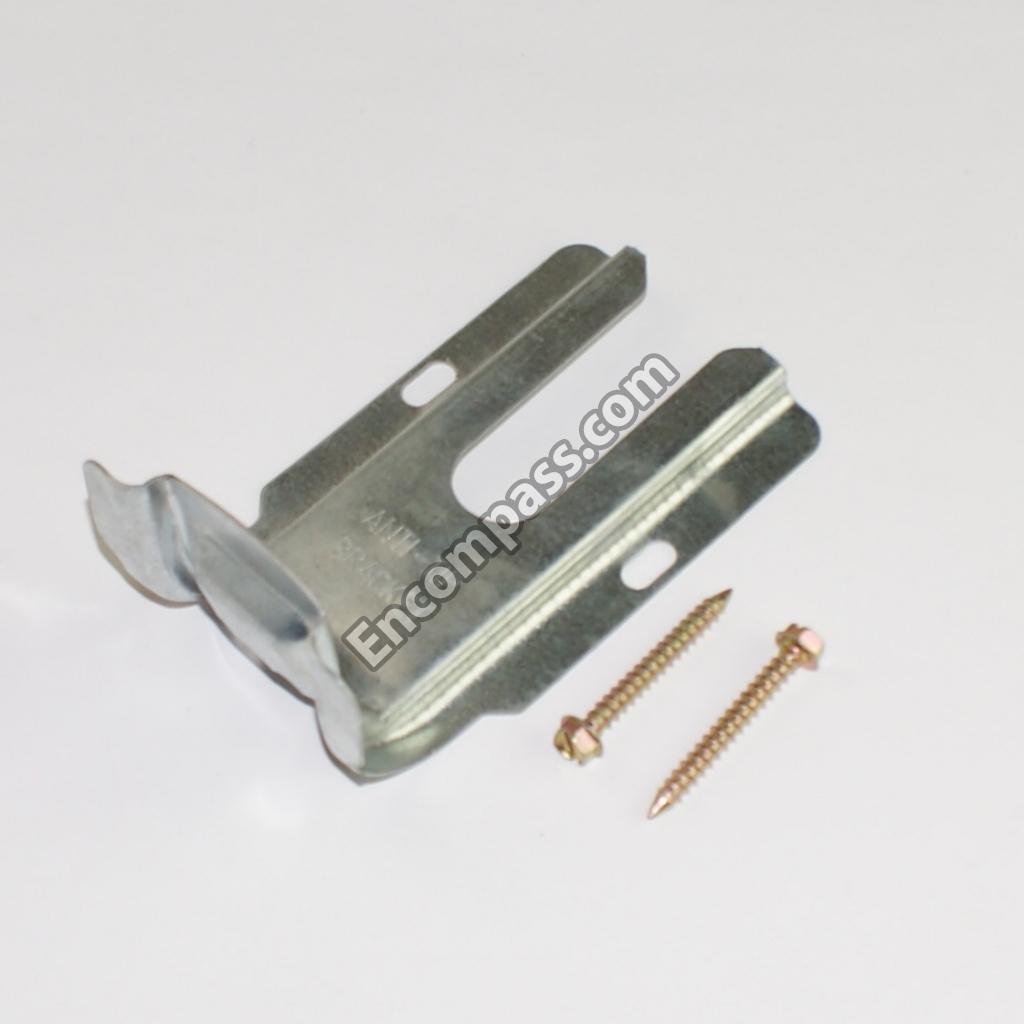

316112005 |
RANGE ANTI-TIP BRACKET KIT |
|
316483102 |
RANGE ANTI-TIP LABEL |
|
316404400 |

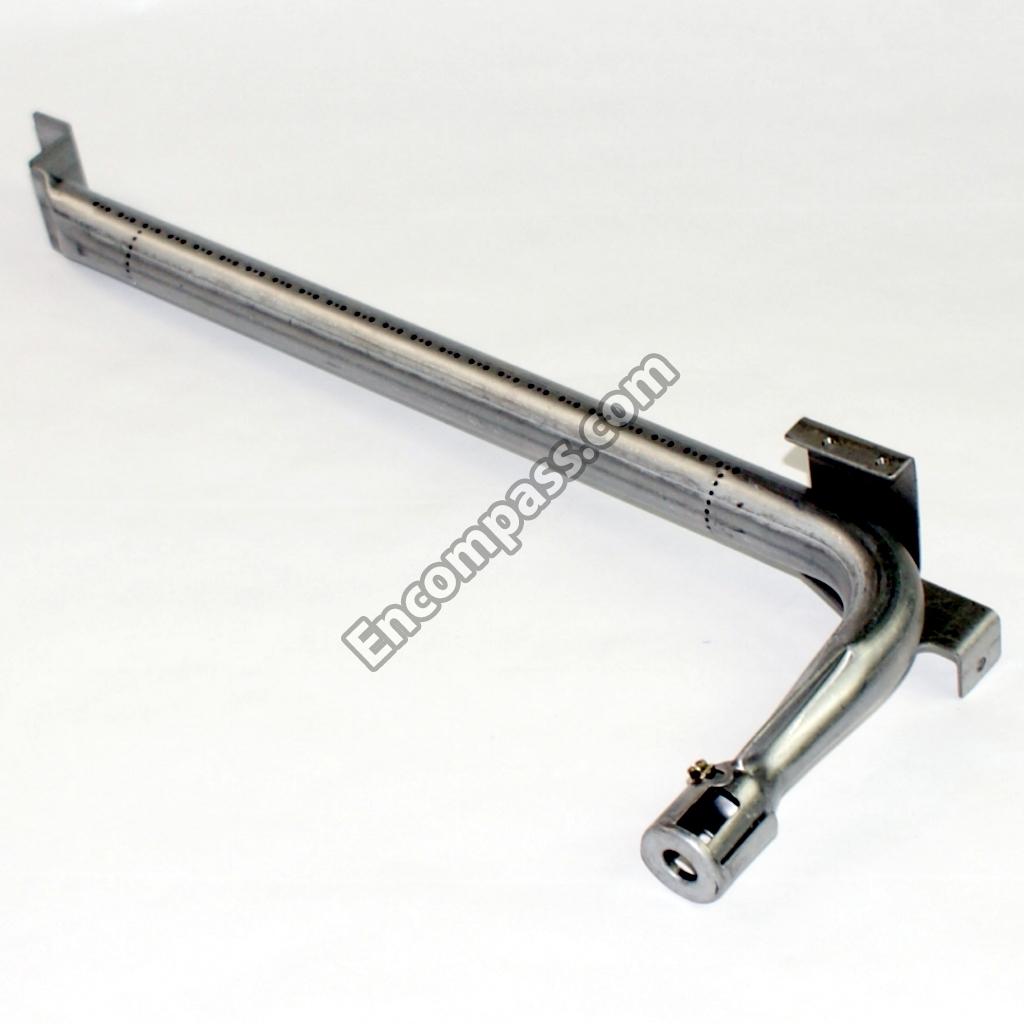

RANGE BAKE BURNER |
|
5304519024 |
RANGE BAKE BURNER BAFFLE |
|
316400801 |
RANGE BAKE BURNER SHIELD |
|
316408000 |
RANGE BODY SIDE PANEL CLIP |
|
316279600 |
RANGE BRACKET STIFFENER SCREW |
|
316281802 |
RANGE CONTROL PANEL BACK SHIELD |
|
316230708 |
RANGE CONTROL PANEL INNER SHIELD |
|
316517600 |
RANGE DOOR BUMPER |
|
316210800 |
RANGE HOLE PLUG |
|

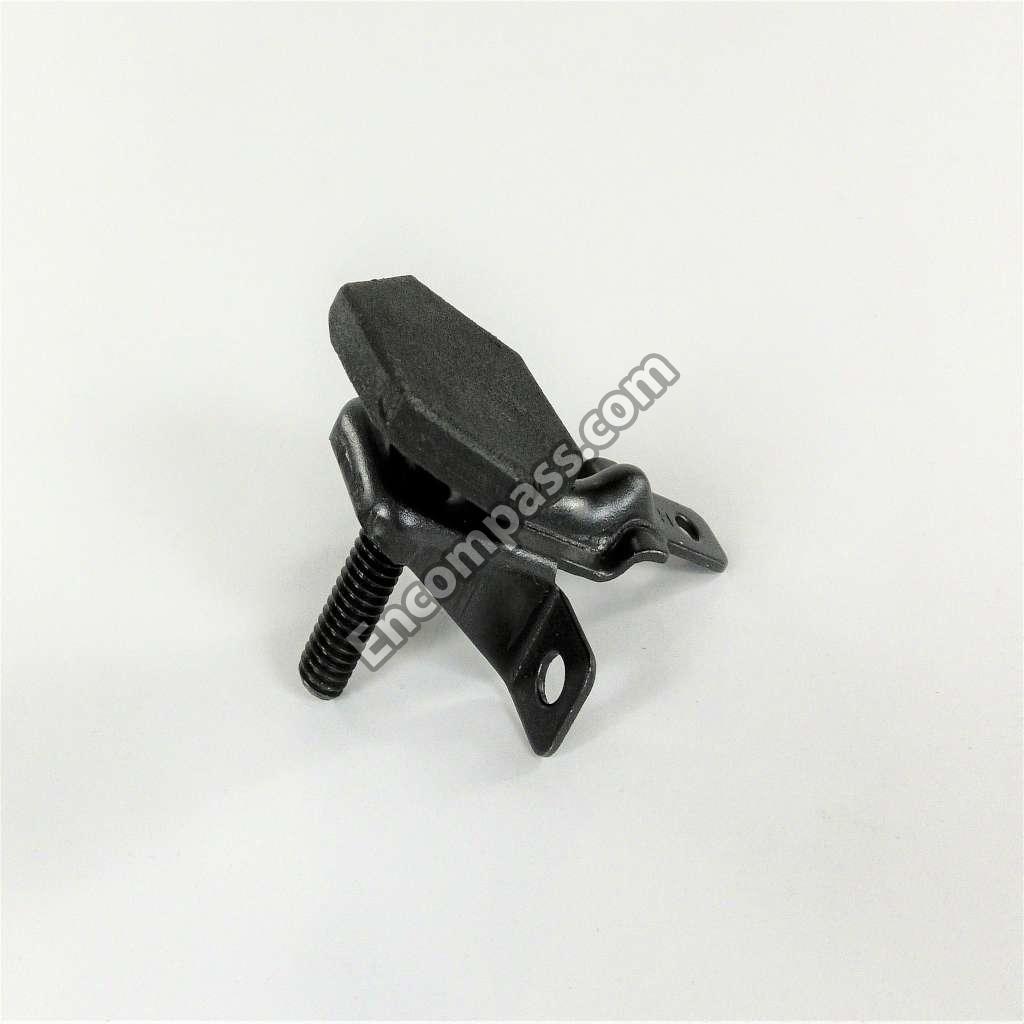

5304509869 |
RANGE LEVELING LEG AND BRACKET ASSEMBLY, FRONT |
|

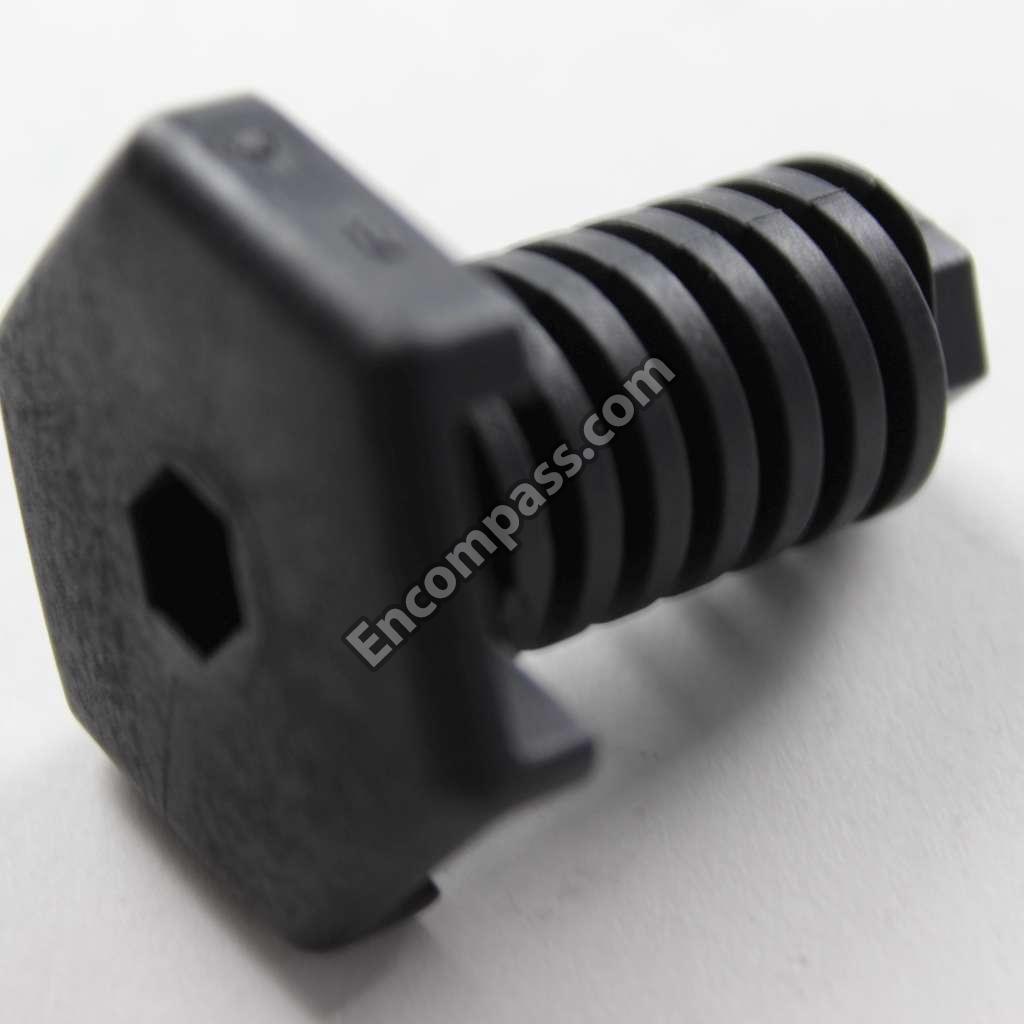

316272900 |
RANGE LEVELING LEG, REAR |
|
316116400 |

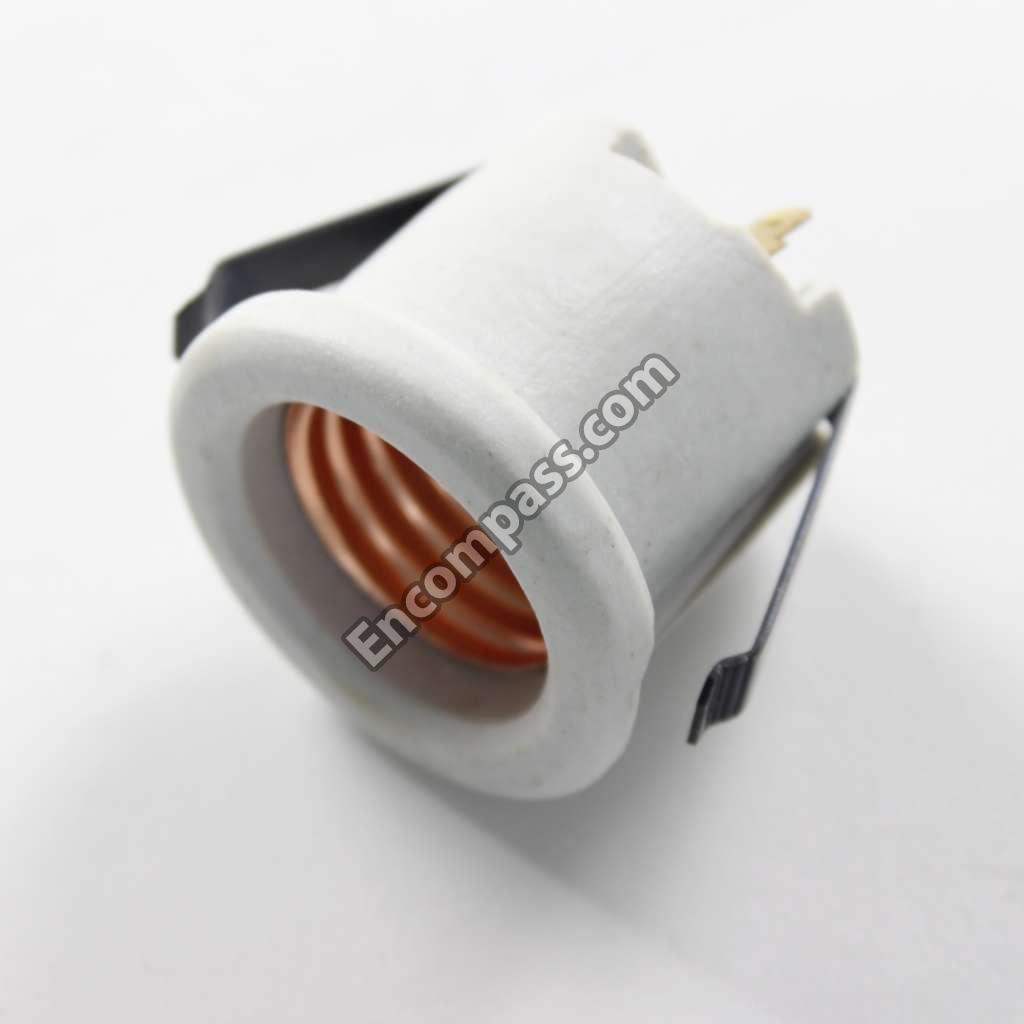

RANGE LIGHT SOCKET |
|
316542416 |
RANGE LP CONVERSION KIT |
|

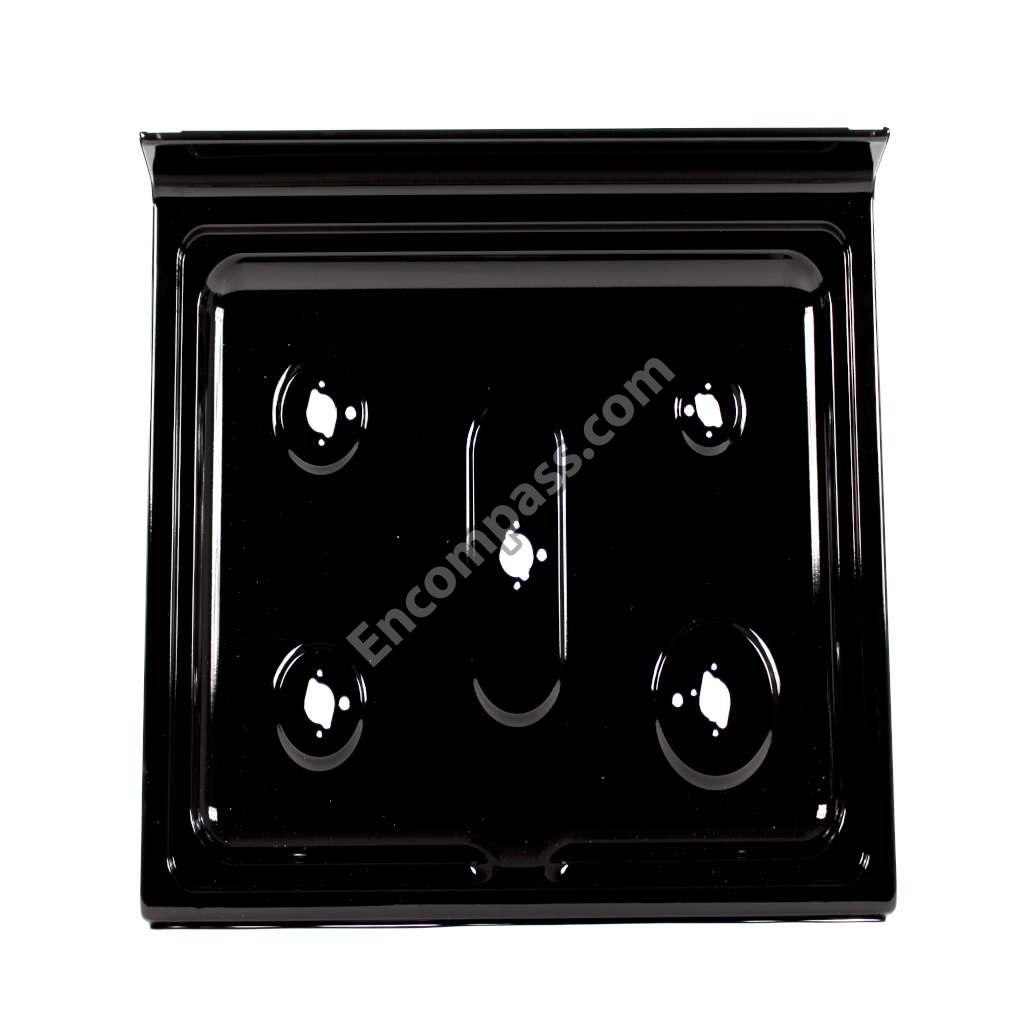

316610006 |
RANGE MAIN TOP (BLACK) |
|
316406200 |
RANGE OVEN BOTTOM HEAT SHIELD |
|

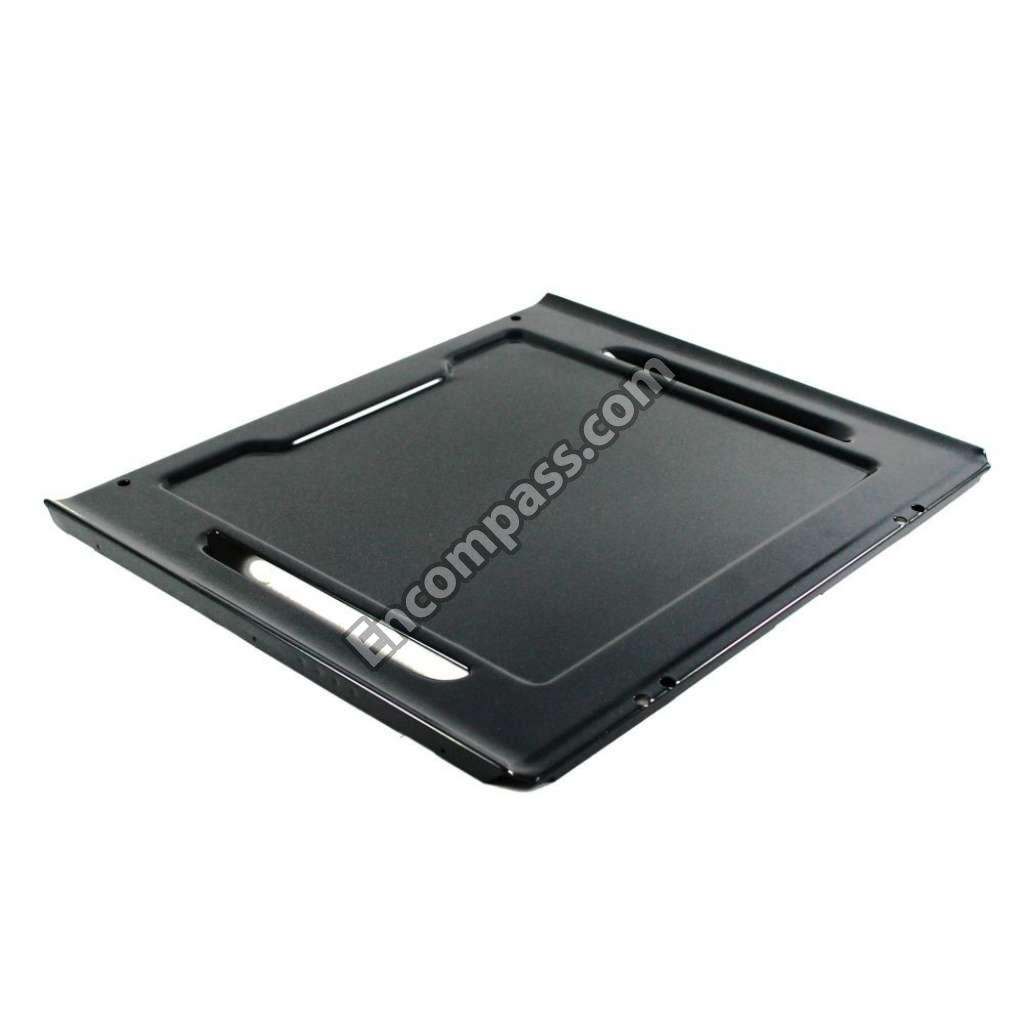

316400603 |
RANGE OVEN BOTTOM PANEL |
|

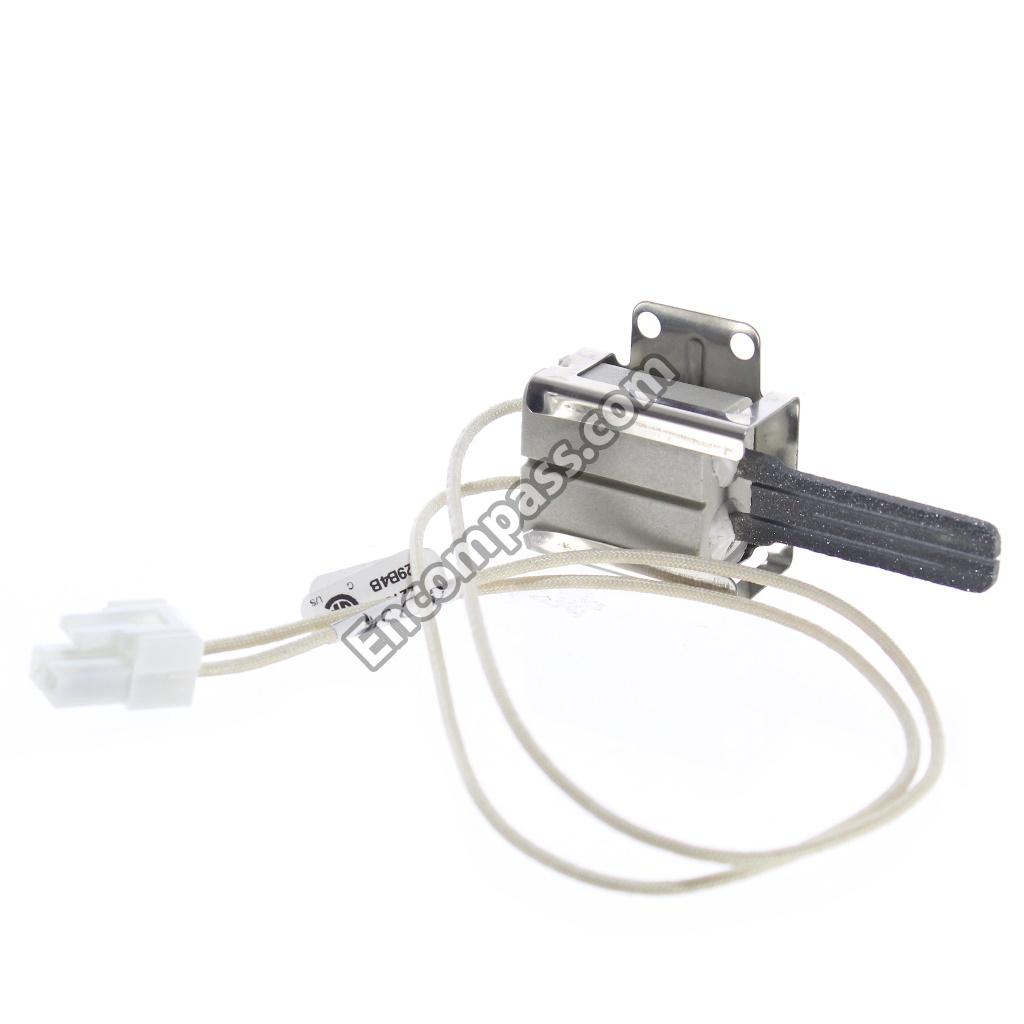

316489403 |
RANGE OVEN BURNER IGNITER |
|
316220728 |

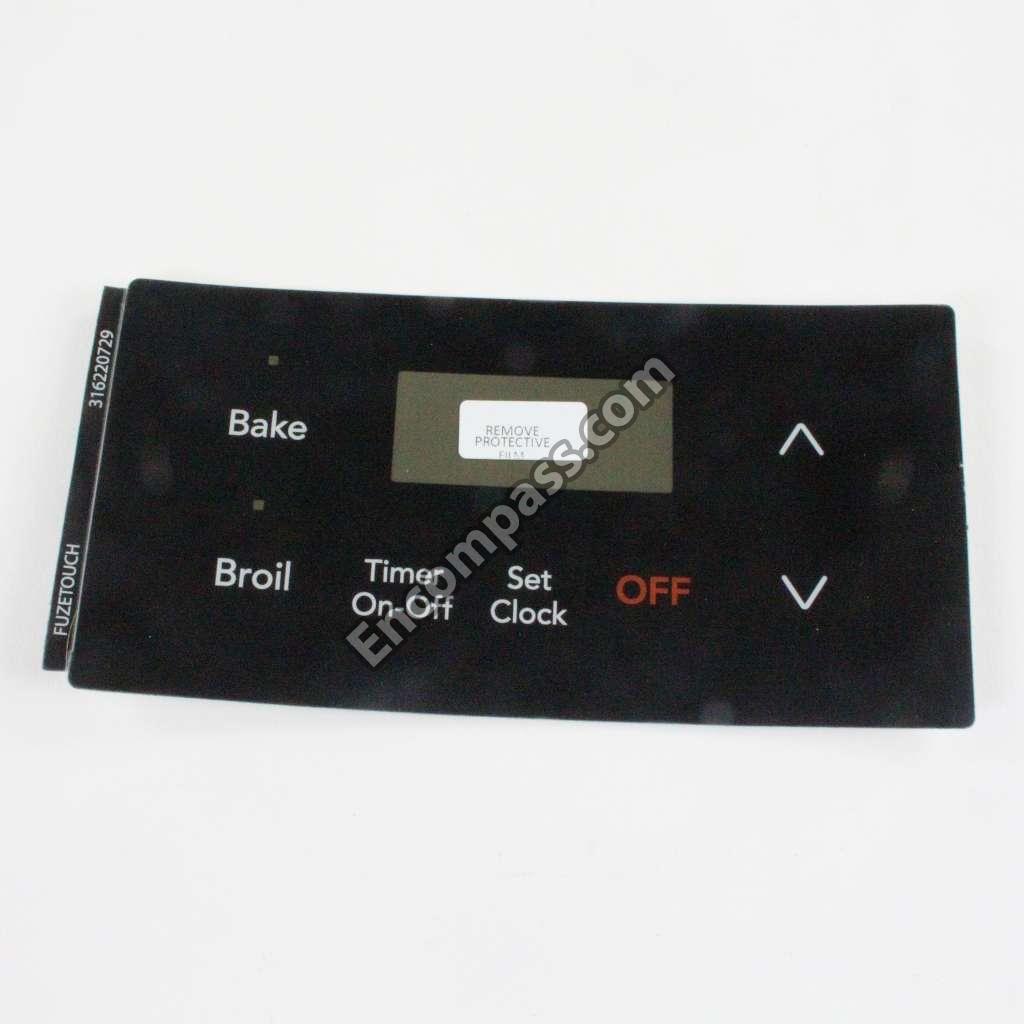

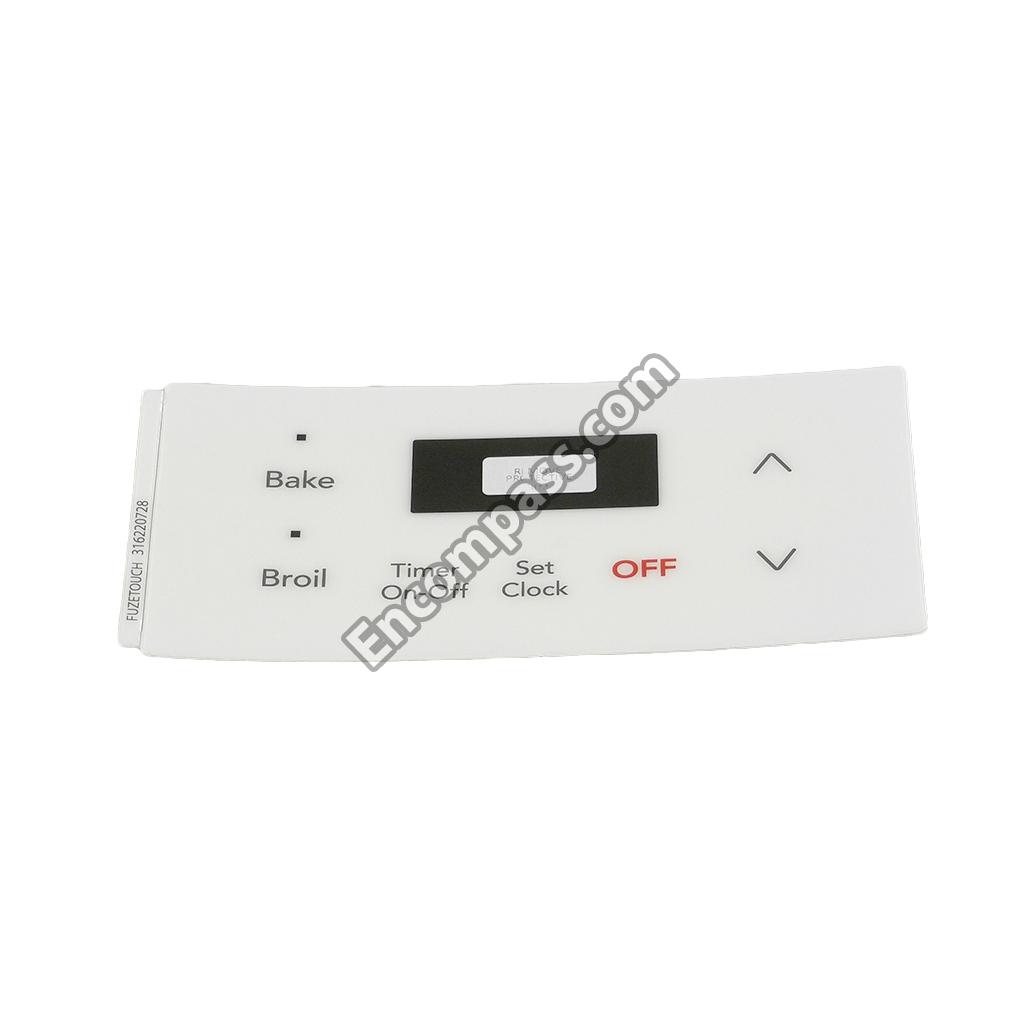

RANGE OVEN CONTROL OVERLAY |
|
316220729 |
RANGE OVEN CONTROL OVERLAY (BLACK) |
|

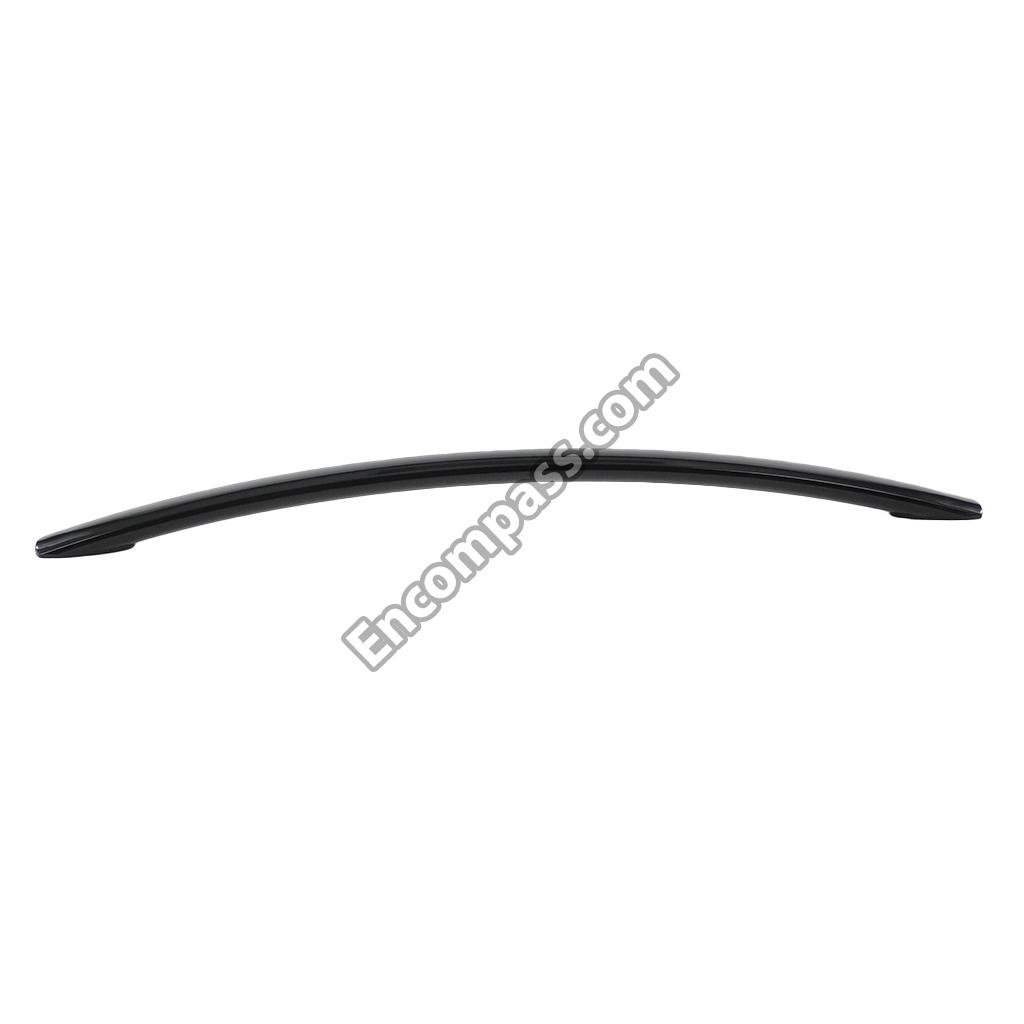

5304522046 |
RANGE OVEN DOOR HANDLE (BLACK) |
|

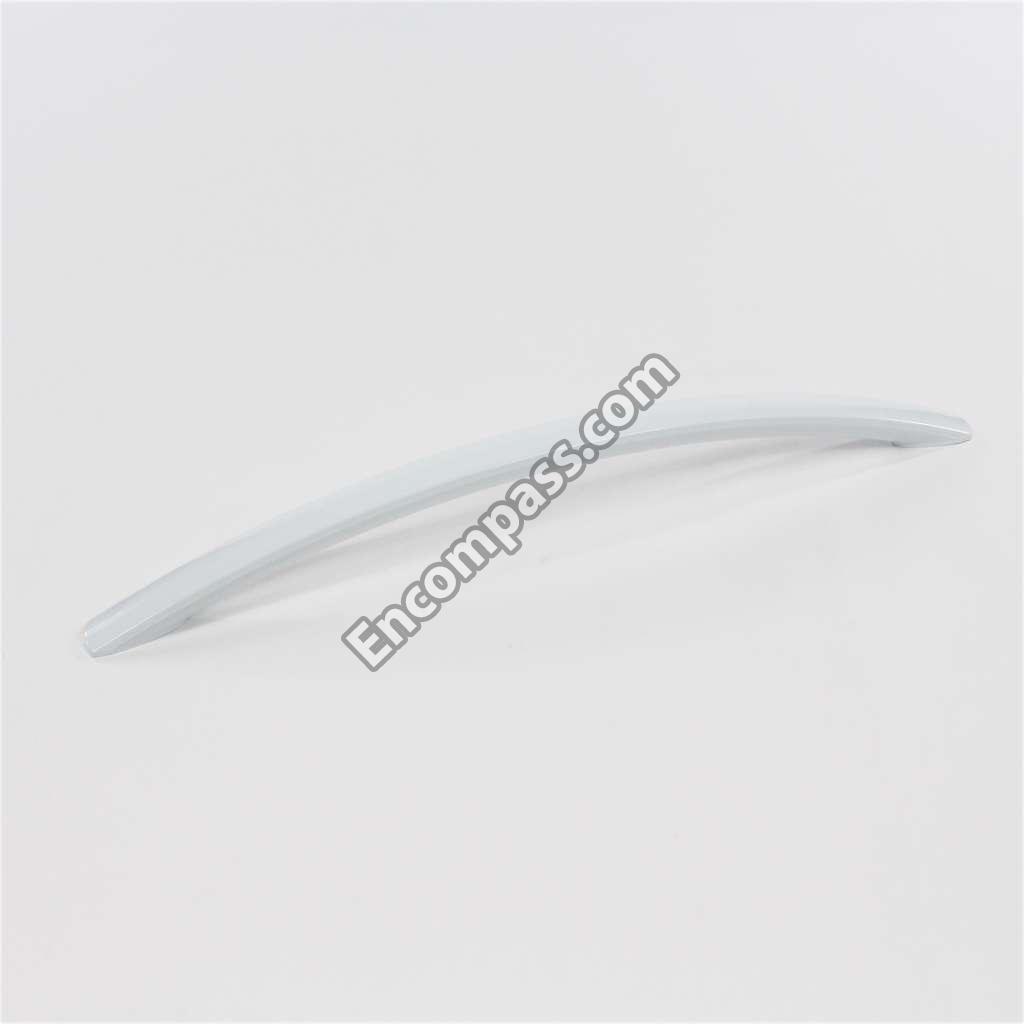

5304522047 |
RANGE OVEN DOOR HANDLE (WHITE) |
|
316433300 |
RANGE OVEN DOOR HANDLE SCREW |
|
316441300 |
RANGE OVEN DOOR HINGE RECEIVER |
|
5304503232 |

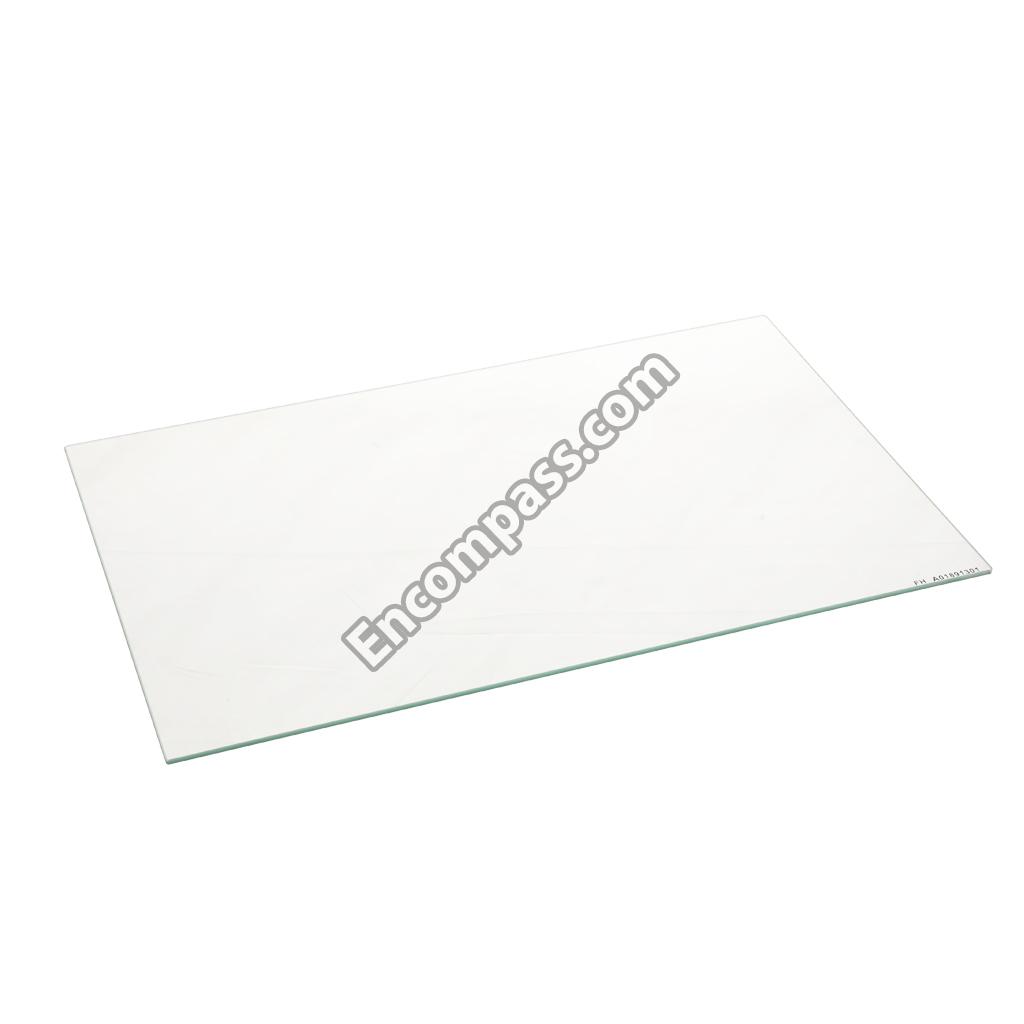

RANGE OVEN DOOR INNER GLASS |
|
316423807 |
RANGE OVEN DOOR LINER |
|
5304504811 |
RANGE OVEN DOOR MIDDLE GLASS SPACER |
|
316558906 |
RANGE OVEN DOOR OUTER PANEL (BLACK) |
|
316403101 |

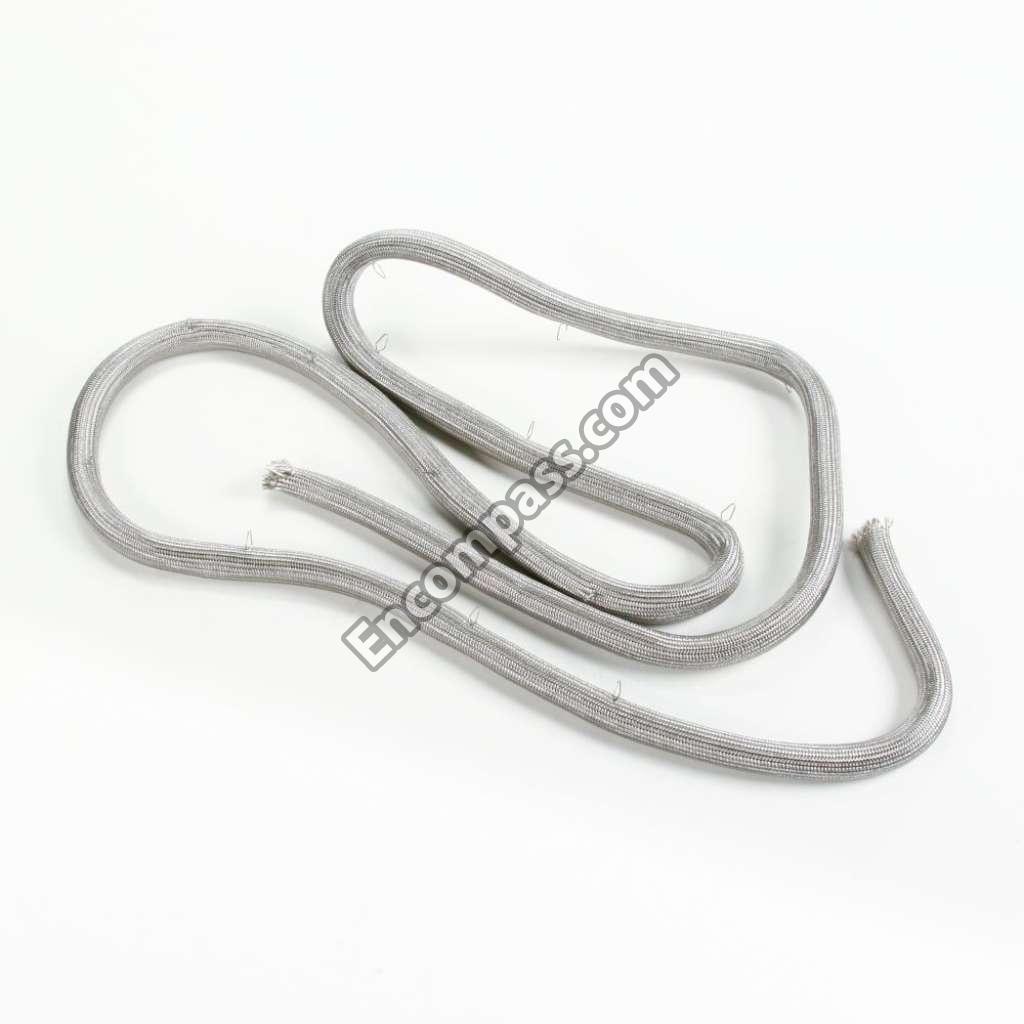

RANGE OVEN DOOR SEAL |
|
5303935378 |
RANGE OVEN DOOR TRIM KIT (BLACK) |
|
5303935326 |
RANGE OVEN DOOR TRIM KIT (WHITE) |
|
316575500 |
RANGE OVEN DOOR VENT |
|
316575501 |

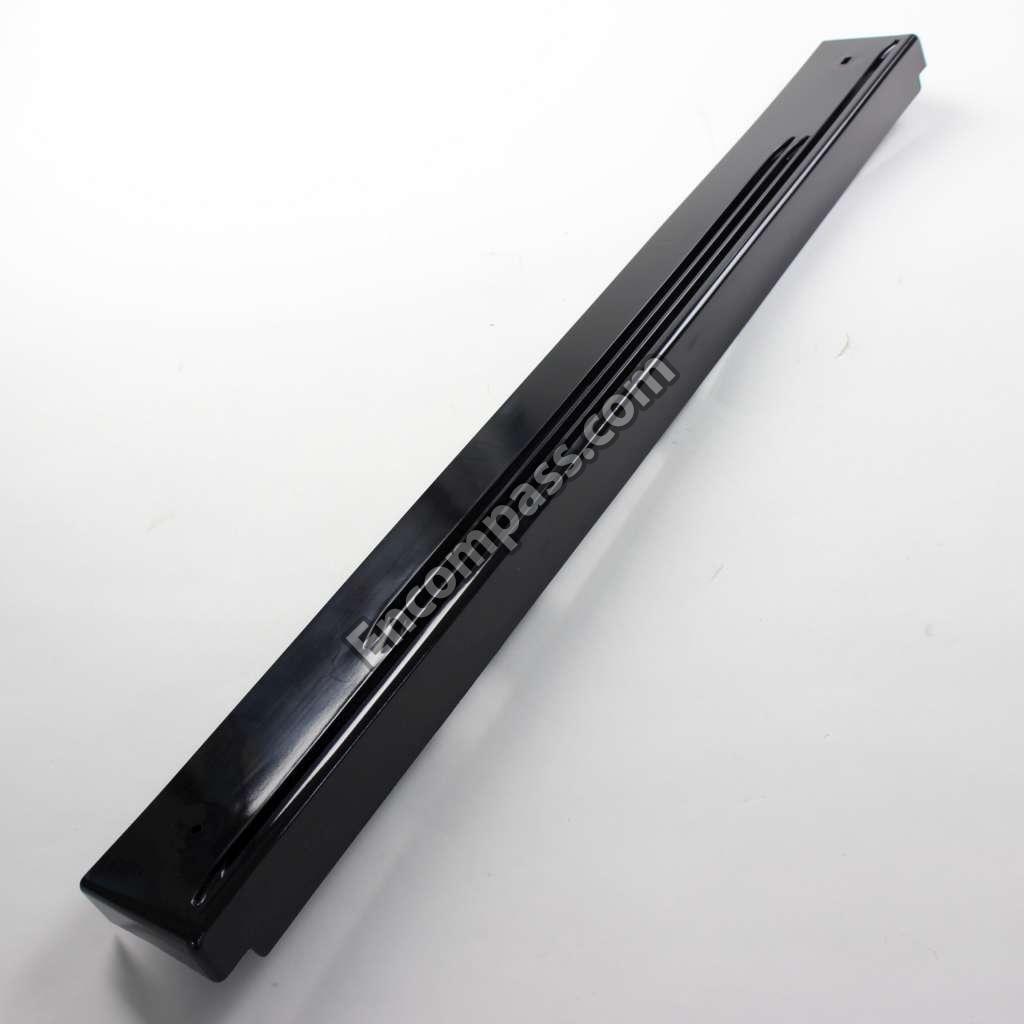

RANGE OVEN DOOR VENT (BLACK) |
|
316538904 |
RANGE OVEN LIGHT BULB |
|
316087500 |

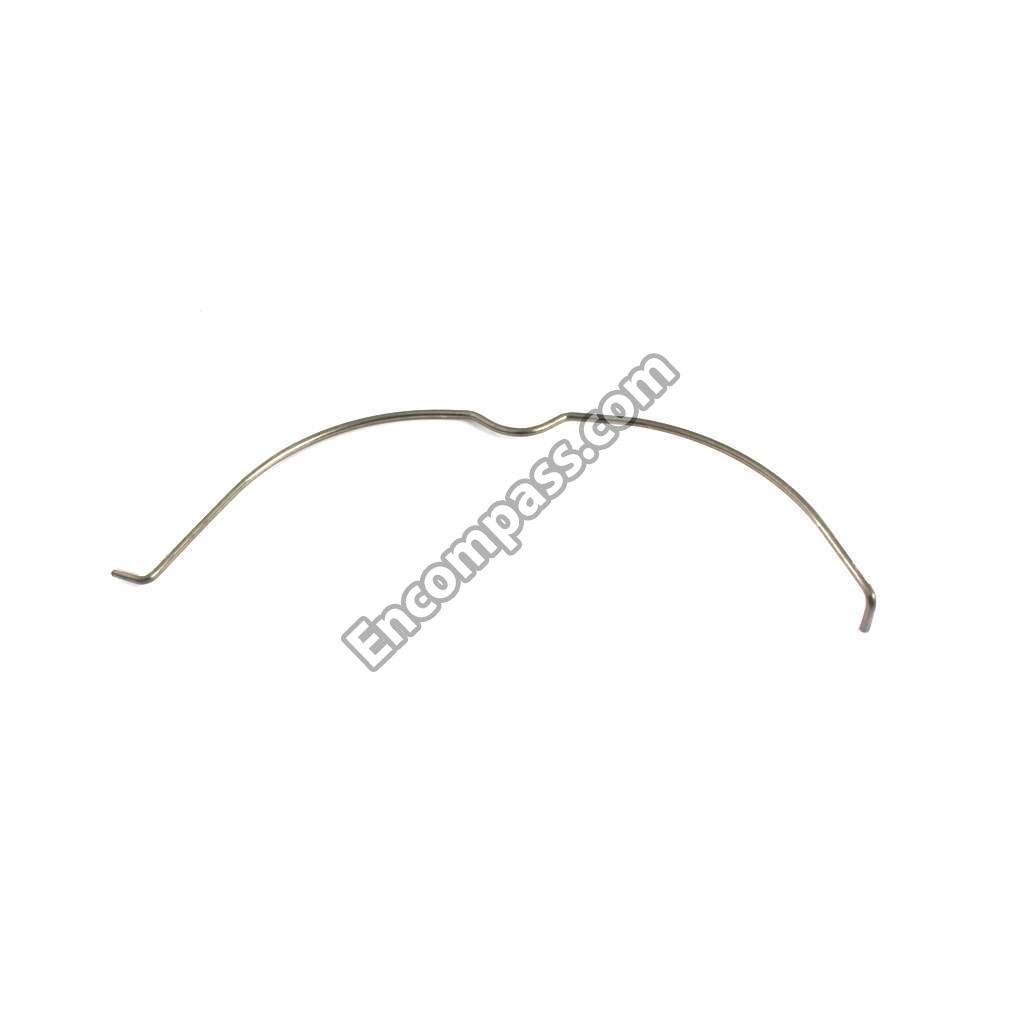

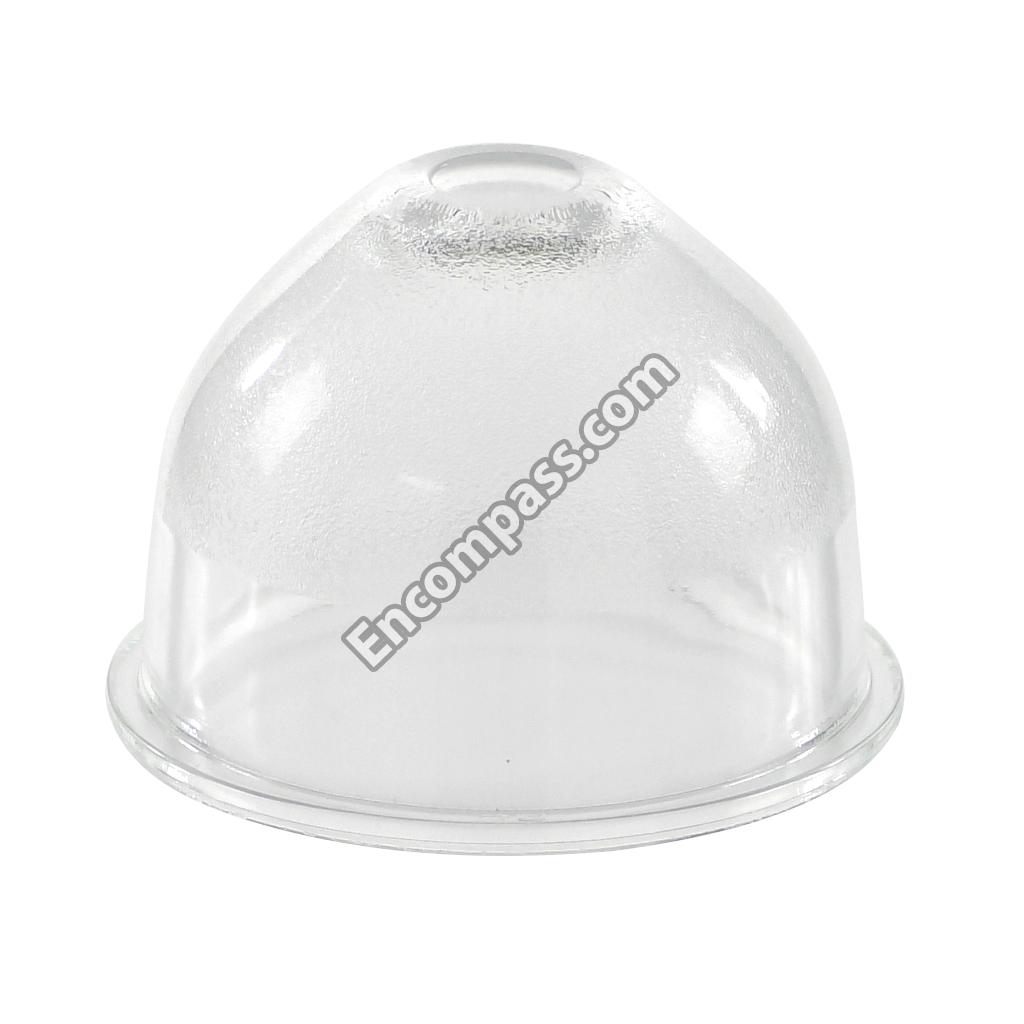

RANGE OVEN LIGHT LENS RETAINER |
|

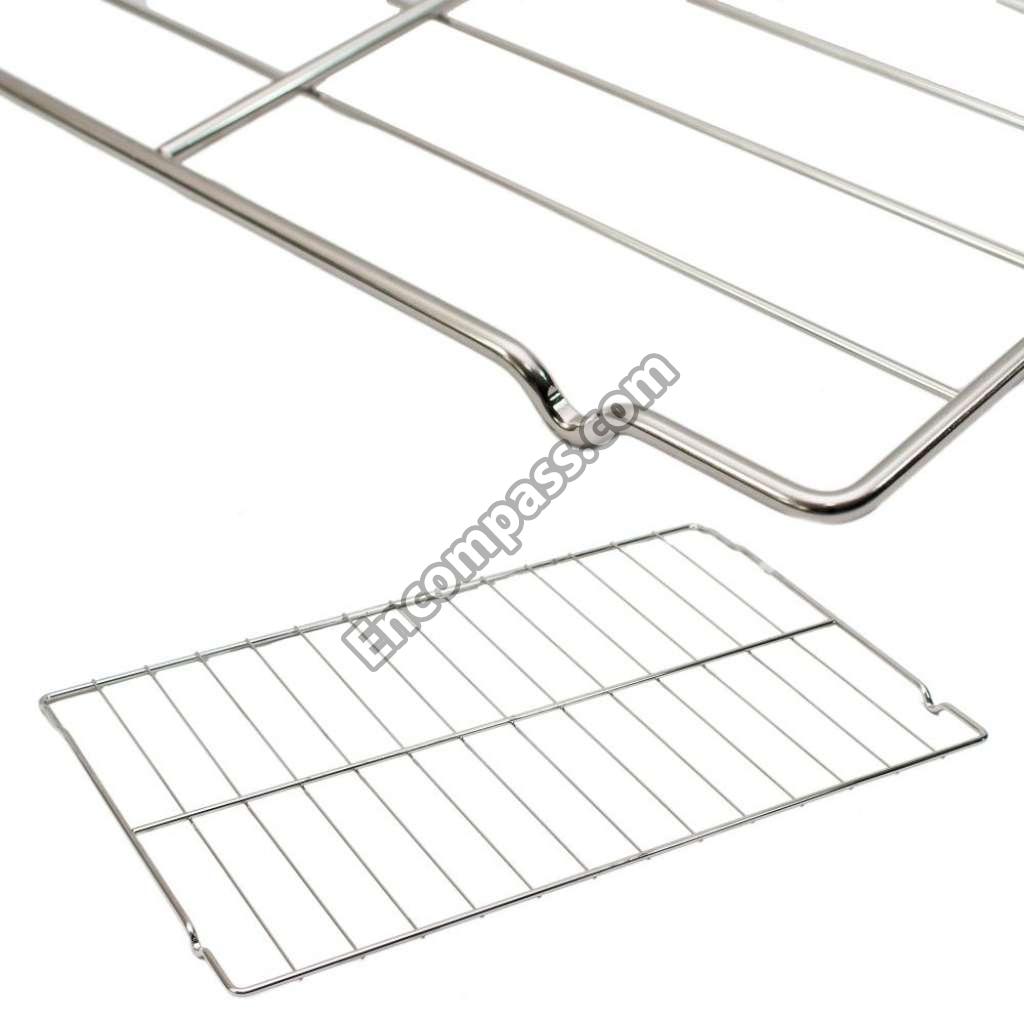

316496201 |
RANGE OVEN RACK |
|
316490000 |
RANGE OVEN TEMPERATURE SENSOR |
|
316208903 |
RANGE OVEN VENT |
|
316542102 |
RANGE OVEN VENT GASKET |
|
5304509199 |
RANGE POWER CORD |
|
5304498819 |

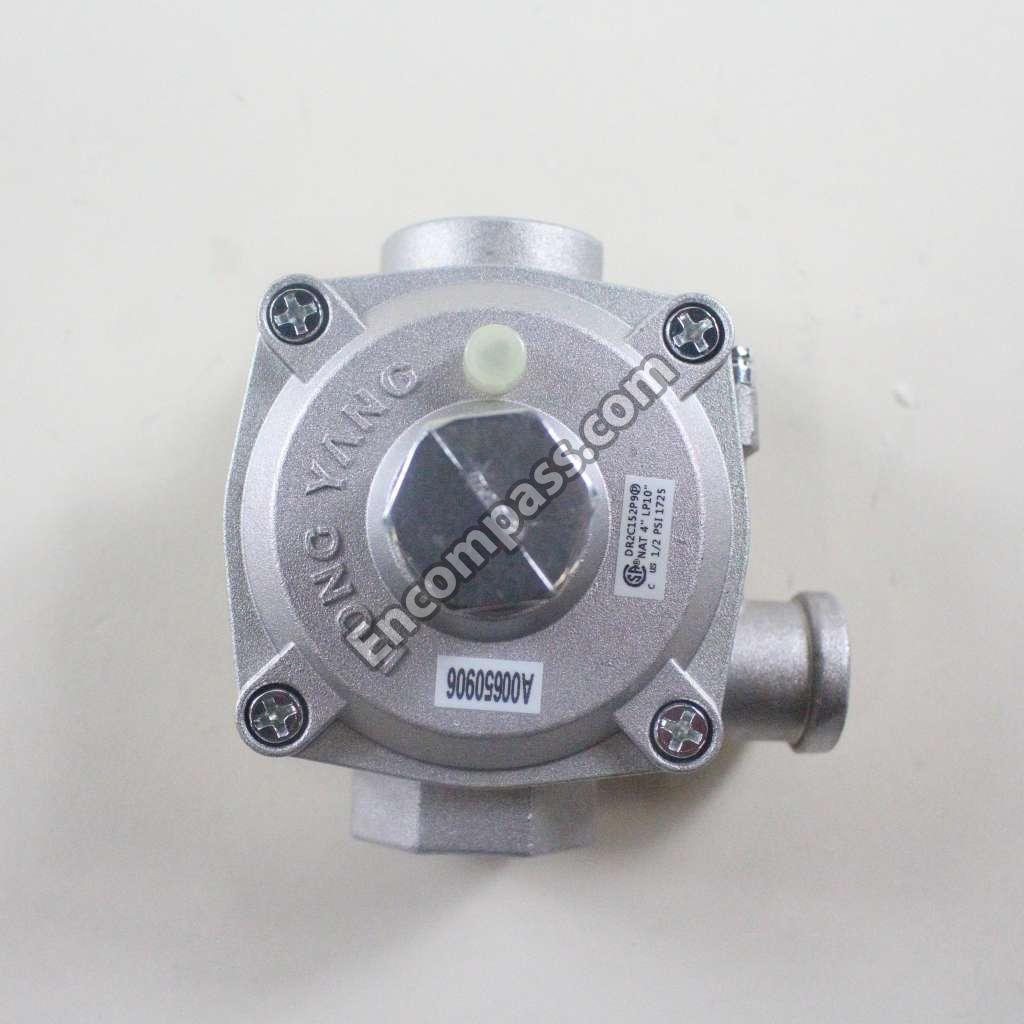

RANGE PRESSURE REGULATOR |
|
316021104 |
RANGE PRESSURE REGULATOR BRACKET SCREW |
|
316001003 |
RANGE SCREW |
|
5303285179 |
RANGE SCREW |
|
316418900 |
RANGE SCREW |
|
316116000 |

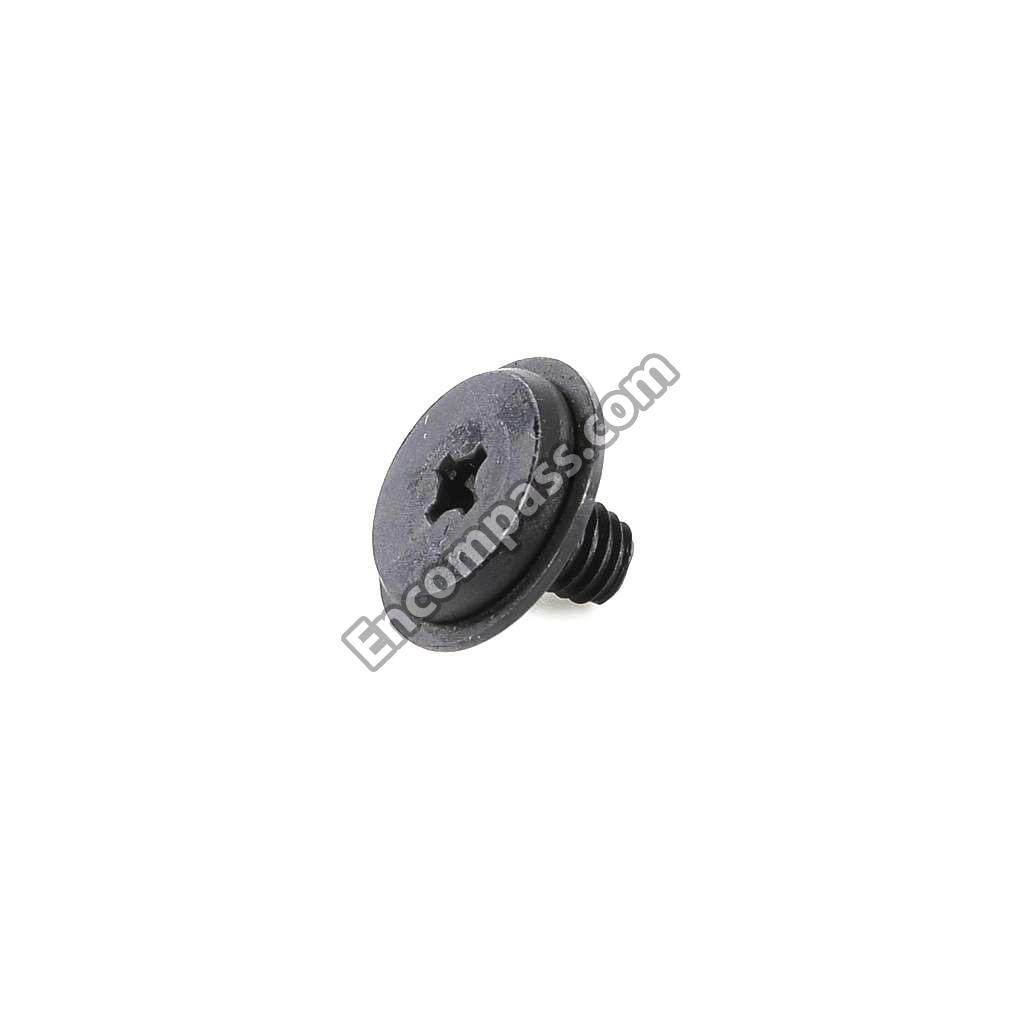

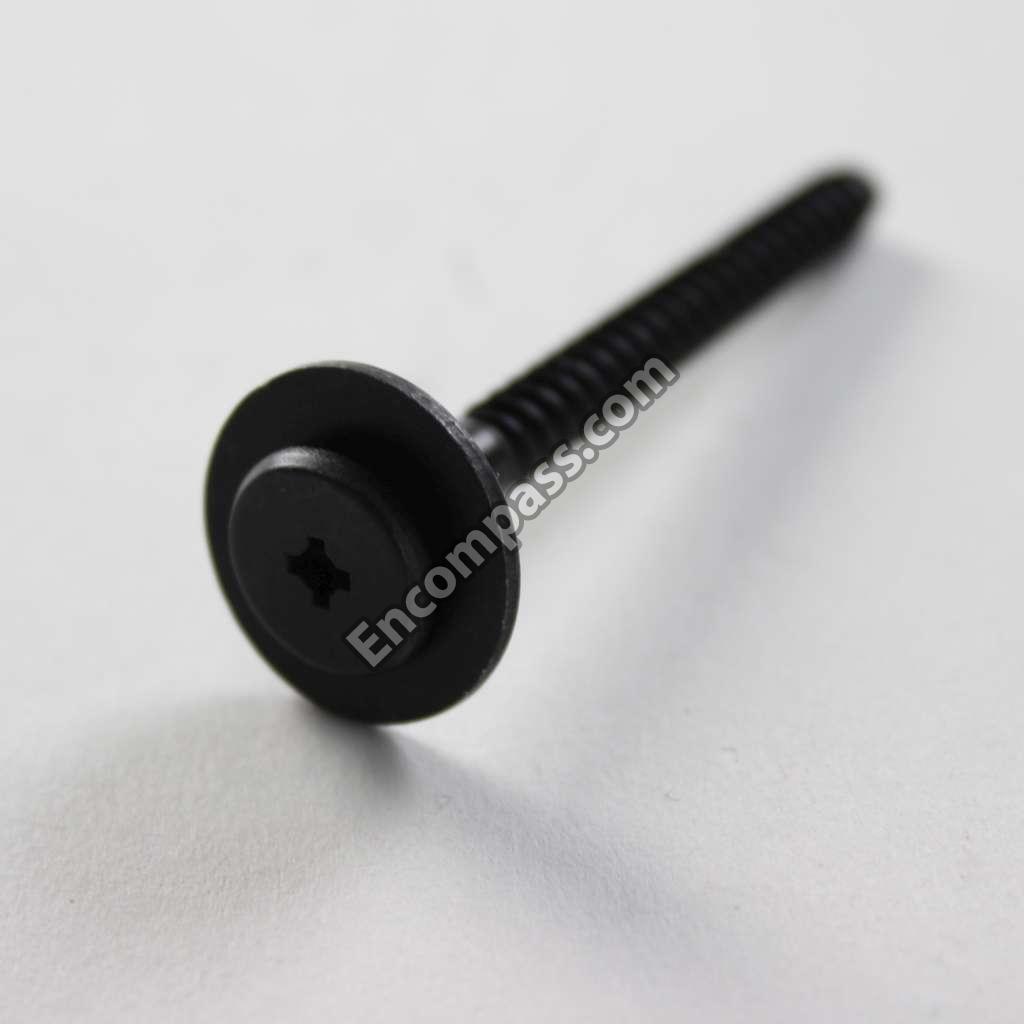

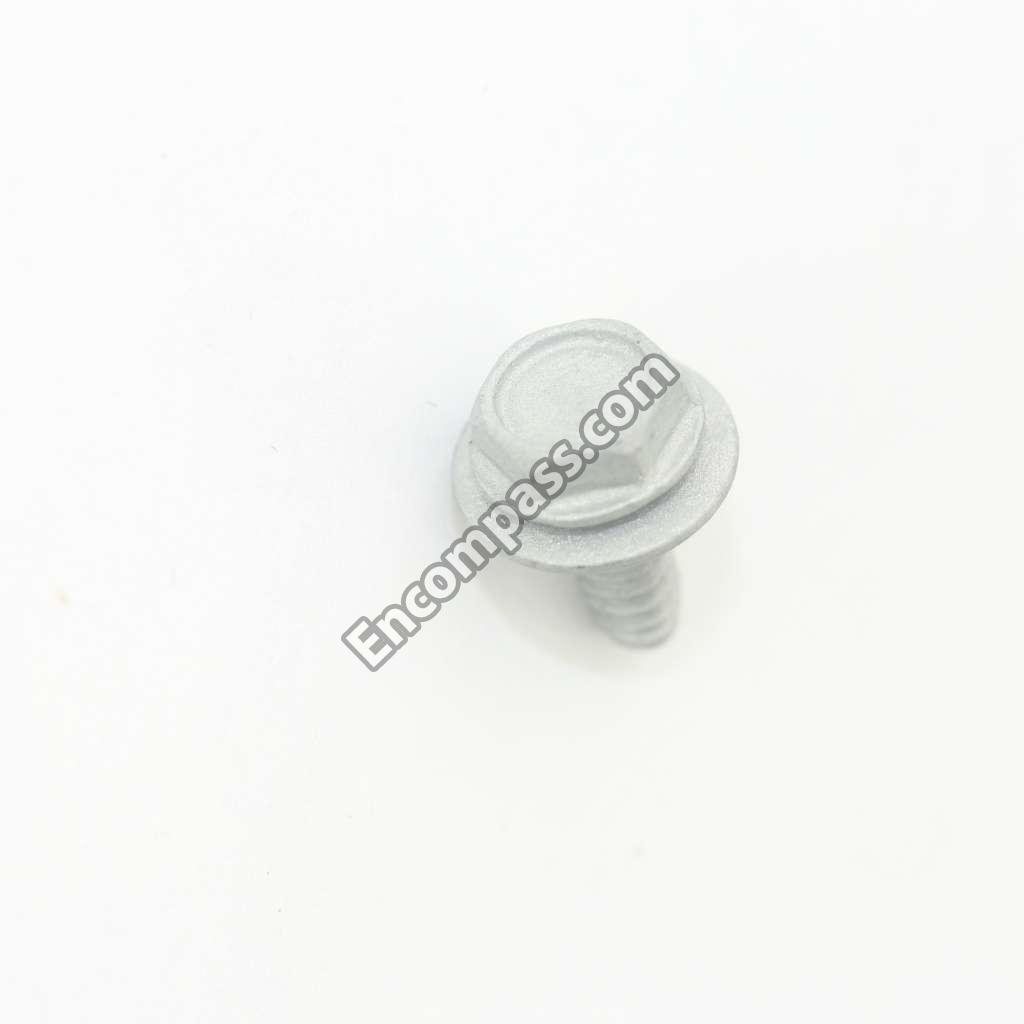

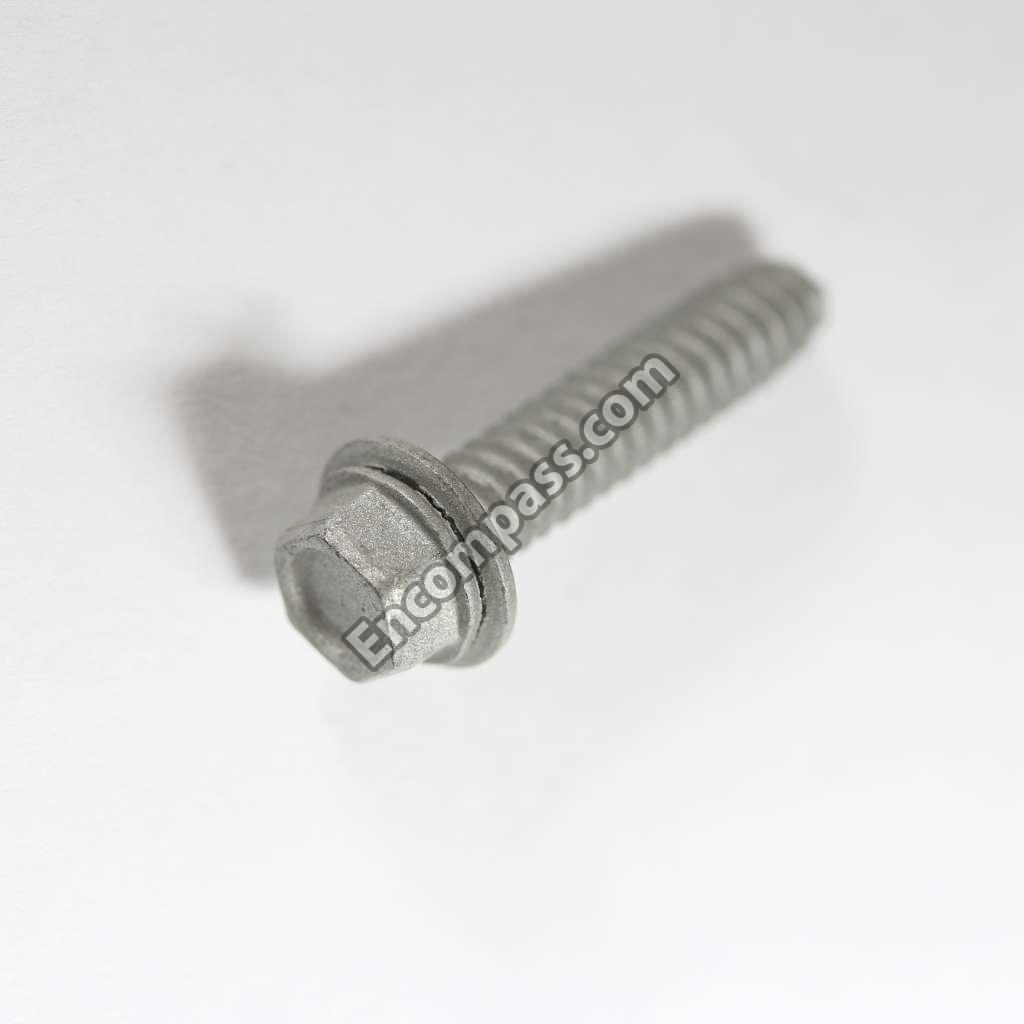

RANGE SCREW |
|
3131732 |
RANGE SCREW |
|
316215600 |
RANGE SCREW |
|
316240600 |
RANGE SCREW |
|
316540900 |
RANGE SCREW |
|
316021109 |
RANGE SCREW |
|
316021110 |
RANGE SCREW |
|
316519700 |
RANGE SCREW |
|
316089500 |
RANGE SCREW |
|
316418901 |
RANGE SCREW, #10-32 X 5/16-IN |
|
316260800 |
RANGE SHOULDER SCREW, #8-18 X 1/2-IN |
|
316286300 |
RANGE SIDE PANEL SUPPORT BRACKET |
|
316400145 |
RANGE SIDE PANEL, LEFT (BLACK) |
|
316400144 |
RANGE SIDE PANEL, RIGHT (BLACK) |
|
808608804 |

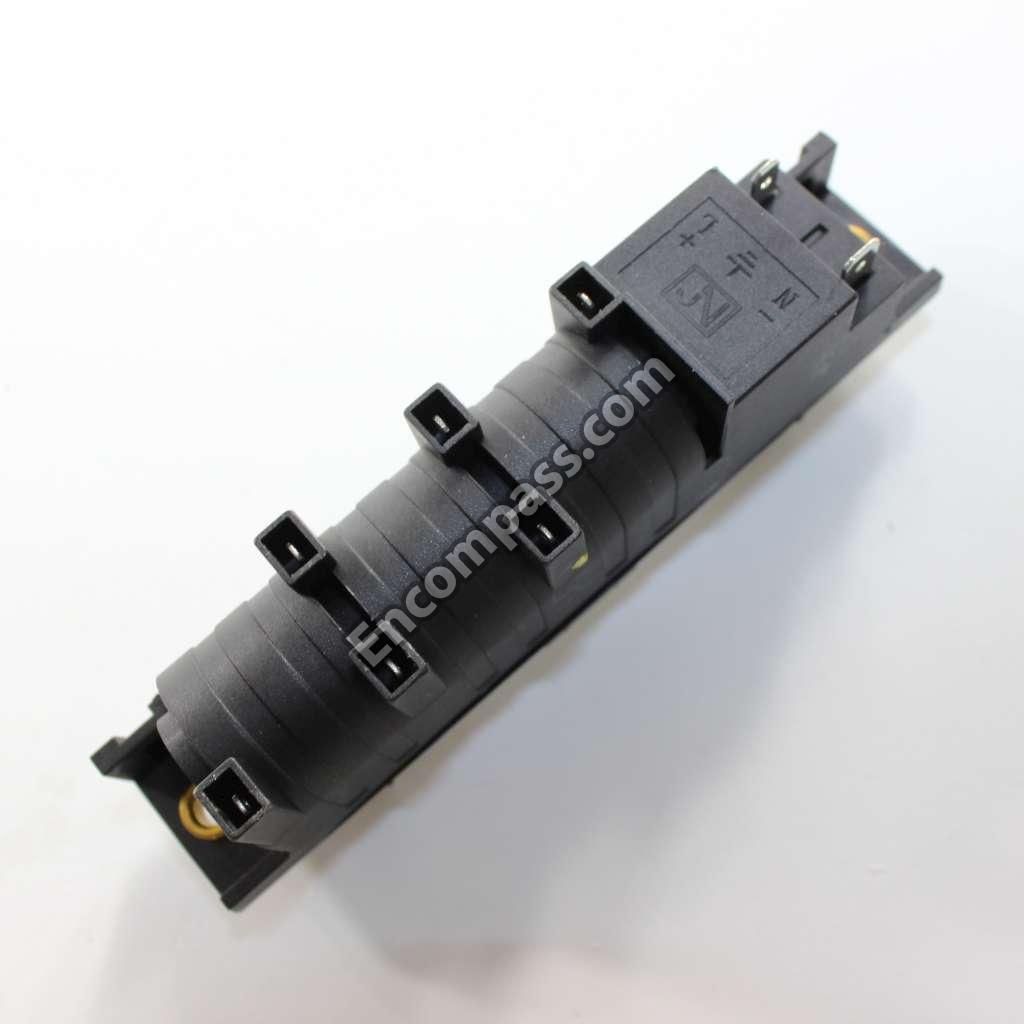

RANGE SPARK MODULE |
|

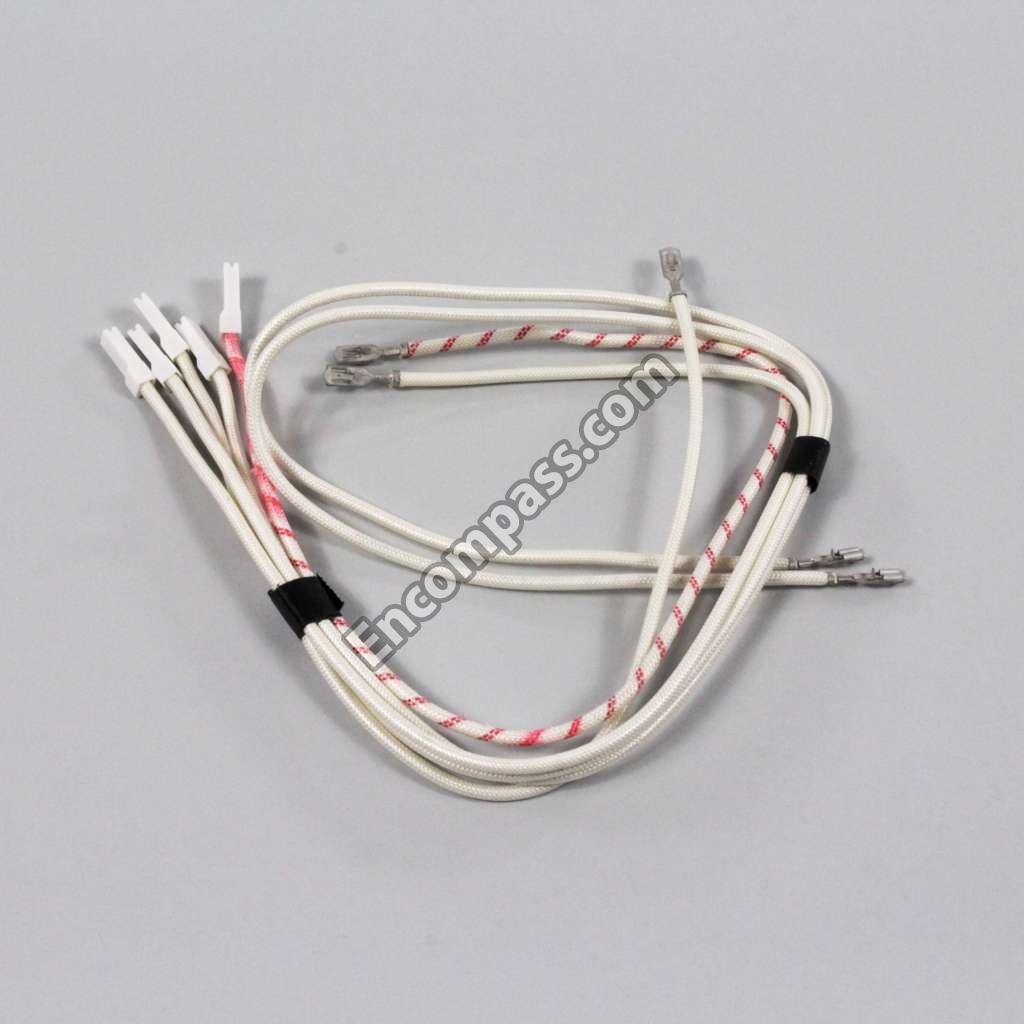

5304494425 |
RANGE SPARK MODULE WIRE HARNESS |
|

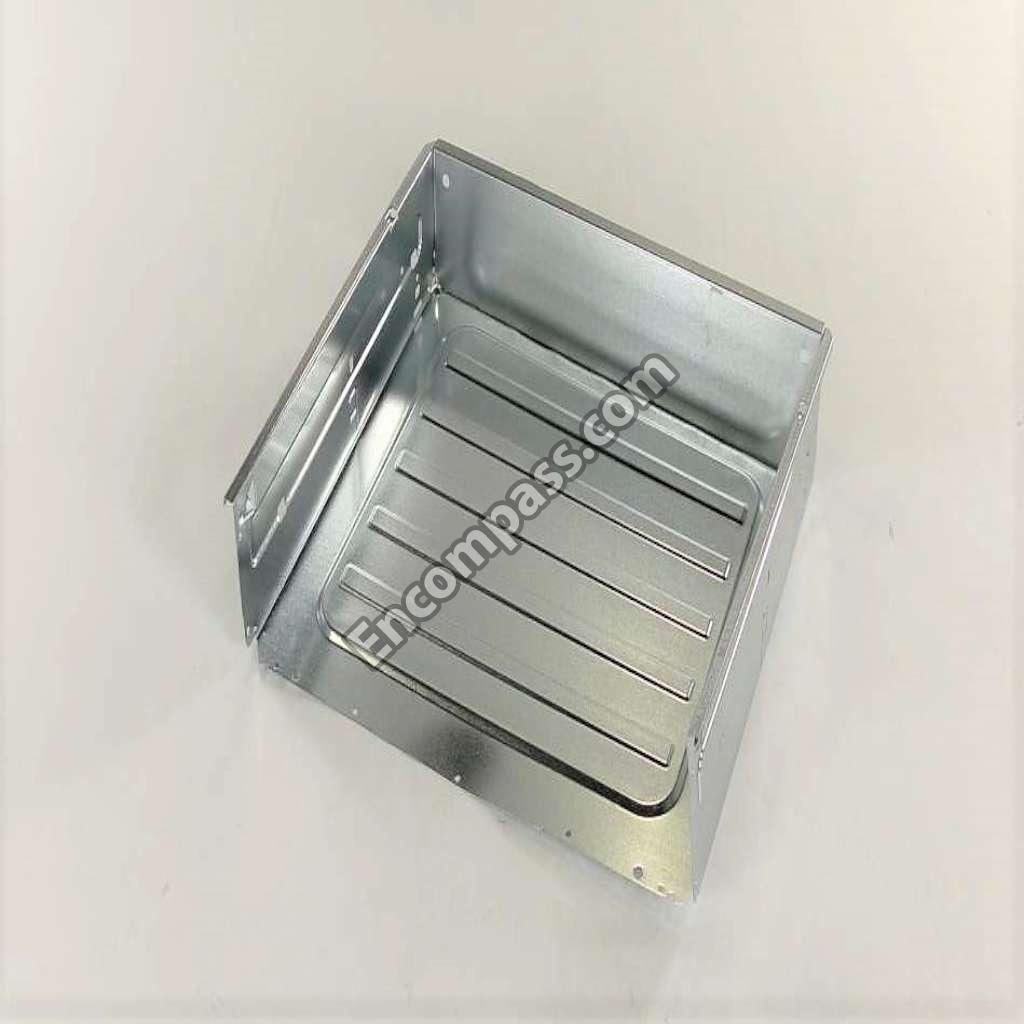

316408706 |
RANGE STORAGE DRAWER |
|

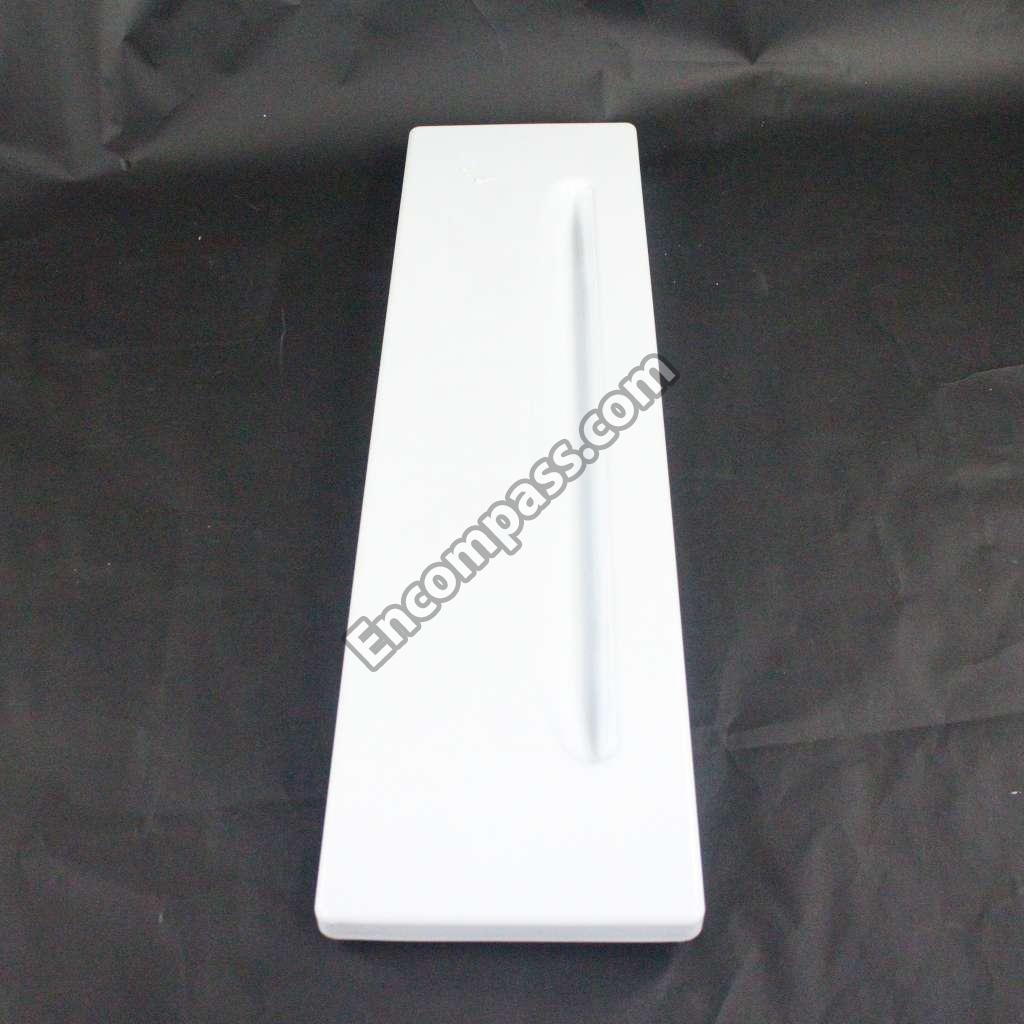

5304513124 |
RANGE STORAGE DRAWER FRONT PANEL |
|
5304513125 |
RANGE STORAGE DRAWER FRONT PANEL (BLACK) |
|
5304517903 |
RANGE STORAGE DRAWER INNER SLIDE RAIL, LEFT |
|
5304517902 |

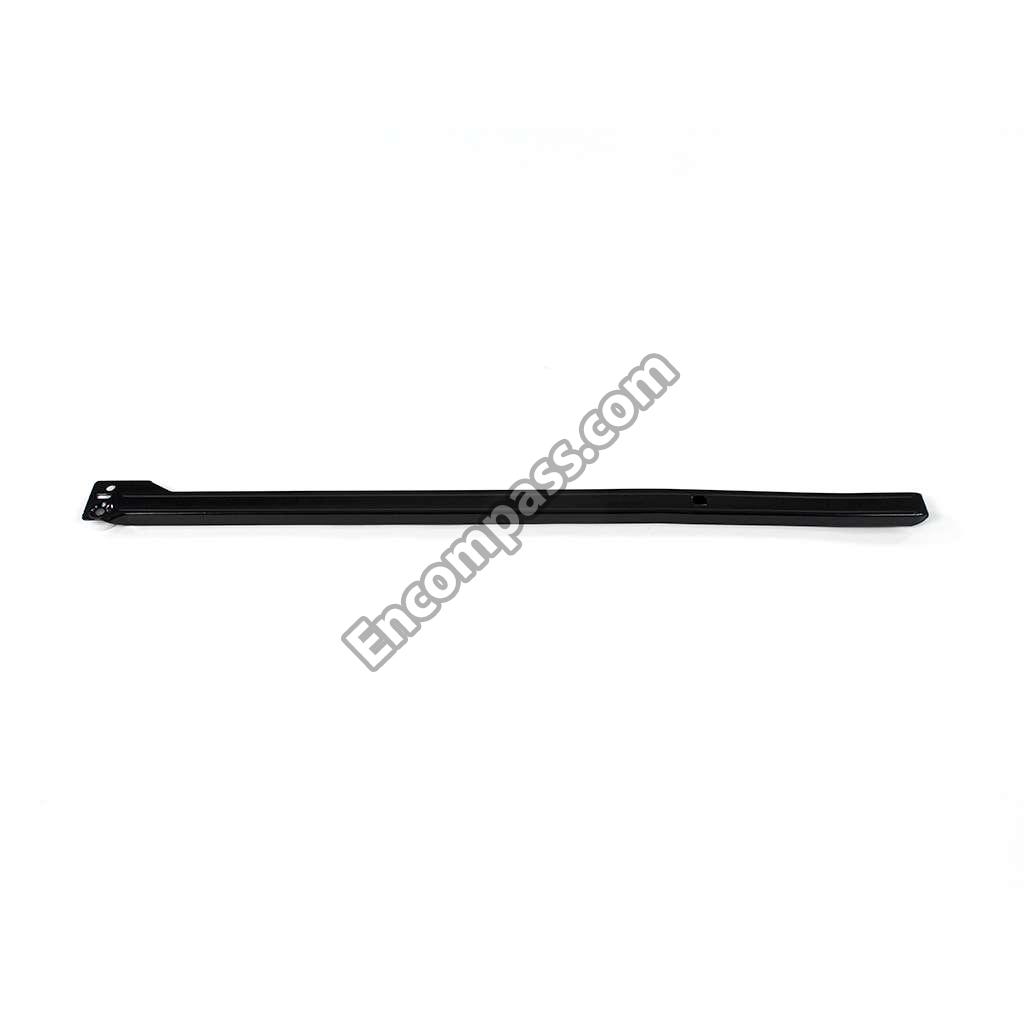

RANGE STORAGE DRAWER SLIDE RAIL, LEFT OUTER (BL... |
|
5304517905 |
RANGE STORAGE DRAWER SLIDE RAIL, RIGHT INNER (B... |
|
5304517904 |
RANGE STORAGE DRAWER SLIDE RAIL, RIGHT OUTER (B... |
|
316559604 |

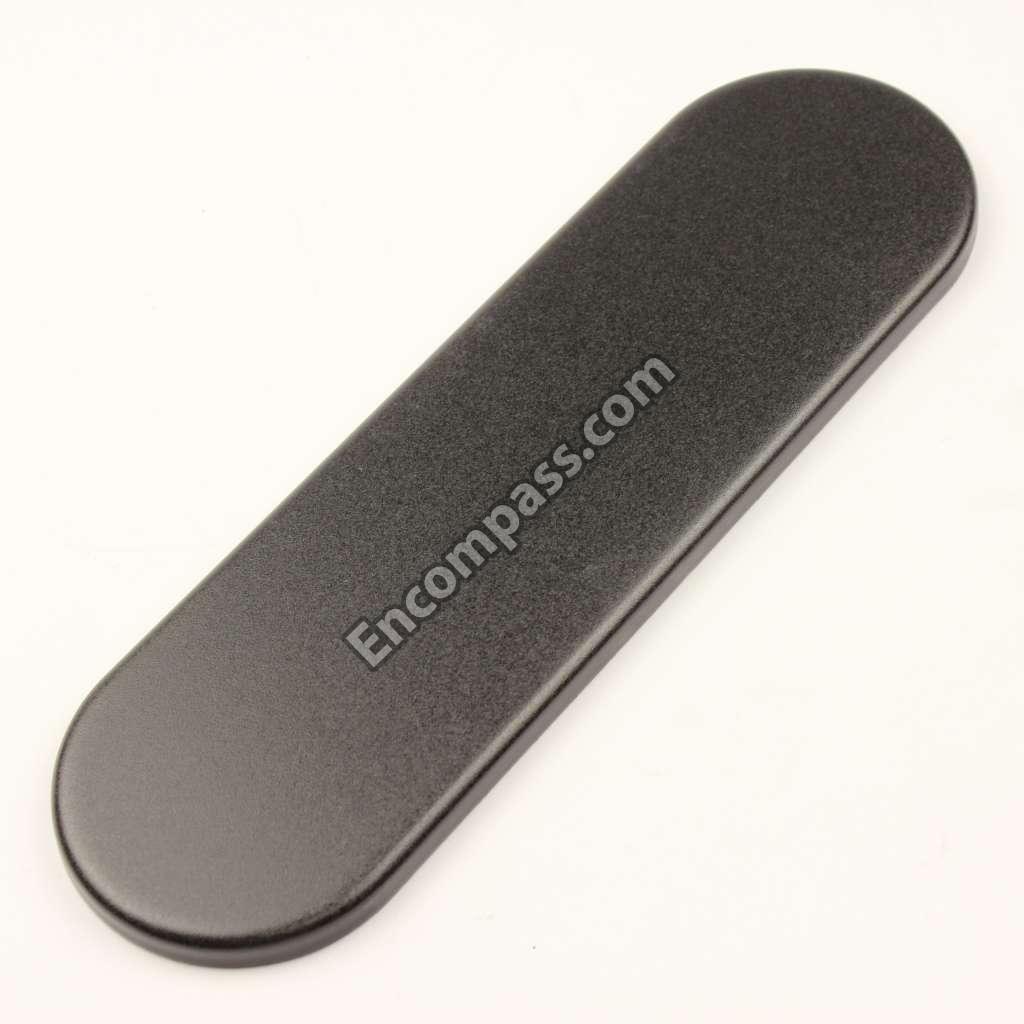

RANGE SURFACE BURNER CAP |
|

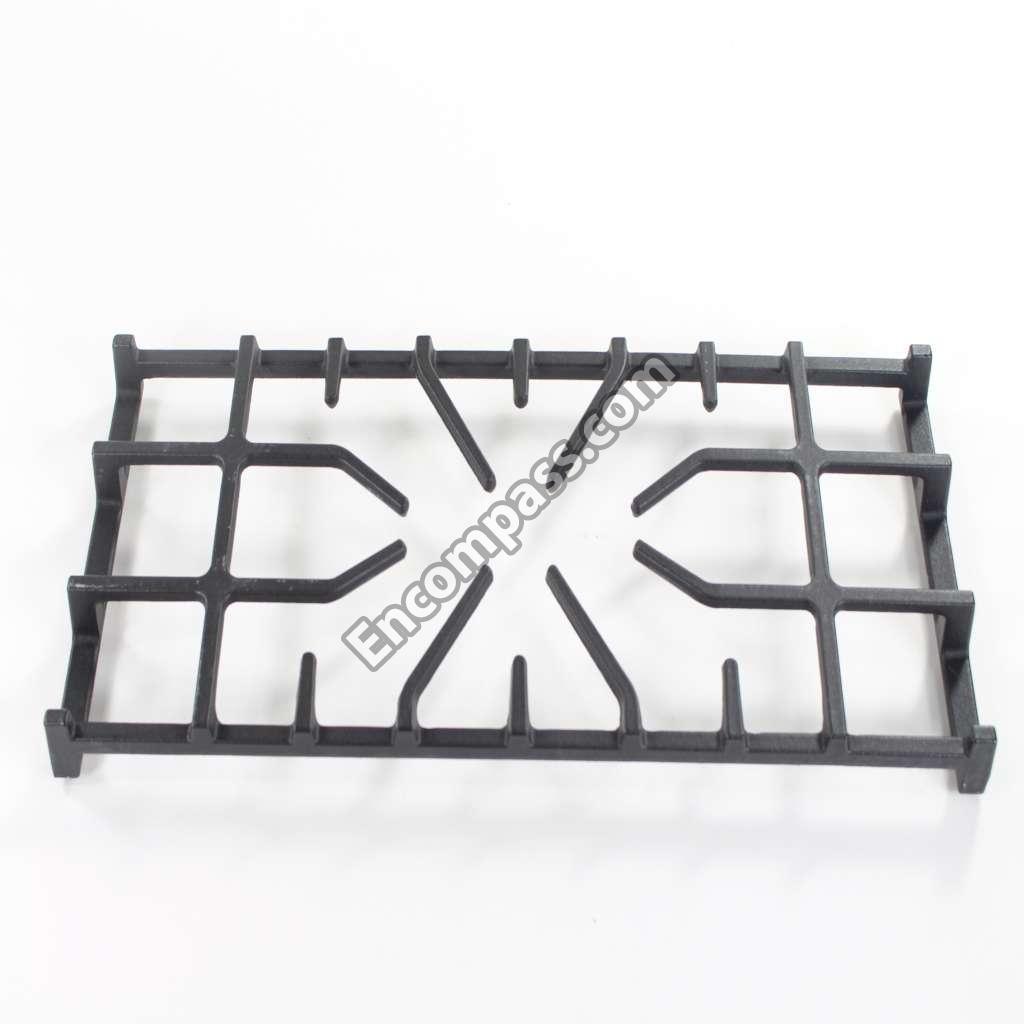

807327101 |

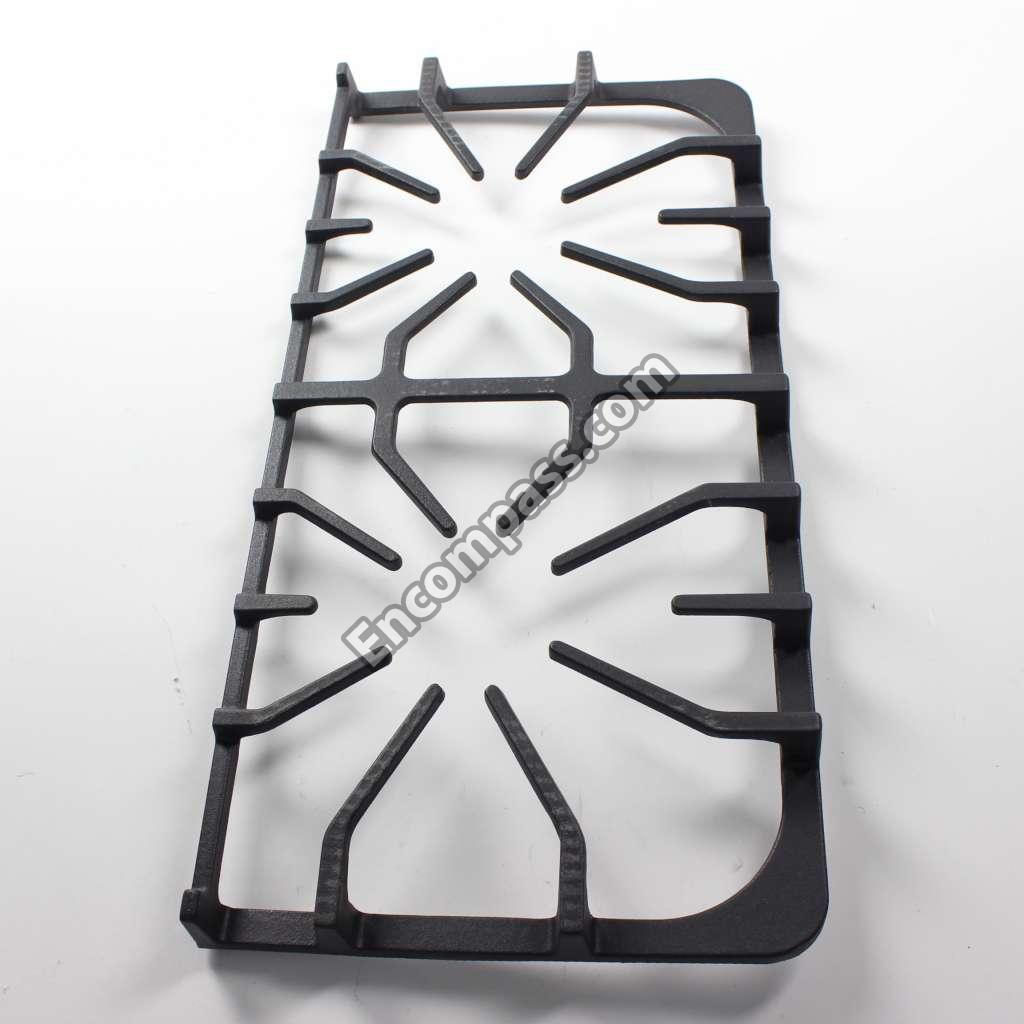

RANGE SURFACE BURNER GRATE (BLACK) |
|
807412601 |
RANGE SURFACE BURNER GRATE, CENTER (BLACK) |
|

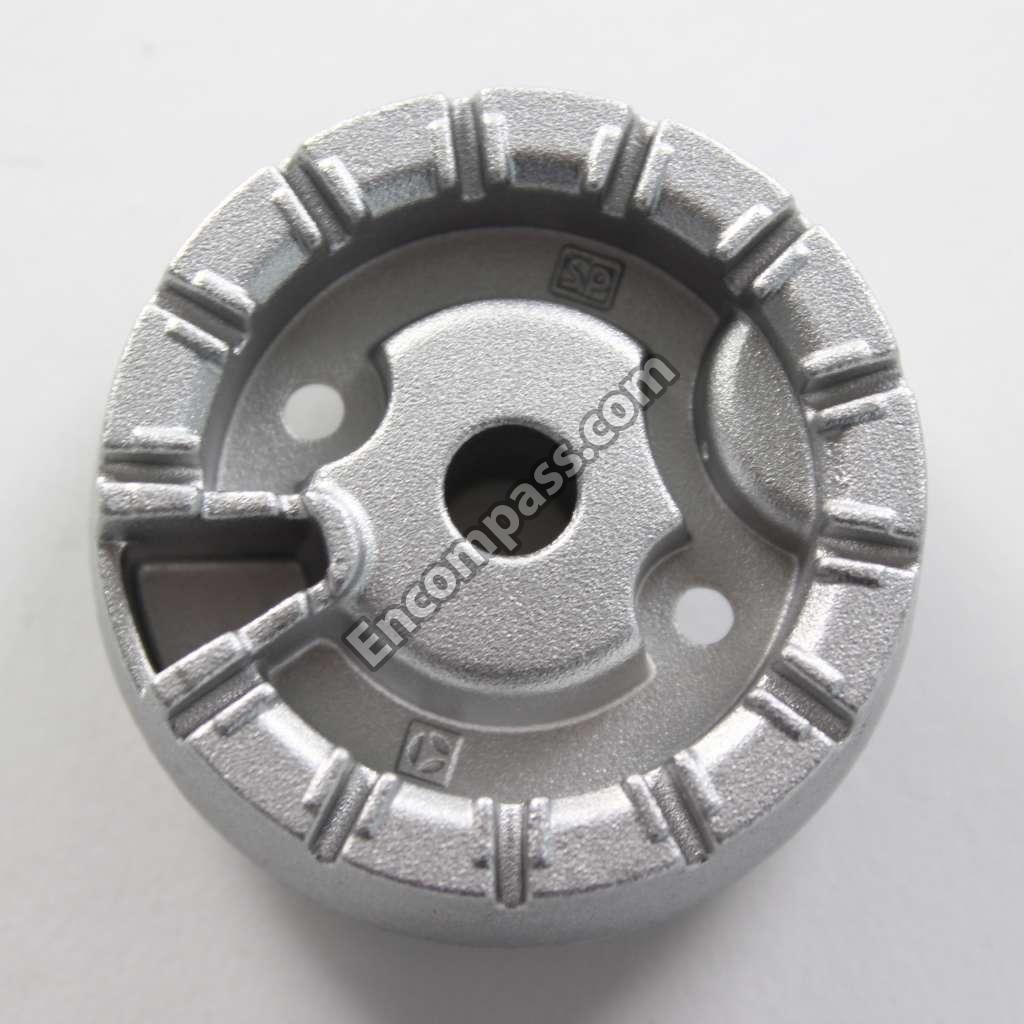

316559300 |

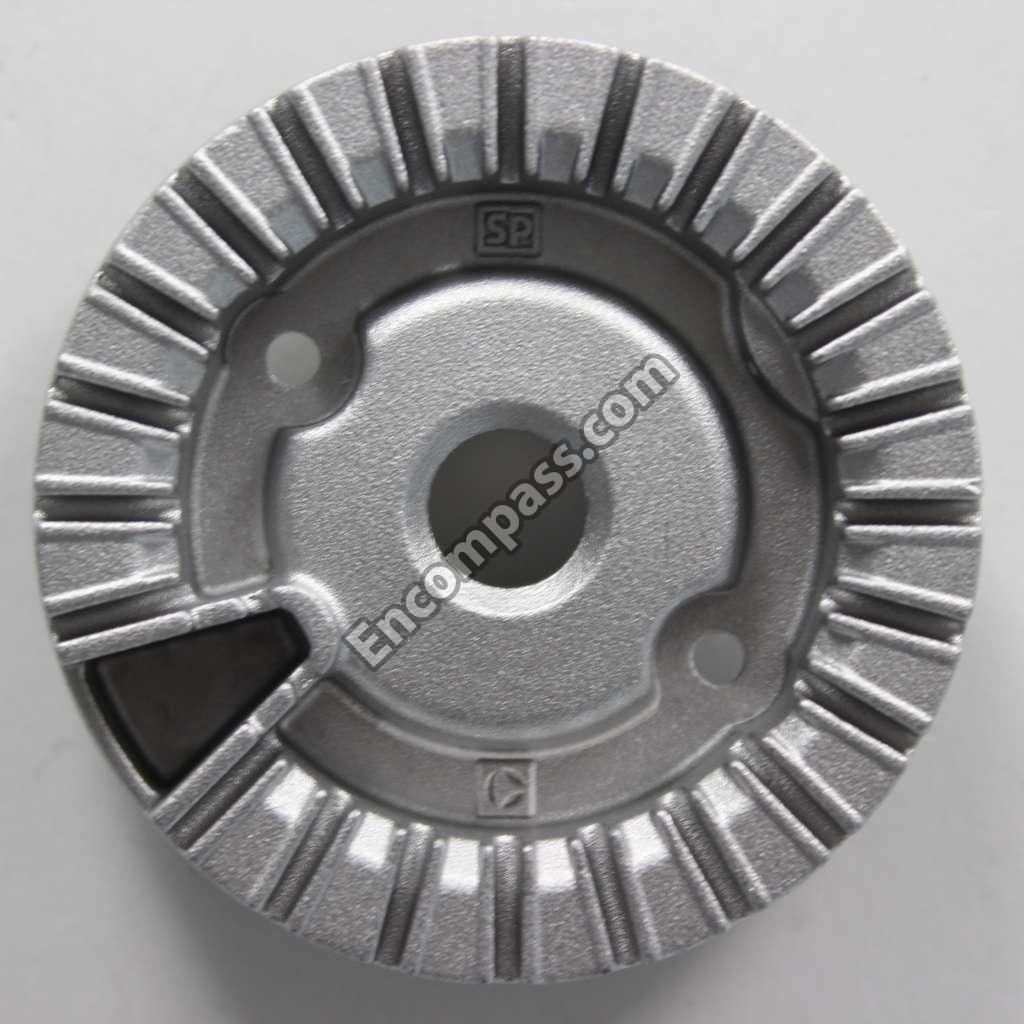

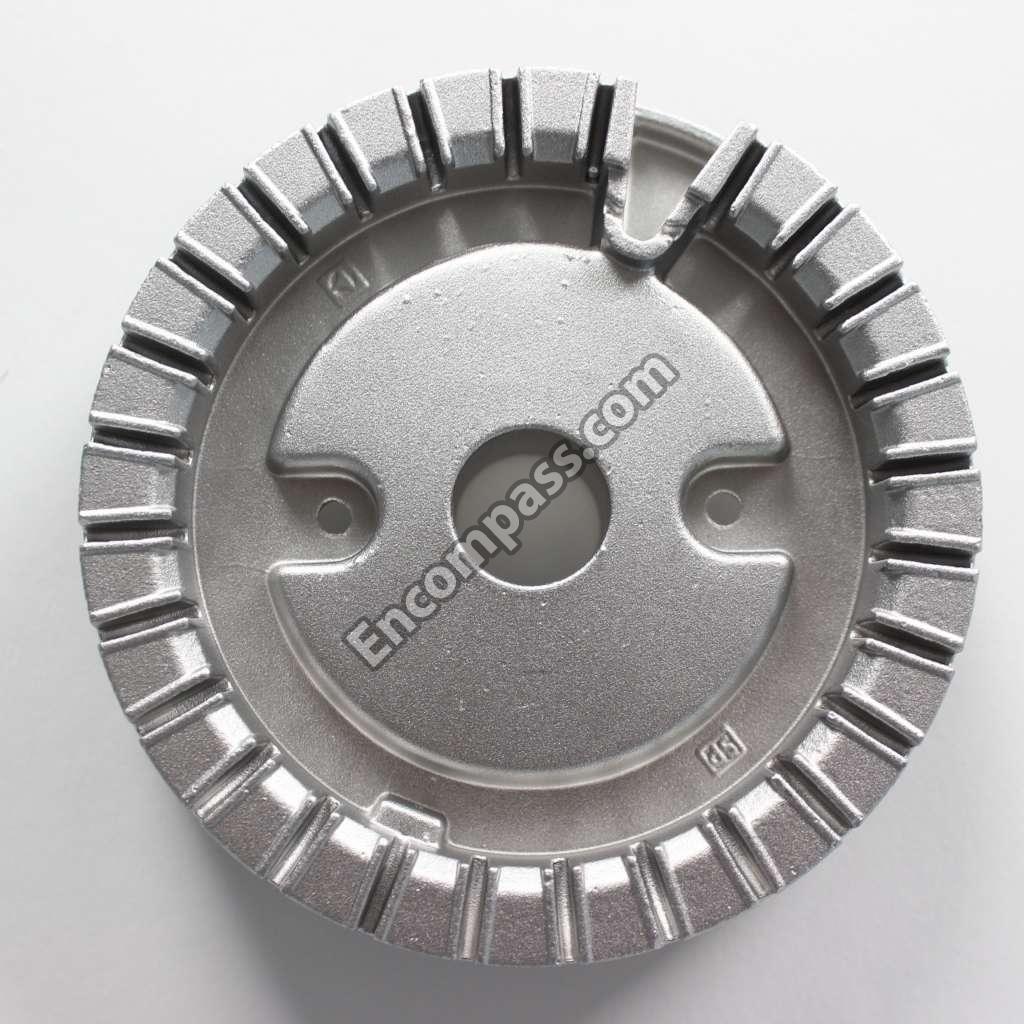

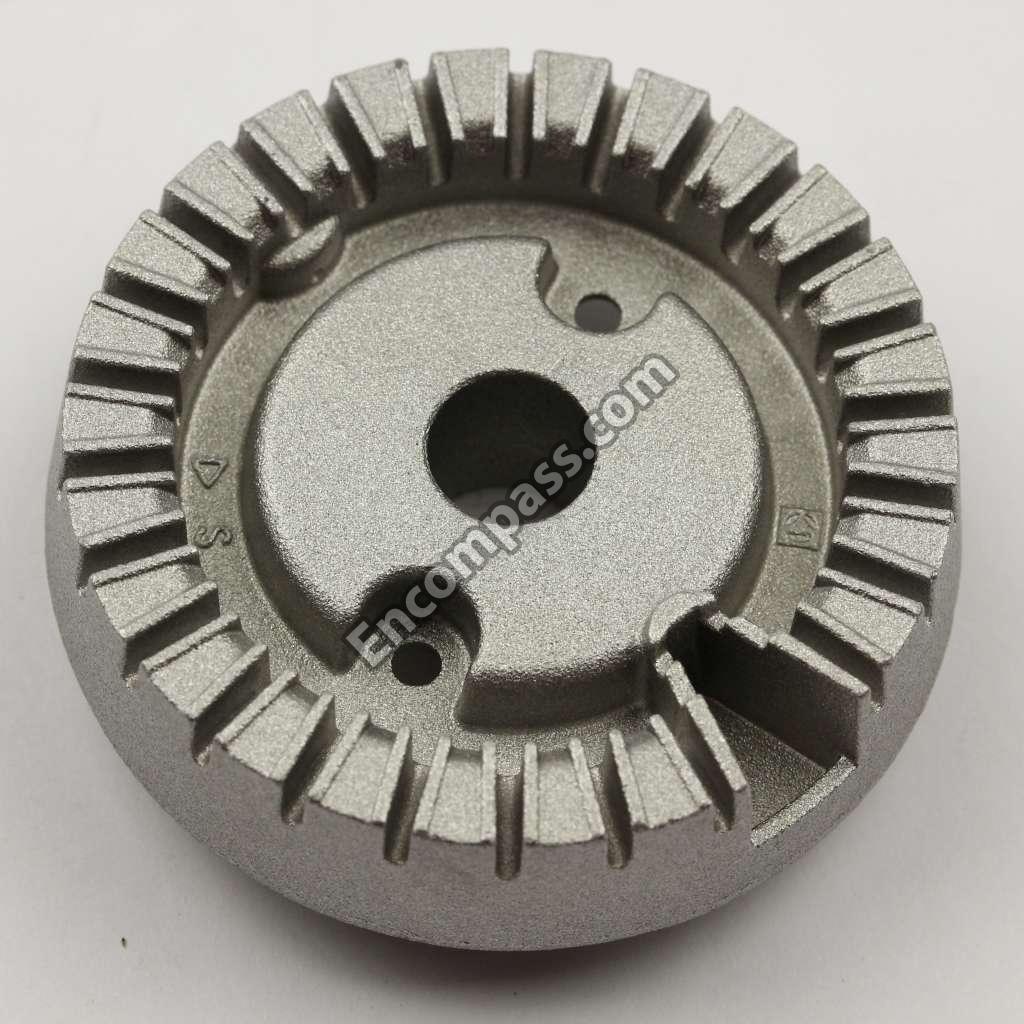

RANGE SURFACE BURNER HEAD |
|
316558300 |
RANGE SURFACE BURNER HEAD |
|
316438000 |
RANGE SURFACE BURNER HEAD |
|
316438200 |
RANGE SURFACE BURNER HEAD |
|
316438400 |
RANGE SURFACE BURNER HEAD |
|

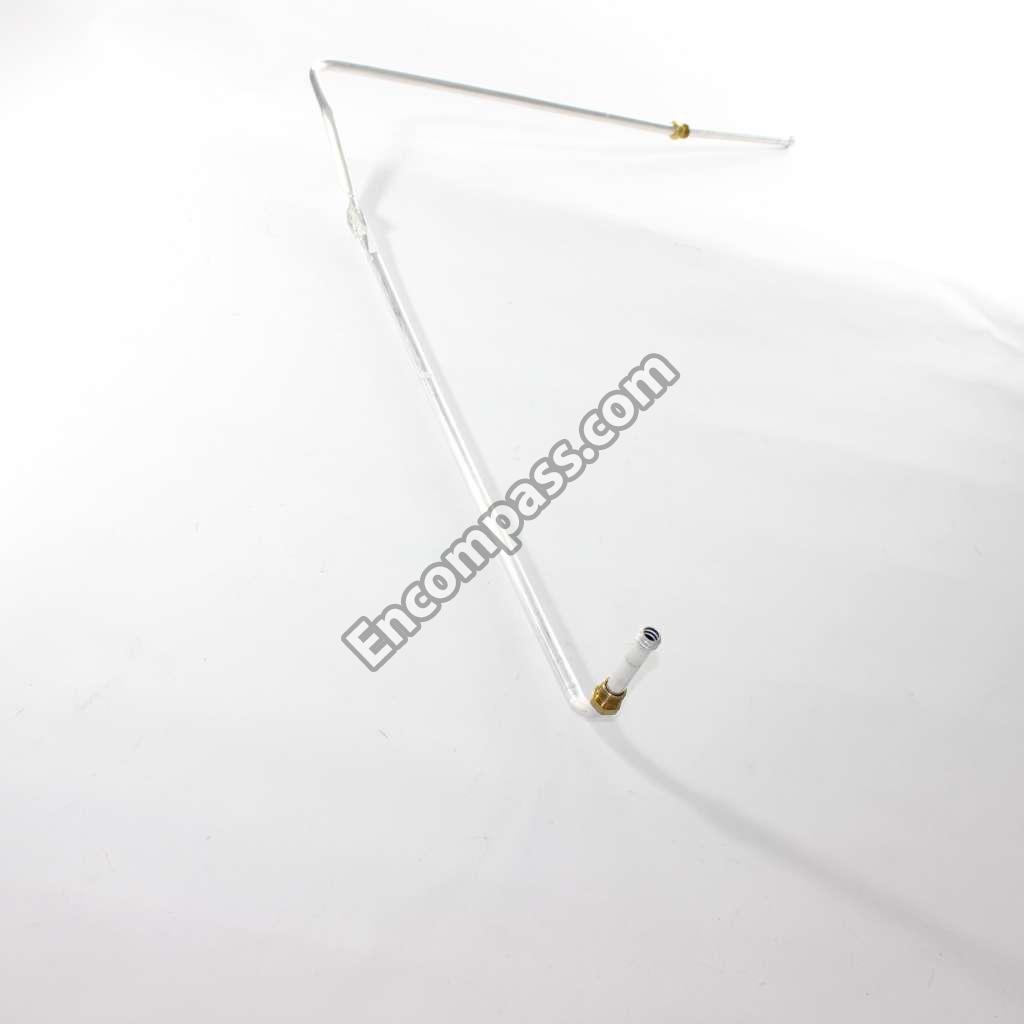

316536623 |

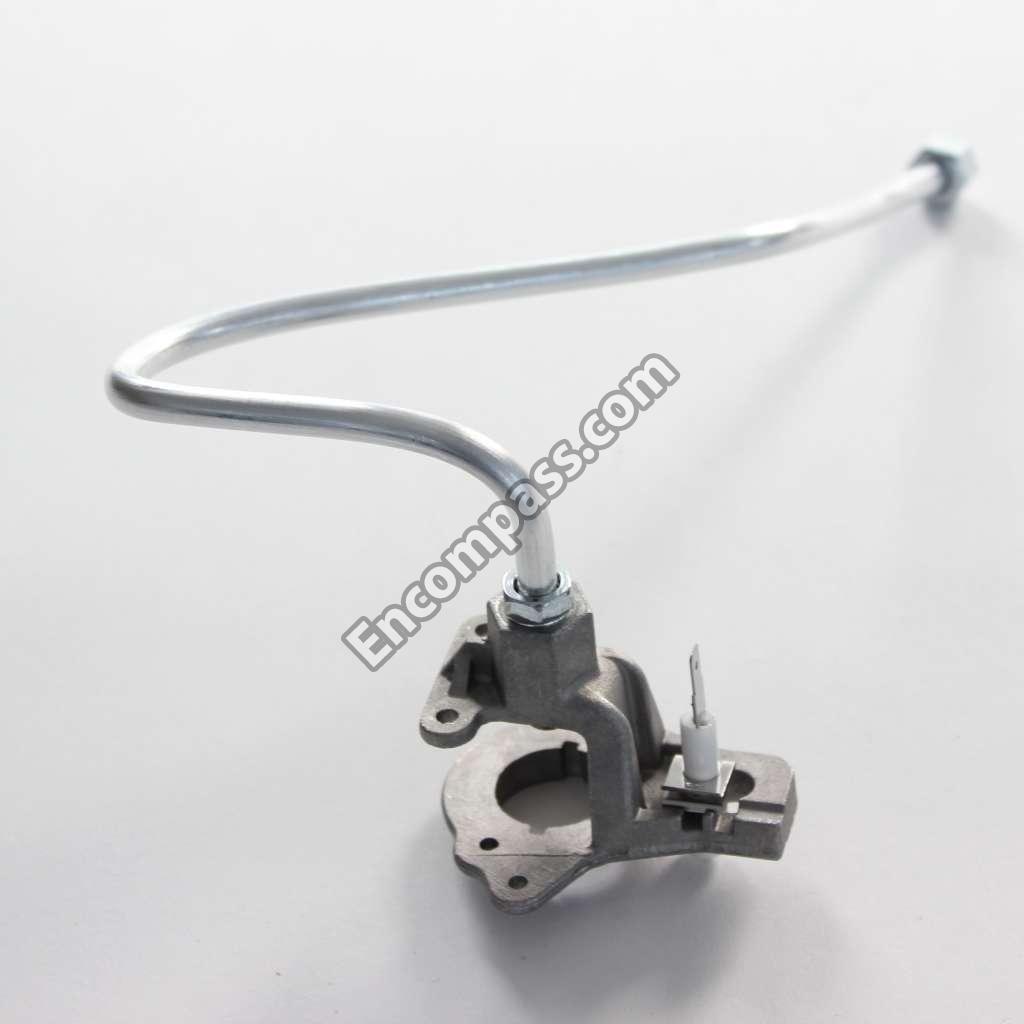

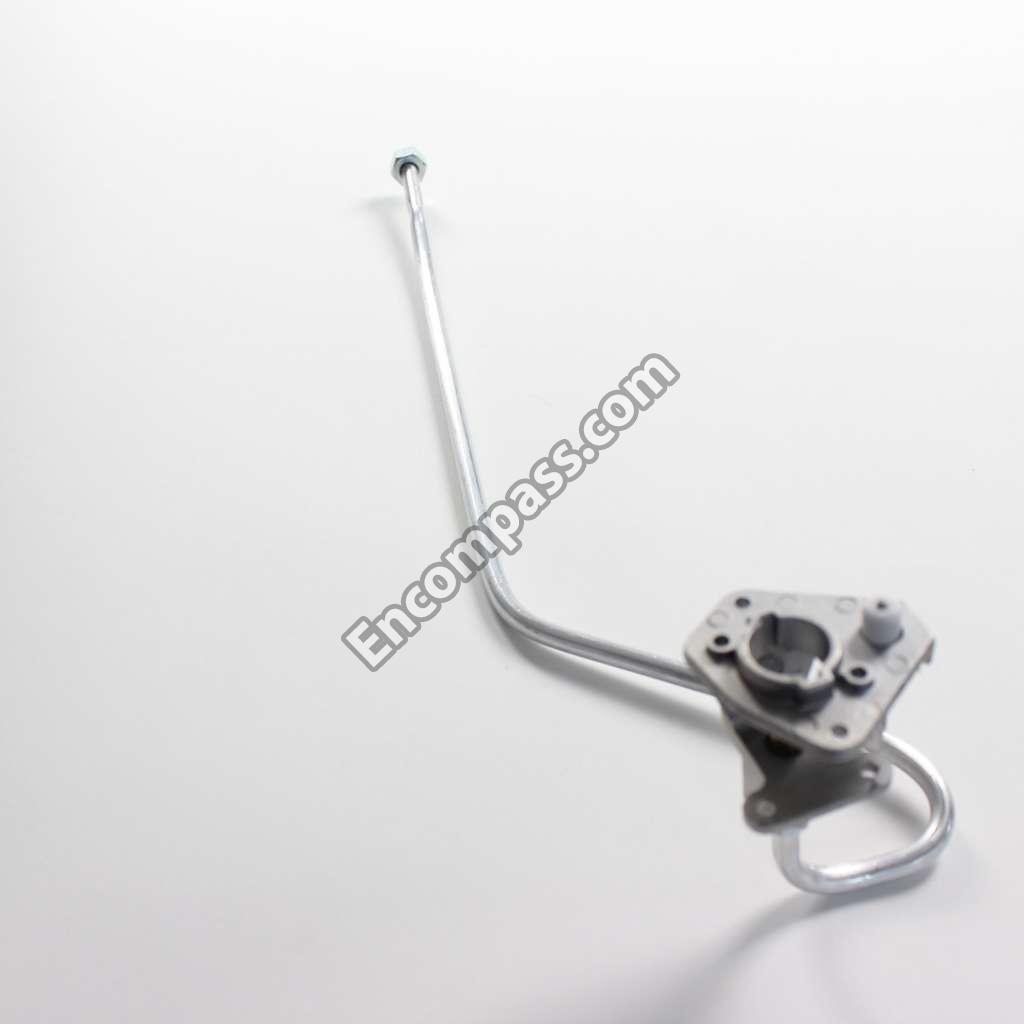

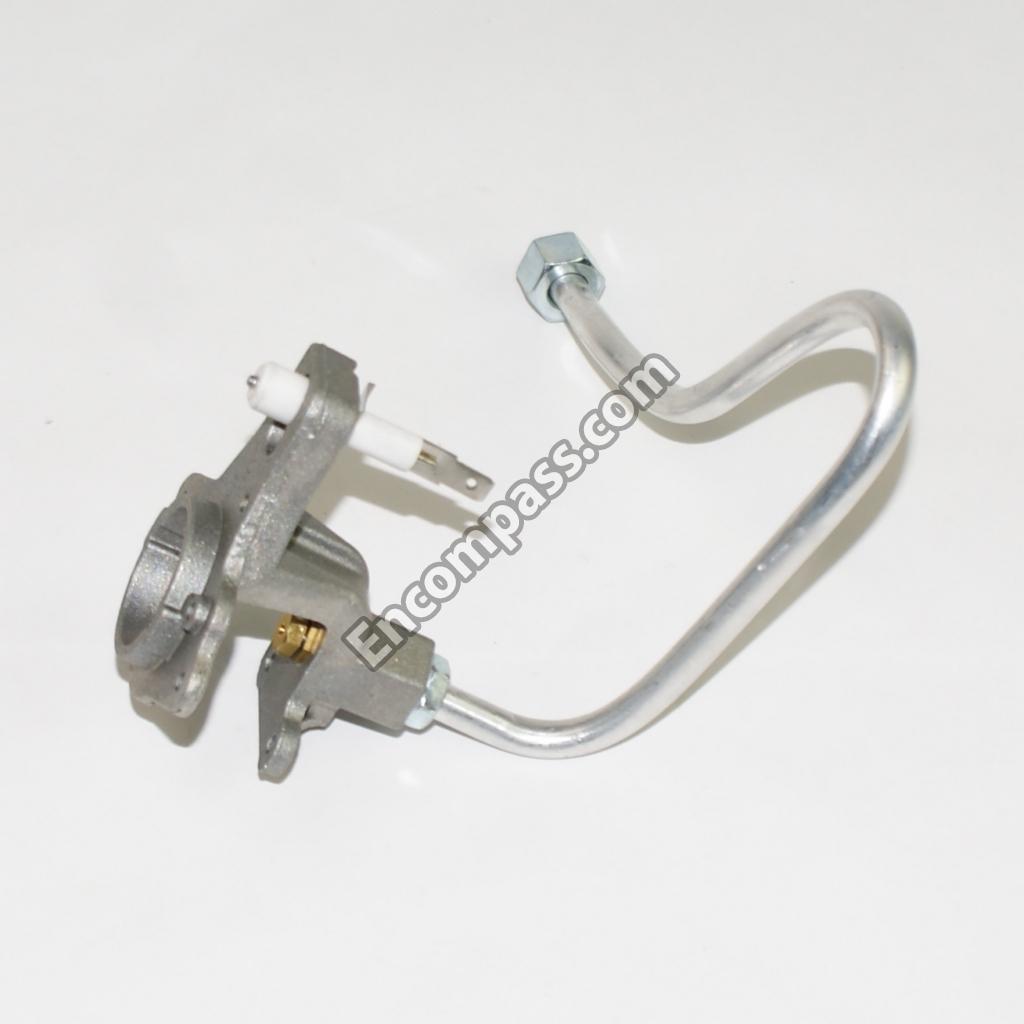

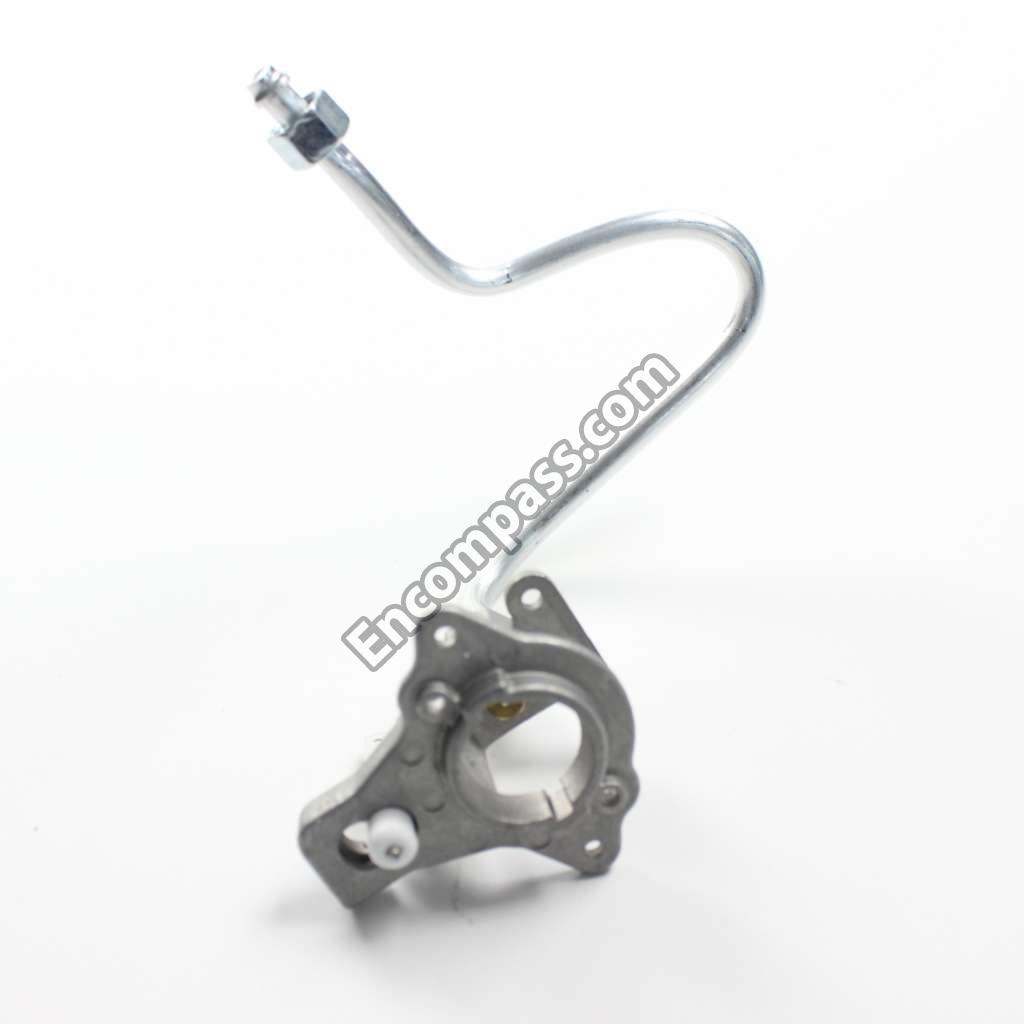

RANGE SURFACE BURNER IGNITER AND ORIFICE HOLDER |
|

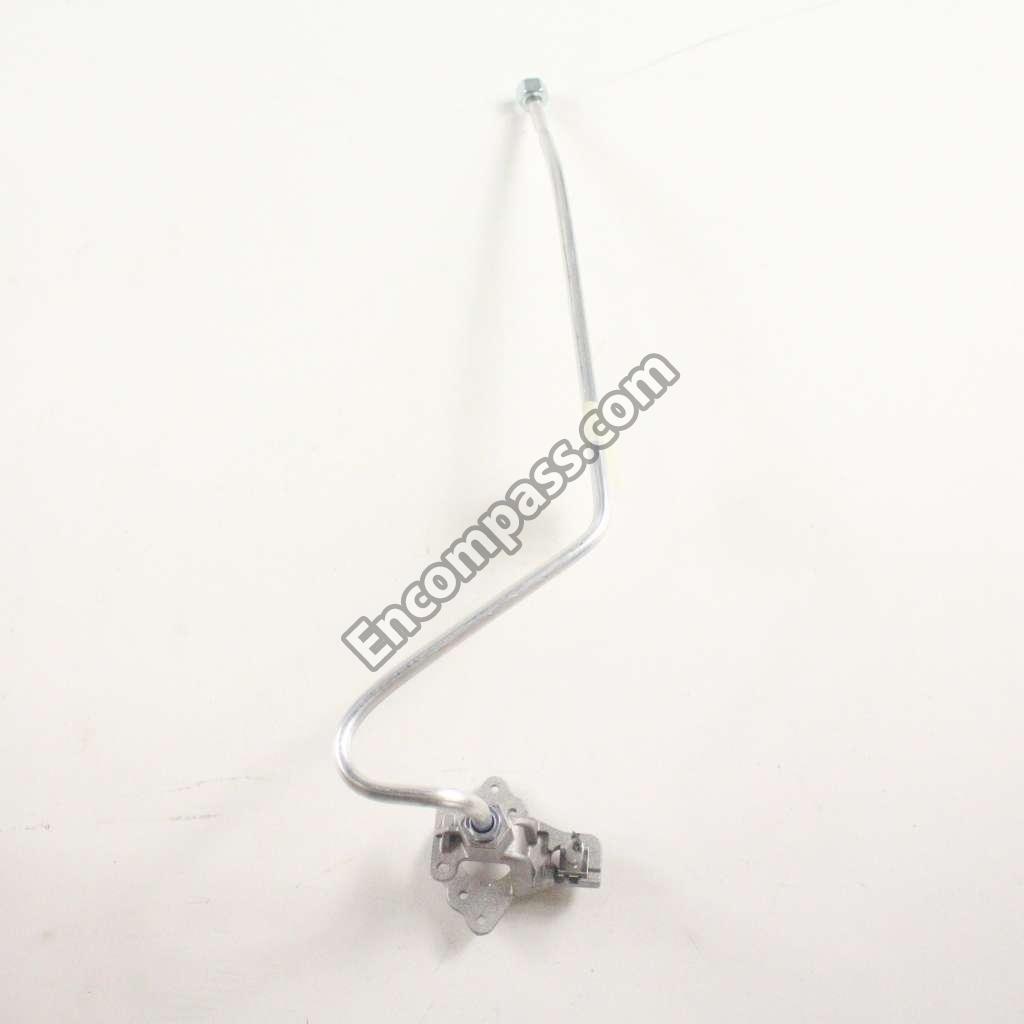

316536602 |
RANGE SURFACE BURNER IGNITER AND ORIFICE HOLDER |
|
316536610 |
RANGE SURFACE BURNER IGNITER AND ORIFICE HOLDER |
|
316536621 |
RANGE SURFACE BURNER IGNITER AND ORIFICE HOLDER... |
|
5304507386 |

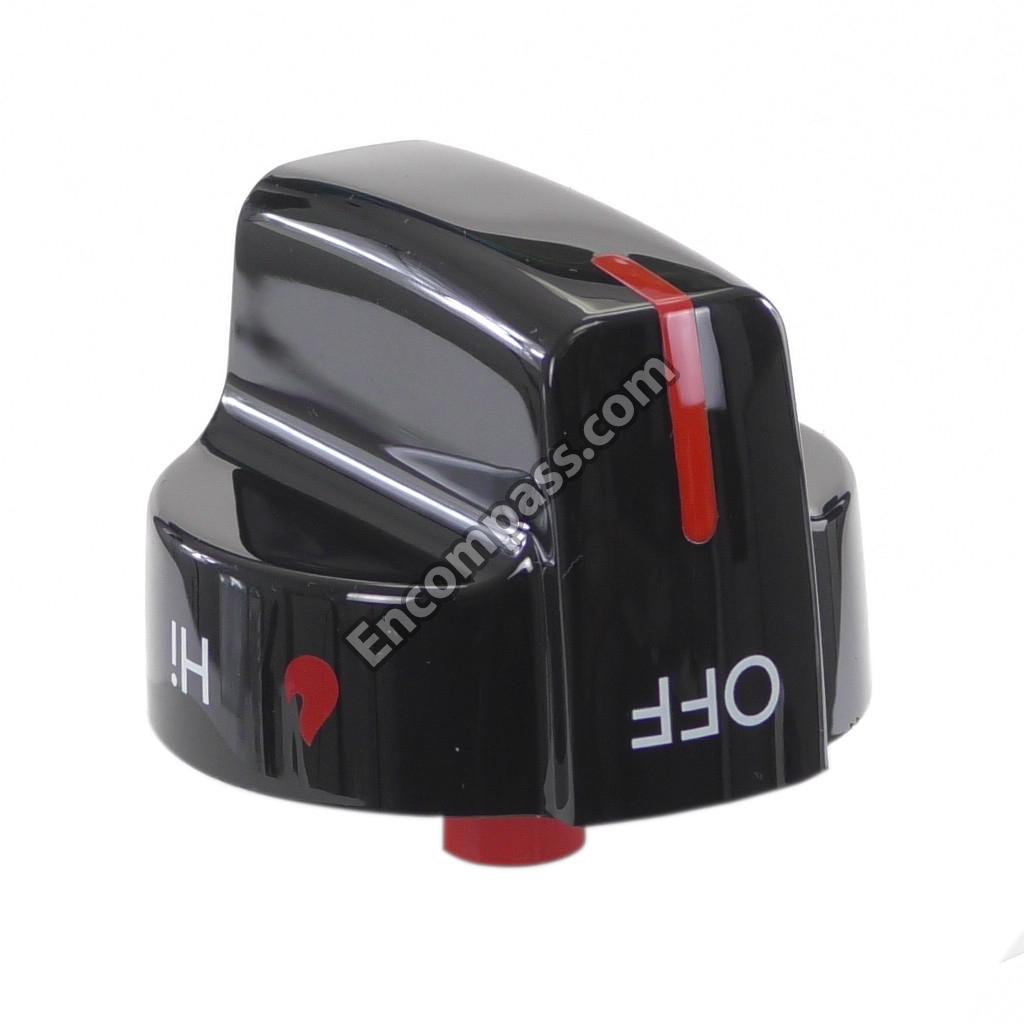

RANGE SURFACE BURNER KNOB (BLACK) |
|

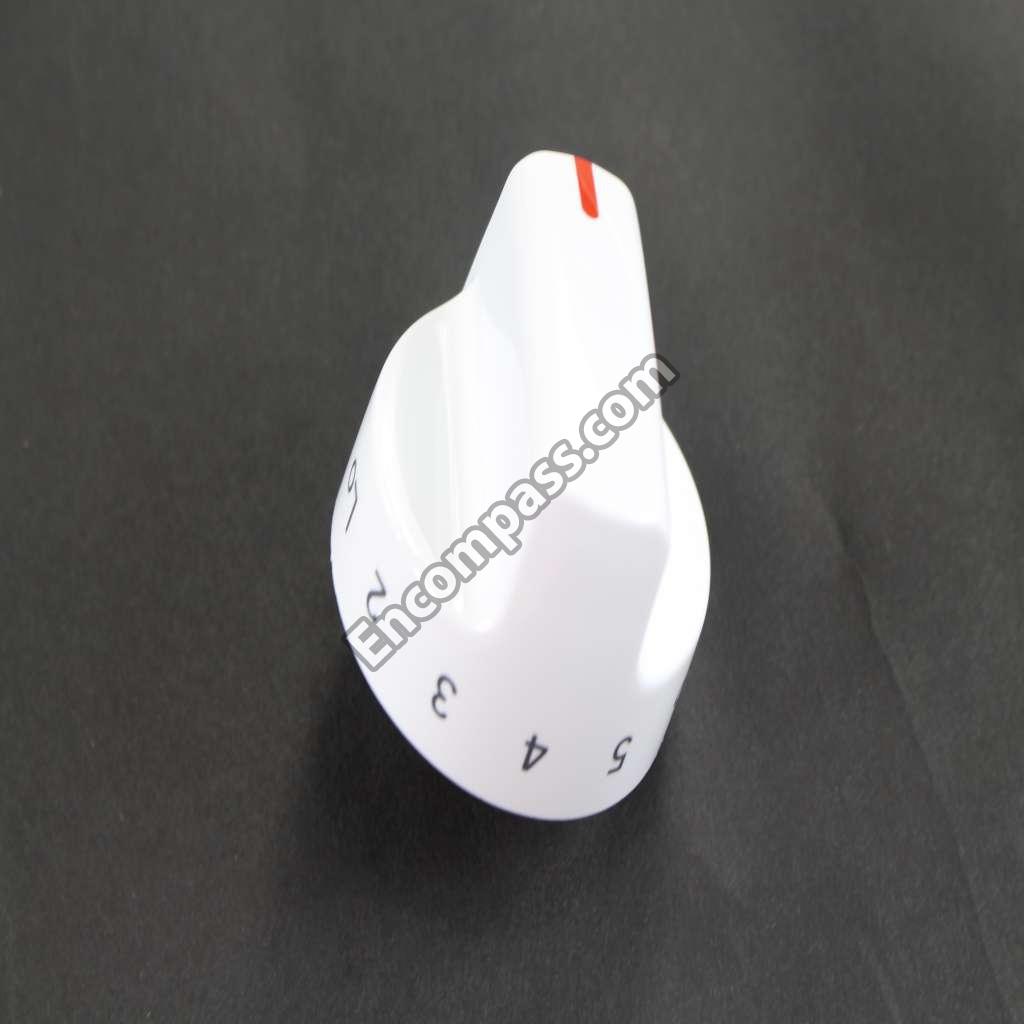

5304507387 |
RANGE SURFACE BURNER KNOB (WHITE) |
|

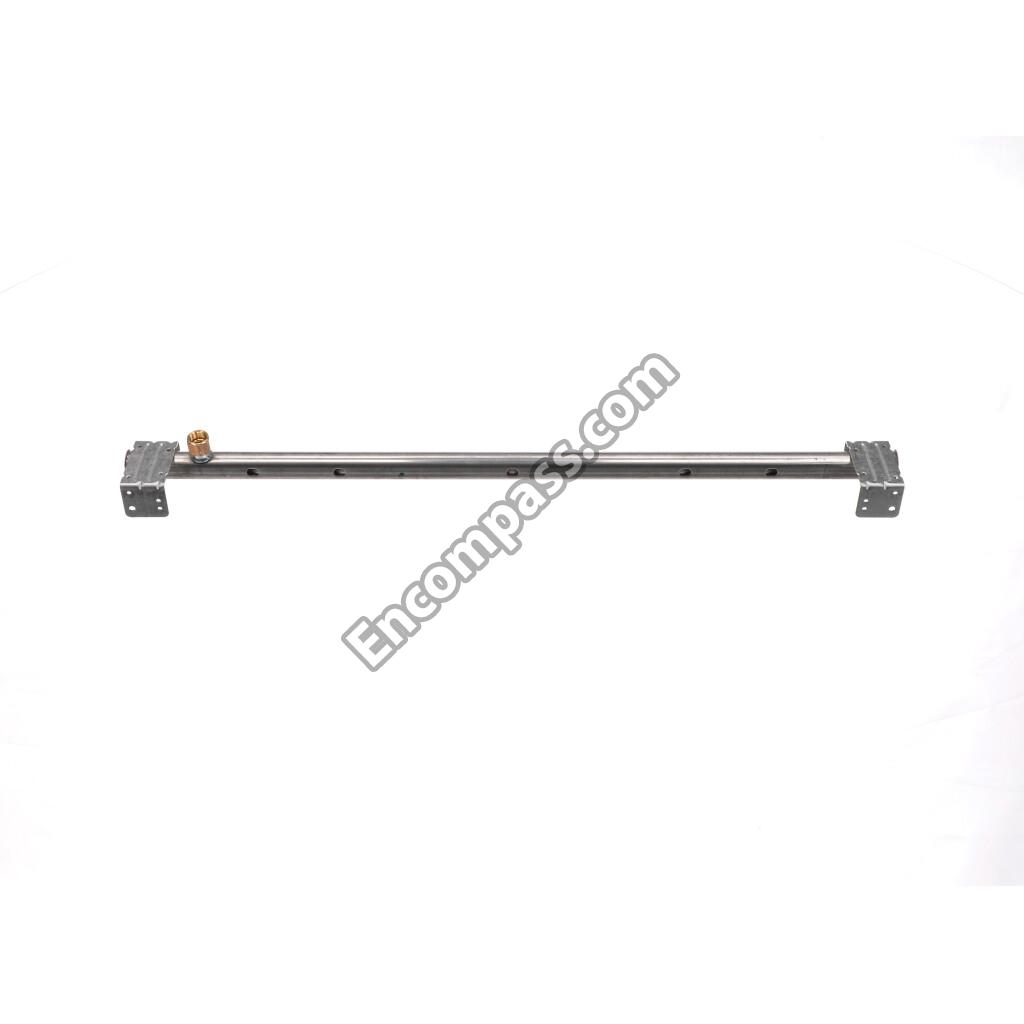

5304513540 |
RANGE SURFACE BURNER MANIFOLD ASSEMBLY |
|
316605358 |
RANGE SURFACE BURNER MANIFOLD PANEL (BLACK) |
|
316489101 |
RANGE SURFACE BURNER MANIFOLD SUPPLY TUBE |
|
316527500 |

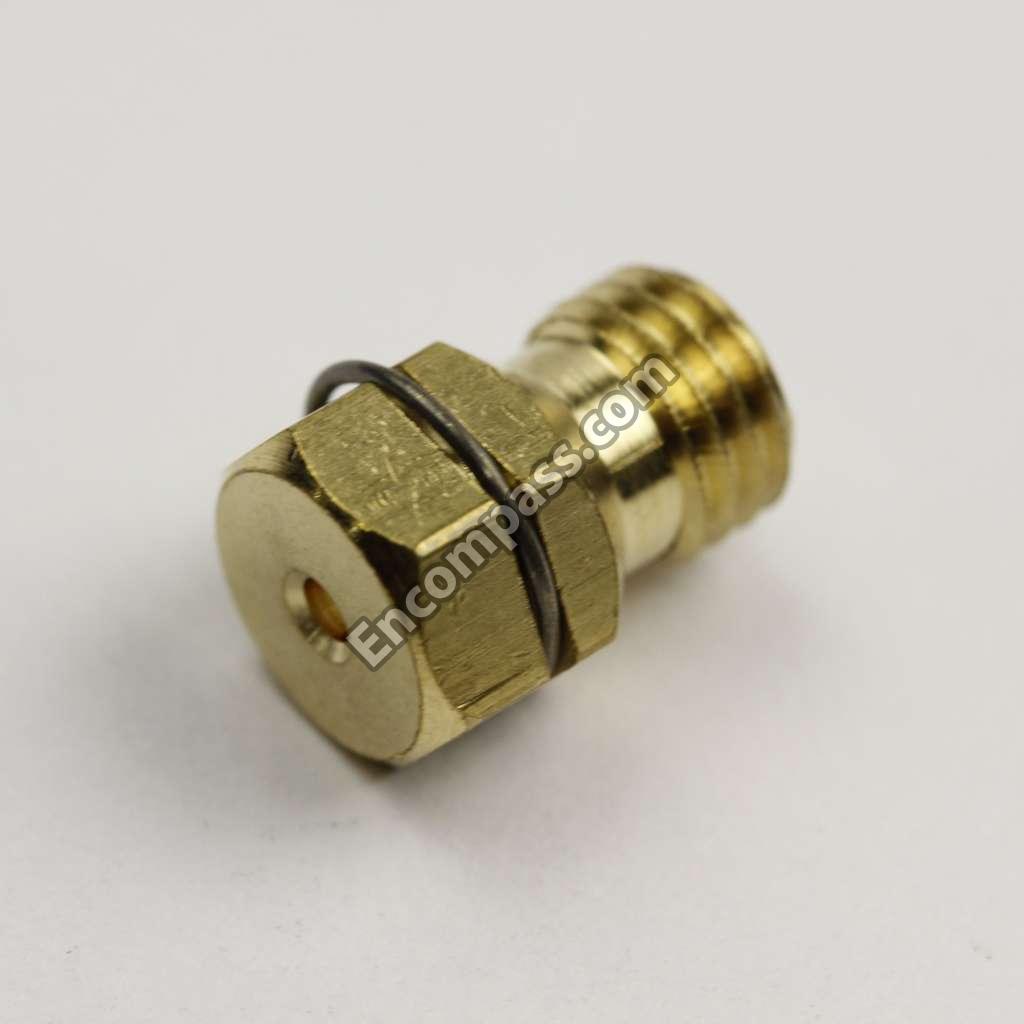

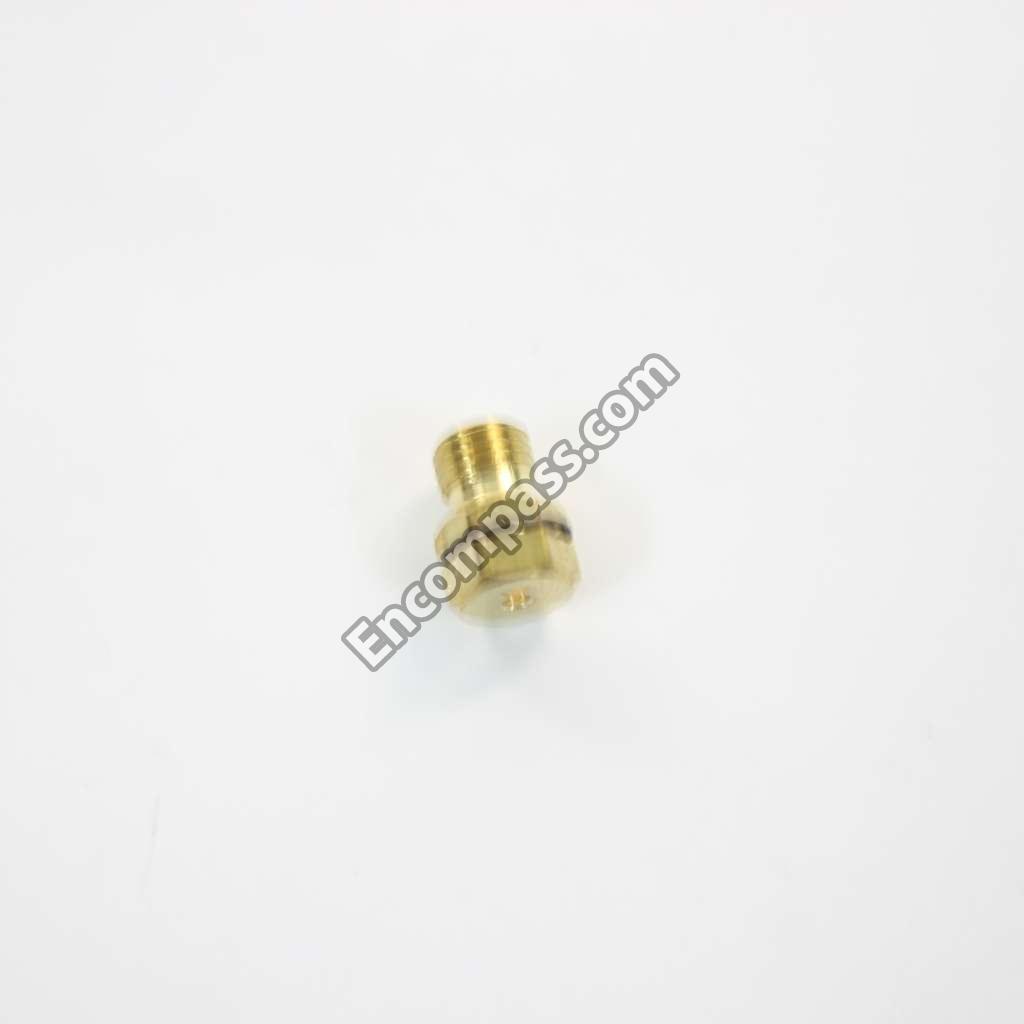

RANGE SURFACE BURNER ORIFICE |
|
316527508 |
RANGE SURFACE BURNER ORIFICE |
|
316527504 |
RANGE SURFACE BURNER ORIFICE |
|
316527502 |
RANGE SURFACE BURNER ORIFICE |
|
316536612 |
RANGE SURFACE BURNER ORIFICE ASSEMBLY |
|

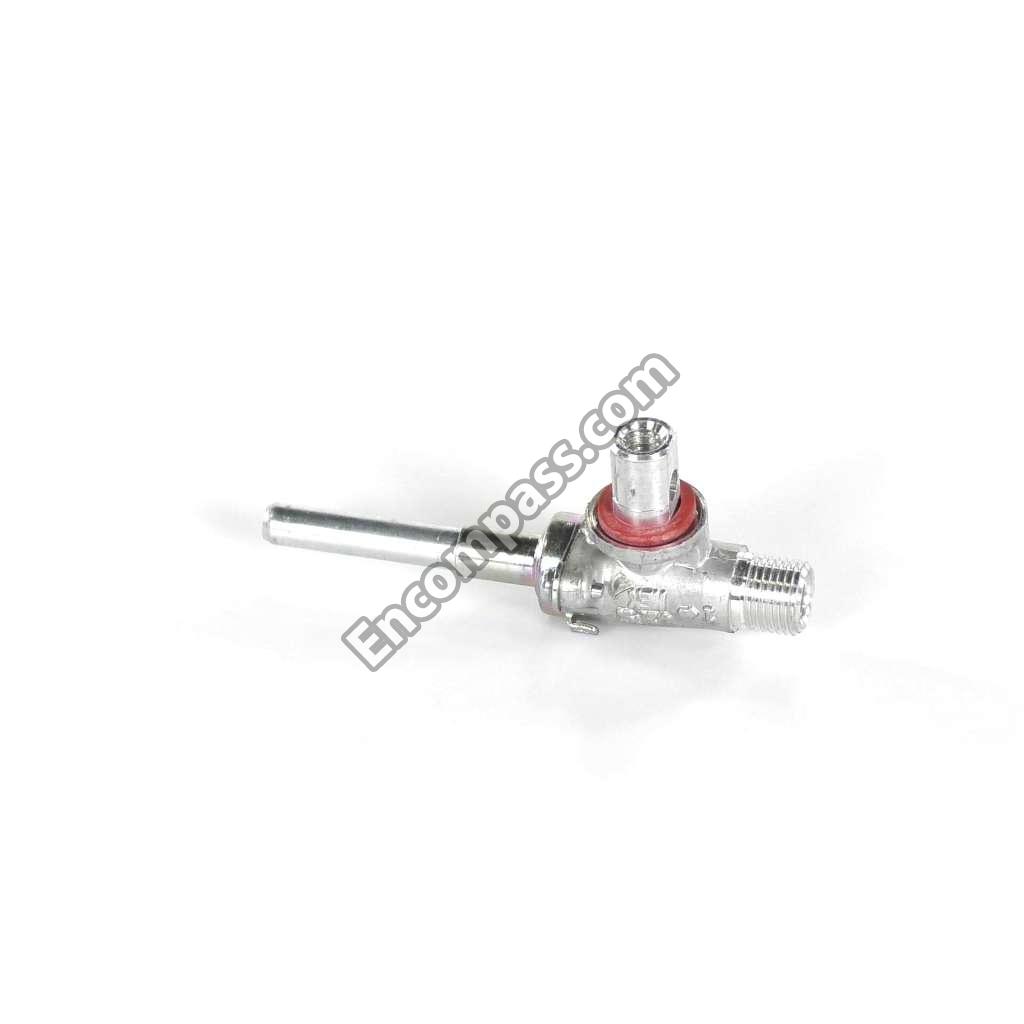

5304506548 |

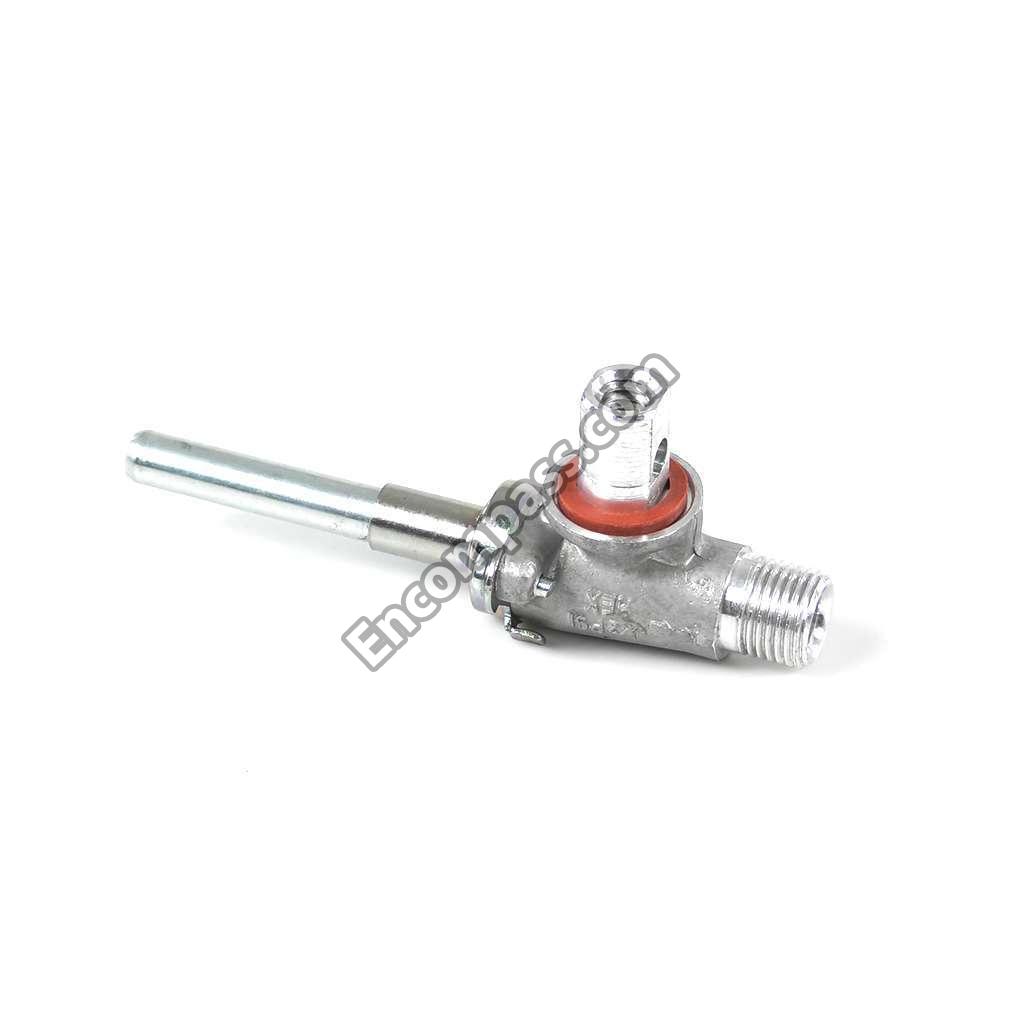

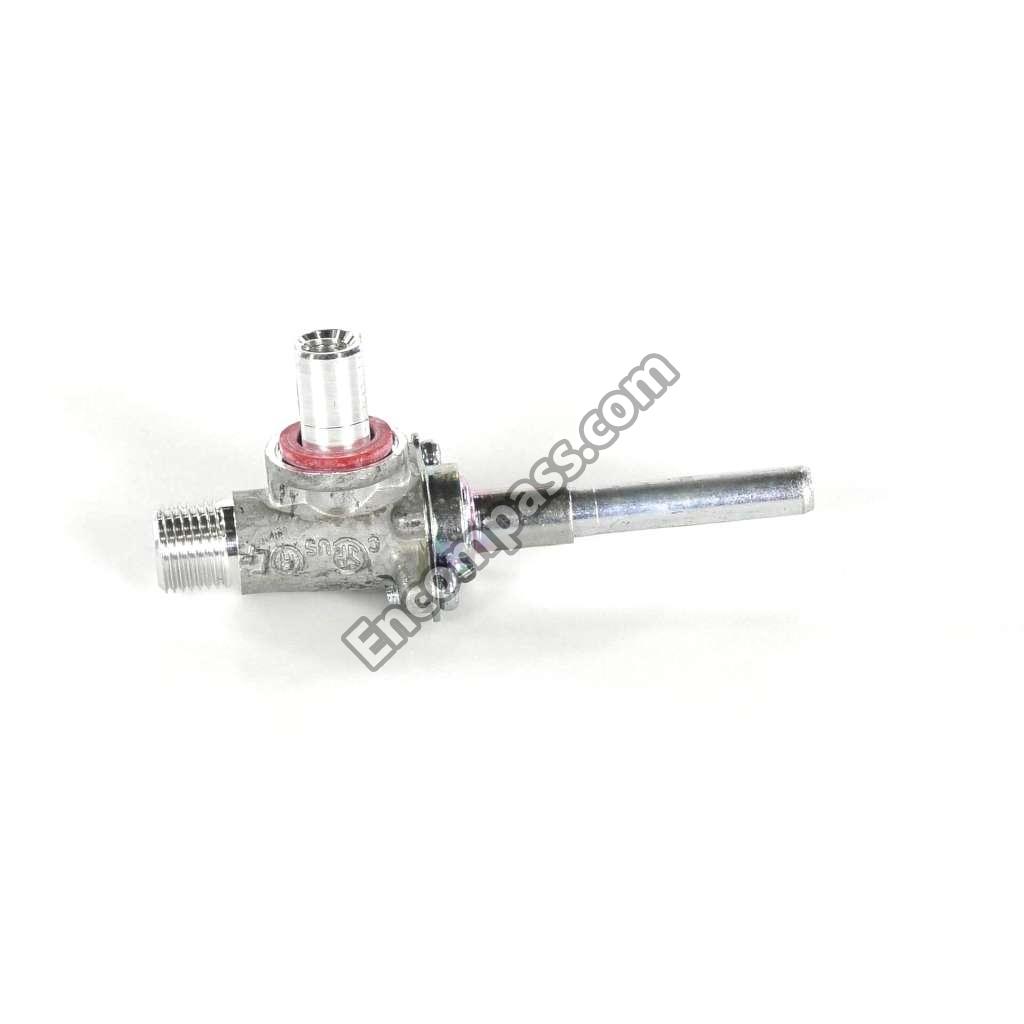

RANGE SURFACE BURNER VALVE, 9,500-BTU |
|
5304506549 |
RANGE SURFACE BURNER VALVE, CENTER |
|
5304506547 |
RANGE SURFACE BURNER VALVE, RIGHT REAR |
|
316498200 |

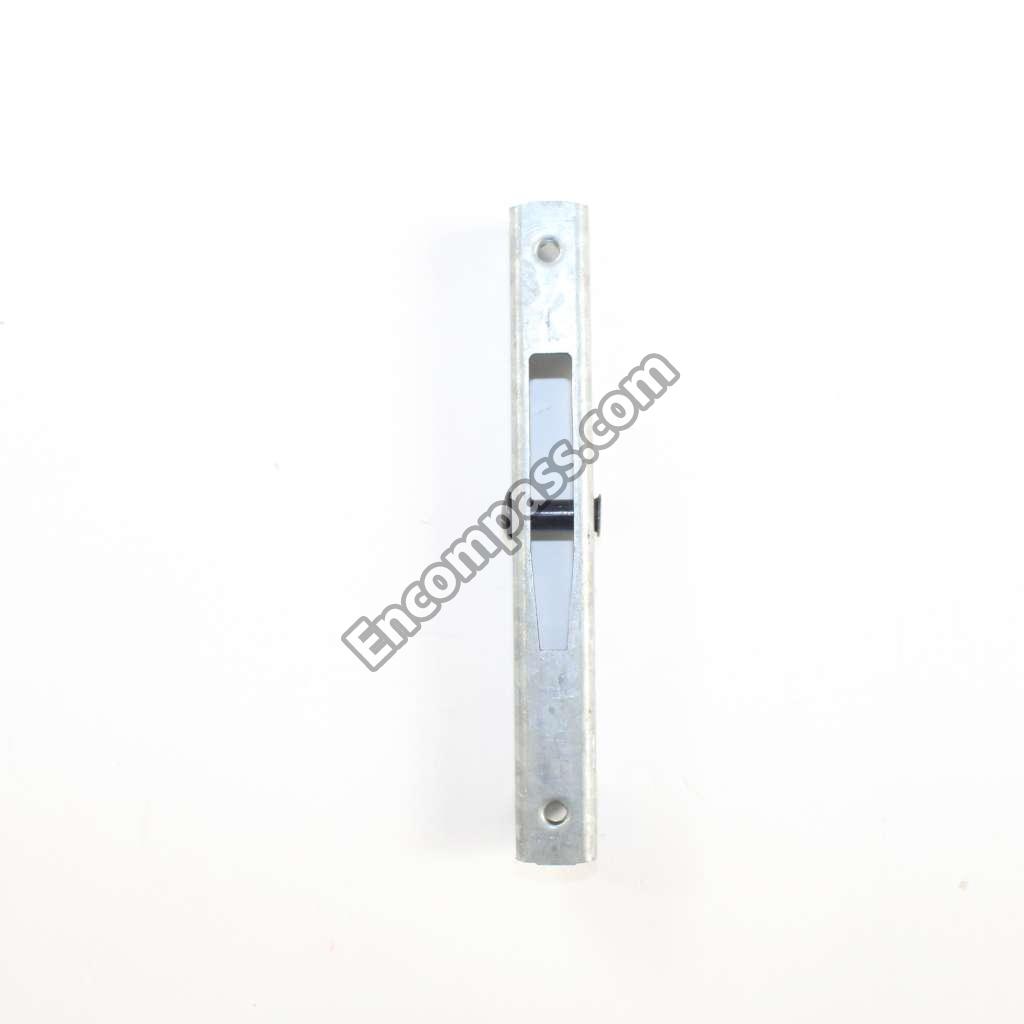

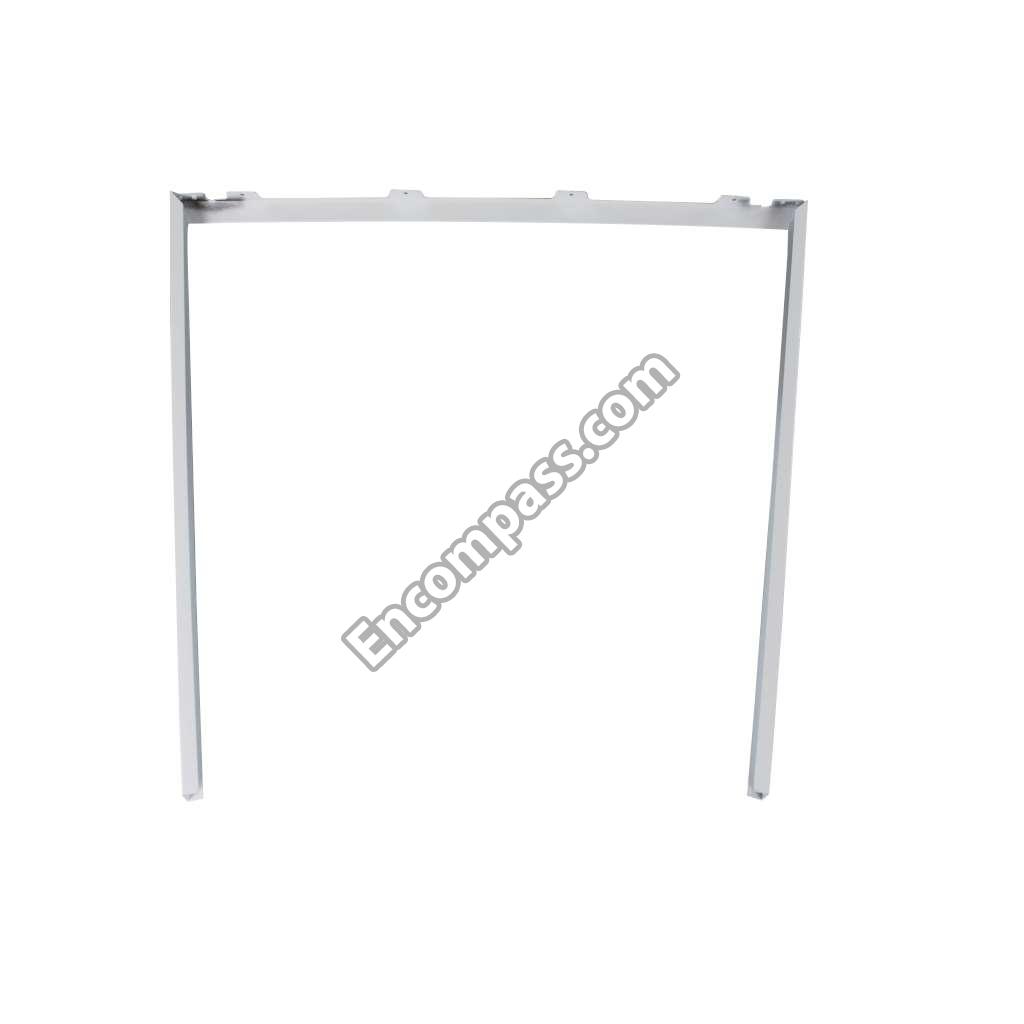

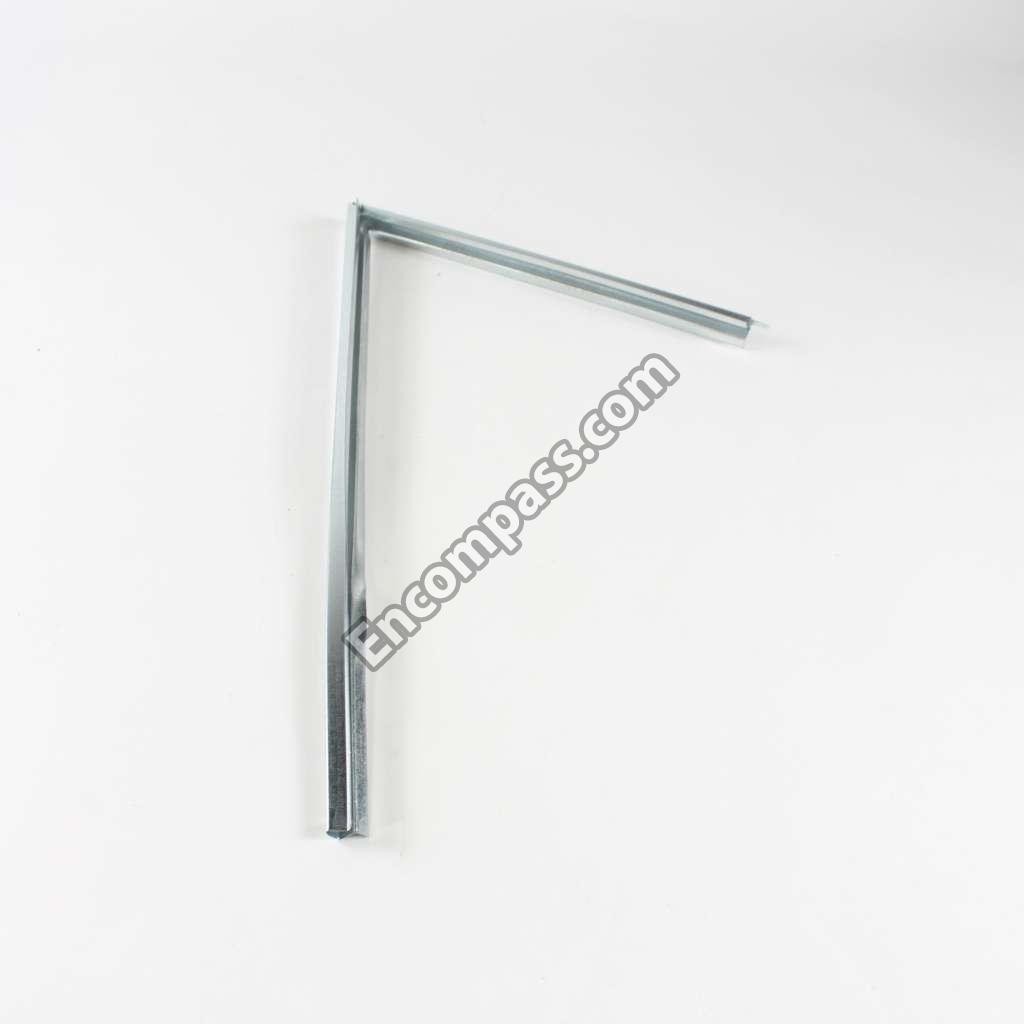

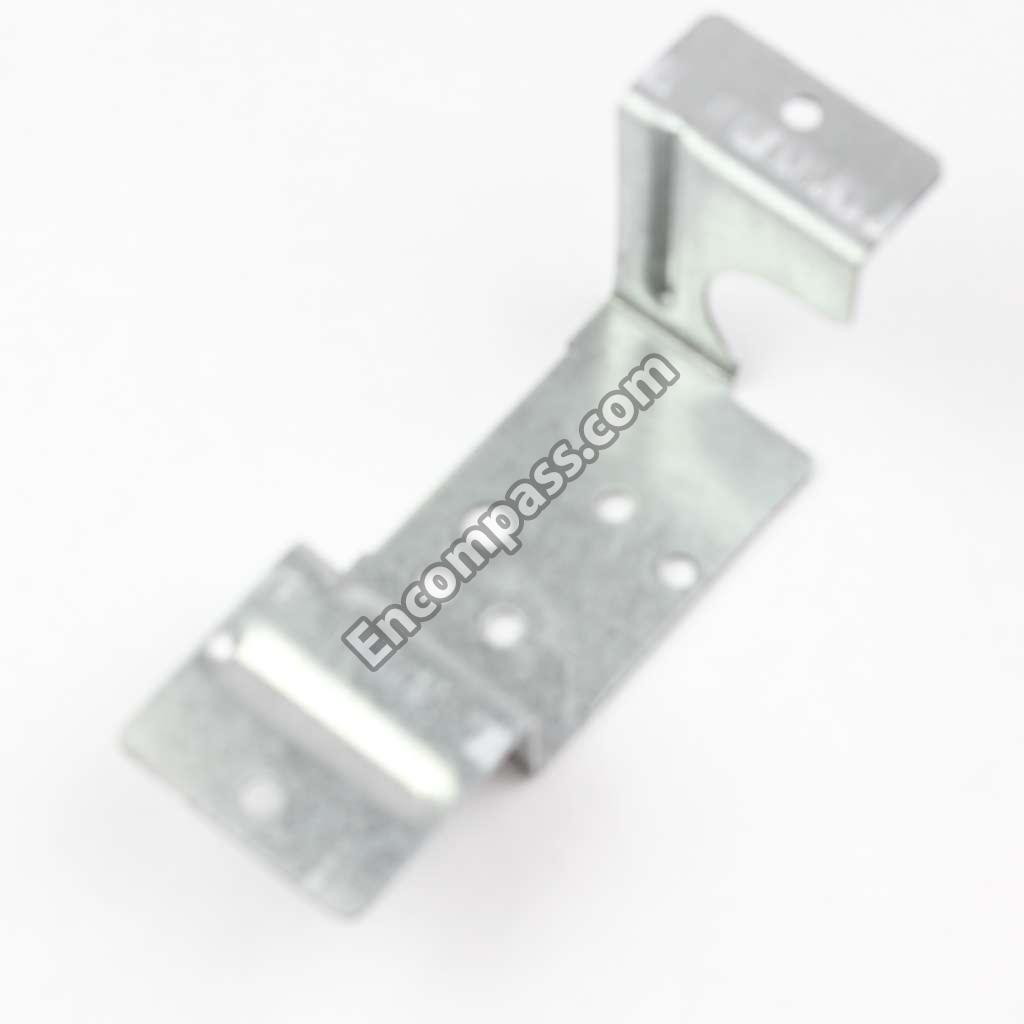

RANGE UPPER FRAME SUPPORT BRACKET |
|
316091600 |
REG BRACKET |
|
5303288566 |
SCREW |
|
316021132 |

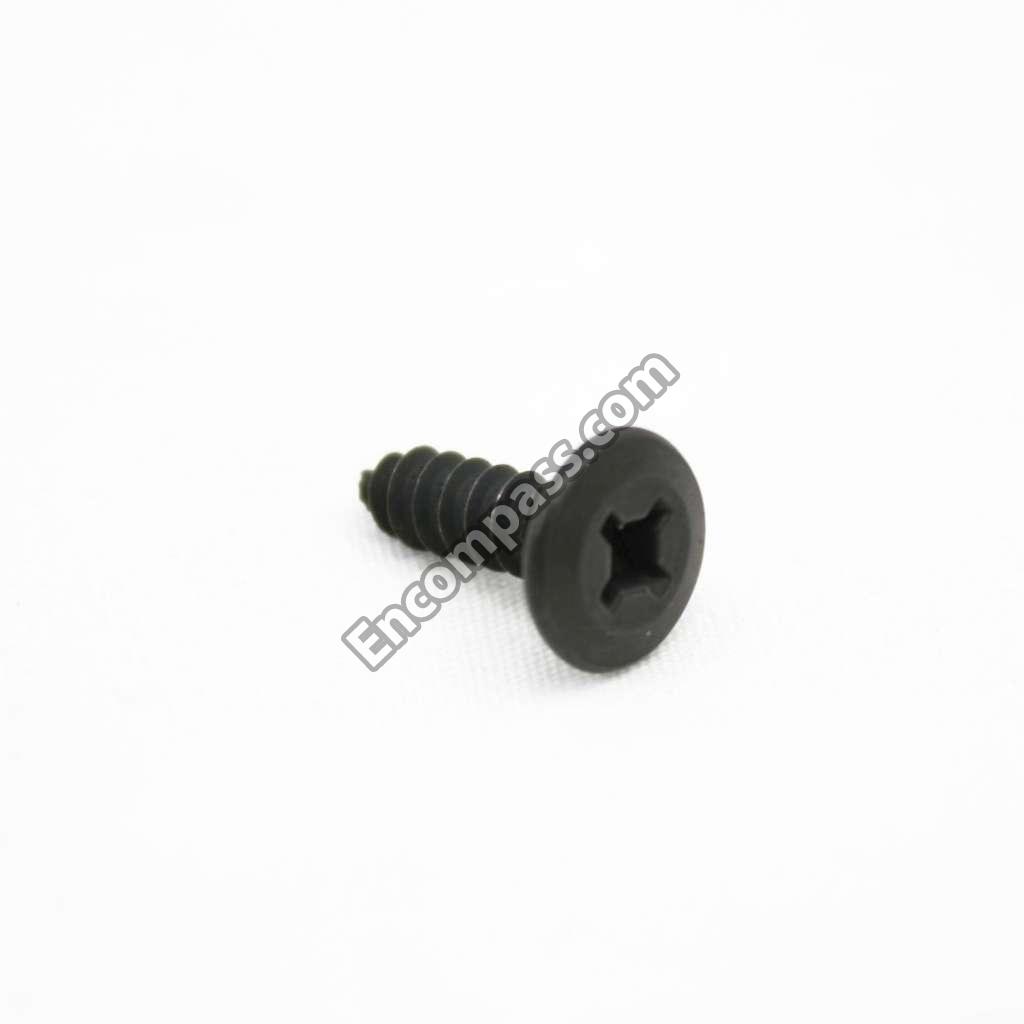

SCREW (BLACK) |
|
316400700 |
SHIELD |
|
316405900 |
SHIELD |
|
316498100 |
SHIELD |
|
807219501 |
SHIELD,BURNER ,FRONT |
|
5304518926 |
SHIELD,HEAT ,BODYSIDE ,(2) |
|
316402316 |
SHIELD,WOOL |
|
5304527841 |
SWITCH ROCKE |
|
5304527842 |
SWITCH ROCKE |
|
5304520704 |
TUBE,VALVE ,3/8 |
|
5304506551 |
VALVE |
|
5304506550 |
VALVE |
|
316572800 |
VALVE,SAFETY |
|
5304505563 |
WIRE |
