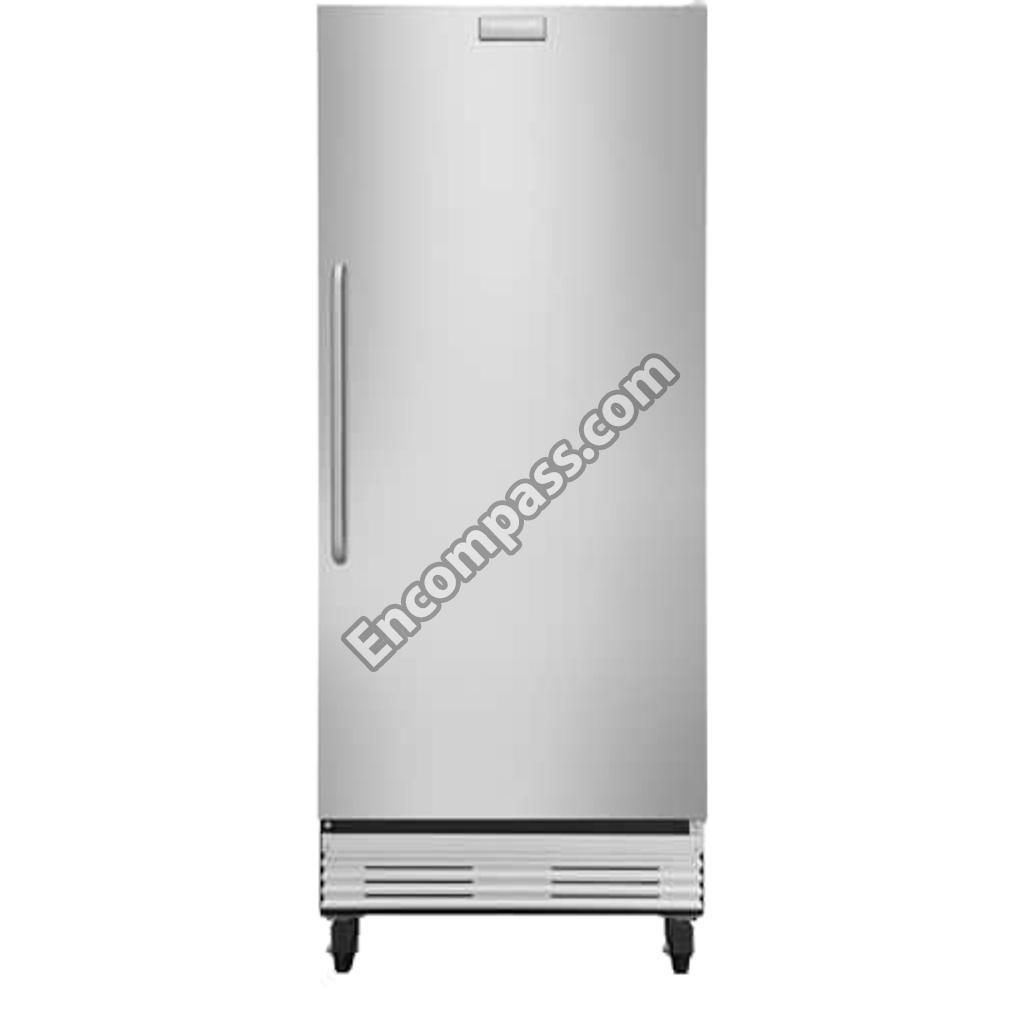

Model Image
Manufacturer

Electrolux

Model Number

FCRS201RFB5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
216381300 216381300 **NLA** COVER-DRAIN
216335400 216335400 BEARING-HINGE
241639501 241639501 BLADE
216658401 216658401 BOLT
297141400 297141400 BRACKETEVAP COVER
216968501 216968501 BRACKETTIMER
297200900 297200900 BREAKER KIT W/CORNE
297200100 297200100 BREAKER KIT W/CORNE
216578800 216578800 BREATHER VALVES
297206600 297206600 CASTERFRONT
297206500 297206500 CASTERREAR
297085805 297085805 CASTOR KIT
297315800 297315800 CLIP
216273000 216273000 CLIP
216954300 216954300 CLIP
5303311565 5303311565 CLIP-CABLE
297152201 297152201 CONDENSER
216954228 216954228 CONTROLLER
297169900 297169900 CORDPOWER
297225501 297225501 COVER
297014400 297014400 COVER-BLOWER
297070800 297070800 COVER-DRAIN HOSE
297070700 297070700 COVER-WIRING
216659103 216659103 COVEREVAPORATOR
297255301 297255301 DOOR FOAMED U20 NSF
216377000 216377000 DRAIN TROUGH
216680901 216680901 DUCTAIR
297311300 297311300 EVAPORATOR
216361100 216361100 GASKETCOVER EVAP
216522318 216522318 GASKETDOOR
216383700 216383700 GASKETEVAP COVER
216383800 216383800 GASKETEVAP COVER
216383603 216383603 GRATEAIR INTAKE
297071200 297071200 GRILLE/KICKPLATE
240405201 240405201 GROMMET
216225700 216225700 GROMMETSPACER
297207900 297207900 GUARD
297082700 297082700 HANDLE
297082300 297082300 HARNESS-JUMPER
216730700 216730700 HEATER-DEFROST
216335600 216335600 HINGEBOTTOM
297215900 297215900 HINGETOP
216361901 216361901 HOSEDRAIN
297001708 297001708 INSULATION
297070900 297070900 INSULATION
297078801 297078801 INSULATOREVAP
297078701 297078701 INSULATOREVAP
297250000 297250000 MOTOR
297073400 297073400 NAMEPLATE
216658601 216658601 NUT
240537301 240537301 NUT-ANCHOR
297165801 297165801 PANDRAIN
297071000 297071000 PANEL-INNER DOOR
297095301 297095301 PLUG
297083500 297083500 PLUG-HANDLE
216403701 216403701 PLUGBUTTON
08016582 08016582 SCREW
297174300 297174300 SCREW
297096100 297096100 SCREW
216858001 216858001 SCREW
216912401 216912401 SCREW
216395801 216395801 SCREW
216605500 216605500 SCREW
216337701 216337701 SCREW
216036601 216036601 SCREW
240555002 240555002 SCREW-#8-32 X 3/8
240491503 240491503 SCREW-COMPRESSOR MT
240578902 240578902 SCREW-HINGE MTG
218755402 218755402 SCREW-SET
218755504 218755504 SCREW-SHOULDER
216384003 216384003 SHELF
216386203 216386203 SHELF
297122000 297122000 SHELFSTANDARD
297164000 297164000 SHROUDFAN ORFICE
297111000 297111000 STANDOFF
5308000110 5308000110 STRAP-EVAP/HEATER
297244700 297244700 SUPPORT
297121900 297121900 SUPPORT SHELF
297243800 297243800 SWITCH
216731001 216731001 THERMOSTAT
297273901 297273901 TRIMCABINET CORNER
5309950074 5309950074 VALVE
297014200 297014200 VENTURI
