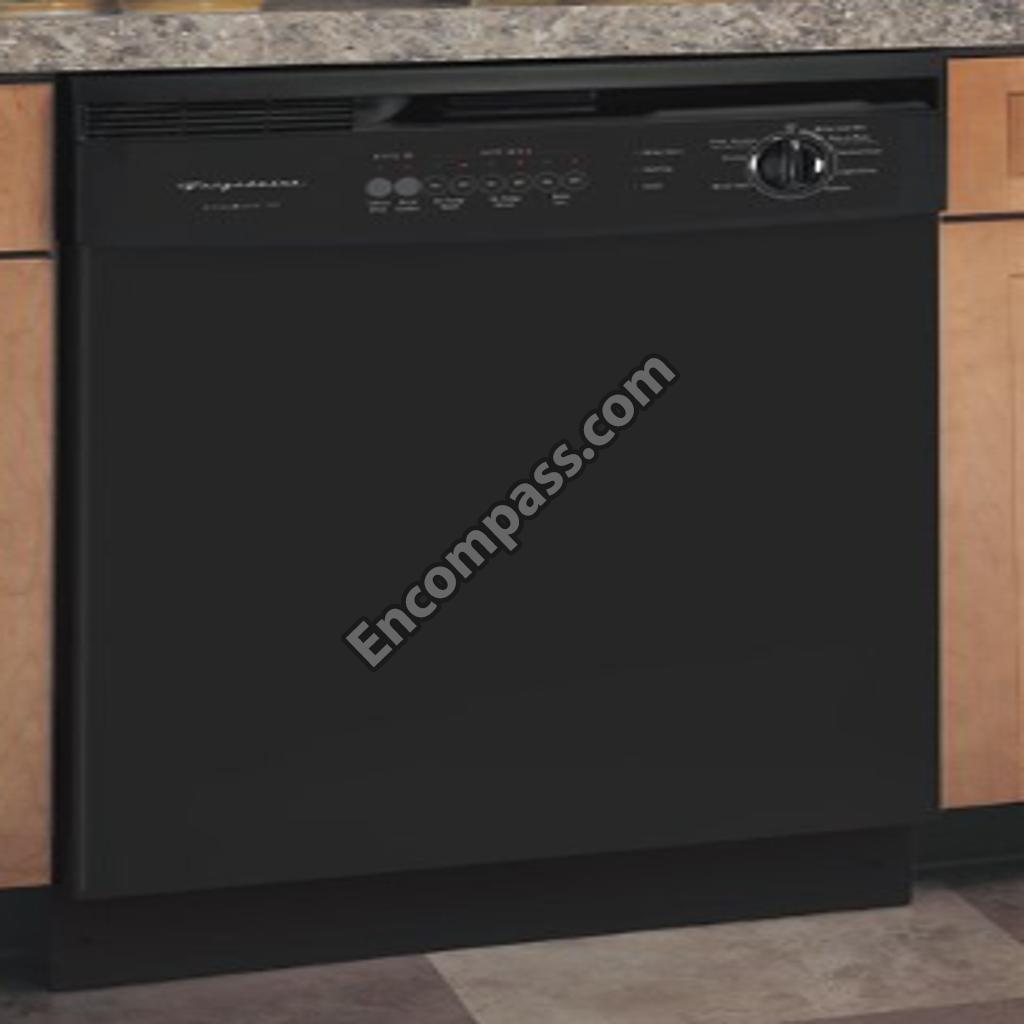

Model Image
Manufacturer

Electrolux

Model Number

FDB700BFB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154596102 154596102 ARM ASSEMBLY
154246402 154246402 BALL
154595801 154595801 BRACE
154595901 154595901 BRACKET
154246502 154246502 BRACKET
154479601 154479601 BRACKET
154426201 154426201 BRACKET
154388801 154388801 CAP
5300809927 5300809927 CAP
154348502 154348502 CLAMP
154348401 154348401 CLAMP
154380601 154380601 CLAMP
154320301 154320301 CLAMP
154574401 154574401 DISPENSER
154359107 154359107 DOOR
154494601 154494601 F-LINER
154252401 154252401 FILTER
154251801 154251801 FUNNEL
154246801 154246801 GASKET
154406401 154406401 GASKET
154646201 154646201 HARNESS
154234401 154234401 HOSE
154365902 154365902 HOUSING
154458203 154458203 INSERT
154641601 154641601 INSULATION
154426903 154426903 KNOB
154571101 154571101 LEG
154325201 154325201 LINKAGE
154606801 154606801 NOZZLE
154252001 154252001 NUT
154106202 154106202 NUT
154247001 154247001 ORING
154246901 154246901 ORING
154685203 154685203 PANEL
154529101 154529101 PIN
154241101 154241101 RETAINER
154200701 154200701 SCREW
154581501 154581501 SCREW
154041001 154041001 SCREW
154200602 154200602 SCREW
154297701 154297701 SCREW
154294701 154294701 SCREW
154103702 154103702 SCREW
154093301 154093301 SCREW
154409401 154409401 SCREW
154095701 154095701 SCREW
154779601 154779601 SCREW
5304428306 5304428306 SCREW
5300807270 5300807270 SCREW
5303943103 5303943103 SCREW
5303316032 5303316032 SCREW
154200601 154200601 SCREW-#10-16 X 3/8
154289801 154289801 SHIELD
154248601 154248601 SHIELD
154597801 154597801 SLIDE
154313601 154313601 SPRAY ARM
154568001 154568001 SPRAY ARM
154430501 154430501 SPRING
154662601 154662601 STRIKE
154294101 154294101 SUPPORT
154211401 154211401 SUPPORT
154470001 154470001 SWITCH
154290204 154290204 THERMOSTAT
154227808 154227808 THERMOSTAT

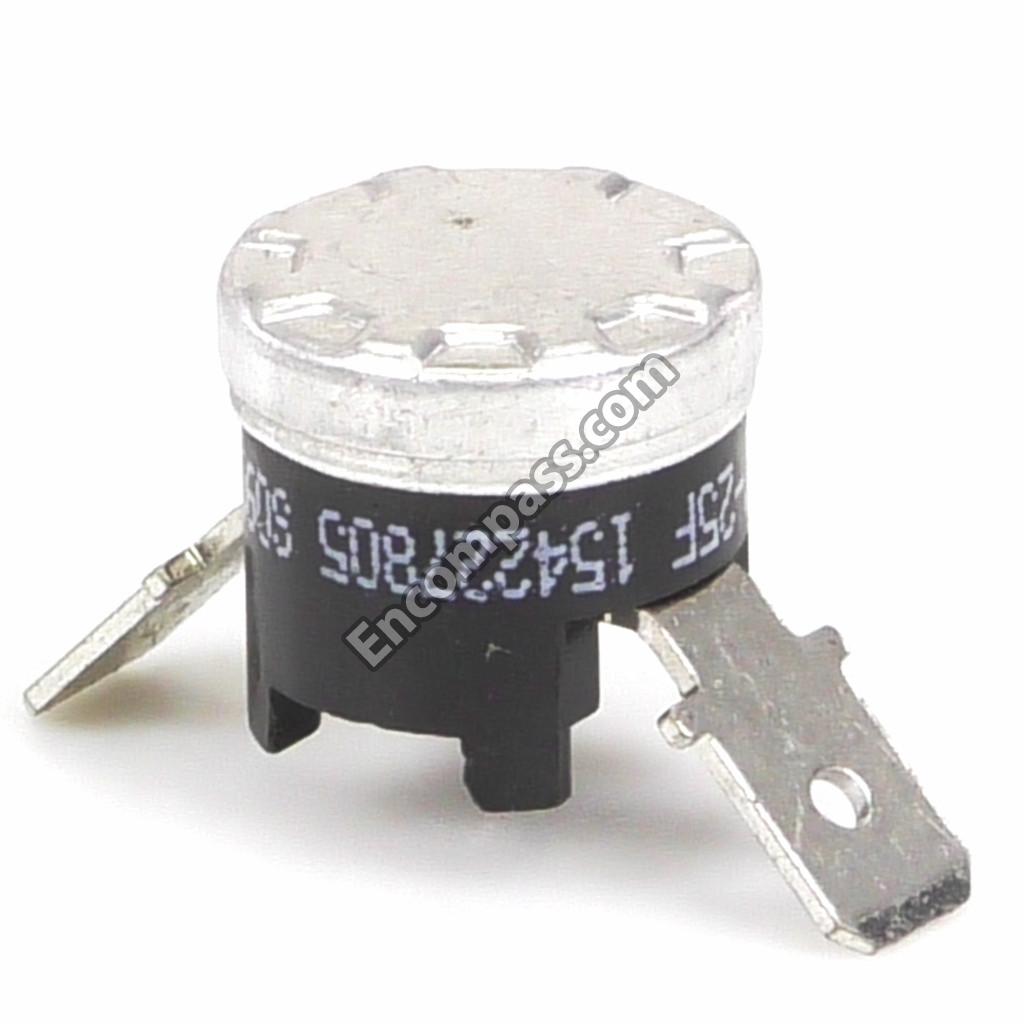

154227805 154227805 THERMOSTAT

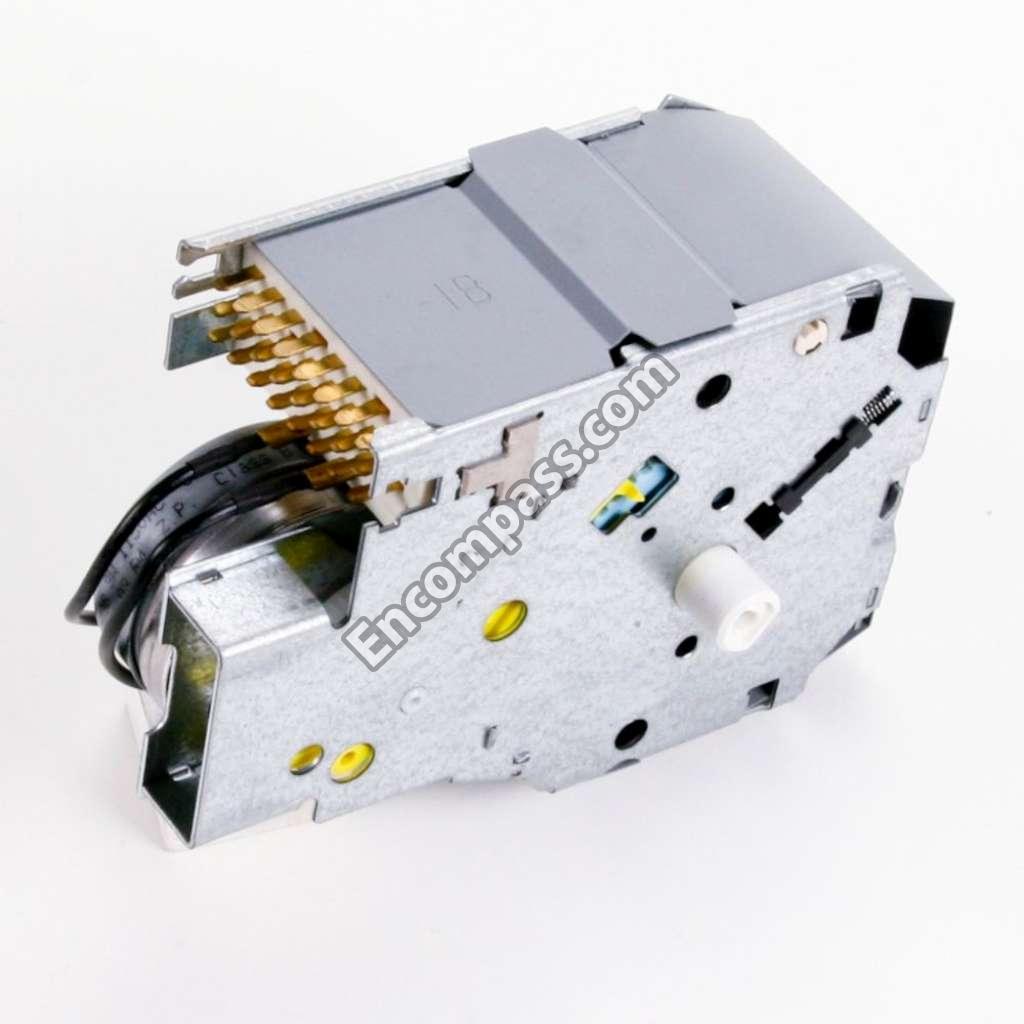

154412901 154412901 TIMER
154252701 154252701 TRAP
154209301 154209301 TUB ASSEMBLY
154406601 154406601 TUBE
154577401 154577401 TUBING
154637401 154637401 VALVE
154433001 154433001 VENT ASSEMBLY
