Model Image
Manufacturer

Electrolux

Model Number

FDB874RCB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303270031 5303270031 ARM ASSEMBLY, INCLUDES RH AND LH
154145501 154145501 BAND/CLIP ASSEMBLY
5303270182 5303270182 BASKET-UTENSIL
5300809782 5300809782 BI, METAL ASSY
154085001 154085001 BLADE-MACERATOR
5300806753 5300806753 BODY-RINSE AGENT DISPENSER
5303286368 5303286368 BRACE-FRONT
154112901 154112901 BRACKET
5300809582 5300809582 BRACKET-FENCE
5300809585 5300809585 BRACKET-HEATER
5300809730 5300809730 CAP-WATER INLET
5300809937 5300809937 CHECK BVALVE
5300809728 5300809728 CLAMP-BLOWER
154144401 154144401 CLIP-ATTACH
154149501 154149501 CLIP-U TYPE
154157401 154157401 COVER-FILTER ASSY
154142901 154142901 COVER-SWITCH
154084601 154084601 COVER-VOLUTE
5308008022 5308008022 DOOR SEAL
5300809610 5300809610 DOOR STRIKE
3100021801 3100021801 DRAIN HOSE, CORRUGATED
154161701 154161701 DUCT-BLOWER
5300809972 5300809972 FRONT FRAME ASSEMBLY
5300809618 5300809618 GASKET-BLOWER
154085501 154085501 GASKET-PUMP
316088600 316088600 GLASS,OVEN DOOR ,INNER
5300805631 5300805631 GROMMET - DISPENSER
316020204 316020204 HANDLE,DOOR ,BLACK ,OVEN
215002301 215002301 HANGER-PAN-TRAY, LH
154106202 154106202 HEATER NUT, 1/2, 20 BRASS (2)
5300809584 5300809584 HEATER, INCLUDES 19
318348800 318348800 HINGE DOOR-RH
154086101 154086101 HOUSING-FILTER
154085301 154085301 IMPELLER-UPPER
5300809616 5300809616 INLET-BLOWER
5300808712 5300808712 KNOB-LATCH
5303351052 5303351052 O - RING MTR. SHAFT (3)
154671501 154671501 PAD,DOOR SPRING
154089603 154089603 PANEL-CONTROL
154158702 154158702 PLATE-BLOWER MOUNTI
154084701 154084701 PLATE-SEPERATOR
5300806757 5300806757 PLUNGER
154089301 154089301 POWER RELAY ASSY
154084801 154084801 PUMP-RETAINER
154323501 154323501 RELAY-MOTOR
5300809097 5300809097 RETAINER-THERMOSTAT
154087501 154087501 RIBBON CABLE
154200701 154200701 SCREW
154200901 154200901 SCREW
154041001 154041001 SCREW
5300808749 5300808749 SCREW
5300804672 5300804672 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
5303943103 5303943103 SCREW,W/WASHER ,(8)
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
154419403 154419403 SCREW-#8-18
154026501 154026501 SCREW-8-18 X 5/8
154093301 154093301 SCREW-ARM ASSEMBLY, (4)
5300807501 5300807501 SCREW-BI-METAL ASSEMBLY
154026101 154026101 SCREW-LEVELING
154200601 154200601 SCREW-NO.10-16 X 3/8
154151901 154151901 SCREW-STRIKE
154089201 154089201 SCREW-UPPER IMPELLE
5303202011 5303202011 SEAL,OVEN DOOR ,NON SELF CLEAN
154086001 154086001 SEAL-FILTER HOUSING
154039805 154039805 SHELF-CUP NLA
5300809938 5300809938 SHIELD-SPRAY ARM
5300809927 5300809927 SLIDE CAP
5300809941 5300809941 SLIDE-RACK
154026601 154026601 SPEEDNUT
154119401 154119401 SPRAY ARM-UPPER
5300806567 5300806567 SPRING - CAM COMPRESSION
5300805227 5300805227 SPRING CAM
154105301 154105301 SWITCH
154144601 154144601 SWITCH-FLOAT
5300809765 5300809765 TOEPLATE
5300809303 5300809303 TOEPLATE-ADJUSTABLE
154156901 154156901 TOWER AASY
154190303 154190303 TRIM-ACCESS TOP
5300809611 5300809611 TUB GASKET

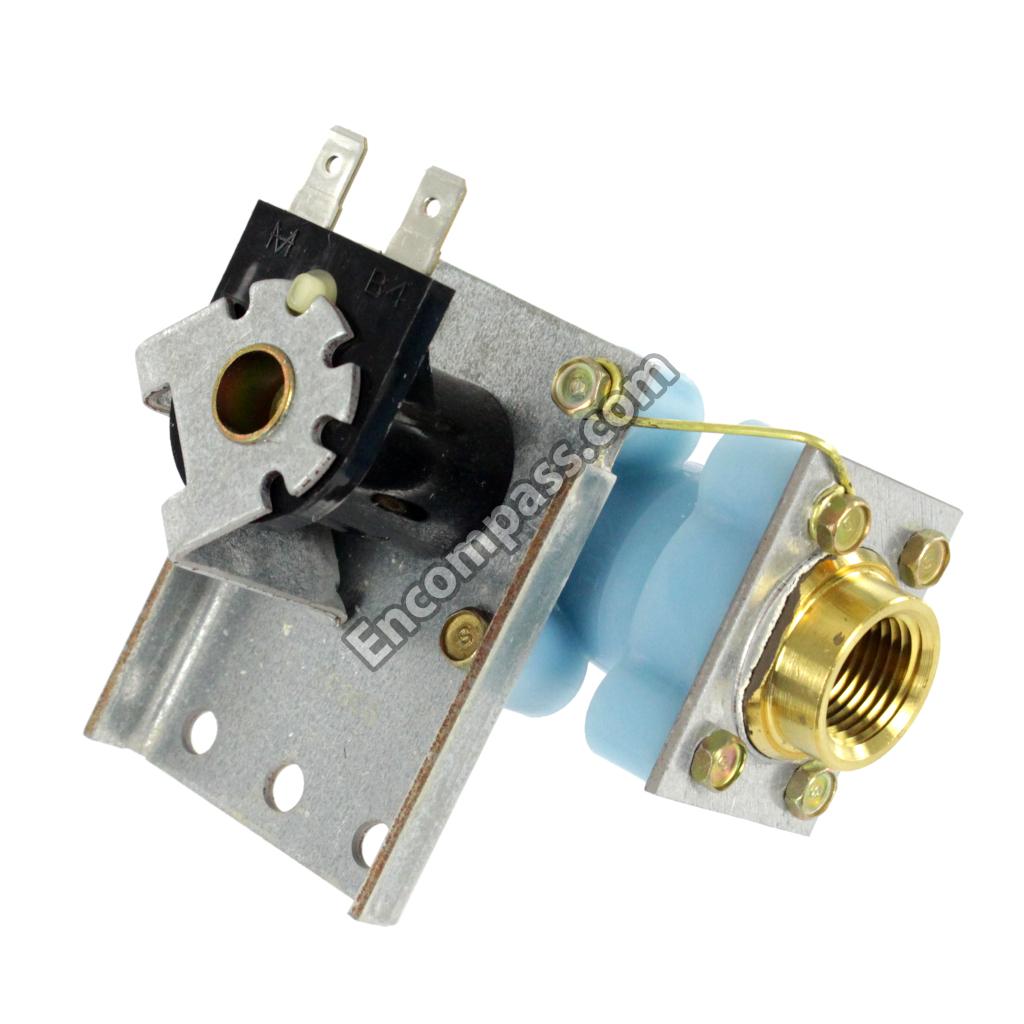

5303297420 5303297420 VALVE-WATER
154064901 154064901 WASHER
5300807373 5300807373 WASHER
5300809587 5300809587 WASHER-HEATER
5300809640 5300809640 WHEEL & BRACKET ASSY LOWER RACK (8)
5300809974 5300809974 WHEEL & BRACKET KIT-UPPER MRACK (4)
