Model Image
Manufacturer

Electrolux

Model Number

FDBB1940DB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
154474401 154474401 ADAPTER
154597503 154597503 ARM ASSY,LH
154596103 154596103 ARM ASSY,RH
154776101 154776101 BASE-SOIL DIRECTOR

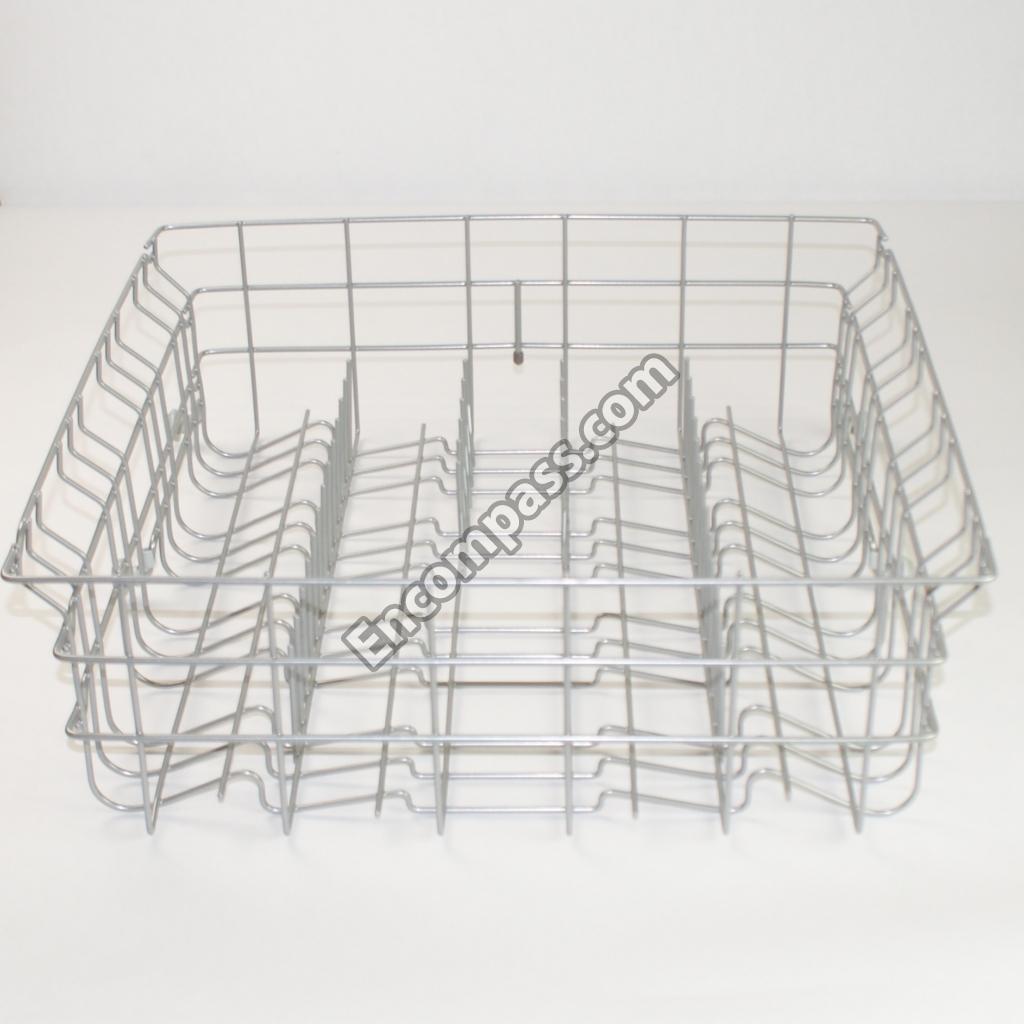

154466902 154466902 BASKET

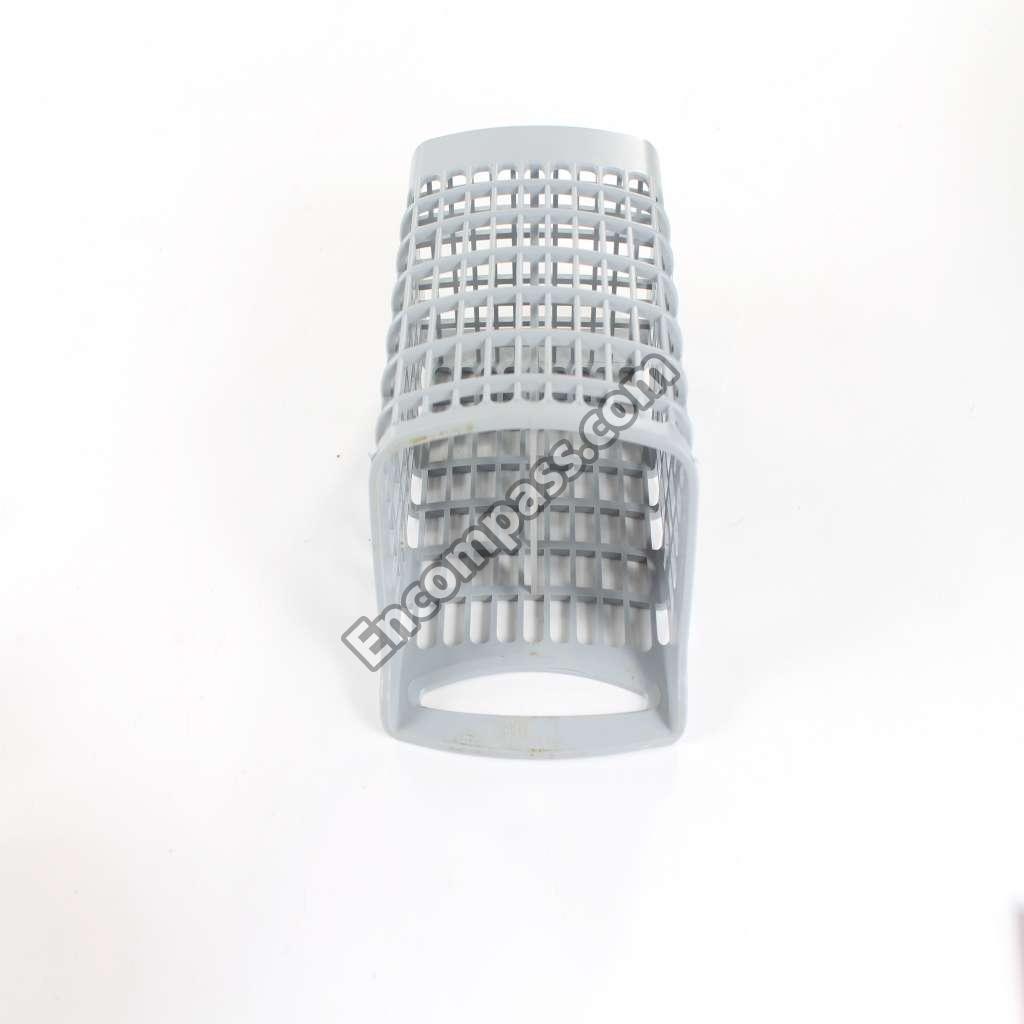

154424102 154424102 BASKET,SILVERWARE ,GREY ,(2) ,SIDE
154823701 154823701 BRACE
154465101 154465101 BRACKET
154242002 154242002 BRACKET
154595901 154595901 BRACKET,MOTOR ,ASKOLL
154242102 154242102 BUSHING
5304440996 5304440996 CAP,SLIDE ,(4)
154246402 154246402 CHECK BALL
154320301 154320301 CLAMP
154380601 154380601 CLAMP
154348401 154348401 CLAMP
154348502 154348502 CLAMP
154209601 154209601 COVER
154424303 154424303 COVER
154245501 154245501 COVER,VOLUTE
5304506521 5304506521 DISPENSER,DET/RINSE AID ,W/O REED
154359007 154359007 DOOR
154494101 154494101 ENERGY GUIDE LABEL

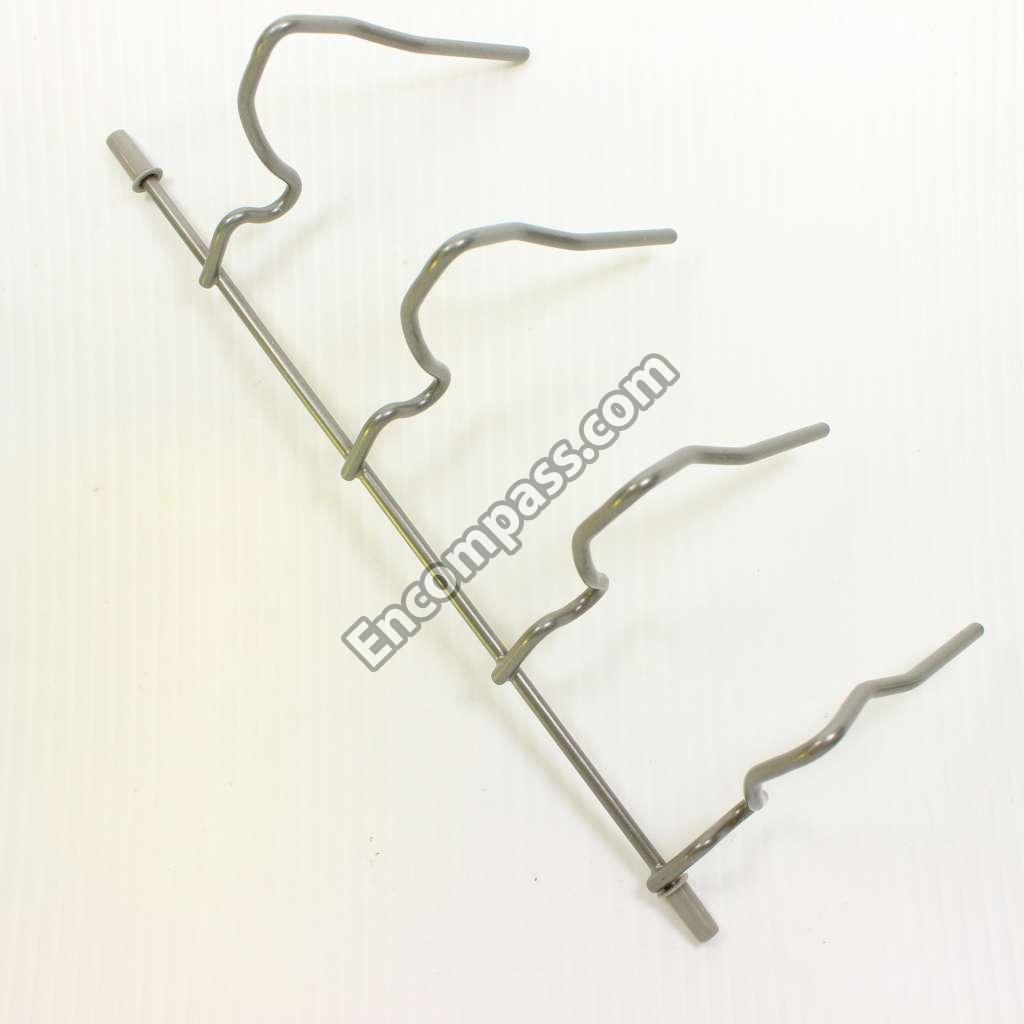

154740403 154740403 FENCE
154740302 154740302 FENCE
154252401 154252401 FILTER,POLYPRO
154775401 154775401 FILTER,SOIL DIRECTOR
154767801 154767801 FLOAT
154478901 154478901 GASKET
154406401 154406401 GASKET,DELIVERY TUBE
154246801 154246801 GASKET,SUMP
154463402 154463402 GROMMET,DELIVERY TUBE
154530702 154530702 HANDLE
154530902 154530902 HANDLE
154106202 154106202 HEATER NUT, 1/2, 20 BRASS (2)
154825001 154825001 HEATER,ROUND
807117001 807117001 HOSE,DRAIN
154234401 154234401 HOSE-CONNECTOR
154461902 154461902 HOUSING,SUMP
154525503 154525503 INSERT
154859001 154859001 INSULATION,BLANKET
154589503 154589503 KICKPLATE ASSY,BLACK ,W/FOAM
154494601 154494601 LINER,DOOR ASSY.
154859101 154859101 MOTOR & PUMP ASSY
154247001 154247001 O-RING, FRONT
154246901 154246901 O-RING, REAR
154662503 154662503 PANEL,CONTROL ,BLACK
154580301 154580301 PUMP,DRAIN

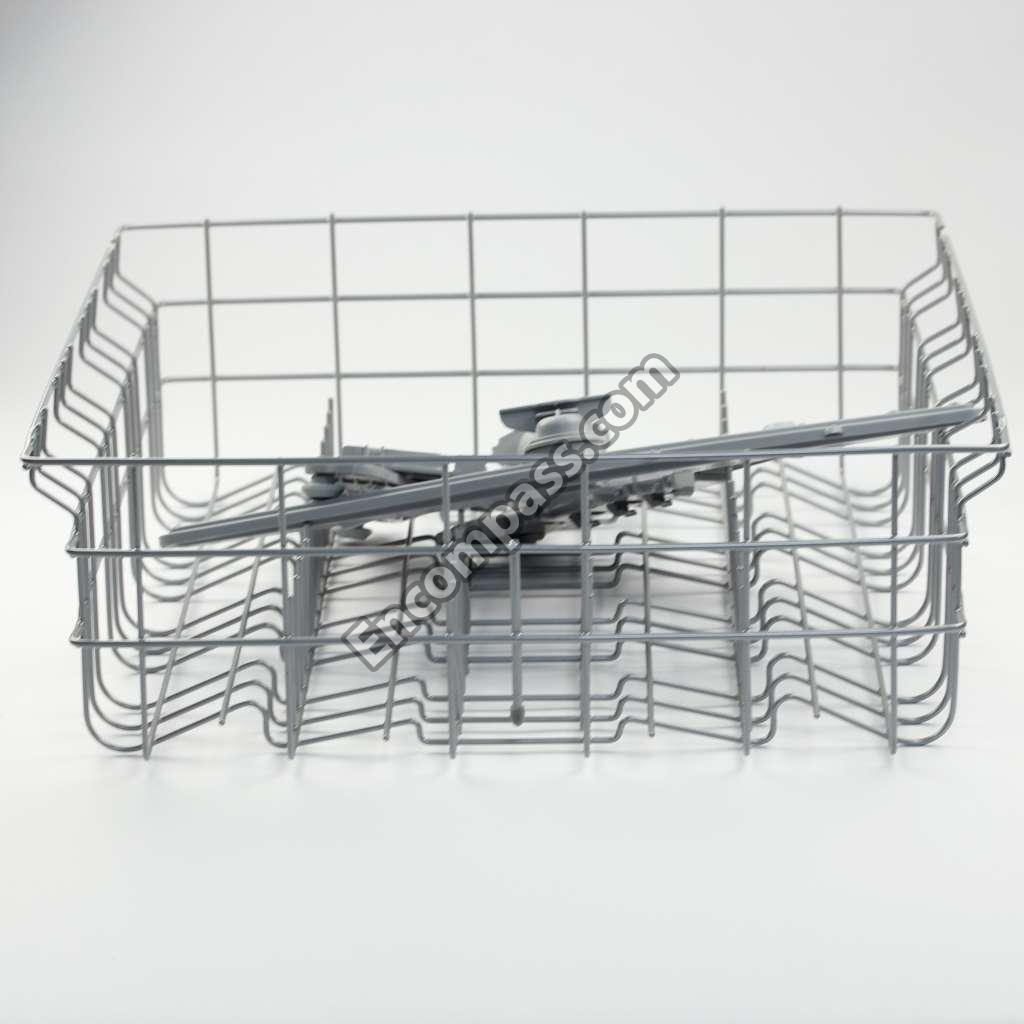

154319526 154319526 RACK ASSEMBLY
154241101 154241101 RETAINER
154246502 154246502 RETAINER,SUMP
154333903 154333903 ROLLER,TUB
5303316032 5303316032 SCREW
5300807270 5300807270 SCREW
154779601 154779601 SCREW
154200401 154200401 SCREW
154294701 154294701 SCREW
154041001 154041001 SCREW
154297701 154297701 SCREW
154491101 154491101 SCREW
154409401 154409401 SCREW
154200701 154200701 SCREW
154200602 154200602 SCREW, 10-16 X 3/8, HEX
5304428306 5304428306 SCREW,DOOR MTG. ,(2)
154103702 154103702 SCREW,LATCH MTG ,(2)
154419301 154419301 SCREW,LEVELING
5303943103 5303943103 SCREW,W/WASHER ,(8)
154093301 154093301 SCREW-ARM ASSEMBLY, (4)
154200601 154200601 SCREW-NO.10-16 X 3/8

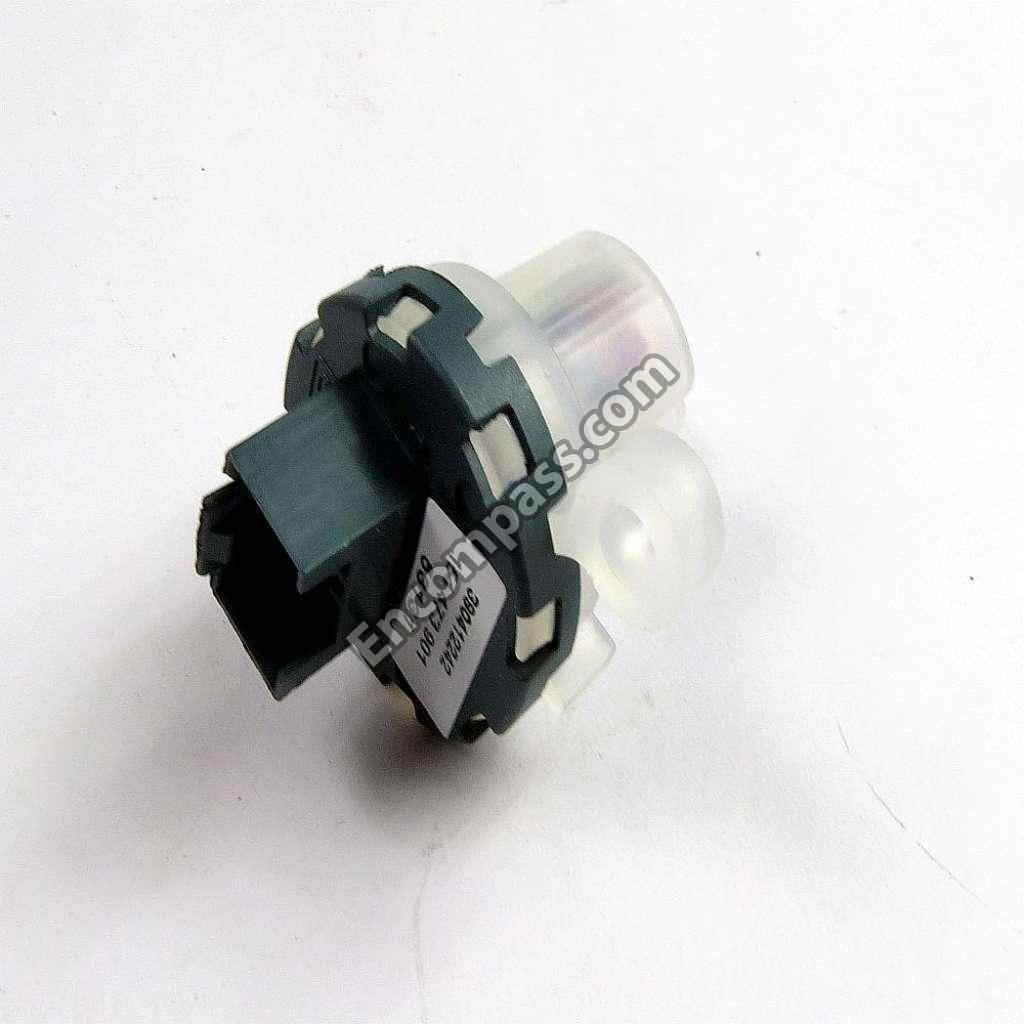

154473901 154473901 SENSOR,TURBIDITY
154289801 154289801 SHIELD,HEATER TERMINAL
154486201 154486201 SHIELD,TACTILE SWITCH
154597801 154597801 SLIDE-RACK
154754502 154754502 SPRAY ARM,3RD LEVEL

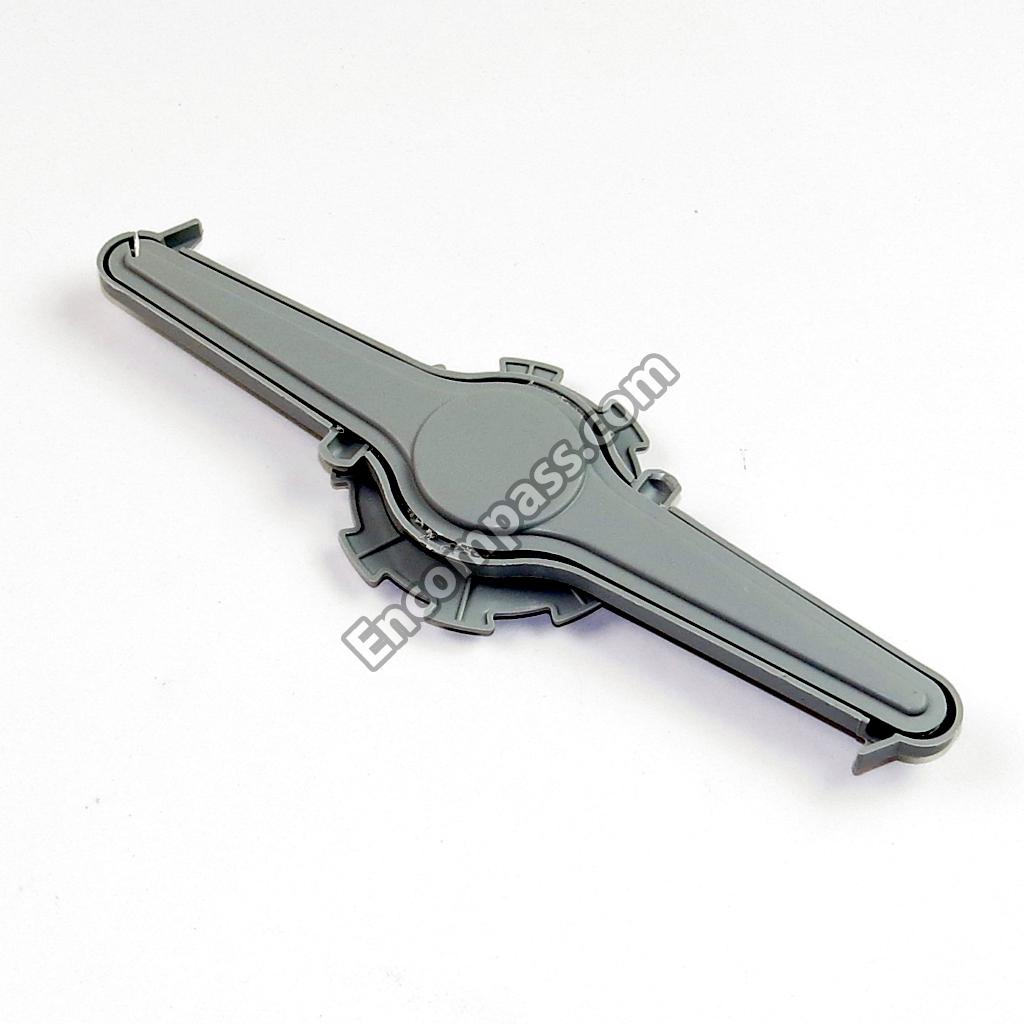

A01986801 A01986801 SPRAY ARM,GREY ,CENTER
154608102 154608102 SPRAY ARM,GREY ,LOWER
154325201 154325201 SPRING LINKAGE, (2)
154430501 154430501 SPRING,DOOR ,(2)
154662601 154662601 STRIKE,DOOR
154211401 154211401 SUPPORT
154294101 154294101 SUPPORT,SPRAY ARM ,LOWER
154773201 154773201 SWITCH ASSY,FLOAT
154474601 154474601 SWITCH,SELECTOR ,10 PAD
154290204 154290204 THERMOSTAT, RE-SETTABLE
154745503 154745503 TOEPLATE,ADJUSTABLE ,BLACK
154252701 154252701 TRAP-GLASS
154534701 154534701 TUB ASSY,W/FRAME PARTS
154824201 154824201 TUBE,DELIVERY
154446002 154446002 TUBING,WATER INLET
154423601 154423601 VENT ASSEMBLY
154174503 154174503 WHEEL & BRACKET ASSY,GREY ,LOWER RACK ,(8)
154522902 154522902 WHEEL & BUSHING ASSY,GREY ,UPPER RACK ,(8)
