Model Image
Manufacturer

Electrolux

Model Number

FDE546NBT2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

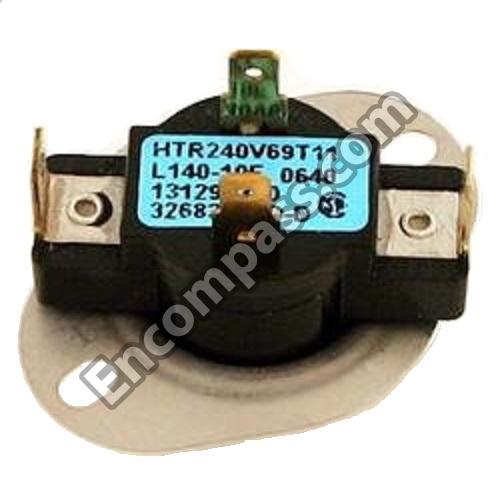

131298300 131298300 .THERMOSTAT-CONTROL
3204254 3204254 BAFFLE,HEATER SHIELD
5303281019 5303281019 BALL,GROUNDING
5303281079 5303281079 BLOWER WHEEL
5303269972 5303269972 BRACKET-GROUNDING
131332700 131332700 BRACKET-HINGE
5308012843 5308012843 BRACKET-HINGE TOP
131111501 131111501 BUTTON,START SWITCH ,WHITE ,PUSH TYPE
5303210285 5303210285 BUZZER
5303212834 5303212834 CLAMP-MOTOR
131063700 131063700 CLIP
5303281020 5303281020 CLIP,BALL ,STEEL ,FLAT NUT
131197000 131197000 CLIP,CONSOLE MTG
5303281074 5303281074 CLIP,GUIDE ,(3)
3205821 3205821 CLIP,TOP-TO-FRONT
3281061 3281061 CLIP-LINT FRAME

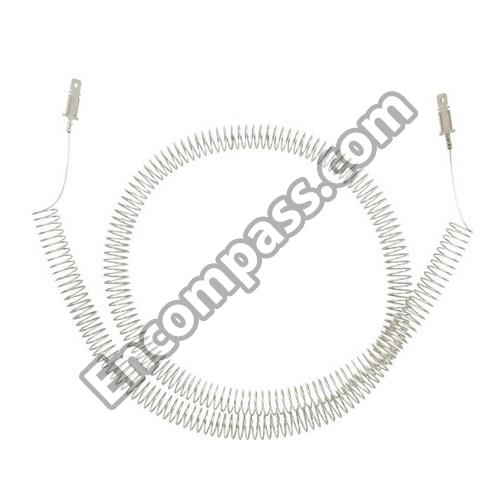

5300622034 5300622034 COIL ELECTRIC
131122611 131122611 COVER,END CAP ,WHITE ,LH
131122601 131122601 COVER,END CAP ,WHITE ,RH
5303211428 5303211428 COVER,TERMINAL BLOCK
131122602 131122602 COVER-END CAP
131122612 131122612 COVER-END CAP
5303307784 5303307784 COVER-FAN
131367101 131367101 CRADLE
5303201210 5303201210 DOOR-GASKET
316011503 316011503 DRAWER
3201199 3201199 DRUM-ASSEMBLY
316442301 316442301 ELEMENT-SURFACE,LARGE-8``
316439801 316439801 ELEMENT-SURFACE,SMALL-6``
131122711 131122711 END CAP - L.H.
131122712 131122712 END CAP LH ALMOND
131122702 131122702 END CAP RH ALMOND
316240905 316240905 END CAP,BLACK ,LH
131122701 131122701 END CAP-R.H.- WHITE
3051163 3051163 GLIDE-DRWR
3201202 3201202 GROMMET
131192302 131192302 HANDLE-DOOR, ALMOND

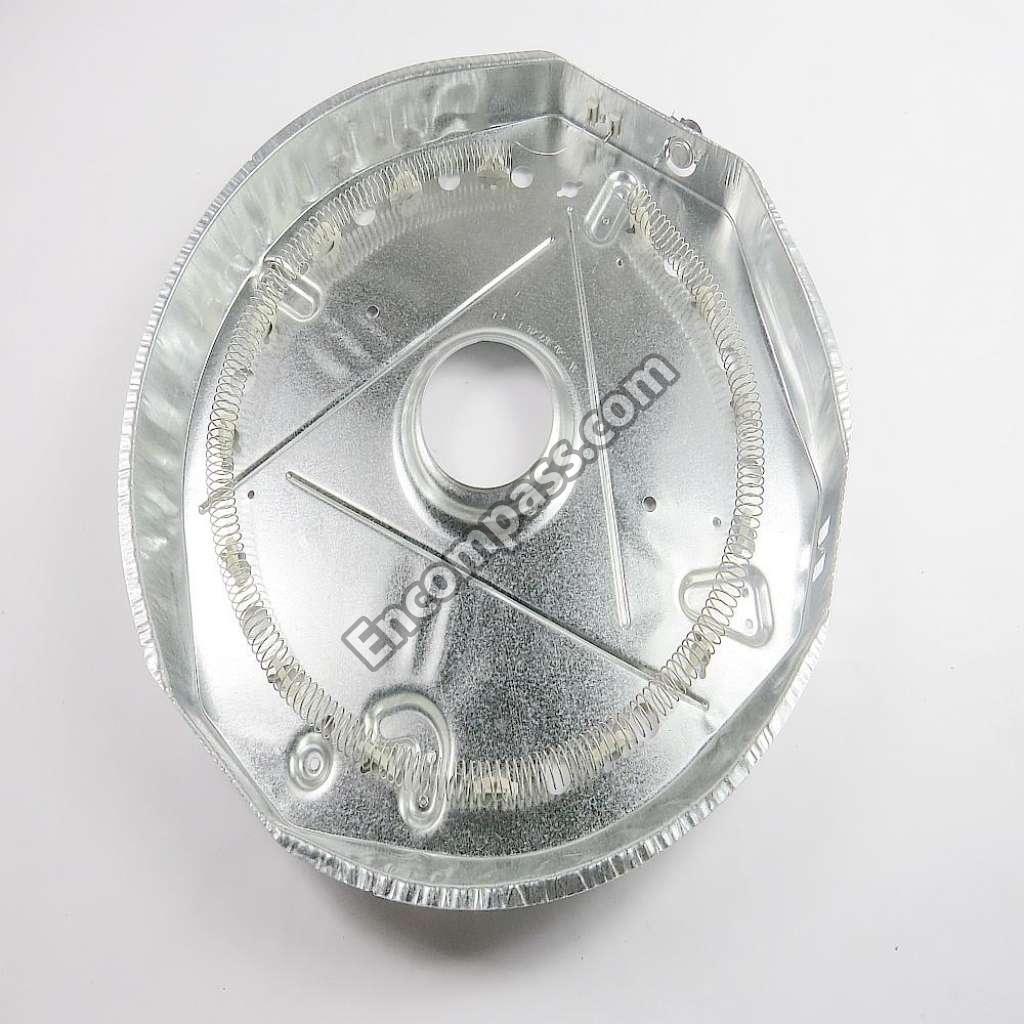

131475320 131475320 HEATER ASSY,W/HOUSING
5303281050 5303281050 HINGE-DOOR
5308015259 5308015259 HOLDER-LAMP
5303281085 5303281085 IDLER SPRING (2)
131141102 131141102 KNOB-ROTARY
5308027430 5308027430 LAMP
316231500 316231500 LINER,DRAWER
5303017715 5303017715 MEDALLION, 1-1/2`` DIA, BLACK, SURFACE ELEMENT
316231305 316231305 PANEL-DRAWER,WHITE
5308000184 5308000184 PIN CENTER HINGE
131346400 131346400 PIN,PANEL LOCATOR ,SIDE
5303281153 5303281153 REAR BEARING KIT,INCLUDES 5,6 ,12,13,14,18,32
5308015210 5308015210 RECEPTACLE
134446800 134446800 RESISTOR,POWER,4.4K OHM
131301100 131301100 SCREW
131205100 131205100 SCREW
131017900 131017900 SCREW
5303281113 5303281113 SCREW (2)
131420300 131420300 SCREW (2)
5303283289 5303283289 SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING
131205300 131205300 SCREW,10-16 X 0.750
131205400 131205400 SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE
134156200 134156200 SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE
5304455651 5304455651 SCREW,HEX WASHER HEAD ,8-15A X 0.500
5303015671 5303015671 SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT
131168200 131168200 SCREW,PAN HEAD ,8-18B X 0.31
131382300 131382300 SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
131243800 131243800 SCREW-BRKT TOP,PAN HD LOCKING ,
5303281051 5303281051 SCREW-HANDLE
241710601 241710601 SCREW-HINGE MTG,HEX HD ,1/4-20 X 0.875
5303001449 5303001449 SEAL-AIR DEFLECTOR, FOAM PLASTIC
5303281049 5303281049 SEAL-BASKET, LOWER
5303281067 5303281067 SHIELD-HEAT
5303001037 5303001037 SHIM -UPPER HINGE
3201205 3201205 SPACER-DOOR
5303281076 5303281076 SPACER-IDLER ARM
5303281083 5303281083 SPRING-FAN COVER
134902000 134902000 SWITCH START
3202786 3202786 TERMINAL BLOCK,HEATER HOUSING
5303269973 5303269973 TUBE-EXHAUST
137552900 137552900 VANE,STRAIGHT
316580420 316580420 WIRING HARNESS,SURFACE ELEMENT
