Manufacturer
Electrolux
Model Number
FDGB34RGS1
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
+ ADHESIVE,HIGH TEMP |
|
|
+ ORIFICE,NATURAL GAS ,SIZE 44 |
|
|
BALL,GROUNDING |
|
|
BRACKET |
|
|
BRACKET |
|
|
BRACKET |
|
|
BRACKET,BEARING SUPPORT |
|
|
BURNER ASSEMBLY |
|
|
CLAMP,MOTOR MTG. |
|
|
CLIP |
|
|
CLIP |
|
|
CLIP |
|
|
CLIP,BALL ,STEEL ,FLAT NUT |
|
|
CLIP,CONSOLE MTG |
|
|
CLIP,GUIDE ,(3) |
|
|
CLIP,TOP-TO-FRONT |
|
|
COVER |
|
|
COVER,END CAP ,WHITE ,LH |
|
|
COVER,END CAP ,WHITE ,RH |
|
|
DOOR CATCH |
|
|
DUCT,AIR |
|
|
END CAP - L.H. |
|
|
END CAP-R.H.- WHITE |
|
|
GASKET,DOOR SEAL |
|
|
GLIDE-DRUM |
|
|
HANDLE,DOOR ,WHITE |
|
|
INSULATION |
|
|
KNOB,ROTARY ,WHITE/DK GRAY |
|
|
LOCK |
|
|
LOWER FELT |
|
|
LUBRICANT,HIGH TEMP |
|
|
MOTOR & PULLEY ASSY |
|
|
PANEL |
|
|
PANEL |
|
|
PANEL,OUTER DOOR ,WHITE |
|
|
PLUG |
|
|
REAR BEARING KIT,INCLUDES 5,6 ,12,13,14,18,32 |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW, CR PAN HEAD, 8-32 X 0.250, THREAD FORMING |
|
|
SCREW,10-16AB X 0.375 |
|
|
SCREW,BRACKET MTG. ,10-16B X 1.375 ,CR/SQ DRIVE |
|
|
SCREW,FLAT HEAD `8-18AB X 0.44 ,CR/SQ DRIVE |
|
|
SCREW,HEX WASHER HEAD ,8-18 X 0 .375 ,CUP POINT |
|
|
SCREW,LEVELING LEG |
|
|
SCREW,PAN HEAD ,8-18B X 0.31 |
|
|
SCREW,QUADREX HEAD ,10-14 X 1.00 ,VANE MTG.,SPECIAL |
|
|
SCREW-BRKT TOP,PAN HD LOCKING , |
|
|
SEAL-EXHAUST TUBE |
|
|
SENSOR,RADIANT |
|
|
SPACER |
|
|

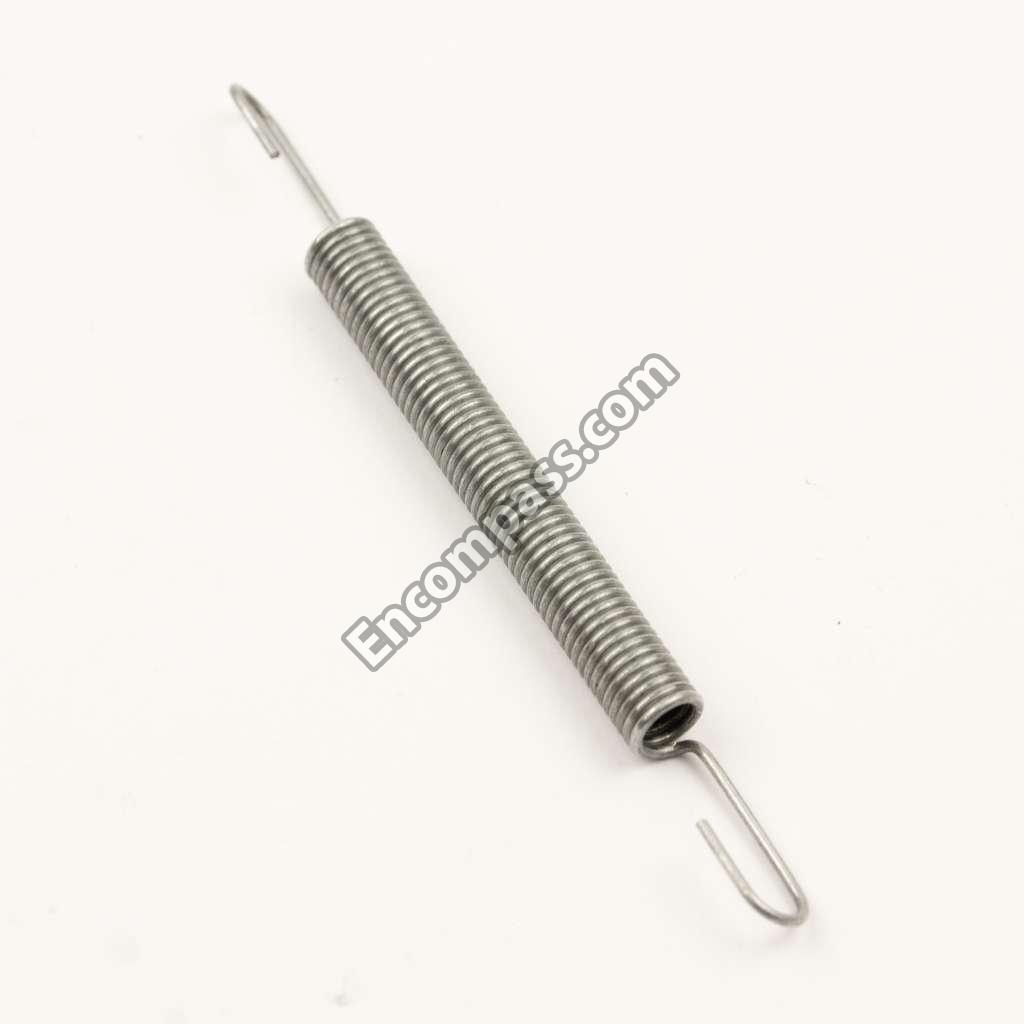

SPRING,IDLER ARM |
|
|
SURFACE UNIT LARGE |
|
|

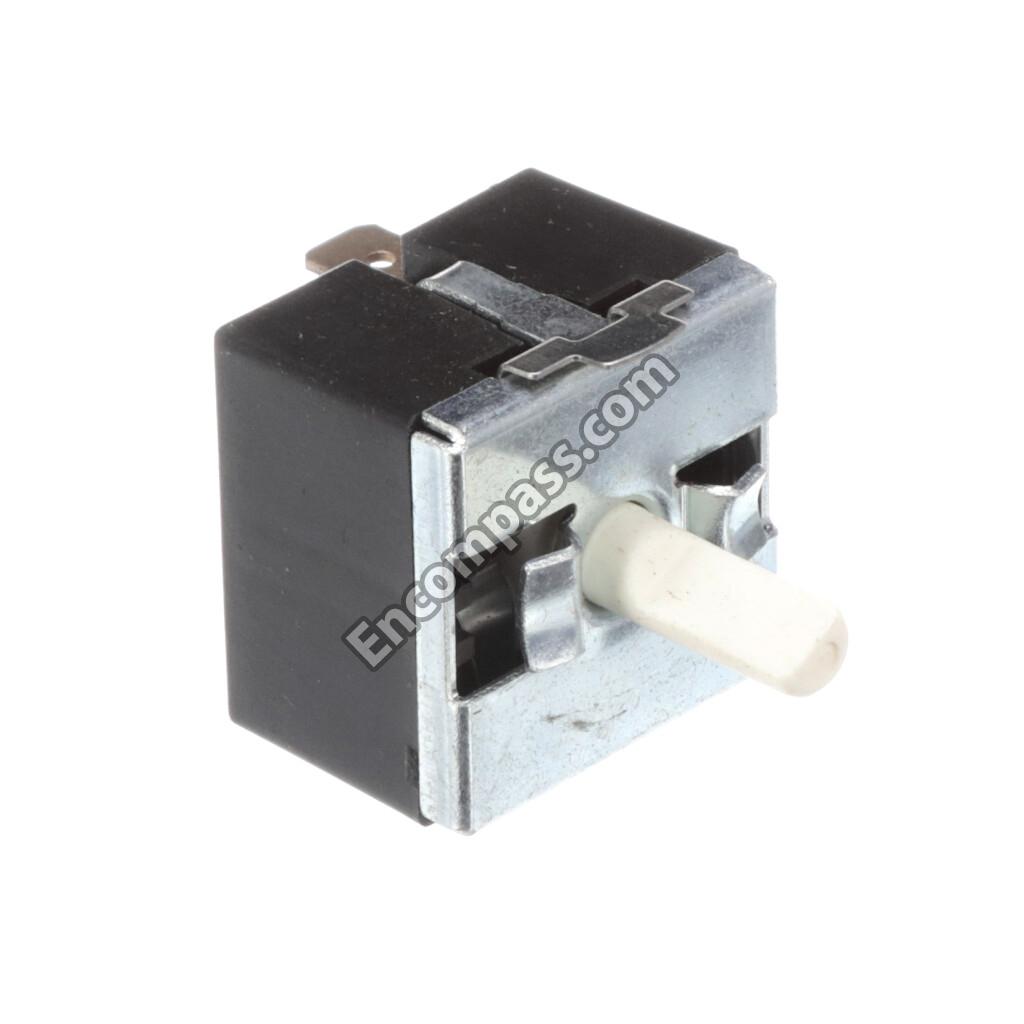

SWITCH,2 POSITION |
|
|
SWITCH,DOOR ,W/O DRUM LIGHT |
|
|
TAIL PIECE |
|
|
THERMOSTAT,SAFETY |
|
|
THERMOSTAT,TEMP CONTROL |
|
|
TIMER,DRYER |
|
|
TRAP,LINT BLADE ASSY |
|
|
TUBE,EXHAUST ,REAR ,W/MTG BRACKET |
|
|
TUBE,EXHAUST ,SIDE/BOTTOM ,OPTIONAL KIT |
|
|
VALVE,GAS |
|
|
VANE,STRAIGHT |
