Model Image
Manufacturer

Electrolux

Model Number

FED300ASA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303310511 5303310511 BAR
5303300148 5303300148 BRACKET
5303305530 5303305530 BRACKET
5304401475 5304401475 BRACKET
318054701 318054701 BRACKET
318015020 318015020 BRACKET
318055601 318055601 BRACKET
316017303 316017303 BUTTON
5304400195 5304400195 CLIP
5303284616 5303284616 CLIP-THERMOSTAT
318184801 318184801 CLOCK/TIMER
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
5303299749 5303299749 ELEMENT

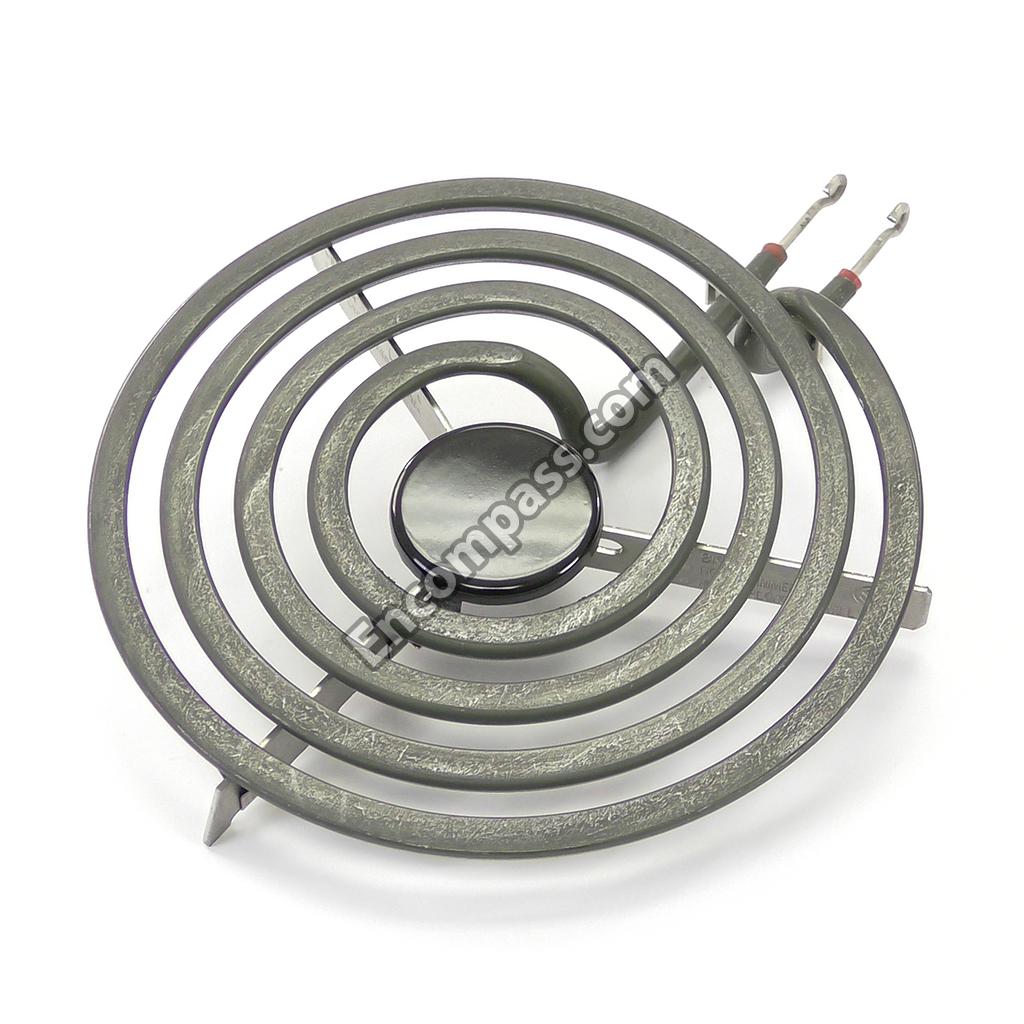

5308011964 5308011964 ELEMENT-SURFACE, LARGE/8 INCH, (2), MEDALLION INCL
318053203 318053203 GASKET
218498111 218498111 INSERT-PAN COVER, GLASS, CLEAR (NON-ILLUSTRATED)
3008673 3008673 INSULATION
318196609 318196609 KNOB
318250801 318250801 LENS
5304462665 5304462665 LENS-INDICATOR LIGHT
3200297 3200297 LIGHT LAMP,INDICATOR
5303051533 5303051533 LIGHT-INDICATOR
318089613 318089613 LINER
5303301461 5303301461 MEDALLION
318009076 318009076 PANEL
318070910 318070910 PANEL
5303310515 5303310515 PANEL
318159800 318159800 PANEL
318182963 318182963 PANEL
318175100 318175100 PLATE
318111800 318111800 PLATE
316042300 316042300 PLATE
318328010 318328010 RECEPTACLE,HINGE
3051554 3051554 ROD
5303323130 5303323130 SCREW
5303325174 5303325174 SCREW
5303307980 5303307980 SCREW
5303211311 5303211311 SCREW
5303323134 5303323134 SCREW
318053301 318053301 SEAL
318192400 318192400 SPRING
5304403015 5304403015 SUPPORT
318057910 318057910 SWITCH
318120501 318120501 SWITCH,SURFACE UNIT ,SMALL & LARGE
5303323704 5303323704 TERMINAL-BLOCK
318059310 318059310 THERMOSTAT,OVEN
5303300213 5303300213 TRIM
318027804 318027804 TRIM
