Model Image
Manufacturer

Electrolux

Model Number

FED387CHSB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5303310527 5303310527 BACK-MAIN
5303311203 5303311203 BLADE
318043100 318043100 BRACKET
5304401475 5304401475 BRACKET
318054701 318054701 BRACKET
318055601 318055601 BRACKET
5303272305 5303272305 BUTTON,CLOCK/TIMER ,BLACK
316010901 316010901 CAP,BURNER ,GLOSS BLACK ,SMALL ,(4)
5304400195 5304400195 CLIP
5303284616 5303284616 CLIP-THERMOSTAT
316096000 316096000 CLOCK/TIMER
5303318711 5303318711 COVER
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
318123901 318123901 DEFLECTOR
318124100 318124100 FRONT
318053103 318053103 GASKET
5304470359 5304470359 GLASS,OVEN DOOR ,BLACK
318041603 318041603 GLASS-OVEN DOOR, HEAT BARRIER
318041102 318041102 GLASS-WHITE
3018610 3018610 GLIDE, BROILER (6)
5303272852 5303272852 GRATE,BLACK ,(4)
316011200 316011200 IGNITOR-TOP BURNER, (4)8 W/MTG BRACKET
5303297484 5303297484 INDICATOR LIGHT
5303310538 5303310538 INSULATION OVEN BAC

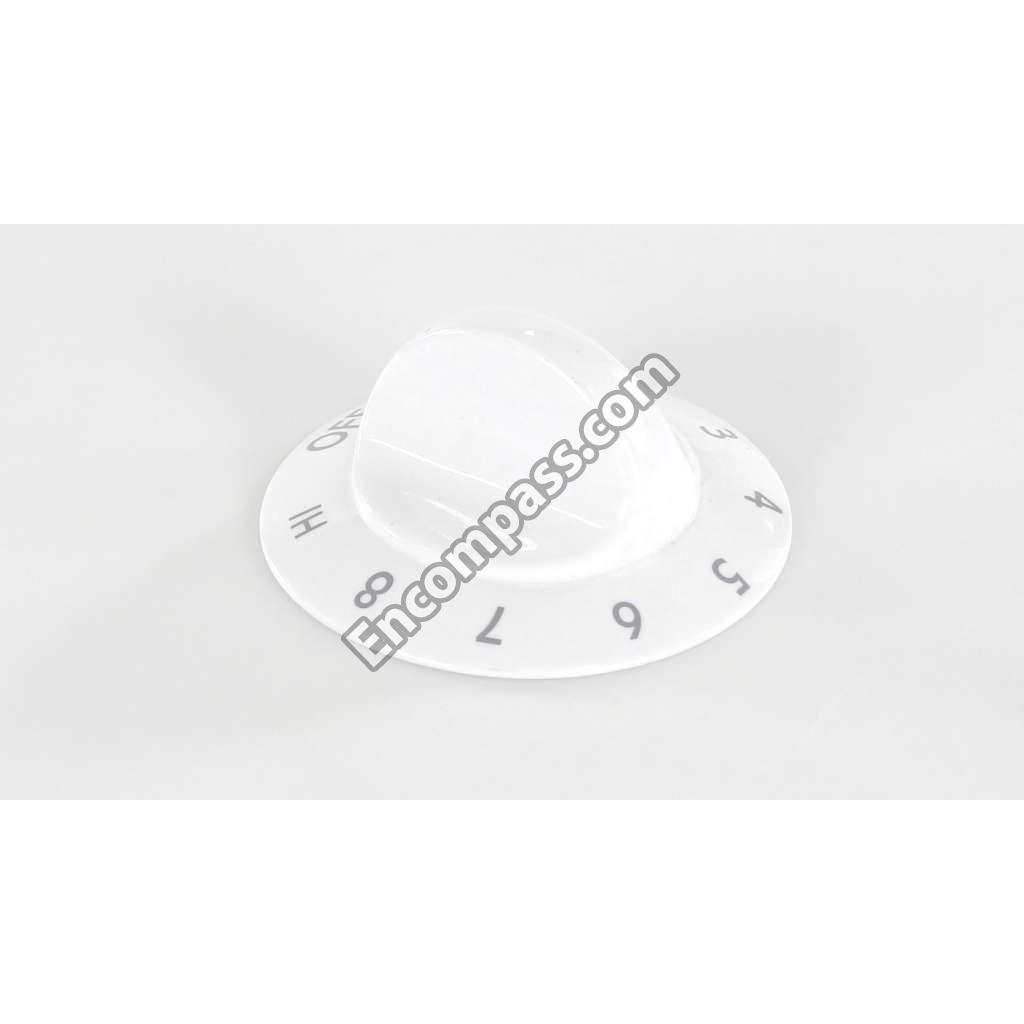

318165101 318165101 KNOB
318164500 318164500 KNOB
5303286386 5303286386 L.P. CONVERSION KIT
5303310536 5303310536 LATCH
5308006417 5308006417 LENS,INDICATOR LAMP ,RED ,(2)
5303051533 5303051533 LIGHT
318157011 318157011 LINER
318089609 318089609 LINER
5303311202 5303311202 MOTOR,CONVECTION
318112200 318112200 NLAPLATE
5303212803 5303212803 NUT
5303013272 5303013272 NUT, BAFFLE
5303210090 5303210090 ORIFICE-TOP BURNER, SMALL (2)
5303310515 5303310515 PANEL
318080000 318080000 PLATE
318054700 318054700 PLATE
318111800 318111800 PLATE
316042300 316042300 PLATE
807108202 807108202 POWER CORD
318328010 318328010 RECEPTACLE,HINGE
5303311160 5303311160 ROD
5303307980 5303307980 SCREW
5303324305 5303324305 SCREW
5303317179 5303317179 SCREW
5303323134 5303323134 SCREW
5303211311 5303211311 SCREW
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
5303281378 5303281378 SCREW,WAFER HEAD ,10-24F X 3 ,HANDLE MTG
5303202011 5303202011 SEAL,OVEN DOOR ,NON SELF CLEAN
5303300142 5303300142 SHIELD
318108600 318108600 SHIELD
318014301 318014301 SPACER
5303317178 5303317178 SPACER
5303317177 5303317177 SPRING
5303311164 5303311164 SPRING
5304403015 5304403015 SUPPORT
318120702 318120702 SWICH-LACH
318005201 318005201 SWITCH
318120501 318120501 SWITCH,SURFACE UNIT ,SMALL & LARGE
316032000 316032000 SWITCH-IGNITOR,(4)
318049020 318049020 TRIM
318028900 318028900 TRIM
5303311194 5303311194 TRIM
5303300213 5303300213 TRIM
318027804 318027804 TRIM
316011300 316011300 TRIM RING,BURNER ,BLACK ,SMALL
318106904 318106904 TRIM-VENT
316059612 316059612 TUBE,BURNER ,RED ,RF
316436500 316436500 TUBE,VALVE TO REGUL ,3/8
3203459 3203459 VALVE,SAFETY
5303289034 5303289034 WIRING HARNESS,MODULE/IGNITER
