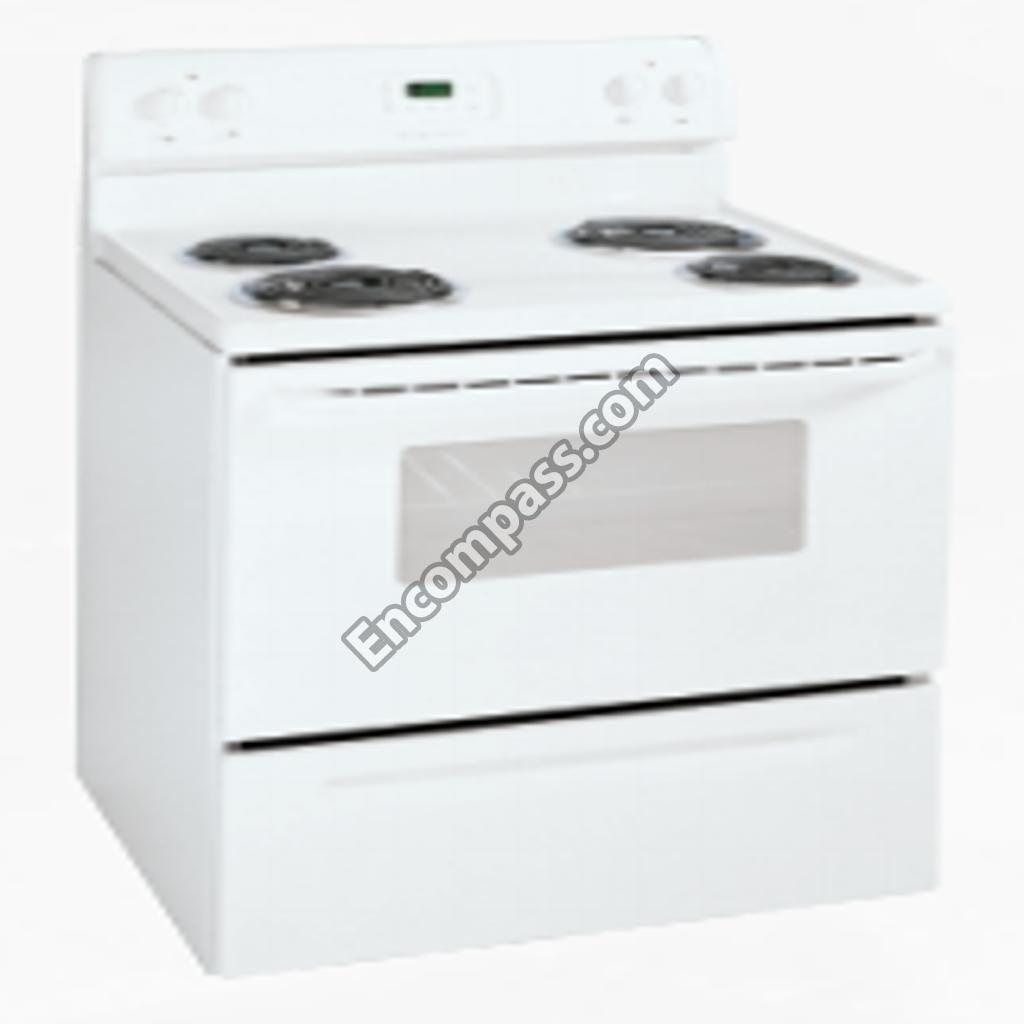

Model Image
Manufacturer

Electrolux

Model Number

FEF326AQM

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
316201300 316201300 BACK
5304414035 5304414035 BISQUE TOUCH UP PAI
316081200 316081200 BRACKET
316245900 316245900 BRACKET
5303013071 5303013071 BULB/LAMP
316201407 316201407 BURNER BOX
316058600 316058600 CLIP
316408000 316408000 CLIP
316239100 316239100 COVER
316233500 316233500 COVER
316233400 316233400 COVER
316011503 316011503 DRAWER-UTILITY
316240907 316240907 END CAP
316088600 316088600 GLASS
316050307 316050307 GLASS
316436600 316436600 HINGE BRACKET
316236801 316236801 INSULATION
316047707 316047707 INSULATION
316054202 316054202 INSULATION
316223003 316223003 KNOB
316433600 316433600 LABEL
316022500 316022500 LIGHT/LAMP
316230622 316230622 LINER
316231500 316231500 LINER
5303017715 5303017715 MEDALLION
316205500 316205500 NUT
316220702 316220702 OVERLAY
5303935057 5303935057 PAN
316202704 316202704 PANEL
316231309 316231309 PANEL
316246617 316246617 PANEL
316278800 316278800 PLATE
316427400 316427400 PLATE
3203550 3203550 PLUG
316067902 316067902 RACK
316116400 316116400 RECEPTACLE
5303272476 5303272476 RETAINER
316057601 316057601 ROD
316001014 316001014 SCREW
316089500 316089500 SCREW
316116000 316116000 SCREW
5303271648 5303271648 SCREW
316272900 316272900 SCREW
5303285179 5303285179 SCREW
316021110 316021110 SCREW
316021108 316021108 SCREW
316021105 316021105 SCREW
5308014215 5308014215 SCREW
316239700 316239700 SEAL
316245600 316245600 SEAL
316222709 316222709 SHIELD
316206200 316206200 SHIELD
316234014 316234014 SHIELD
316239900 316239900 SHIELD
316241001 316241001 SHIELD-END CAP
316241000 316241000 SHIELD-END CAP
316203400 316203400 SUPPORT
316206300 316206300 SUPPORT
316220219 316220219 SUPPORT
316436000 316436000 SWITCH
316280102 316280102 SWITCH
316436001 316436001 SWITCH FOR RANGE/STOVE
316112500 316112500 TEMPLATE
5303935238 5303935238 TERMINAL BLOCK KIT
316073605 316073605 TUBE
316008401 316008401 WASHER
316253146 316253146 WIRING HARNESS
