Model Image
Manufacturer

Electrolux

Model Number

FEF376CJSA

Description

Free Standing Electric Range

Interactive Exploded View

Parts List

Part Number Description
5304465312 5304465312 ACCESS COVER
316102204 316102204 ALUMINUM FOIL
316015905 316015905 BACKING SHIELD
316026600 316026600 BRACKET
316100301 316100301 BRACKET CLOCK
316099201 316099201 BRACKET SUPPORT
3131903 3131903 BUMPER
3203550 3203550 BUTTON PLUG
316117601 316117601 CENTER DRIVE GLASS
316099101 316099101 CHANNEL SUPPORT
316101545 316101545 CLOCK OVERLAY
316101544 316101544 CLOCK OVERLAY
316101543 316101543 CLOCK OVERLAY
316100591 316100591 CONTROL PANEL
316100590 316100590 CONTROL PANEL
316100589 316100589 CONTROL PANEL
5305514077 5305514077 COOKTOP CLEANER
316248303 316248303 DOOR HANDLE
316036300 316036300 DOOR LATCH
316102203 316102203 DOOR REFLECTOR
316084407 316084407 DRAWER PANEL
316084406 316084406 DRAWER PANEL
316084405 316084405 DRAWER PANEL
316067804 316067804 DRIVE TRIM
316090600 316090600 FAN BLADE
316090500 316090500 FAN MOTOR
316081405 316081405 GLASS BRACKET
316098140 316098140 GLASS MAIN TOP
316117701 316117701 GLASS SPACER
316089600 316089600 HANDLE SPACER
5303273063 5303273063 HINGE ASY LH
5303273062 5303273062 HINGE ASY RH
316099300 316099300 INDICATOR LIGHT
316105100 316105100 INDICATOR LIGHT
316109608 316109608 INFINITE KNOB
316054201 316054201 INSULATION
5304449471 5304449471 LATCH MOTOR
316026400 316026400 LATCH ROD
316026800 316026800 LIGHT SWITCH ROD
316080803 316080803 MAIN
316098180 316098180 MAIN TOP ASSEMBLY
316098179 316098179 MAIN TOP ASSEMBLY
316064015 316064015 MANIFOLD PANEL
316025808 316025808 MANIFOLD PANEL
316025800 316025800 MANIFOLD PANEL
316040100 316040100 MOUNTING BRACKET
5304401788 5304401788 NUT
316090800 316090800 NUT FAN RETAINER
316089013 316089013 OTR DR.GL WH
316089014 316089014 OUT DRIVE GLASS
3203540 3203540 OVEN
08067758 08067758 OVEN COVER
316067803 316067803 OVEN DOOR TRIM
316089012 316089012 OVEN GLASS
316007005 316007005 OVEN HINGE
316118102 316118102 OVEN LIGHT SWITCH
316081302 316081302 OVEN SHIELD
316081303 316081303 OVEN SHIELD
316081301 316081301 OVEN SHIELD
316027701 316027701 OVEN SWITCH
316023600 316023600 OVEN VE TUBE
316073602 316073602 OVEN VE TUBE
316000278 316000278 OWNER'S MANUAL
316099909 316099909 PANEL
316099908 316099908 PANEL
316099910 316099910 PANEL
316099907 316099907 PANEL
316099911 316099911 PANEL-SIDE B
316065306 316065306 PLATE
316081600 316081600 PLATE
316112005 316112005 RANGE ANTI-TIP BRACKET KIT
316075103 316075103 RANGE BAKE ELEMENT
5303051140 5303051140 RANGE BROIL ELEMENT
316203400 316203400 RANGE BROIL ELEMENT SUPPORT
5304494997 5304494997 RANGE BROIL PAN AND INSERT
316026701 316026701 RANGE CONVECTION FAN COVER
3051163 3051163 RANGE DRAWER GLIDE
3051162 3051162 RANGE DRAWER GLIDE, FRONT
316555800 316555800 RANGE DUAL RADIANT SURFACE ELEMENT

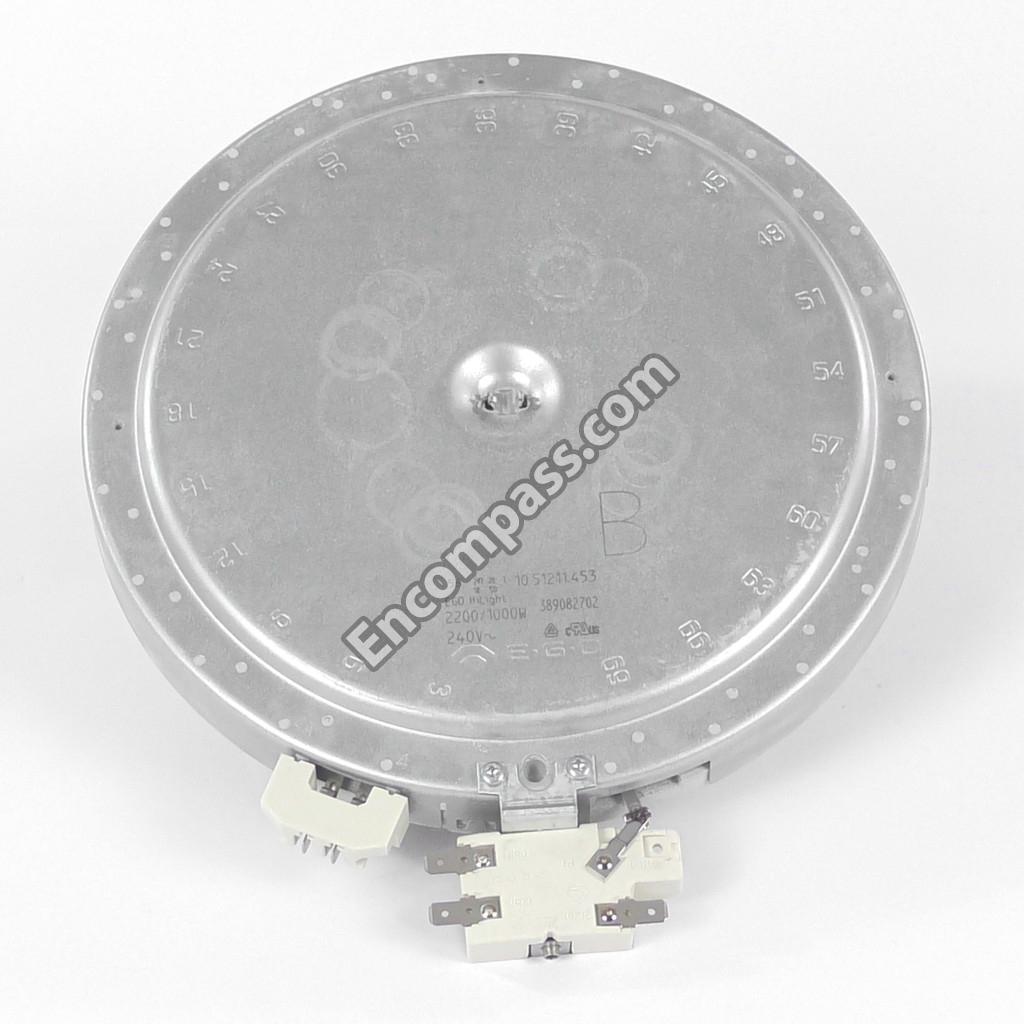

389082702 389082702 RANGE DUAL RADIANT SURFACE ELEMENT
316083100 316083100 RANGE DUAL SURFACE ELEMENT SELECTOR SWITCH
316022500 316022500 RANGE INDICATOR LIGHT
316022503 316022503 RANGE INDICATOR LIGHT
318228310 318228310 RANGE INDICATOR LIGHT LENS
316003025 316003025 RANGE INSTALLATION
316129200 316129200 RANGE LEVELING LEG
316116400 316116400 RANGE LIGHT SOCKET
316099500 316099500 RANGE MAIN TOP GUIDE PIN
316574601 316574601 RANGE OVEN DOOR FOIL TAPE
316102202 316102202 RANGE OVEN DOOR FOIL TAPE, 4 X 5-1/2-IN
316456902 316456902 RANGE OVEN DOOR HANDLE
316456901 316456901 RANGE OVEN DOOR HANDLE (WHITE)
5303280308 5303280308 RANGE OVEN DOOR HANDLE SCREW
3131570 3131570 RANGE OVEN DOOR HINGE CUT-OUT COVER
316117502 316117502 RANGE OVEN DOOR INNER GLASS
5303131601 5303131601 RANGE OVEN DOOR SEAL
316047708 316047708 RANGE OVEN INSULATION
316403803 316403803 RANGE OVEN INSULATION
316538904 316538904 RANGE OVEN LIGHT BULB
318406100 318406100 RANGE OVEN LIGHT LENS
316087500 316087500 RANGE OVEN LIGHT LENS RETAINER
316259801 316259801 RANGE OVEN LIGHT ROCKER SWITCH
5304515133 5304515133 RANGE OVEN LIGHT ROCKER SWITCH (WHITE)
316067902 316067902 RANGE OVEN RACK
316081200 316081200 RANGE POWER CORD MOUNTING BRACKET
318178110 318178110 RANGE RADIANT SURFACE ELEMENT, 6-IN
318198834 318198834 RANGE RADIANT SURFACE ELEMENT, 8-IN
316259802 316259802 RANGE ROCKER SWITCH (BISQUE)
316116000 316116000 RANGE SCREW
5303300265 5303300265 RANGE SCREW
5303280311 5303280311 RANGE SCREW
5308014215 5308014215 RANGE SCREW
316021109 316021109 RANGE SCREW
316519700 316519700 RANGE SCREW
316021110 316021110 RANGE SCREW
3014099 3014099 RANGE SCREW ANCHOR
5303271648 5303271648 RANGE SCREW, #8-18 X 1/2-IN
316436000 316436000 RANGE SMALL SURFACE ELEMENT CONTROL SWITCH
316109607 316109607 RANGE SURFACE BURNER KNOB
316436001 316436001 RANGE SURFACE ELEMENT CONTROL SWITCH
316109606 316109606 RANGE SURFACE ELEMENT KNOB (BLACK)
316099400 316099400 RANGE SURFACE ELEMENT MOUNTING SPRING
316100200 316100200 RANGE SURFACE ELEMENT WIRE HARNESS SHIELD
5304409888 5304409888 RANGE TERMINAL BLOCK
5304508926 5304508926 RANGE WARMING DRAWER CONTROL SWITCH
316008401 316008401 RANGE WASHER
316082700 316082700 RELAY
316099906 316099906 RH WH PANEL
316209000 316209000 RIVET
316114003 316114003 ROCKER SWITCH
316086901 316086901 ROCKER SWITCH
316086902 316086902 ROCKER SWITCH
316021111 316021111 SCREW
5303292005 5303292005 SCREW
316091404 316091404 SHIELD
5304403169 5304403169 SHIELD
5303289913 5303289913 SHIELD INSERT
3131975 3131975 SHIELD PANEL
316132100 316132100 SPACER-SPONG
5301145190 5301145190 STRAP
316023109 316023109 SUPPORT
316023108 316023108 SUPPORT
5304528972 5304528972 SWITCH
5304527841 5304527841 SWITCH ROCKE
316001759 316001759 TERMINAL BLOCK
316067802 316067802 TRIM
316011503 316011503 UTIL DRAWER
5304497424 5304497424 WALL OVEN TEMPERATURE SENSOR
316095602 316095602 WARMER KNOB
316095601 316095601 WARMER KNOB
316095600 316095600 WARMER KNOB
316090700 316090700 WASHER
316045000 316045000 WIRE CLIP
316015804 316015804 WIRE SHIELD
316066100 316066100 WIRE SHIELD
316083721 316083721 WRAPPER TRIM
316083720 316083720 WRAPPER TRIM
316083719 316083719 WRAPPER TRIM
