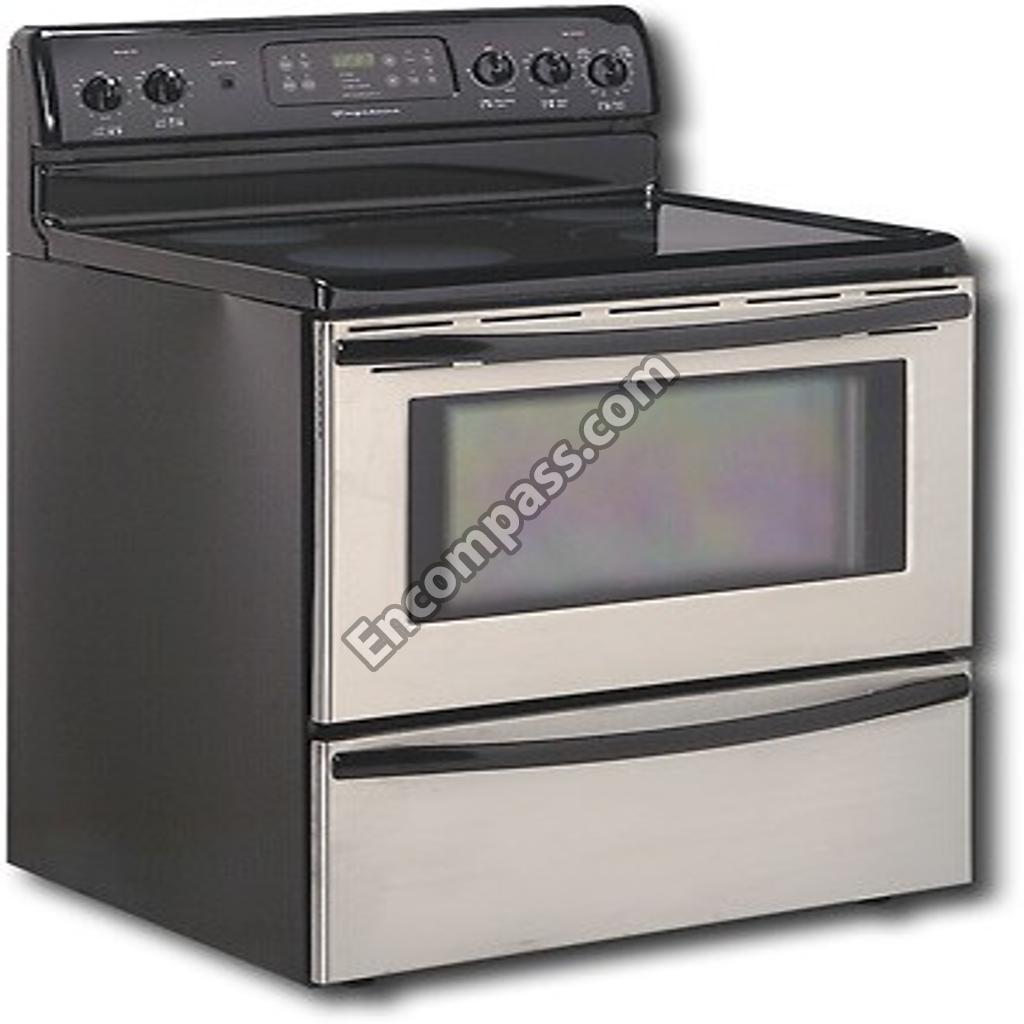

Model Image
Manufacturer

Electrolux

Model Number

FEF379ACC

Description

Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3204401 3204401 AGITATOR
316201300 316201300 BACK
3204405 3204405 BEARING,OUTER TUB
316085501 316085501 BRACKET
316214202 316214202 BRACKET
316026600 316026600 BRACKET
316217701 316217701 BRACKET
316217700 316217700 BRACKET
316245800 316245800 BRACKET
316081200 316081200 BRACKET
316237201 316237201 BRACKET,GLASS SUPPORT ,(2)
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3204395 3204395 CAP,AGITATOR ,STANDARD,SLIM
131212301 131212301 CAPACITOR,MOTOR
316247300 316247300 CATALYST
5304488479 5304488479 CLAMP,BLOWER WHEEL
131306234 131306234 CLAMP,PUMP TO TRAP
316099400 316099400 CLIP
316026701 316026701 COVER
316234500 316234500 COVER
316231800 316231800 COVER
316233500 316233500 COVER
316233400 316233400 COVER
316011503 316011503 DRAWER
316202200 316202200 ELEMENT-BAKE
316098202 316098202 ELEMENT-WARMER,100W
316010205 316010205 ELEMENT`6`` ,SURFACE ,1200 W ,RADIANT
316010206 316010206 ELEMENT`8`` ,SURFACE ,2200 W ,RADIANT
318398302 318398302 FAN BLADE
131076600 131076600 FILTER-LINT (NOT AVAILABLE INDIVIDUALLY, PART SONIC WELD
316574601 316574601 FOIL
316574603 316574603 FOIL,1.5`` X 29`` ,ALUMINUM ,BLACK
316240000 316240000 GLASS,OVEN DOOR ,BLACK ,OUTER
316237100 316237100 GLASS,OVEN DOOR ,CLEAR ,HEAT BARRIER
316117500 316117500 GLASS-OVEN DOOR,INNER
3051162 3051162 GLIDE,DRAWER ,FRONT
3051163 3051163 GLIDE-DRWR
316270200 316270200 HANDLE,DOOR ,BLACK
131789400 131789400 HANDLE,DOOR ,WHITE
316235901 316235901 HINGE
316235900 316235900 HINGE
131461200 131461200 HOSE-DRAIN 90``
131434500 131434500 HOSE-PUMP TO TUB
316082000 316082000 INSERT,BROILER PAN
5303212877 5303212877 INSERT,SPRING ADJUSTER ,VERTICAL
316236700 316236700 INSULATION
5304476729 5304476729 INSULATION
316240102 316240102 INSULATION
316047708 316047708 INSULATION,2`` ,OVEN WRAPPER
316085600 316085600 INSULATOR
316223002 316223002 KNOB,BLACK
316213900 316213900 LATCH,OVEN DOOR
131373610 131373610 LEG AND DOME ASSEMBLY
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316022503 316022503 LIGHT-INDICATOR ,250 V
316022500 316022500 LIGHT/LAMP,WARMER,INDICATOR ,
316231500 316231500 LINER,DRAWER
316251912 316251912 MAIN TOP ASSY,GLASS/STEEL ,BLACK
316136300 316136300 MOTOR,FAN
316136600 316136600 NUT-FAN RETAINER
316220805 316220805 OVERLAY,CLOCK ,BLACK ,ES300
316081900 316081900 PAN-BROILER
316201501 316201501 PANEL
316232611 316232611 PANEL
316099500 316099500 PIN
3204424 3204424 PIN - ROLL
316065306 316065306 PLATE
137107000 137107000 PLATE,LOCK
316233903 316233903 PROBE,OVEN TEMP
3204423 3204423 PULLEY MOTOR
131268401 131268401 PUMP-COMPLETE
316116400 316116400 RECEPTACLE-LAMP,OVEN
316087500 316087500 RETAINER
3161433 3161433 RING,RETAINING
316203500 316203500 ROD
316001016 316001016 SCREW
5303285179 5303285179 SCREW
316116000 316116000 SCREW
316021123 316021123 SCREW
316021109 316021109 SCREW
316021108 316021108 SCREW
5308014215 5308014215 SCREW
131420300 131420300 SCREW (2)
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
131205300 131205300 SCREW,10-16 X 0.750
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
3205150 3205150 SCREW,TUB BEARING ,8-12B X 0.750
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
316129200 316129200 SCREW-LEVELING,PLASTIC ,WITH STOP
137539500 137539500 SCREW-TRUNNION, UNC2A X .625, .312-18
5303283293 5303283293 SCREW-TRUNNION,UNC2AX.625 `.312-18
316001015 316001015 SCREW`WAF HD SQ `10-24 X 1.25 ,(2) ,HANDLE MTG
3204396 3204396 SEAL,AGITATOR CAP
316230900 316230900 SEAL,OVEN DOOR
316222707 316222707 SHIELD
316234100 316234100 SHIELD
316239300 316239300 SHIELD
5304403169 5304403169 SHIELD
316206200 316206200 SHIELD
316239900 316239900 SHIELD
316234003 316234003 SHIELD
3204426 3204426 SLEEVE,IDLER PIVOT
316117701 316117701 SPACER
316246500 316246500 SPACER
3014099 3014099 SPACER
131373900 131373900 SPRING,HORIZONTAL
3204425 3204425 SPRING,TORSIONAL
134885900 134885900 SPRING,VERTICAL
134886600 134886600 SPRING,VERTICAL ,SHORT
316203400 316203400 SUPPORT
316206300 316206300 SUPPORT
316238201 316238201 SWITCH,INFINITE ,DUAL ELEMENT
316448700 316448700 SWITCH,ROCKER ,BLACK ,OVEN LIGHT
316259800 316259800 SWITCH,SPEED BAKE,BLACK
316436000 316436000 SWITCH-INFINITE, 6`` ELEMENT
5303935086 5303935086 SWITCH-INFINITE, 8`` ELEMENT
316112500 316112500 TEMPLATE
131557200 131557200 TUB-SPLASH BRNG
5300771996 5300771996 TUBE,PRESSURE ,VINYL
316136500 316136500 WASHER,FAN MOTOR
5303161296 5303161296 WASHER,INLET HOSE
5303261031 5303261031 WASHER,PIVOT SHAFT
5308002401 5308002401 WASHER,SPIN BEARING ,UPPER
5303161306 5303161306 WASHER,SPRING TYPE
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL
316253516 316253516 WIRING HARNESS
316253207 316253207 WIRING HARNESS
