Model Image
Manufacturer

Electrolux

Model Number

FEF389CFTG

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3934058 3934058 ANTI-TIP KIT
316099800 316099800 BALLAST-LAMP
316091900 316091900 BASE
5303283574 5303283574 BRACKET
5303283575 5303283575 BRACKET
316081200 316081200 BRACKET
316026600 316026600 BRACKET
316093200 316093200 BRACKET
316081403 316081403 BRACKET
316060002 316060002 BRACKET-CLOCK MTG
3131275 3131275 BUKB-FLUORESCENT
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
3131903 3131903 BUMPER
316223300 316223300 BURNER,SEALED ,17K
316026907 316026907 CAP-END LH
316026906 316026906 CAP-END RH
316099101 316099101 CHANNEL-SUPPORT
3011813 3011813 CLIP
316095800 316095800 CLIP
316099400 316099400 CLIP
316080010 316080010 CLOCK/TIMER
5303935117 5303935117 CLOCK/TIMER
5303935118 5303935118 CLOCK/TIMER,EOC ,BLACK
3131570 3131570 COVER
316026701 316026701 COVER
316093100 316093100 ELEMENT
5303051140 5303051140 ELEMENT,BROIL ,2950 W
316090600 316090600 FAN BLADE
316088600 316088600 GLASS,OVEN DOOR ,INNER
316089005 316089005 GLASS,OVEN DOOR ,WHITE ,OUTER
316088700 316088700 GLASS-OVEN DOOR, AIRWASH
316085701 316085701 GLASS-OVEN DOOR,HEAT BARRIER

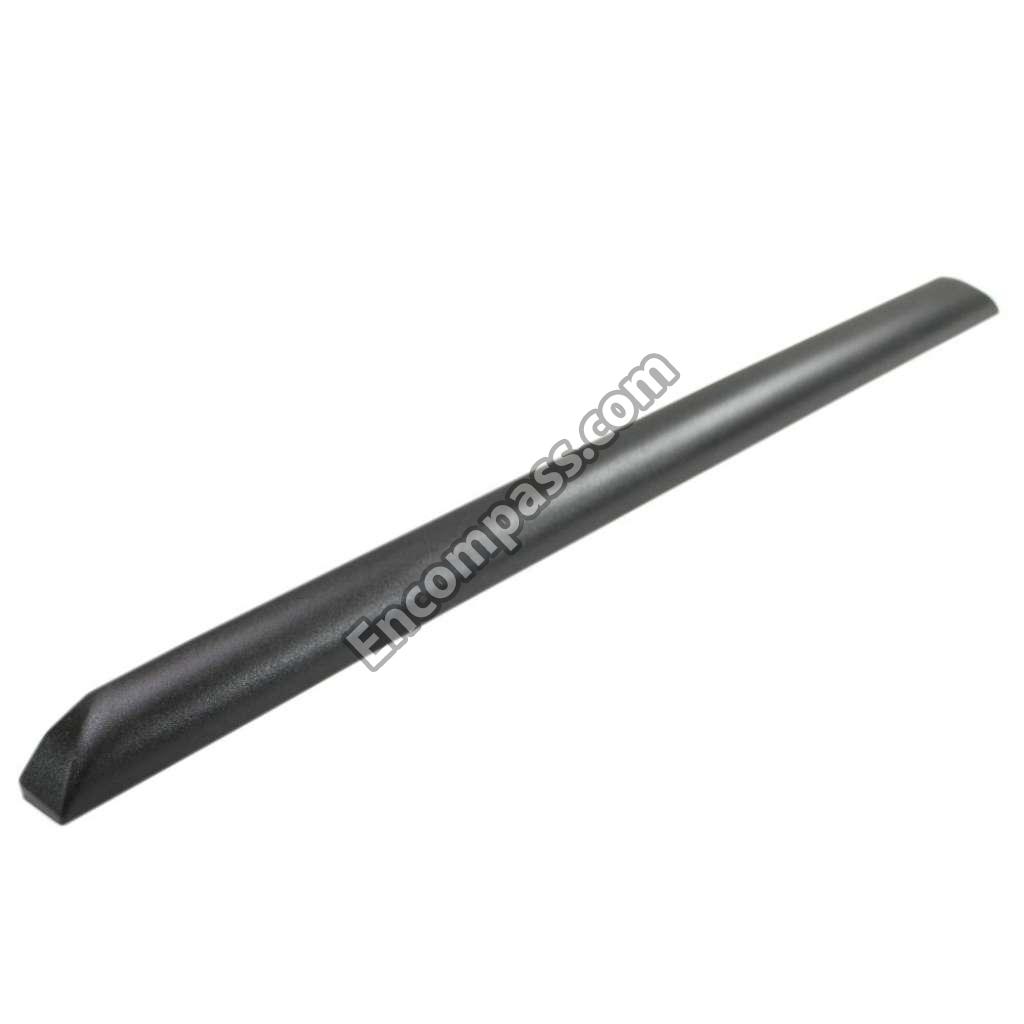

316091116 316091116 HANDLE
316026105 316026105 HANDLE,DRAWER ,ALMOND
5303273063 5303273063 HINGE
316007002 316007002 HINGE,OVEN DOOR ,(2)
318222400 318222400 HOUSING,OVEN LIGHT
316003018 316003018 INSTRUCTIONS
316054201 316054201 INSULATION
316076403 316076403 INSULATION
316047708 316047708 INSULATION,2`` ,OVEN WRAPPER
316025107 316025107 KNOB
316025106 316025106 KNOB,CONTROL ,WHITE
316095602 316095602 KNOB-WARMER
318406100 318406100 LENS,OVEN LIGHT ,GLASS
316022503 316022503 LIGHT-INDICATOR ,250 V
316022500 316022500 LIGHT/LAMP,WARMER,INDICATOR ,
316066610 316066610 LINER
316090500 316090500 MOTOR
316090800 316090800 NUT
5303288460 5303288460 NUT
316049104 316049104 PANEL
316024539 316024539 PANEL-CONTROL
316099500 316099500 PIN
3203550 3203550 PLUG
3206216 3206216 PLUG-BUTTON
807328301 807328301 RACK
316067902 316067902 RACK,OVEN
3051222 3051222 RECEPTACLE-LAMP
3051223 3051223 RECEPTACLE-LAMP
316053200 316053200 RECEPTACLE-STARTER
5303208655 5303208655 REFLECTOR
3131361 3131361 REFLECTOR
316082700 316082700 RELAY
316087500 316087500 RETAINER
316062400 316062400 RETAINER PLATE
316026400 316026400 ROD
316026800 316026800 ROD
316021108 316021108 SCREW
5303292005 5303292005 SCREW
316021105 316021105 SCREW
316116000 316116000 SCREW
316021113 316021113 SCREW
5303285179 5303285179 SCREW
5303271648 5303271648 SCREW, WAFER HD SQ DR, NO.8 - 18 (AB) X 1/2 (NON-ILLUSTRATED)
316021110 316021110 SCREW,SEMI GIMLET ,8-18 X 0.500 ,BLACK
5303280311 5303280311 SCREW,WAFER HD SQ DR ,10-32 X 0.312 ,
5303280308 5303280308 SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2, (2)
5303203397 5303203397 SCREW-LEVELING
316109700 316109700 SEAL
5303131601 5303131601 SEAL-S/C DOOR
5303289913 5303289913 SHIELD
316093300 316093300 SHIELD
316100200 316100200 SHIELD
316081302 316081302 SHIELD
3014099 3014099 SPACER
3206218 3206218 STARTER-LAMP
316049105 316049105 SUPPORT
316203400 316203400 SUPPORT,ELEMENT ,BROIL
316049800 316049800 SWITCH, INFINITE , DUAL ELEMENT
316436000 316436000 SWITCH-INFINITE, 6`` ELEMENT
316086900 316086900 SWITCH-ROCKER
316093500 316093500 THERMO DISC
316024903 316024903 TRIM-CANOPY/SHIELD
316073602 316073602 TUBE
316090700 316090700 WASHER
316008401 316008401 WASHER`3/4 OD X 1/4 ID ,STEEL
316002645 316002645 WIRING DIAGRAM
