Model Image
Manufacturer

Electrolux

Model Number

FES300ASF

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
5304405243 5304405243 ANTI-TIP ACCESSORIE
5303310511 5303310511 BAR
5303311143 5303311143 BRACKET
318263100 318263100 BRACKET
5303305530 5303305530 BRACKET
5303304030 5303304030 BRACKET
318054701 318054701 BRACKET
318015020 318015020 BRACKET
318055601 318055601 BRACKET
5303311145 5303311145 BRACKET & WHEEL ASS
5303013071 5303013071 BULB/LAMP,OVEN LIGHT
5303325174 5303325174 CAP
5303311130 5303311130 CHANNEL
5303311129 5303311129 CHANNEL
5304400195 5304400195 CLIP
5303284616 5303284616 CLIP-THERMOSTAT
318184801 318184801 CLOCK/TIMER
318235300 318235300 CONNECTOR ASSEMBLY.
5303310526 5303310526 COVER
318406100 318406100 COVER, GLASS LITE
318255006 318255006 ELEMENT,BAKE ,3000W
318255605 318255605 ELEMENT,BROIL ,2750W
5308011964 5308011964 ELEMENT-SURFACE, LARGE/8 INCH, (2), MEDALLION INCL
318254698 318254698 END CAP
318053203 318053203 GASKET
5303310533 5303310533 GLASS
318381302 318381302 GLASS
316270201 316270201 HANDLE,DOOR ,WHITE
318222400 318222400 HOUSING,OVEN LIGHT
318285013 318285013 INSULATION
318215600 318215600 KNOB
318196710 318196710 KNOB
318196639 318196639 KNOB
318196633 318196633 KNOB,CONTROL ,WHITE
316221001 316221001 LABEL
318250801 318250801 LENS
5304462665 5304462665 LENS-INDICATOR LIGHT
3200297 3200297 LIGHT LAMP,INDICATOR
5303051533 5303051533 LIGHT-INDICATOR
318089613 318089613 LINER
5303017715 5303017715 MEDALLION, 1-1/2`` DIA, BLACK, SURFACE ELEMENT
5303323144 5303323144 NUT
318009074 318009074 PANEL
318160005 318160005 PANEL
318160004 318160004 PANEL
318159800 318159800 PANEL
318066415 318066415 PANEL
5303310515 5303310515 PANEL
318070910 318070910 PANEL
318182963 318182963 PANEL
318175100 318175100 PLATE
318111803 318111803 PLATE
318264200 318264200 PLATE
318328010 318328010 RECEPTACLE,HINGE
318194402 318194402 RETAINER
3051554 3051554 ROD
5303307980 5303307980 SCREW
318175503 318175503 SCREW
5303211311 5303211311 SCREW
5303323134 5303323134 SCREW
318053301 318053301 SEAL
318014800 318014800 SPACER
318192400 318192400 SPRING
5303311142 5303311142 SUPPORT
5304403015 5304403015 SUPPORT
318057910 318057910 SWITCH
318293827 318293827 SWITCH,SURFACE UNIT ,LARGE

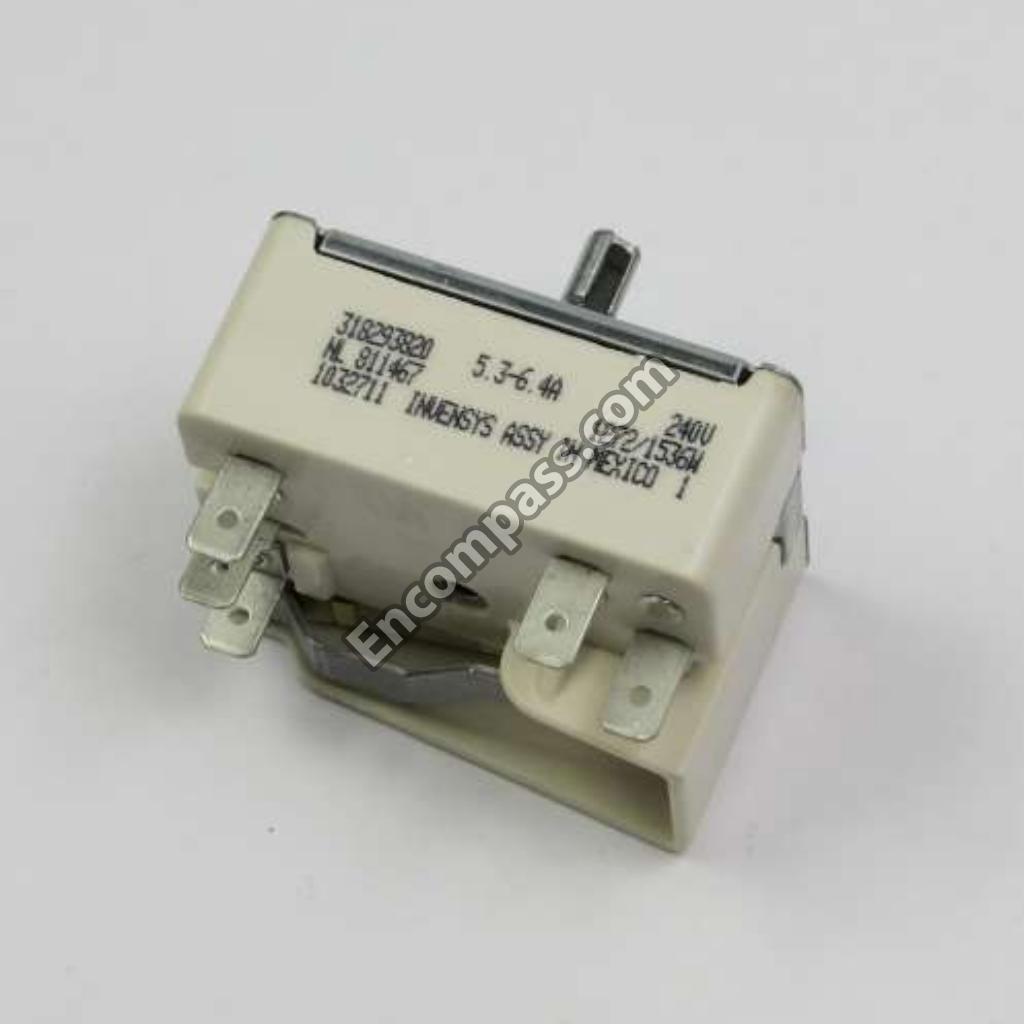

318293820 318293820 SWITCH,SURFACE UNIT ,SMALL
318223418 318223418 TERMINAL BLOCK
318223415 318223415 TERMINAL BLOCK
318223414 318223414 TERMINAL BLOCK
318223413 318223413 TERMINAL BLOCK
318059310 318059310 THERMOSTAT,OVEN
318002612 318002612 TRIM
318027804 318027804 TRIM
